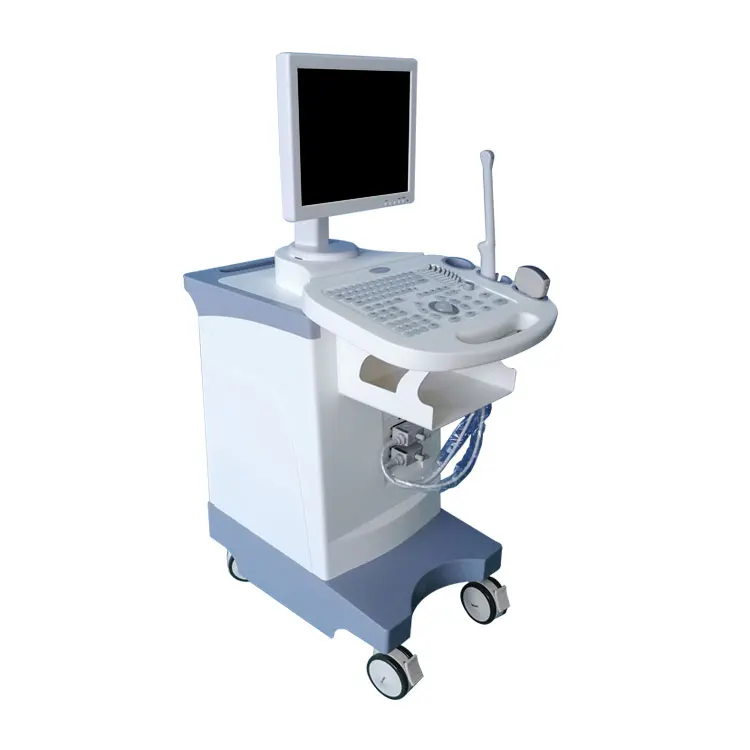

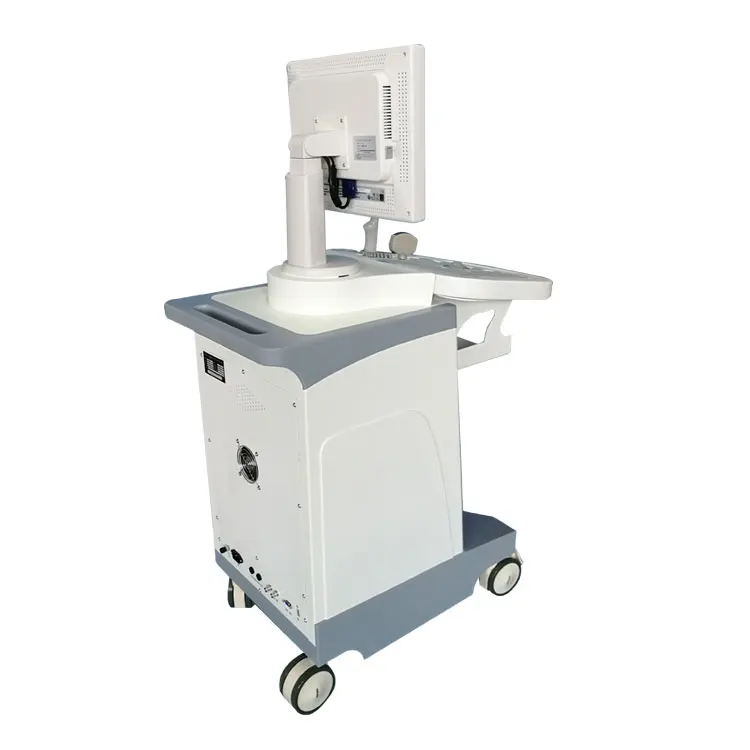

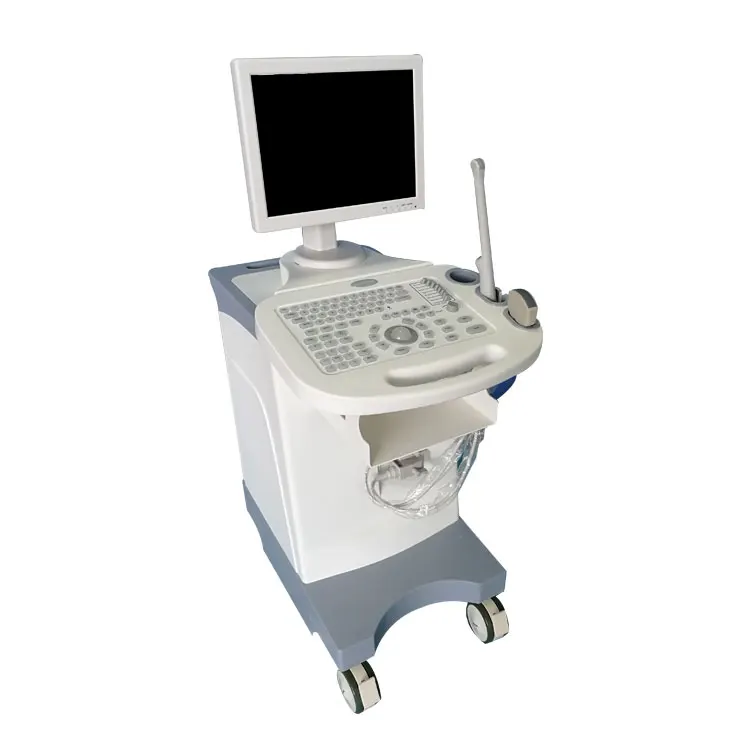

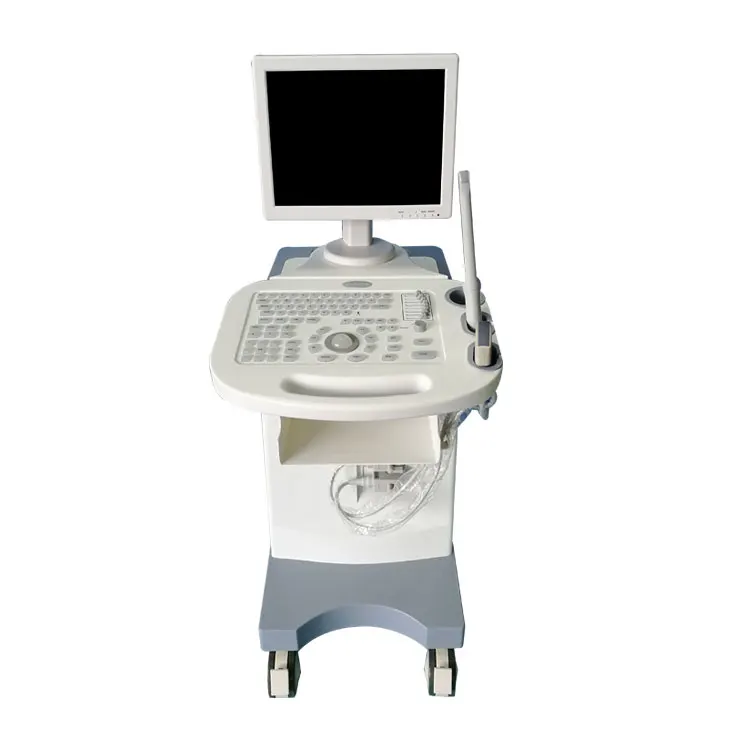

S2000 LED trolley ultrasound scanner full digital ultrasound device scanner ultrasound machine made in china

Model

S2000 LED Trolley ultrasound Scanner

Probe

80 elements R60, 3.5MHz multi-frequency convex probe

Probe automatic identification

Focus

4 segments dynamic electron focusing

double encoder regulations

Frequency Conversion:

2.5MHz/3.0MHz/3.5MHz/4.0MHz /5.0MHz

Image processing

Variable aperture

dynamic apodization

Dynamic filter

Edge enhancement

Digital space-time filter

8γ corrections

16 pseudo colors

Line correlation

Frame correlation

point correlation

linear interpolation

According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the menue.

Measurement and Note

Distance

circumference/area(method of ellipse,method of loci)

heart rate

gestational weeks(BPD,GS,CRL,FL,HC,OFD,TTD,AC)

expected date of confinement and fetus weight,etc.

full-screen character annotation,with report page

Gray scale

256 levels

Gain Control

8 segments TGC control and overall gain can be adjusted respectively

Permanment storage

128 images

Cine loop:

256 frames or check one by one

Output interface:

2 SVGA video outputs and 2 PAL video outputs

Extended Function:

Optional USD function,printer function,.

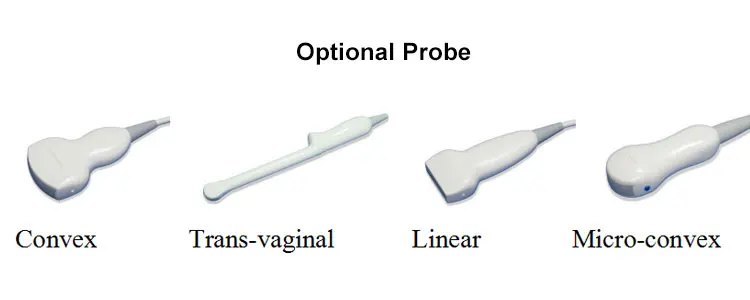

5MHz trans-vaginal probe, 7.5MHz linear probe, 7.5MHz rectal probe, mobile trolley, video printer, and ultrasonic image
workstation, etc.15 inch LED.
