Product Overview
Description
ShenZhen TOP1 Mustar Professional OEM PCB Production,PCBA SMT DIP Assembly,Electronic Original Components Sourcing Manufacturer
Product Description
Our Advantages:
1. Program and functional test and package by Free.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 22 years experience.
4. Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001,ISO13485,TS16949
5. The warranty period for PCBA: 2 years.

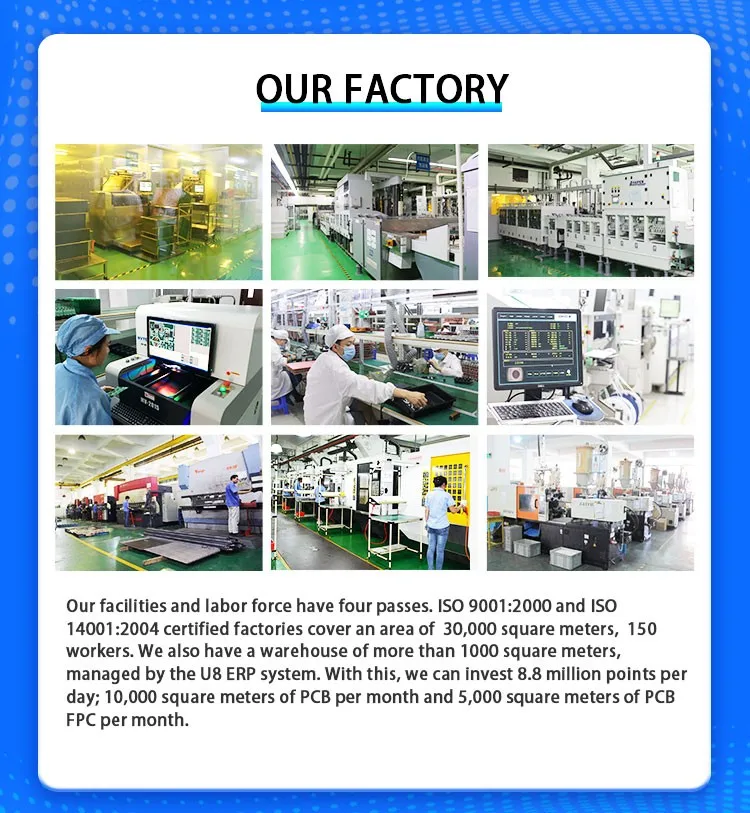

6.About Factory: 13 SMT Lines,5 DIP Lines, 1 X-ray,13 AOI,2 Sample test machines.
PCB&PCBA Capacity:
| 1 | Material | CEM-1, CEM-3, FR-4, Aluminum, Rogers, high Tg etc. |
| 2 | Board thickness | Mass production: 394mil(10mm) Samples: 17.5mm |
| 3 | Surface finish | HASL, OSP, Immersion Gold/Silver/Tin, ENIG, Gold Finger |
| 4 | PCB Max panel size | 1150mm × 560mm |
| 5 | Layer | 1-64 L |
| 6 | Min hole size | Mechanical drill: 6mil(0.15mm) Laser drill: 3mil(0.075mm) |
| 7 | PCBA QC | X-ray, AOI Test, Functional Test,QC, QA, QE |
| 8 | Special Process | Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, impedance requirement, and Resistance control. |
| 9 | Our service | PCB manufacturing, Procurement of Components, SMT/DIP PCBA assembly, Line and functional test, Installation, OEM service |
| 10 | Sanforized | Buried via, Blind via, Mixed Pressure, Embedded Resistance, Embedded Capacitance, Local Mixed Pressure, Local High Density, Back drill, impedance control. |
| 11 | SMT Capacity | 700Million Points/Day, BGA 01005 |
| 12 | DIP Capacity | 0.5Million Points/Day |
| 13 | Certificate | RoHS/ISO9001/TS16949/CE/ISO14001/ISO13485 |
Our Services
Company Information
Mu Star (Shenzhen) Industry Co.,LTD provide the following services to our clients: Schematic Design & Board Layout PCB & FPC Manufacturing Metal Injection Molding Global Supply Chain Management PCB & PCB Assembly Service deliver the finished goods to you, or drop shipping. If you require only one aspect of the above, we have the flexibility to match your needs and requirements.

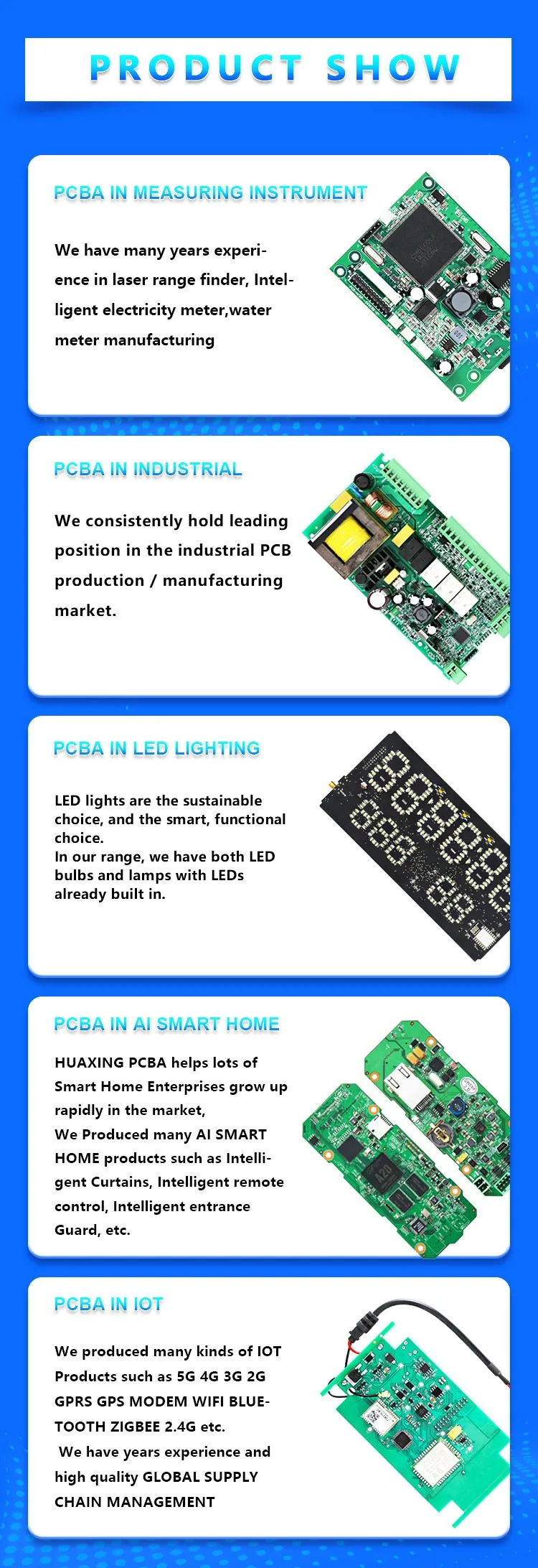

Mu Star (Shenzhen) Industry Co.,LTD Provide one-stop PCBA service, such as 0201/BGA/CCGA surface-mount(smt),thru-hole(tht),mixed technology (smt&thru-hole), conformal coating, potting and encapsulations, AOI/X-Ray PCBA testing, IC programming, box building service, etc. The PCBA used in telecomunications, automotive electronics, 3G/4G/5G products, IOT products, AI smart control products, RF, networking, security, Inudstrial control, medical Instrumentation, military products, computer peripherals and other high-teach fields. We have great reputation from our customers around the world.
Packaging & Shipping
FAQ
Q: What files do you use in PCBA fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position.
Q: Is it possible you could offer sample?
A: Yes, we can custom samples for your testing before mass production.
Q: How much time could I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.
Q: How can I know the process of my PCBA production?
A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing.
Q. Are my design secure when I send them to you?
Your files are held in complete safety and security while HUAXING PCBA Limited is in possession of them.Your files are never shared with any third parties,only our colleagues have access to your design files.Since they are your property,we respect the copyright of your files.The customer controls the disposition of these files per your requirements and written approval.
Q. For Small quantity orders,can you produce prototype PCB?
Yes,we can,we have no MOQ.HUAXING PCBA Limited has the capability to produce circuit boards in any amount.
Q.What is the warranty?
The warranty is 2years.
