Product Overview
Description
High precision spherical roller bearings
Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis. This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.
1. Material of ring : GCr15,
2.Material of Cage: Steel, brass, polyamide, nylon
3.Material of Roller: chromium steel
Structure
Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-pice brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. improved stress distribution; offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller,Two-pice brass cage
EM: Symmetrical roller, Special alloy Integral cage.
Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-pice brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. improved stress distribution; offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller,Two-pice brass cage
EM: Symmetrical roller, Special alloy Integral cage.
External form change
K: Tapered bore bearing,taper is 1:12
K30: Tapered bore bearing,taper is 1:30
N: A snap ring groove on the outer ring
W33: There are three lubrication groove and three lubrication holes in the outer ring
K30: Tapered bore bearing,taper is 1:30
N: A snap ring groove on the outer ring
W33: There are three lubrication groove and three lubrication holes in the outer ring
Clearance
C0:Norminal clearance,omitted in destination
C2:Less than Norminal clearance
C3:Larger clearance than C0
C4: Larger clearance than C3
C2:Less than Norminal clearance
C3:Larger clearance than C0
C4: Larger clearance than C3
Application
1.Papermaking machinery, deceleration device, railway vehicle axle, rolling mill, roller gearbox
2. Crusher, vibrating screen, printing machinery, woodworking machinery
3.Various industrial reducer
2. Crusher, vibrating screen, printing machinery, woodworking machinery
3.Various industrial reducer
PRODUCT SPECIFICATIONS
Product Name | spherical roller bearing 22320 CA CC CCK /W33 22320K |
Inner diameter | 100 mm |
Outer diameter | 215 mm |
Breadth | 73 mm |
Material | Chrome steel rings and rollers,plastic or steel or copper cage. |
Precision | P0 P6 P5 P4 P2 |
Features | High precision , low noise with strict controling of the quality |
High loading by the advanced high-technical design | |
Most competitive price , factory direct | |
OEM service offered ,to meet the customer's requrements | |
Delivery time | Generally it is 3-5 days if in stock, 7-15 days if not stock,or it is according to customer's requirements |

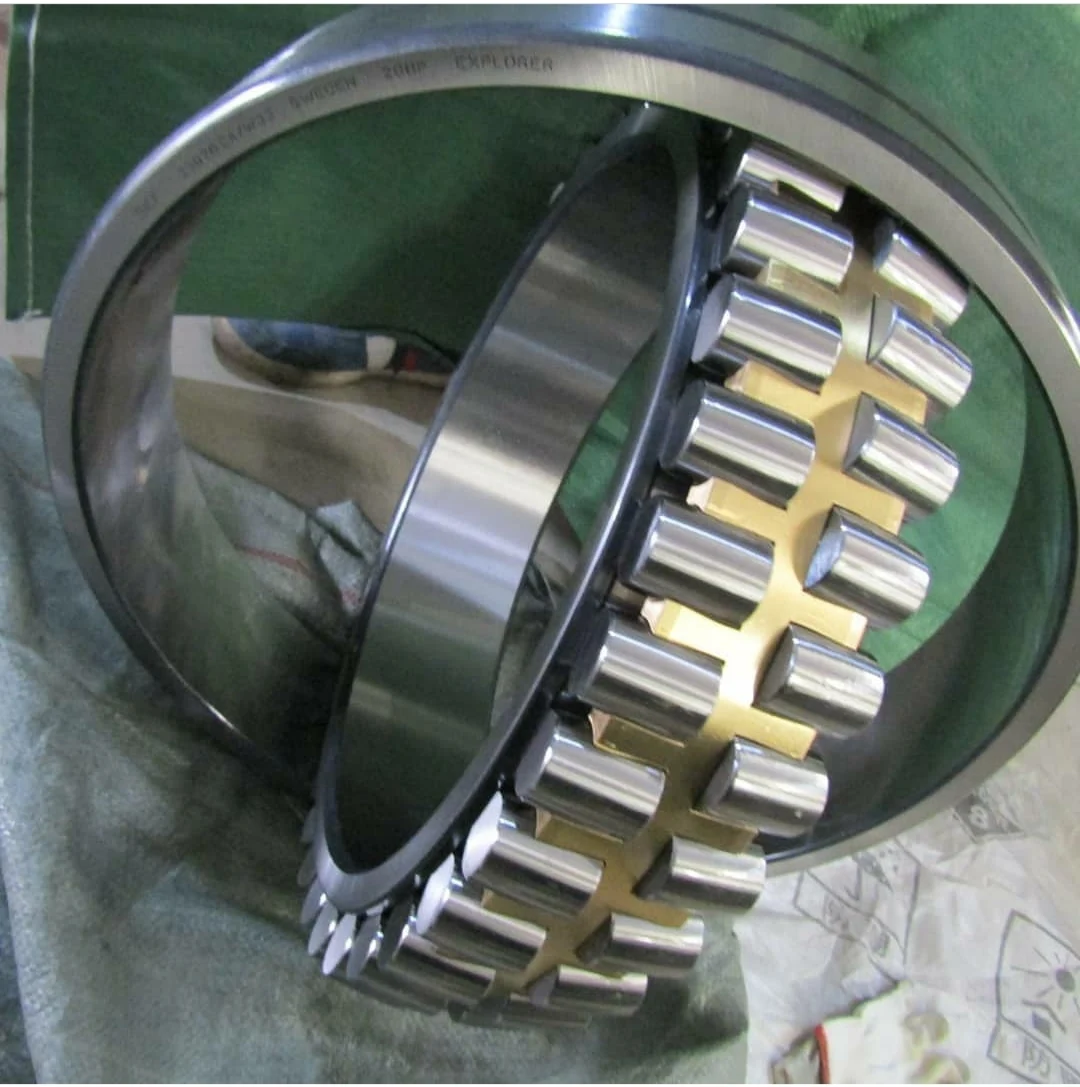

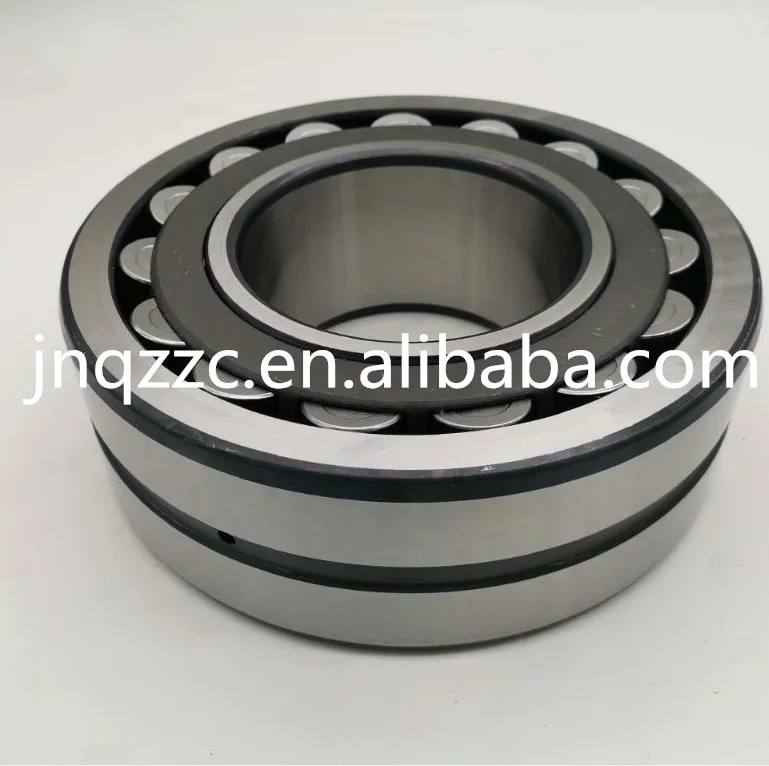

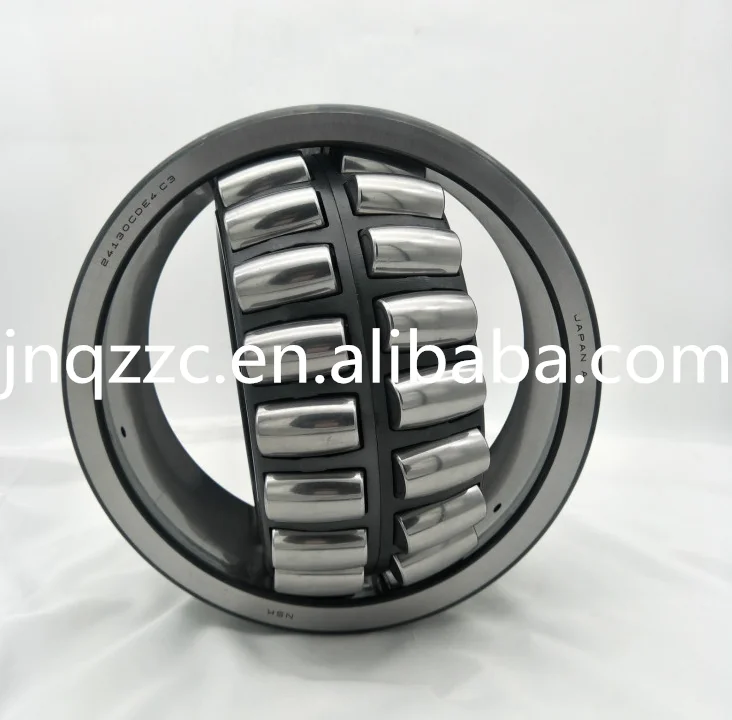

Detailed Images
