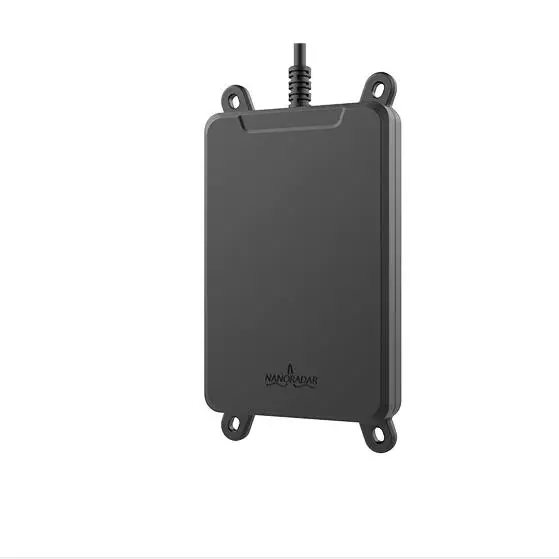

200m Long distance UAV Altimeter Radar Sensor

NRA24 is a compact K-band radar altimeter developed by Hunan Nanoradar Science and Technology Co., Ltd. It adopts 24GHz-ISM-Band, with the advantages of 2cm measuring accuracy, small size, high sensitivity, light weight, easy integration and stable performance, which satisfies the application requirements in unmanned aerial vehicle (UAV), helicopters, small airships and other field. Its product performance has been recognized by many partners.

Series:

24GHz MMW radar

Application:

Safety range measurement and collision avoidance in UAVs

Features:

Application in UAV altimeter

1) Accurate weight of UAVs/Challenges in terrain following

Complex terrain is a major obstacle to UAV flight. And the precise height and terrain tracking can ensure a stable flight and the successful fulfillment of mission. The altimeter can measure the distance between the UAV and the ground, and guide the UAV to stabilize the flight.

2) Difference between mmw radar altimeter and traditional altimeter

 Typical application example

1) Altimeter in plant protection UAVs

Plant protection unmanned aerial vehicle can be remote controlled, to prevent spraying workers from exposure to pesticide, which could ensure the safety of spraying operations, and the efficient and fast operations save a lot of manpower and resources. Plant protection unmanned aerial vehicle is required to maintain a minimum fixed height of 1 ~ 2m from the crops, without restrictions on terrain and height. According to the terrain, it could automatically set the height, and avoid the obstacles automatically by adjusting the height. Moreover it has a high requirement if measurement accuracy (height error does not exceed ± 10cm), to meet the pesticide spraying in the appropriate distance, to achieve uniform and efficient spray.
Traditional plant protection drones utilized ultrasonic as an altimeter. As the ultrasonic frequency is generally around 40 KHz ~ 45 KHz, it is easy to penetrate the vegetation, and is close to the frequency of the surrounding environment, the ultrasonic altimeter is not suitable for deep forests, arable land and other vegetation covering terrain. Besides, the effect range of Ultrasonic altimeter distance is generally less than 5m, therefore it is difficult to meet the actual terrain demand.
TNRA24 is an altimeter specially designed for plant protection UAVs. With its flexible installation position, it is suitable for all types of UAV platforms. It can accurately sense the height of UAVs and vegetation, and transmit the UAV data to UAV flight control system through UART serial port, to achieve and maintain the flight in the appropriate altitude to vegetation, as shown below.

About Nanoradar

FAQ:

1. Is the quote on Ali real?

-No, you can contact with us, we will send you the product details and quotation.

2.  Where is the installation location?

 -Usually installed below the aircraft for level height measurement.

3. Which interface it has?

-it has 2 interfances, CAN and UART. But it can't support at the same time.

4. Does it need an addition cooling radiator?

-No need.

5. How long is the warranty period?

-1 year free maintainence except human damage.

6. what is the difference between NRA24(50m) and NRA24(200m)

-The difference between NRA24-50m and 200m is range accuracy.
NRA24-50m range accuracy is ±0.02(0.1-50m).
NRA24-200m range accuracy is ±0.1(0.5-30m); ±1(30-100m); ±2(100-200m);

7.what is the difference with the other UAV radar(NRA15/MR72)

NRA24: 24GHz Alimeter Radar (0.1~50m/0.5~200m,more accurate )

NRA15: 24GHz Alimeter Radar (0.1~30m,more cheaper)

MR72: 77GHZ Collision Avoidance Radar(0.1~40m)

If you have any qustions, feel free to contact with me.
