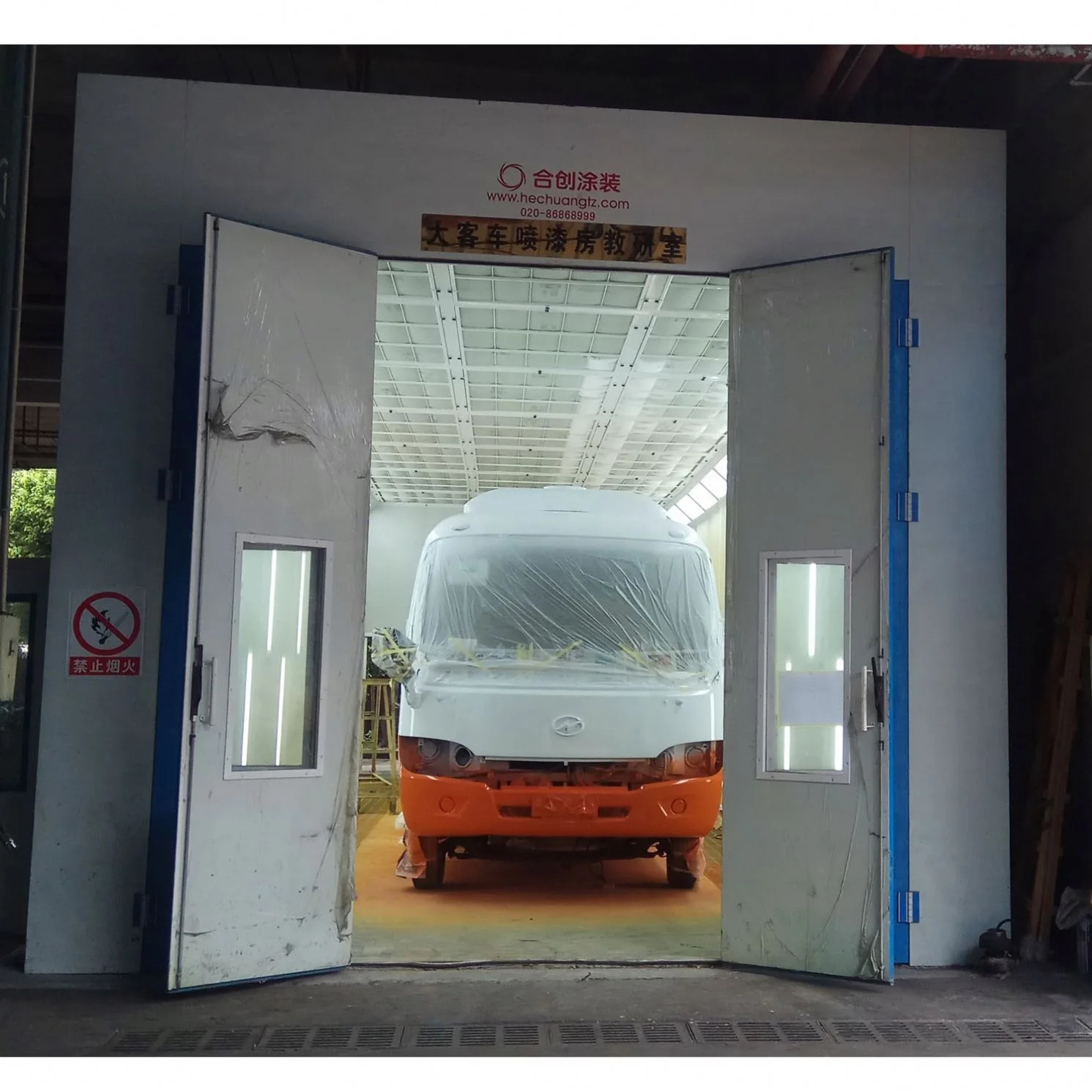

CE Bus /car/ truck /van industrial spray paint booth Customized size paint spray booth for sale

CE Bus /car/ truck /van industrial spray paint booth Customized size paint spray booth for sale

Category: Spray Booths >>>
Supplier: Guangzhou,Chnhc,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Semi downdraught spray booth 15C
Size (L x W x H)	Inside Size	15000 x 5000 x 5000mm (L x W x H)
	Outside Size	17300 x 5160 x 5600mm (L x W x H)
Foundation and Floor	Foundation	No metal foundation, back draft
Wall and Door	Wallboard	Adopt high quality double construction fireproof insulation EPS panel, thickness: 75mm (rock wool panel as option)
	Roof Panel	Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option)

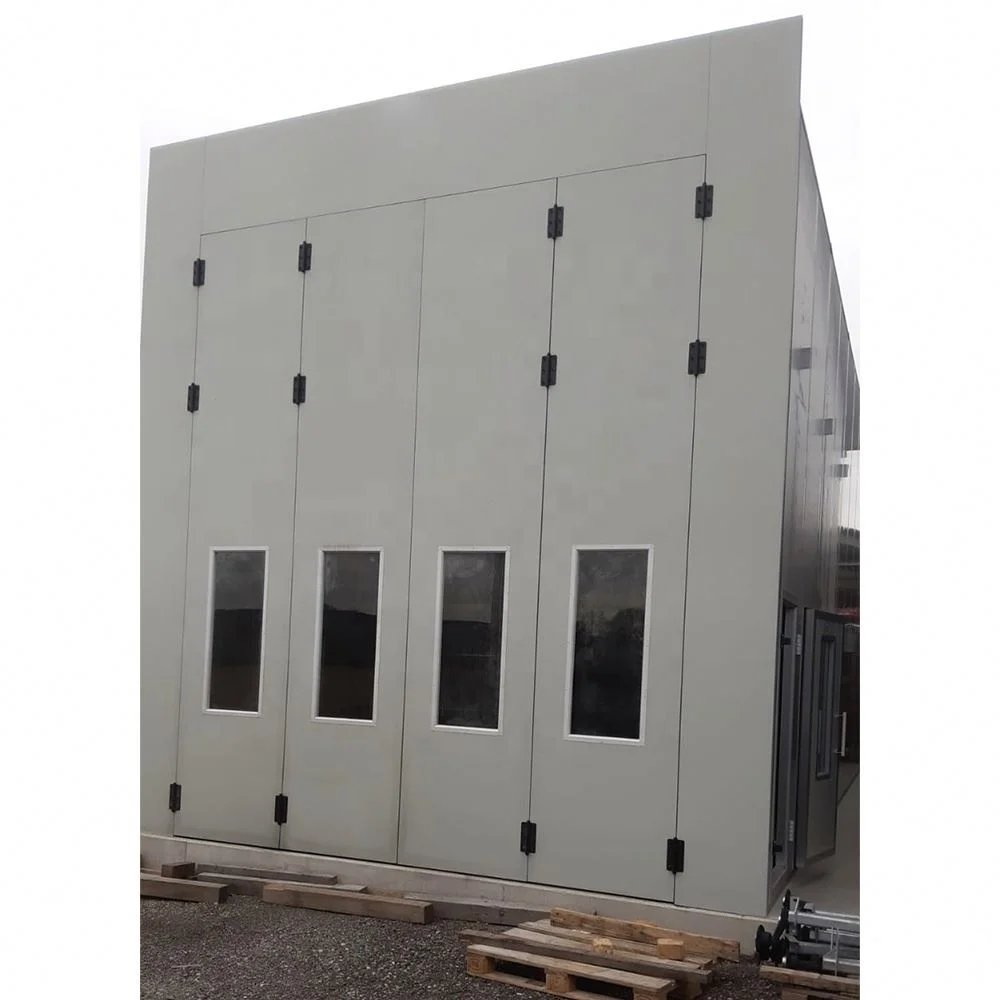

	Entrance Door	Door with steel frame, 1 set, size: 4000 x 4800mm (W x H), tempering glass observation window
	Personnel Door	2 set, size: 800 x 2000mm (W x H),tempering glass observation window

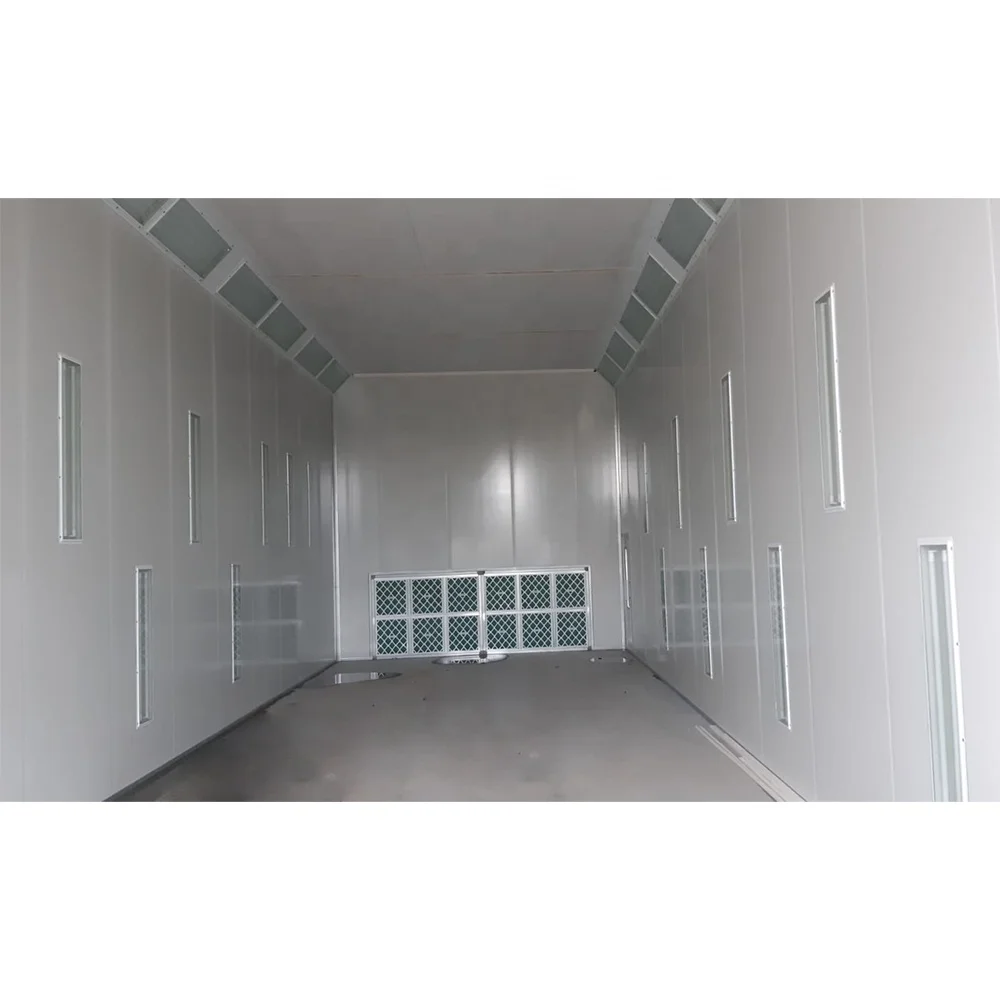

Light System	Ceiling Lighting	20 units, each 4 x 16w, adopt LED energy saving light, tempering glass
	Side Lighting	20 units, each 2 x 16w, adopt LED energy saving light, tempering glass
	Brightness	≥900 LUX
Filtration System	Pre-filters	Grade G2 plate type fiber glass filter (EU3 grade pocket filter as option)

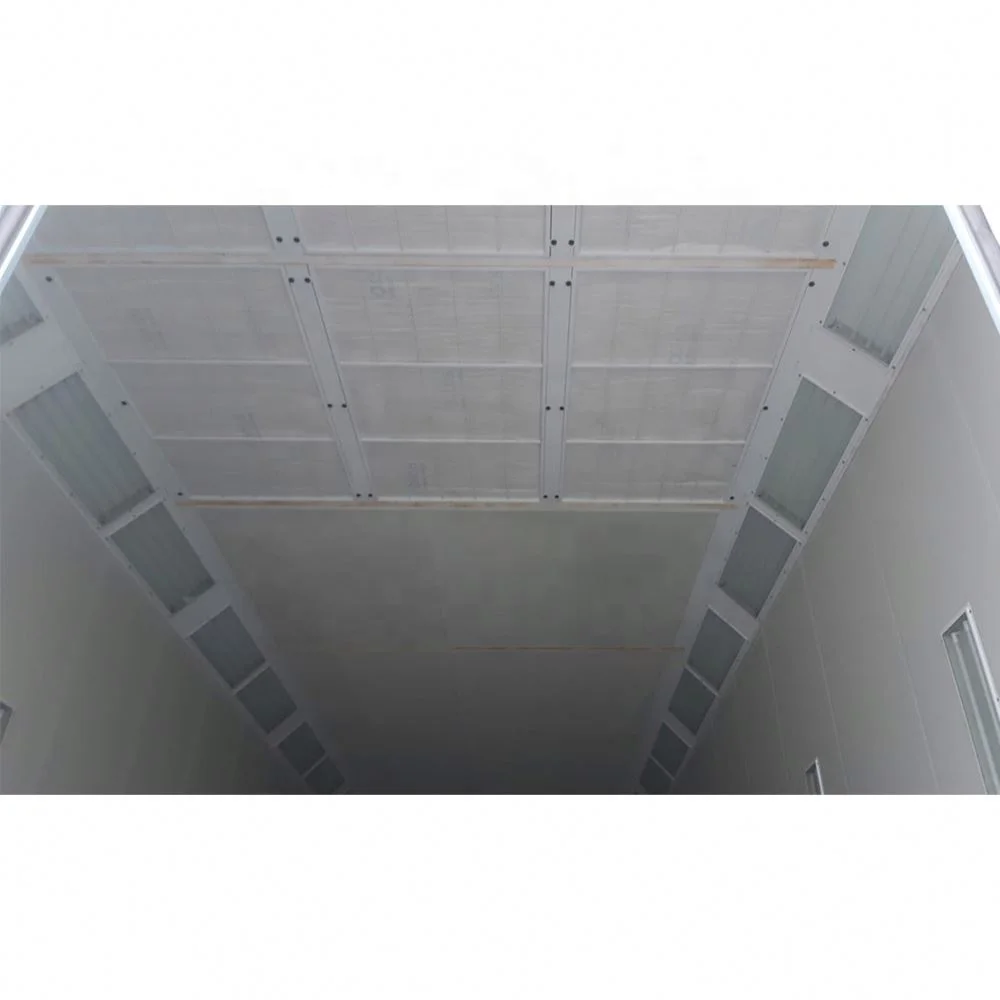

	Ceiling Filters	Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98%
	Air cabin filter	Fibreglass paint-stop filter
	Exhaust Filters	Fibreglass paint-stop filter

Ventilation System	Inlet Fan	Adopt big impeller turbo fan 1 x 11KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (SIEMENS motor as option)
	Outlet Fan	Adopt big impeller turbo fan 1 x 11KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (SIEMENS motor as option)
	Total Fan Capacity	33,000m³/h
	Air Flow Speed in Cabin	0.35-0.5m/s in loaded booth
	Painting and Baking Exchange System	Solenoid valve+ pressure adjustment control cylinder driven damper exchange
	Air flow adjust	Manual air damper to adjust to pressure of booth
	Manometer	Yes, to indicate the pressure of booth

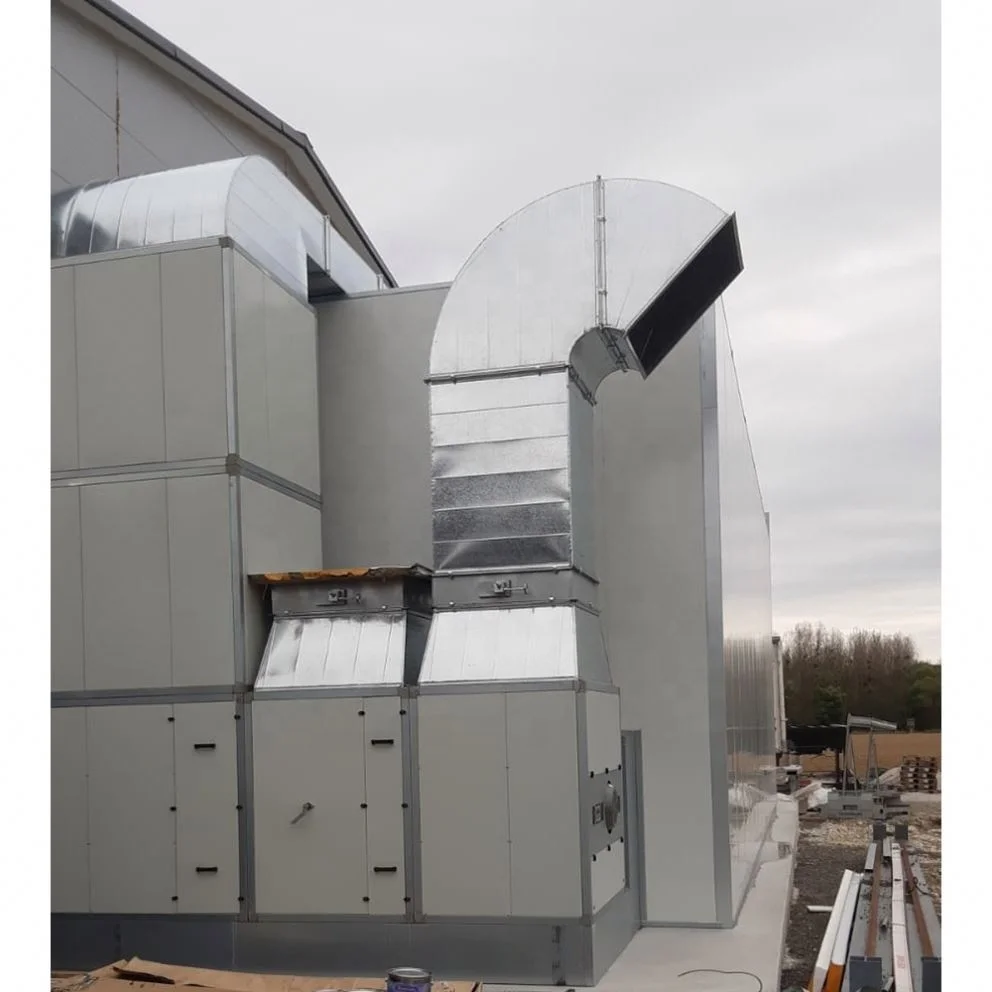

	Duct	Straight pipe: 15 meters, bending pipe: 3 units, reducing pipe: 3 units, flange connection
	Flue	Galvanized pipe: 4 meters, bending pipe: 2 units (stainless steel pipe as option)
Heating System	Heating Exchanger	Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger
	Burner Model	Adopt 1 set RIELLO diesel burner RL34, heating capacity 340.000kcal/h, (gas burner or infrared light heater as option)
	Heating Time	8-10 minutes (from 20 to 60 degree) under baking status, max baking temperature is 80 degree
Control Box	Control System	Standard control system
	More options	PLC control, touch screen control, inverter control
	Function	Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm indication, baking delay stop protection, temperature limiter , error alarm
	Total Power	25KW
	Option voltage	Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz

15C-1 15C-2 15C -3 15C-4

Company Information

HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus/truck spray paint booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.
