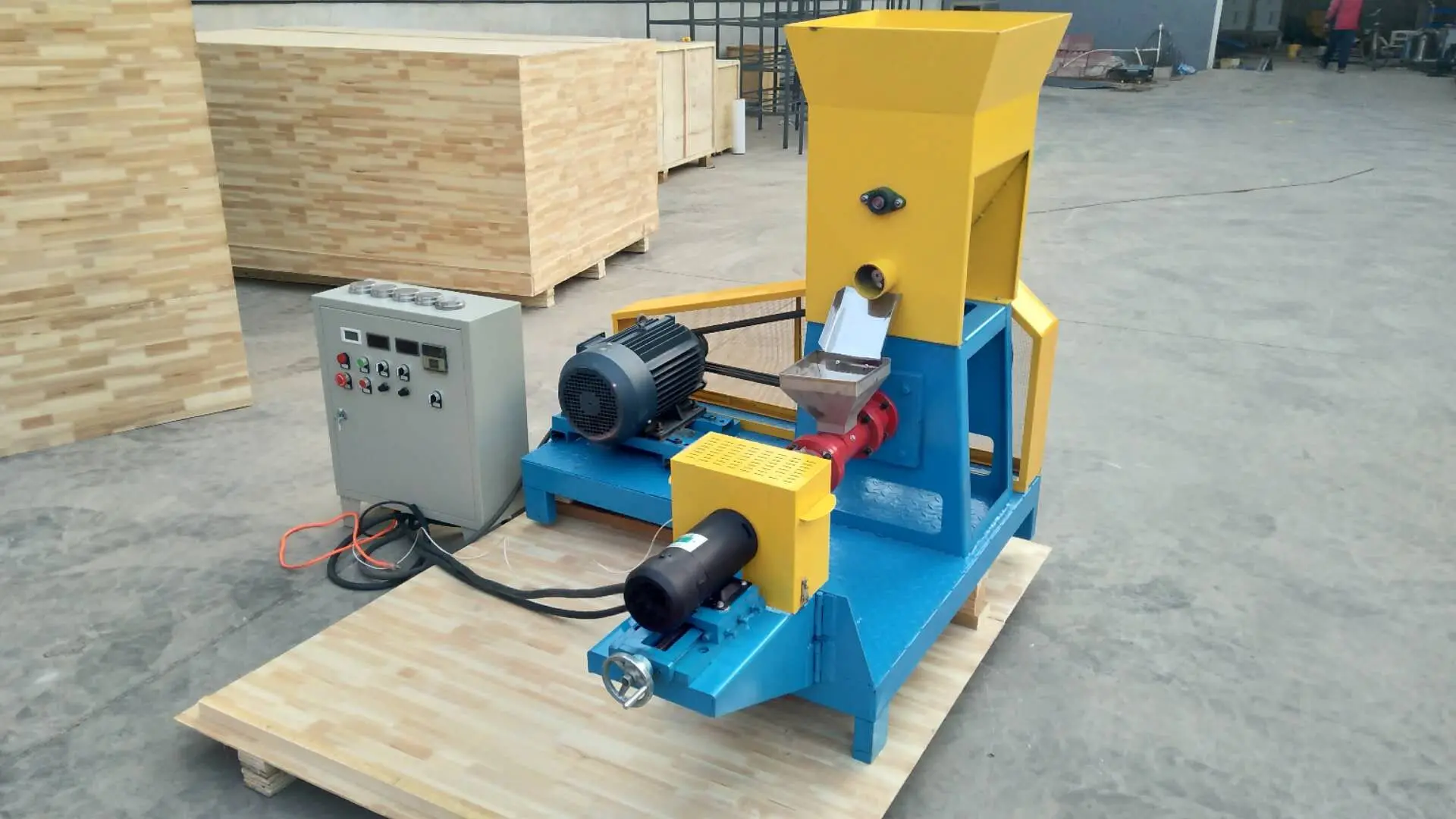

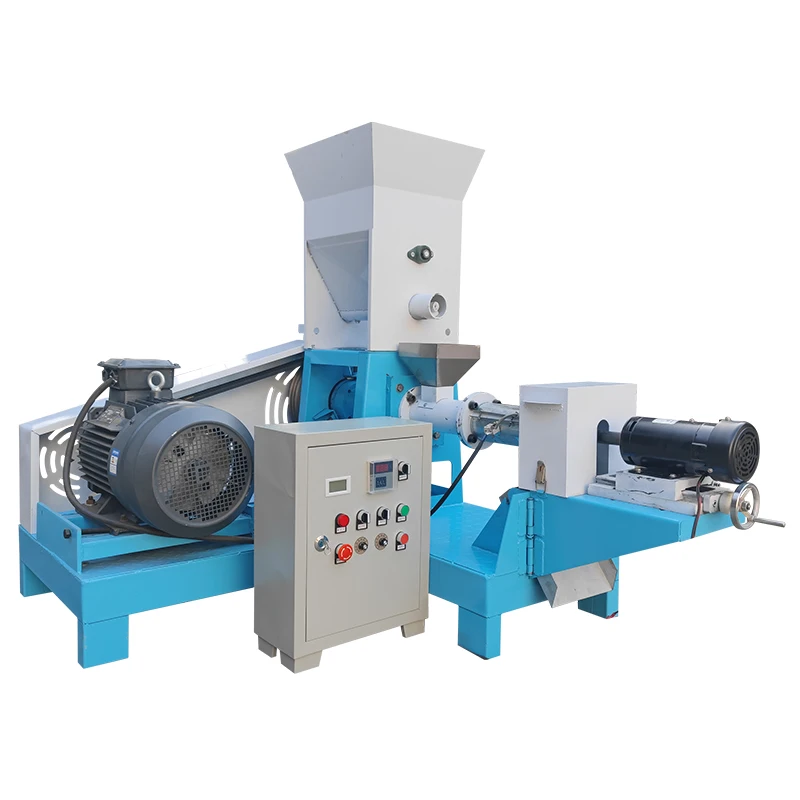

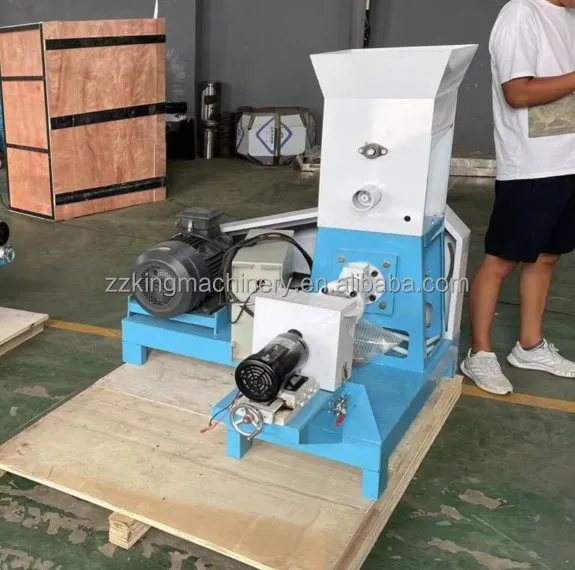

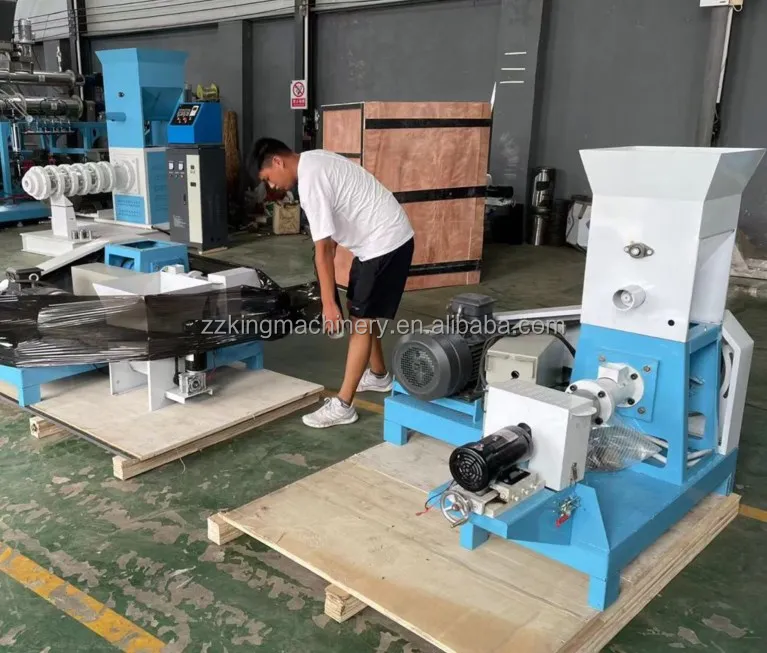

Small floating Fish Feed Pellet Mill Making Extruder Machine in Nigeria / mini fish food granulator extruder

Product Overview

Description

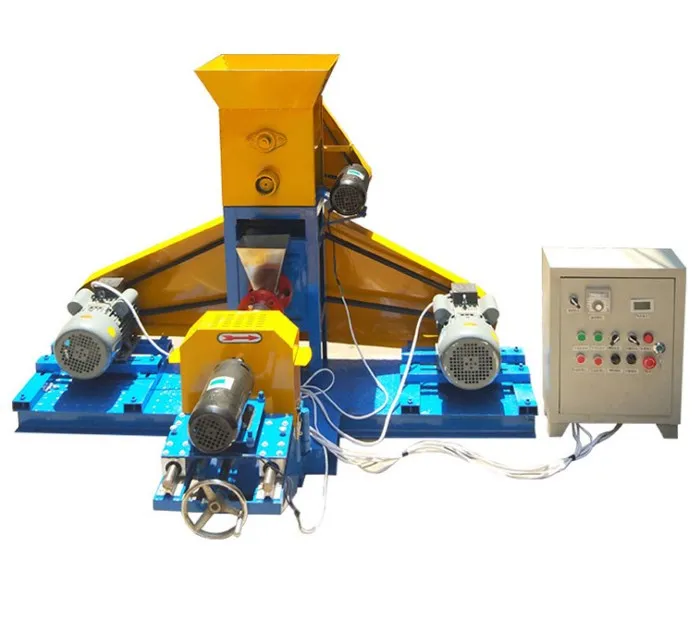

 Small floating Fish Feed Pellet Mill Making Extruder Machine in Nigeria / mini fish food granulator extruder







1.Application:

The machine is widely used for process all kinds of grains into high-grade aquatic floating feed pellet for fish,catfish,shrimps,crab.

It also can make pet feed for dog,cat etc with different shape and chicken feed.

2.Raw Material

The raw material is: Flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal etc.

Fitness: about 60-80mesh which were crushed and mixed.

Moisture content: about 20%-25%.

3.Final Pellet

Round Shape and other shapes

Diameter:0.9-15mm by replace the moulds

4.Main Feed Machine

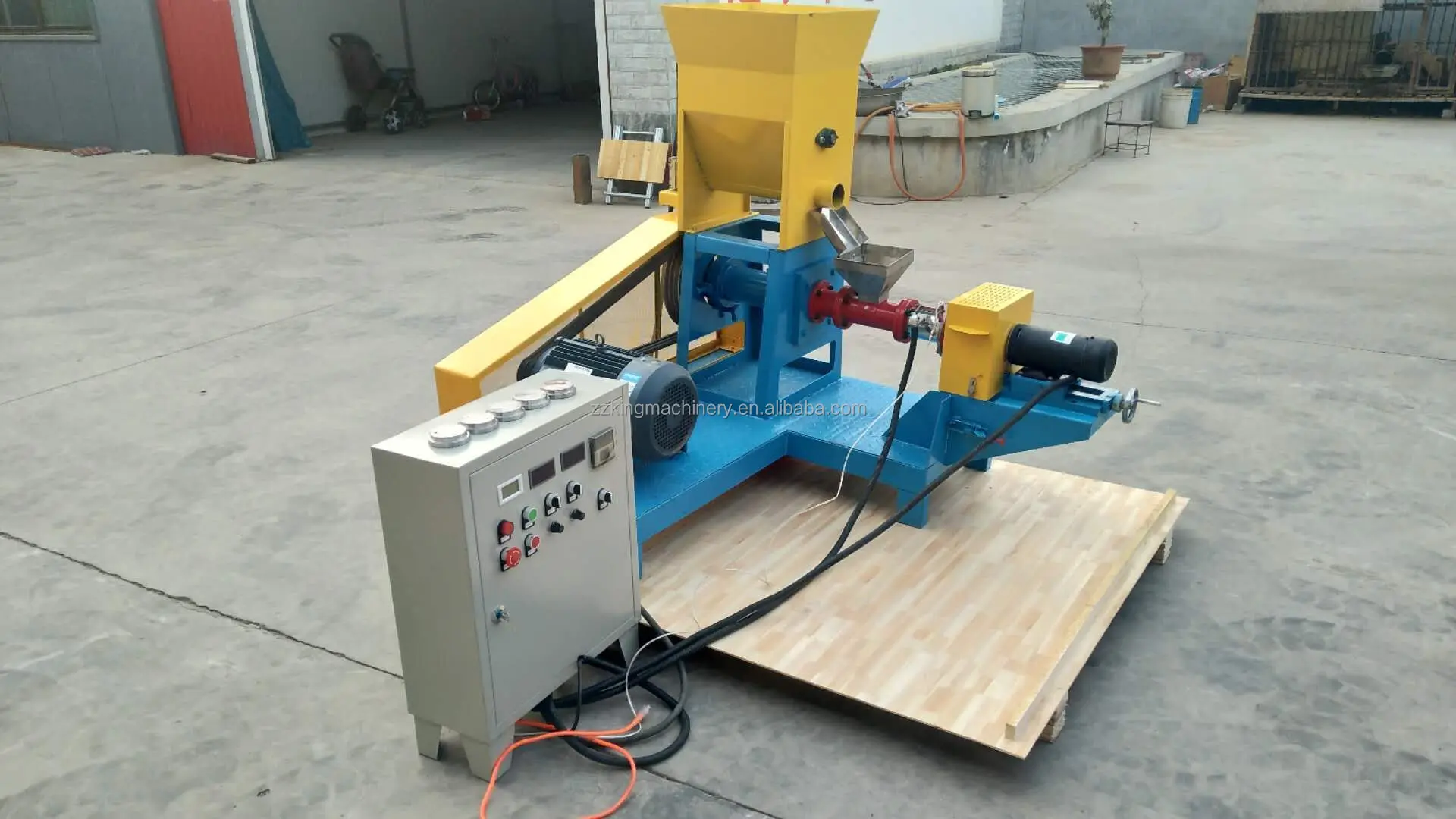

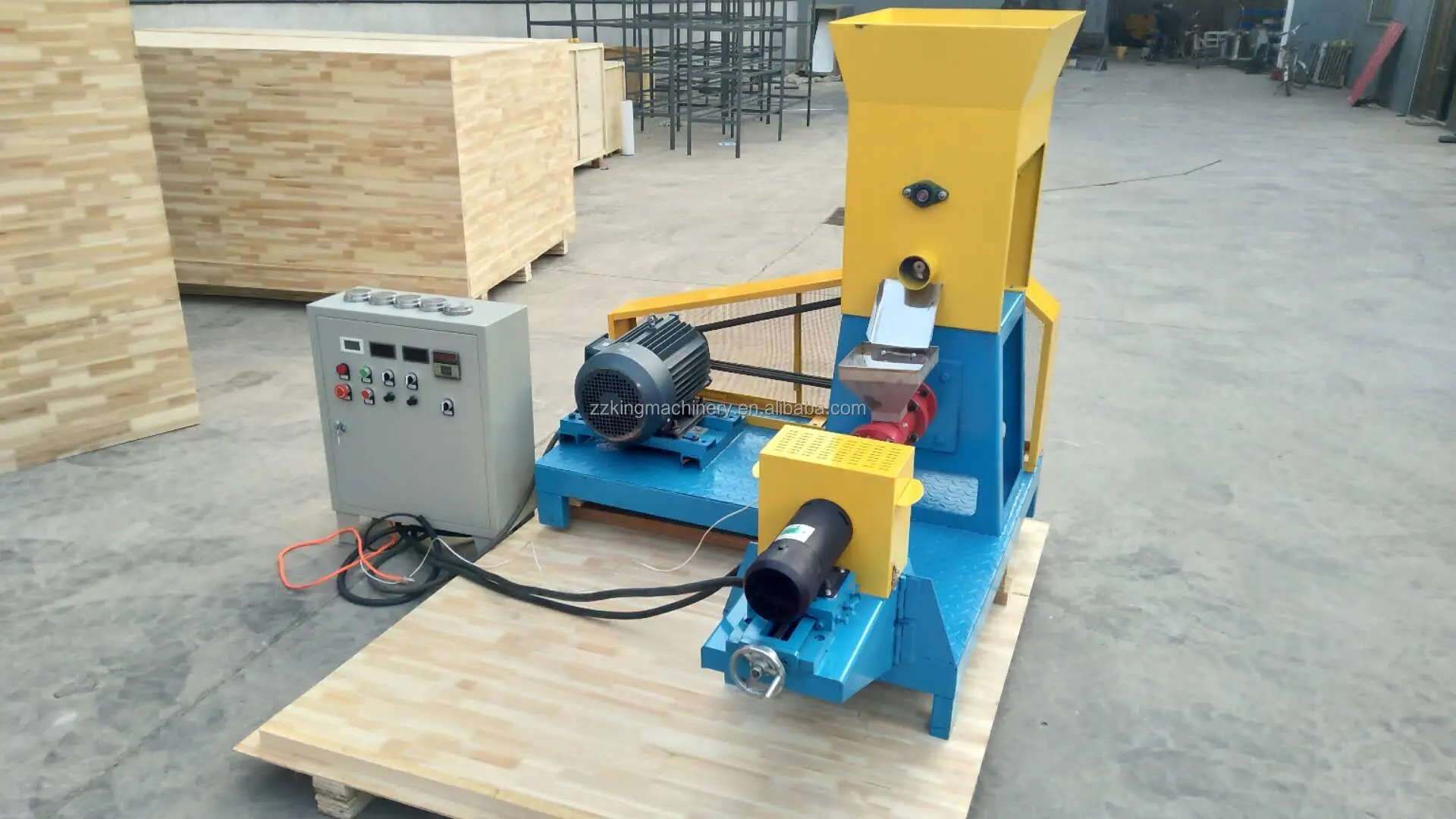

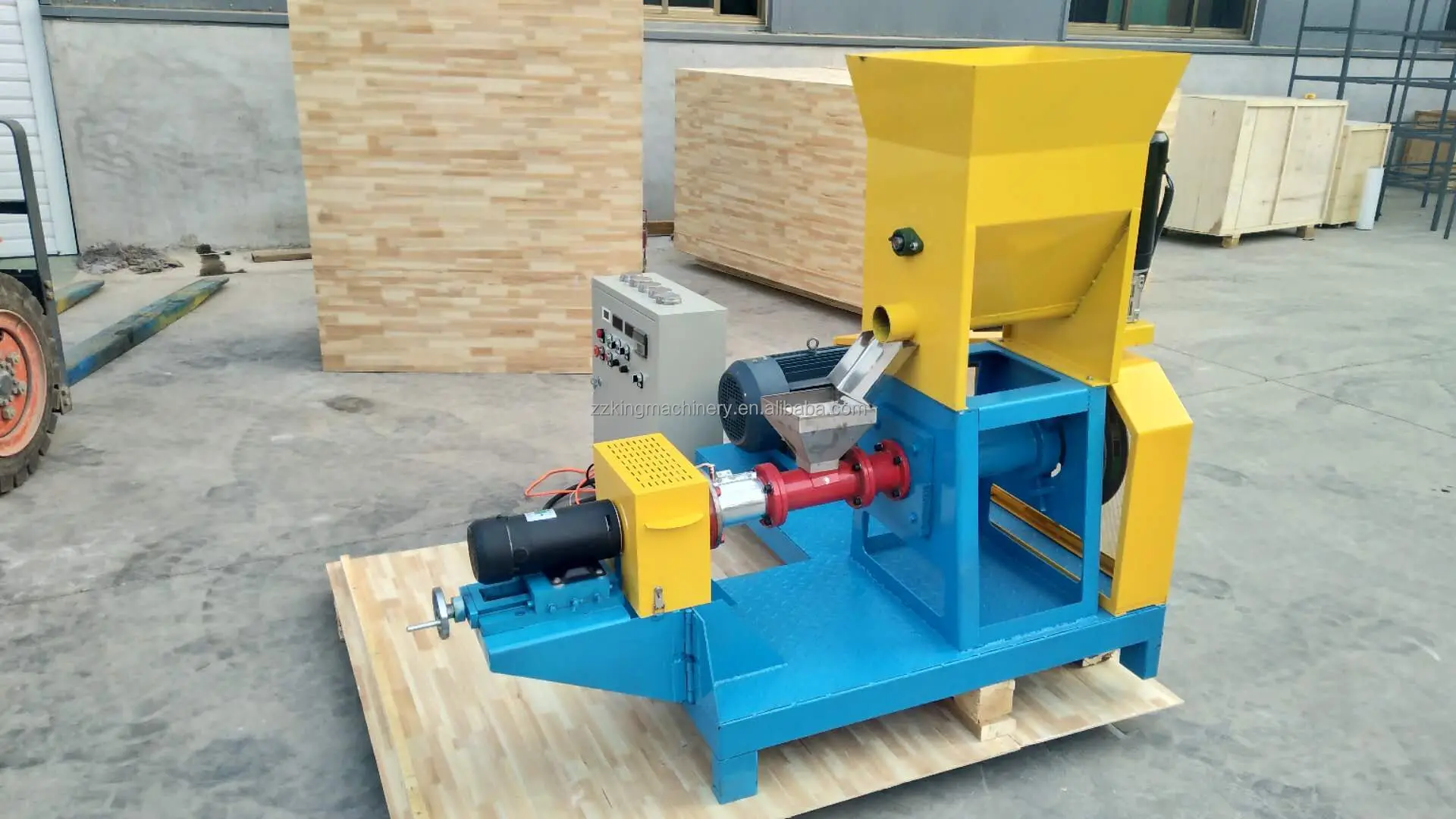

Dry type feed making machine & wet type fish feed extruder

The difference is the wet type need a steam boiler while the dry type doesn’t. The dry type is cheaper than wet type, and the feed pellets made by wet type extruder is much smooth and with better quality.

5.Features

1). The fish feed pellets can float on water for over 20 hours.And sinking and floating aqua-feed pellets both can be made just by adjusting the feed formulation.

2). Pellet diameter is 0.9mm-15mm by changing the mold.The cutter can cutting the pellets into different length.

3)The feeding speed,cutting speed,temperature all can be adjusted.

4).The machine also can make feed for pet like dog,cat with different shapes and we can customized the shape for you.

5.Technical Specifications

Model	Capacity	Screw Diameter	Main Power	Feeding Power	Cutting Power
DGP40	30-40kg/h	40mm	5.5kw	0.4kw	0.4kw
DGP50	60-80kg/h	50mm	11kw	0.4kw	0.4kw
DGP60	120-150kg/h	60mm	15kw	0.4kw	0.4kw
DGP70	180-250kg/h	70mm	18.5kw	0.4kw	0.4kw
DGP80	300-350kg/h	80mm	22kw	0.4kw	0.6kw
DGP90	400-450kg/h	90mm	37kw	0.4kw	1.5kw
DGP120	500-700kg/h	120mm	55kw	0.4kw	2.2kw
DGP135	700-800kg/h	133mm	75kw	0.4kw	2.2kw
DGP160	1200-1500kg/h	155mm	90kw	0.75-1.1kw	3.0kw
DGP200	1800-2000kg/h	195mm	132kw	1.5kw	3.0-4.0kw

6.Spare Parts

The spare parts including screw,sleeve,heating plate,cutter.

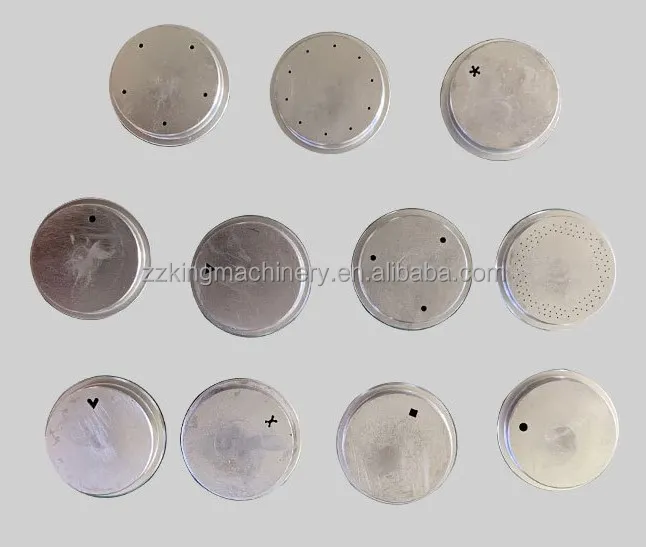

We will supply 6 sets moulds for you for free
