NVR | ||
Video Compression | H.264+/H.264/H.265/H.265+/MPEG4 | |
IP Video Input | 8CH PoE | |
Video Output | HDMI up to 4K, VGA up to 1080p | |
Audio Input/Output | 1/1 RCA | |
Incoming Bandwidth | 80 M | |
Max Recording Resolution | Up to 8MP (3840 X 2160) | |
Max Playback Resolution | Up to 8MP (3840 X 2160) | |
Max Playback Channel | 8CH | |
Max Playback Capacity | ||
ONVIF Protocols | Support | |
HDD | 1 SATA Interface | |
HDD Capacity | Up to 6 TB Capacity for Each HDD | |
Network Interface | RJ45 X1 (10/100/1000 M) | |
PoE | 8 Ports (IEEE802.3af/at) | |
Alarm Input/Output | - | |
RS485 | - | |
USB | 2X USB 2.0 | |
Operating Power | DC 48 V | |
Power Consumption | ≤10 W (Without HDD and PoE) | |
PoE: Max 25.5 W for Single Port | ||
Working Temperature | 14 °F ~ 131 °F/-10 °C ~+55 °C | |
Dimensions (W X H X D) | 12.4” X 9.4” X 1.9”/315 X 240 X 48 mm | |
Weight (Without Hard Disk) | 2.2 lbs/1 kg | |
Camera | ||

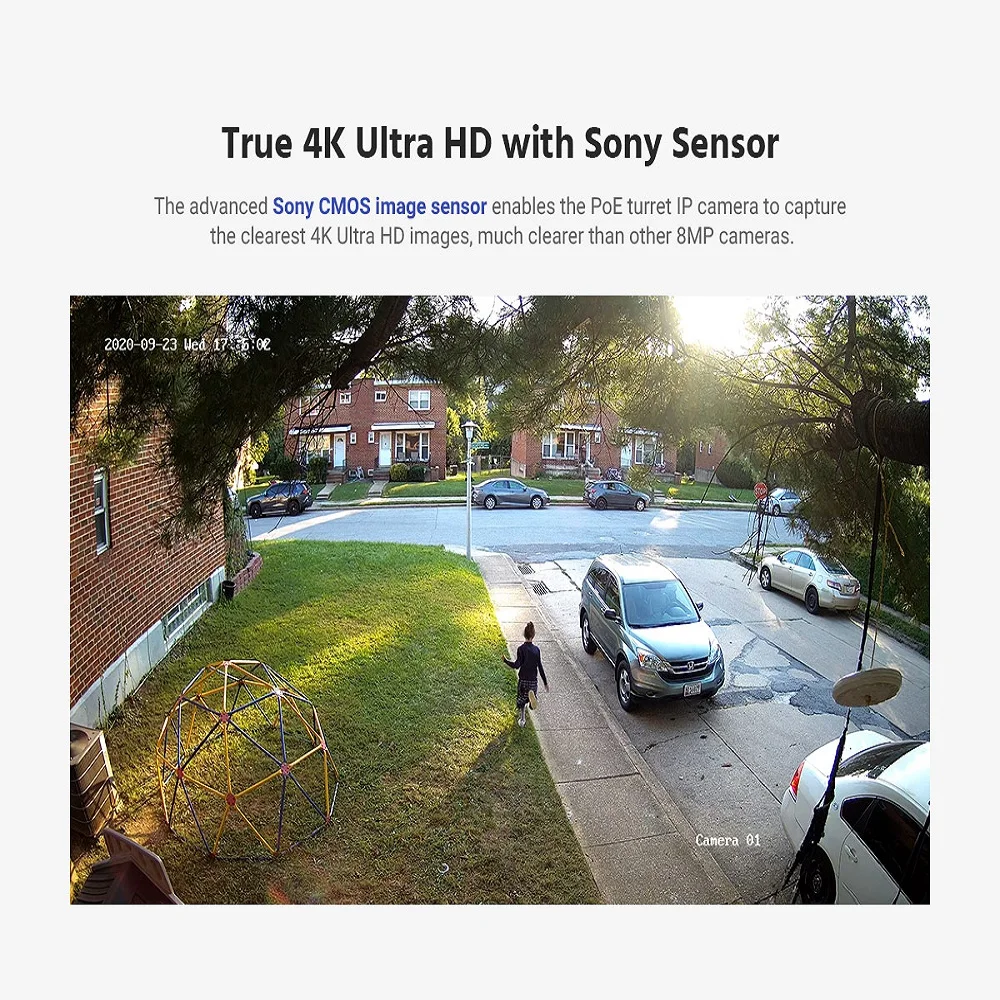

Image Sensor | 1/3" Progressive Scan CMOS | |
Main Stream Max. Frame Rate | 50Hz: 20 fps (2592 × 1944, 2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2592 × 1944, 2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) | |
Substream Max. Frame Rate | 50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240) 60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240) | |
Video Compression | H.265+/H.265/H.264+/H.264 | |
Video Bitrate | 32 Kbps - 8 Mbps | |
Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC | |
Audio Input | Built-in Microphone | |
Lens | 2.8 mm | |
Min. Illumination | Color: 0.028 Lux @(F2.0, AGC On) | |
Angle of View | Horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115° | |
Number of Infrared LEDs | 2 pcs | |
Night Vision Distance | Up to 100 ft/30 m | |
DNR | 3D DNR | |
Wide Dynamic Range | 120 dB WDR | |
ONVIF | Support | |
IR-Cut Filter | Yes | |
Ethernet | RJ45 X1 (10 M/100 M) | |
Housing | Metal & Plastic | |
Color | White | |

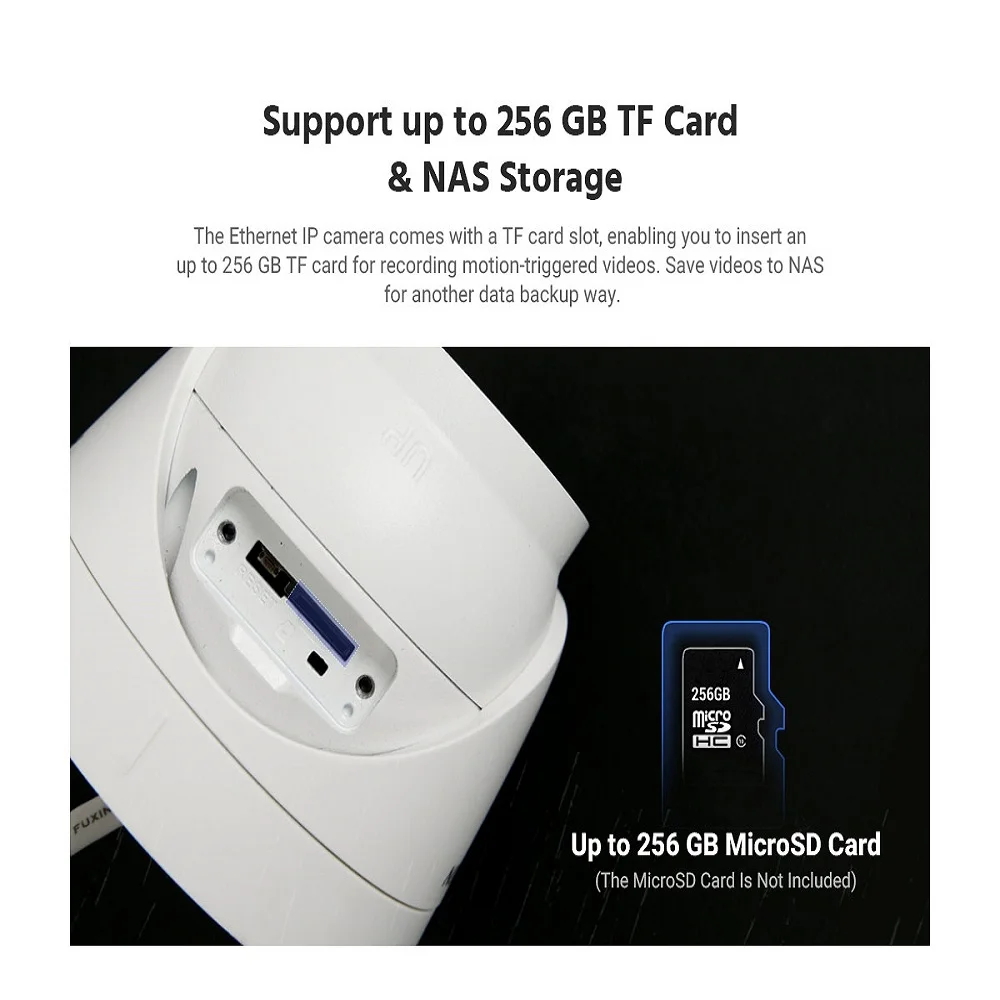

Storage | Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB | |
Hardware Reset | Yes | |
Operating Power | DC 12 V; PoE (802.3af) | |
Operating Temperature | -22 °F – 140 °F/-30 °C – 60 °C | |
Indoor/Outdoor Use | Indoor/Outdoor | |
Interface Protection | IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection | |
Dimension (L X W X H) | Ø110 mm X 85.3 mm (Ø4.3" X 3.4") | |
Weight | 320 g (0.7 lb.) |
