Factory Wholesale V Fold Hand Towel Packing Machine Production Line

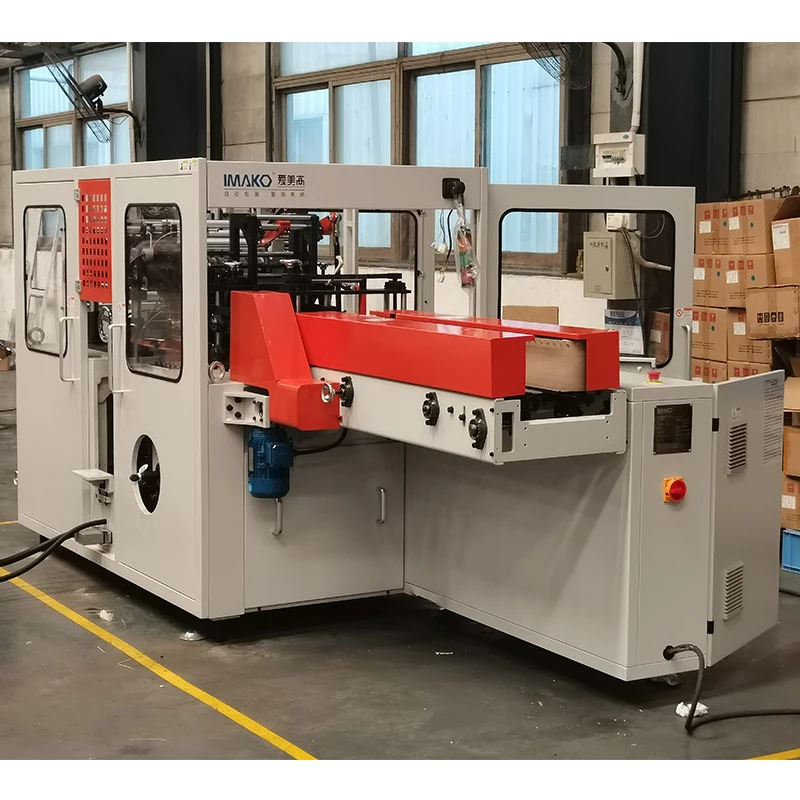

    Automatic Wrapping Machine for Folded Paper Towel (Individual Pack)

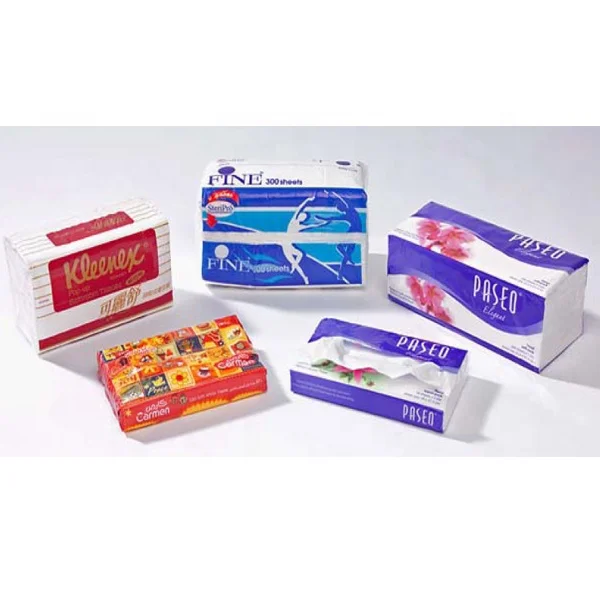

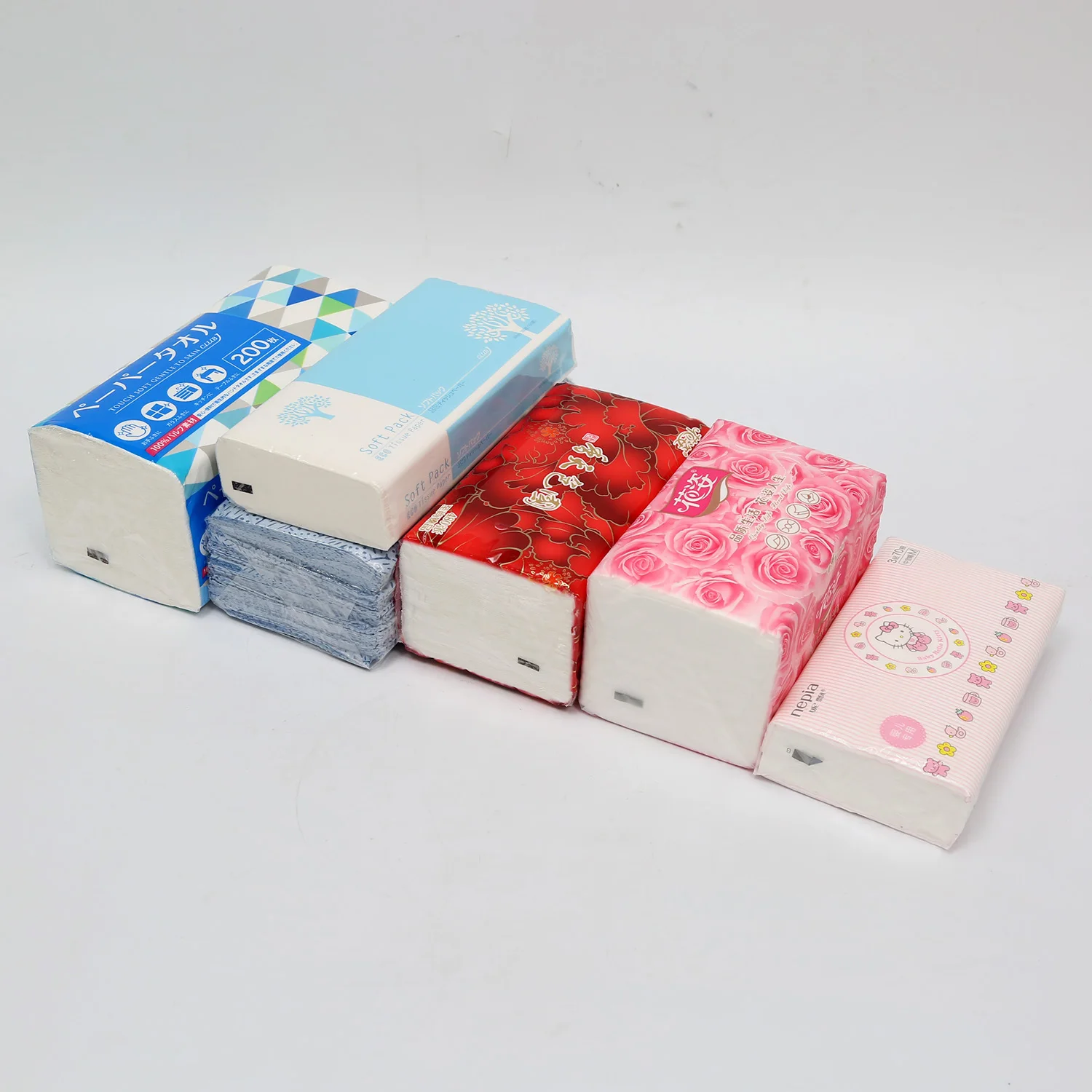

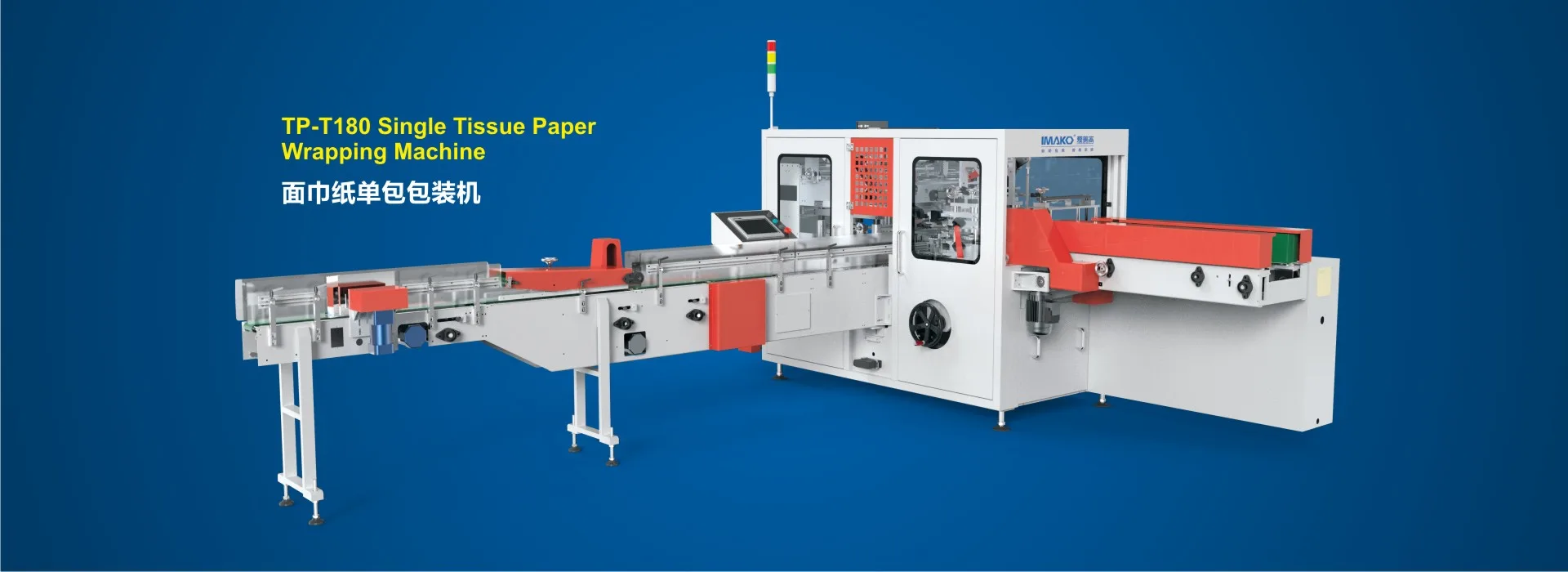

    TP-T180 tissue wrapping machine is particularly designed to automatically wrap folded facial tissues, folded paper towels, V-fold napkins, paper serviettes, multifold hand towels, and other folded tissue products into individual pack utilizing plastic films.

  Features

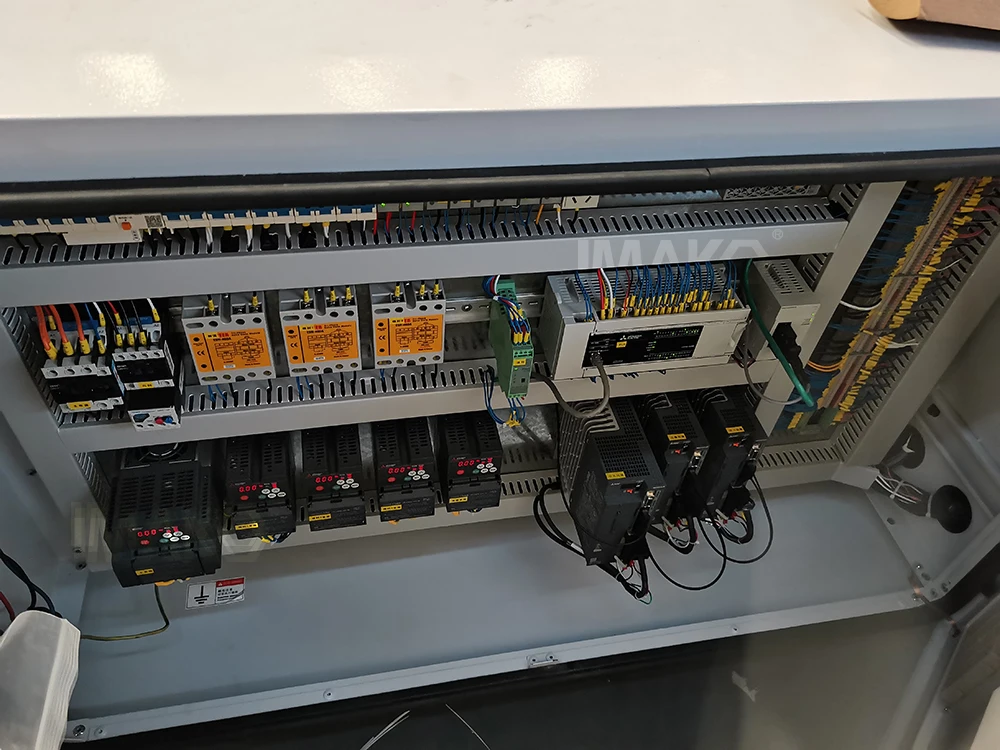

* Tissue arrangement and infeed speed are controlled by inverter, and servo motors are used to assure precise film perforation, film tensioning /positioning, film cut-off, tissue centering and feeding, providing high efficiency and ease of use;
* The design of smooth movement enables the machine to run stably at high speed, ensuring easy operation and maintenance;
* Wide range of specifications, quick size changeover;
* Photoelectric sensor is used for product detection, achieving "No Tissue Paper, No Film" and greatly saving wrapping materials;
* Automatic arranging and feeding system can work together with automatic production line, significantly lowering labor cost;

    1. All part of touch tissue adopted stainless steel and hygiene level white PU belt. Each main part installing plate adopted high strong carbon steel, its surface had coated static eletricity treatment.
2. All of block of bearing are casting and adopted national 5 level precision standard, unified international famous brand and long life usage. All fixed bolt are adopted 8.8 national grade, which is duable.
3. Holder of cross seal cutting knife and cutting knife are high quality steel, heat treatment and duable.

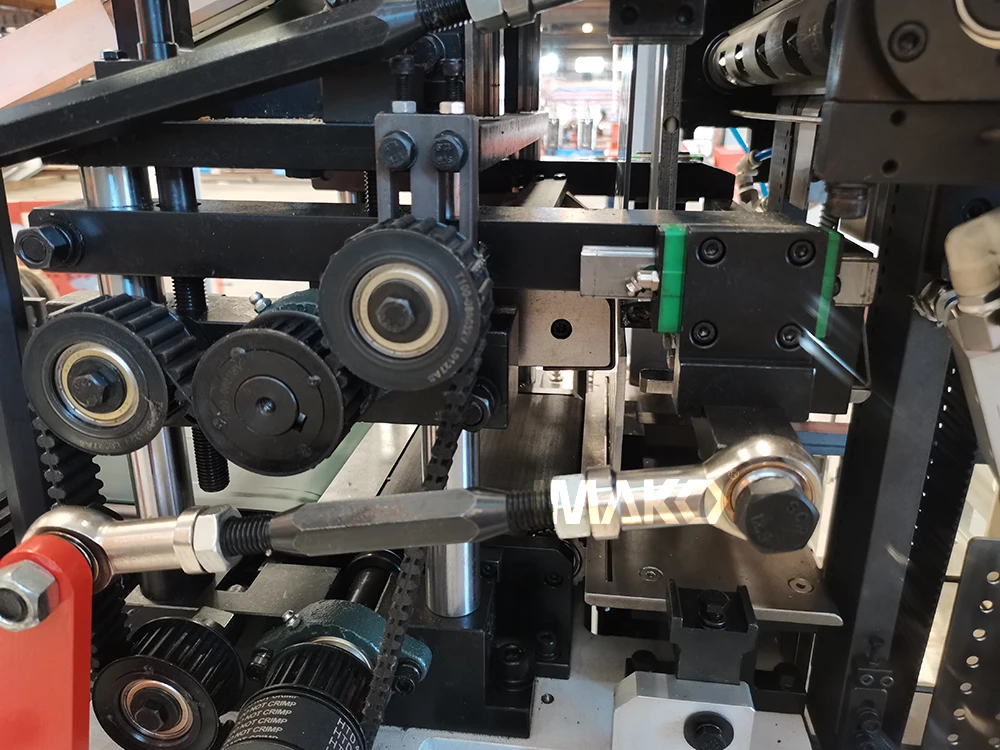

4 . Sychronous belt are high grade both made in china and imported PU.
5. Sychronous belt wheel are the material of aluminium alloy and 45# steel, surface treament are blacking coating and aluminum shell.
6. Each roller are 45# steel and aluminum alloy, which the surface had been refined treated.
7. Bag rolling device is stainless steel, the surface had been polished.
8. All push rod chain are stainless steel, main bearing are thermal refined.
9. Running roller of high temperature resistance belt is special designed and installed imported special material, which prolong the usage life of resistance belt by a large margin, almost the zero noise running.
10. Other main accessories requirement of design , technology, standard of assemble quality are follow relevant national and enterprise standard of vendor.
