2022 Master Well Hot Sell High Quality Hydraulic Dock Leveler Power Unit Pump Station For Hydraulic Dock Leveler
- Category: >>>
- Supplier: Master Well Enterprise Limited
Share on (1600492991663):
Product Overview
Description
Product Description
These controls raise the leveler and extend its lip, and once the buttons are released, the leveler floats back down onto a truck bed or trailer's floor.
Hydraulic Dock Leveler Motor Specification | ||||||||||
Unit Model | APU-15HP3x2P/D07-1/F16/P4W380V | |||||||||
Motor | MS7142 AC230/380V11Kw2750r/min | |||||||||
Oil Pump | CBK-F16F16cc/r | |||||||||
Pressure | 150bar | |||||||||
Oil Tank | KR61-1L-255(4L) | |||||||||
Thread specification | ||||||||||
D3 | D4 | L1 | L2 | L3 | ||||||
G 1/4'' | 13.2 | 22 | 1 | 12 | 15 | |||||
G 3/8'' | 16.7 | 25 | 1.5 | 12 | 15 | |||||

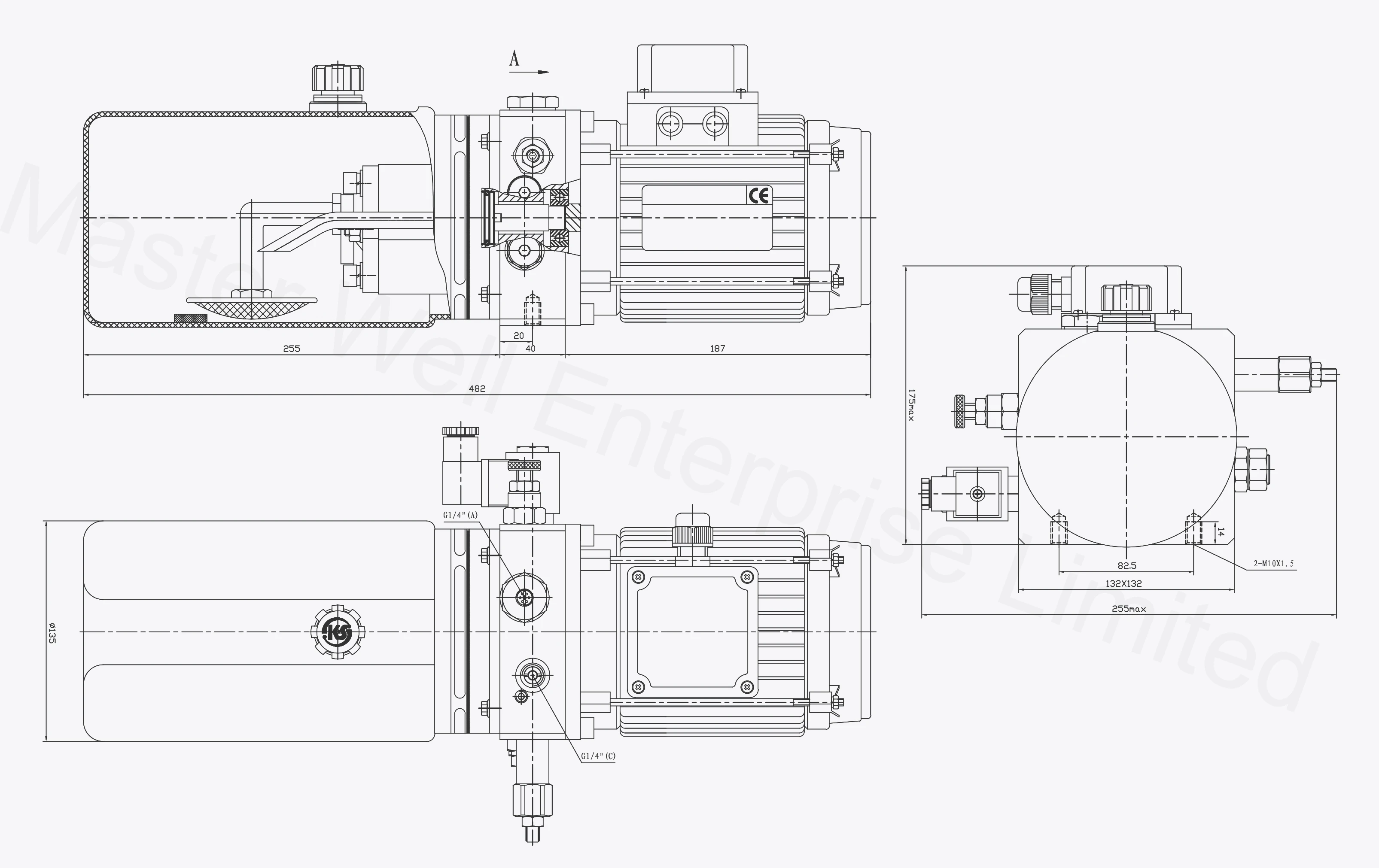

Overall Dimension

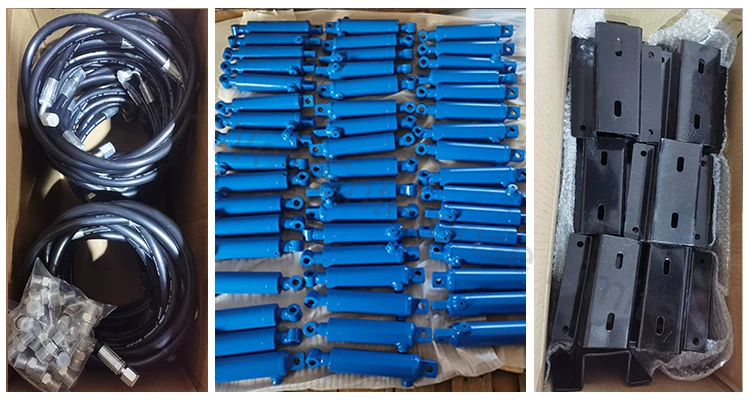

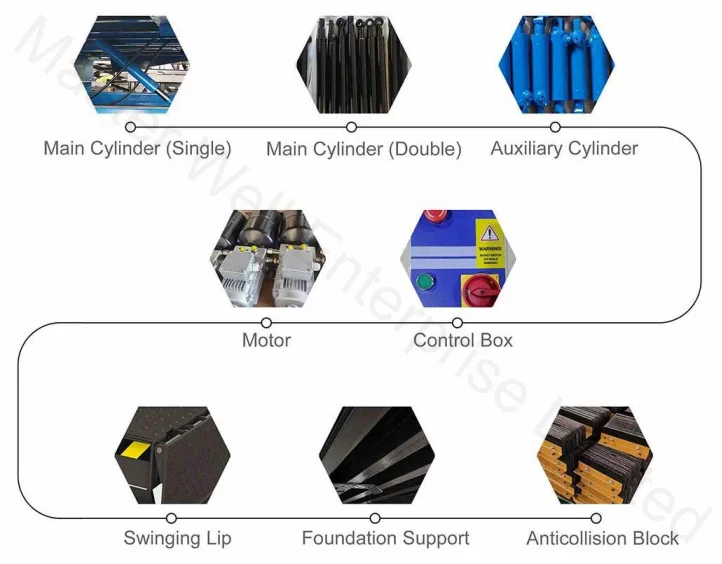

Related Dock Leveler Spare Parts

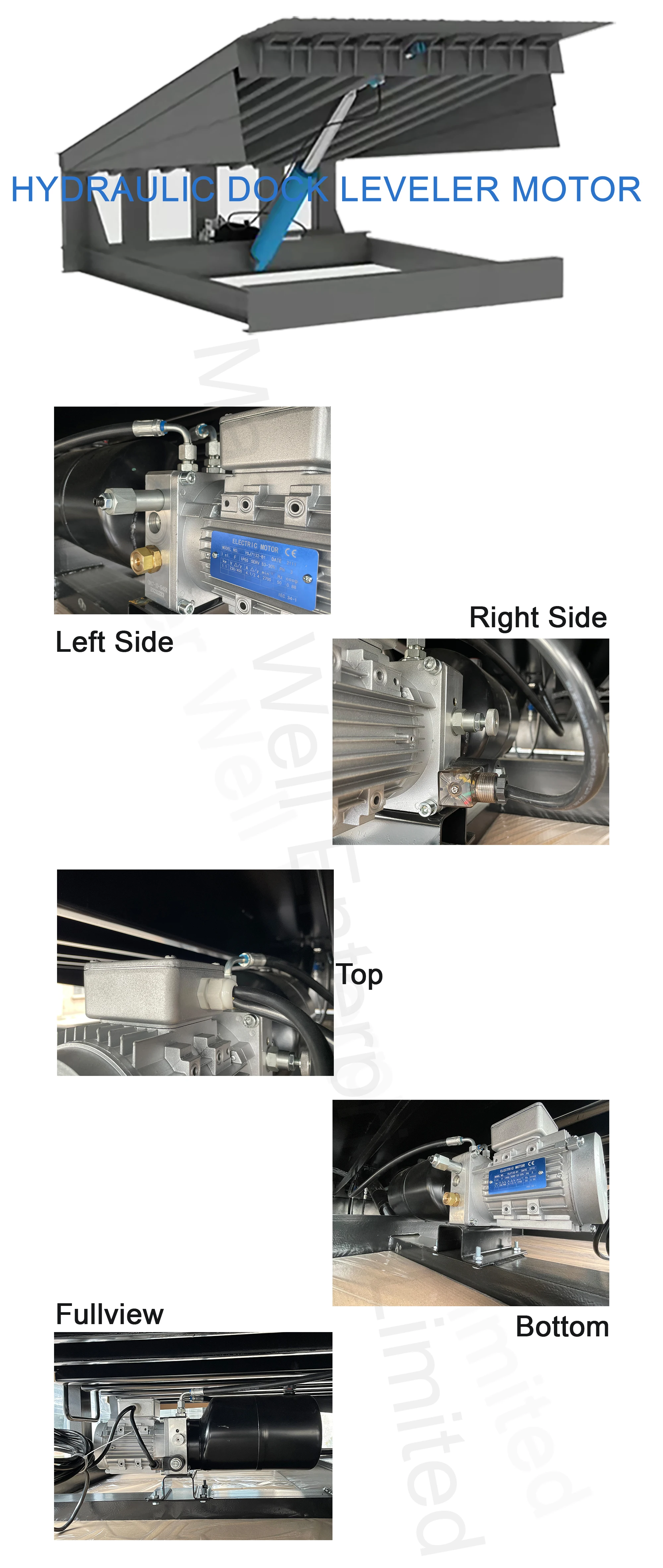

Application of Hydraulic Dock Leveler Motor
A hydraulic power unit is used to lift the upper main steel plate of the dock leveller through a main oil cylinder, and a small auxiliary oil cylinder pushes out the lip plate.

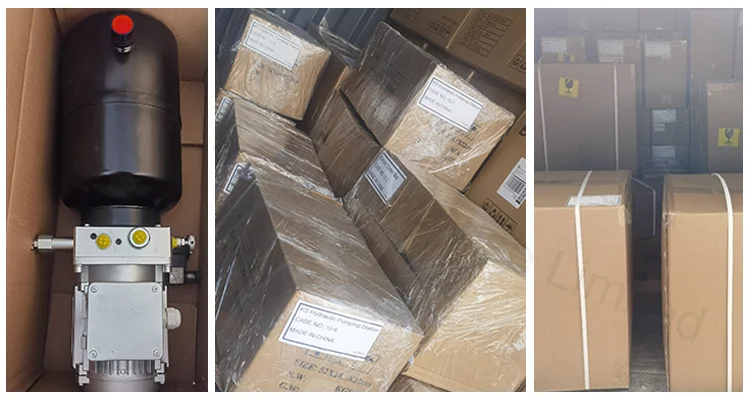

Product Packaging
1.Small quantity: Carton + Winding film + Wooden box
2.The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film
2.The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film
Trading Volume
Our Certifications
Related Products
Hydraulic Dock Leveler
Sectional Industrial Dock Doors
High Speed PVC Zipper Door
FAQ
Q1: What is your MOQ?
A: No min order for hydraulic dock leveler motor. We also suggest wooden cases package for protection during shipment.
Q2: What is the max available dock leveler size of the motor used?
A: The max width is 2200mm, the max length can be 5000mm, adjustable.
Q3: Can you do the full set products according to my project drawing?
A: Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity.
Q4: Can I get a sample of hydraulic dock leveler motor for quality check?
A: Sample is available.
Q5: How can I get a price of needed hydraulic dock leveler motor?
A: Please give the exact quantity of your ydraulic dock leveler motor. We can give you a detail quotation based on your requirements.
Q6: What kind of payment terms would you accept?
A: We usually accept T/T, Credit card etc. If you prefer other payments terms, please feel free to discuss with us.
Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q9: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Garage door, Glass aluminum sectional door, Industrial door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers. We produce parts by ourselves in order to control quality and cost.
Q10: Could you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide a regular size quotation.
A: No min order for hydraulic dock leveler motor. We also suggest wooden cases package for protection during shipment.
Q2: What is the max available dock leveler size of the motor used?
A: The max width is 2200mm, the max length can be 5000mm, adjustable.
Q3: Can you do the full set products according to my project drawing?
A: Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity.
Q4: Can I get a sample of hydraulic dock leveler motor for quality check?
A: Sample is available.
Q5: How can I get a price of needed hydraulic dock leveler motor?
A: Please give the exact quantity of your ydraulic dock leveler motor. We can give you a detail quotation based on your requirements.
Q6: What kind of payment terms would you accept?
A: We usually accept T/T, Credit card etc. If you prefer other payments terms, please feel free to discuss with us.
Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q9: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Garage door, Glass aluminum sectional door, Industrial door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers. We produce parts by ourselves in order to control quality and cost.
Q10: Could you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide a regular size quotation.
