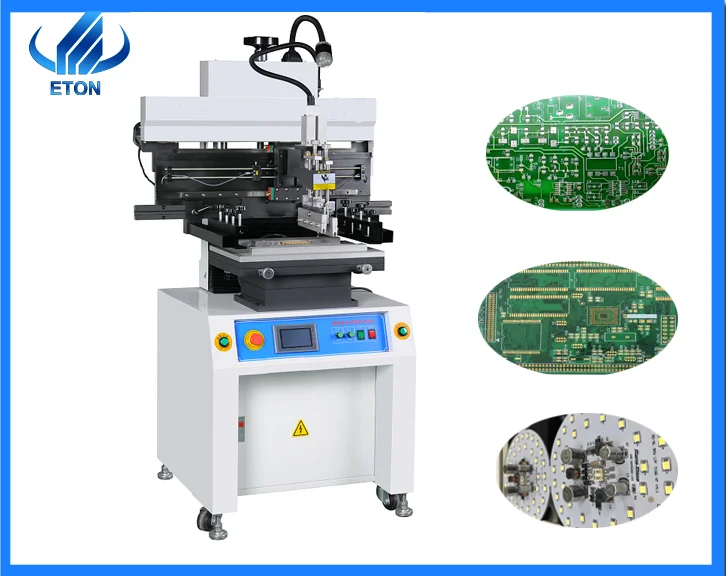

high quality ETON SMT full automatic PCB Screen Stencil Printing Machine with Screen Printer Machine
- Category: >>>
- Supplier: Shenzhen Eton Automation Equipment Co. Ltd.
Share on (1600493063463):
Product Overview
Description
Product Description

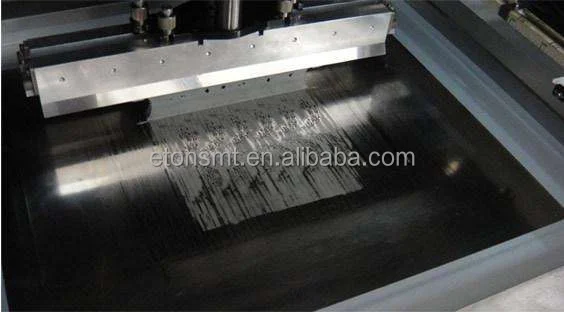

SMT stencil printer machine stencil printer is suitable for solder paste printing of surface assembly components in SMT surface mount technology. Specifically, it is in the SMT electronic mounting process, the use of the mesh plate hole will be electronic fiber material (solder paste, adhesive, etc.) printed on the circuit board of the machine equipment, the purpose is to adhere to the chip electronic components.
Specification
Model | ET-S1200 |
Printing area | 1200×250 mm |
Plate Area | 1250×300 mm |
Stencil Frame Size | 470×370 mm～1300×550 mm (L×W) |
Positioning way | positioning pin |
Scraper Speed | 0-100 mm/sec |
Power | 220V single phase, 50/60 HZ |
Power Consumption | 120 W |
PCB plate thickness | 0.2-2.0 mm |
Plate Trimming | Front/back +/- 10mm Right/Left +/- 10mm |
Printing Precision | +/- 0.05 mm |
Air supply | 5-7 KGF/cm2 |
Weight | 360 kg |
Dimension | (L)1600 x(W)900 x(H)1650 mm |

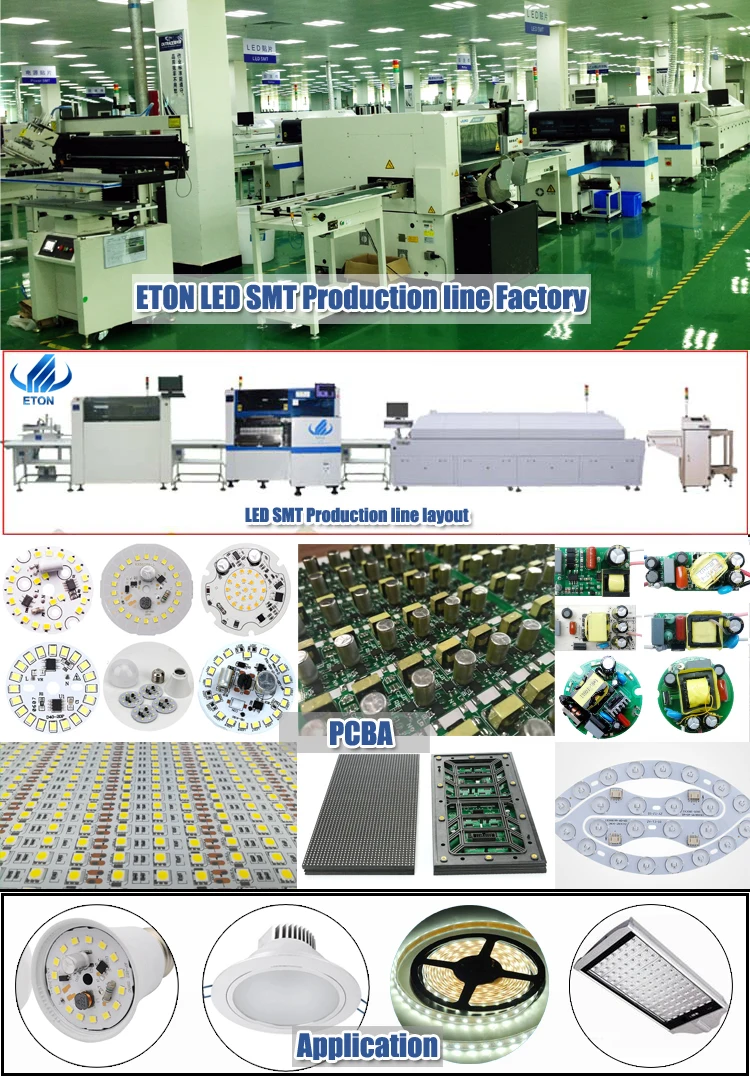

Machine application

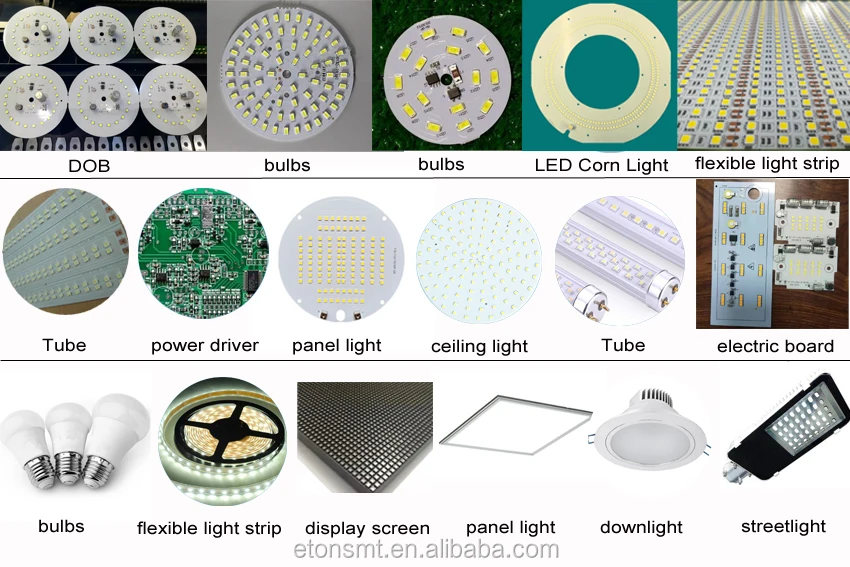

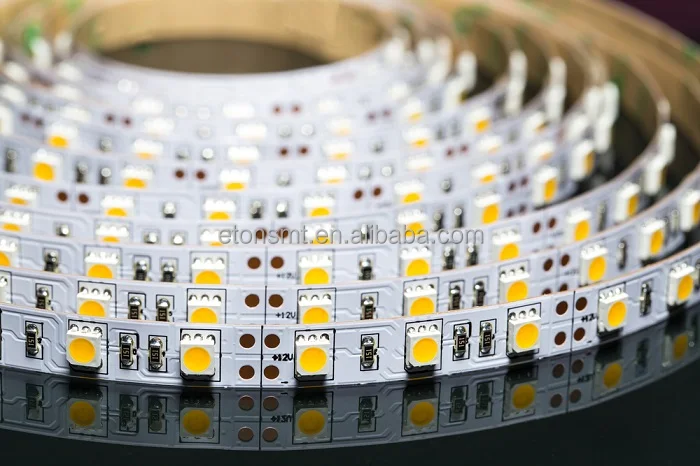

Finished Product

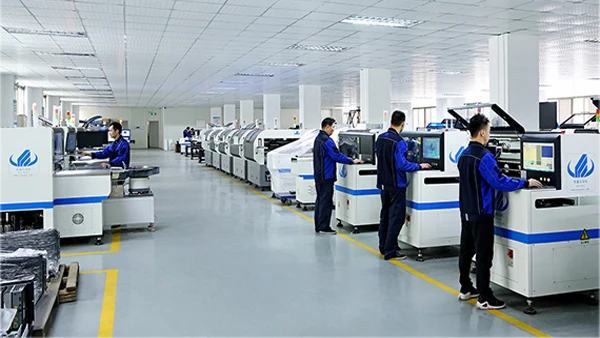

Company Profile
Packing & Delivery

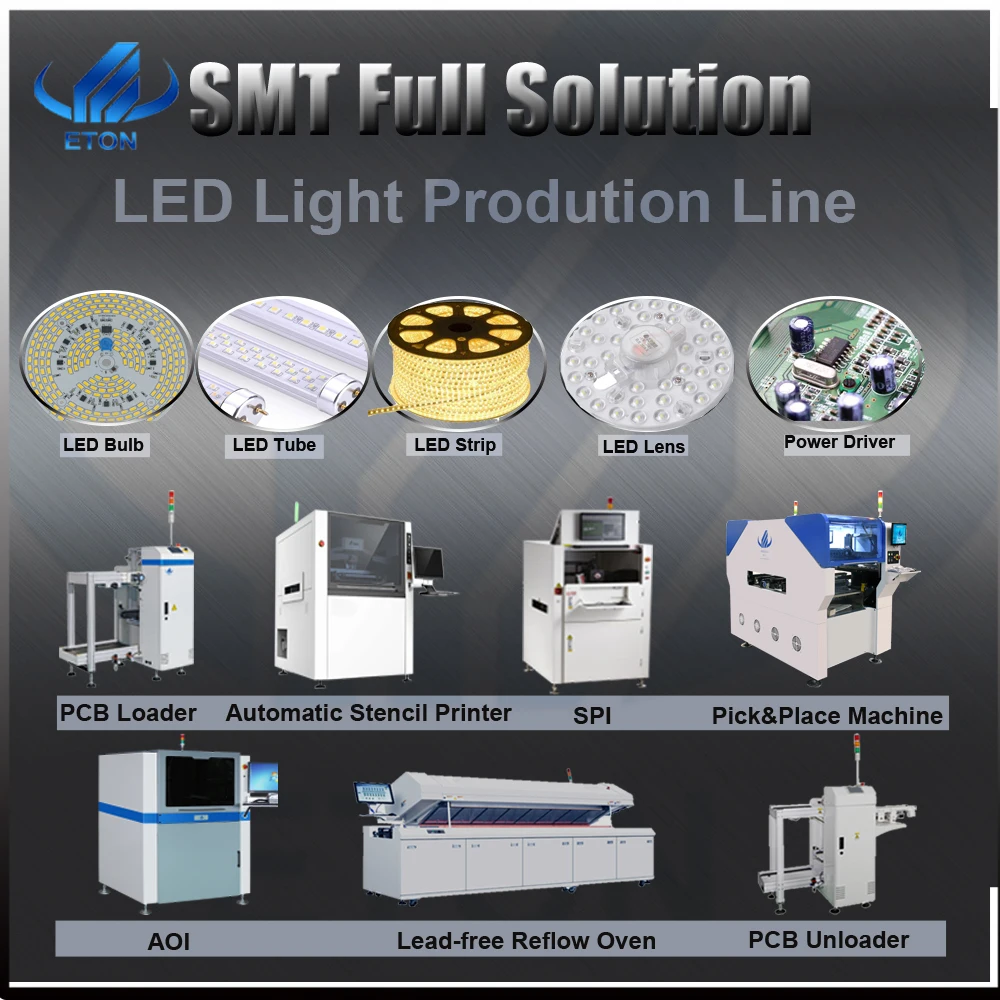

Related SMT Machine
