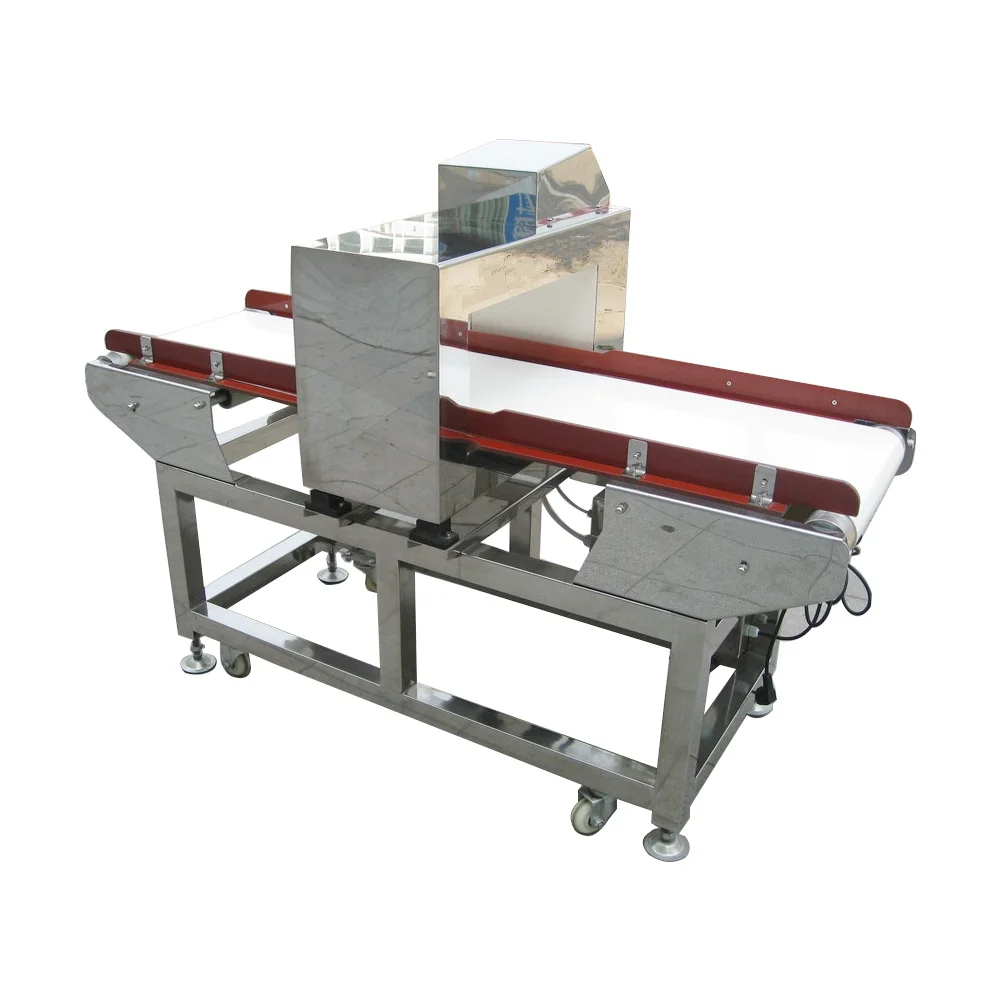

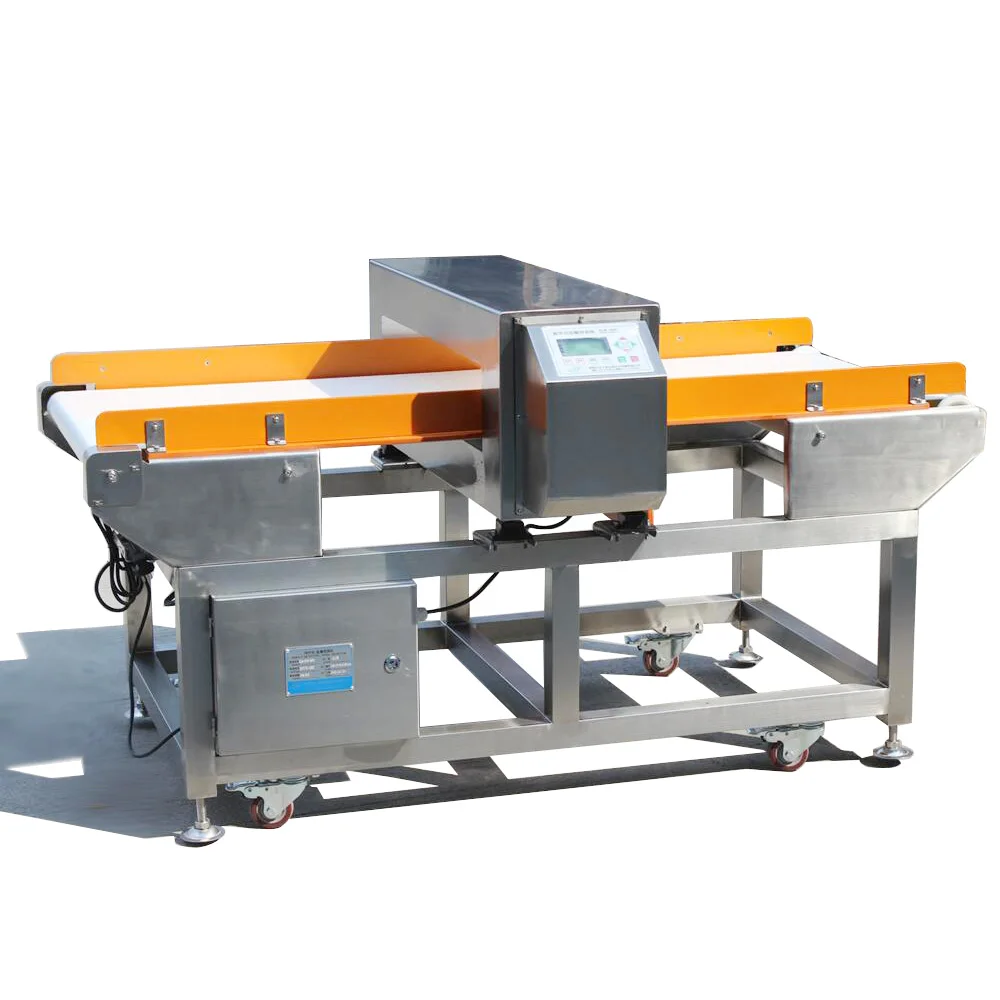

Factory Direct Super High Sensitivity 304 Stainless Steel Material Auto Matic Feeding Industrial All Metal Detector
- Category: >>>
- Supplier: Shenzhen Ougood Technology Limited
Share on (1600493169417):
Product Overview
Description
Factory Direct Super High Sensitivity 304 Stainless Steel Material Auto Matic Feeding Industrial All Metal Detector
Description:
Auto-Matic Feeding All-metal Detector adopts advanced technique,fine in structure and beautiful in design.It has super sensitivity and stable function for good detecting conclusion.
1.Purpose:
Designed for food industrial and pharmaceutical industrial use.Detecting metal fragments
(iron,copper,aluminum,lead,tin,stainless steel,etc.)such as aquaculture,fishery,dried or fresh marine product,flour,frozen food,meat wear,instant food,pets food,
pickled food,spice,food additive,vegetable and fruit,sugar,tea,health products,medicine and so on.
2. Function and characteristics:
a.The complete machine makes use of mirror plate stainless steel materials,so it is clean and not easy to dust.
b.The complete machine makes use of laser cutting,so the manufacturing process is fine.
c.The detection probe and the electrical equipment control box make use of waterproofing and dust proofing.
d.The pipeline can be disassembled and cleaned simply.

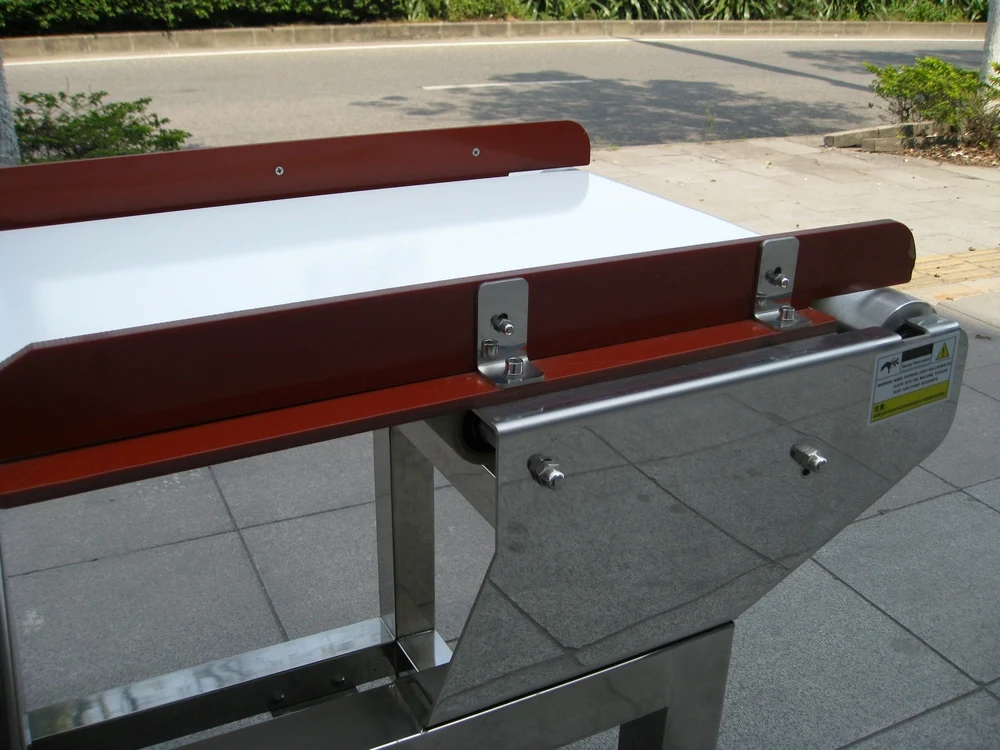

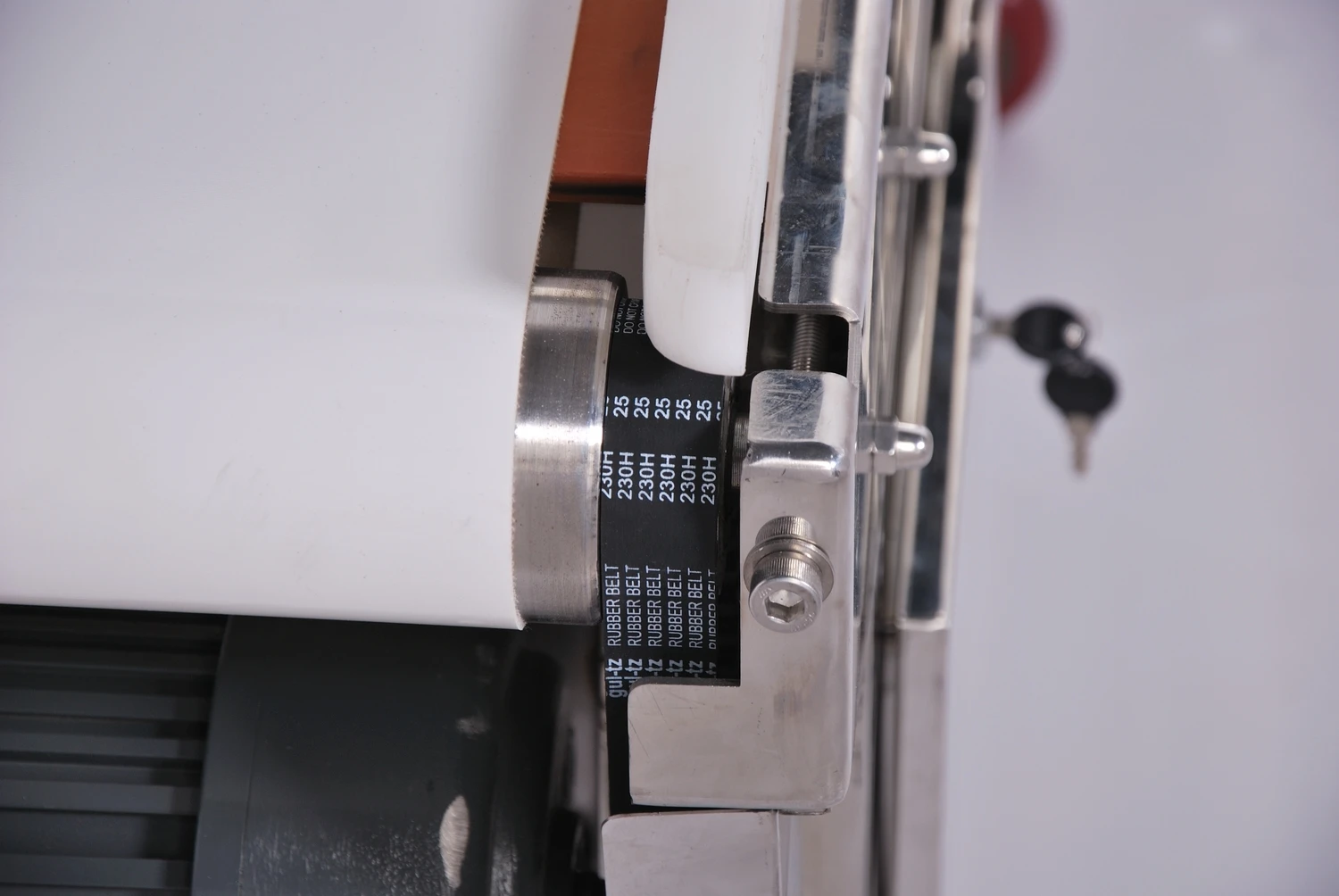

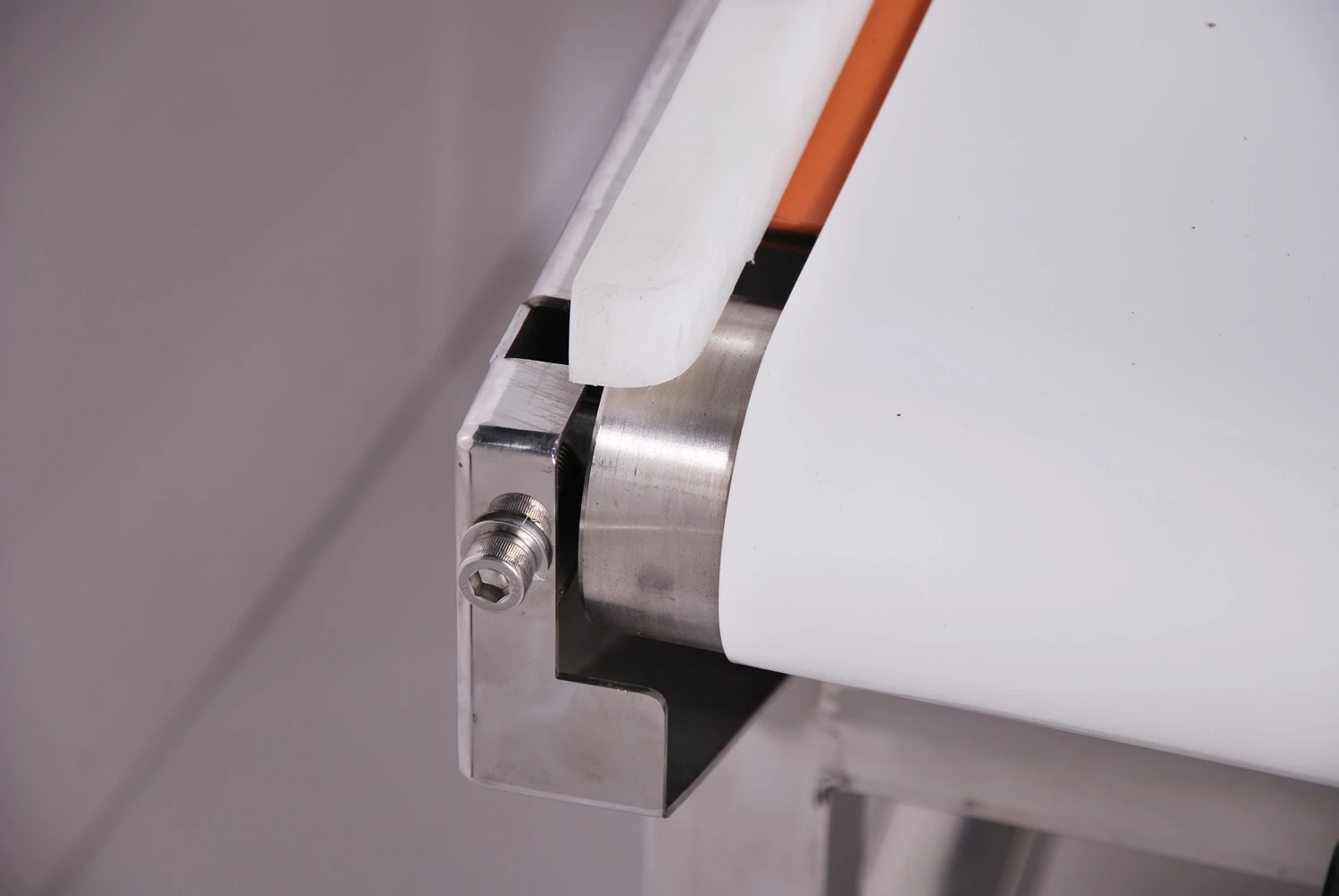

e.Anti-crooked running treatment for the conveying belt.

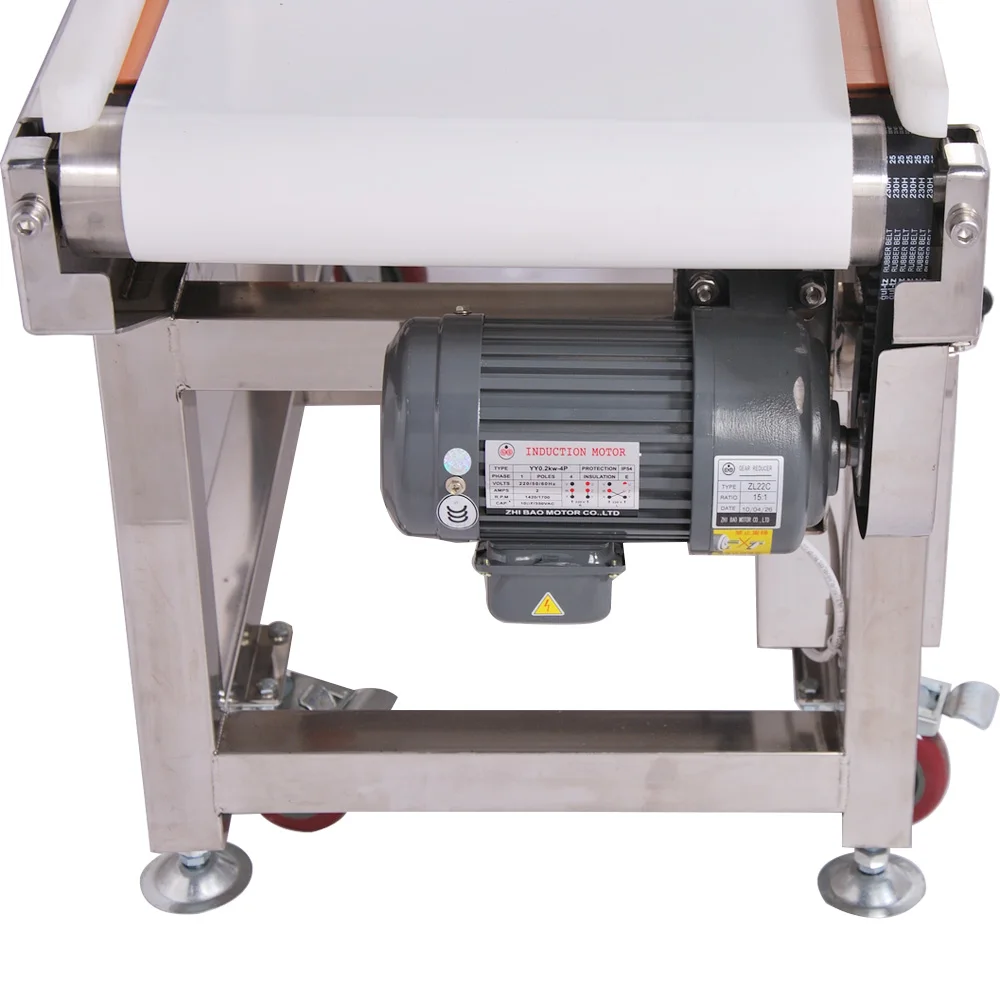

f. Make use of motors make in Taiwan,so the noise is low,and the vibration is light.
g.Both the detecting coil and the circuit element make use of imported components.
h.Supply power with two independent transformers.
i. Have a strong antishock and anti interference ability.

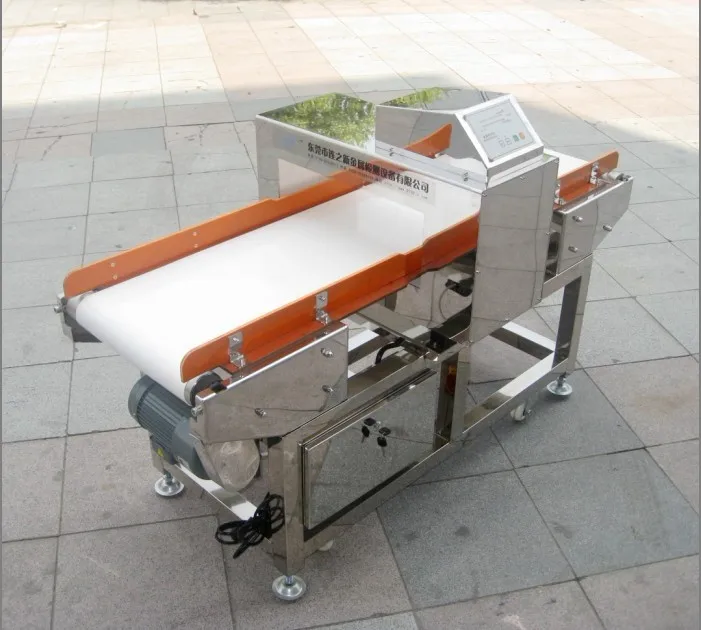

3.Structural representation.
a.Operation Control System
b.Electric Appliance Box
c.Clamping bolt
d.Frame
e.Footing
f. Universal Wheel

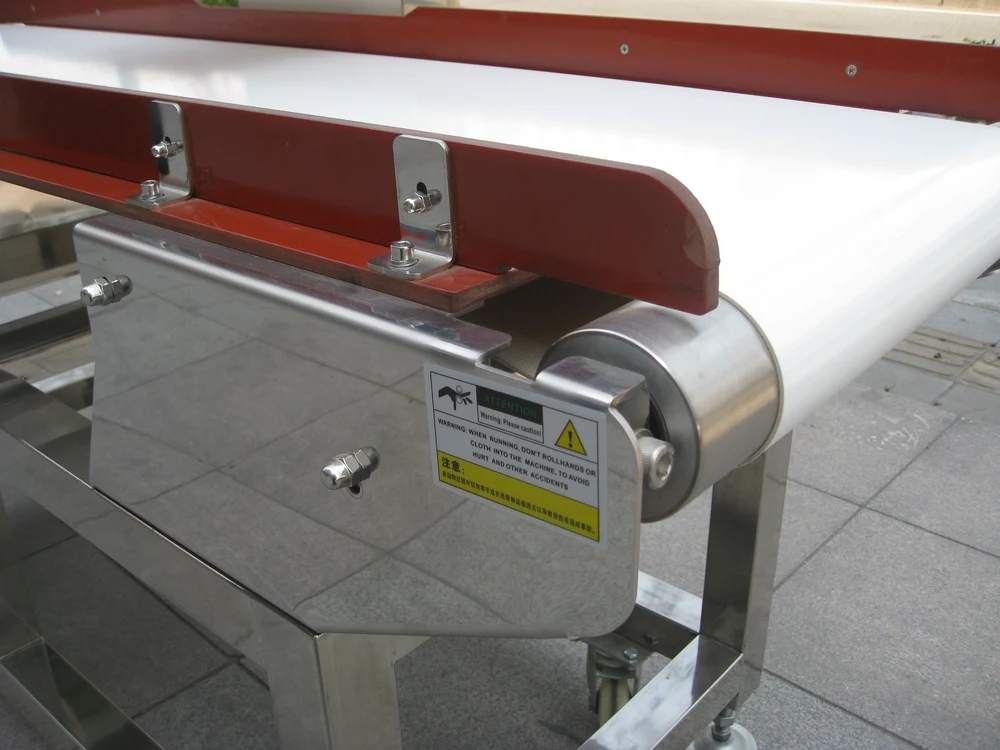

g.Conveyor
4.Parameters
Model | DLM-508K | ||||
Machine Specifications | Conventional machines | ||||
Detection of channel width | 400mm | ||||
Detection of channel height | 100mm | 120mm | 150mm | 200mm | |
Test Standard Sensitivity | Fe | Φ0.6mm | Φ0.8 mm | Φ1.0 mm | Φ1.0 mm |
SUS | Φ1.2 mm | Φ1.5 mm | Φ2.0 mm | Φ2.5 mm | |
Non-Fe metals | Φ1.2 mm | Φ1.5 mm | Φ2.0 mm | Φ2.5 mm | |
Alarm Mode | Conveyor stops automatically,issuing simultaneous audio and visual alarm | ||||
Machine Material | 304# Stainless Steel | ||||
Outside Size | 1560 *850 * 1050 (L*W*H) | ||||
Total Weight | 300KG | ||||
Voltage | 220V 50HZ 220W | ||||
Maximum load | ≤ 25KG | ||||
Belt Speed | 20-25 m/min | ||||
Sensitivity Adjustment method | LCD Touch-Screen-Conditioning,Iron and non-Ferrous metals were set, in Chinese and English operation menu. | ||||
Total Height | 660MM | ||||
Operationg ambient temperature | -10-45 Centigrade | ||||
Conventional machines are available today,the above argument is an empty machine testing standards measurement standards,the actual test parameters are subject to change depending on the different test objects. | |||||
