TOPACELAB double wall glass/ stainless steel reactor jacket glass reactor vessel 200l with ss reactor cover

Product Overview

Description

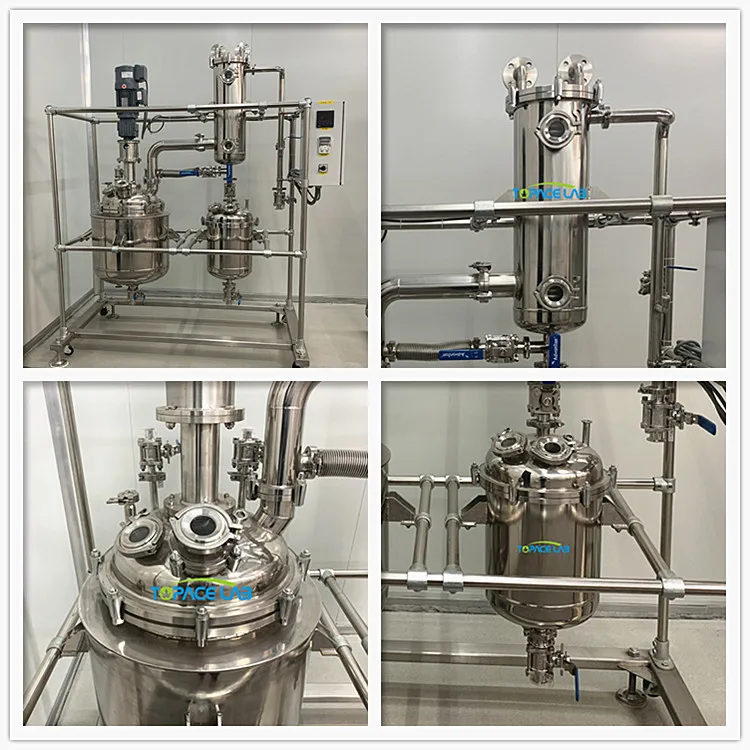

  TOPACELAB double wall reactor jacket glass reactor vessel 200l with reactor cover











It is mainly used for the process of crystallization, combination, reaction, separation, concentration, etc. It is an ideal equipment for chemistry, finechemical, biopharmaceuticals, and the synthesis, test and production of new materials.



The reactor can be a system with circulating water vacuum pump, diaphragm vacuum pump, chiller /low temperature circulator, heater and heating and cooling circulating device.



1. Modular design, easy to repair and maintain.

2. Ex control panel, it's very safe to use.

3. Continuously running.

4. Multiple observation window, easy to observe the material condition.



5. Stirrer tank: equipped with heating circulator, with molten material, heating reaction, concentration and other functions.



6. Condenser: Equipped with upper condenser, with reflux reaction and cooling function.



7. Solvent receiving tank: can accept the reaction by-products of the separation of liquid, but also can accept the distillation of concentrated solvent.

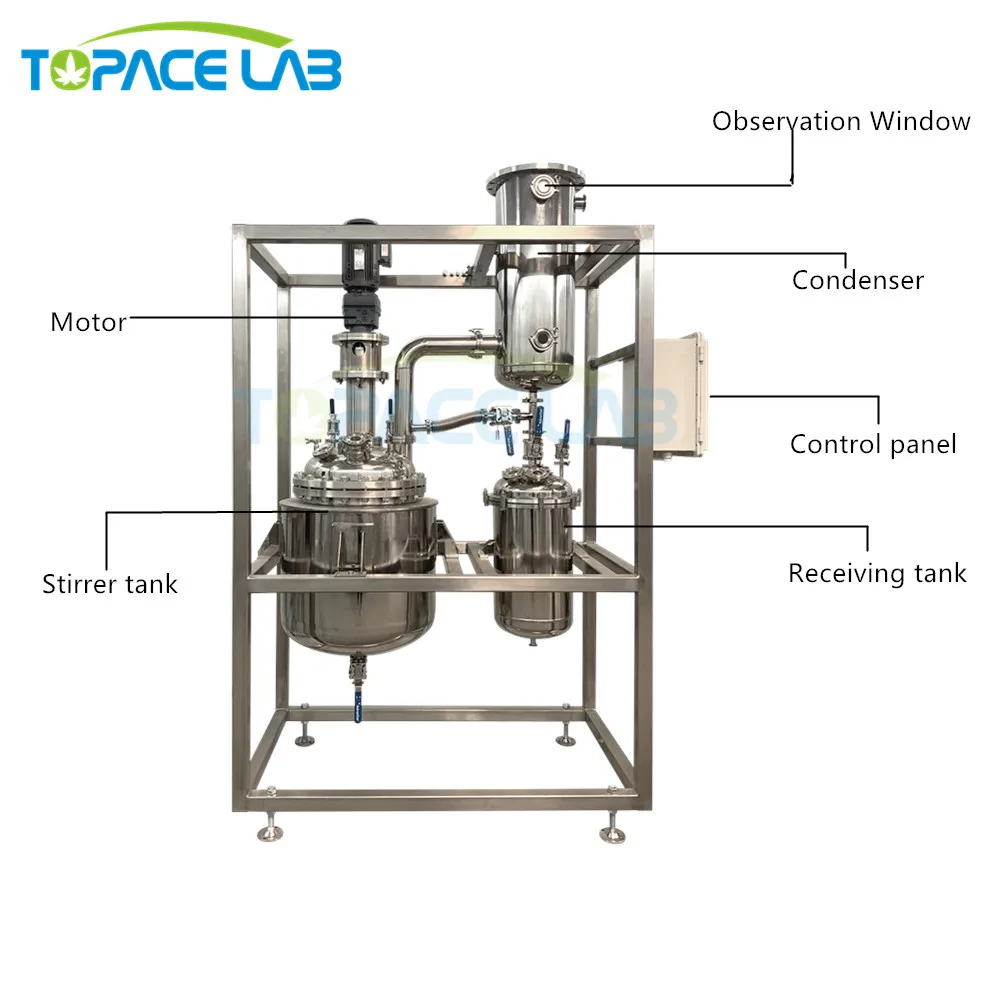

8. Compact structure: integrated in the main frame: stirrer tank, receiving tank, condenser and process pipeline.



9. Diversification of functions: the equipment has the functions of decarboxylation, solvent concentration and so on.



10. Accurate audience: This equipment is designed for CBD industry, and the process and operating temperature are based on the process in the industry.





Model	SSR-50L	SSR-100L	SSR-200L
Stirring tank	Net volume 50L	Net volume 100L	Net volume 200L
	Parts in contact with the materialis SS316; The rest is SS304
	Static seal/mechanical seal
	Stirring power: 750W, frequency conversion speed regulation;	Stirring power: 1.5KW, frequency conversion speed regulation;	Stirring power: 1.5KW, frequency conversion speed regulation;
	Circulating heating of jacket, 40mm heat insulation layer outside the jacket;
	One pressure gauge and temp sensor
	One inlet, KF16, with one ball valve;	One inlet, KF25, with one ball valve;	One inlet, KF25, with one ball valve;
	One gas proctection port, KF16, with one ball valve;	One gas proctection port, KF25, with one ball valve;	One gas proctection port, KF25, with one ball valve;
	Inlet and outlet of jacket DN25.	Inlet and outlet of jacket DN25.	Inlet and outlet of jacket DN25.
Condenser	Heat exchange area 1M2	Heat exchange area 2M2	Heat exchange area 3M2
	Materia: SS316
	With observation window
Receiving tank	Volume:30L	Volume:50L	Volume:100L
	Materia: SS316
	With observation window







Customized packaging can be available.





The damage caused by the transportation problem shall be borne by the seller.



We have good cooporation with leading international shipping companies such as DHL/UPS/FedEx/TNT to provide various sea shipping and air shipping options.

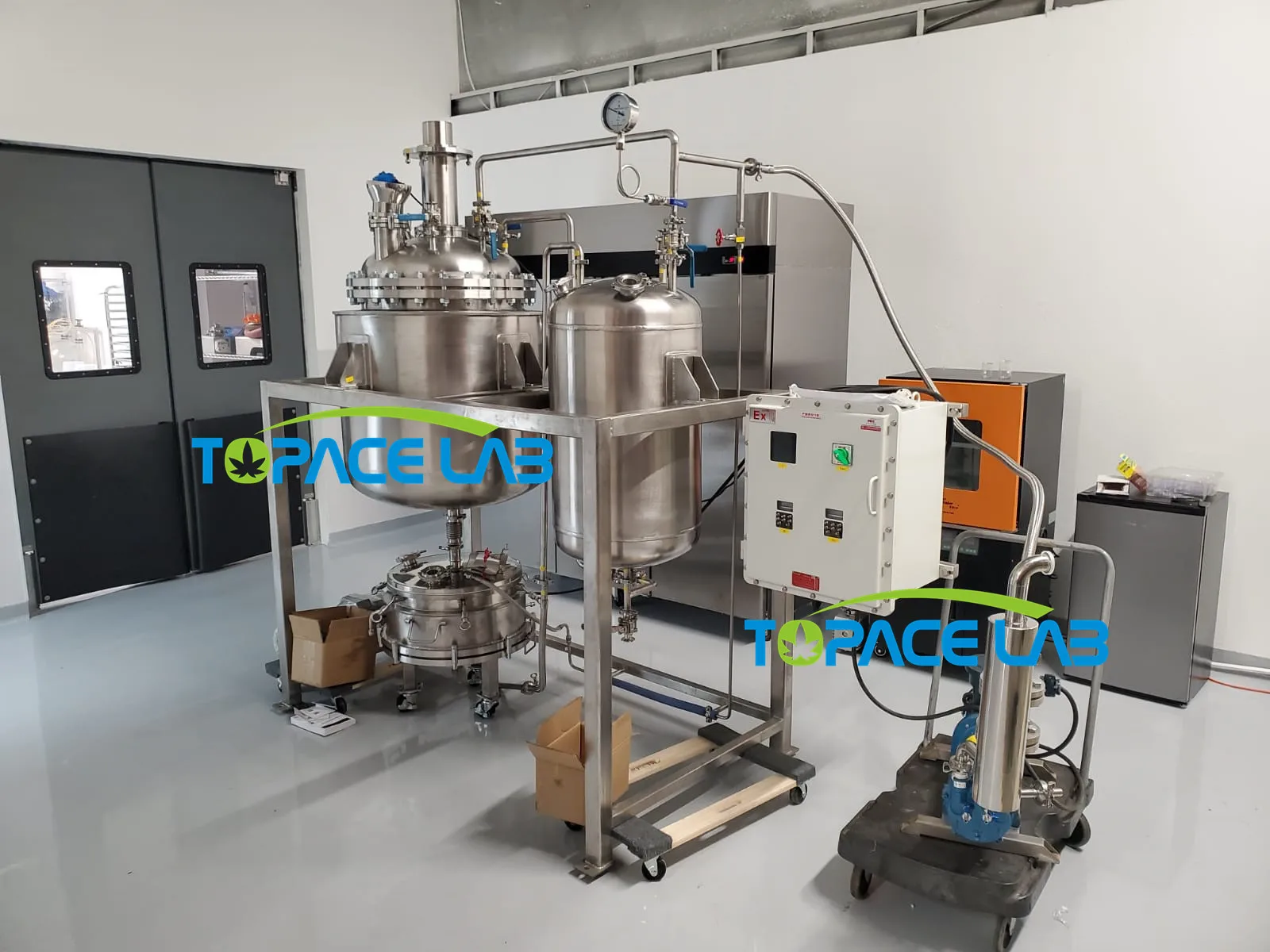

The supporting equipments:

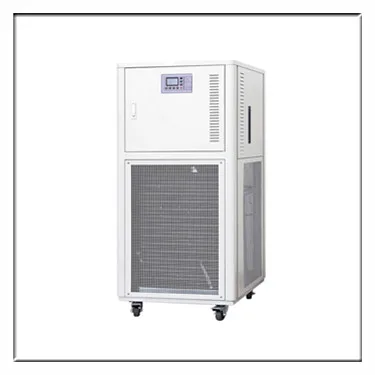

1. Circulating heater&chiller

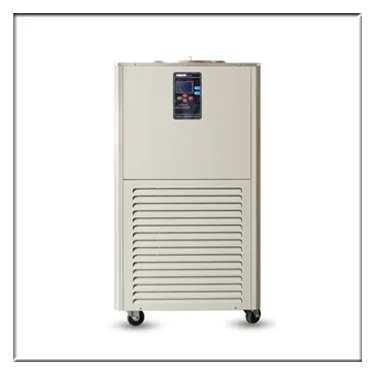

2. Circulating chiller

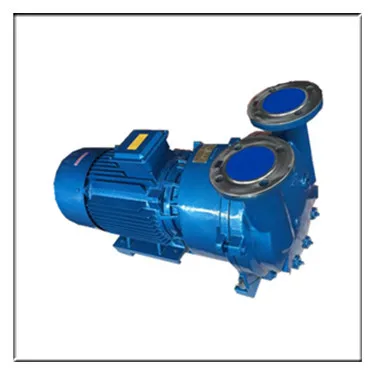

3. Vacuum pump



 when you receive them,you can use this system at once,it is very convenient.

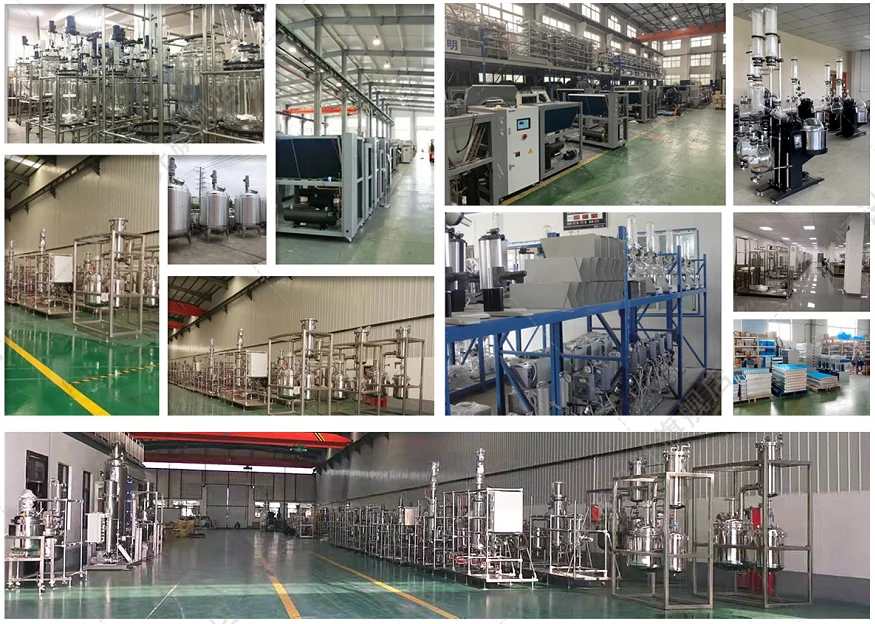

Shanghai Topace scientific instruments co.,lt locates in Shanghai, specialized in product and export lab equipment such as rotary evaporator, jackteted glass reactor, short path distillation system, wiped film evaporator, vacuum oven, chillers, vacuum pumps, and stainless steel extraction tank and so on. With more than 30 years of experience on glass blowing, we provide a comprehensive range of products from lab glassware to industrygrade glass reactors (up to 200L) and evaporators (up to 100L). With the help of our experienced scientific glassblowers, we are able to quickly build customized glassware and prototype equipments, based on your sketch or pictures. Our equipment has been exported to theNorth America, Europe, Australia, South Africa, Southeast and East Asia, and other regions. You are warm welcomed to visit our factory!
