All Functions VDSL Modem VDSL2 Tester TM 600 WAN & LAN Tester xDSL Line Test Equipment with OPM VFL Tone Tracker TDR TM600
- Category: >>>
- Supplier: Hefei Equilateral Communication Equipment Co. Ltd.
Share on (1600493272401):
Product Overview
Description

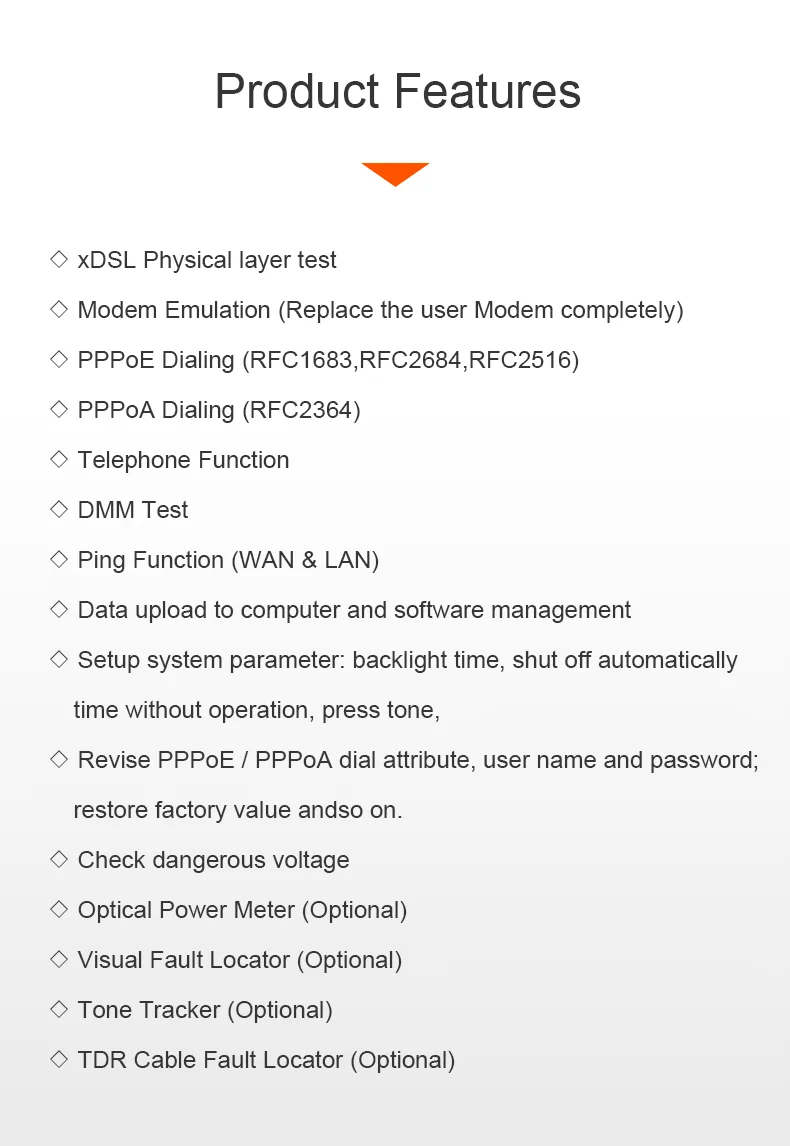

Features

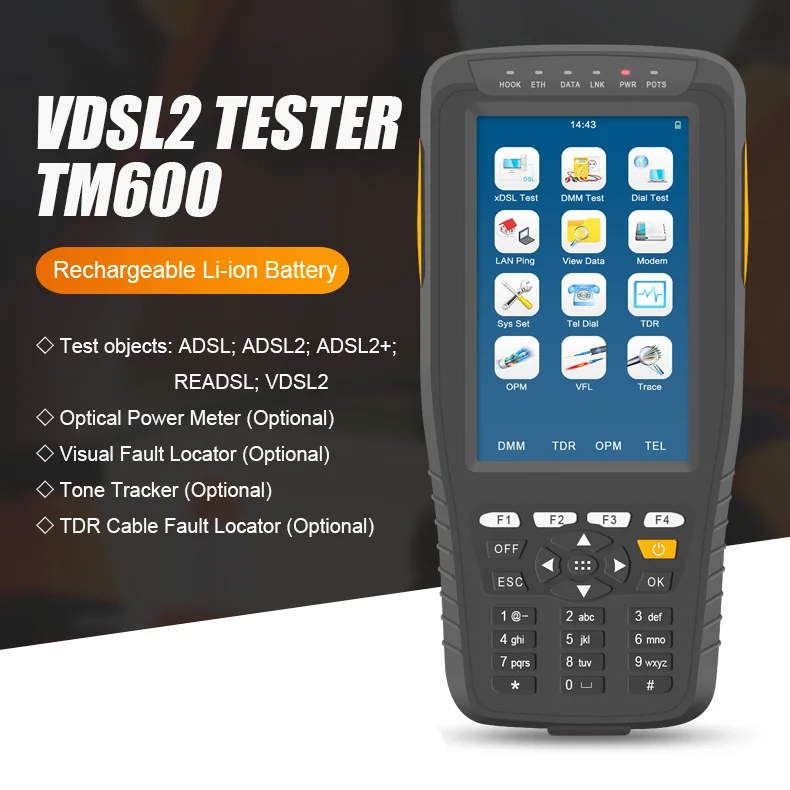

Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
Fast Copper tests with DMM (ACV, DCV, Loop and Insulation
Resistance, Capacitance, Distance)
Supports Modem emulation and simulating login to Internet
Supports ISP login (user name / password) and IP Ping test
(WAN PING Test, LAN PING Test)
Supports all multi-protocol, PPPoE 1 PPPoA (LLC or VC-MUX)
Connects to CO via alligator clip or RJ11
Rechargeable Liion Battery
Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
Data memory function
LCD display, Menu operation.
Auto shut off if no any operation on keyboard
Compliant with all known DSL .AMs
Software management
Simple, portable and money-saved
Fast Copper tests with DMM (ACV, DCV, Loop and Insulation
Resistance, Capacitance, Distance)
Supports Modem emulation and simulating login to Internet
Supports ISP login (user name / password) and IP Ping test
(WAN PING Test, LAN PING Test)
Supports all multi-protocol, PPPoE 1 PPPoA (LLC or VC-MUX)
Connects to CO via alligator clip or RJ11
Rechargeable Liion Battery
Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
Data memory function
LCD display, Menu operation.
Auto shut off if no any operation on keyboard
Compliant with all known DSL .AMs
Software management
Simple, portable and money-saved
More details
Images

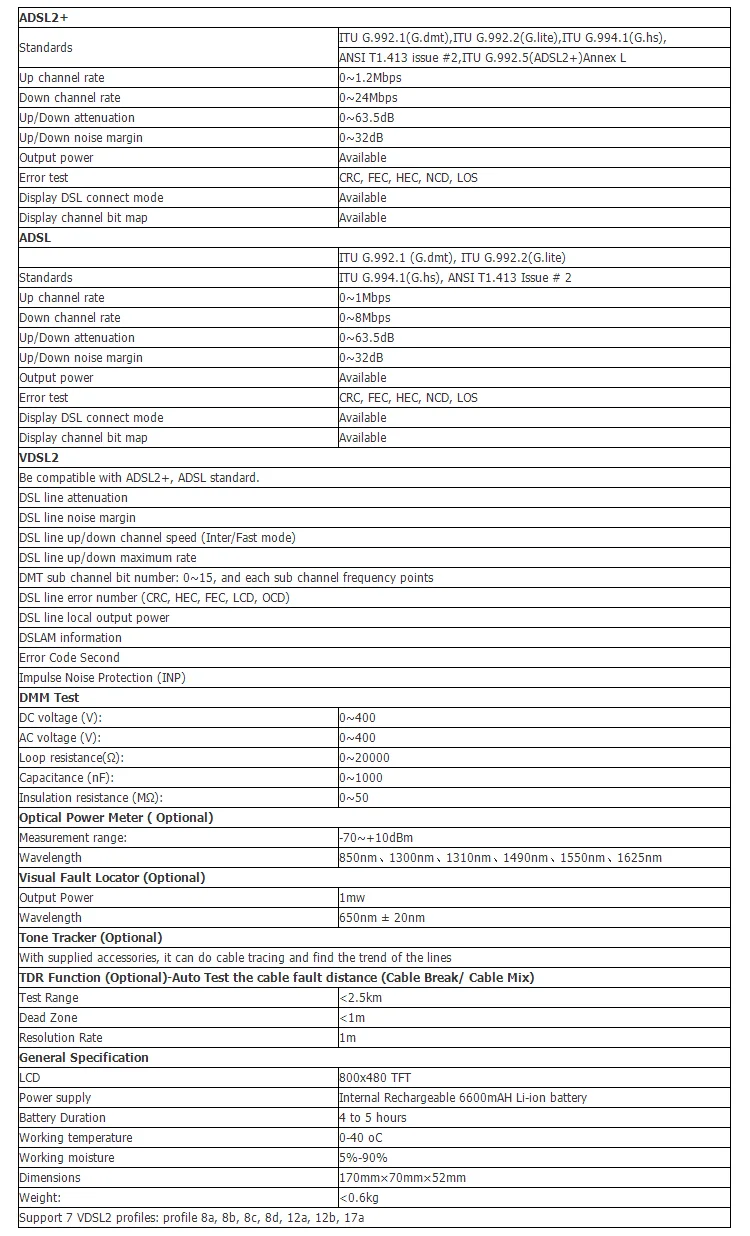

Product Paramenters
Model | TM600 VDSL | |||
ADSL2+ | SUPPORT | |||
ADSL | SUPPORT | |||
VDSL | SUPPORT | |||
OPM / VFL | OPTIONAL | |||
TDR | OPTIONAL | |||
Tone Tracker | OPTIONAL |
