Share on (1600493309919):


Price:$238.00 - $275.00

Quantity:


Product Overview

Description





GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.


Product Paramenters


Model Optional(Gige&Global Shutter&CMOS)
Model Number
Pixel
Resolution
Frame Rate
Sensor Size
Pixel Size
Depth
Exposure Time
MV-GE34GC/M
0.3MP
640*480
387fps
1/4"
1/4"
10bit
0.0040~57ms
MV-GE134GC/M
1.3MP
1280*1024
91fps
1/2"
1/2"
10bit
0.008~1048ms
MV-GE200GC/M
2.0MP
1600*1200
60fps
1/1.8"
1/1.8"
10bit
0.016~91ms
MV-GE202GC/M
2.3MP
1920*1200
51fps
2/3"
2/3"
10bit
0.005~327.7ms
MV-GE231GC/M
2.3MP
1920*1200
40fps
1/1.2"
5.86μm
12bit
0.02~41943ms
MV-GE501GC/M
5.0MP
2448*2048
24fps
2/3"
3.45μm
12bit
0.022~23068ms
MV-GE502GC/M
5.3MP
2592*2048
22fps
1"
2.2μm
10bit
0.005~327ms


Detail Information
Product Item
Machine Vision Gige Vision Camera Cmos Image Sensor Cheap Price Pipe Inspection SDK Camera Support POE
Model Number
MV-GE134GC/M
Color
Monochrome/Color
Shutter
Global Shutter
Sensor
CMOS
Lens Mount
C Mouth
GPIO
1 way optical isolation input, one way optical isolation output; Optional 3 input 4 output
Data interface
RJ45 Gigabit Ethernet interface
Frame Buffer
32M Bytes
User-defined data area
2K Bytes
Power Requirements
9~12V/POE48~57V(POE is optional)
Dimensions
29*29*40(mm)
weight
＜75g
Operating temperature
0~50℃
Programming Language
C/C+ +/C #/VB6/VB.NET/Delphi/BCB/Python
Operating System
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable)
Driver
DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Other Functions
Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation,
sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control

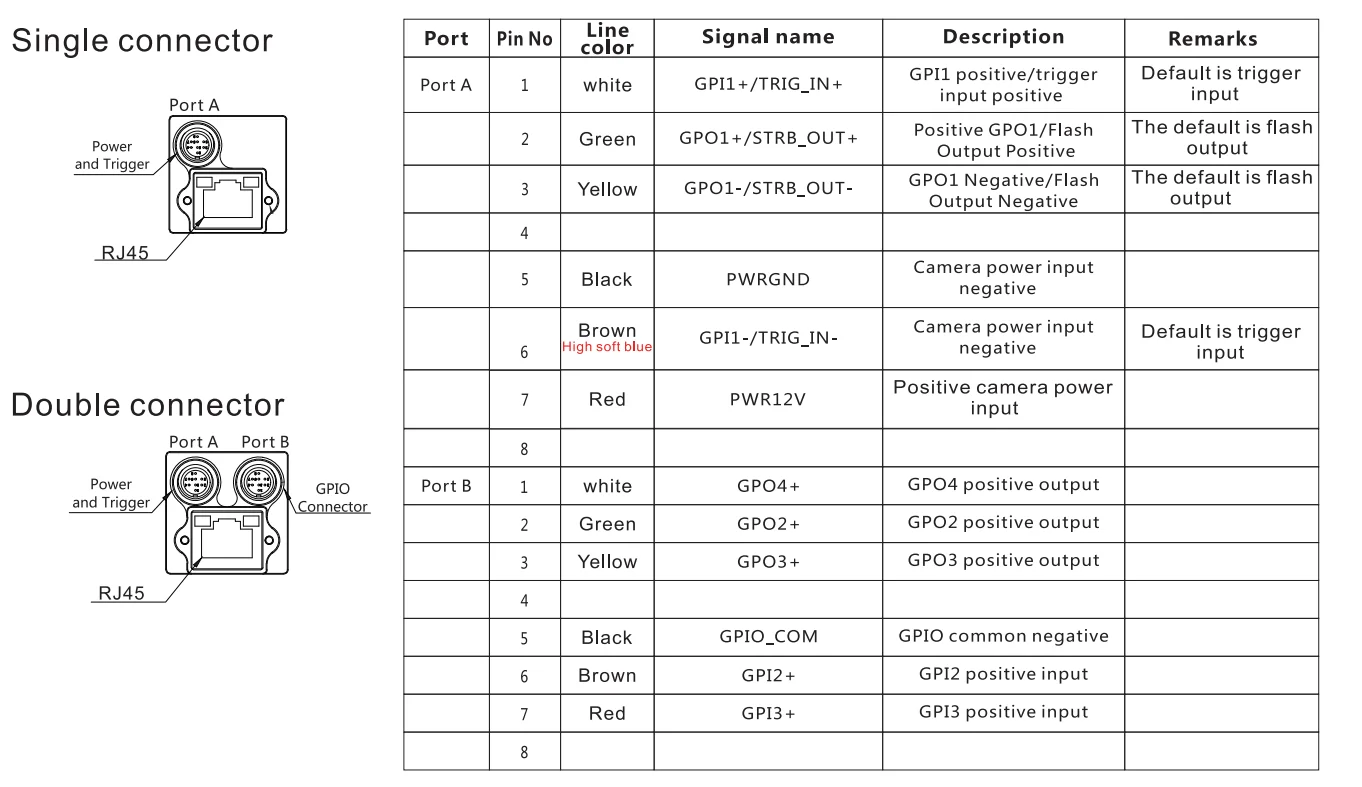

Line Sequence Definition

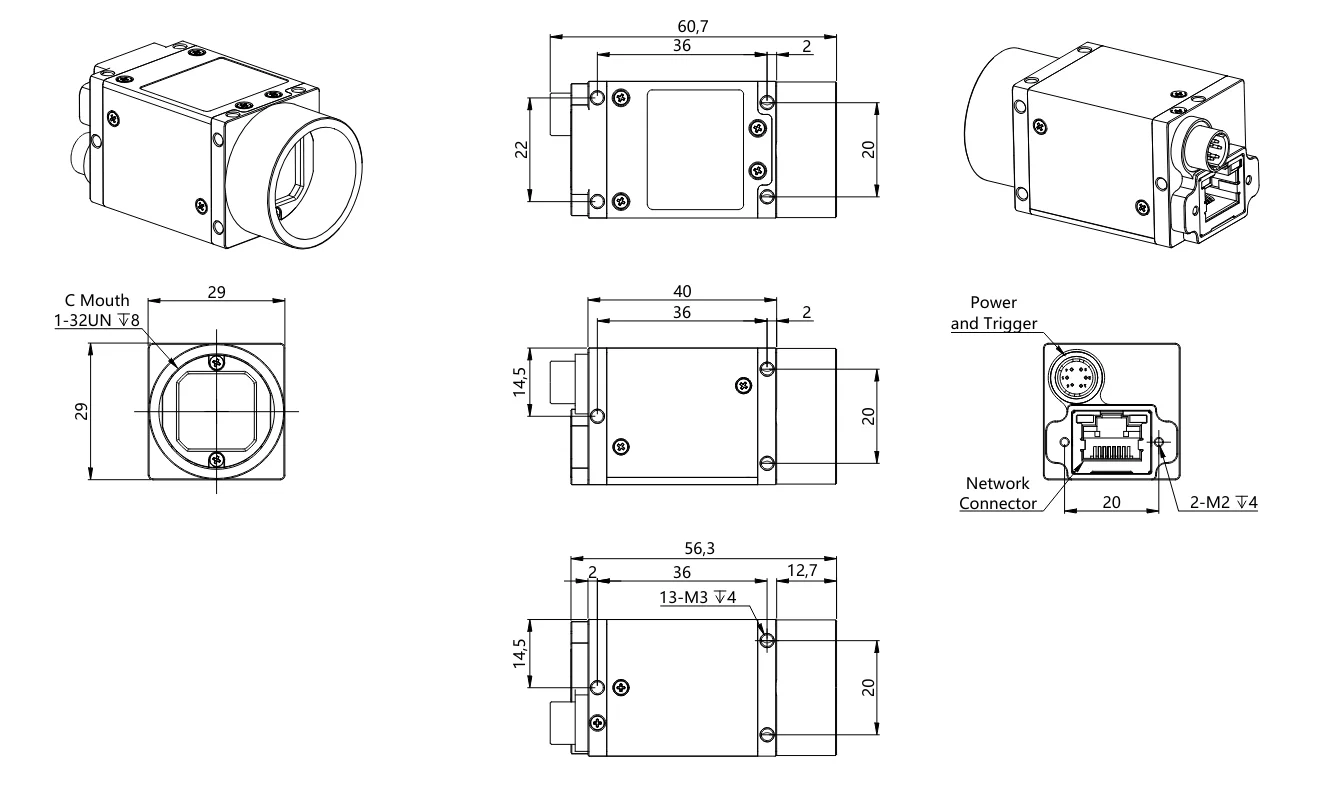

Camera Size

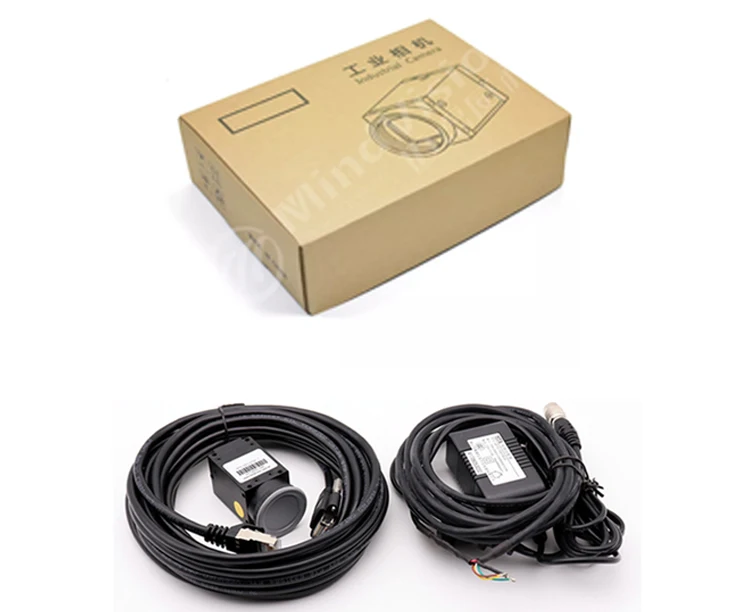

Product Packaging




Case Show








About US


ShenZhen MindVision Teconogy Co,Ltd is an intelligent enterprise providing products and solutions in the field of machine vision, incorporates research, manufacturing.sales and service with professional technologies and excellent manufacturing process.
With strong technical power , exquisite process , good corporate reputation , excellent product quality , continuous research and develop new and high technology products with a number of independent patent , we provide customers with quality products and technical services in the field of industrial camera. MindVision establishes long-term relations with various enterprises.


Our Partners








FAQ


1. How about the quality of your products?
We are a professional manufacturer, each production process has strict quality inspection .


2.OEM/ODM is available?
Yes, You can tell us your specific informations, our engineers will provide solutions for you.


3.How about the quality of your products?
We are a professional manufacturer, each production process has strict quality inspection .


4.Driver and SDK problems??
Our company can provide sdk for free, When you meet any using questions about industrial camera ,feel free to contact us on Alibaba.


5. When will you ship my order?
We have our own factory and warehouse, once we get the confirmation of payment, we will ship the goods within 7-10 days.
