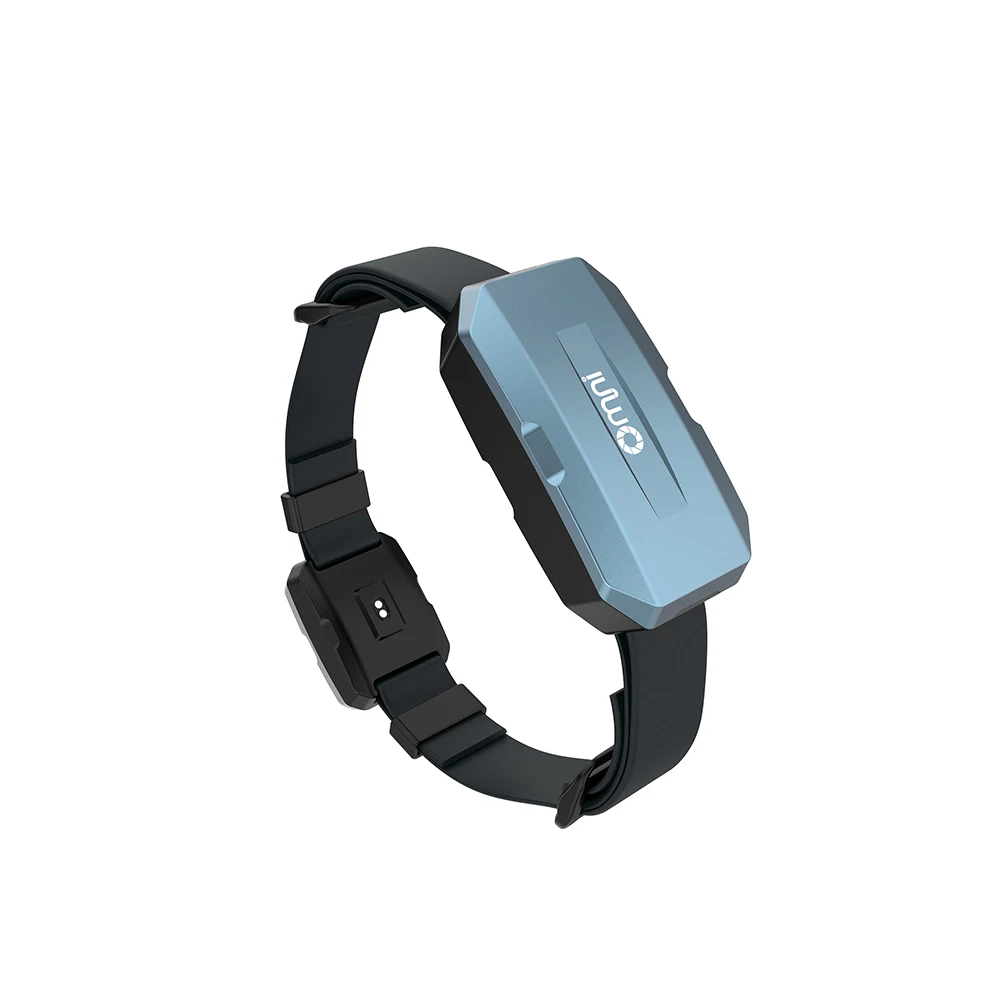

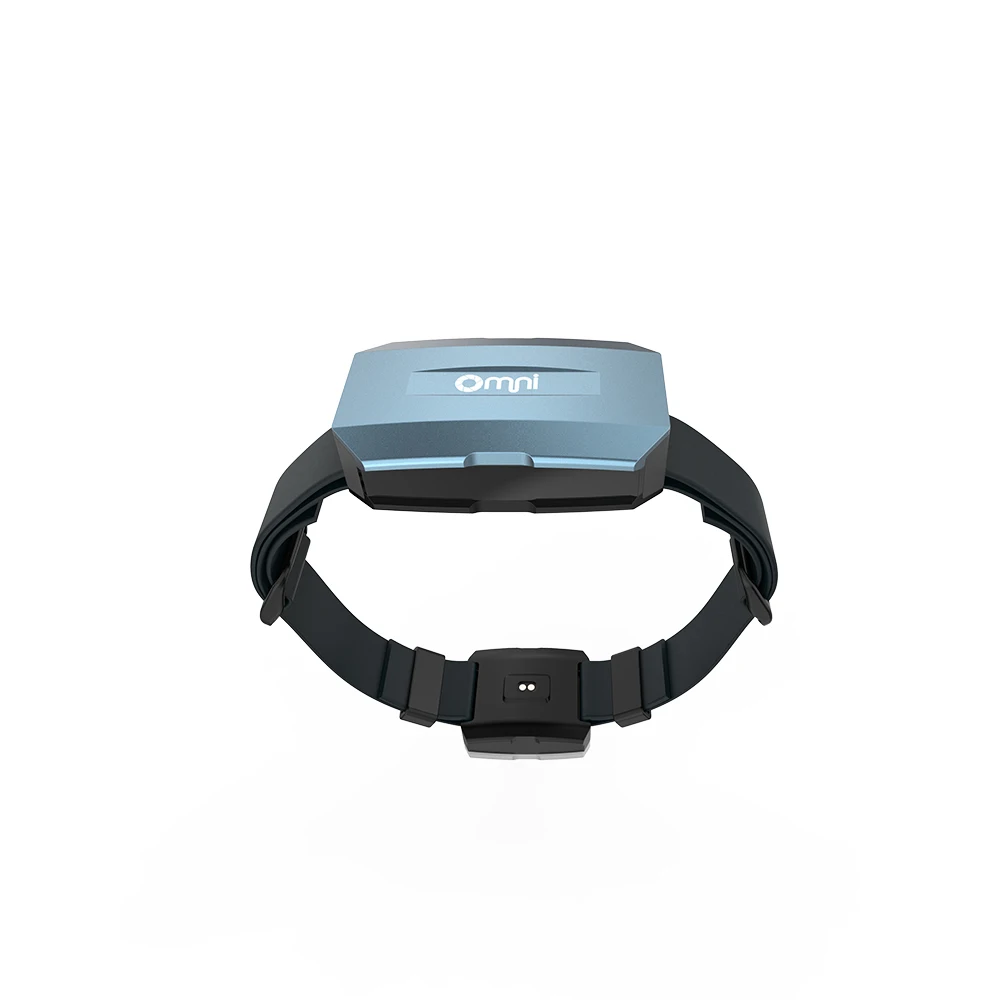

Anti Lost Alarm pet gps tracking collar dog tracking device
- Category: Pet Training & Behavior Products >>>
- Supplier: Shenzhen Omni Intelligent Technology Co. Ltd.
Share on (1600493326490):
Product Overview
Description
Gerneral specifications | Model Number | OPD01 | |
Dimension | 2.77*1.35*0.86 inch 70.5mm × 34.4mm × 21.9mm | ||
Weight | 1.79 OZ/ 51g | ||
Battery Voltage/Capacity | 3.7V/1200mAH | ||
Charging voltage | DC 5V | ||
Shell Material | PC+10%GF | ||
Battery life | One charge ≥20hours | ||
Waterproof | IP67 | ||
Hardware | Sensor | Motion sensor | |
Charging interface | Cable outer diameter 3mm | ||
SIM card slot | Nano-SIM card or custom e-Sim card | ||
Flash memory | 512K | ||
WIFI | 802.11 b/g/n, 2.4G | ||
BLE | BT5.0 LE | ||
GPS | GPS chipset | Ubx M8130 | |
GPS | Support | GPS, GLONASS, Galileo | |
GPS, GLONASS, Galileo | 10 meter | ||
Location condition | ≥4 satellites, ≥30dB signal noise | ||
Receive sensitivity | -158dBm | ||
Cold start | approx 25s | ||
Warm start | approx 2s | ||
Hot start | approx 1s | ||
Antenna | Built-in ceramic antenna | ||
Standard accessories | Magnetic USB cable 1 meter | ||
User manual(CN/EN/SP/JP) | |||
Adjustable dog collar maximum length 40cm | |||
Packing box | |||
Version | 2G/4G parameter |
2G/4G parameter | GSM-900/1800MHz FDD-LTE B1/B3/B5/ B8/B20 LTE-TDD B34/B38/B39/B40/B41 |
Europe Version(CAT1) | GSM-900/1800MHz FDD-LTE B1/B3/B5/B7/B8/B20 |
Australia Version(CAT1) | GSM-850/900/1800/1900MHz FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28/B66 |
North America Version(CAT-M1) | LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20 /B25/B26/B27/B28/B66/B85 |
Main Features :
1. Excellent Design: it is compact and lightweight, and it will not cause any burden to pets, looks very cute.

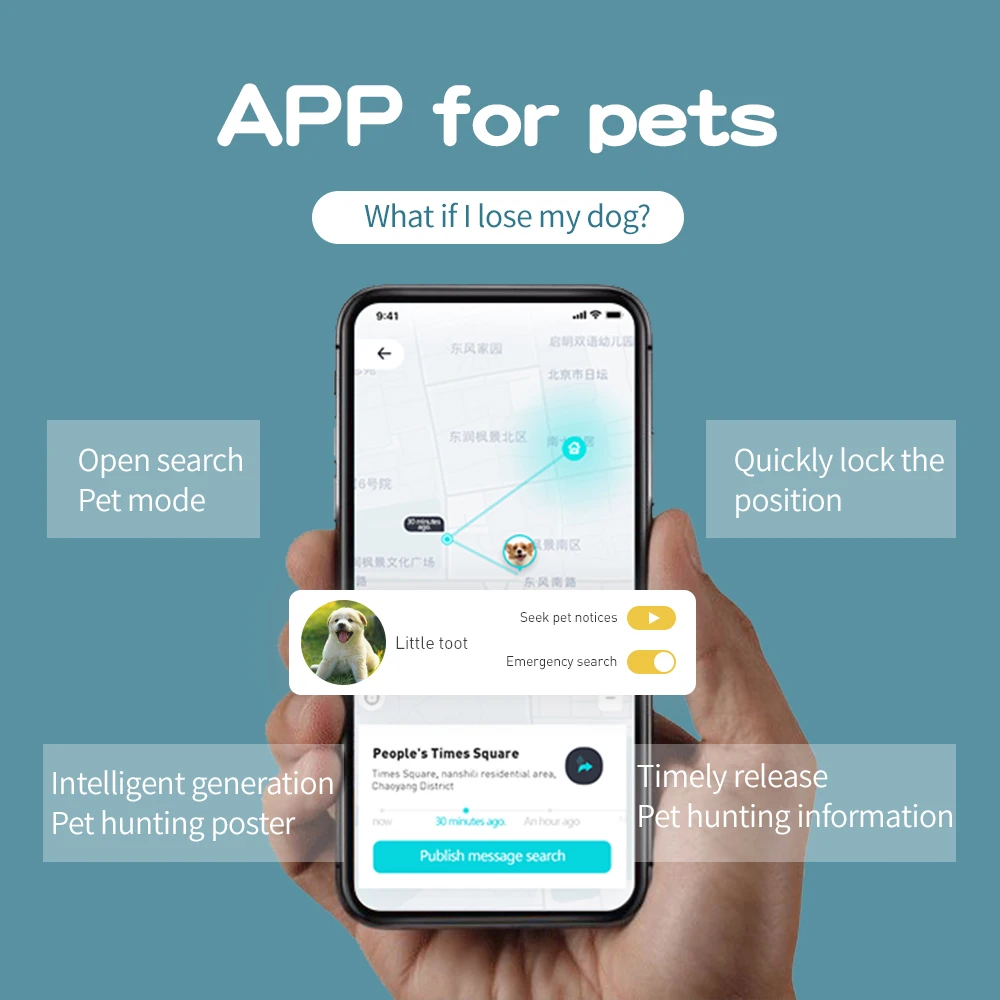

2. GPS Function: the pet tracker can locate your pet anywhere, you can see the location and movement of the pet on your phone.
3. Security Fence: you can set an area around locator, alarming immediately when the pet getting in or out of the area.
4. Water-resistant Design: it is water-resistant and suitable for use in a variety of environments.
5. 1200mAH capacity battery, stand by over 15 days, using time over 7 days(according test result used 3 hours each day).
Rechargeable polymer lithium ion batteries.
6. Only 3 hours able to charge full 100%, adopt 5V-USB magnetic suction charge.
7. Set transportation mode to save power when take to outdoor or in shipping.
8. Nano Sim card insert in or customize E-Sim card connect to the network.
9. Customized Service: customized Embedded-SIM, customized packing box, customized logo, ect.
4. Water-resistant Design: it is water-resistant and suitable for use in a variety of environments.
5. 1200mAH capacity battery, stand by over 15 days, using time over 7 days(according test result used 3 hours each day).
Rechargeable polymer lithium ion batteries.
6. Only 3 hours able to charge full 100%, adopt 5V-USB magnetic suction charge.
7. Set transportation mode to save power when take to outdoor or in shipping.
8. Nano Sim card insert in or customize E-Sim card connect to the network.
9. Customized Service: customized Embedded-SIM, customized packing box, customized logo, ect.
Q1: What is the accuracy of this pet locator？
A：5-15m depending on weather and shelter.
Q2: How long can this GPS Pet Tracker last for one charge?
A: In the working mode, the positioning is uploaded once every 30 seconds and can be standby for 12-15 hours, in idle mode, the location is uploaded once every hour and second, and it can stand by for 4-5 days.
Q3: Does this pet locator support customization？
A: Yes, we support app and logo customization.
Q2: How long can this GPS Pet Tracker last for one charge?
A: In the working mode, the positioning is uploaded once every 30 seconds and can be standby for 12-15 hours, in idle mode, the location is uploaded once every hour and second, and it can stand by for 4-5 days.
Q3: Does this pet locator support customization？
A: Yes, we support app and logo customization.
