TGuide S32 Automated Nucleic Acid Extractor for DNA extraction virus RNA purification for nucleic acid purification instrument
- Category: Clinical Analytical Instruments >>>
- Supplier: Tiangen Biotech (Beijing) Co. Ltd.
Share on (1600493528524):
Product Overview
Description
Products Description

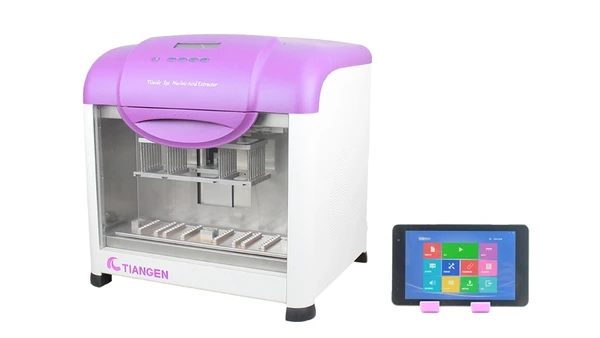

TGuide S32 Automated Nucleic Acid Extractor adopts the latest magnetic rods adsorption and transfer method. 96-deep well plates and different kinds of magnetic beads extraction reagents are applied to automatically extract and purify nucleic acids from 1-32 blood/cells/tissues/viruses and other samples. The instrument uses the special magnetic rods to absorb, transfer and release magnetic beads, so as to realize the transfer of magnetic beads and nucleic acids.
Product Detail
Features：
* The unique magnetic rod vibration mode has large vibration amplitude and high precision.

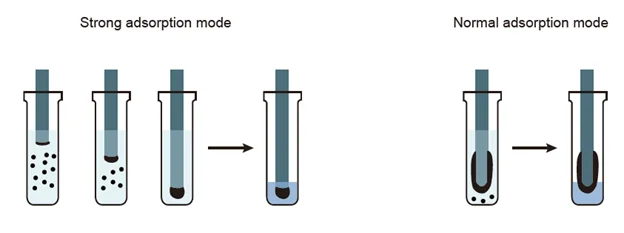

* New strong adsorption mode, good magnetic beads adsorption effect and high nucleic acid yield.
* Limit position protection function, stable and orderly operation of the instrument to avoid failure.
* Windows Pad and screen button double control mode, powerful program editing function, intuitive, simple and convenient operation.
* Contamination intelligent control system and UV sterilization module can effectively avoid cross contamination between sample wells and batches.
* Relying on TIANGEN nucleic acid extraction and purification reagent platform, it provides a comprehensive, complete and high-quality automation solution.

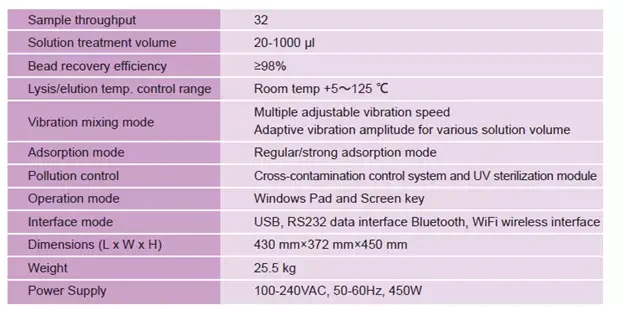

Specification:
Operating Parameters

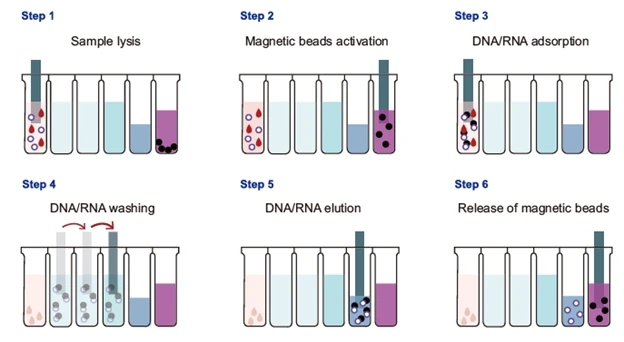

Principle:
After the sample is lysed by the lysis buffer, the nucleic acid dissociated from the lysis/binding solution is specifically
adsorbed by the magnetic beads. Through the cooperation of the magnetic rod and the magnetic tip comb, the magnetic attraction, transfer, release, mixing and other actions are completed to separate the magnetic beads adsorbing the nucleic acid from the lysis/binding solution. Various impurities that are not specifically bound to the magnetic beads are removed in the washing well, and finally the nucleic acid molecules are dissolved in the elution buffer.
After the sample is lysed by the lysis buffer, the nucleic acid dissociated from the lysis/binding solution is specifically
adsorbed by the magnetic beads. Through the cooperation of the magnetic rod and the magnetic tip comb, the magnetic attraction, transfer, release, mixing and other actions are completed to separate the magnetic beads adsorbing the nucleic acid from the lysis/binding solution. Various impurities that are not specifically bound to the magnetic beads are removed in the washing well, and finally the nucleic acid molecules are dissolved in the elution buffer.

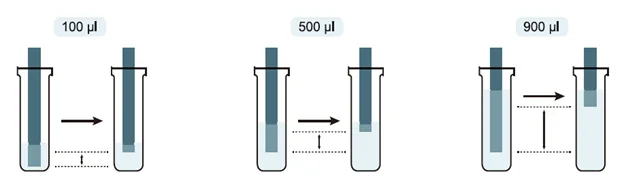

Unique Movement Mode of Magnetic Rod
The driving device adopts a stepping motor. With large vibration amplitude of the magnetic rod, the vibration amplitude is automatically adjusted according to the volume of the solution, making sure a good mixing effect. The transmission device adopts a ball screw, with stable operation of magnetic rod, high precision and long service life. All moving parts are equipped with limit position protection function to ensure smooth and orderly operation of the instrument to avoid failures.

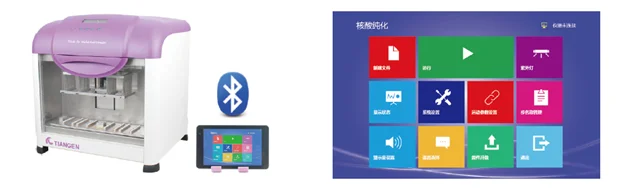

Dual Control Mode of Windows Pad and Screen Buttons
On the basis of the classic button operation, it is remotely controlled with high-performance Windows Pad. The interactive interface of Windows application program is perfectly set, which is more in line with customers’ normal office work and learning Windows usage habits.

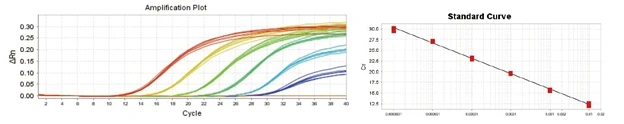

Virus DNA/RNA Extraction
Samples: Avian influenza H5 virus standard antigen, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7gradient dilution and NTC control. Viral RNA was dissolved in 100 μl RNase-Free ddH2O.
RT-qPCR kit: TIANGEN FastKing One Step qRT-PCR Kit (Probe)
RT-qPCR instrument: AB 7500 Fast Real-time PCR System
RT-qPCR kit: TIANGEN FastKing One Step qRT-PCR Kit (Probe)
RT-qPCR instrument: AB 7500 Fast Real-time PCR System

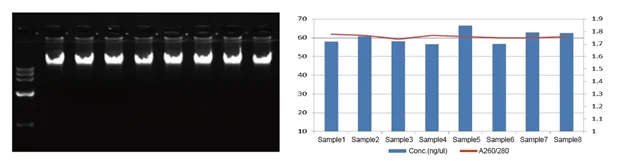

Blood Genomic DNA Extraction
Sample: 200 μl frozen EDTA anticoagulant whole blood. Genomic DNA is dissolved in 100 μl Buffer TB. DNA Marker: TIANGEN MD110, D15000 DNA Marker

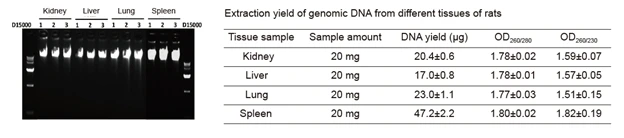

Animal Tissues Genomic DNA Extraction
.

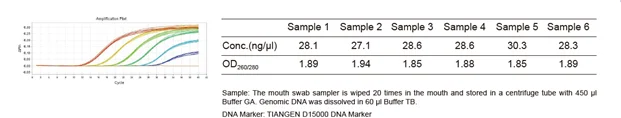

Mouth Swabs Genomic DNA Extraction

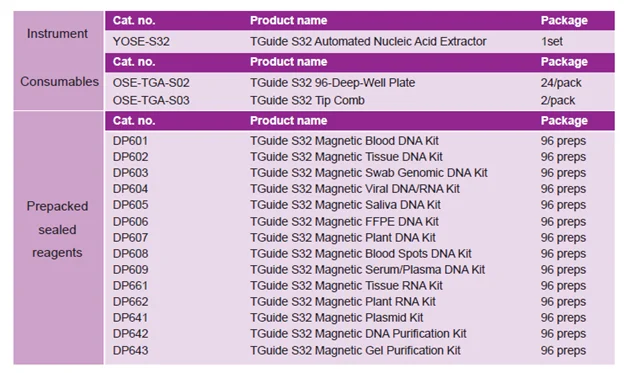

TGuide S32 Automated Nucleic Acid Extractor and Selection Guide of Supporting Reagent and Consumables
