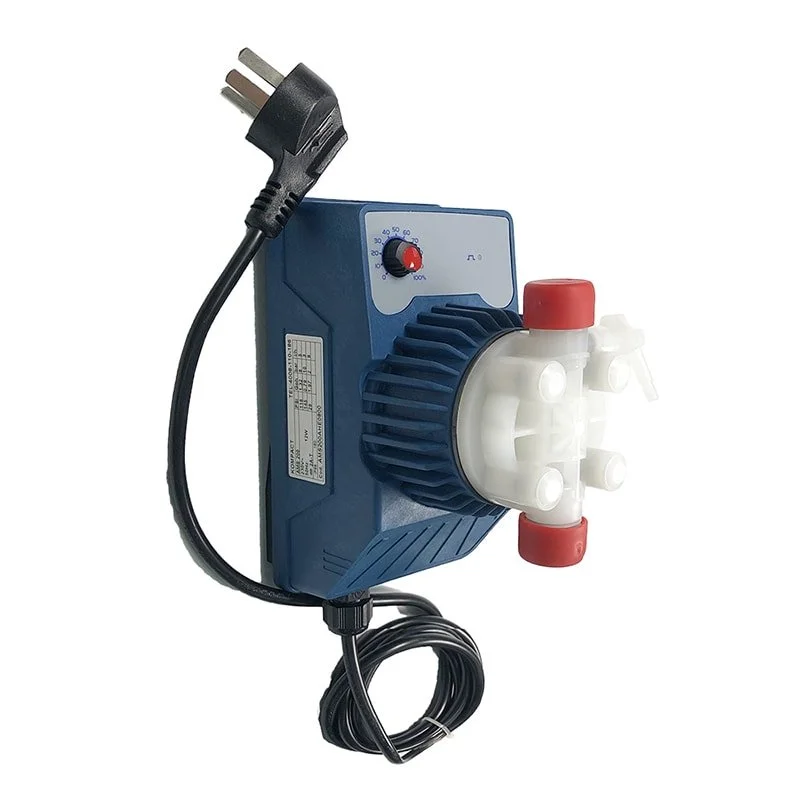

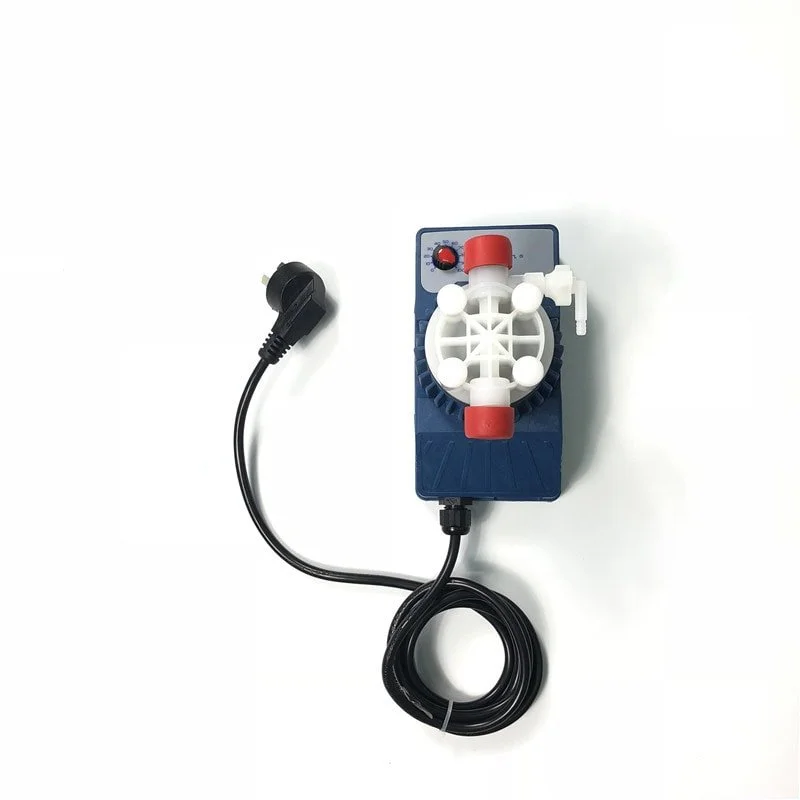

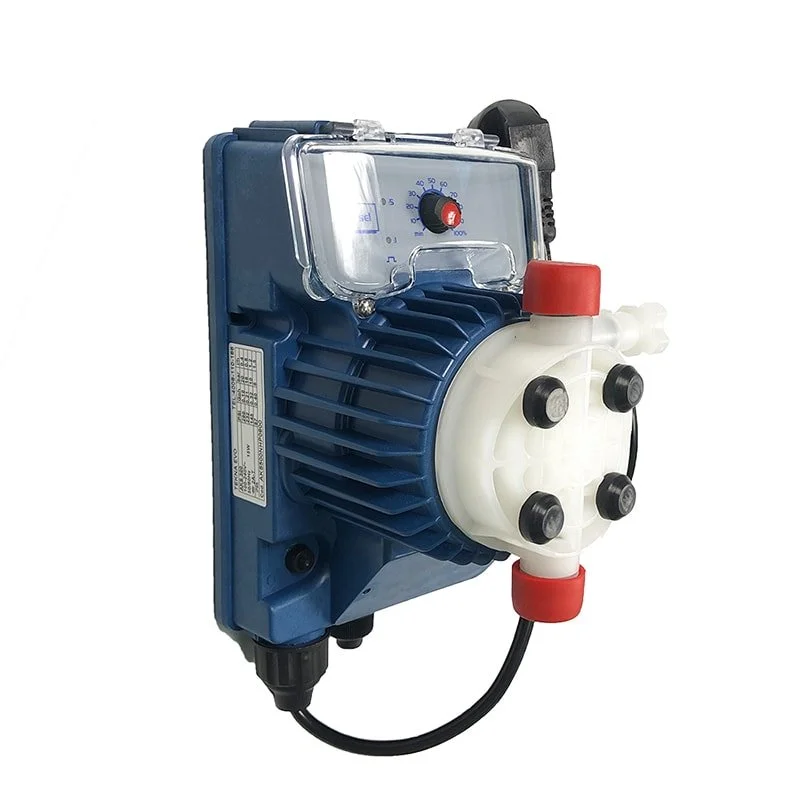

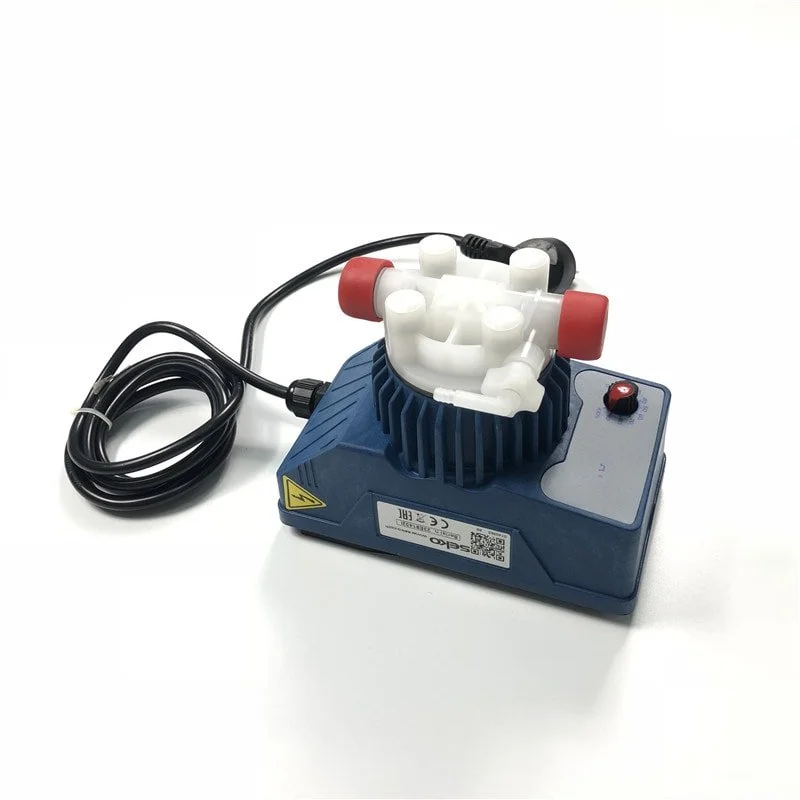

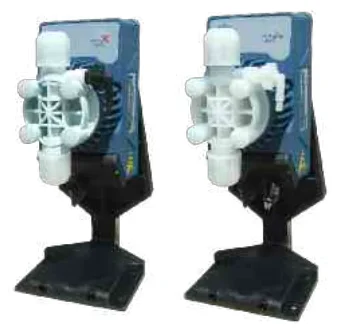

Italy brand SEKO AMS200 DMS200 AKS600 AKS603 small solenoid Dosing PUMP / Metering Pump
- Category: >>>
- Supplier: Tianjin Green Filter Environmental Protection Co. Ltd.
Share on (1600493736614):
Product Overview
Description

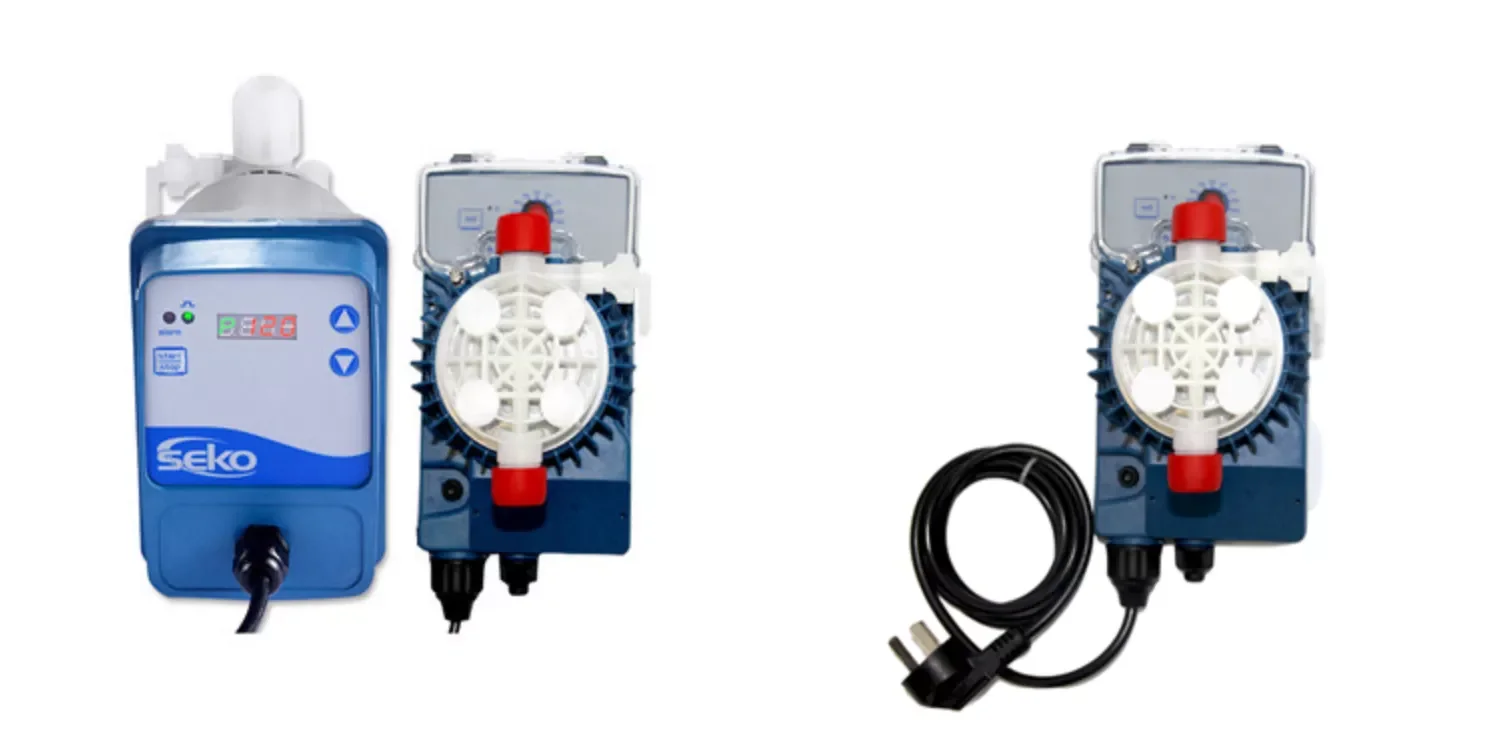

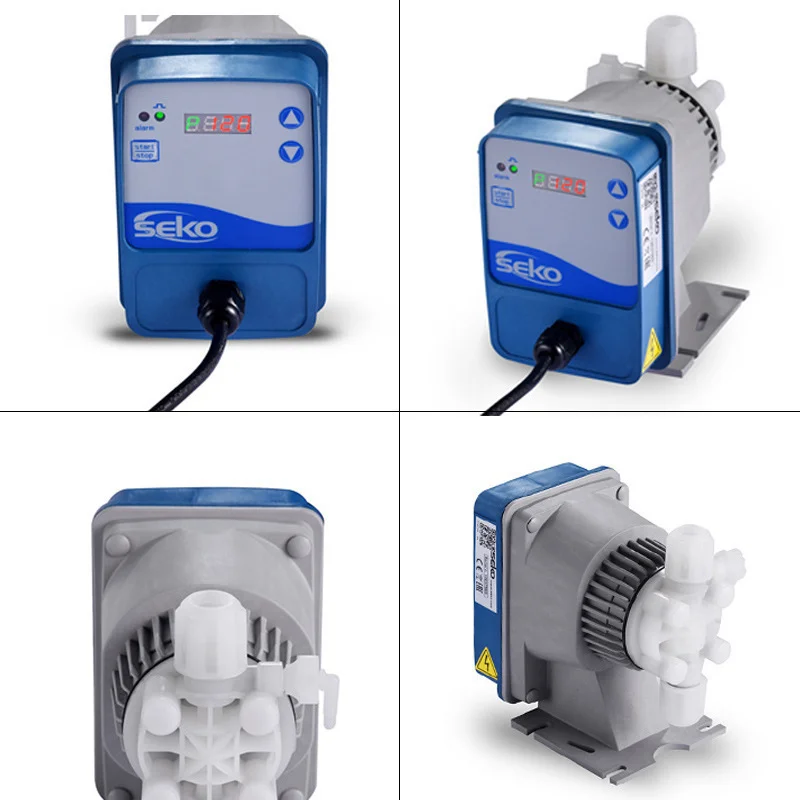

Product Pictures
Products Description

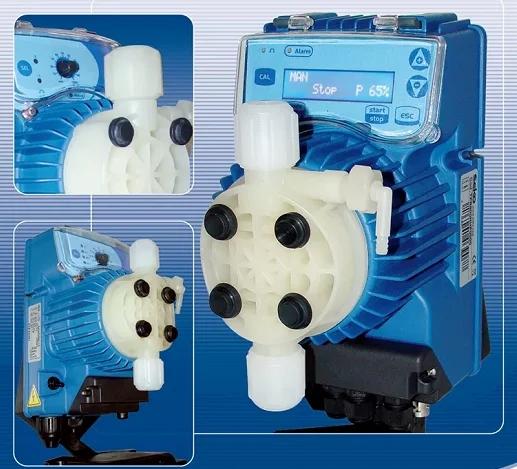

Tekna Series Solenoid driven dosing pumps Tekna Series is the range of innovative wall mounted solenoid driven dosing pumps that SEKO has designed following many years of experience working with its customers worldwide.
< Capacity range: 0.4 – 110 l/h, up to 20 bar < Wetted parts: PVDF, PTFE, EPDM, FPM and Ceramic
< Analogue and digital range with constant or proportional dosage

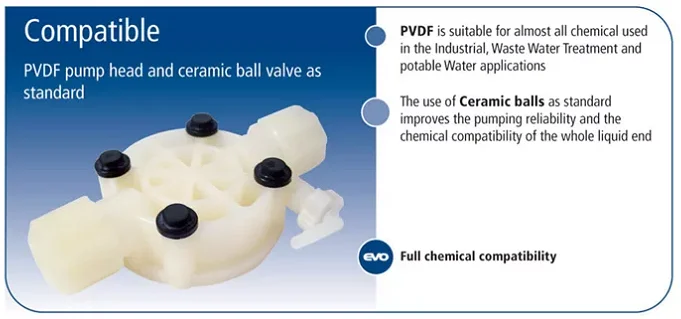

Using only premium materials in its manufacture, Tekna’s pump head comes as standard in PVDF and with a ceramic ball valve. These features assure high performance for the chosen applications and improve the reliability of the pump assuring the chemical compatibility of the wetted parts. SEKO’s diaphragms are solid PTFE offering superior life expectancy and are guaranteed by SEKO for 5 years, making routine replacement no longer necessary. Tekna features reduced energy consumption thanks to a Stabilized Multi Power Supply 100 - 240 Vac, 50/60 Hz. Tekna is also available in ATEX standard compliant versions. This pump offers digital dosing with a constant or proportional flow rate, that is manually adjustable from 0 - 100% and has a level control input. Tekna ATEX comes as standard with a pump head in AISI 316. Optionally available are heads in PVDF, outer casing made in aluminium and
with a manual priming valve.
with a manual priming valve.
The range also features
<Constant or proportional dosing according the measured Chlorine, Hydrogen peroxide or Peracetic acid < PT100 probe input forthermal compensation
<Repetition alarm relay
<Input On/Off for remote control
< 4 – 20 mA output for measure transmission
< Timer function
< ppm dosing
< Batch Mode & On/Off input
< Statistics menu
< Flow sensor
< Level control inputs & alarm output relay
<Password protection
< Proportional dosing using both analogue (4 – 20 mA) and digital inputs

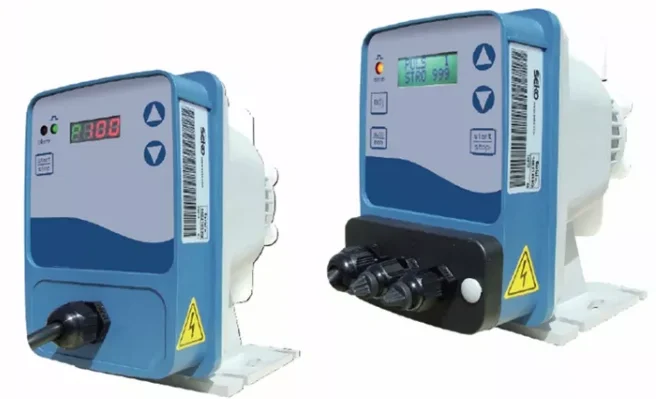

Kompact is a simple and reliable range of micro-processor based wall mounted solenoid driven dosing pump. The range has been designed to provide a general solution to the most commonly found daily needs.
< Capacity range: 5 l/h at 8 bar or 3 l/h at 10 bar
< Wetted parts: PVDF-T, PTFE, EPDM, FPM and Ceramic
< Analogue and digital range with constant or proportional dosage
Kompact, even in its basic variant, uses premium materials in its manufacture. The pump head comes as standard in PVDF-T, but can be optionally specified in natural PVDF and comes with a ceramic ball valve as standard improving the reliability of the pump over time and offers chemical compatibility of the wetted parts. SEKO’s diaphragms are made of pure solid PTFE offering a superior life expectancy guaranteed by SEKO for 5 years, making routine replacement no longer necessary. Some variants come with a Stabilized Multi Power Supply 100 - 240 Vac, 50/60 Hz offering reduced energy consumption.
The range also features
< Power-ON led indicator
< Multi colour LED status system
< Level control input
< Timed dosing with a weekly programmable timer
< Dosage in ppm, dosage batch
< Statistics < Password protection for digital models
< Input ON-OFF (remote control)

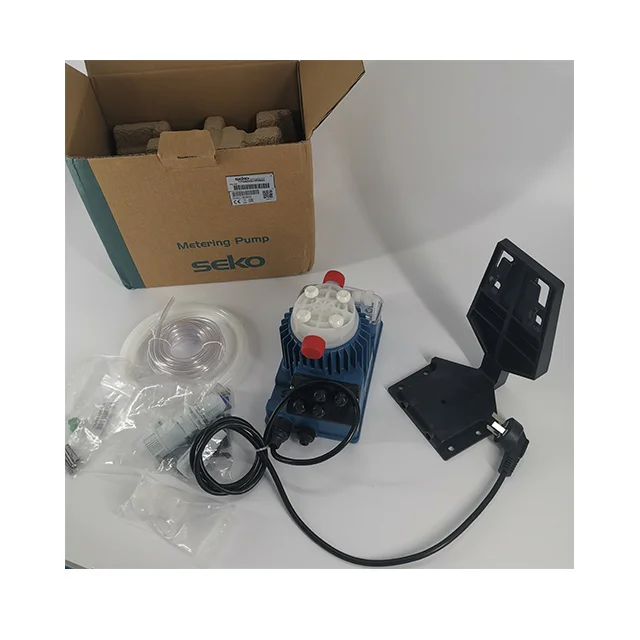

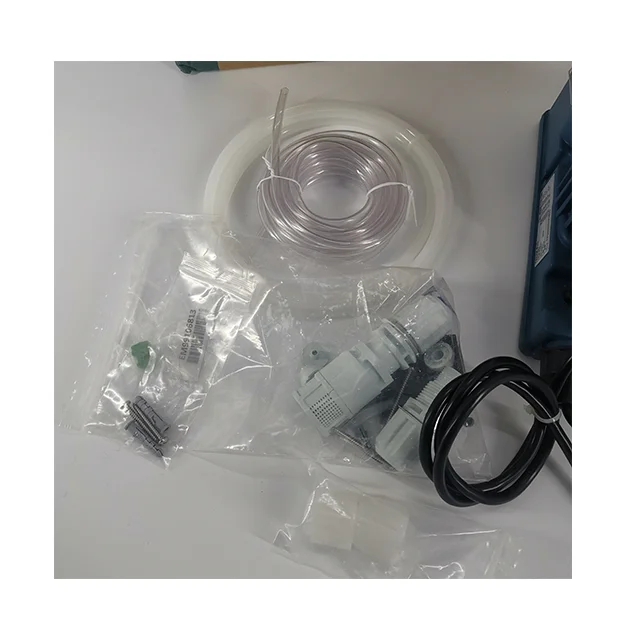

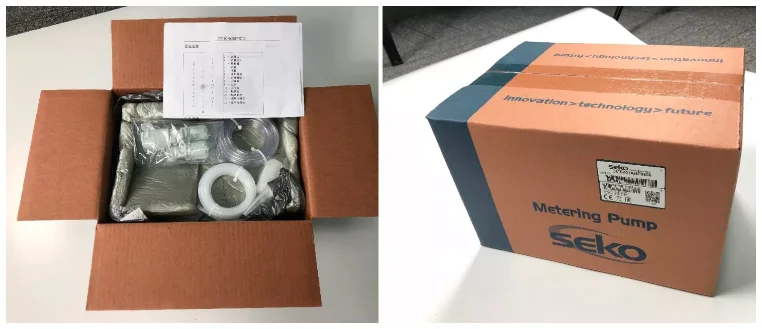

Package
