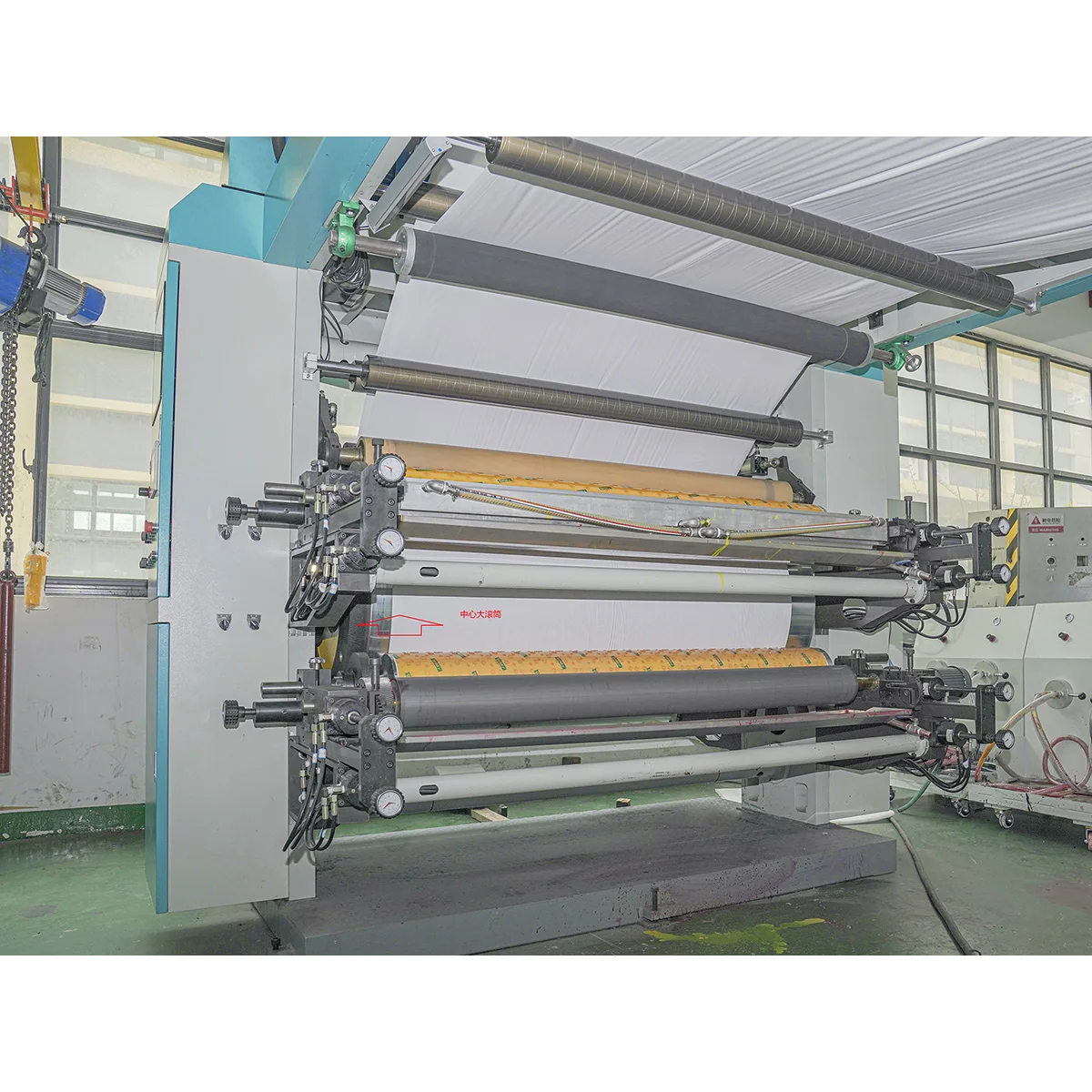

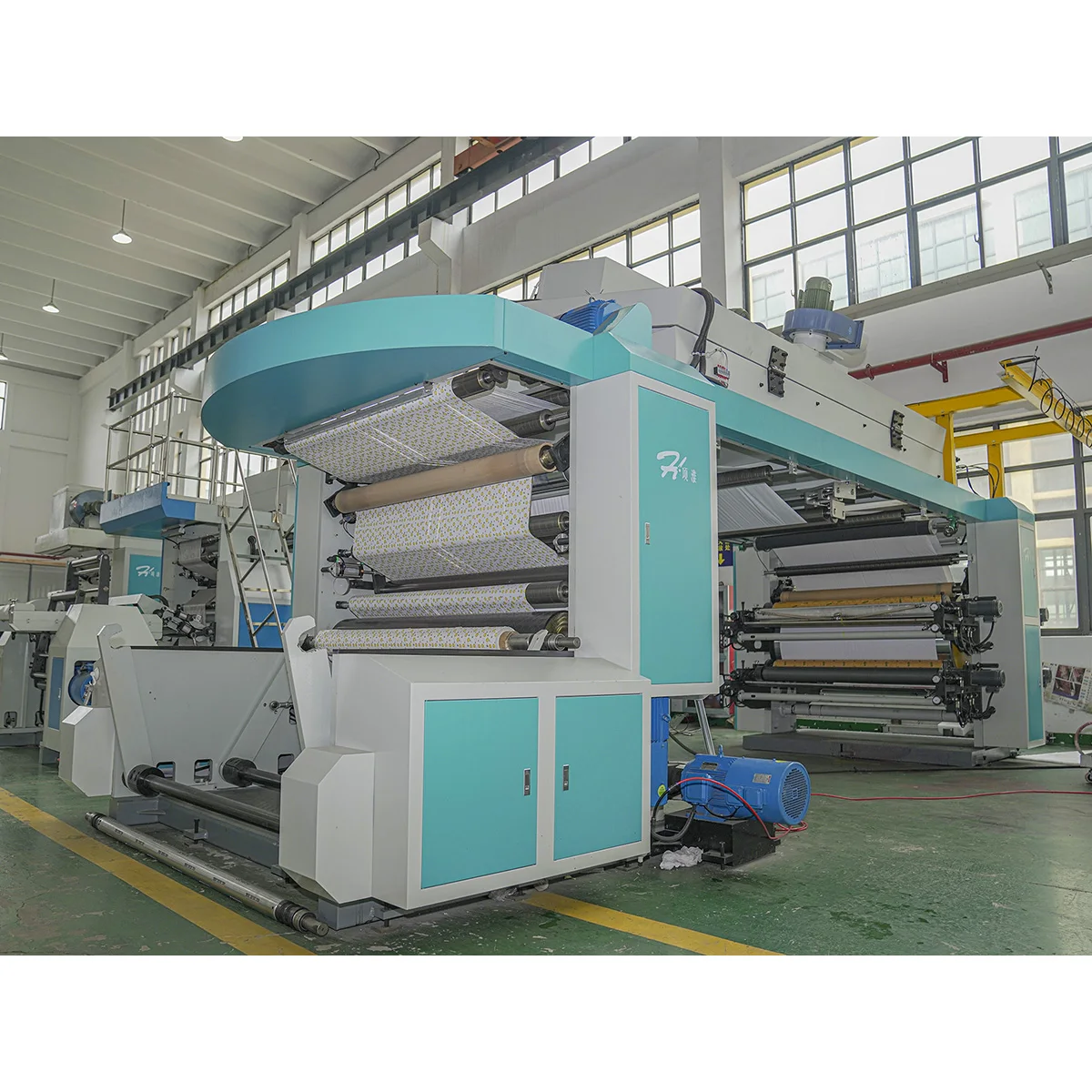

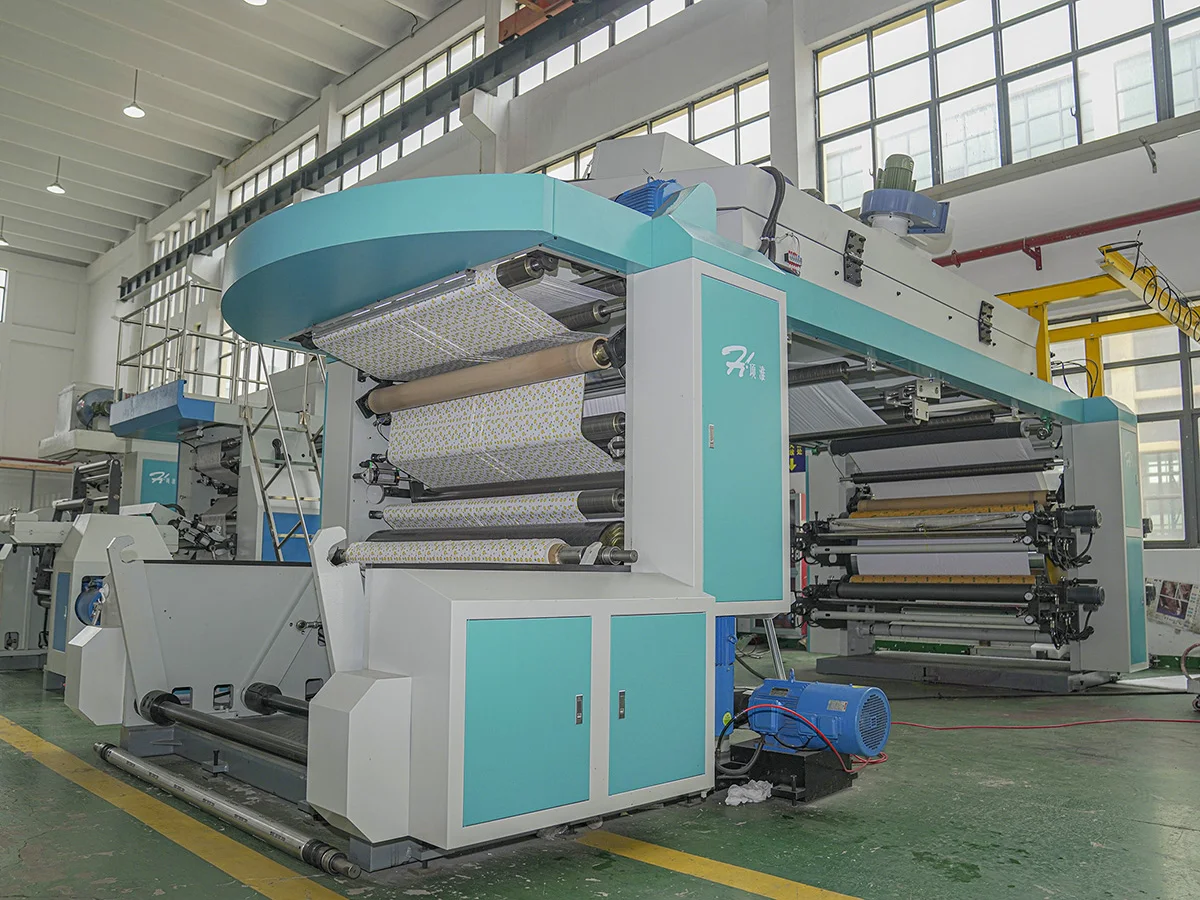

4 colors 1600mm CI Type Flexo Printing Machine Nonwoven Fabric printing Machine Spunlace & Spunbond Nonwoven Printing Machine
- Category: Printing Machine >>>
- Supplier: Hangzhou Xianghuai Machinery Technology Co. Ltd.
Share on (1600494129308):
Product Overview
Description
Product Description
Product Name:Economic CI Type Flexo Printing Machine
4 colors water ink printing
For SS and SMS Nonwoven printing & Spunlace Nonwoven Printing
Model | XHCI-E-41600 |
Width of Aluminum guide rollers | 1650mm |
Max width of material | 1600mm |
Max printing width | 1560mm |
Printing colors | 4 colors(one side printing 4+0) |
Max machinery speed | 150m/min |
Max printing speed | 120m/min(depends on different materials,inks and process) |
Printing precision | ±0.15mm |
ink | Water-soluble ink or alcohol soluble ink. |
Printing length | 350~700mm (pitch 5mm) |
Thickness of printing plate | 1.7mm |
Thickness of Adhesive Tape | 0.38mm |
Diameter of winding | Φ1200mm |
Unwinding &Winding shaft | Air shaft |
Paper cores of unwinding&rewinding | 3 inch |
Colour register precision | ±0.15mm |
Tension control | 0-500N/M |
Heating way | Electric heating, hot air drying(heating power 50kw) |
Temperature of the oven. | 30-80℃(indoor temperature20℃) |
Voltage& Frequency | 3 phase 380V, 50HZ |
Total power | 80kw( actual use about 60%) |
Weight | About 10T |
Dimension | about 8500mm×3300mm×3250mm |
Detail Images

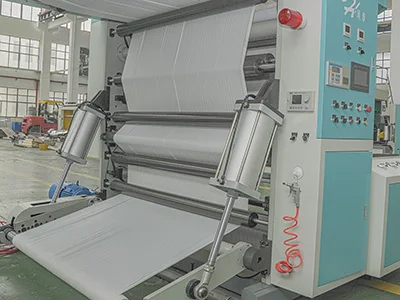

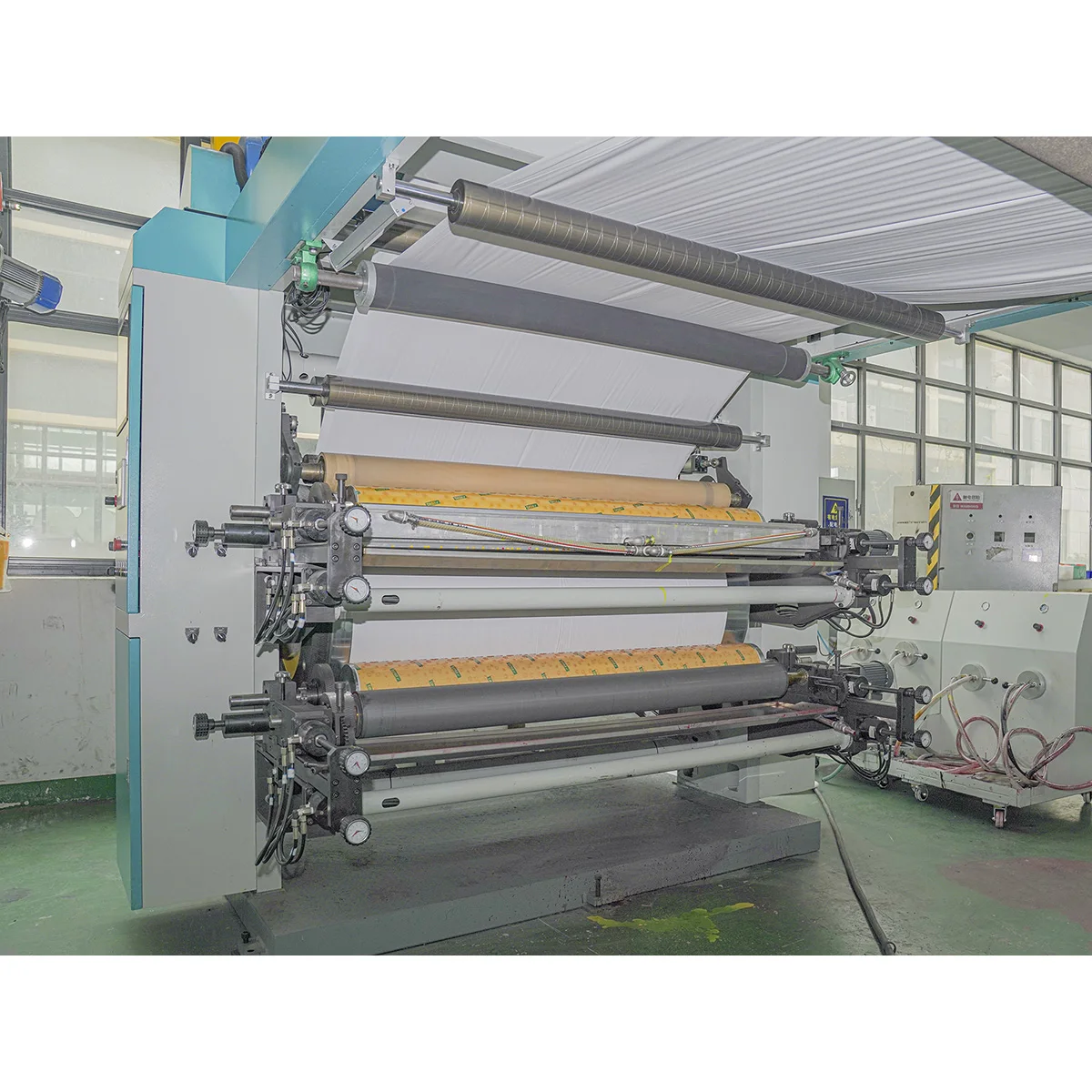

 | Unwinding 1.pneumatic auto loading,magnetic powder control 2.Max width 630mm; max roll diameter 1200mm |

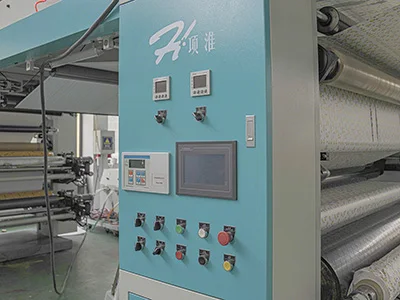

 | EPC: 1.structure:Suspension correction 2.control way:Photoelectric control: synchronous motor + photoelectric eye. |

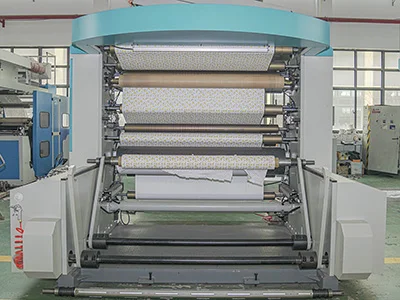

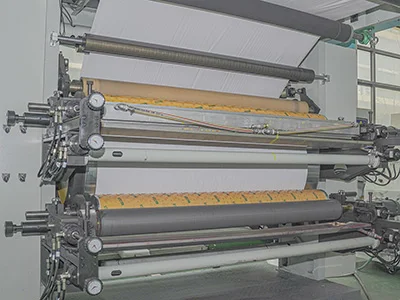

 | Printing Unit: 1.4 colors(only one side) 2.central drum driven with the big gear, ceramic anilox rollers, enclosed doctor blade chambers and shaft type plate rolles; |
 | Video Detection: 1.Check the quality of printed products 2.The scope of inspection can be enlarged within adjustable range as needed. |
 | Rewinding: 1.big roller superficial rewinding 2.pneumatic auto disloading; max roll diameter 1200mm |
| PS: Above configurations just for your reference. Know more details please connect with us! Thanks and best regards! |
Simple Pictures
Certifications
 |  |
 |  |
Packaging & Shipping
After Sales Service
Company Information
Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our company’s main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.
The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!
FAQ
Q:Can your products be customized?
A:Almost all of our machines can be customized,including the size, color,logo, package and so on.
Q: I need a quotation/How much is your price?
A: Please tell us your materials, width of your material, how many colors do you need.
Then we will know which machine is suitable for your and suggest the right machine for you.
Q: What's your delivery time?
A: Usually finish the production within 30 workdays(for normal stack type machine) and 90~120 workdays(for CI type machine) after your 30% advanced payment.
Actually need to check according our stock & production plan.
Q: How to get machine's price?
A: Please provide follows informations:
(1) How many colors you need to print?
(2)Material width and effective print width.
(3)What material to print?
(4)The photos of printing sample quality.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
