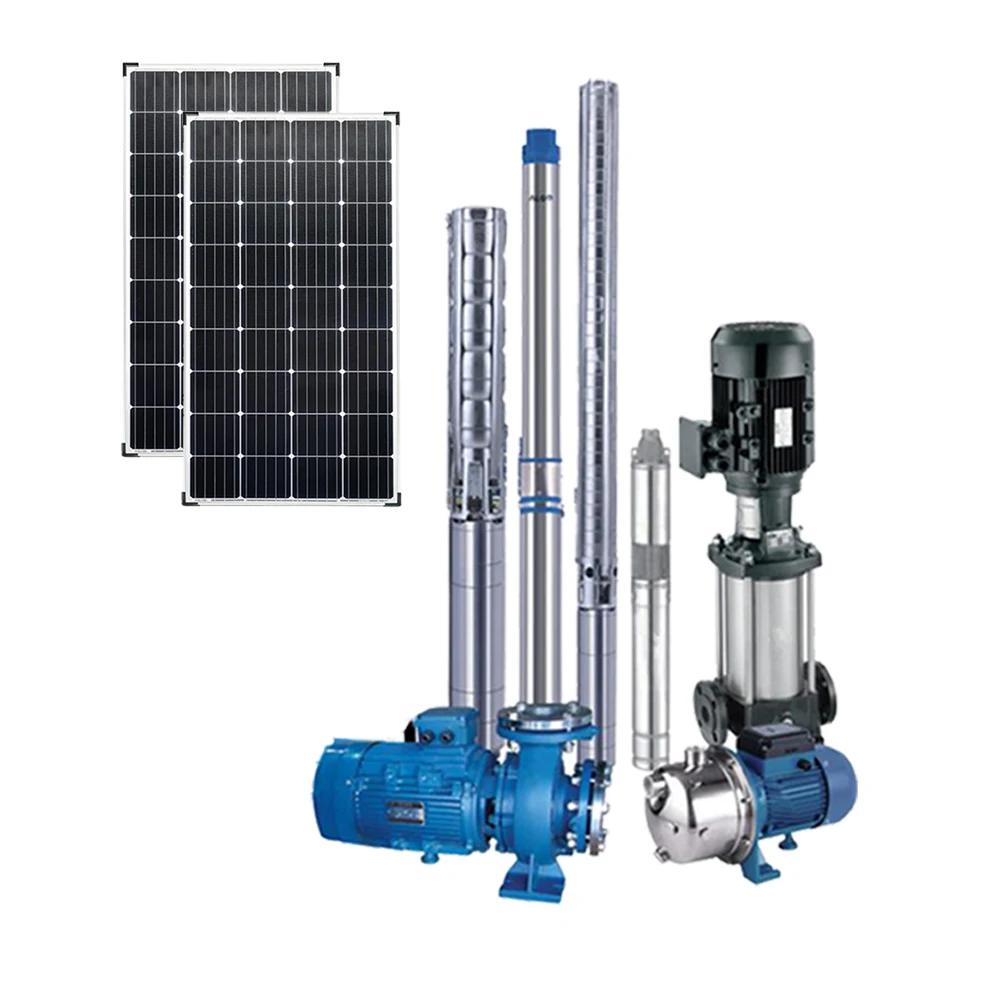

Wholesale Price 220V AC DC Solar Power Submersible Borehole Pumps Irrigation Fountain System Solar Water Pump
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1600494164608):
Product Overview
Description
Product Description

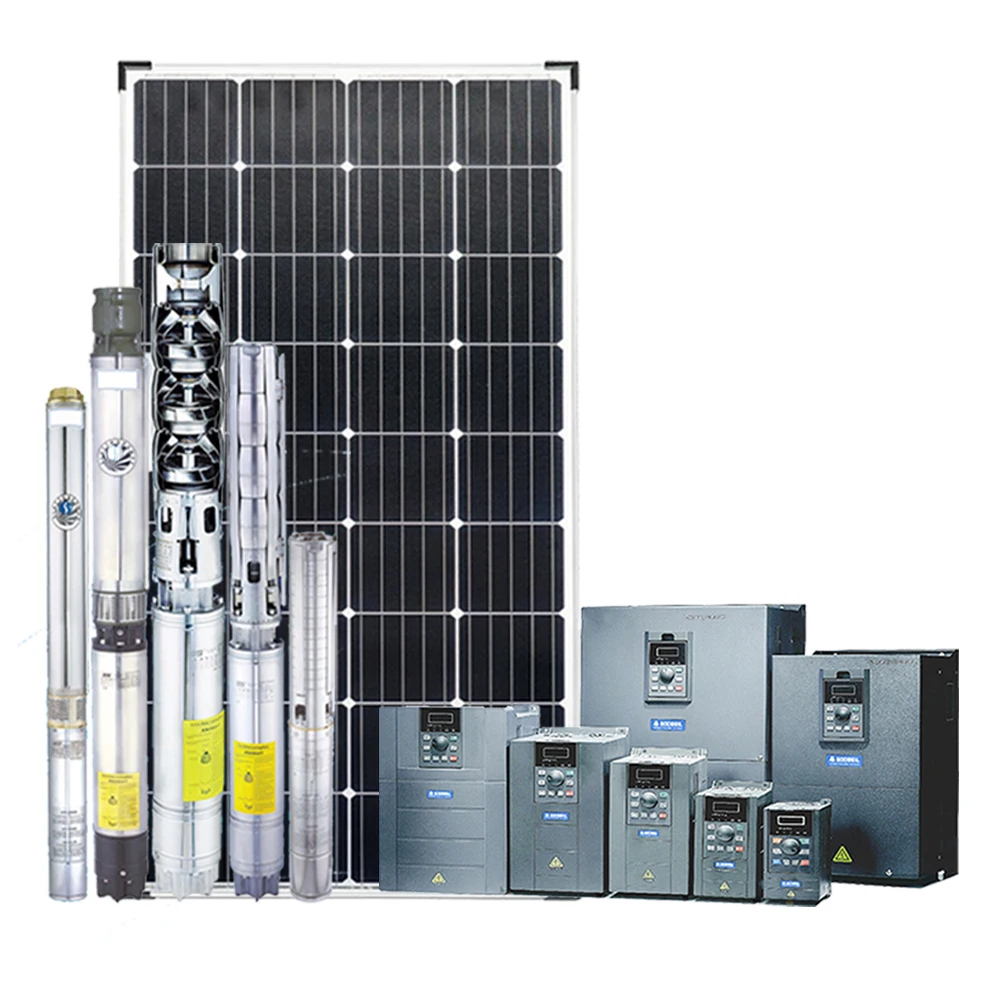

GOLDBELL Solar Pump Irrigation System

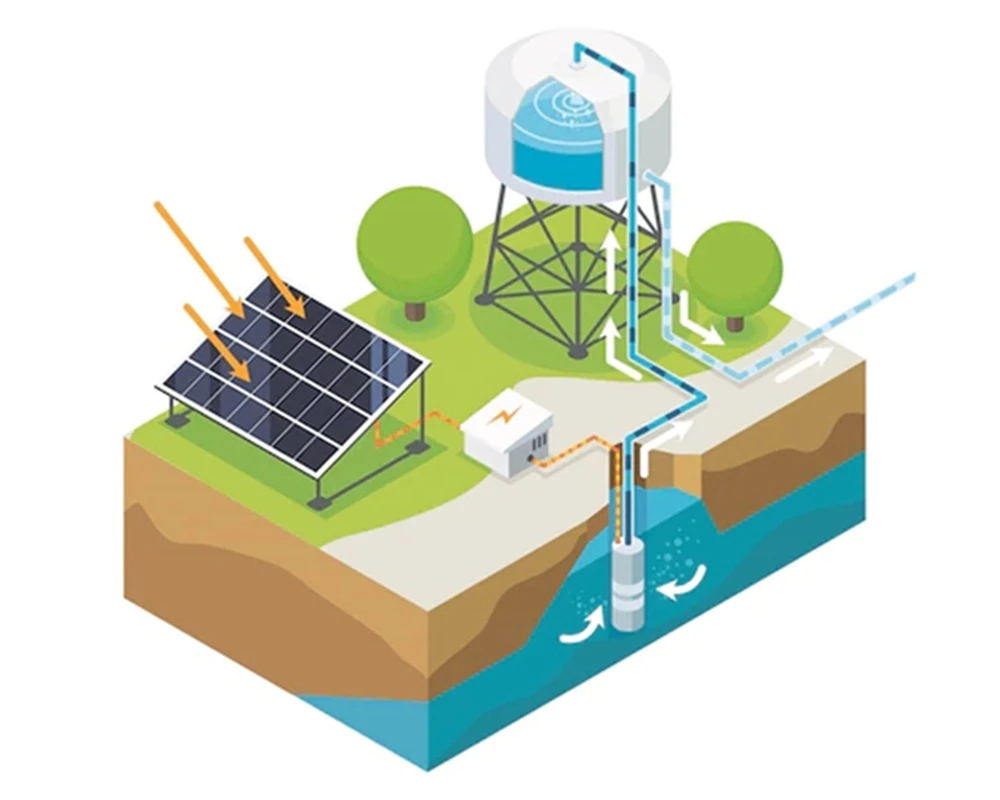

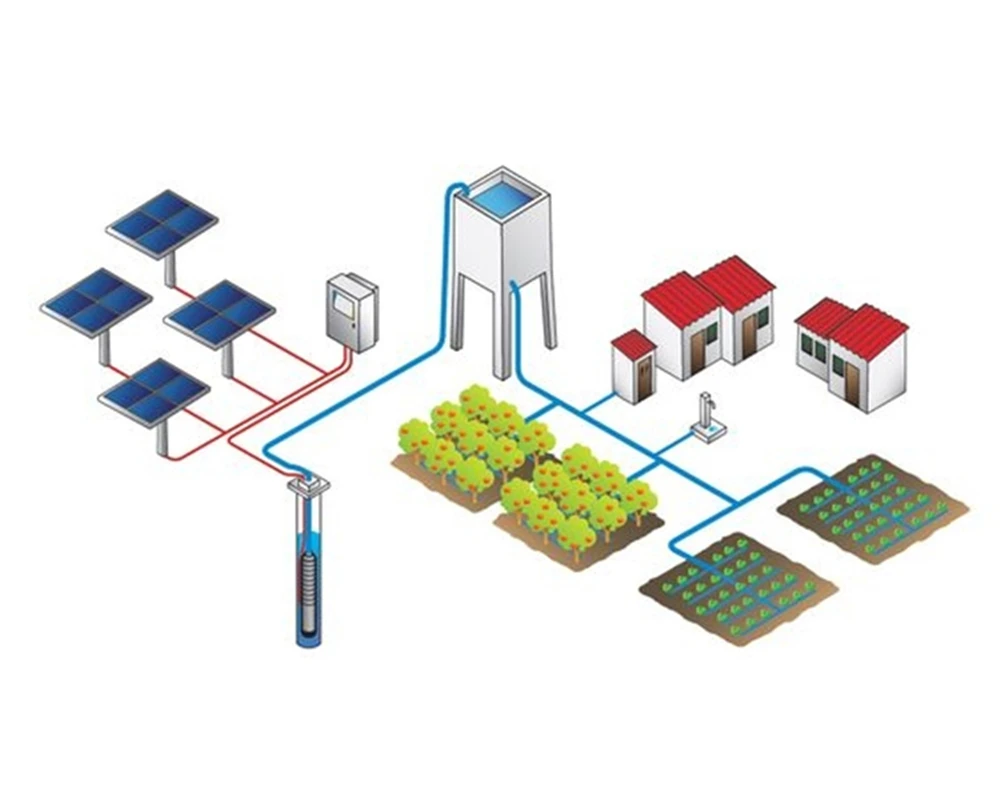

System composition: The GOLDBELL solar water pump system is mainly composed of solar panels, solar water pump inverters, water pumps, photovoltaic combiner boxes, mounting brackets, cables, water level sensors and other necessary accessories.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Scope of application: Widely used in photovoltaic agricultural irrigation, irrigation station renovation, household water supply and desert greening and other places without electricity or insufficient power supply.

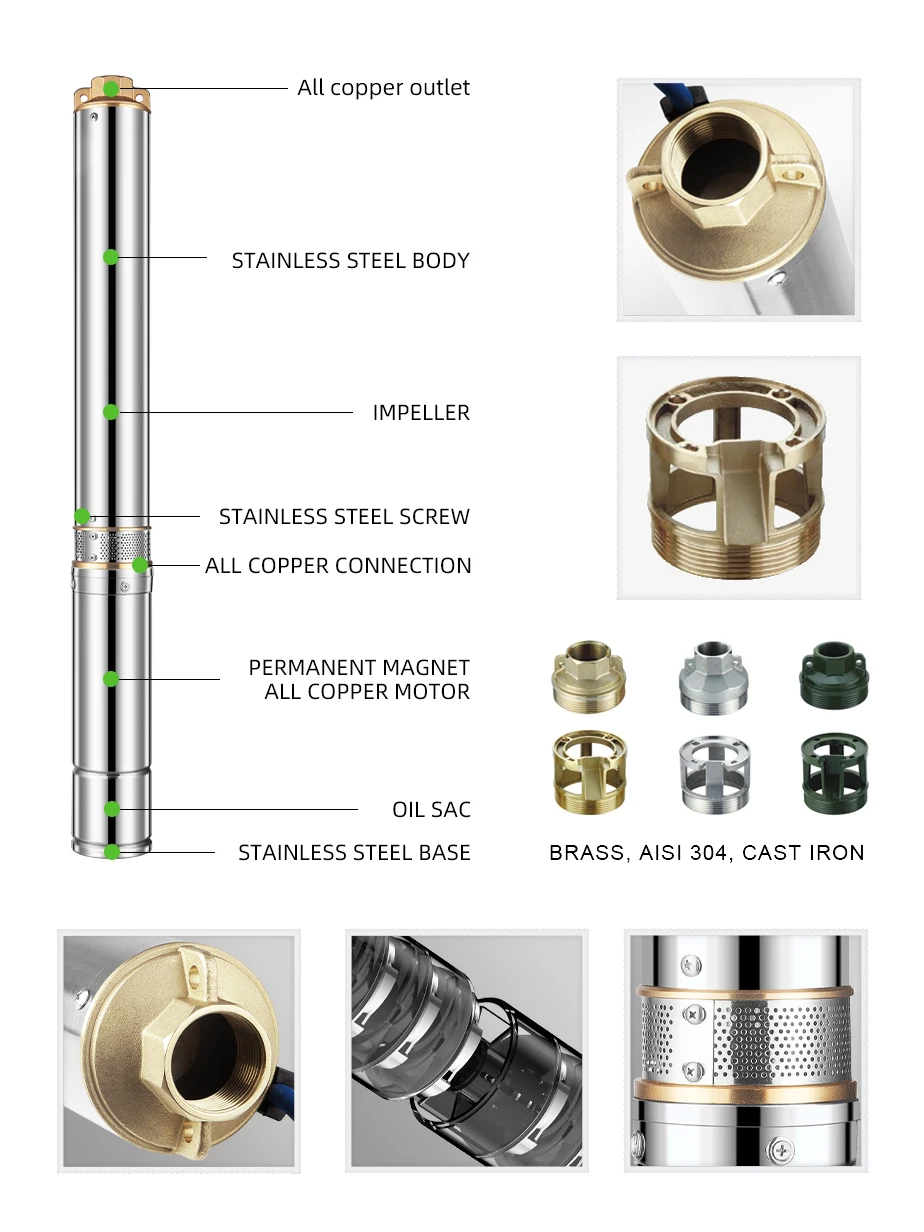

Solar Water Pump
In the solar water pump system, the water pump is a very important part, which is related to the economy and stability of the whole system.
The most commonly used in solar water pump system is submersible pump, because it has a wide range of applications and speed regulation, and the use of inverters can increase the daily working time and water output of the system.
Application field: It can be used to pump clean water for domestic, domestic and industrial applications including water supply, irrigation, flushing systems, etc.

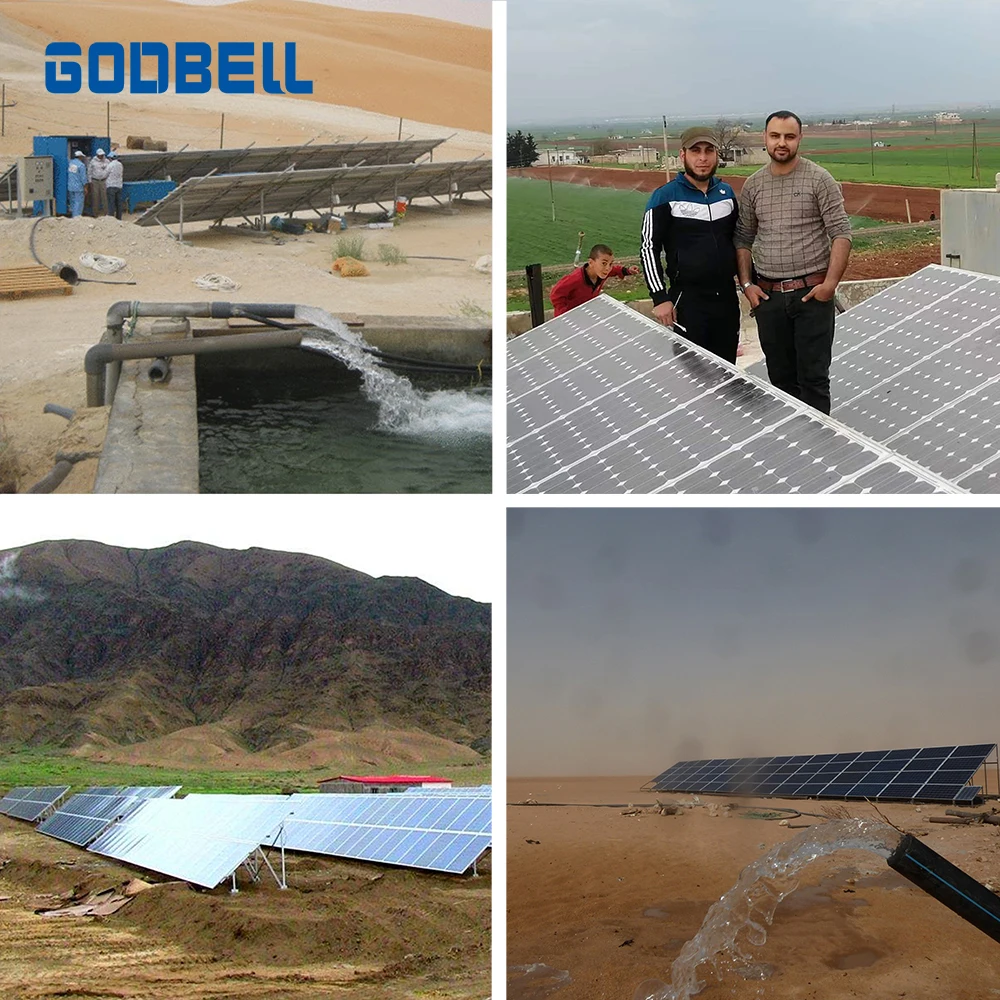

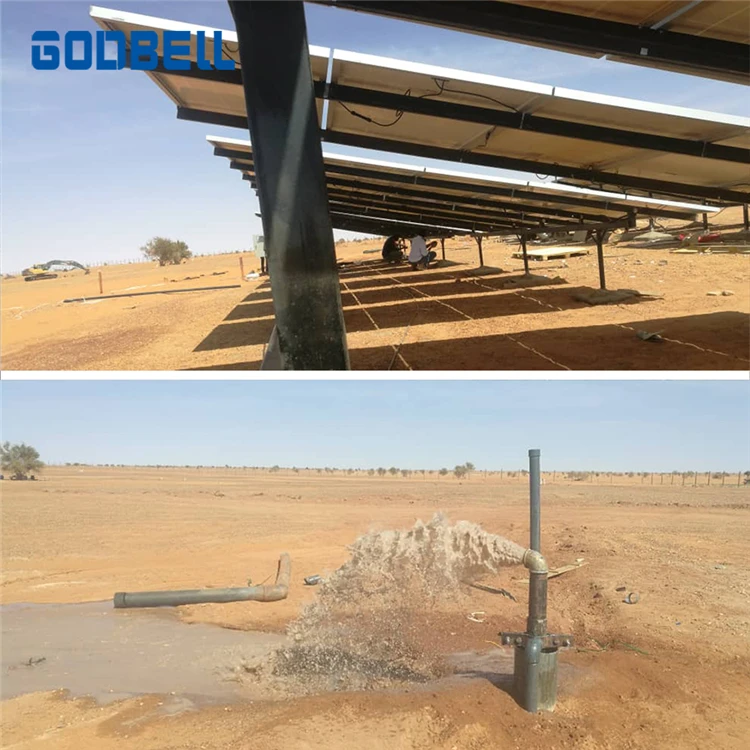

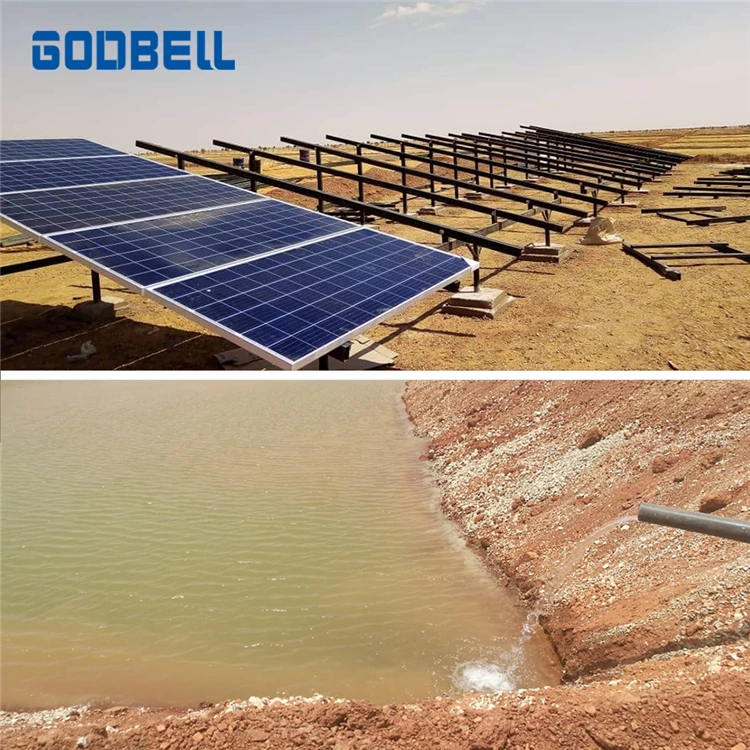

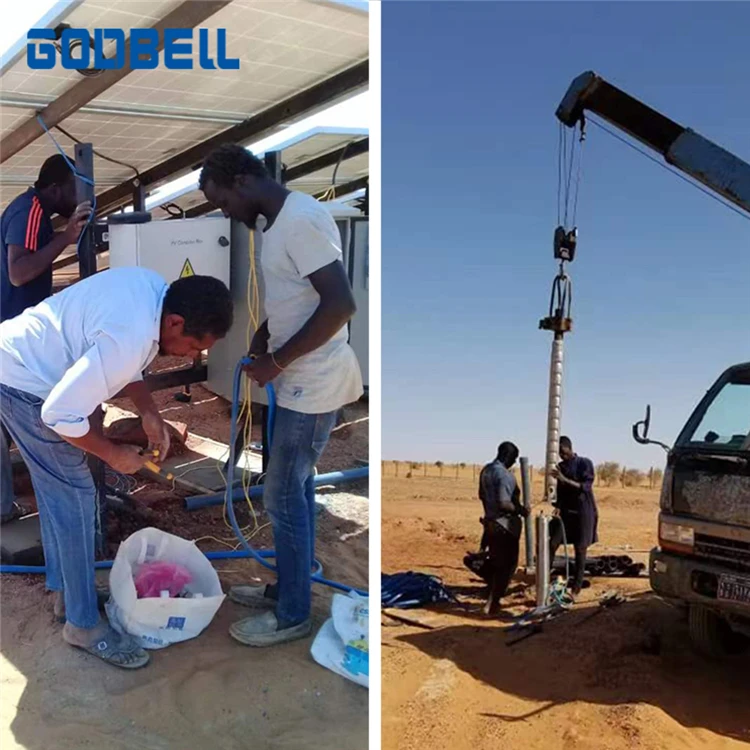

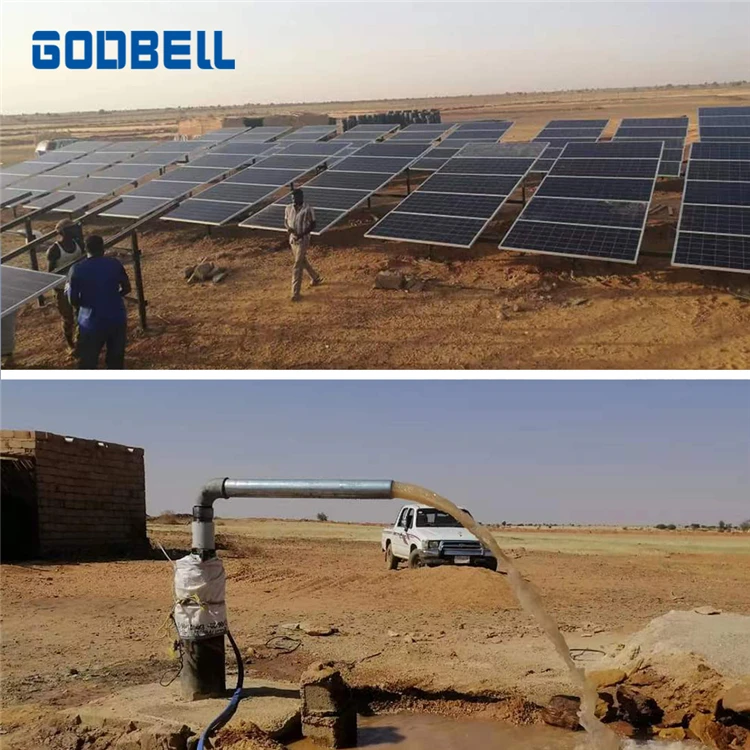

Cooperation Case
Project country | Khartoum,Sudan | |
Installtion place | Desert | |
Solar pump system one-stop solution design | Water pump | 6SP17-13,7.5KW (10HP) 3PH 380V 50HZ,full AISI304 pump material Rate 20 m3/h water flow, rate 91 m lift head Pump life time: more than 5 years |
Solar pump inverter | GS500-7.5G/11P-4TB, 7.5KW 17A 3PH 380V MPPT solar inverter for water pump Lift time: more than 3 years | |
Solar panel | 12KW total power solar panel 28PCS 415W/pcs mono half cell solar panel Connection: 14PCS series * 2 strings parallel Life time: more than 25 years | |
Mounting structure | Ground mounting bracket structure Material: Q235B hot-dip galvanized steel bracket | |
Accessories | Cabinet for solar pump inverter, PV combiner box,PV cables, AC cables,AC output reactor,water level sensor,MC4 conenctor | |
Benifits | Before customer use diesel generator, as the diesel price going up, he changed the pump drive by solar panel and solar pump inverter. The pump are installed 80m depth, it can pump about 20 m3/h water flow, and total about 120-150 m3 water flow, it can meet his farm water requiredments. | |
Specification

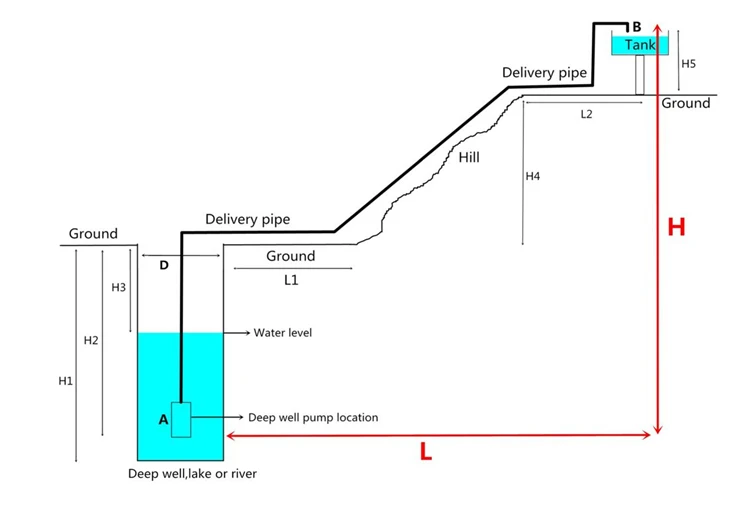

Calculate the lift:
Calculate the vertical pumping distance and horizontal pumping distance separately, provide the data to us.
Calculate the flow:
Estimate how many cubic meters of water per hour are required for irrigation use, Provide the data to us.
We will choose the most suitable solar pump model for you based on the data and provide you with the parameter list.
Name Rule
Model Selection
| 2.2KW(3HP) Solar AC water pump specification | |||||||||
| Note: 1 HP=0.75 KW 1 m3=1,000 liters 1 m3/h=0.278 ltr/s 1 m=3.28 feet | |||||||||
| Model | Motor power (KW) | Rated flow (m3/h) | Rated head (m) | Inverter (KW) | Pump size (inch) | Solar panel Input voltage (VDC) | Solar panel (KW) | Solar panel (W/pcs) | Connecting in series*parallel |
| 4SP2-40 | 2.2 | 2 | 175 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 4SP2-48 | 2.2 | 2 | 210 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 4SP3-32 | 2.2 | 3 | 141 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 4SP5-22 | 2.2 | 5 | 91 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 4SP5-25 | 2.2 | 5 | 104 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 4SP8-12 | 2.2 | 8 | 54 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 4SP8-14 | 2.2 | 8 | 62 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 4SP14-07 | 2.2 | 12 | 34 | 4 | 4 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 5SP10-04 | 2.2 | 10 | 36 | 4 | 5 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 5SP15-03 | 2.2 | 15 | 26 | 4 | 5 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 5SP20-03 | 2.2 | 20 | 23 | 4 | 5 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
| 5SP25-03 | 2.2 | 25 | 22 | 4 | 5 | 540VDC | 3.3 | 220W/36V 15pcs | 15*1=15pcs |
Our Services
- We support one-stop consulting service for solar photovoltaic water pump system, you only need to tell us your needs and some technical data, we will provide you with the most suitable and economical solution.
- Our products are stable in performance, durable in quality and backed by a two-year warranty.
- We support 7*24 service to solve your needs in time.
Packaging & Shipping
- Our factory is located in Shenzhen, close to the airport and port, most of the products are in stock, which can respond to your needs for fast delivery.
- We will help you choose the most suitable transportation plan according to your needs and the volume and weight of the goods, and support air, sea and land transportation.
- Outer packing: high quality strong export carton or wooden box.
- Inner packing: pearl cotton and PE bag to protect the inverter or water pump from damage during transportation.
Company Information
Why Choose Us?

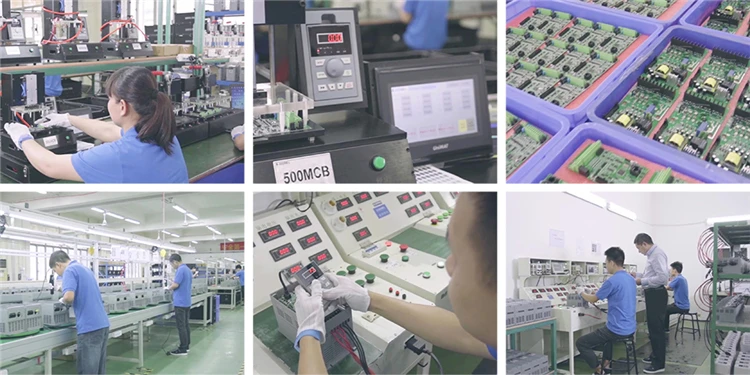

- We are the source factory located in Shenzhen, Guangdong, have been rooted in solar water pump systems for more than 10 years, serving customers in more than 30 countries, annual export volume reach 15 million US dollars. More customers choose us.
- Our factory has a leading technical team, from design to R&D and production, to respond more quickly to customer needs.
- Rich project and engineering experience allows us to provide you with one-stop consulting services, saving you time and money.
- According to the statistics of our after-sales department, the defective rate of our factory's products is only 3/1,000. Far ahead of the industry level.
- We will continue to launch new products to respond to the different needs of the market and customers.
About Us
GOLDBELL Electric (Shenzhen) Co., Ltd. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
FAQ
1.What can you buy from us?
Solar pump inverter, solar water pump, solar pump system and accessories, etc.
2. What differences between you and other suppliers?
We not only provide customers with products, but also provide customers with complete technical solutions, from system design, software development to equipment installation, one-stop solution to customer problems, meet customer needs, save customers time and cost.
3.How about your products quality inspection?
Products go through 5 quality inspections before leaving the factory: component test, safety test, power test, aging test, and load test. Ensure that the quality of the product is consistent and durable.
4.Where is our main market?
Our current main markets are concentrated in the Middle East, Africa, Southeast Asia, South America and North America.
The main countries currently serving customers are: Syria, Yemen, Afghanistan, Pakistan, Egypt, Sudan, Turkey, Morocco, Philippines, Brazil, the United States, etc.
5.What is the payment term can we provide to you?
We accept T/T, L/C, Western Union, MoneyGram and Paypal
6.How long does it take to deliver the goods?
Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
7.Do you support the oem business?
Yes, we support OEM and ODM bussiness, you can tell us your custom ideas.
8.What is the warranty?
We provide more than 2 years of warranty for all the goods from us.
