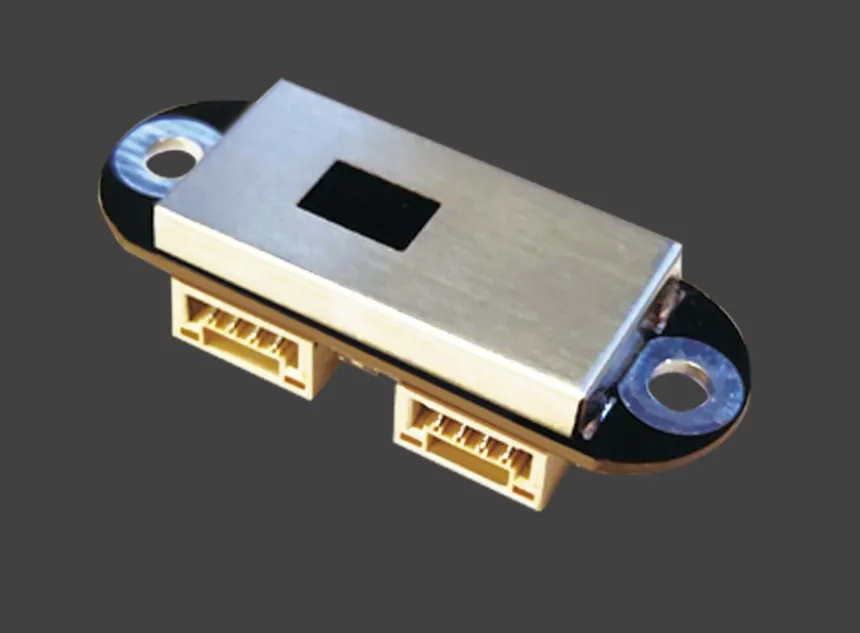

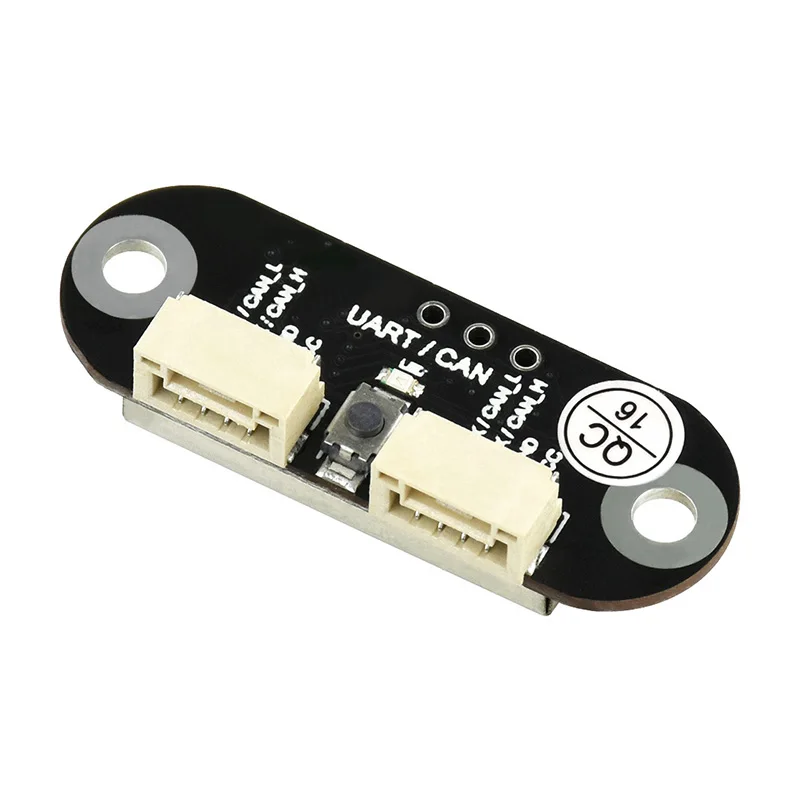

TOF Laser Range Sensor UART or CAN Bus Cascading Support Ranging up to 5m
- Category: >>>
- Supplier: Shenzhen Ruijing Technology Ltd.
Share on (1600494178872):
Product Overview
Description
Product Description
MEASURING RANGE Short range: 0.012~2.16m
Mid range: 0.012~3.60m Long range: 0.01~5.00m
TYPICAL MEASURING ACCURACY Short range:
accuracy ±1.0cm, s
accuracy ±1.0cm, s
tandard deviation<0.3cm
Mid range: accuracy ±1.0cm,
standard deviation<1.5cm
Long range: accuracy ±1.5cm
standard deviation<0.5cm@0.01~3m, standard deviation<8cm@3~5m RESOLUTION: 1mm WAVELENGTH: 940nm (Class1 standard compliant) FIELD
OF VIEW (FOV): 15°~27° (adjustable)
OF VIEW (FOV): 15°~27° (adjustable)
INTERFACE UART: both of the two ports can be used as UART simultaneously, 3.3V
TTL signal level
TTL signal level
CAN: both of the two ports can be used as CAN simultaneously
BAUDRATE UART: 115200~3000000bps (115200bps bydefault)
CAN: 100000~3000000bps (100000bps by default)
CASCADE SUPPORT UART: supports up to 8x cascades
CAN: supports up to 7xcascades
POWER : 3.7~5.2V
POWER CONSUMPTION: 290mW (UART active output, long-range mode, 5.0V power supply, 58mA current)
WEIGHT: 3g
WEIGHT: 3g
Size: (L × W × H) 35.58 × 12 × 8.05mm
Detailed Images
