Product Description

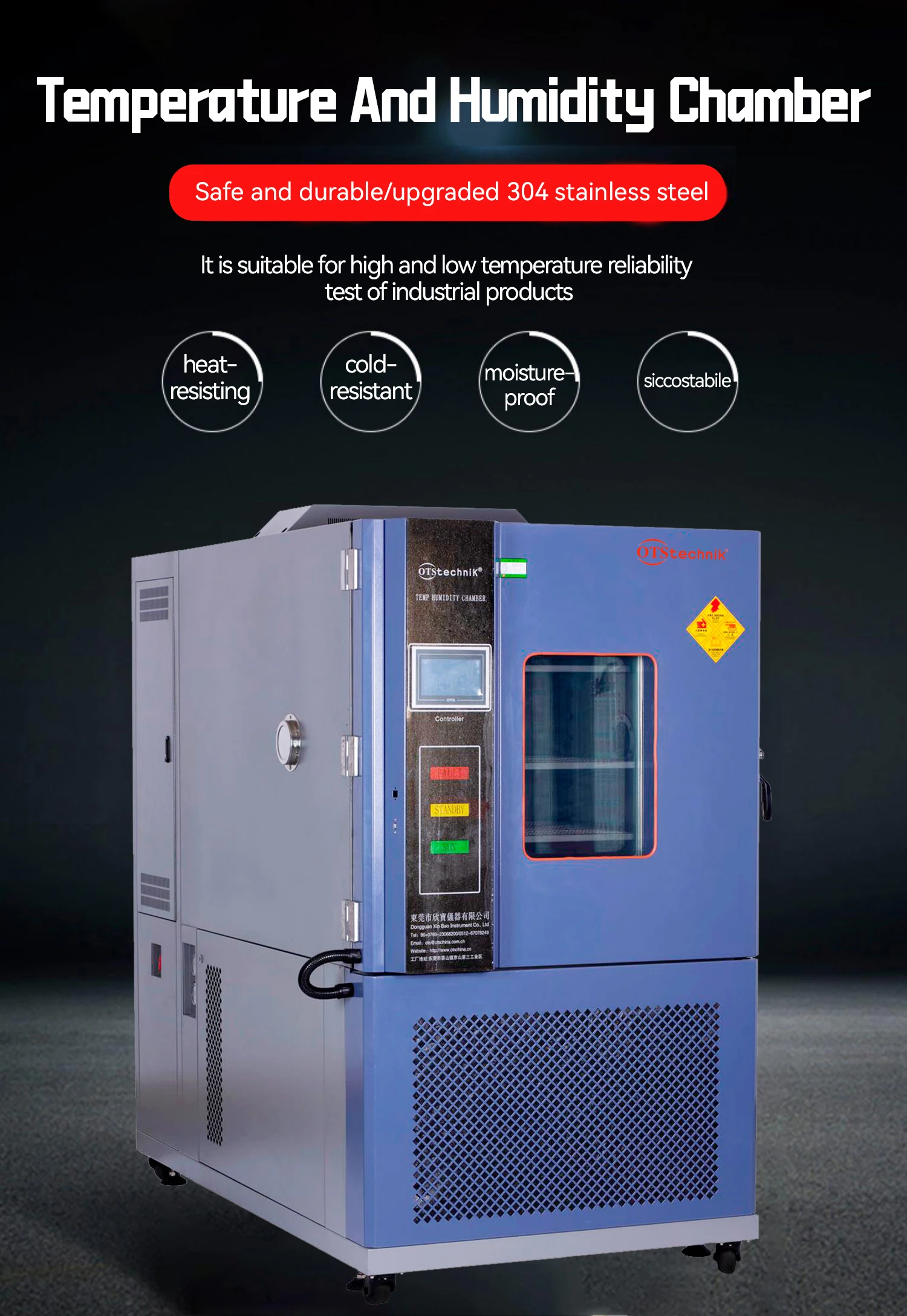

Temperature humidity test chamber is use to test material heat,cold,dry resistance, humidity resistance.Suitable for electronics,electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials,medical, aerospace and other products.




Specification


Model
XB-OTS-150
XB-OTS-225
XB-OTS-408
XB-OTS-800
XB-OTS-1000
Inner size
WHD (cm)
50*60*50
60*75*50
80*85*60
100*100*80
100*100*100
External size
WHD (cm)
70*162.5*153
80*177.5*153
100*192.5*163
120*209*183
120*209*183
Window Size
WH (mm)
500*600
600*750
800*850
100*100
100*100
Test Hole Size
Diameter(mm)
2 holes
50mm of each
2 holes
50mm of each
2 holes
100mm of each
2 holes
100mm of each
Weight
320KG
370KG
460KG
460KG
590KG
















Voltage
1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized
Temperature range
-70℃ ～180℃
Humidity range
10% ～98%RH
(5%~98% R.H. customized)
Temp.& humidity control fluctuation
≤±0.5℃, ≤ ±2.5%RH
Indication resolution
0.01℃, 0.1 %RH
Temp.&humidity Uniformity
≤±1.5℃,≤±2.5% RH
Heat up&Cool down time
≤5℃/min for heating; ≤ 1.2℃/min for cooling
Cooling type
Air cold
Chamber materials
SUS#304 stainless steel for Inner chamber with thickness 1.5mm
Steel plate for external chamber with thickness 1.5mm
Insulation materials
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm

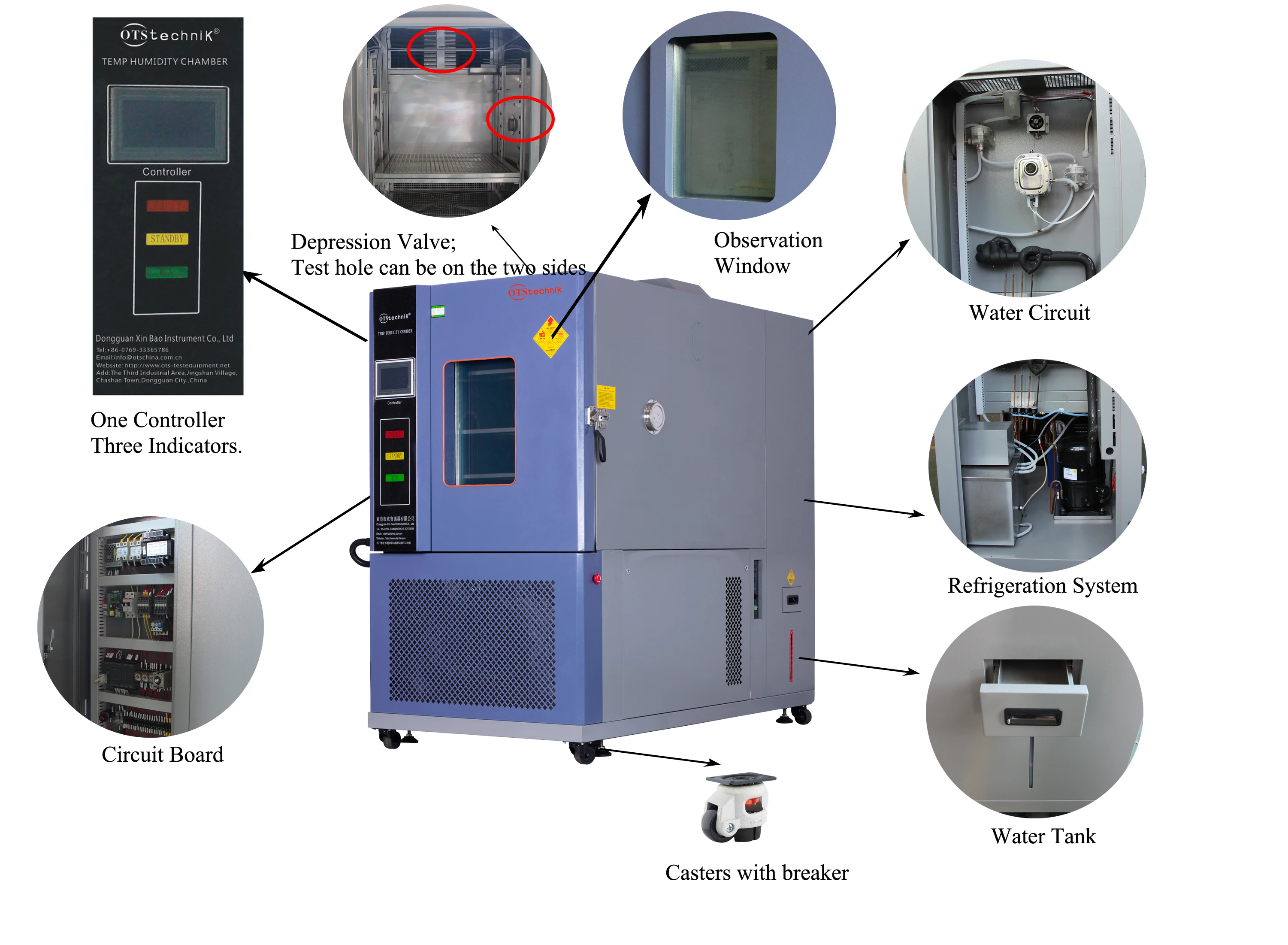

Mechanical Room

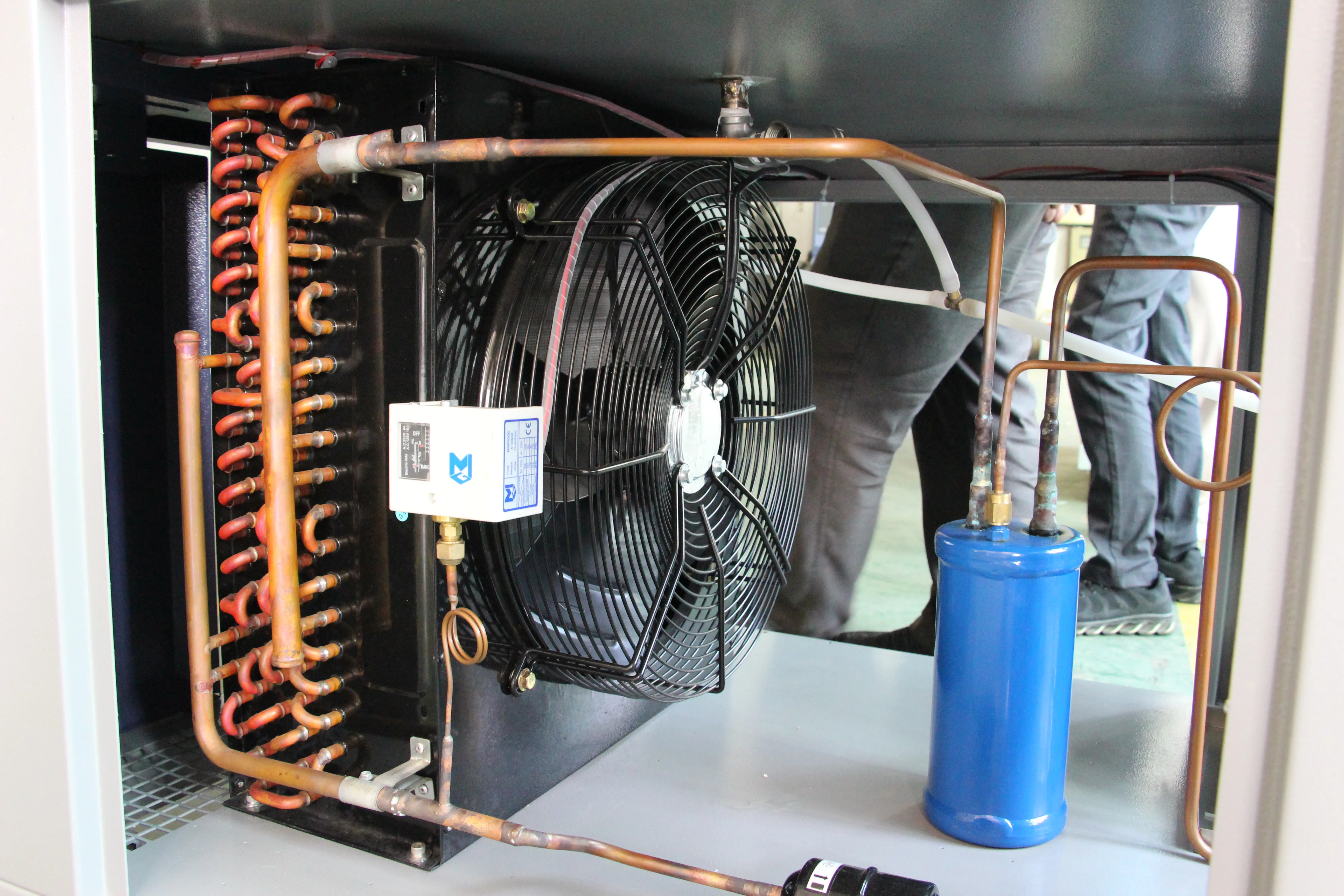

Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet;
Humidifying and humidity measuring water utilization control device

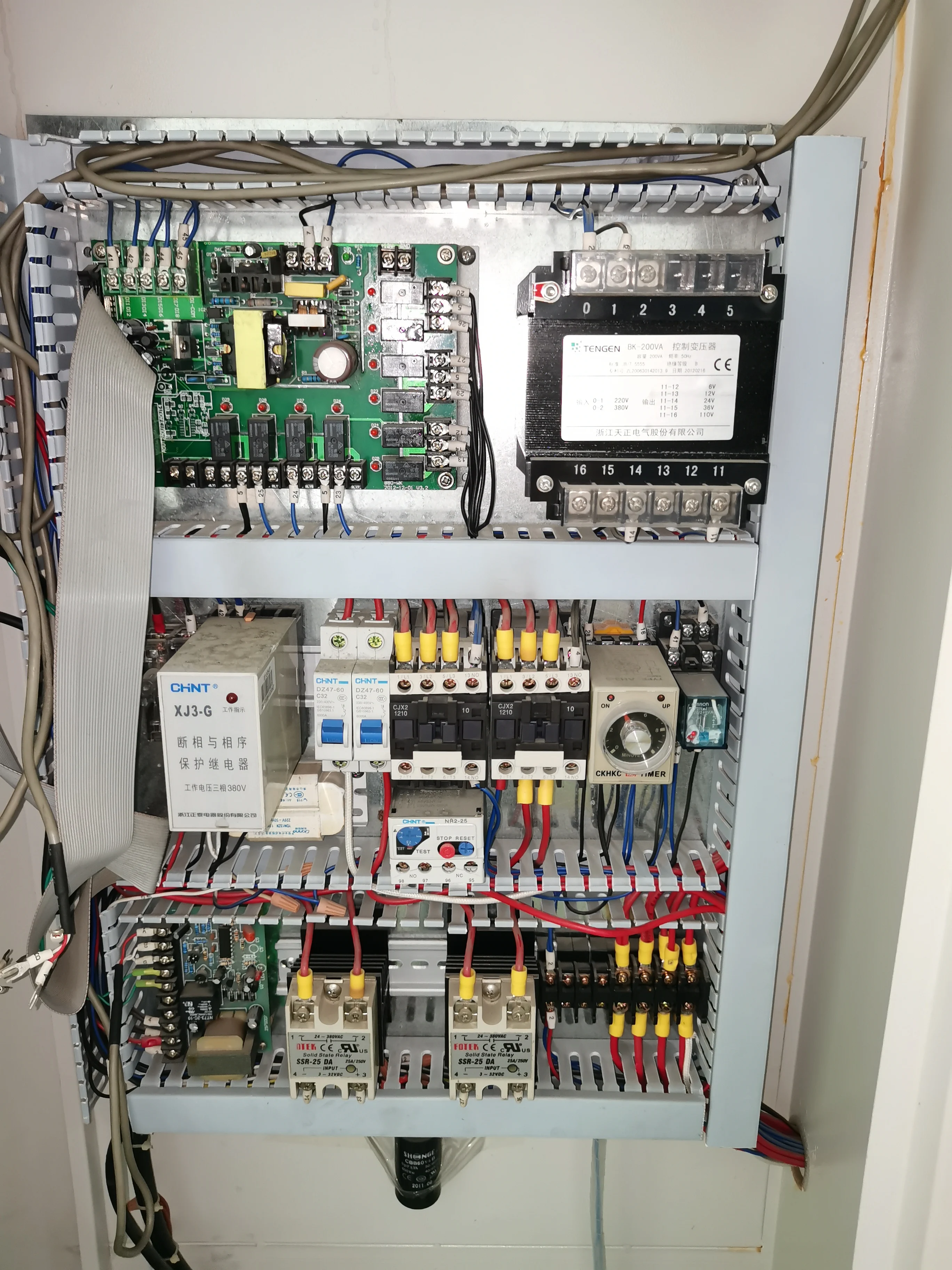

Electronic Box
Heat emission blower fan
Distribution switchboard
Test terminal of sample
USB physical interface (need to be purchased together with centralized monitoring software)
Residual current circuit breaker of main power supply


Heating Device
Basin heating humidifying method
Stainless steel armored heater is adopted in basin humidification
Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state
relay)
Water level control device, dry heating prevention device of heater

Humidifier
1.Basin heating humidifying method
2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay)
3.Water level control device, dry heating prevention device of heater

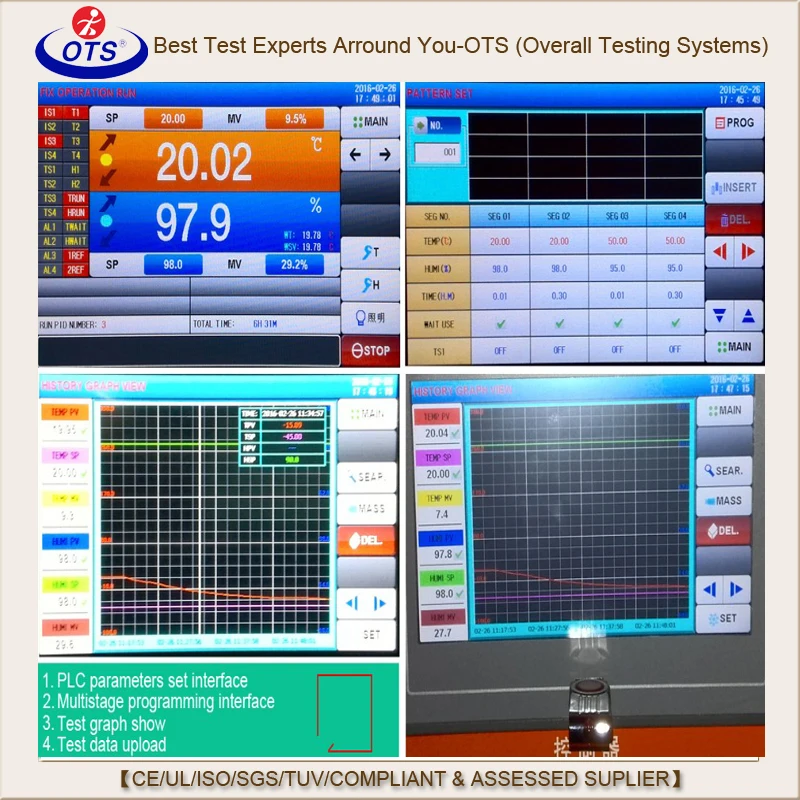

Control panel
Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure
indicator

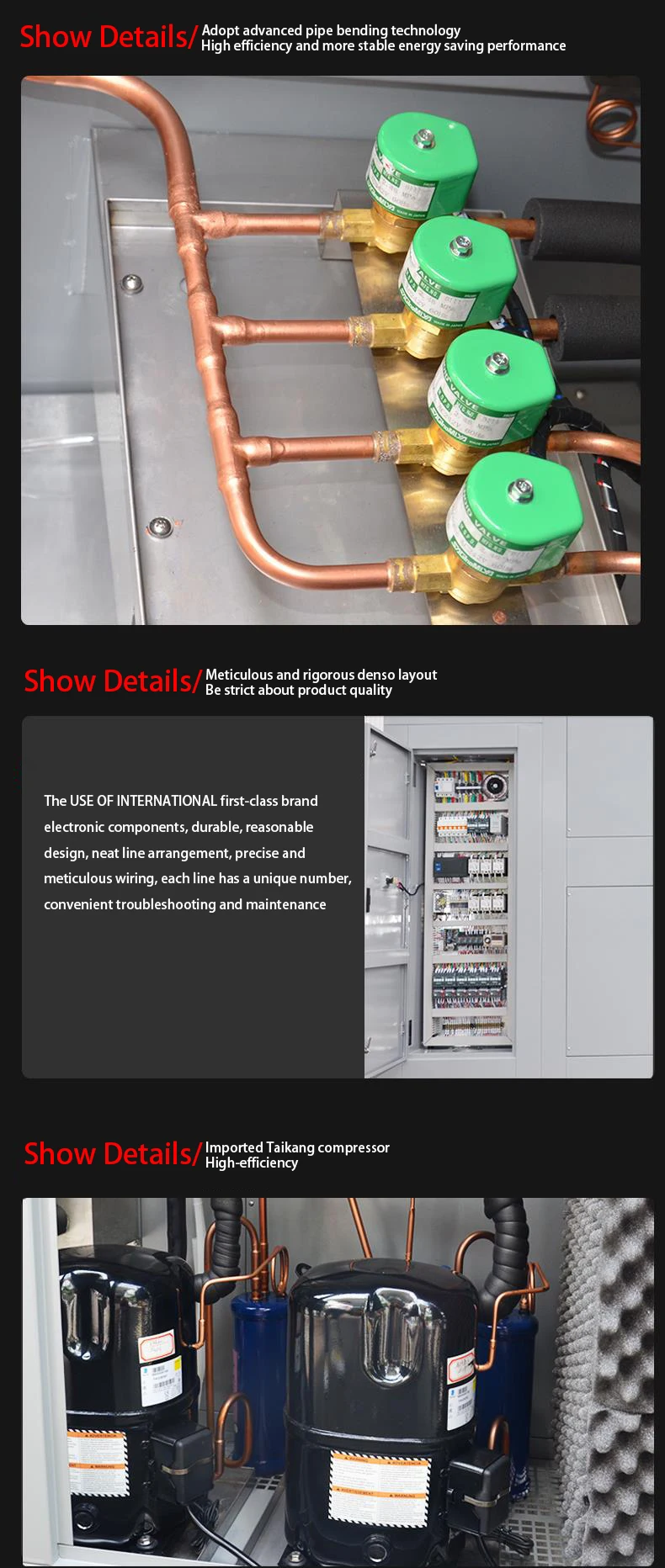

Compressor
Imported Compressor
Fits wide range of pressure
Higher heating efficiency
Easy to maintain







Features
1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of
uniformity within the box within ± 2 ℃

2.Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution

3.Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation

4.The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./Other Contact us






Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
