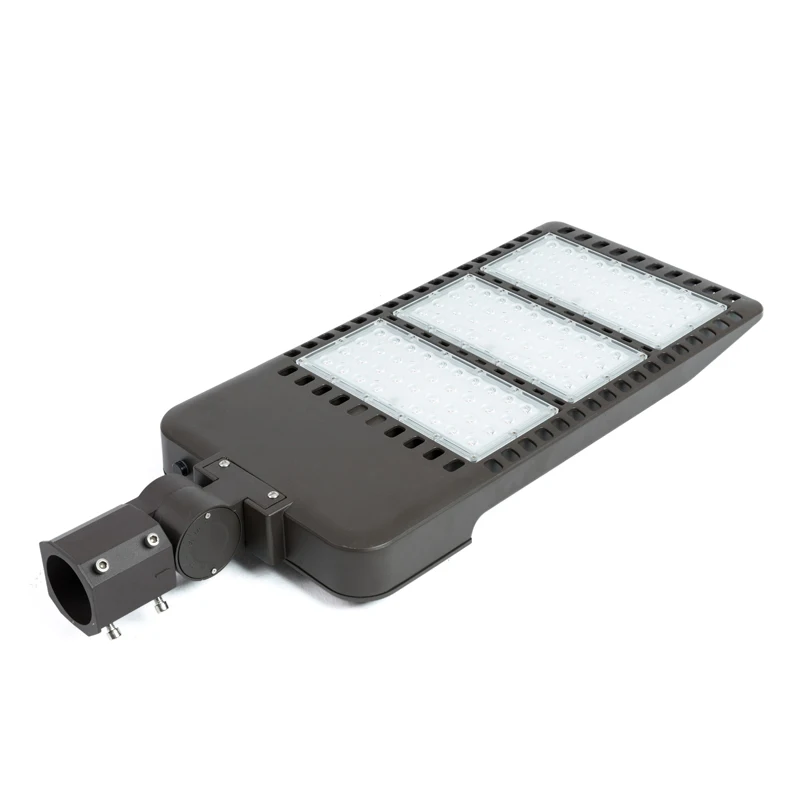

Parking lot with high lumen efficiency module street lamp 100w/200w/300w led shoebox light
- Category: >>>
- Supplier: Shenzhen Penel Optoelectronics Technology Co. Ltd.
Share on (1600494429201):
Product Overview
Description
Products Description
LED PACKING LOT LIGHT
Datasheet - 100W/200W/300W -Shoebox Area LED Light
A:Technical Parameter | ||||||
Item No. | STL-100W-N08 | STL-200W-N08 | STL-300W-N08 | |||
Led Source | Cree SMD3030 | Cree SMD3030 | Cree SMD3030 | |||
LED Quantity | 144pcs | 288pcs | 432pcs | |||
LED Luminous Efficiency | 130lm/W | 130lm/W | 130lm/W | |||
Color Temperature(CCT) | 2700-6500K | 2700-6500K | 2700-6500K | |||

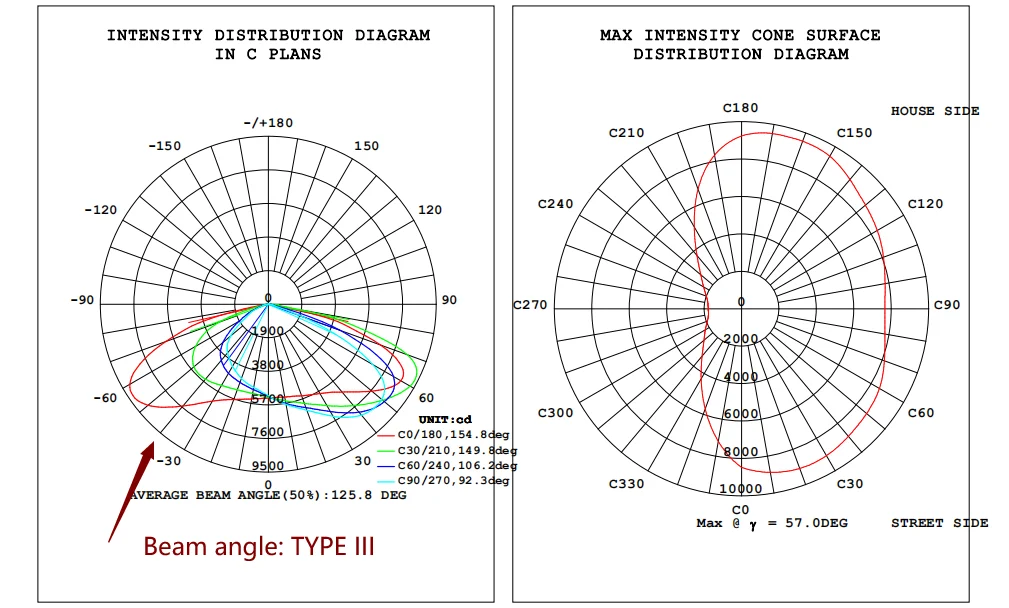

Beam Angle | 80x150°(TYPE III) | 80x150°(TYPE III) | 80x150°(TYPE III) | |||
Color Rendering Index(CRI) | Ra>80 | Ra>80 | Ra>80 | |||

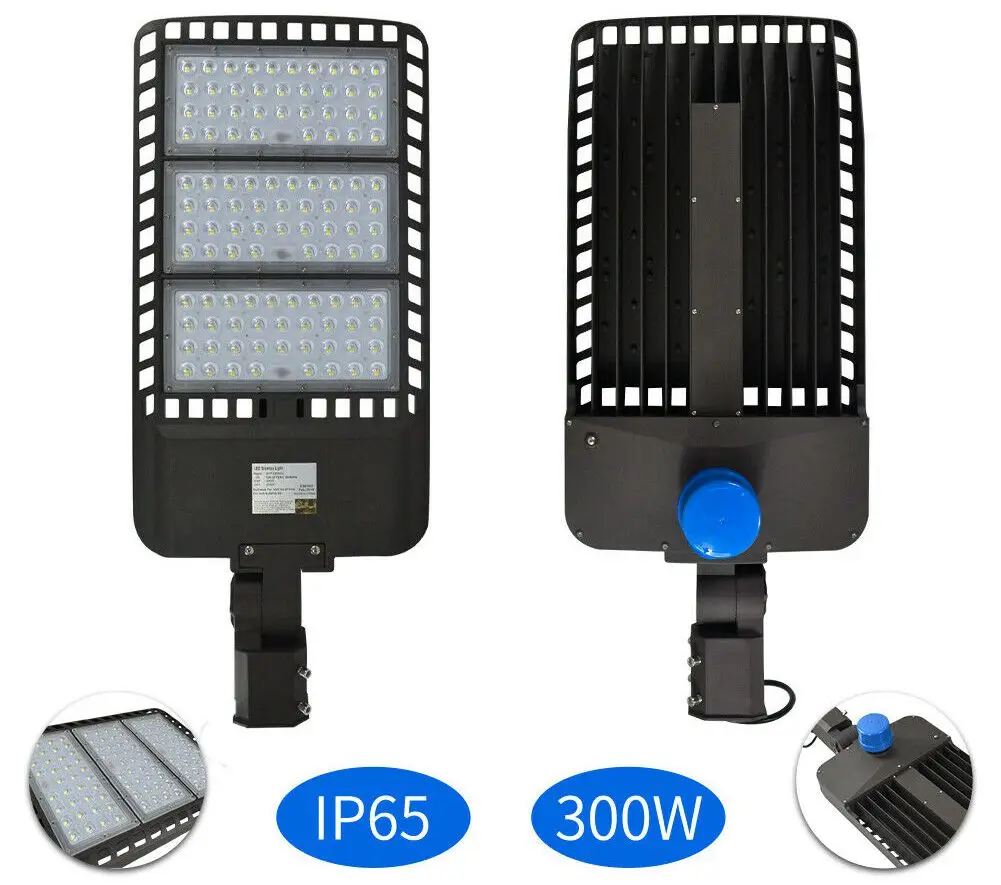

IP Rating | 65 | 65 | 65 | |||
Lens | PC lens | PC lens | PC lens | |||
Heat Radiator | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | |||
Warranty | 5 years | 5 years | 5 years | |||
LED Emitter Life | 70,000 Hours | 70,000 Hours | 70,000 Hours | |||
Certificate | CE RoHS, TUV | CE RoHS, TUV | CE RoHS, TUV | |||
B: Mechanical Specification | ||||||
LED Driver Brand | Meanwell driver | Meanwell driver | Meanwell driver | |||
Power | 100W | 200W | 300W | |||
Input voltage: | AC100-240V, 50/60HZ | AC100-240V, 50/60HZ | AC100-240V, 50/60HZ | |||
Power Factor(PF) | >0.90 | >0.90 | >0.90 | |||
Driver efffiency (%) | >92% | >92% | >92% | |||
Total Harmonic Distortion(THD) | <10% | <10% | <10% | |||
Dimmable | Dimmable or non-dimmable is option | Dimmable or non-dimmable is option | Dimmable or non-dimmable is option | |||
C: Environmental Specification | ||||||
Temperature Range Operating | -10℃ to 50℃ | -10℃ to 50℃ | -10℃ to 50℃ | |||
Humidity Range Operating | 10% to 70%RH | 10% to 70%RH | 10% to 70%RH | |||

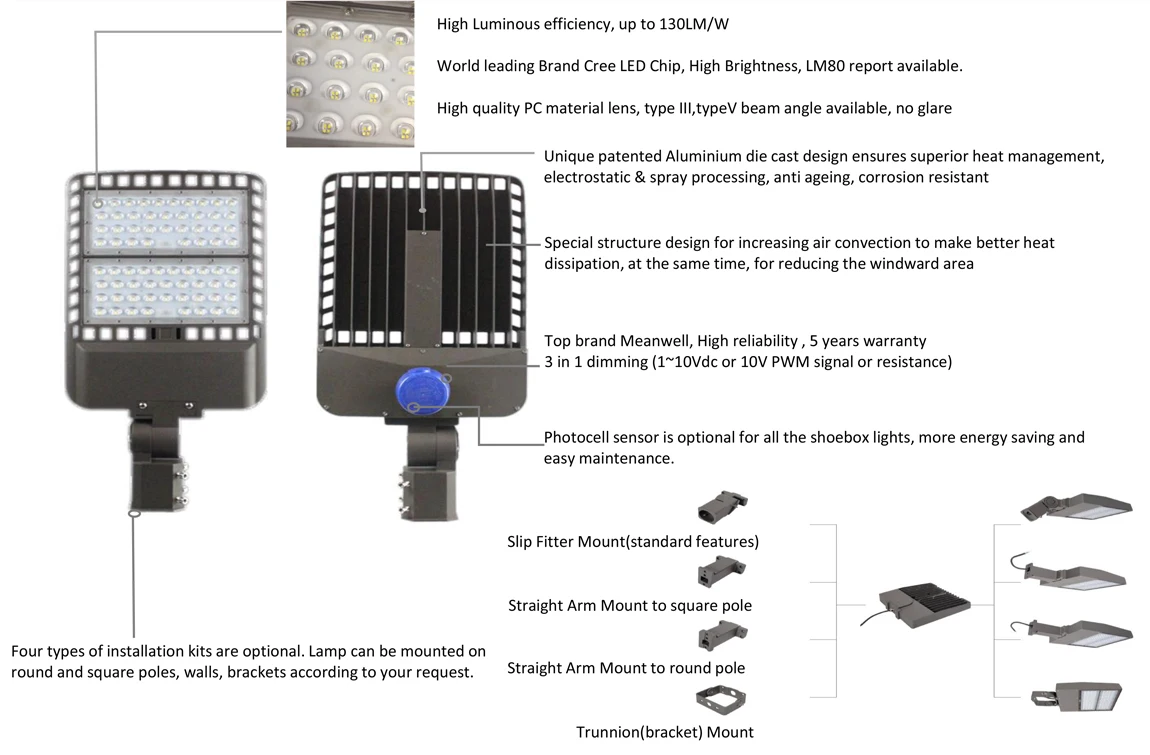

Product Analysis

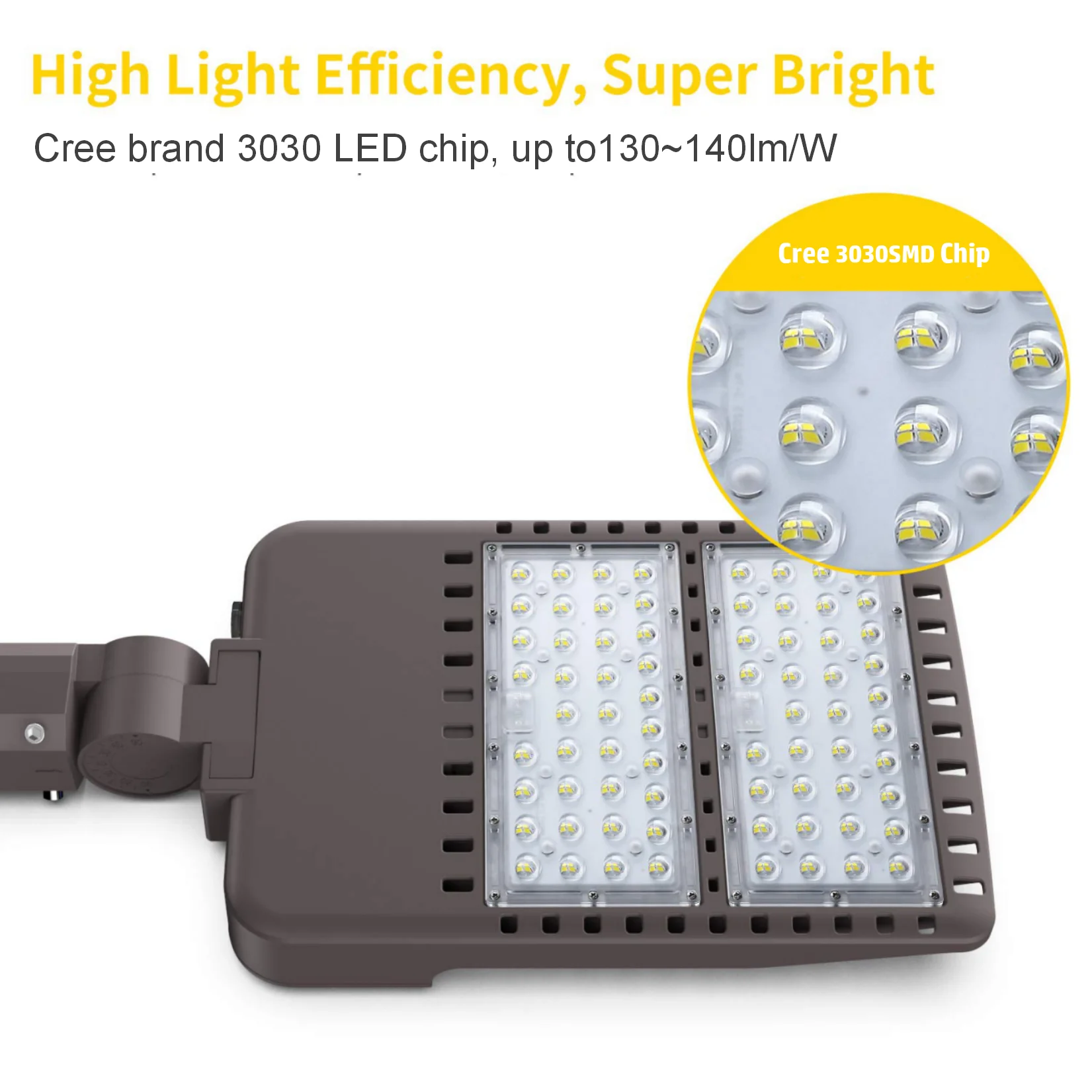

High Brightness: Our LED Shoebox Light adopting Cree brand 3030SMD, high lumen with stable quality; Light transmittance of Optical

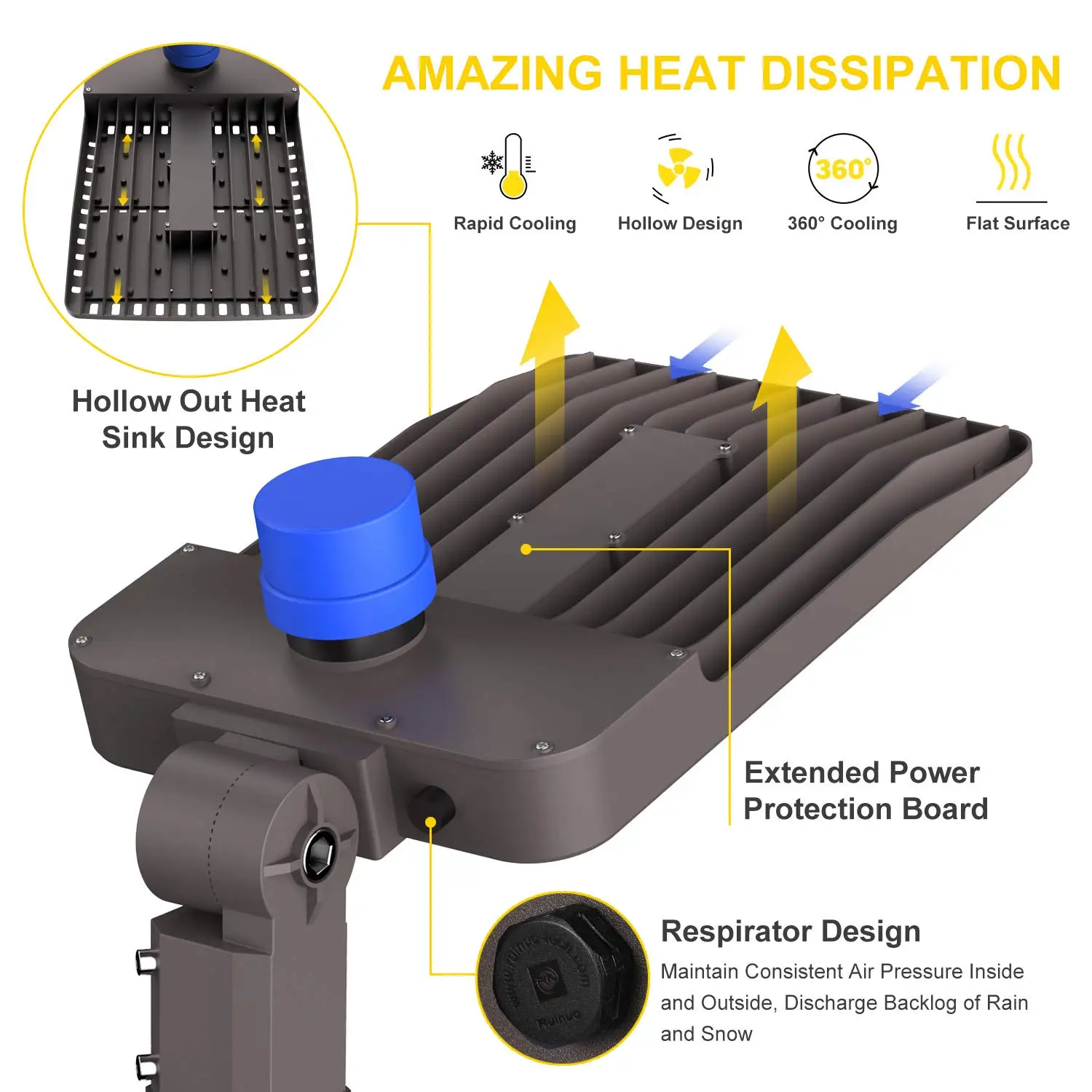

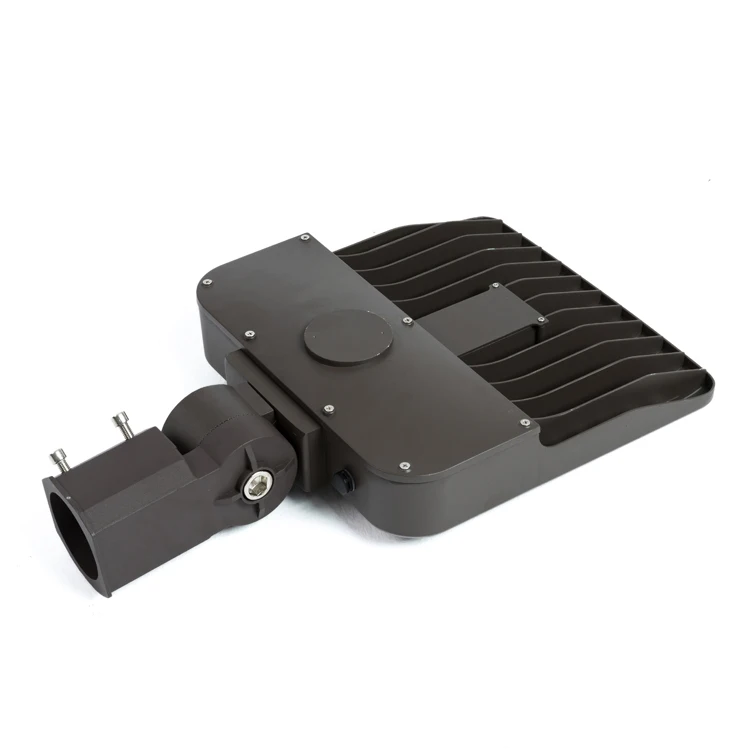

Good heat dissipation: Our Shoebox LED Light adopting die-casting Alu material with hollow out heat sink design, 360 degree cooling.

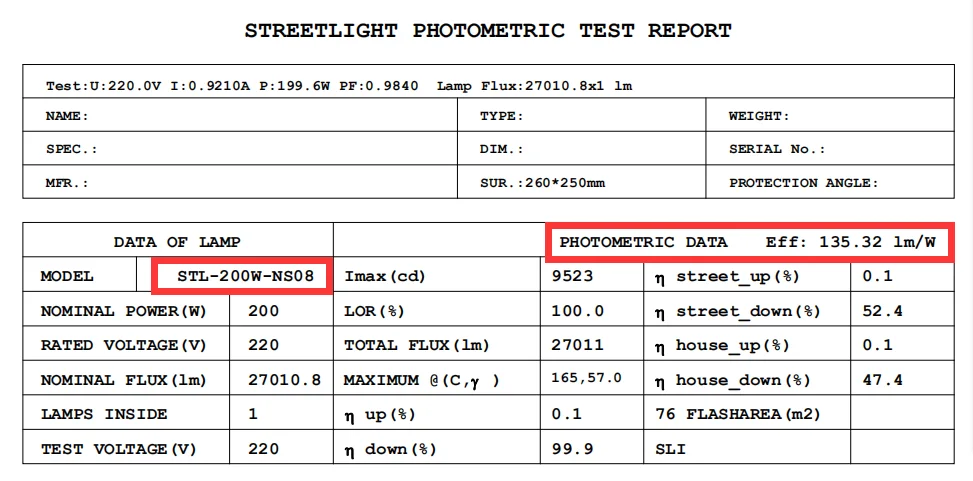

Technical Parameters
One of the questions that people ask when installing LED lights is related to spacing
* Spacing depends on how high upon you go.
* The higher up you go, the bigger the fixture you can use and the farther spaced out you will be.
* Be careful because going higher can leave a lot of light up high and you can run into code issues and wind problems.
* Every setup is different and requires different planning.
* Retail and sport Court requires brighter, where lightly used back lots require less.One of the questions that people ask when installing LED lights is related to spacing
* Spacing depends on how high upon you go.
* The higher up you go, the bigger the fixture you can use and the farther spaced out you will be.
* Be careful because going higher can leave a lot of light up high and you can run into code issues and wind problems.
* Every setup is different and requires different planning.
* Retail and sport Court requires brighter, where lightly used back lots require less.One of the questions that people ask when installing LED lights is related to spacing

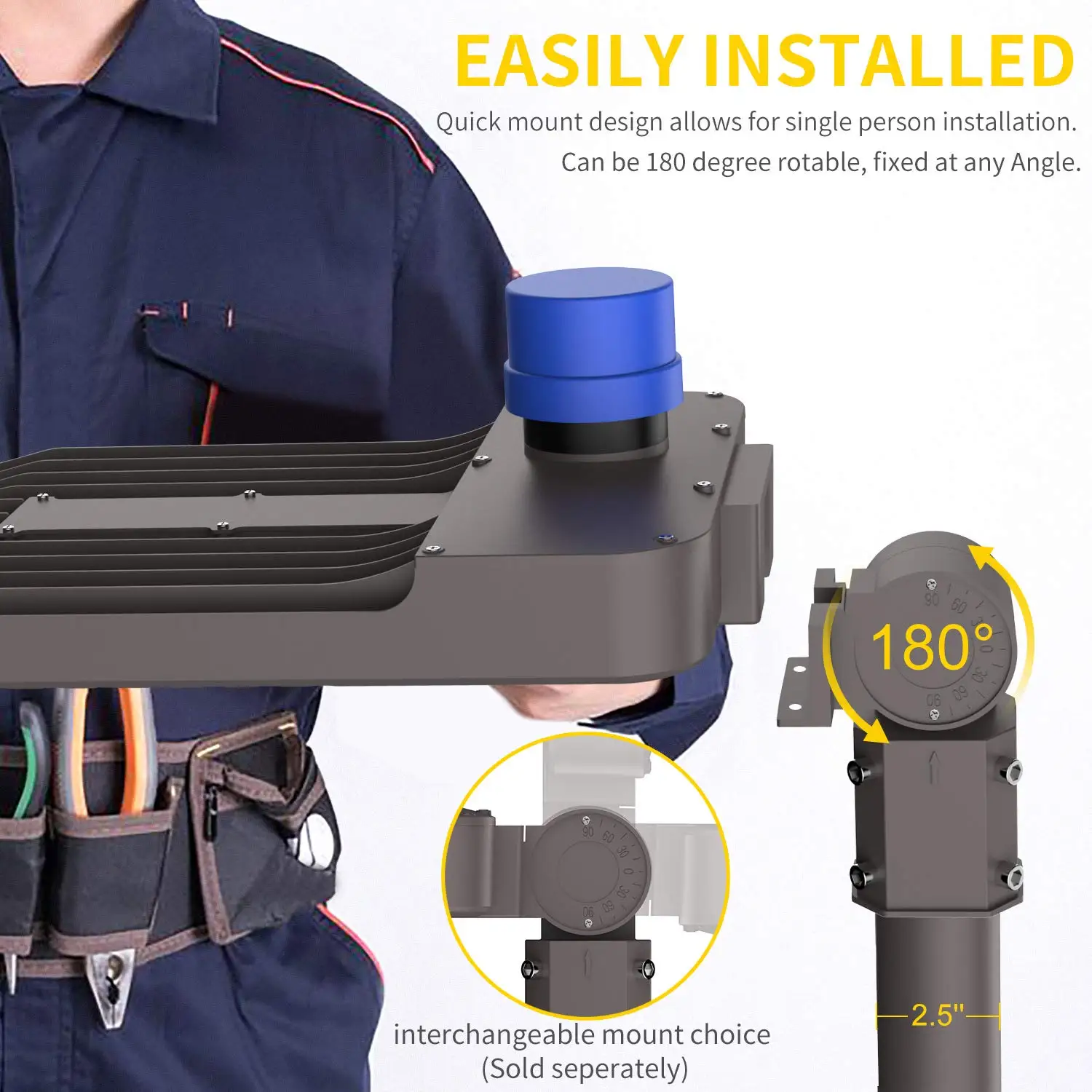

Installation Instructions

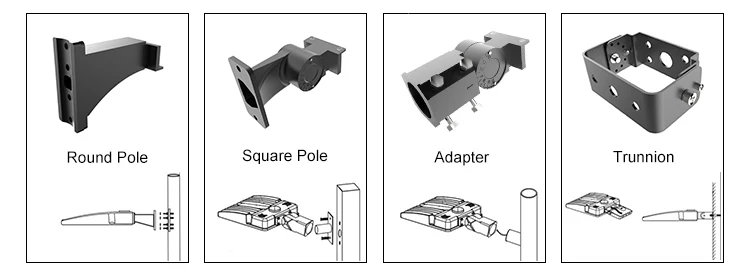

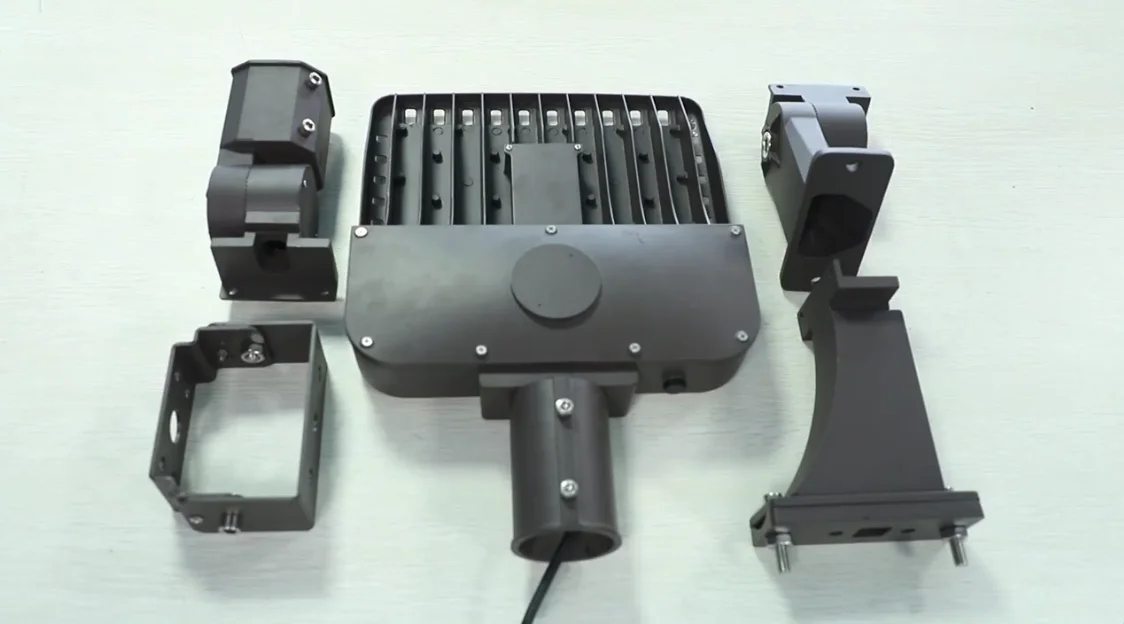

4 Types Accessories
1. Straight mounting to round pole
2. Straight mounting to square pole
3. Slip fitlter mounting to round pole
4. Swivle mounting
2. Straight mounting to square pole
3. Slip fitlter mounting to round pole
4. Swivle mounting
How to Install the LED shoebox Light?
1. Remove power prior to installation.
2. Loosen the screws of lamp arm.
3. Set the lamp arm into the lamp pole and tighten the screws.
4. Connect wiring to power supply. Brown to Line, Blue to Neutral, and Yellow or Green to Ground.
5. Restore power to circuit to test function then aim fixture.
1. Remove power prior to installation.
2. Loosen the screws of lamp arm.
3. Set the lamp arm into the lamp pole and tighten the screws.
4. Connect wiring to power supply. Brown to Line, Blue to Neutral, and Yellow or Green to Ground.
5. Restore power to circuit to test function then aim fixture.
Project Case
Application:Parking Lot lighting, outdoor lighting, wall lighting area street lighting, Bridge, Square Lighting,Car Park, Highway, Stadium, Highway Lighting, Petrol Station, lighting parks, parking lots, campuses, walkways, side roads,etc

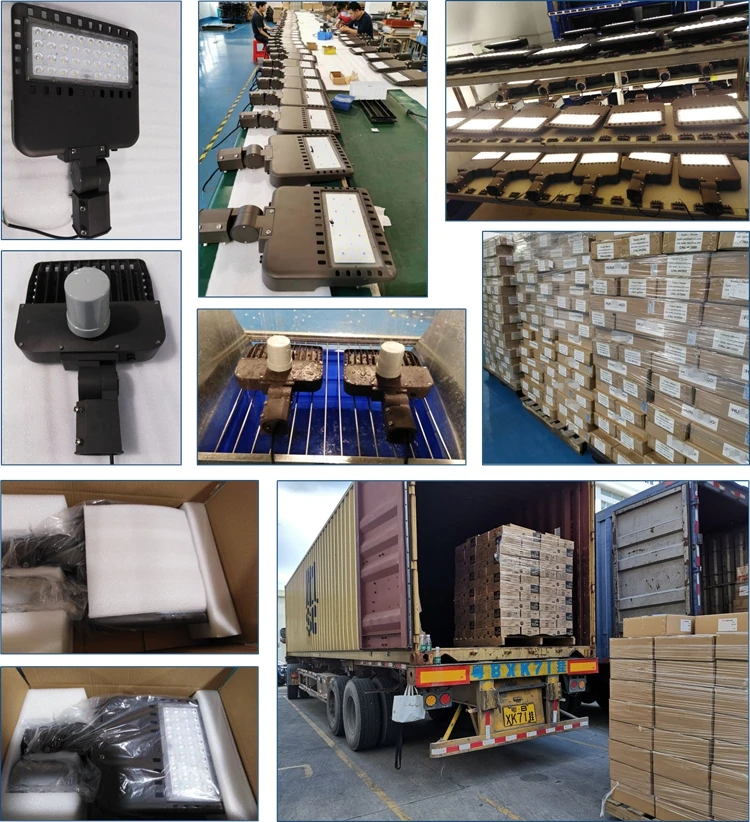

Bulk Order
Packaging
Item No. | 100W Shoebox Packing Lot Light STL-100W-N08 |
Power | 100W |
Qty/CTN | 1pcs |
Carton Size | 56x37x15cm |
N.W | 4.0Kg |
G.W | 4.6 Kg |
Item No. | 200W Shoebox Packing Lot Light STL-200W-N08 |
Power | 200W |
Qty/CTN | 1pcs |
Carton Size | 67x37x15cm |
N.W | 5.3Kg |
G.W | 5.9Kg |
Item No. | 300W Shoebox Packing Lot Light STL-300W-N08 |
Power | 300W |
Qty/CTN | 1pcs |
Carton Size | 82x40x19cm |
N.W | 8.1Kg |
G.W | 8.9 Kg |
Factory Profile
PENEL OPTOELECTRONICS TECHNOLOGY CO.,LTD
We are an original and professional led manufacture of led flood light, led street light & Solar Street Light, in Shenzhen, with14 years' Exportinge xperiences, we have been Alibaba's golden member for 9 years.
We shipped more than 3 full 40HQ containers toSouth America and Europe every month in average. Our advantage is our strong R&D ability and good technology, and this is why wecan provide a lot more competitive ratio of quality/price than our competitors.
We shipped more than 3 full 40HQ containers toSouth America and Europe every month in average. Our advantage is our strong R&D ability and good technology, and this is why wecan provide a lot more competitive ratio of quality/price than our competitors.
