Product Overview
Description
Highlight HPC008 Automatic People Counter Electronic Wireless People Counting Camera for Supermarket
Product Description
HPC008 Camera People counter is a powerful tool for keeping costs down and clients coming back while
reducing losses at the same time.
With HPC008 people counter, you will get:
• Identify Your Store's Peak Hours
• Manage Your Staff Efficiently
• Increase the Dwell Time in Your Store
• Measure the Effectiveness of Your Marketing Campaigns

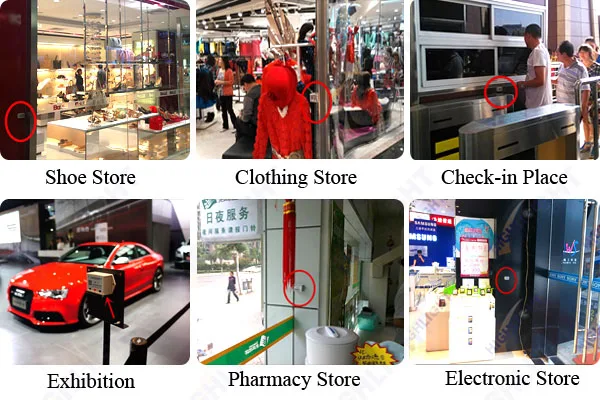

Market
We support customer-flow analysis for retail industry, gallery, park, scenic spots,transportation junction, crowded square and so on.
Specifications
Items | Highlight HPC008 Camera People Counter | |
Size | 18.9*14.5*5.8 CM | |
Processor | ARM cortex A7>1GHz(28 nm) | |
Sensor | Video Input | Cmos/ Simplexhigh Definition |
Video Compression standard | H.264, YUY2 | |
Video Definition | Adjustable | |
Image Processing | Exposure Control/ Gain Control/ White Balance/ Gamma Correction | |
Video Frame rate | 30 fps | |
Measuring Range | 2 m | |
Installation Height | 2.5-5.0 m | |
Port Protocol | Network Interface | RJ45, 10M/100M (Adaptive to Ethernet port) |
Protocol Standard | 802.11a or 802.11b/g | |
Maintenance Interface | Micro USB | |
SD card | Built-in, 8G~32G | |
Electronic Clock | Built-in, RTC module | |
Remote Upgrade | Upgrade By The Website | |
Physical Parameter
| Size | 120*120*48 mm |
Weight | 200g | |
Adapter | +5V/2A | |
Power | ≤10W/ POE(optional) | |
Hardware Monitoring | Hardware Watchdog | |
Temperature | -20℃~+65℃ | |
Model
To get a more accurate data, we use 6 lenses for different installation heights, details as below:
Model | Installation Height |
HPC008-2.1 | 2.6--2.7 M |
HPC008-2.5 | 2.8--3.0 M |
HPC008-2.8 | 2.9--3.2 M |
HPC008-3.6 | 3.2--3.8 M |
HPC008-4 | 3.9--4.4 M |
HPC008-6 | 4.4--5.1 M |
| The critical height, advised to choose a large lens |
Remark | This test results is based on persons of average 1.7M |
| Effective width detection 2M |
Product Show

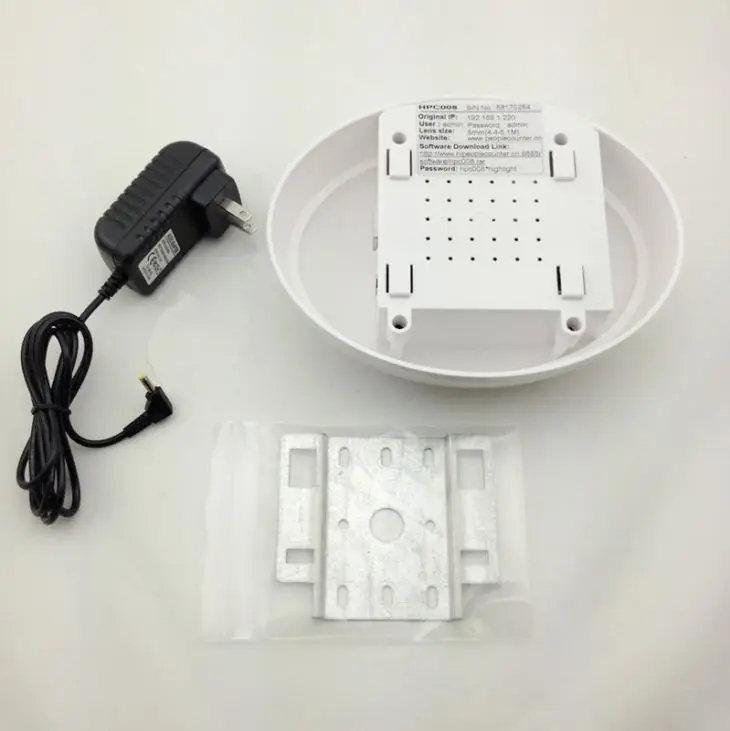

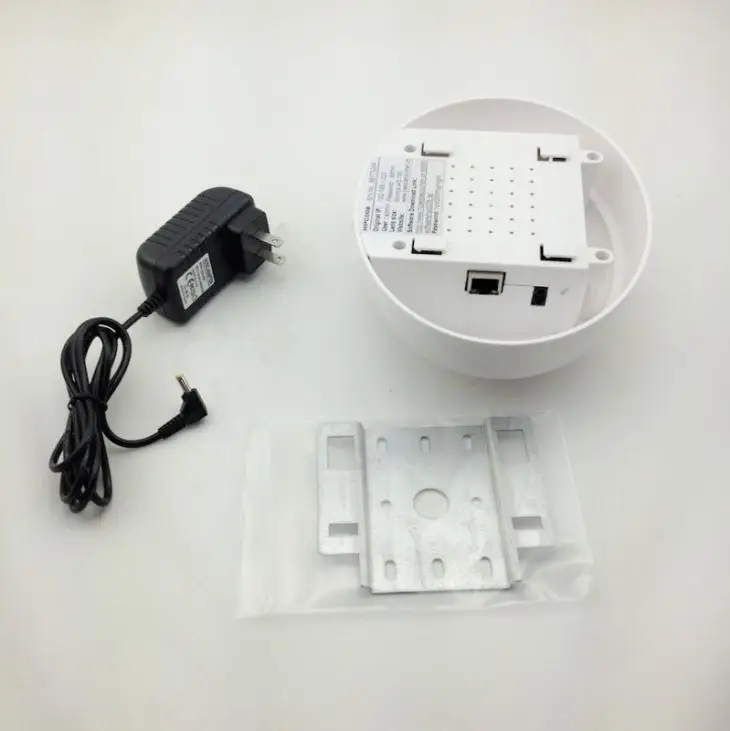

Full set of HPC008 camera people counter includes the all-in-one processor and camera, free network software, adapter and other accessories.
Softwares
HPC008 has one network software, which is free and suitable for chain stores (unlimited number).
With the network software, you can check all the data collected from different chain stores at anywhere and anytime.
You can also check the data on mobile phone for remote management. Kindly remind that it is not an APP, you need to input the website and login with account and password.
Used for Chain Stores
Installation

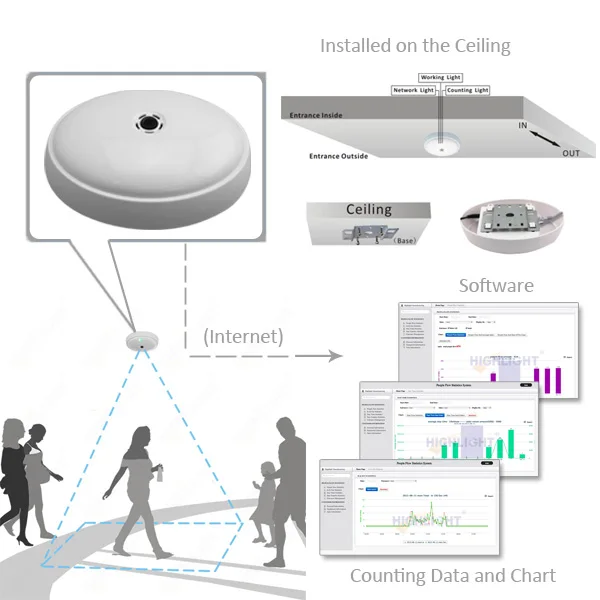

The hardware installation of HPC008 camera people counter is very easy, like "Plug and play".
The effective detection width per device is 2 meters. Multiple devices can be installed side by side for wide entrance:
Why Us?
Advantages
| High accuracy rate | 95%-98% 1. It counts according to person's head, so it can solve the problem when people walking shoulder by shoulder. 2. It eliminate the invalid pass by seting a counting area. 3. Different camera for different height of ceil. |
| Data safety | 1. Network-off protection: The data can be saved in the device for 10,000 seconds (nearly 3 hours), even there is no network. 2. The data can be exported in PNG, JPG, PDF form. 3. Data backup: When the IP address is changed, the data can be backed up. |
| Data transmission | 1. The data can be transferred to server directly. 2. It can work in wifi network. |
| Data report | 1. Detailed valid in-out-stay data. 2. Data from different entrances in different shops can be distinguished. 3. Sales info can be inputed manually. It is convenient for shop to make the commercial solution. 4. With a API, the data can be integrated into POS/ ERP system. |
| Power supply | Adaptor or POE as your requirement. |
HPC008 people counting camera is widely used in China government projects.
Good Feedbacks from Worldwide Customers
Our people counters are widely used in different stores all over the world.
Our people counters are manufactured by Professional and ISO certificated factory. Please check the below people counter manufacturer factory show.
Related Products

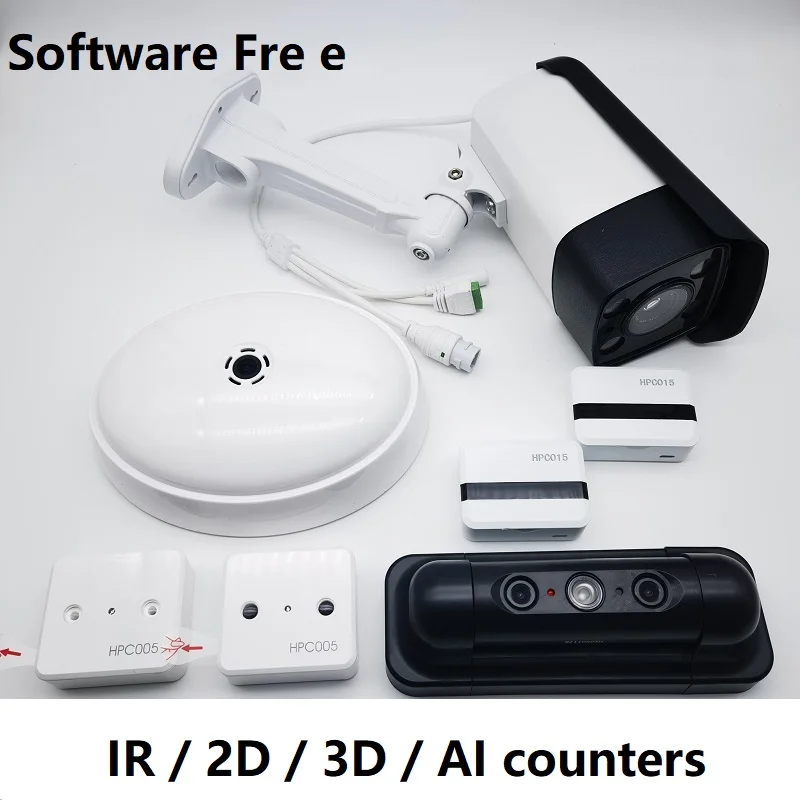

The advanced HPC005 infrared people counter, special for chain stores (Click the below picture for more product info)
More people counters in Highlight:
Full range of EAS retail security products with high quality, competitive price and fast delivery
Certification
Quality is our life. We follow the CE/ISO strickly to guarantee the quality.
Company Information
ABOUT HIGHLIGHT
Highlight is a professional EAS/ ESL/ People Counters/ DVR exporter with over 20 years experience in China.
There is a full range of EAS products: 40 kinds EAS systems, 107 tags, 18 labels, 44 safers, 25 detachers, 20 pins, 13 deactivators, 9 lanyards, 8 people counters, ESL, vehicle DVR and so on. You can find whatever you want here.
We develop new products every months and accept the OEM and ODM.
Welcome to join us, we will show you a professional and excellent partner.
