6m3ph industrial water purification systems well water purifying machine containerized water treatment plant for Farm irrigation
- Category: >>>
- Supplier: Aqualitek Water Treatment Technologies Co. Ltd.
Share on (1600494652152):
Product Overview
Description
Product Description
Container BWE Series Reverse Osmosis (RO) systems are pre-engineered and pre-assembled units with 8” membrane housings for brackish water(higher TDS) in containers.The large volumes can help meet your a variety of industrial applications.They are designed for overall superior performance,high recovery rates and offer great savings with low maintenance and operation costs.
Our container system is a complete solution, assembled and tested off-site at our factory. The solution is complete with all internal piping and wiring factory-built. This makes the plant ready for use when supplied, which financially can be an advantage, also in relation to the reduced amount of time used for deployment.

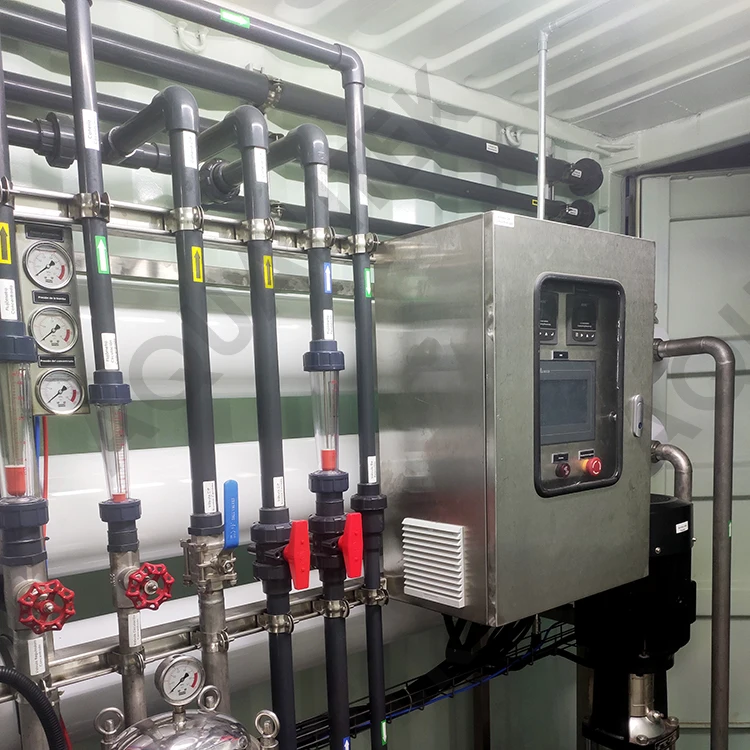

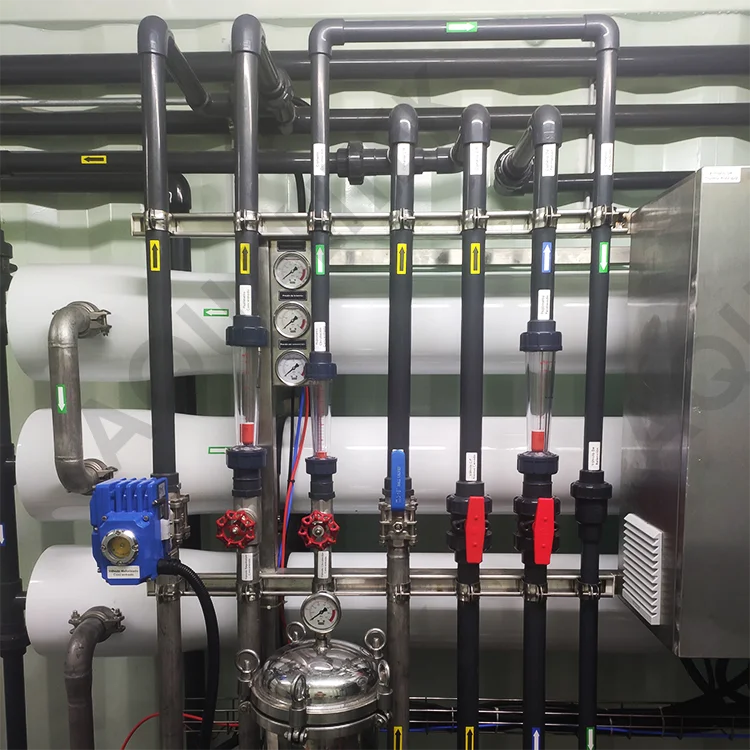

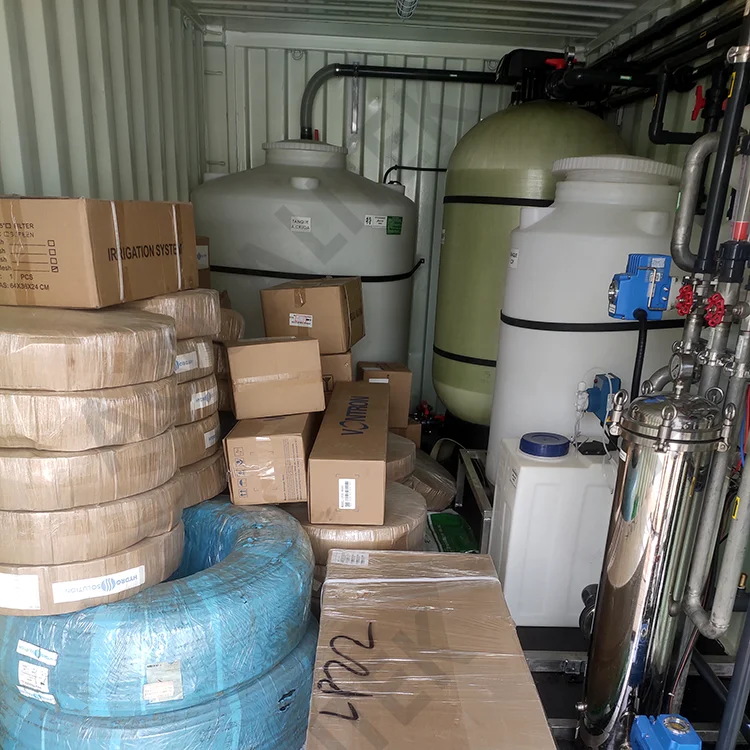

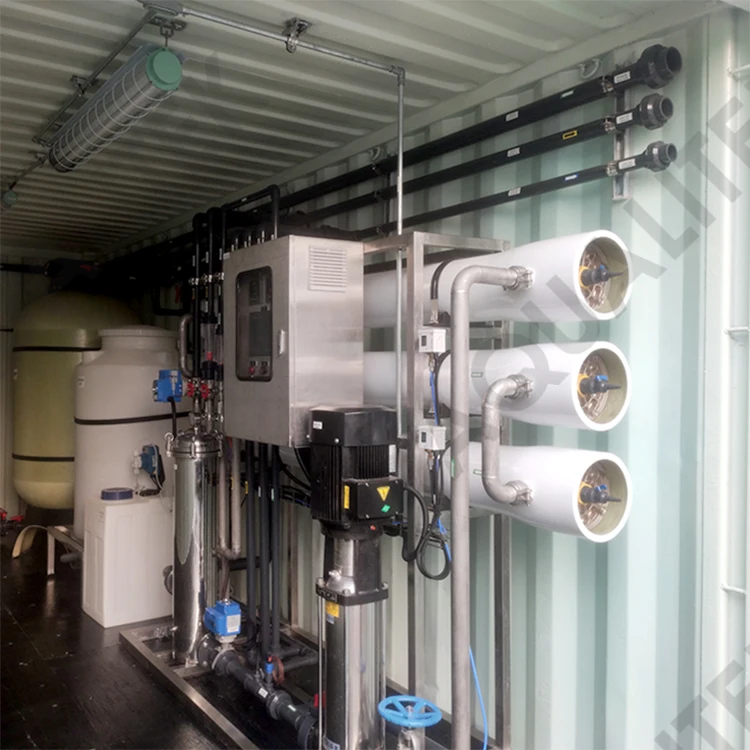

6000lph BWE RO system with container Interior decoration
1.Following ANSI EMT wiring requirements.
2.Renovation instructions: Blue and white paint is sprayed in the inside of outside of container3.2 sets explosion-proof light lamps are installed on the ceiling
4.Ventilation system: air conditioners and fans are available.
5.Fire protection equipment: fire extinguisher&fire alarms are available.
5.Fire protection equipment: fire extinguisher&fire alarms are available.
6.aluminum & rubber antislip plate are available.
7. Colourfull painting are available.

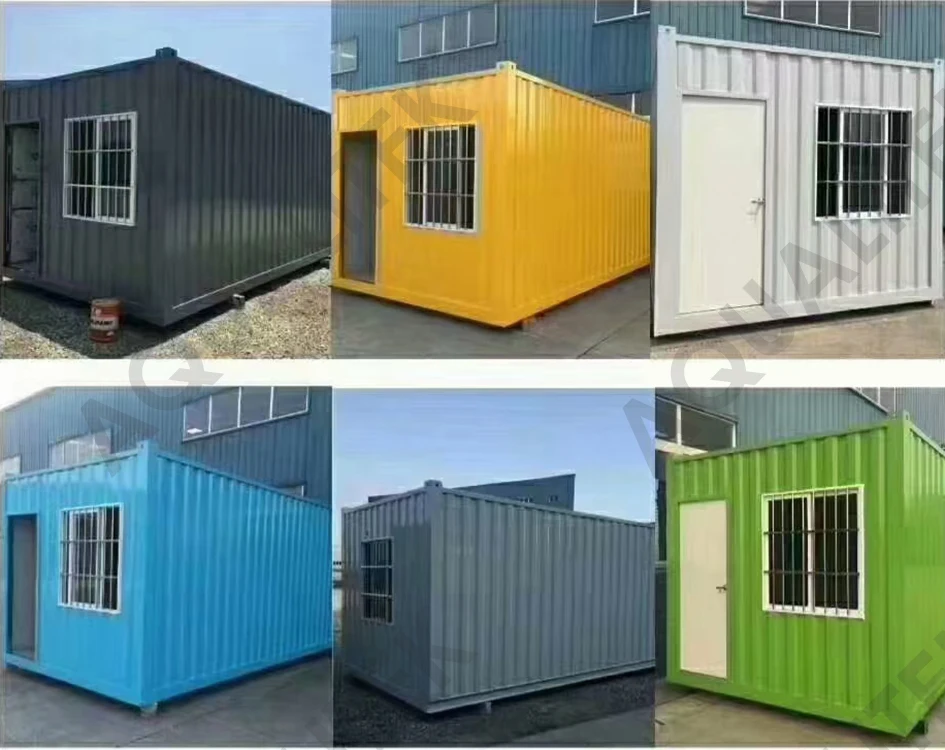

Renovated outside blue painting container
Renovated inside white painting container

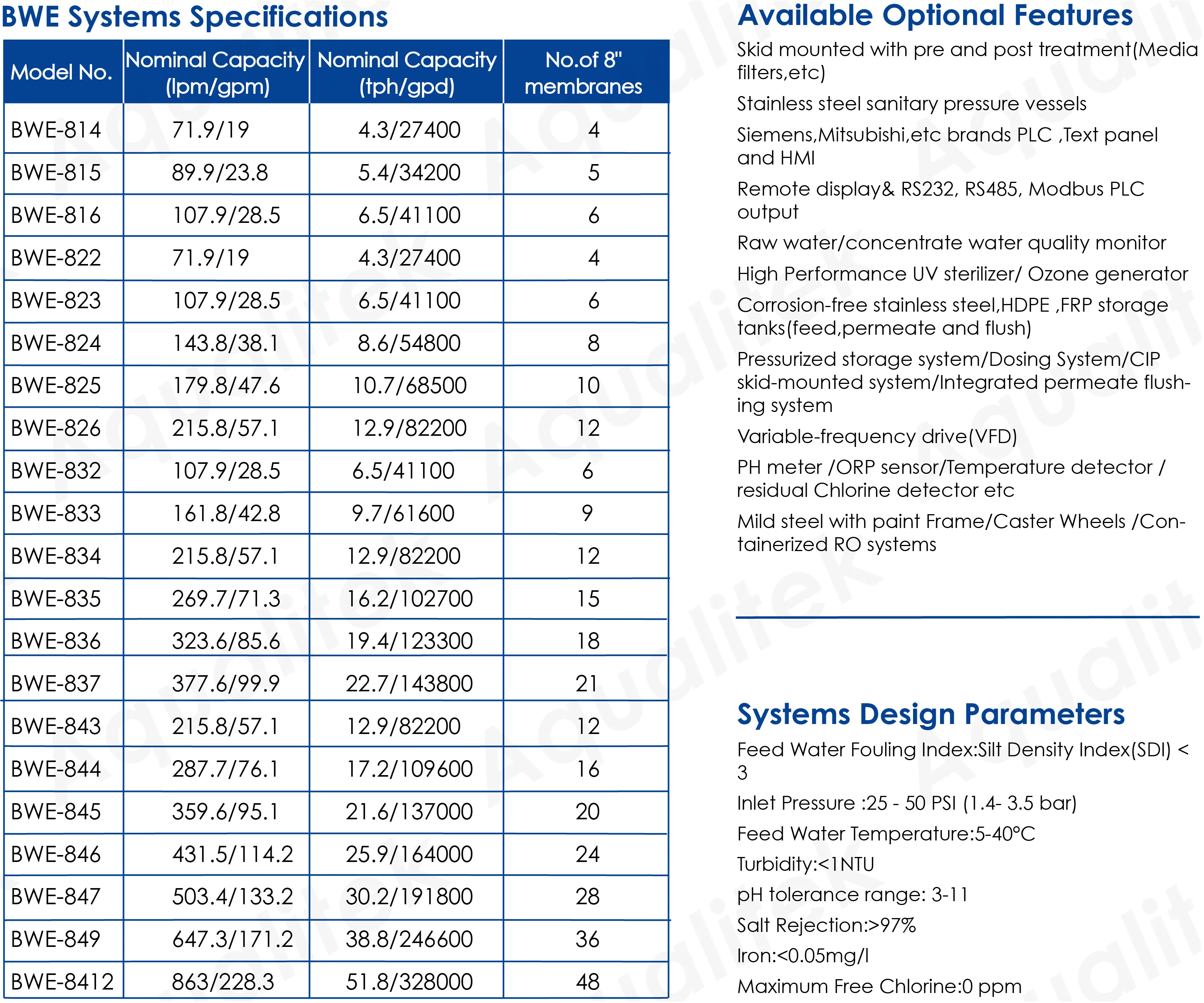

Specification
Model | BWE-823-6 |
Production Capacity | 6m3ph |
Power Supply | 3P+N/380V/50hz |
Inlet water | Well brackish water(TDS more than 2500ppm) |
Desalination Rate | 97%-99% |
Recovery Rate | 65-75% |
Treatment Process | Raw water pump---MMF--Dosing antiscalant system--5 um Micro filter-- HP-RO Membrane--Product water |
SS304 Control Panel | Siemens PLC+ HMl, Auto & Manual |
HP Material | Sch40 SS304 |
Contorol Valve | Runxin |
Maintaince | CIP design |
Pump brand | CNP |
Container Condition | 20GP second hand renovated container |
Pretreatment | MMF |
Standard Features
Stainless steel corrosion resistant high pressure pump
8” spiral wound thin-film composite (TFC) membranes(400 ft2)
Fiberglass reinforced plastic (FRP) pressure vessels
Heavy duty 5 micron pretreatment sediment filter
Stainless steel sediment filter housing
Pre/post filter and pump glycerin filled gauges
Permeate Water quality monitor
Corrosion resistant SS throttling valves
Low pressure and high pressure switches
Product, reject flow meters/Permeate sample valves
Heavy duty stainless steel piping for high pressure parts
Clean–In–Place (CIP) Ports
Stable and corrosion-free stainless steel 304 frame
8” spiral wound thin-film composite (TFC) membranes(400 ft2)
Fiberglass reinforced plastic (FRP) pressure vessels
Heavy duty 5 micron pretreatment sediment filter
Stainless steel sediment filter housing
Pre/post filter and pump glycerin filled gauges
Permeate Water quality monitor
Corrosion resistant SS throttling valves
Low pressure and high pressure switches
Product, reject flow meters/Permeate sample valves
Heavy duty stainless steel piping for high pressure parts
Clean–In–Place (CIP) Ports
Stable and corrosion-free stainless steel 304 frame
Benefits
Low energy and largearea TFC membranes to get high flow and ensure water quality.
Prudent flux design and CIP ports to maximize system lifespan
PLC provides user-friendly and flexible programmable controls
Simple system Integration and flexible configurations
Compact footprint saves valuable floor space
Quick delivery and easy Installation
Individually factory tested and preserved
12-18 months limited warranty
Prudent flux design and CIP ports to maximize system lifespan
PLC provides user-friendly and flexible programmable controls
Simple system Integration and flexible configurations
Compact footprint saves valuable floor space
Quick delivery and easy Installation
Individually factory tested and preserved
12-18 months limited warranty
