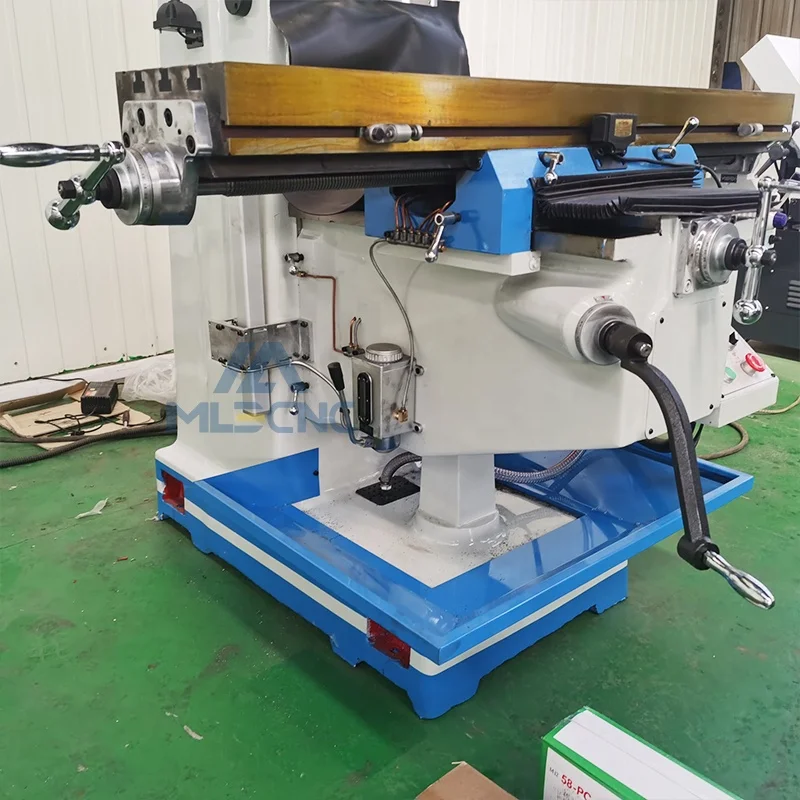

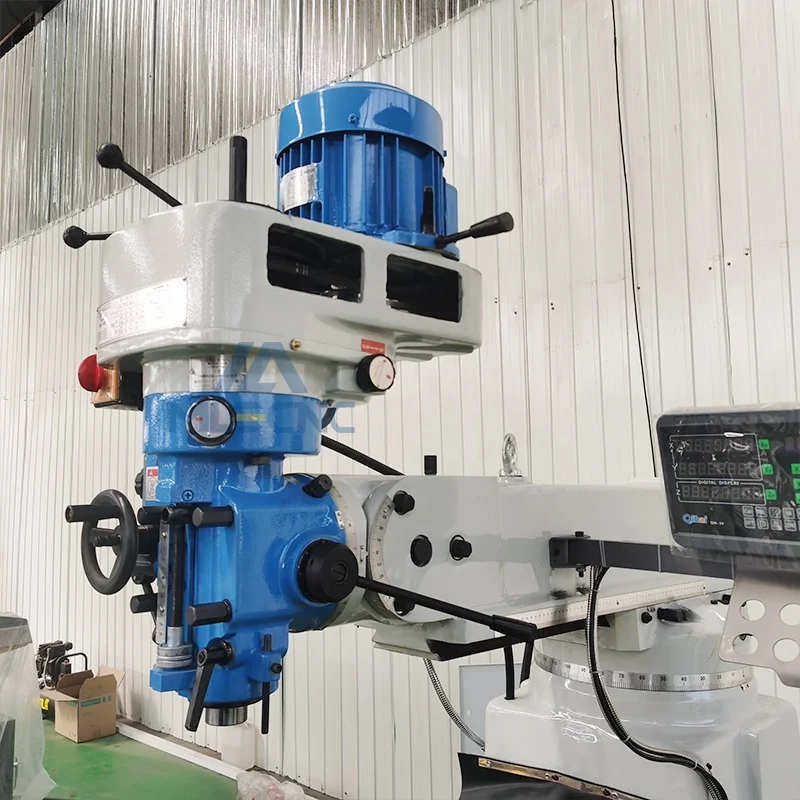

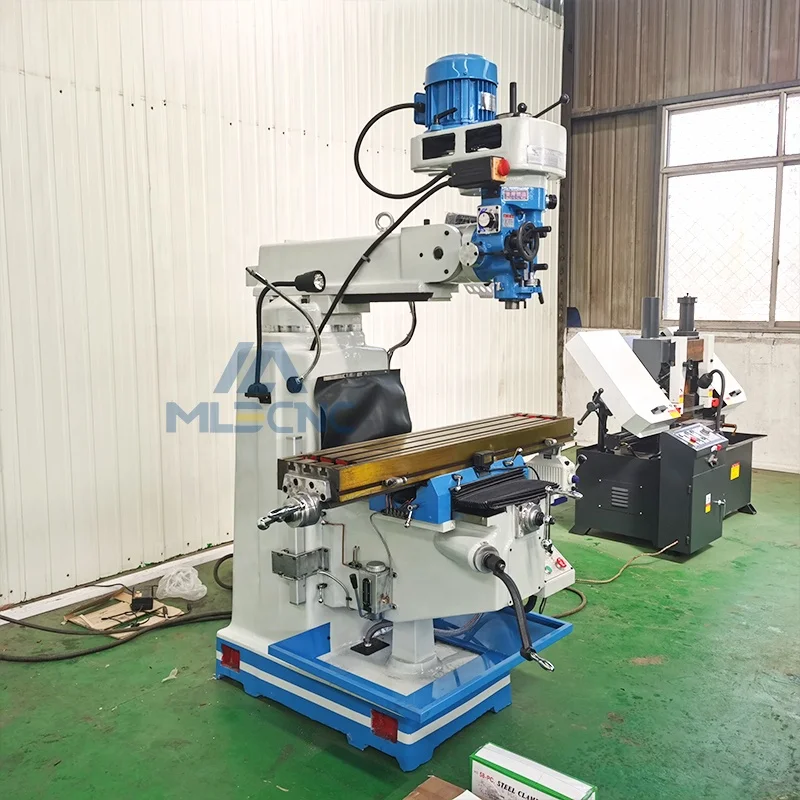

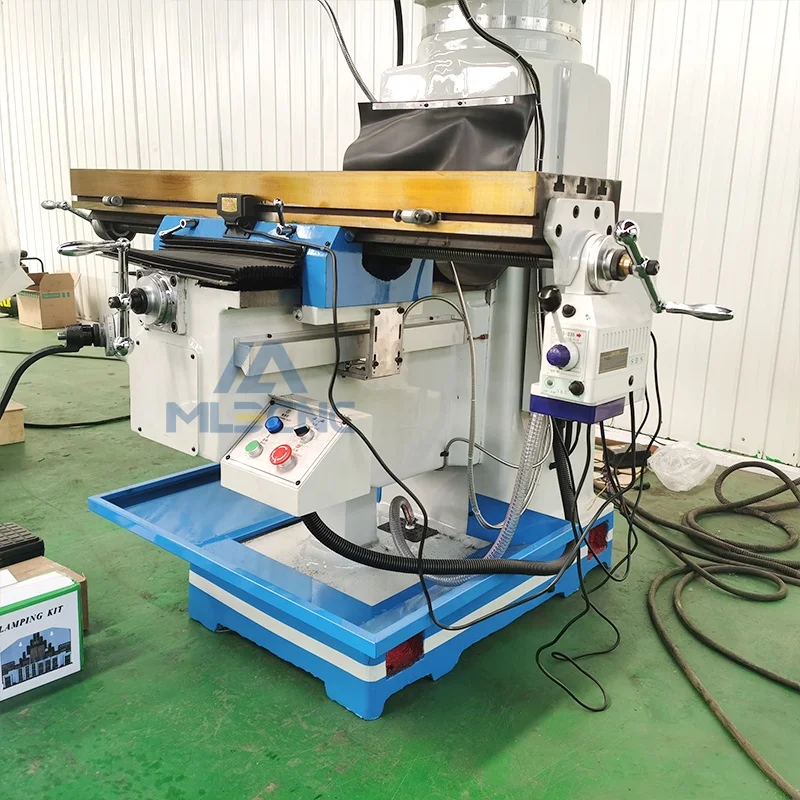

low price universal turret milling machine x6323 with vertical milling head
- Category: >>>
- Supplier: Shandong Mainland Cnc Equipment Co. Ltd
Share on (1600494740940):
Product Overview
Description
Main Feature：
* Table automatic feed on X,Y,Z direction by gear driven.
* High speed millling head made in Taiwan
* Hardened and ground guideways.
* guideways by high frequency quenching.
* Easy control
* High speed millling head made in Taiwan
* Hardened and ground guideways.
* guideways by high frequency quenching.
* Easy control
Specification | units | X6323 | ||
Table size | mm | 1246x230(49”x9”) | ||
T-slots(Numbers*width) | mm | 3x16 | ||
Table travel | Max.longitudinal travel | 40mm | 780 | |
Max.cross travel | 350 | |||
Max.vertical travel | 350 | |||
The travel of telescopic arm | mm | 350 | ||
Spindle nose to table surface | mm | 0-350 | ||
Taper of spindle hole | r/min | Standard: R8; | ||
Spindle speed | / | Standard:16(shift grade) | ||
50HZ 65-4540 60HZ 80-5440 | ||||
Spindle travel | mm | 127 | ||
Spindle feed rate | mm/r | Three steps: | ||
0.04(0.0015”)/ | ||||
0.08(0.003”)/ | ||||
0.15(0.006”) | ||||
Spindle motor power | KW/HP | 2.25/3HP | ||
Head rotation(left-right) | ° | 90° | ||
Head rotation(front-rear) | ° | 45° | ||
Packaging size(L*W*H) | mm | 1516*1550*2080 | ||
Gross Weight | Kg | 1550 | ||
Standard Accessories
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck
Optional Accessories
Power feed

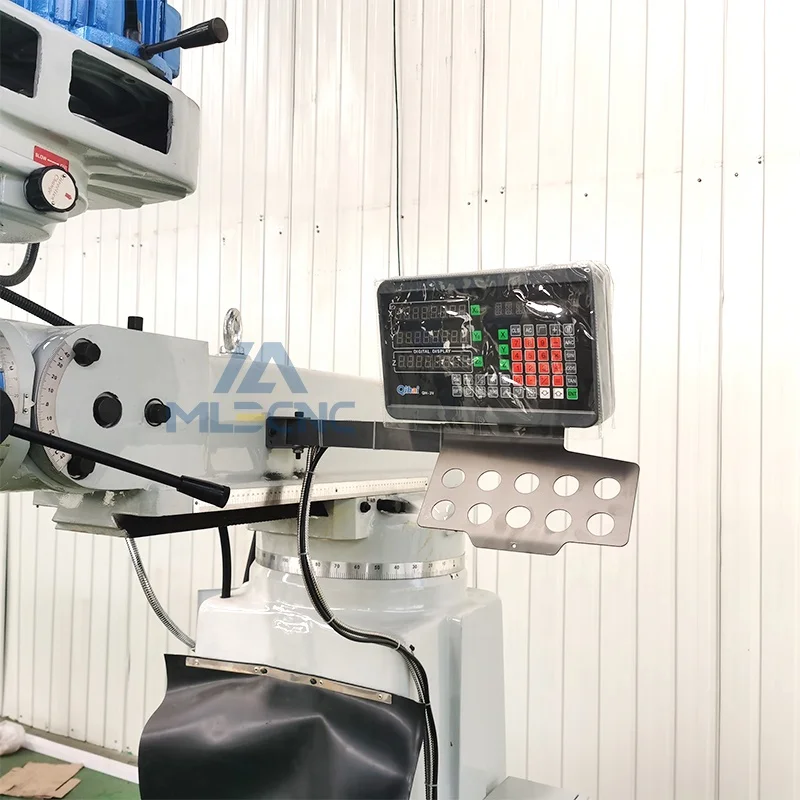

3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table
3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table
