Price:$3,240.00

Quantity:


Product Overview

Description

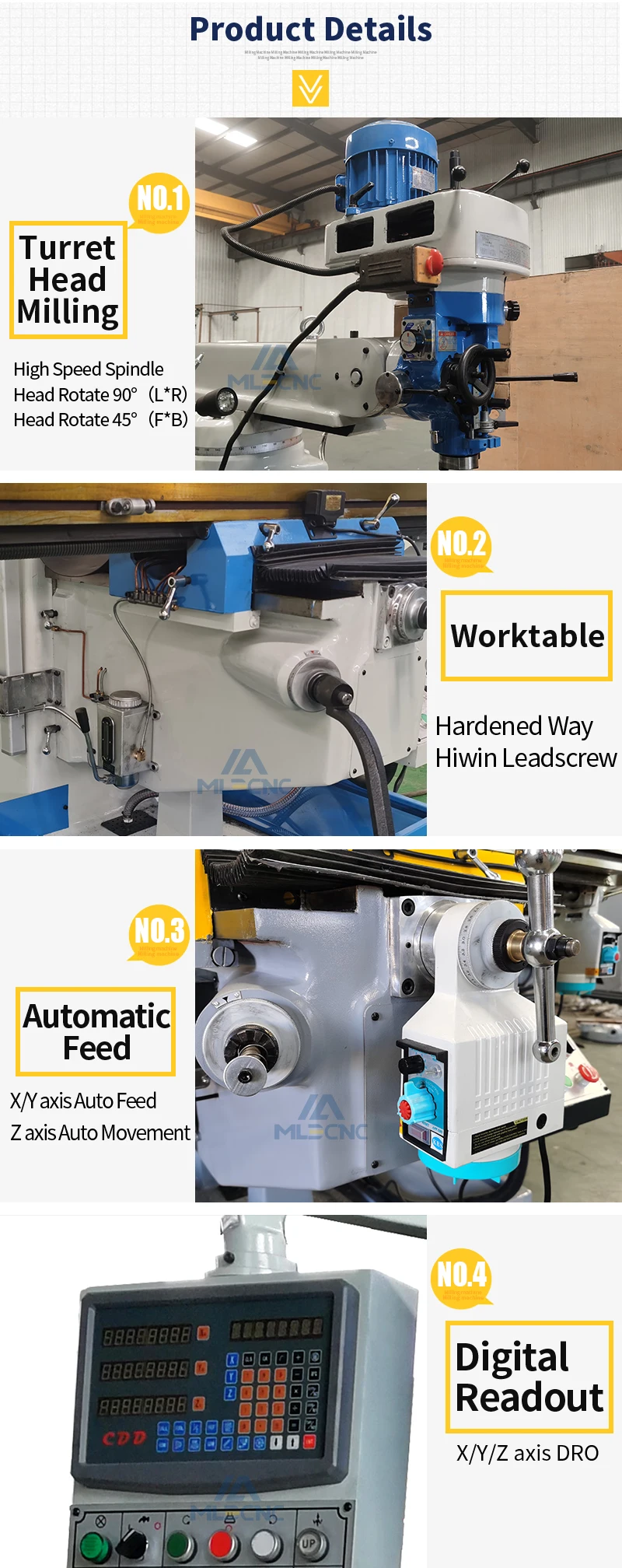

Main Feature：

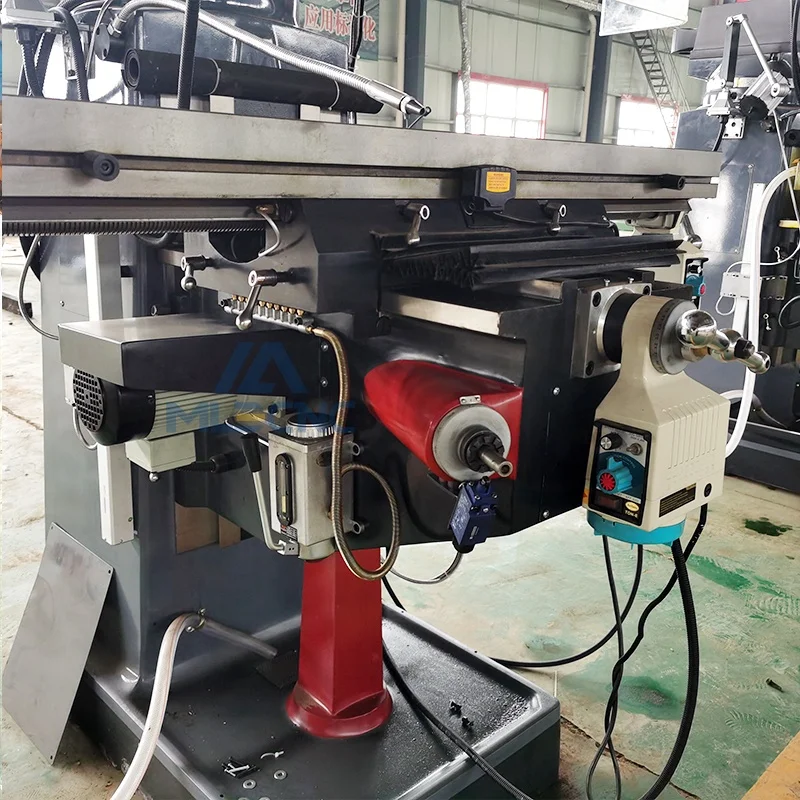

* Table automatic feed on X,Y,Z direction by gear driven.

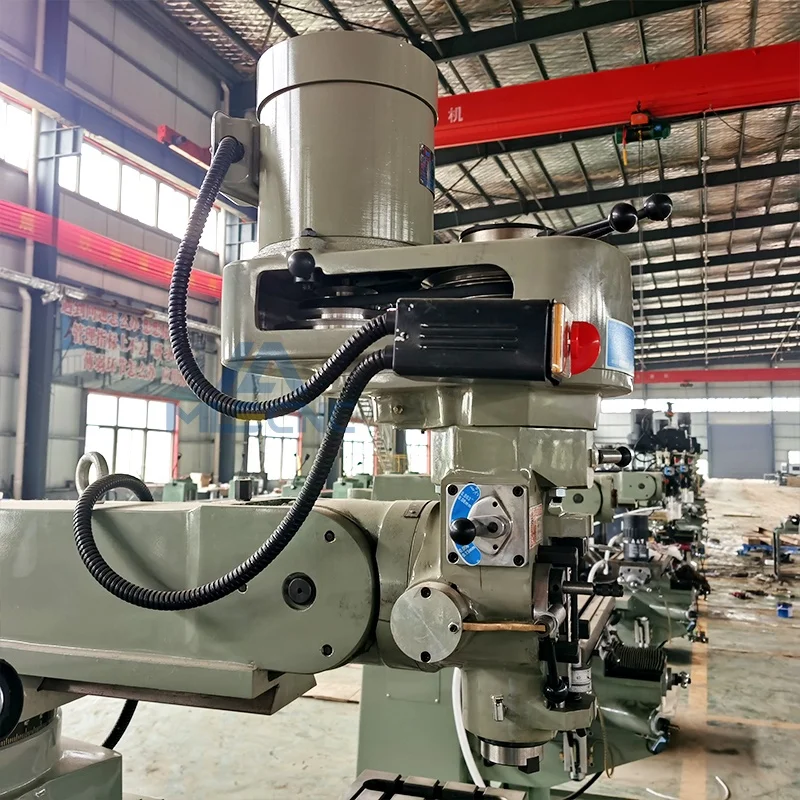

* High speed millling head made in Taiwan
* Hardened and ground guideways.
* guideways by high frequency quenching.
* Easy control








Specifications
Units
4H
5H
Table size
mm
1270x254(10”x50”)
1370x305(12”x54”)
Table travel
mm
800/400/400
780/ 420 /400
T slot(number-width-pitch)
mm
3-16-50
3-16-65

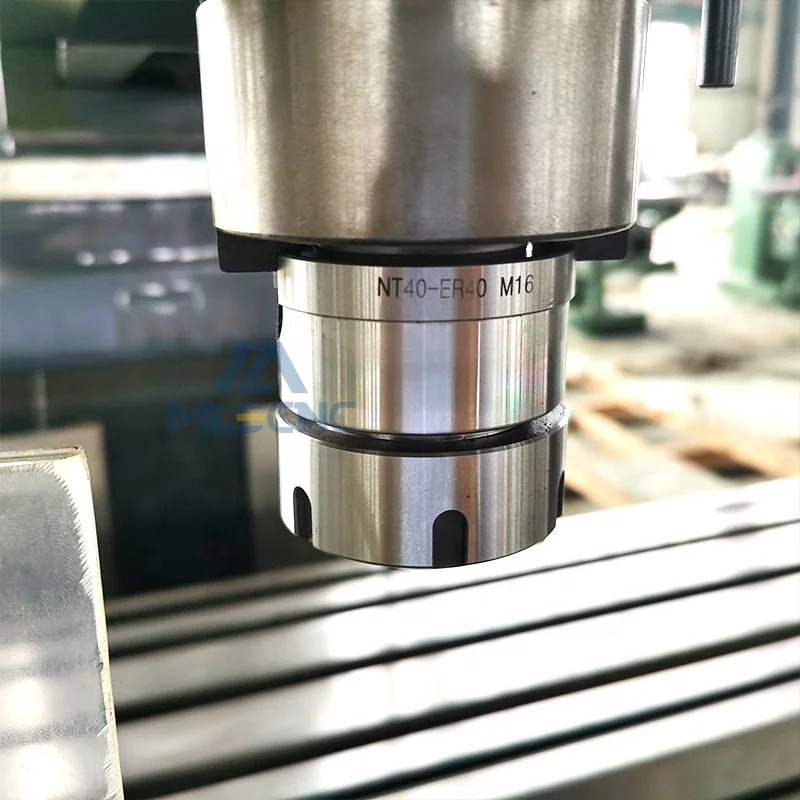

Spindle taper
standard:R8
optional:ISO40
standard:R8
Optional :ISO40
Spindle speed range
rpm
standard:（16 steps）50HZ:65-4500 60HZ:80-5440
optional（variable）65-4000
Spindle travel
mm
127
127
Spindle feed range
mm
0.04,0.08,0.15
(3 steps)
0.04,0.08,0.15
(3 steps)
Distance between spindle nose and table surface
mm
90-510
90-510
Main motor power
kw
2.2
2.2
Head rotation (left - right )
°
±90°
±90°
Head rotation (front - rear)
°
±45°
±45°
Weight
kg
1400
1600
Overall dimension
mm
1550x1650x2250
1550x1650x2250




Standard Accessories
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Milling Chuck
Optional Accessories
Power feed
3-axis Digital Reading
Machine Vise
Clamp Kits
Variable milling head
Air drawbar
Dividing Head
Rotary Table
