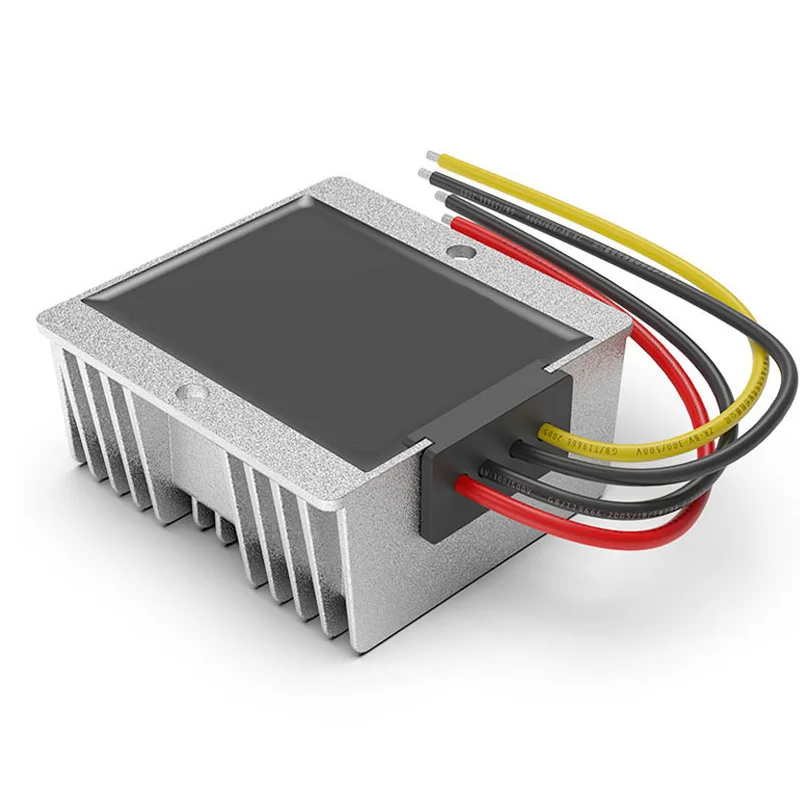

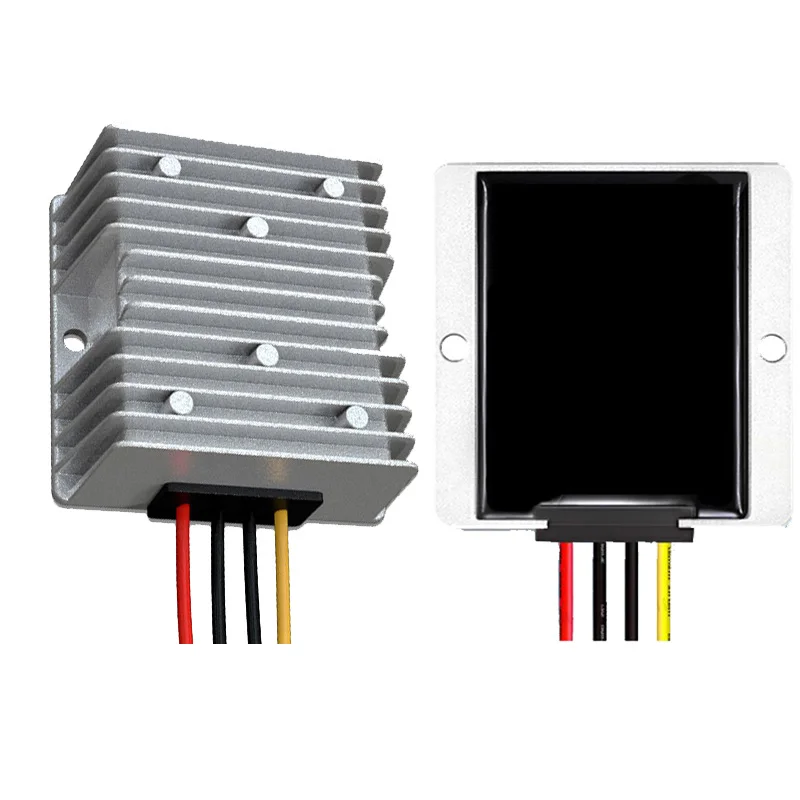

2 year warranty dc to dc boost buck converter 12v dc 24vdc 13.8vdc voltage stabilizer
- Category: >>>
- Supplier: Guangzhou Moli E-Commerce Co. Ltd.
Share on (1600495077973):
Product Overview
Description
Feature
1.Synchronous rectification technology,imported components, conversion efficiency more than 96%
2.Imported internal resistance capacitor filter, withstand high temperature.

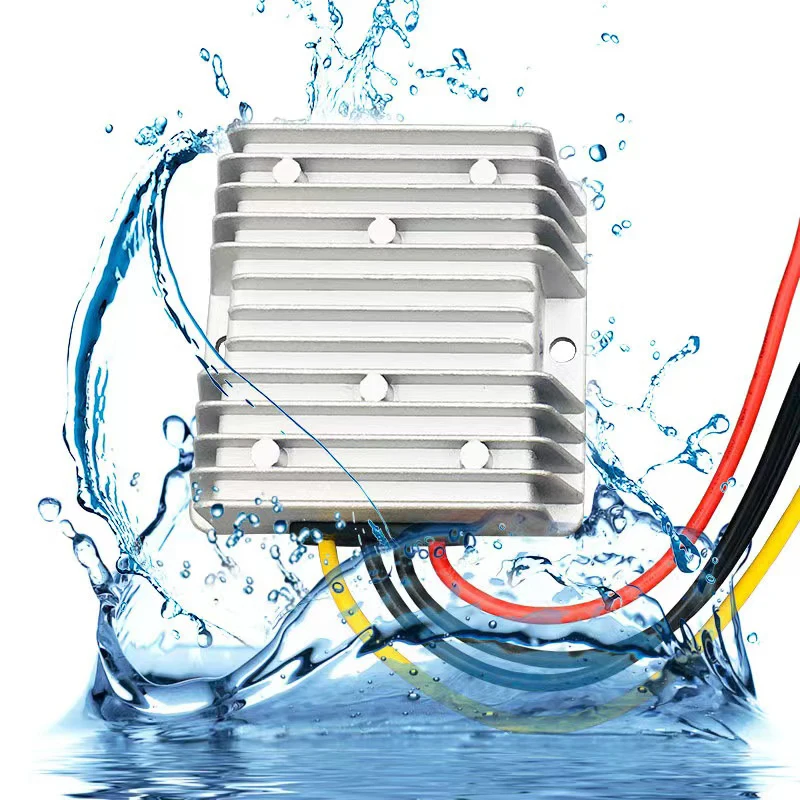

3.Organic silicone packaging technology, can work directly soaked in water
4.Chip smart protection, anti-overheating, overcurrent protection
5.Aluminum alloy shell, anti-shock, anti-drop, anti-moisture, anti-dust and so on
2.Imported internal resistance capacitor filter, withstand high temperature.
3.Organic silicone packaging technology, can work directly soaked in water
4.Chip smart protection, anti-overheating, overcurrent protection
5.Aluminum alloy shell, anti-shock, anti-drop, anti-moisture, anti-dust and so on
Specification
12VDC-12VDC VOLTAGE STABILIZER
Product Name | 12V DC to 12VDC Converter | ||||||||||||||

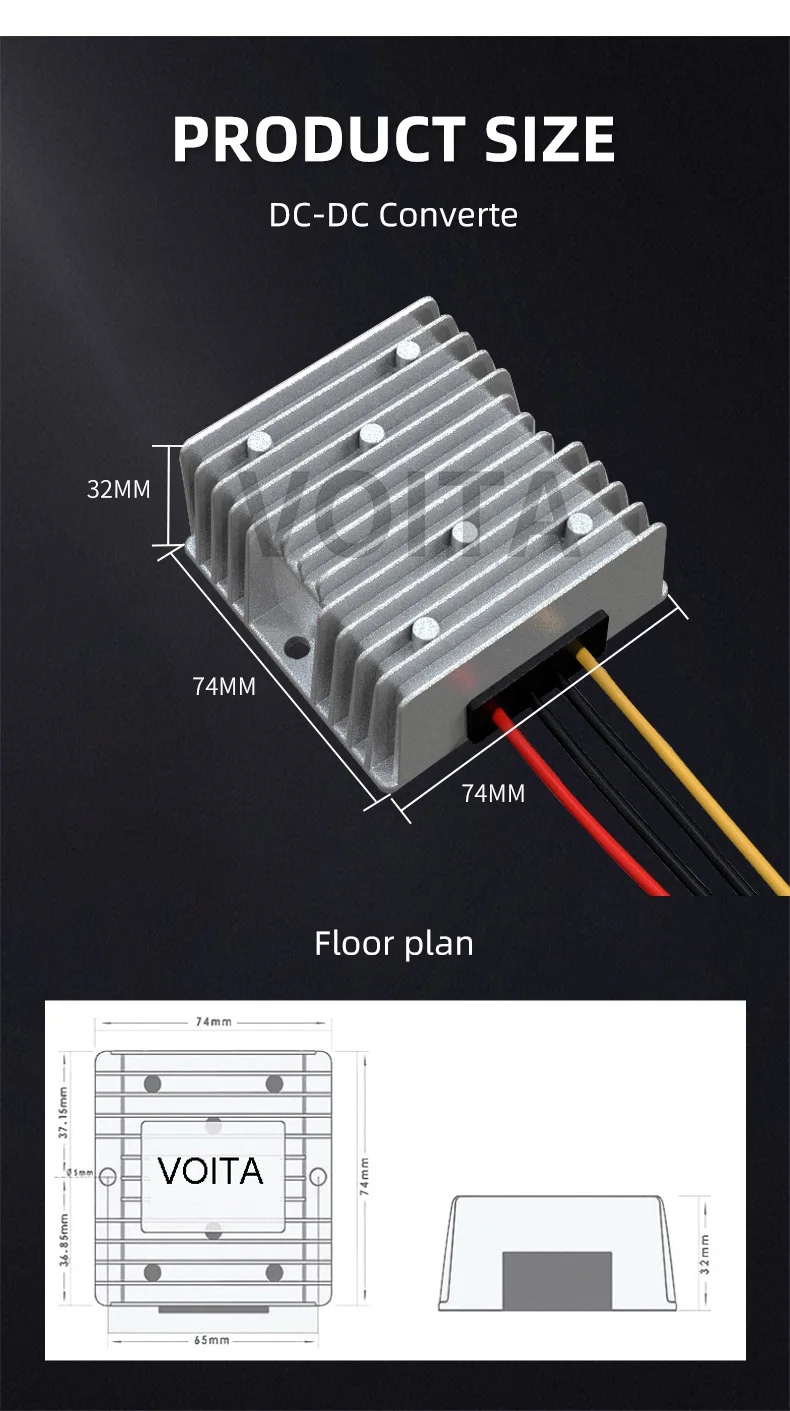

Size | 66*57*22mm | 74*74*32mm | 100*80*38mm | ||||||||||||
Product image | |||||||||||||||
Output current | 1A | 3A | 5A | 8A | 10A | 15A | 20A | 25A | |||||||
Output power | 12W | 36W | 60W | 96W | 120W | 180W | 240W | 300W | |||||||
Weight | 100g | 260g | 500g | ||||||||||||
Input voltage | DC12V(8V-40V) | Transfer efficiency | 90% | ||||||||||||
Output voltage | DC12V±0.25V | overheating protection | 150℃ | ||||||||||||
Working temperature | -20℃-85℃ | Water Proof | IP67 | ||||||||||||
12VDC-24VDC VOLTAGE STABILIZER
Product Name | 24V DC to 24VDC Converter | ||||||||||||
Size | 66*57*22mm | 74*74*32mm | 100*80*38mm | ||||||||||
Product image | |||||||||||||
Output current | 1A | 2A | 3A | 5A | 6A | 8A | 10A | ||||||
Output power | 24W | 48W | 72W | 120W | 144W | 192W | 240W | ||||||
Weight | 100g | 260g | 500g | ||||||||||
Input voltage | DC24V(8V-40V) | Transfer efficiency | 90% | ||||||||||
Output voltage | DC24V±0.25V | overheating protection | 150℃ | ||||||||||
Working temperature | -20℃-85℃ | Water Proof | IP67 | ||||||||||
