Machinery For Small Business Toilet Tissue Napkin Paper Making Machine Production Line Paper Mill
- Category: >>>
- Supplier: Qingdao YiDaFa International Trade Co. Ltd.
Share on (1600495148266):
Product Overview
Description
Product Description
Factory Price Wooden Bassage Waste Paper Recycling Toilet Paper Making Machine Tissue Paper Jumbo Rolls Machine
The raw materials is waste paper,wooden,bamboo,straw ect.

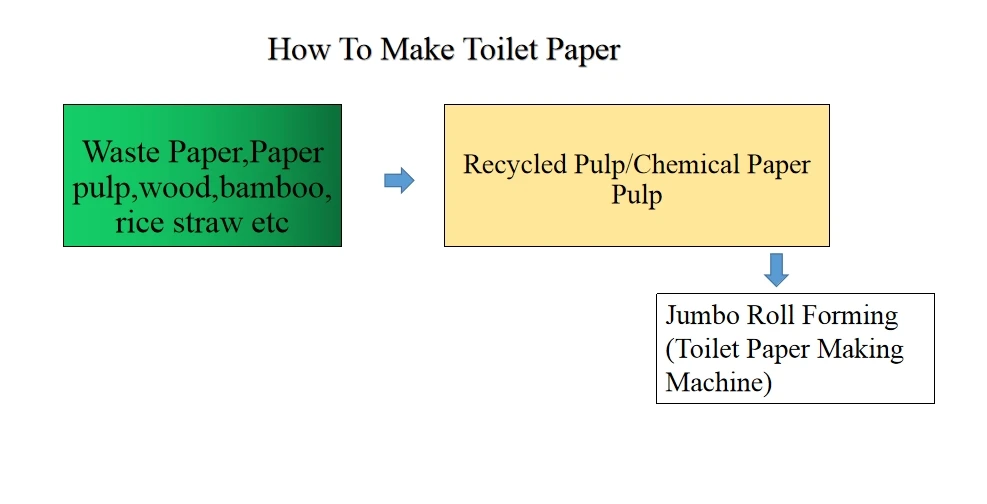

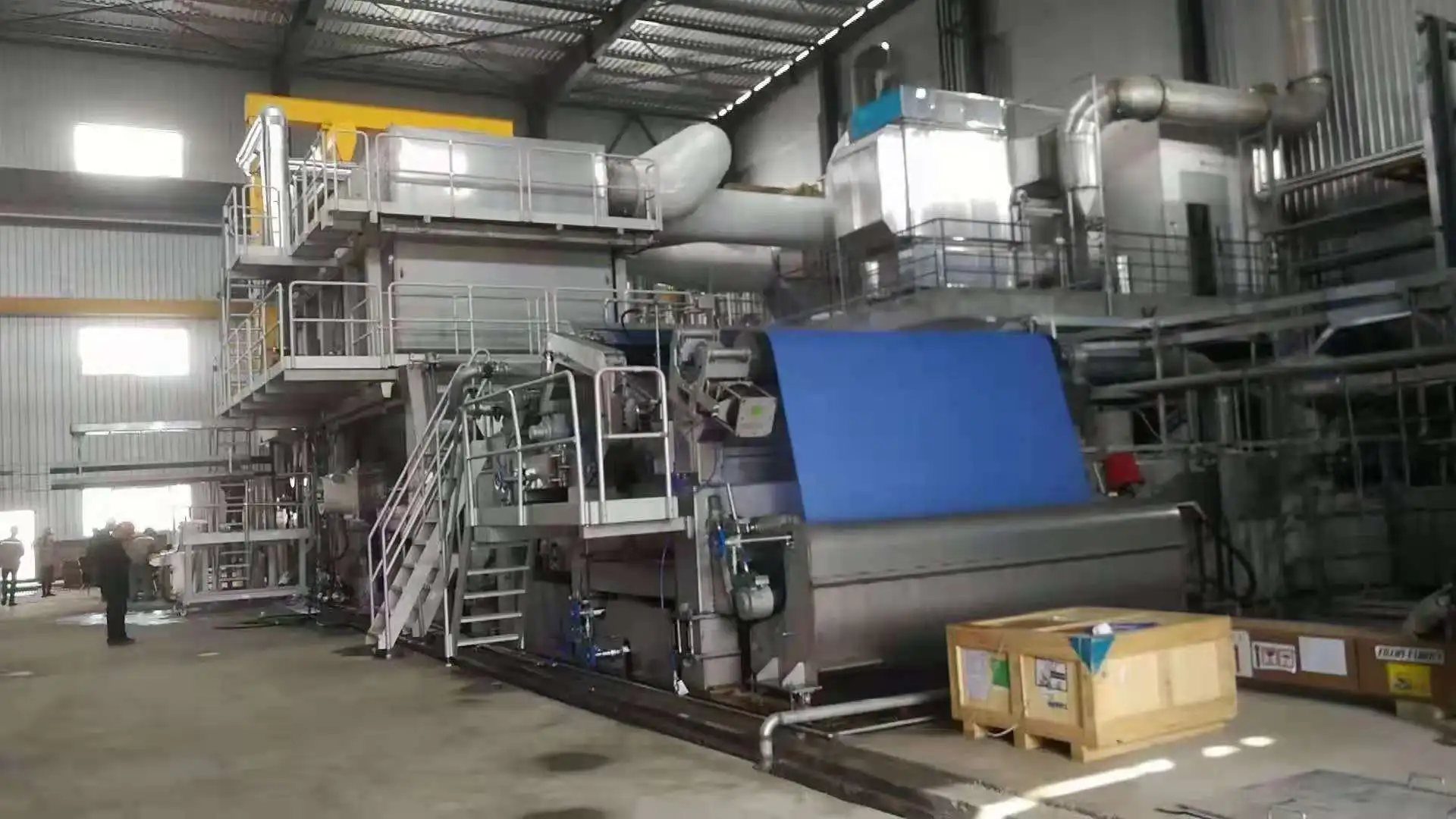

This production line is mainly consisted of paper pulping system and Jumbo tissue roll making machine.

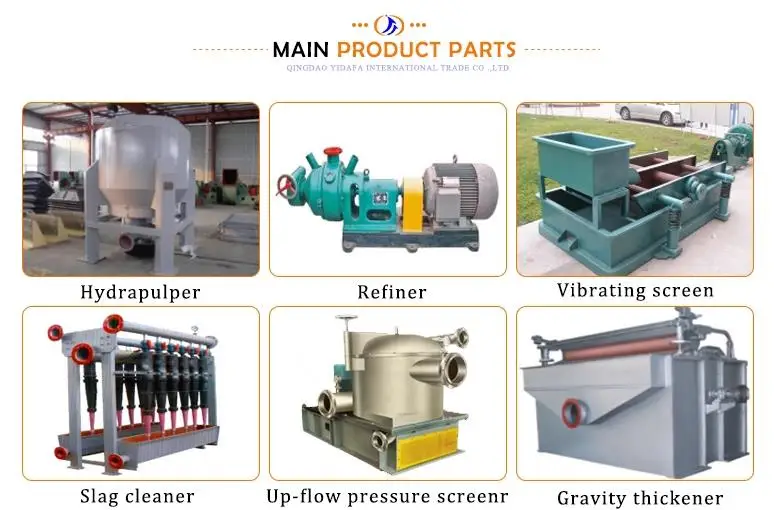

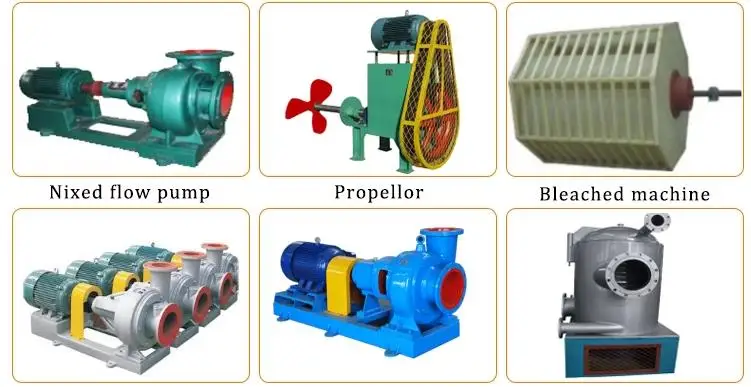

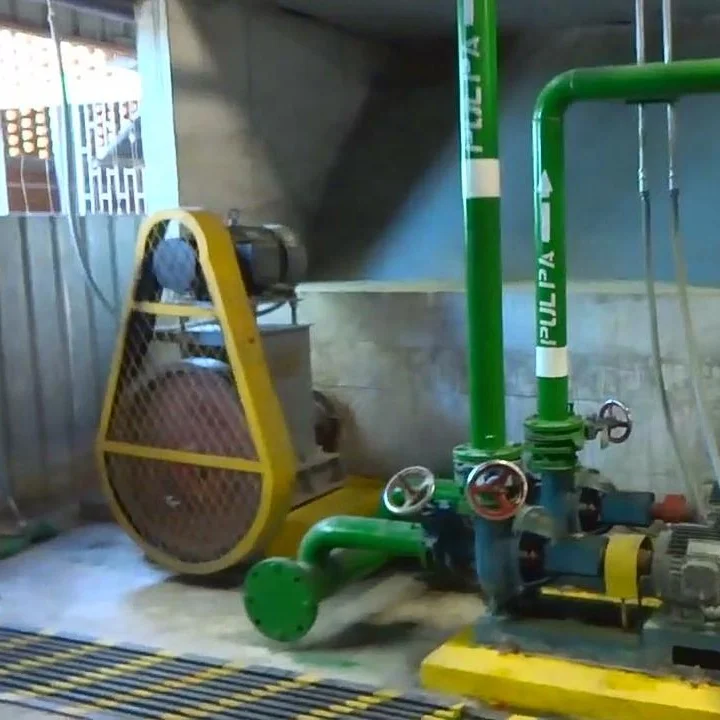

1.The pulping system is a process in which raw materials, such as waste books, paper, edge bleaching straw pulp board, bleaching wood pulp board, etc., are processed into fibrous water suspension which meets the requirements of paper making, and then sent to the paper machine by the flow system to meet the requirements of users.

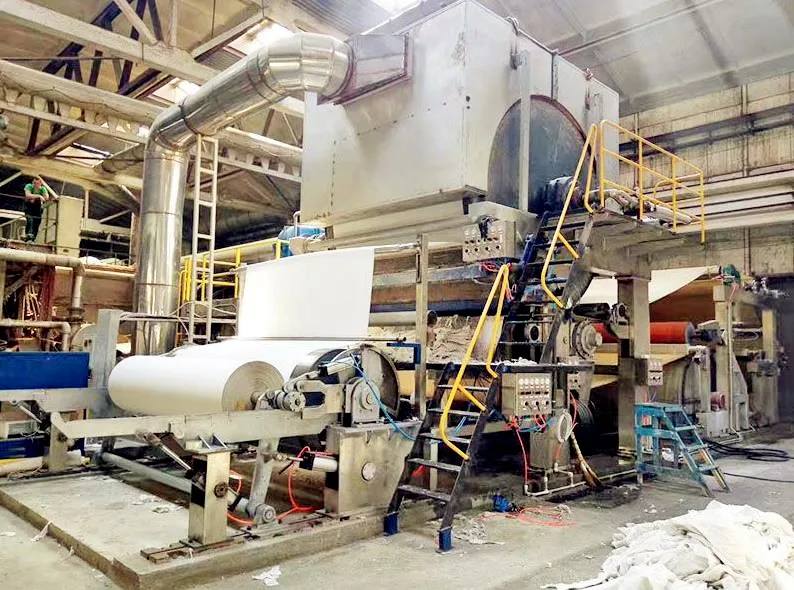

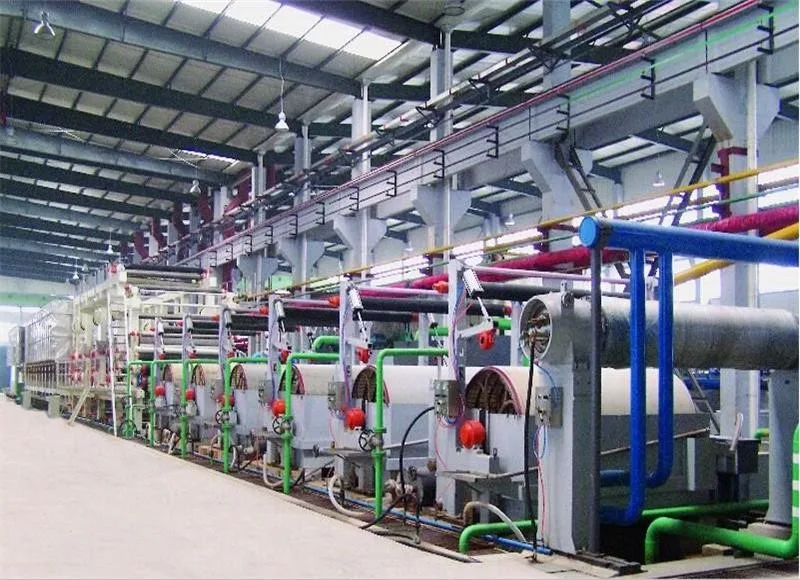

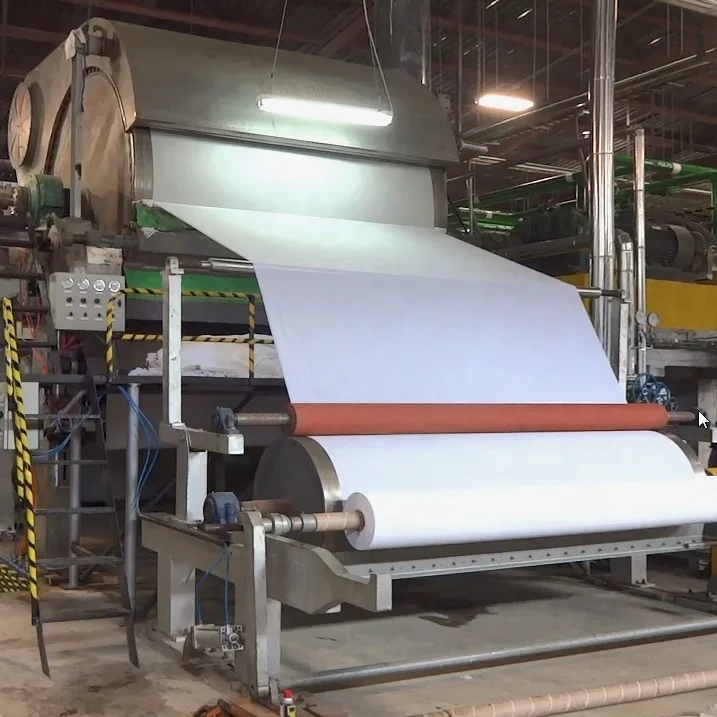

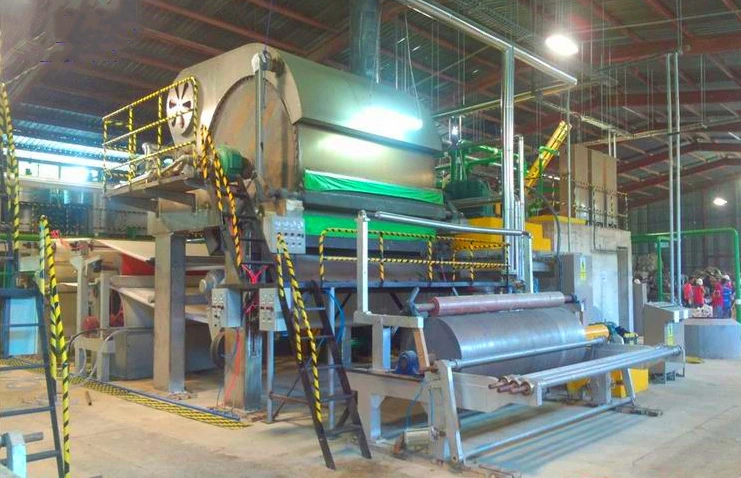

2.Paper machine is to meet the paper making requirements of the pulp water suspension by the filter dehydration forming,mechanical extrusion dehydration and drying process then making into paper. The use of raw materials are: waste paper, old newspaper and white waste paper edges and so on. It can produce toilet paper, facial tissue paper, napkin paper, drawing paper and so on. The machine with reliable quality, stable performance, easy operation, energy saving and environmental protection, paper making machine is the ideal product in machinery field.
Specification
1. Main Product: | Toilet paper, napkin paper and drawing and so on |
2. Gsm: | 15~30g/m2 |
3. Equipment form | The inversion of slurry |
4. Capacity: | 5-5.5T/24h Four sets. |
5. Raw paper width: | 1880-1950mm |
6. Design speed: | 180m/min |
7. Transmission speed: | 70-150m/min |
Dynamic balancing speed: | 300m/min |
8. Roller balance: | G2.5 class |
9. Dryer balance: | C4 class |
10. Winding paper roll: | C1.6 class |
11. Transmission mode: | Ac motor frequency control of motor speed digital distribution transmission |
12. Arrangement mode: | Right or left arrangement(selected by the user) |
13. Gauge: | 2700mm |

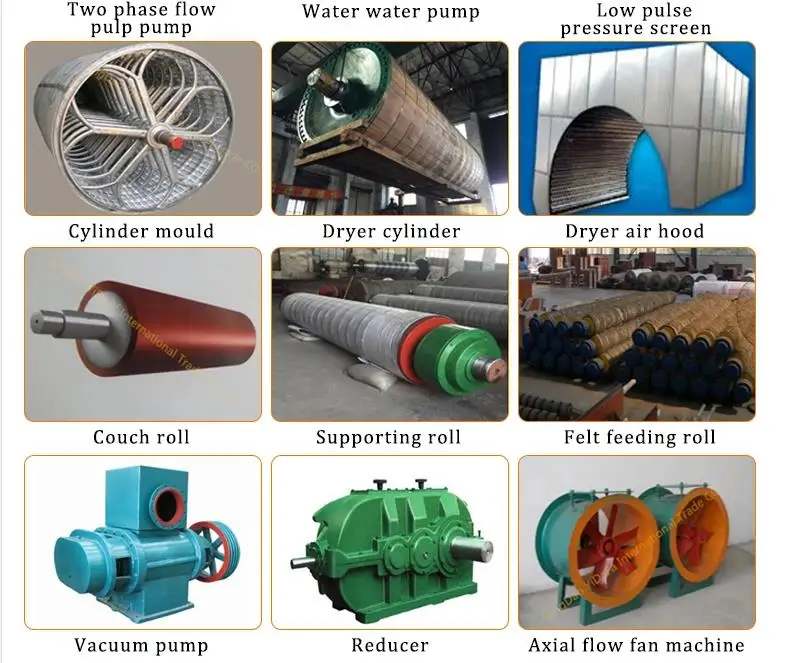

15.Large equipment 1 | Dryer cylinder:Ø2500mm×1 set |
16.Large equipment 2 | Cylinder mould:Ø1800 mm×1set |
PRODUCT DISCRIPTION
ABOUT OUR COMPANY
FAQ
1.How long it will take to get the quotation?
we usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation,please feel free to call me or tell us by email,then we can reply you as the first priority.
we usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation,please feel free to call me or tell us by email,then we can reply you as the first priority.
2.Can you make paper mill design for us?
Yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.How about your machine quality,we are worry about the quality?
Cailun is a mature brand in China,more than 30 years manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can match all the CE standard or more strict standard.our paper machine is running well in more than 20 countries.we are gold supplier on alibaba already 4 years.
4.Your machine price is high, is there any discount?
we always provide high quality paper machines,we are paying more attention on oversea market,because of communication time after sales,and also it need very long time to send new parts.our paper machines have enough quality standard to make sure the machine can work more than the real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
5.Could your engineer teach and train our worker and stay in our factory for long time?
Yes,we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
If you need it,please send Inquiry.
Yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.How about your machine quality,we are worry about the quality?
Cailun is a mature brand in China,more than 30 years manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can match all the CE standard or more strict standard.our paper machine is running well in more than 20 countries.we are gold supplier on alibaba already 4 years.
4.Your machine price is high, is there any discount?
we always provide high quality paper machines,we are paying more attention on oversea market,because of communication time after sales,and also it need very long time to send new parts.our paper machines have enough quality standard to make sure the machine can work more than the real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
5.Could your engineer teach and train our worker and stay in our factory for long time?
Yes,we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
If you need it,please send Inquiry.
