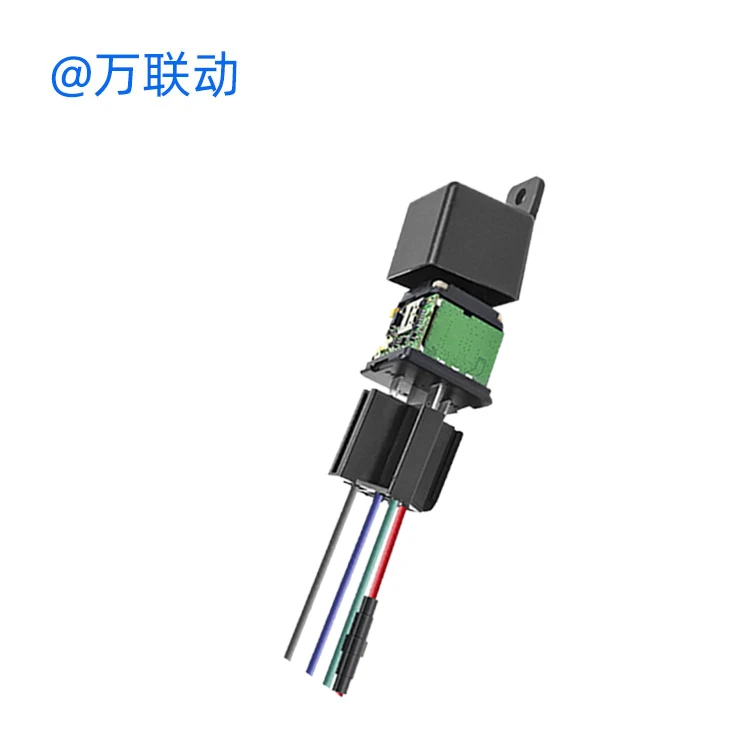

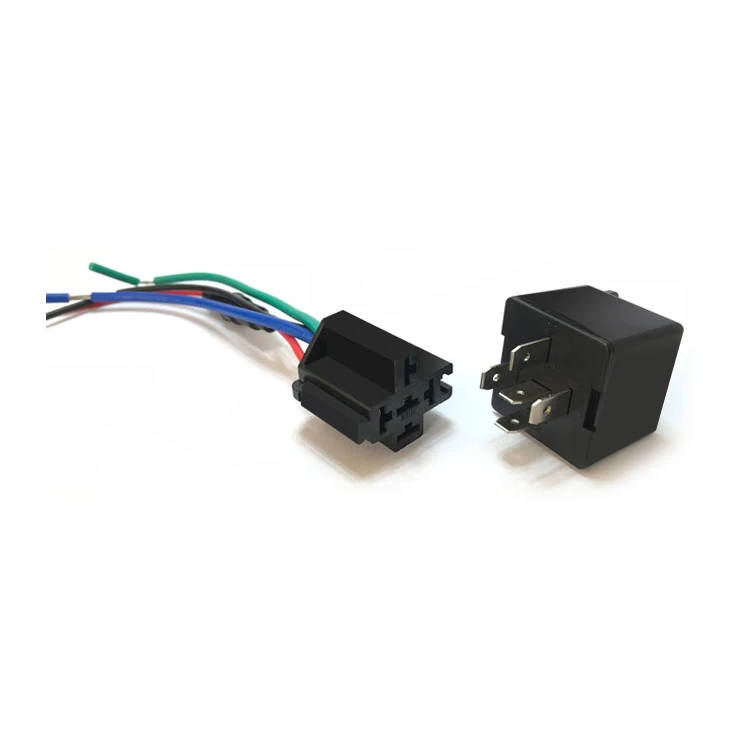

Global Market Long Distances Car Monitor SOS Power Cut Off Alarm Car 2G Bike Computer Chip GPS Tracker Child Locator
- Category: >>>
- Supplier: Shenzhen Wanliandong Technology Co. Ltd.
Share on (1600495181575):
Product Overview
Description
Product Description
Specification
item | value |
Type | build-in, wiring |
Placement | Windshield, Dashboard |
Positioning Mode | GSM, GPS, GPRS, LBS, AGPS, Beidou, Real-Time Positioning, Emergency Positioning, Power Saving Mode |
Track View | PC, IOS APP, SMS Coordinate, Android APP |
Battery Life (Hour) | <12H |
Function | Waterproof, ANTI-SHOCK, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence, 5G Sim Card |
Data Storage | Cloud Storage, platform |
Warranty | 2 years |
Place of Origin | China |
Guangdong | |
Brand Name | wanliandong |
Model Number | GT67 |
Use | Motorcycle, Other, Automotive, BICYCLES |
Application | AIKA |
Function | Real time tracking |
Model No | GT67 |
Working Voltage | 12V DC |
Network | GSM/GPRS 850/900/1800/1900MHz |
GPS Chip | ZKMicro AT6558D |

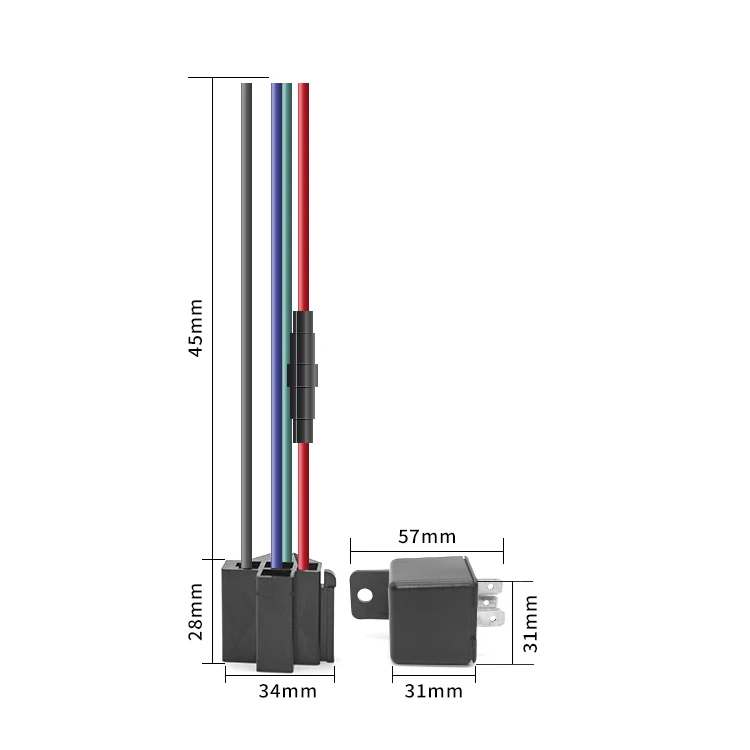

Size | 34mm * 28mm * 31mm |
weight | 100g |
IP grade | ip54 |
Waterproof | YES |
Gps function
Common Functions
1.Real-time tracking
2.GPS+BD+LBS triple positioning
2.GPS+BD+LBS triple positioning
3.ACC detection
4.Cut off oil and power
5.Electric fence
6.Historical track
7.Car stop list
10.Speeding alarm
11.Remove the alarm
5.Electric fence
6.Historical track
7.Car stop list
8.Call/SMS alarm
9.Vibration alarm10.Speeding alarm
11.Remove the alarm
12.Multiple device management

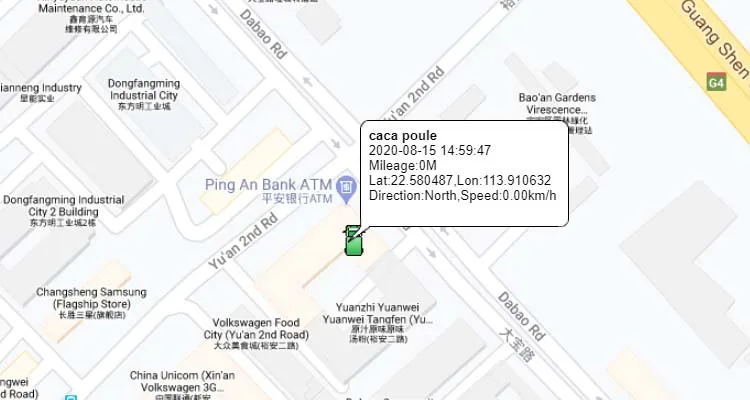

Real-time tracking.
When you need to know the location of the vehicle, you only need to open the web platform or log in to the APP and use the "View Location" function to view the detailed location of the vehicle. If the vehicle is driving, you can see where the vehicle is driving and detailed information.
You will see all the location information.
You can see where the vehicle is.
You can see the street where the vehicle is.
You can see the specific time of the positioning.
You can see the speed of the vehicle.
You can see how long the vehicle stays.
You can also see the direction the vehicle is driving.
You can see the street where the vehicle is.
You can see the specific time of the positioning.
You can see the speed of the vehicle.
You can see how long the vehicle stays.
You can also see the direction the vehicle is driving.
GPS+BD+LBS triple positioning.
The equipment adopts GPS+Beidou+LBS triple positioning to make the positioning more accurate. When the satellite signal is relatively weak, it will automatically switch to LBS positioning so that the device will continue to update the location information.
About GPS accuracy.
The accuracy of GPS signal development is 5-10 meters. Under normal circumstances, the positioning of the equipment will be more accurate in places with strong satellite signals.
GPS signals are easily affected by weather, clouds, floors, trees, etc., which can lead to inaccurate positioning. For example, there is generally no GPS signal indoors. At this time, if the vehicle is driving on the road, the positioning will be much more accurate.
GPS signal is required for the first installation. It is recommended to install it outdoors. For indoor testing, it is recommended to test near a window.
GPS signals are easily affected by weather, clouds, floors, trees, etc., which can lead to inaccurate positioning. For example, there is generally no GPS signal indoors. At this time, if the vehicle is driving on the road, the positioning will be much more accurate.
GPS signal is required for the first installation. It is recommended to install it outdoors. For indoor testing, it is recommended to test near a window.
ACC detection.
After listening to the ACC connection to judge whether the vehicle is started, if the vehicle starts, it will show that ACC is connected.It is often used for illegal start alarms
Vehicle start detection.
ACC line, when the vehicle starts, the ACC line will generate voltage, the GPS tracker can detect the start of the car.
In theory, when the vehicle is started, a certain wire on the vehicle changes from a non-electric state to an electric state, and the ACC wire can be connected to this wire.
The ACC line on the device is generally an orange line.
The ACC line on the device is generally an orange line.

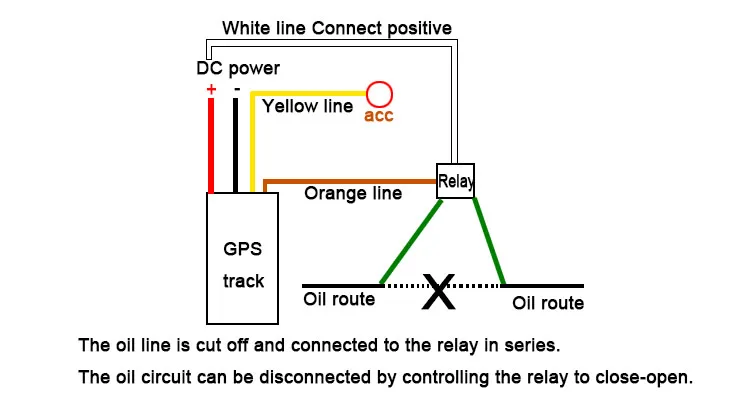

Cut off oil and power.
The GPS tracker achieves the purpose of disconnecting the oil route by controlling the relay closing-opening process.
Disconnect the oil circuit.
The oil line is cut off and connected to the relay in series. The oil circuit can be disconnected by controlling the relay to close-open.
Of course, we have made a protection mechanism. In order to prevent danger to the vehicle by disconnecting the oil circuit when driving fast. We made the setting, and it will take effect only when the vehicle speed is lower than 30KM/H.

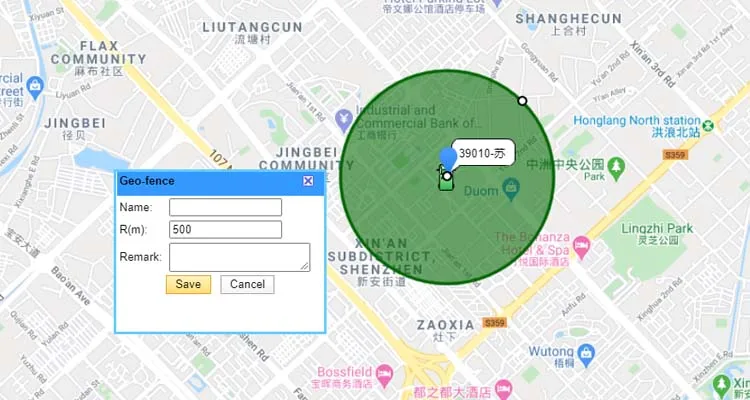

Electric fence.
Electronic fences are usually used for vehicle theft prevention, wind control area protection, and also for customer reception. When the vehicle enters or leaves the area, the device will send out an alarm message so that the owner can know it in time.
Drawing electronic fence.
You can draw the electronic fence freely, you can draw a circle directly with the device as the center, and set the radius freely.
It is also possible to draw a polygonal pattern so that multiple devices can share the electronic fence area.
It is also possible to draw a polygonal pattern so that multiple devices can share the electronic fence area.

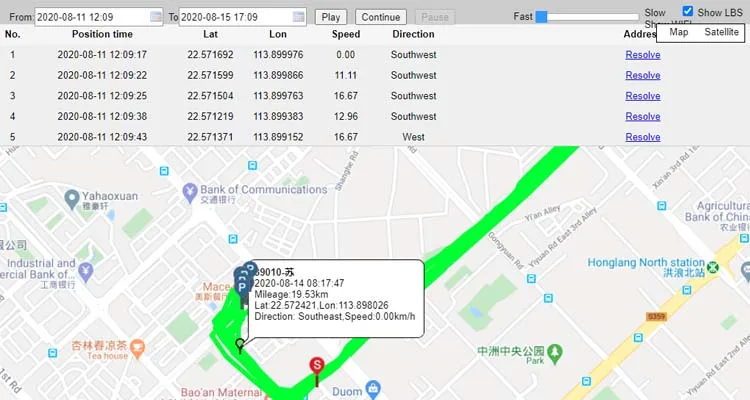

Historical track.
The platform can save 180 days of historical track. When you need to view the previous driving records, you can query the driving trajectory of a certain period of time.
Call history track.
You can view the 180-day historical track, you can directly set the time period to view through the web platform, and you can view the track on any day in the past 180 days through the APP.

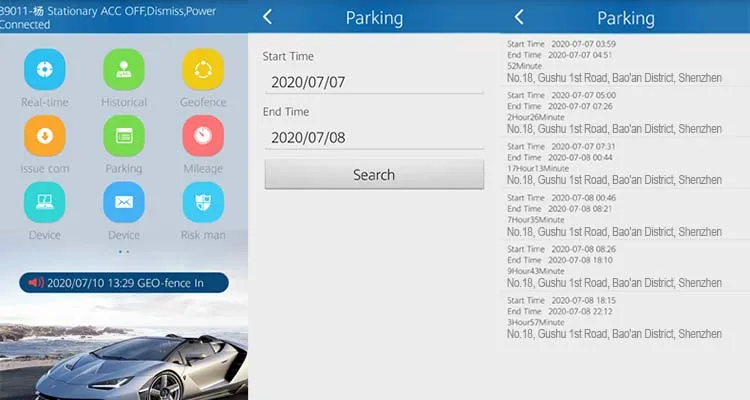

Car stop list
Through the APP, you can check where the vehicle has parked for a period of time in the past

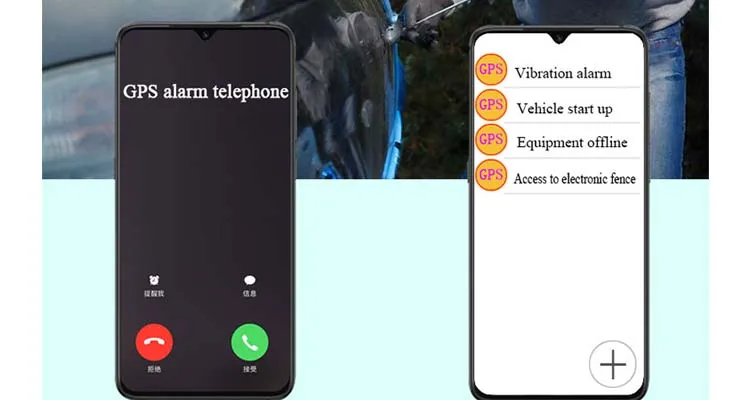

Call/SMS alarm.
You can set a center number, and when the tracker detects an alarm message, it will call your center number. You can also set the SOS number, and the tracker will send a text message to your number when it detects an alarm message.
Vibration alarm.
After arming through the APP, when the vehicle detects vibration, it will send you an alarm message.
Principle of Vibration Alarm.
There is a vibration sensor in the gps tracker. When the sensor detects the device vibration, it will send out an alarm message. The change function is more sensitive and is used for vehicle anti-theft. It is recommended to turn off when the vehicle is driving.

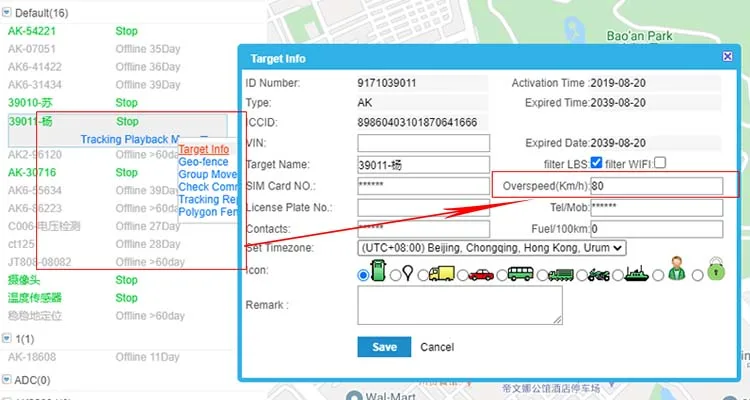

Speeding alarm.
Set a speed. When the vehicle speed exceeds this value, an alarm message will be issued.

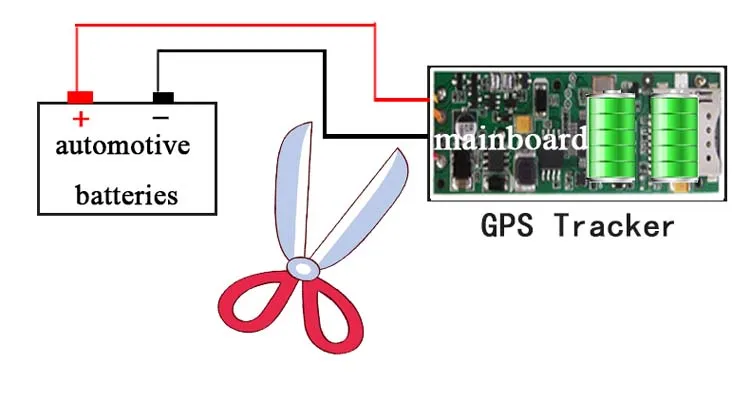

Remove the alarm.
The device has a built-in battery, and there will be a power failure alarm when the main line is cut off.

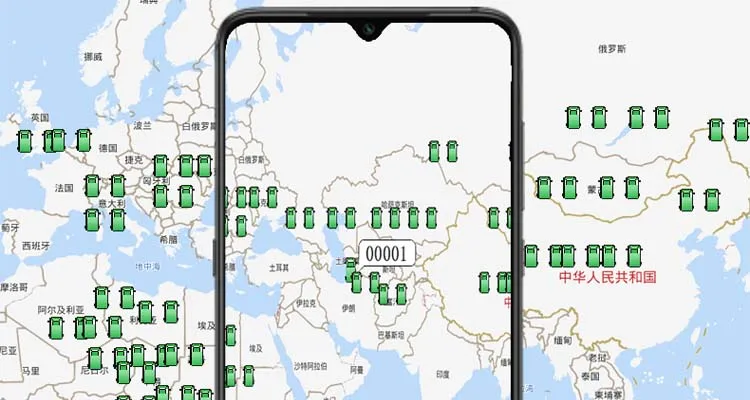

Multiple device management
By establishing an account, you can manage multiple devices, or you can directly set the time zone. One account can manage tens of thousands of devices at most.
Manage multiple devices
.
.
You can view the positioning of all vehicles
You can view the alarm information of all vehicles
You can change the time zone
You can modify equipment information in batch
You can set up a sub account
You can normally manage all the devices under your account.
You can view the alarm information of all vehicles
You can change the time zone
You can modify equipment information in batch
You can set up a sub account
You can normally manage all the devices under your account.
