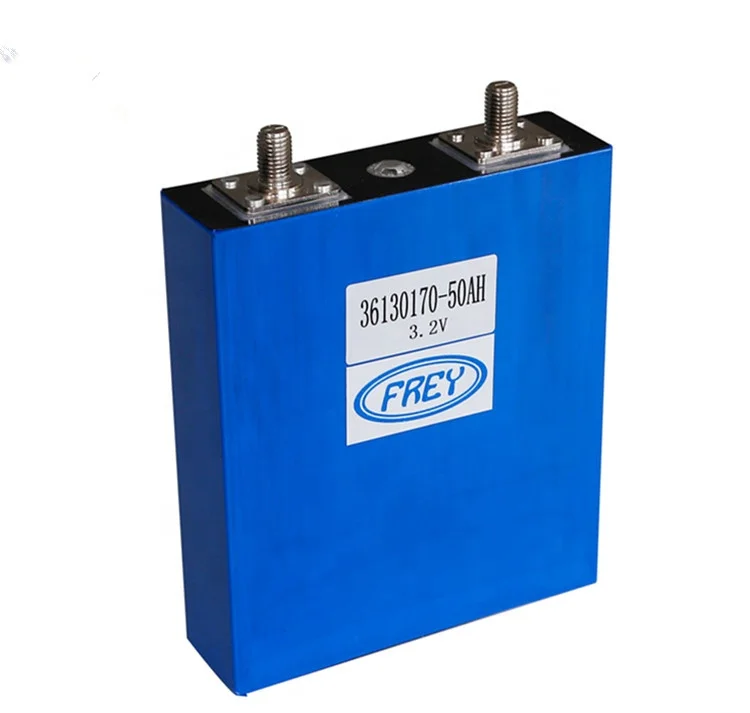

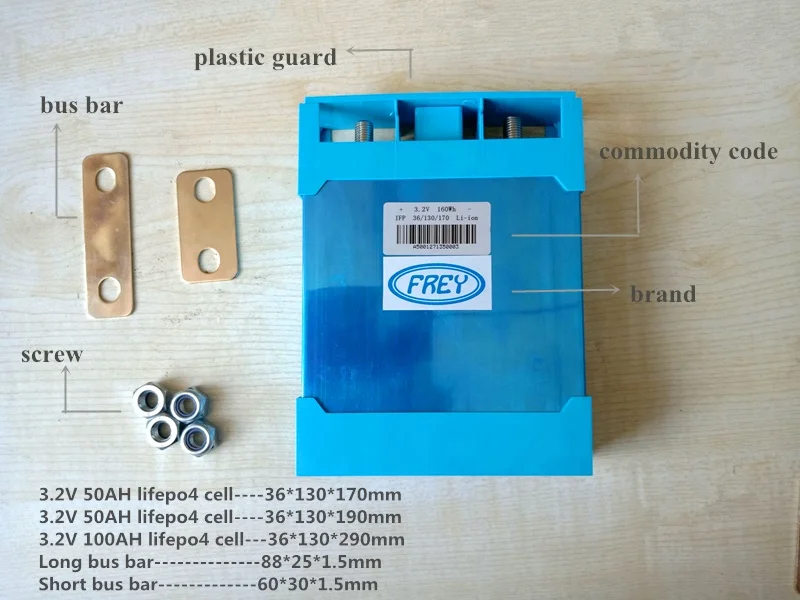

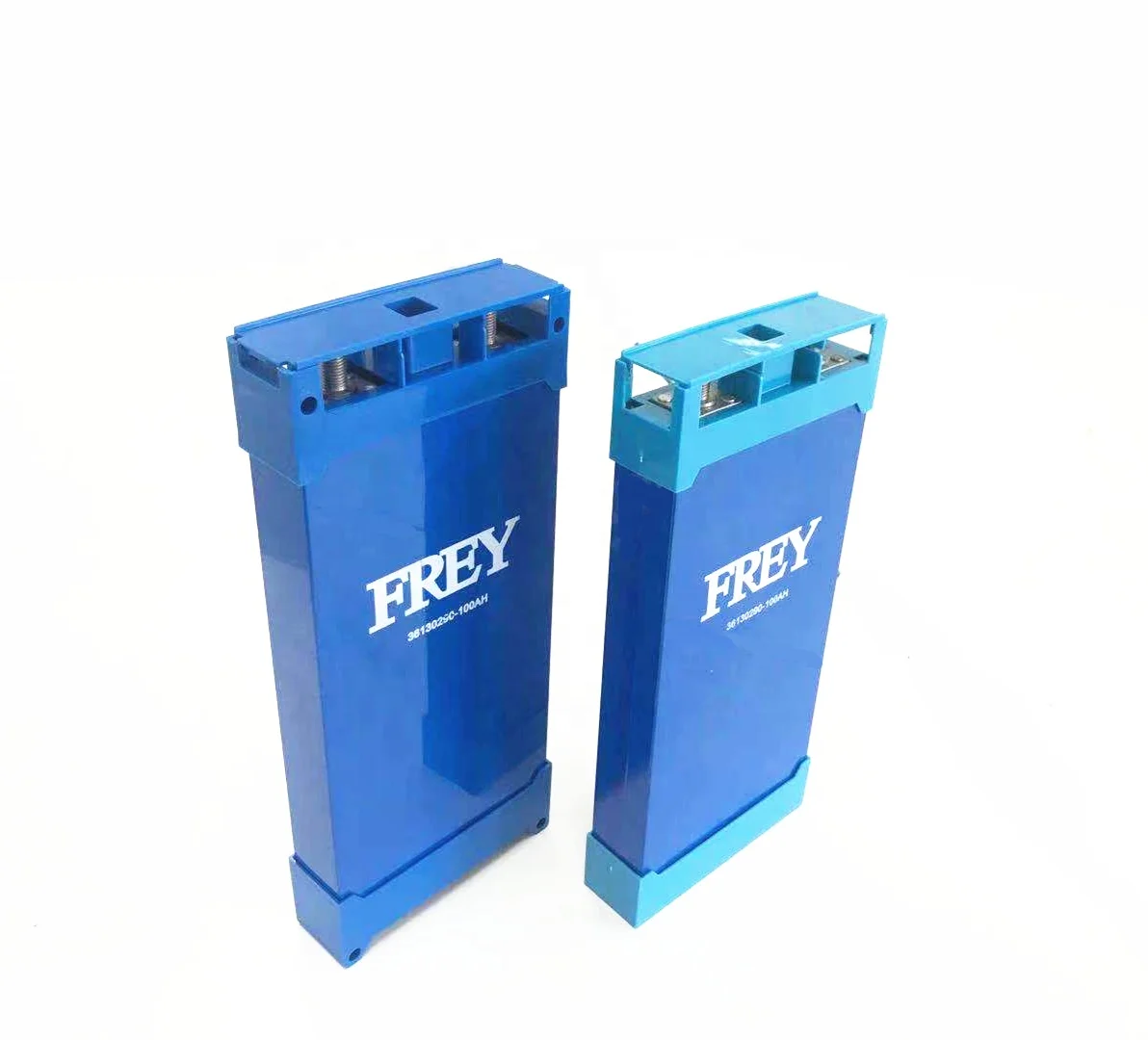

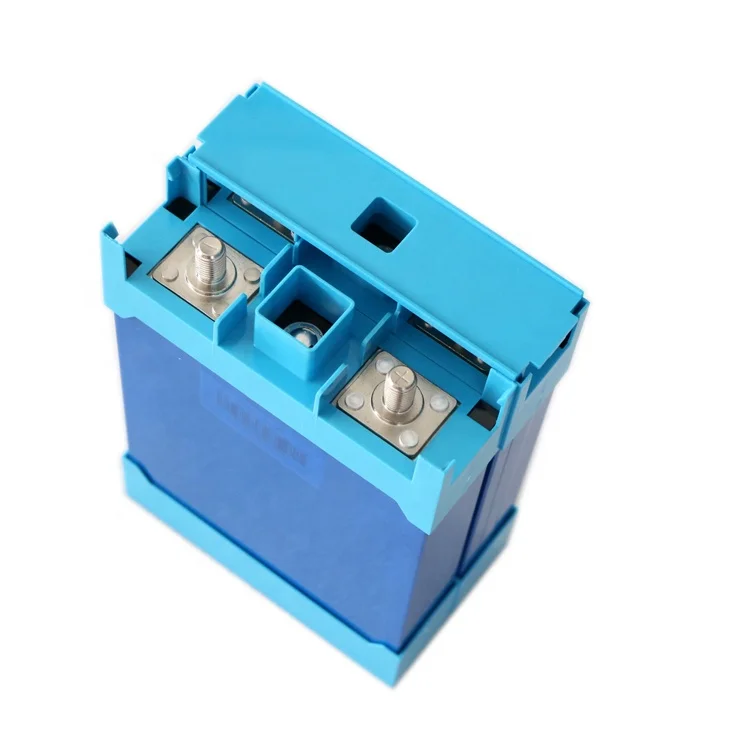

A Grade lithium iron phosphate 3.2v 50ah lifepo4 prismatic battery pouch cell with Plastic Case and Bus Bar
- Category: >>>
- Supplier: Jiangsu Frey Battery Technolog Co. LTD.
Share on (1600495201276):
Product Overview
Description
Specification

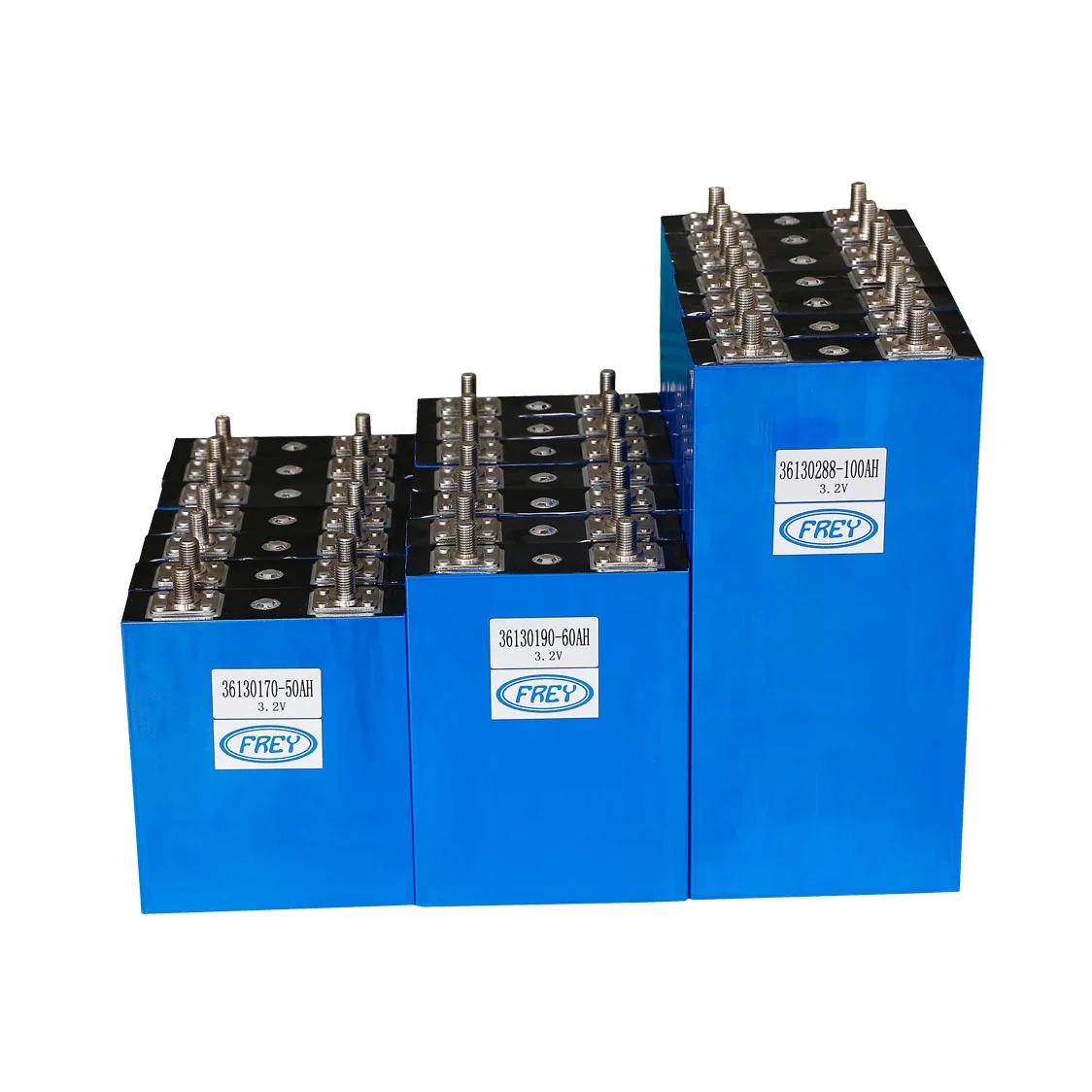

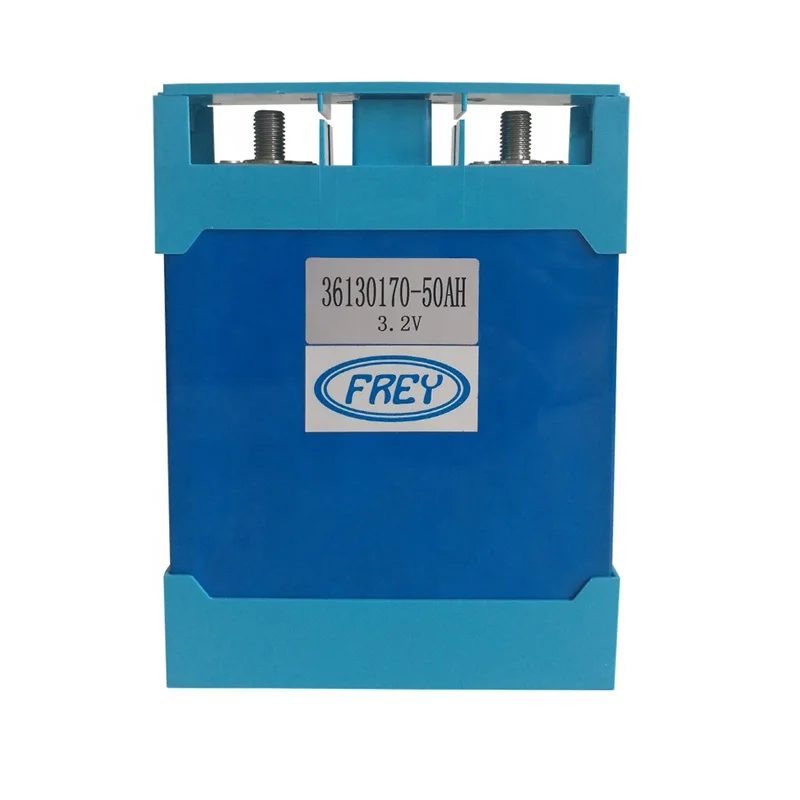

3.2V 50Ah LiFePO4 Cell | 3.2V 100Ah LiFePO4 Cell | |
Typical Capacity | 50.5Ah(min 50Ah) | |

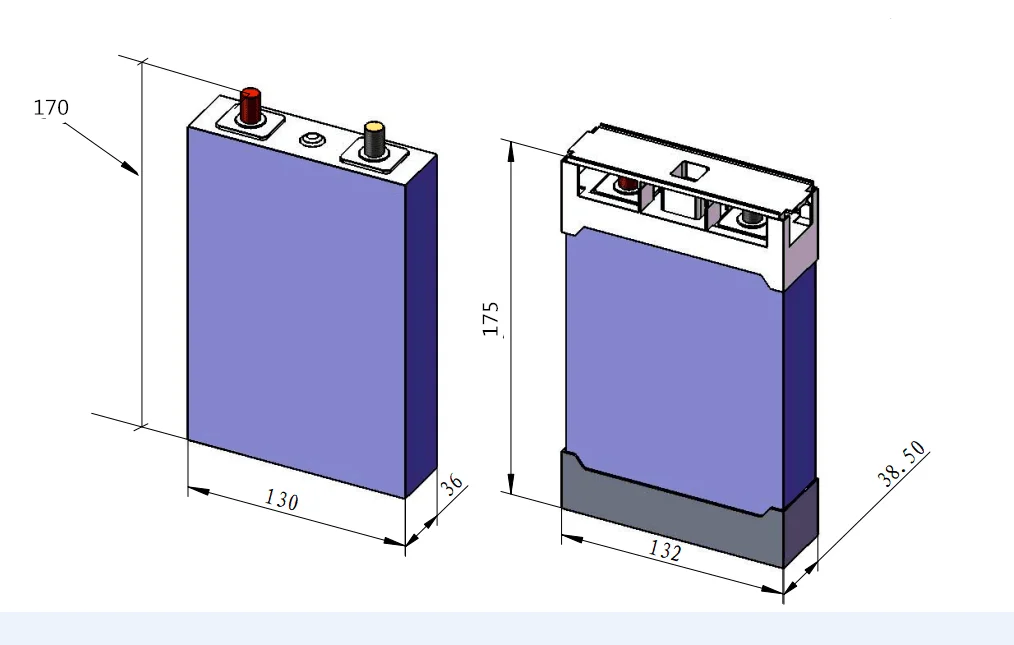

Size/Weight | 36*130*170mm/1.5kg | |
Constant discharge current | 150A | |
Internal Impedance | ≤2mΩ(By AC 1 KHZ) | |
Charge method | 0.3C CC/CV | |
End-charge/discharge Volt | 3.65V/2.2V | |
3.2V 60Ah LiFePO4 Cell | ||
Typical Capacity | 61.5Ah(min 60Ah) | |

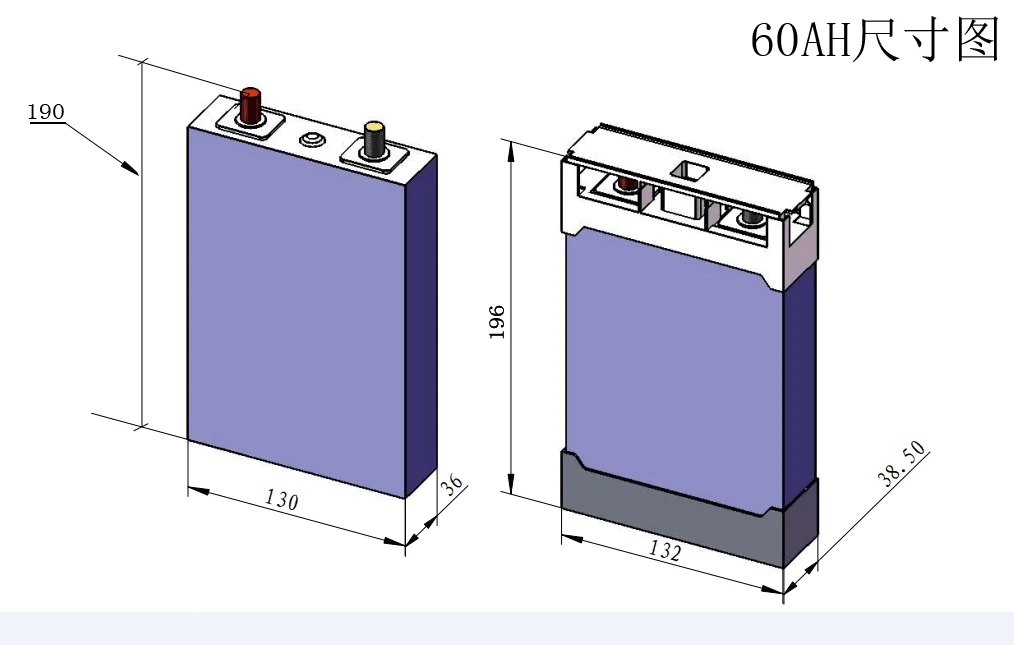

Size/Weight | 36*130*190mm/1.7kg | |
Constant discharge current | 180A | |
Internal Impedance | ≤1.5mΩ(By AC 1 KHZ) | |
Charge method | 0.5C CC/CV | |
End-charge/discharge Volt | 3.65V/2.2V | |
3.2V 100Ah LiFePO4 Cell | ||
Typical Capacity | 102Ah(min 100Ah) | |

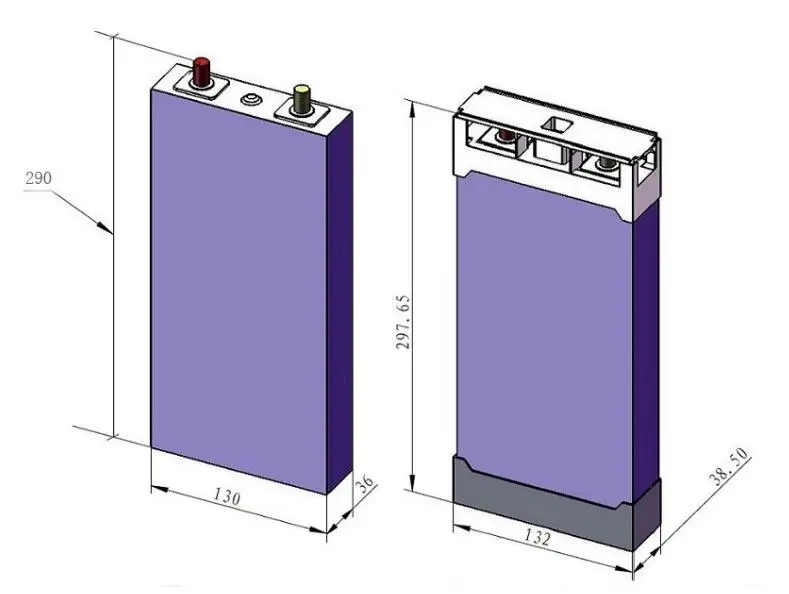

Size/Weight | 36*130*290mm/2.80kg | |
Constant discharge current | 200A | |
Internal Impedance | ≤1mΩ(By AC 1 KHZ) | |
Charge method | 0.5C CC/CV | |
End-charge/discharge Volt | 3.65V/2.2V | |

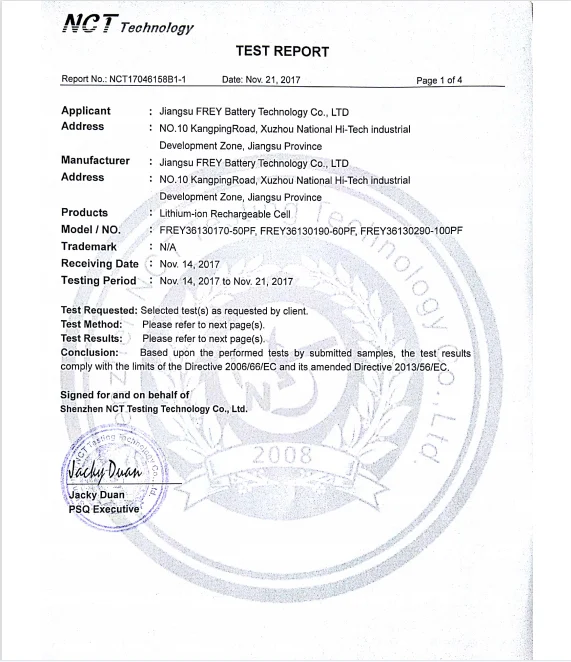

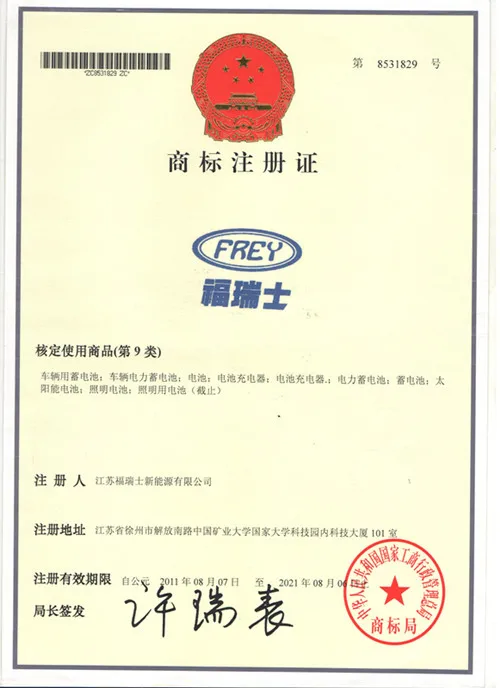

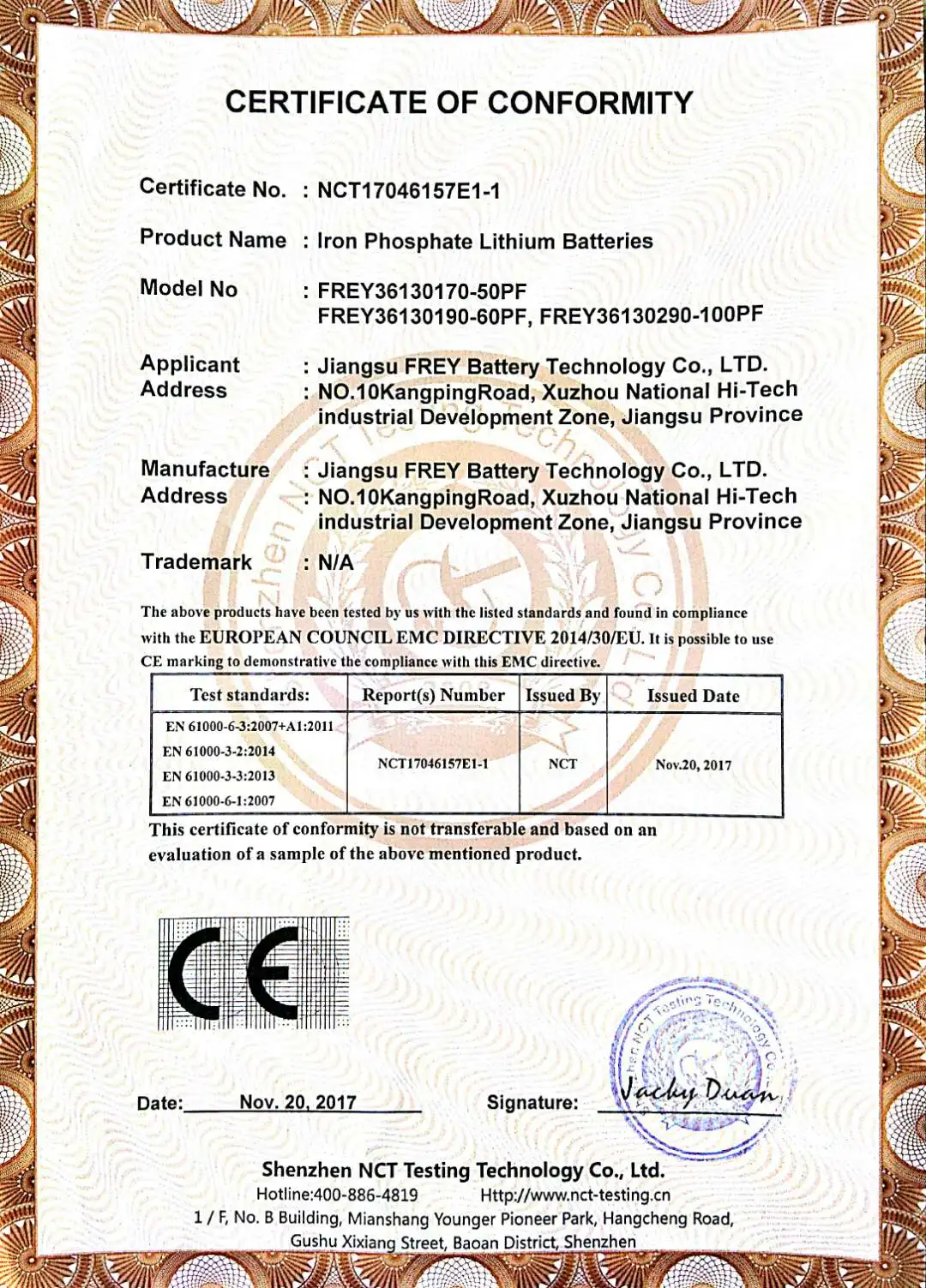

Certifications

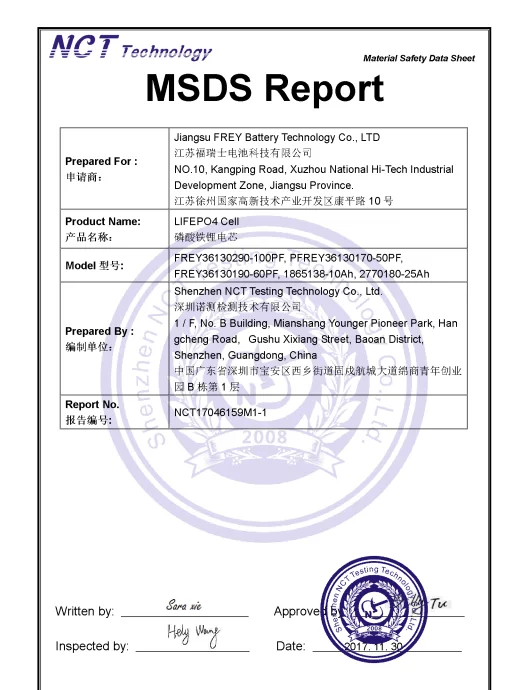

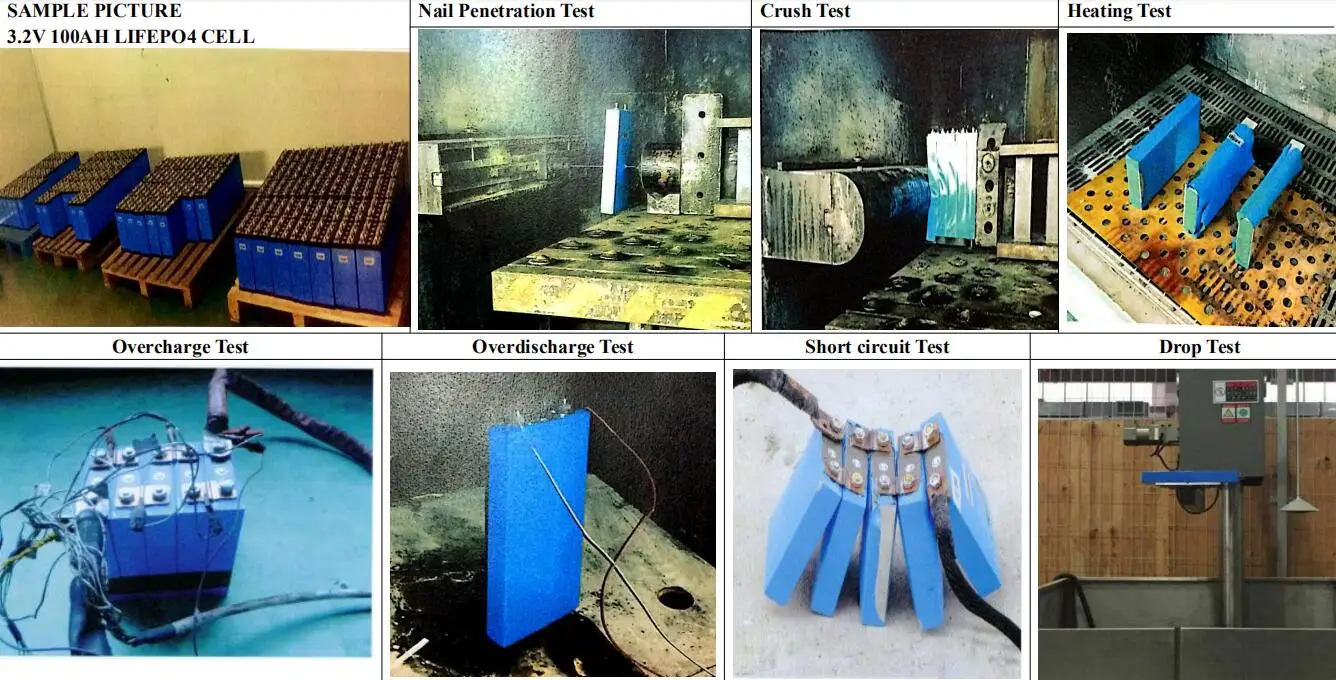

Frey's built in 2010,and during the past more than 10 years,we're specialized in the production of A-grade LiFePO4 cell with high discharge rate and long cycle-life.at present,main product 3.2V 50AH/60AH/100AH had passed different strict test under different conditions,and got the certification of CE/ROHS/MSDS/UN38.3/MA(licence for mining batteries)/ISO9001 etc.
Application For Reference

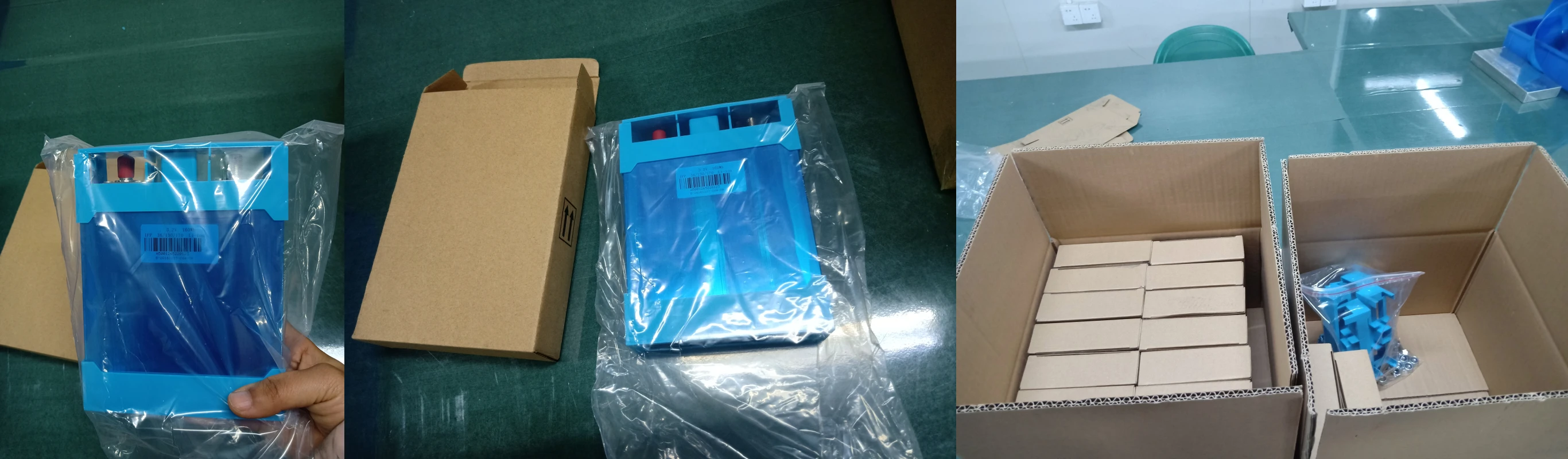

Packing & Delivery
CELL | PALLET SIZE | CARTON QUANTITY | CELL QUANTITY | G.W |
50AH | 998*968*1139mm | 60cartons | 480 | 775kg |
968*615*745mm | 36cartons | 288 | 465kg | |
60AH | 998*968*1139mm | 60cartons | 480 | 875kg |
968*615*745mm | 36cartons | 288 | 525kg | |
100AH | 998*968*1139mm | 45cartons | 360 | 1040kg |
968*615*745mm | 24cartons | 192 | 555kg |

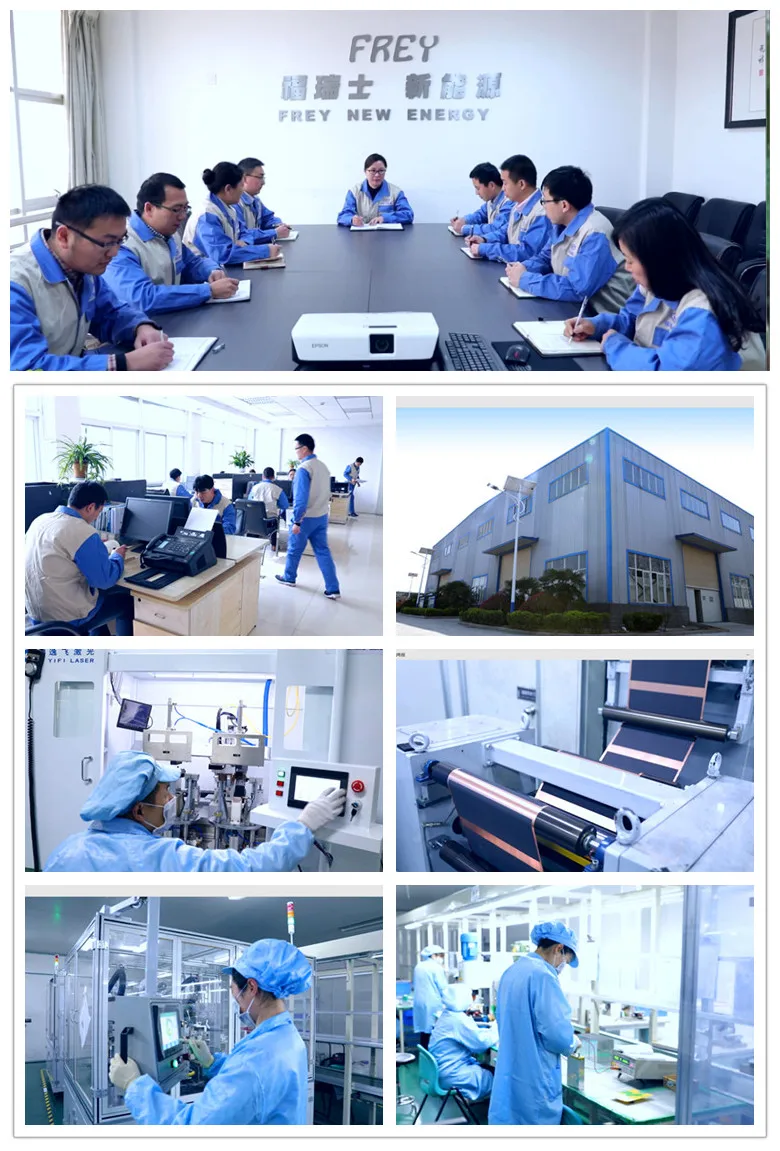

Company Profile
Jiangsu Frey New Energy Co., Ltd- one of Chinese mosti professional manufacturer of lithium battery,established in 2010,and becomes a high-tech enterprise specializing in R&D, production and marketing of lithium-ion battery, battery packs and BMS.
Covering 27530 square,has nearly 500 employers,including 43 technology R&D specialist.2 professional production line,annual battery production capacity 30 million Ah.
At present,main&hot selling product lifepo4 cell,which could support 3C constant discharge current,peak 10C.Cycle life 4000 times cycle @80%DOD,has passed the certification of UN38.3,MSDS,CE,ROHS etc.
at the beginning,our cells mainly use for the mining industry,which has strict requirement of cells.then 2015,we stepped into the electric forklift battery and anti-fire robot business,and has brand awareness and great feedback in lithium battery industry.
FAQ
Q:Are you factory?
A:Yea,we are factory built in 2010,located in Jiangsu Province. And welcome to visit our company at any time when you come to China.
Q: Could you provide OEM service?
A: Yes, we could. we could also provide customized packaging if you need.
Q:How to confirm the quality with us before start to produce?
A: we can send you a sample for test in advance.
Q:How about the shown price?
A:It's for reference only,the final price depends on your requirement and quantity,plz contact our salemen for the detailed offer.
Q:What about your Payment terms?
A: we could receive the payment via credit card,T/T,bank transfer or Western union etc.
A:Yea,we are factory built in 2010,located in Jiangsu Province. And welcome to visit our company at any time when you come to China.
Q: Could you provide OEM service?
A: Yes, we could. we could also provide customized packaging if you need.
Q:How to confirm the quality with us before start to produce?
A: we can send you a sample for test in advance.
Q:How about the shown price?
A:It's for reference only,the final price depends on your requirement and quantity,plz contact our salemen for the detailed offer.
Q:What about your Payment terms?
A: we could receive the payment via credit card,T/T,bank transfer or Western union etc.
