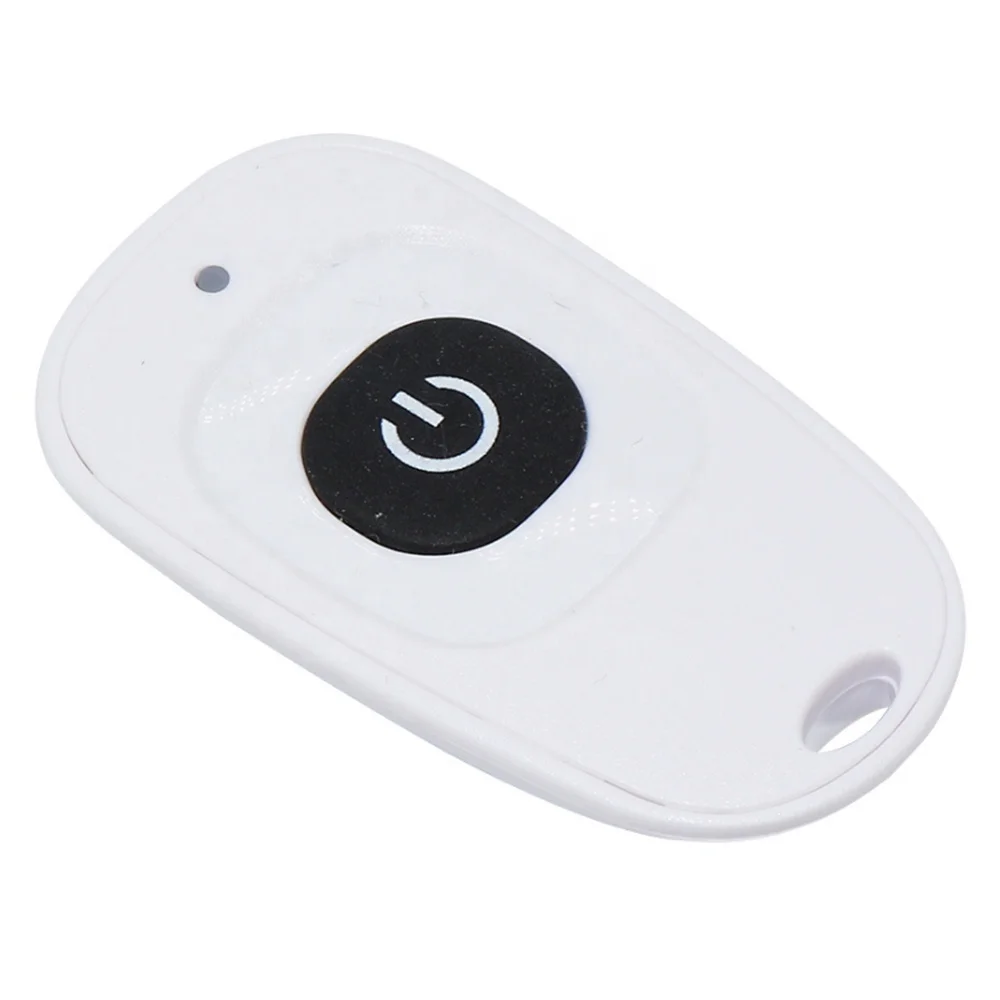

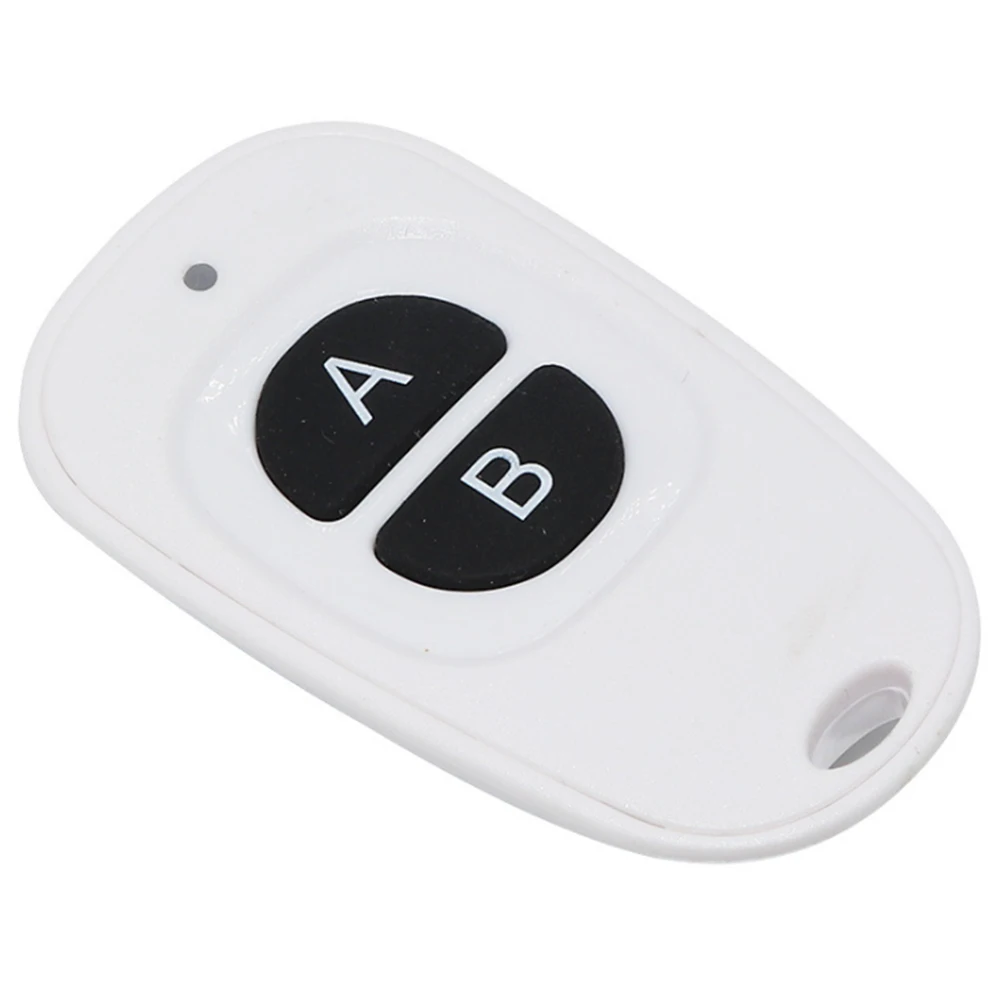

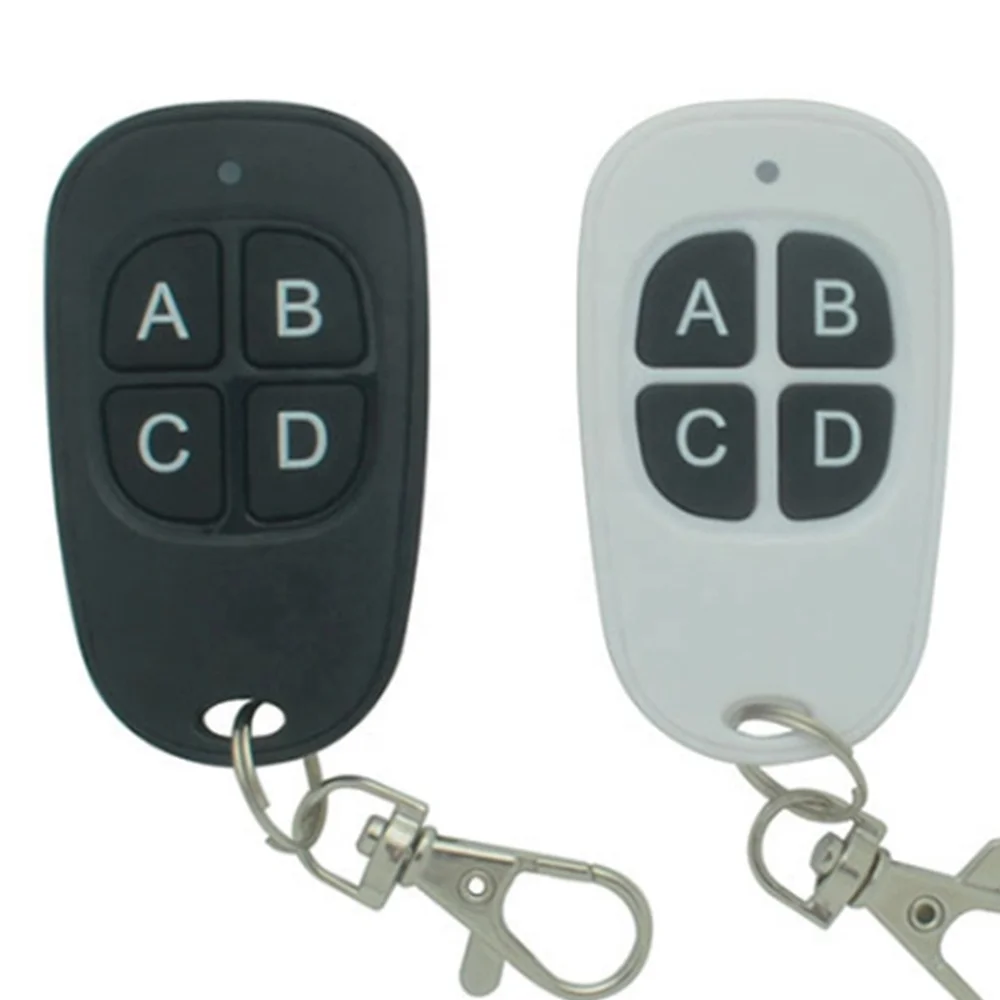

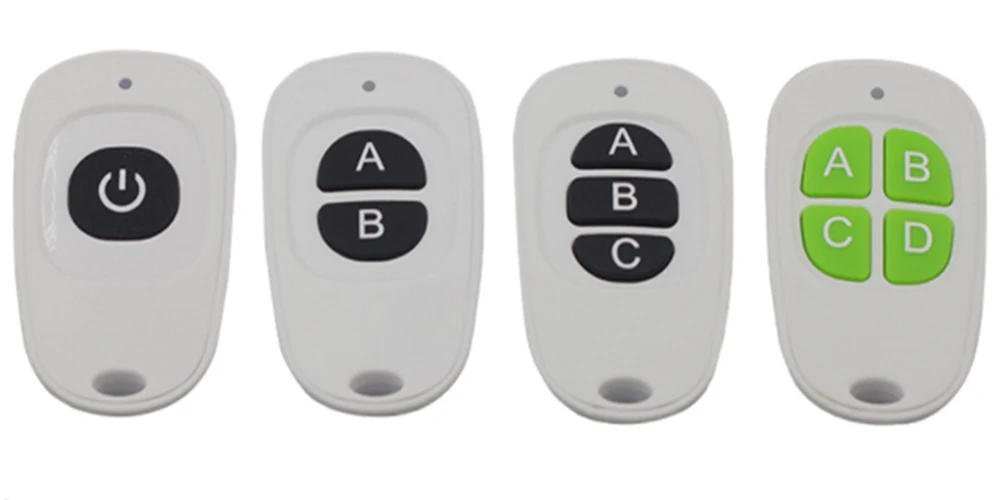

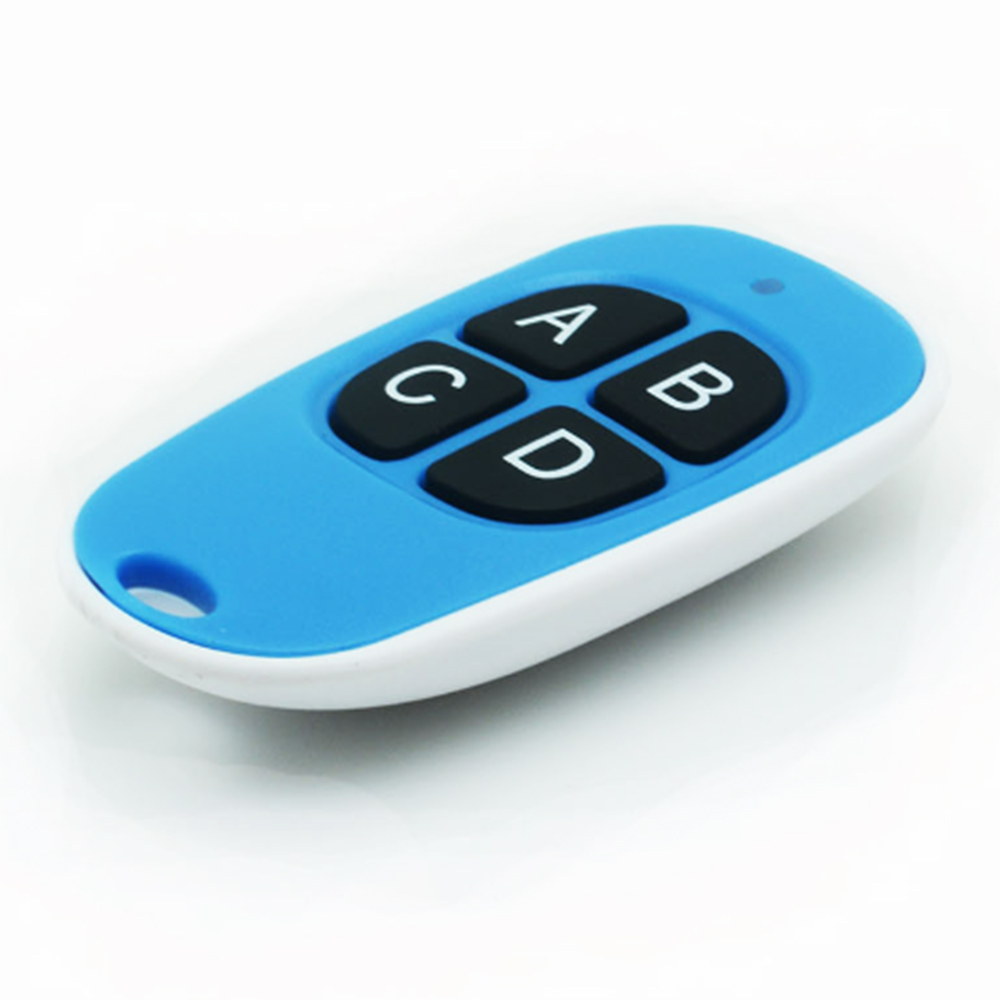

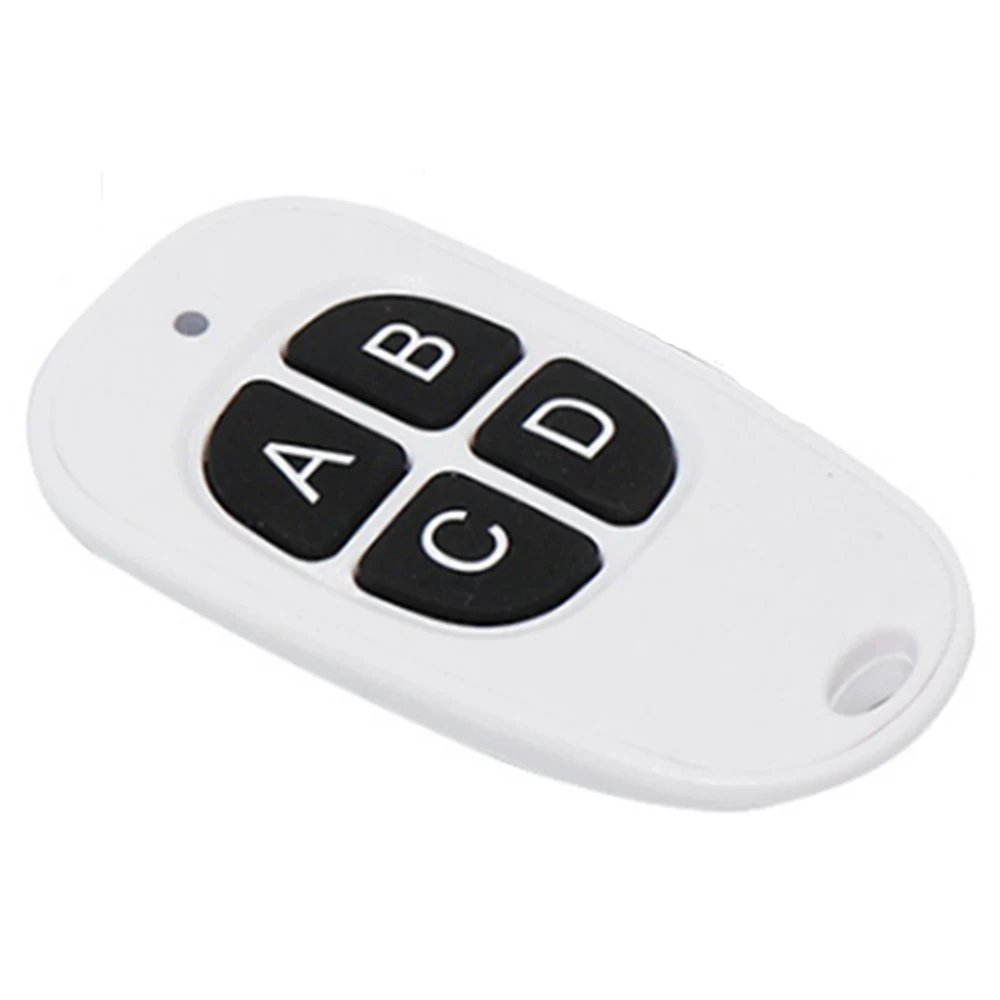

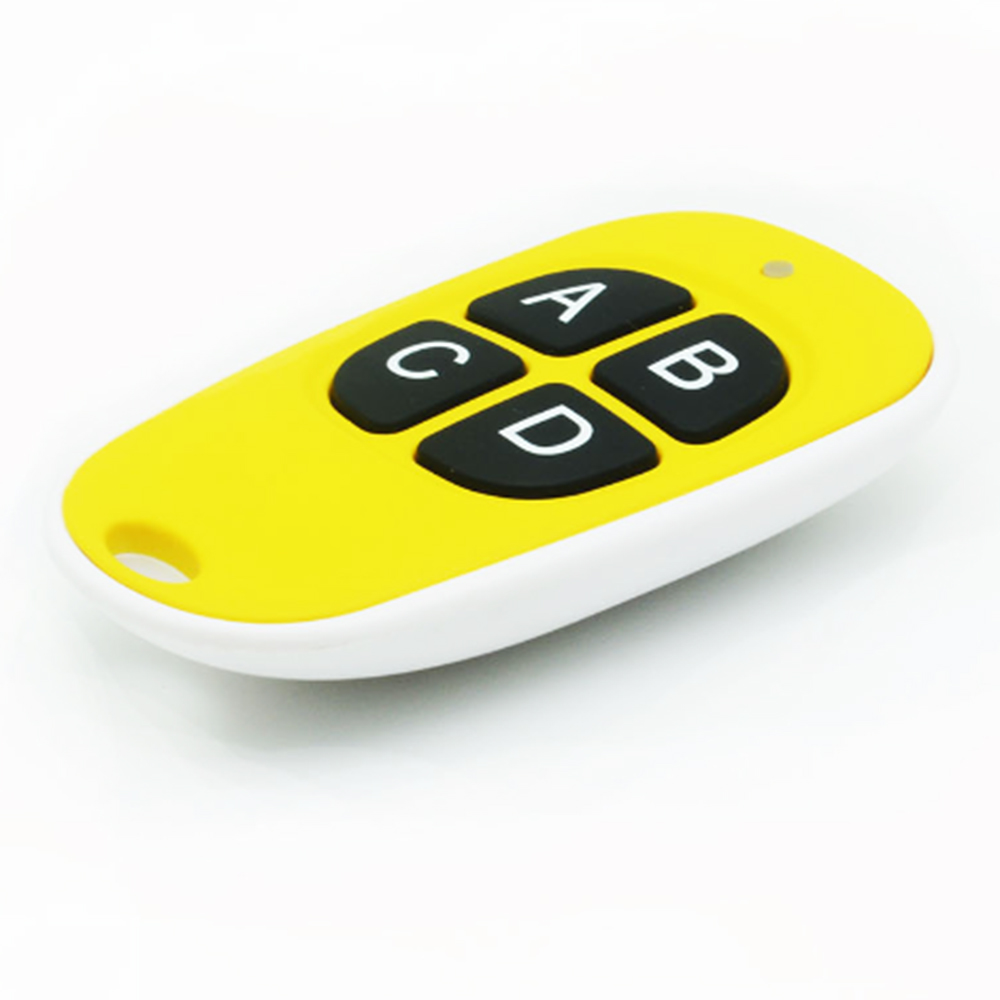

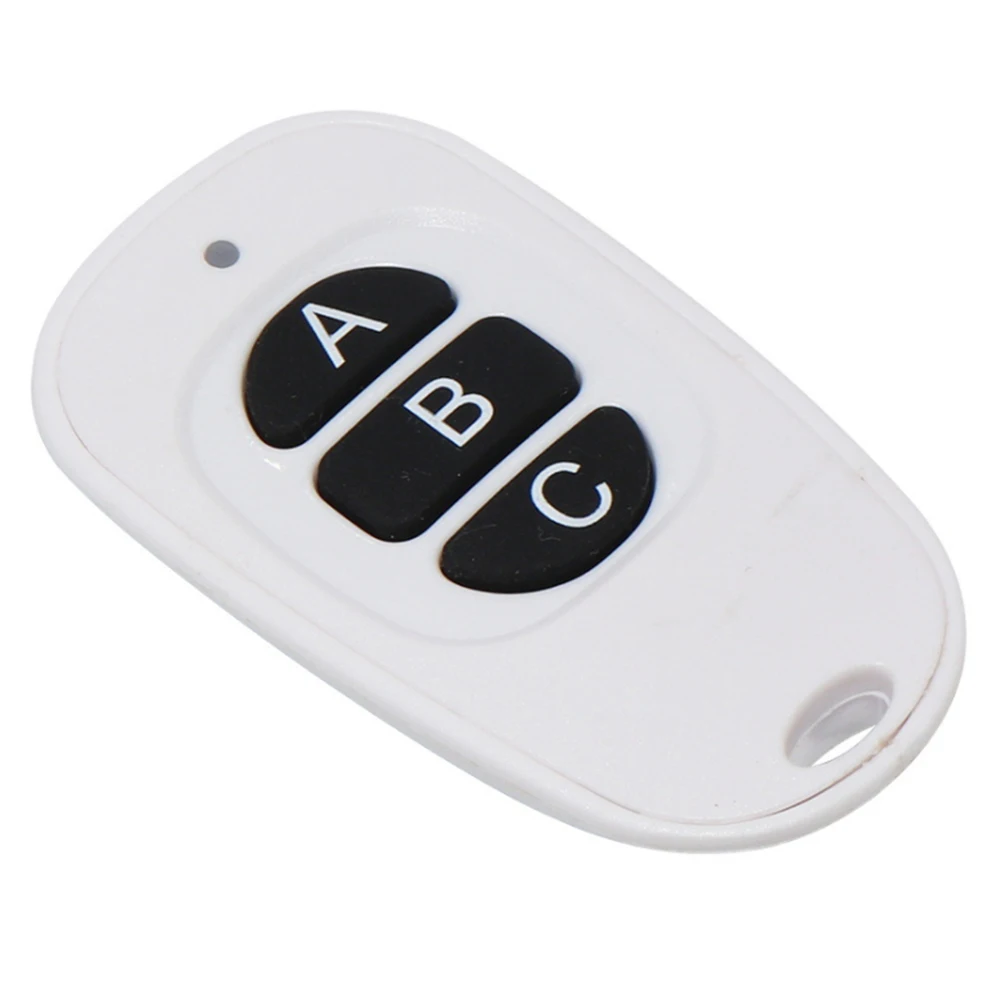

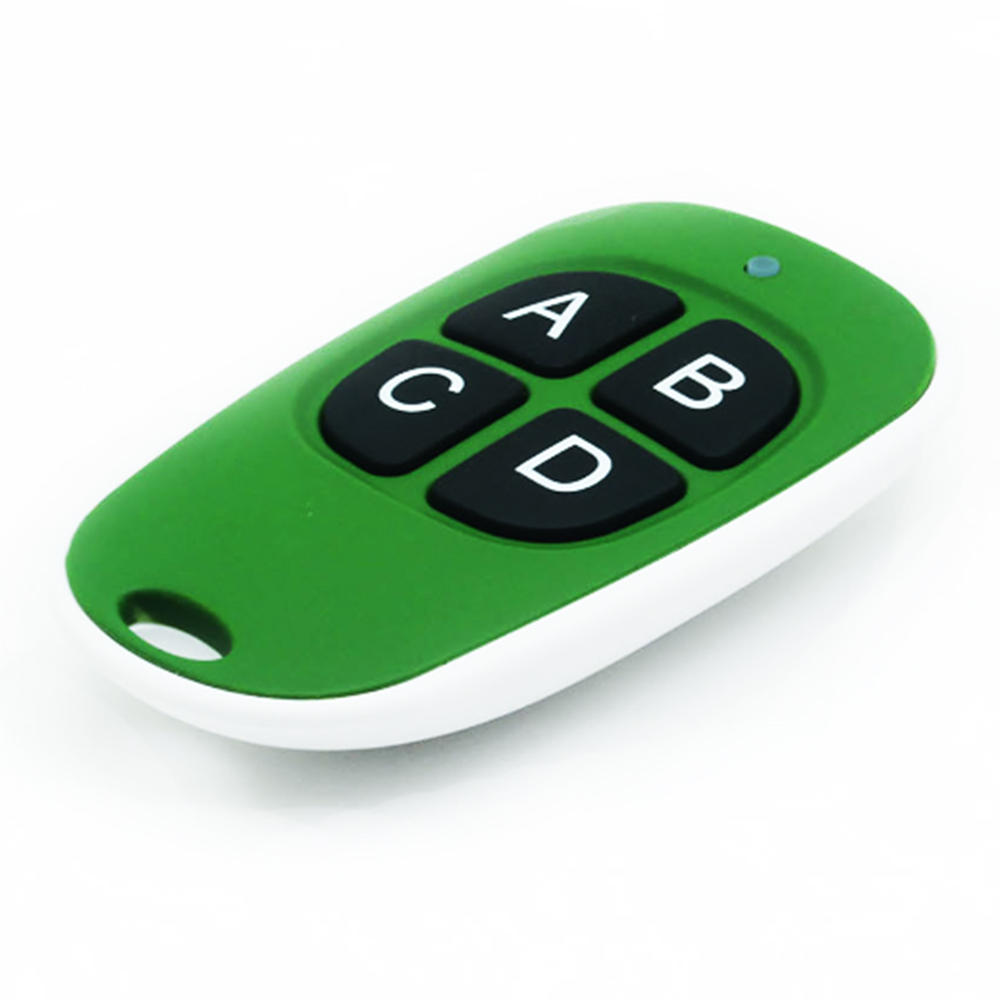

Customize 1 4 Keys Remote Control for Garage Door Gate Learning Copy Code Metal Duplicator 315Mhz 433Mhz RF Remote Controller
- Category: >>>
- Supplier: Shenzhen Federemote Technology Co. Ltd.
Share on (1600495338382):
Product Overview
Description
Product Description
Features:

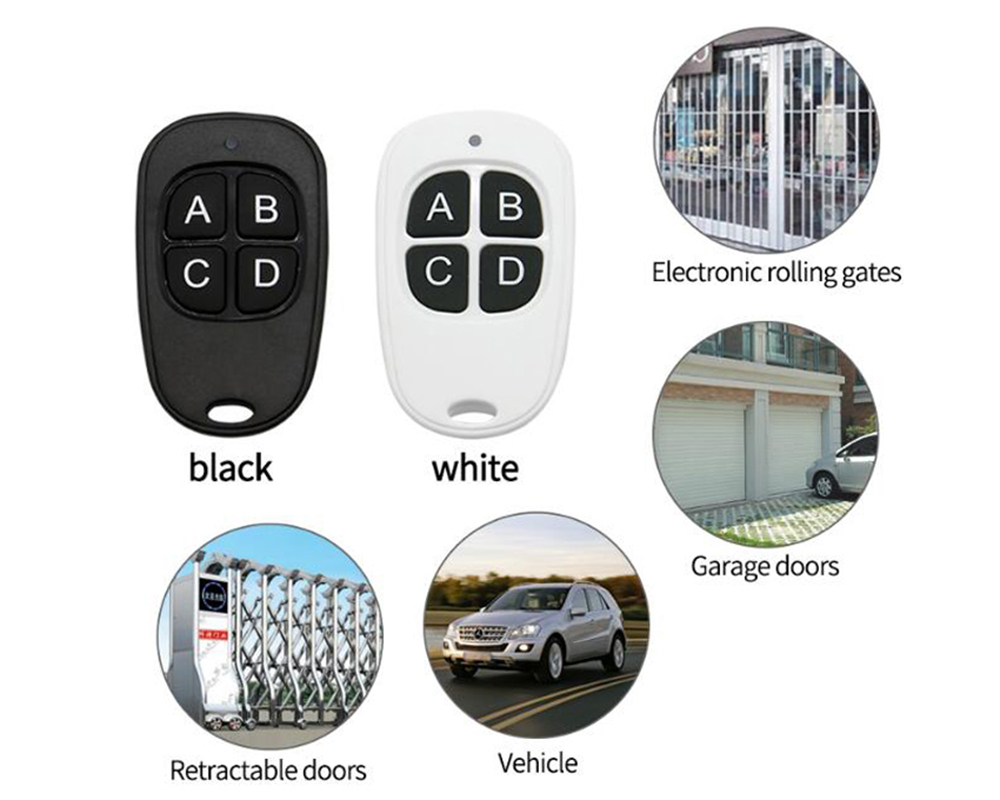

Perfect for transferring / copying codes for garage doors, automatic gates, security systems and household appliances.Vehicle central locking systems, electronic doors, car sunroofs, heating systems, etc.
Specification:
1. Type: Remote Control
2. Channel: 4
3. Frequency: 433MHz
4. Rated Voltage: 3V
5. Rated Current: 10mA
6. Speed signal transmission: 50-60KHz
7. Power transmission: 10-12mW
8. Distance signal transmission: Up to 100 meters in free space

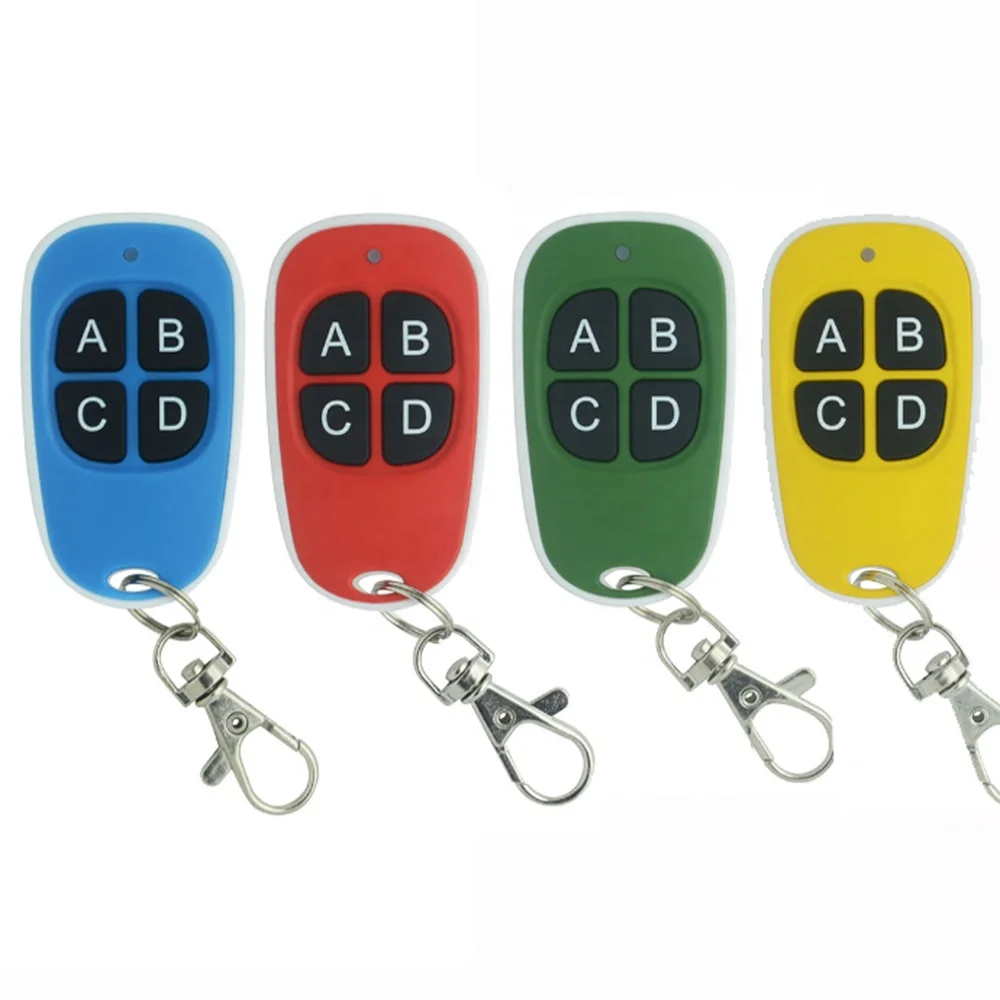

9. Colour black, white, blue, red, green, yellow.
10. Battery: 1*CR2032 button battery (included)

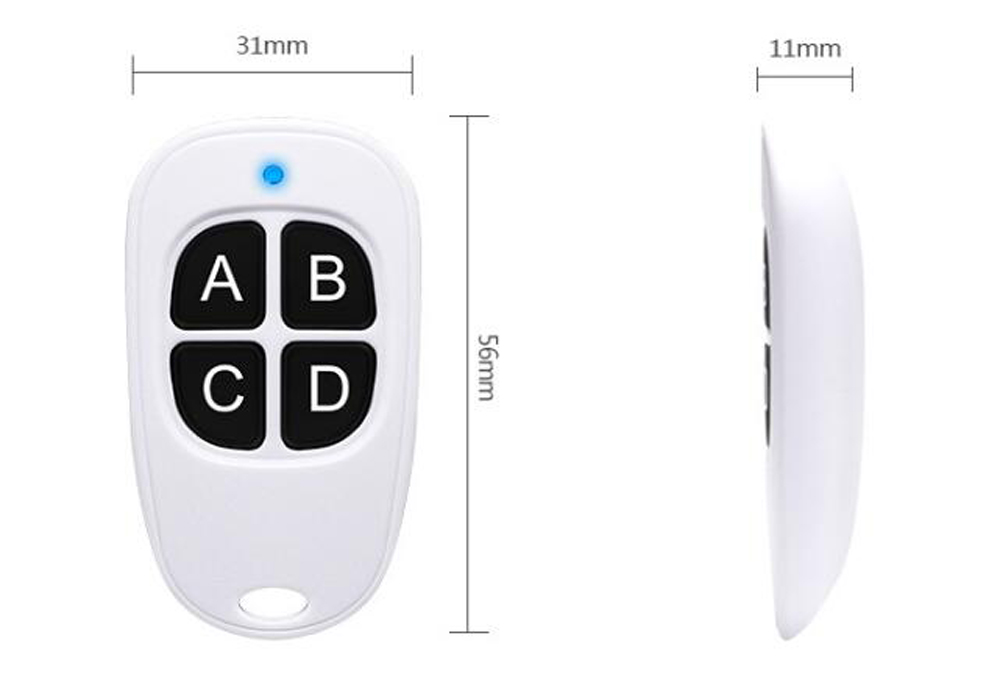

11. Weight: About 30g
Installation Guide:
1. Clear code: two fingers at the same time hold the unlock key and lock key; the LED light rapidly flashes 3 times in about 2 seconds; let one of the fingers go (the other hand cannot let go), and then use the loose finger to quickly click on the loose button three times until the LED light flashes quickly; the two fingers can release; then press any one key of the remote control; when LED light goes off, it means clear code is successful (four keys all empty); if after you press any button of the remote control, the light is still on, it indicates that the original code has not been cleared successfully. You need to re-clear, and only successfully clearing the code can cloning be successful. You can repeatedly clear and clone the code.
2. Copy: left hand taking the original remote control, right hand taking our cloned remote control and keeping two remote control as close as possible; press the first keys of two remote controls at the same time; in about 2 seconds, the LED light will flash quickly 2 times; after one second, the indicator light keeps flashing and lets go of your fingers; and then press the key after successful study, the light keeps on, which means that the first key code on original remote control has been copied to the other remote control; the same method can be used in turn on the second key, the third key ... If the copy is successful, the remote control function is the same as the original matching remote control.
3. Restore: When you accidentally clear the copy of the remote control code, you can simultaneously press the copy of the remote control of the bottom two keys, LED lights will flash quickly, let go after pressing any key, light long, this Indicating that the code for the remote control is restored. Before using our copy remote control, please be sure to remove the existing code from the remote control.
Tips:
1. Select the remote control of the prerequisite: the original remote control function is normal, remote control chip is the same or compatible, remote control operating frequency the same.
2. The remote control can only copy the fixed code, learn the code chip and part of the single chip remote control (can copy the chip model see copyable chip type).
3. Two-way remote control, rolling code remote control, single-chip encryption program remote control cannot be copied. Such as HCS200, HCS201, HCS300, HCS301 and so on.
4. Before copying the remote control, make sure that the existing code on the remote control has been cleared and check that the code has been cleared successfully. Otherwise, it cannot be copied.
5. Please ensure that your remote control has enough power, the better the distance between the two remote controls.
6. If the copy distance is too close to the switch at different angles to copy.
Press and hold the button on the original remote control to send the signal completely normal, and then press the button on the remote control to ensure that the function is completely copied.

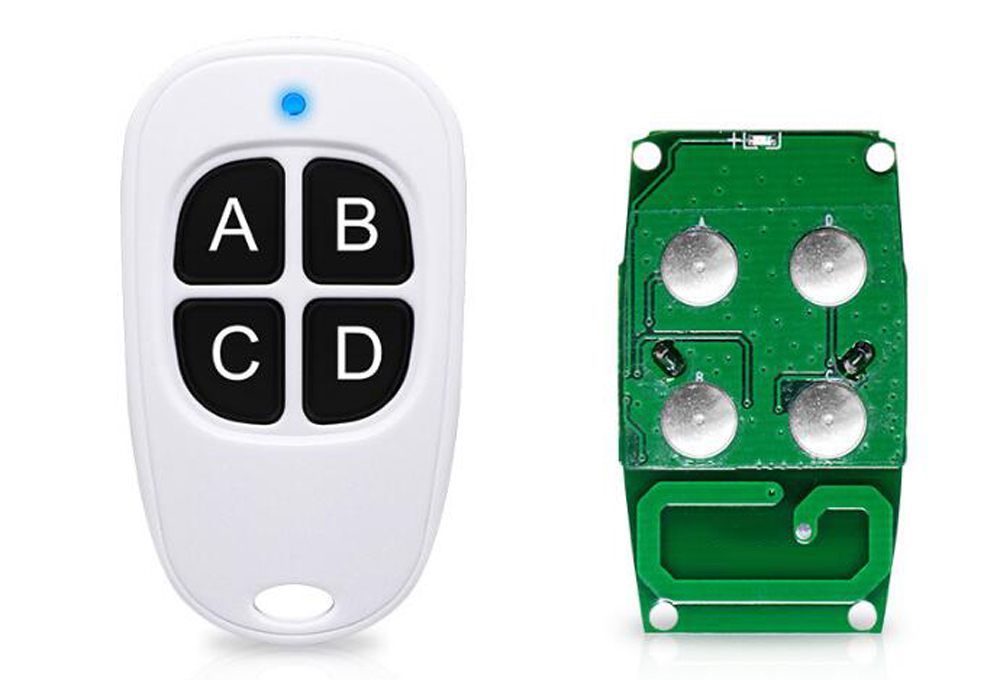

Detailed Images
