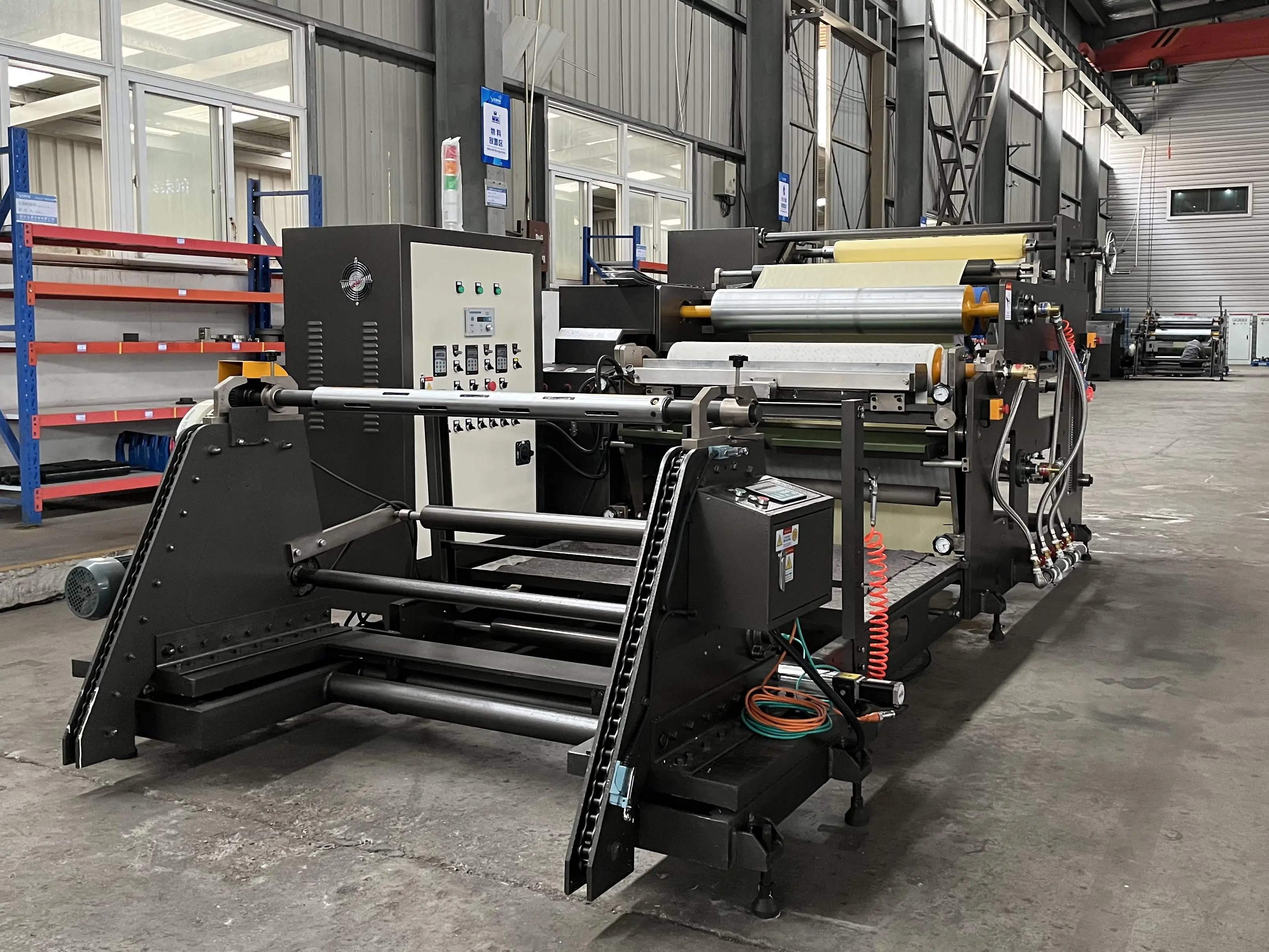

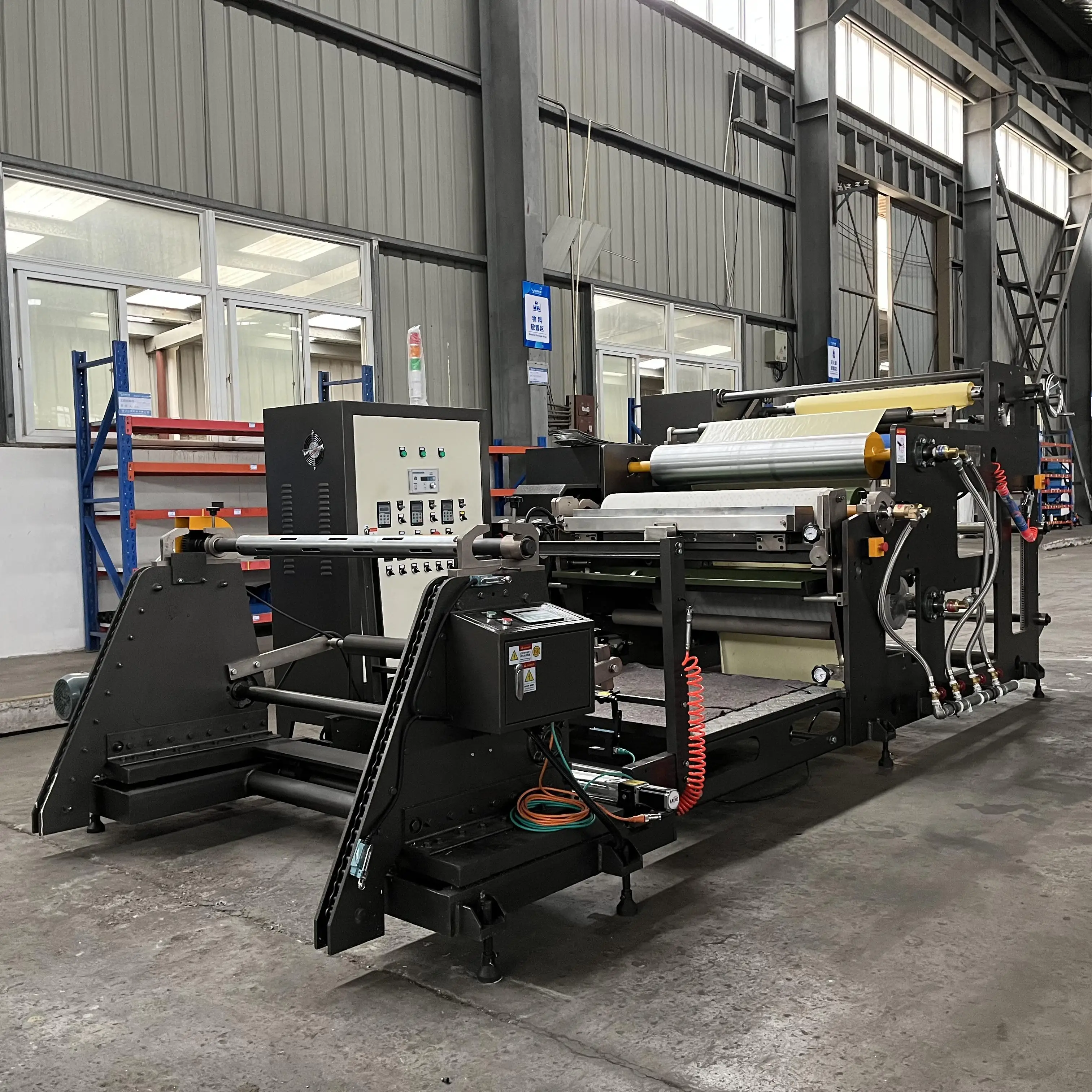

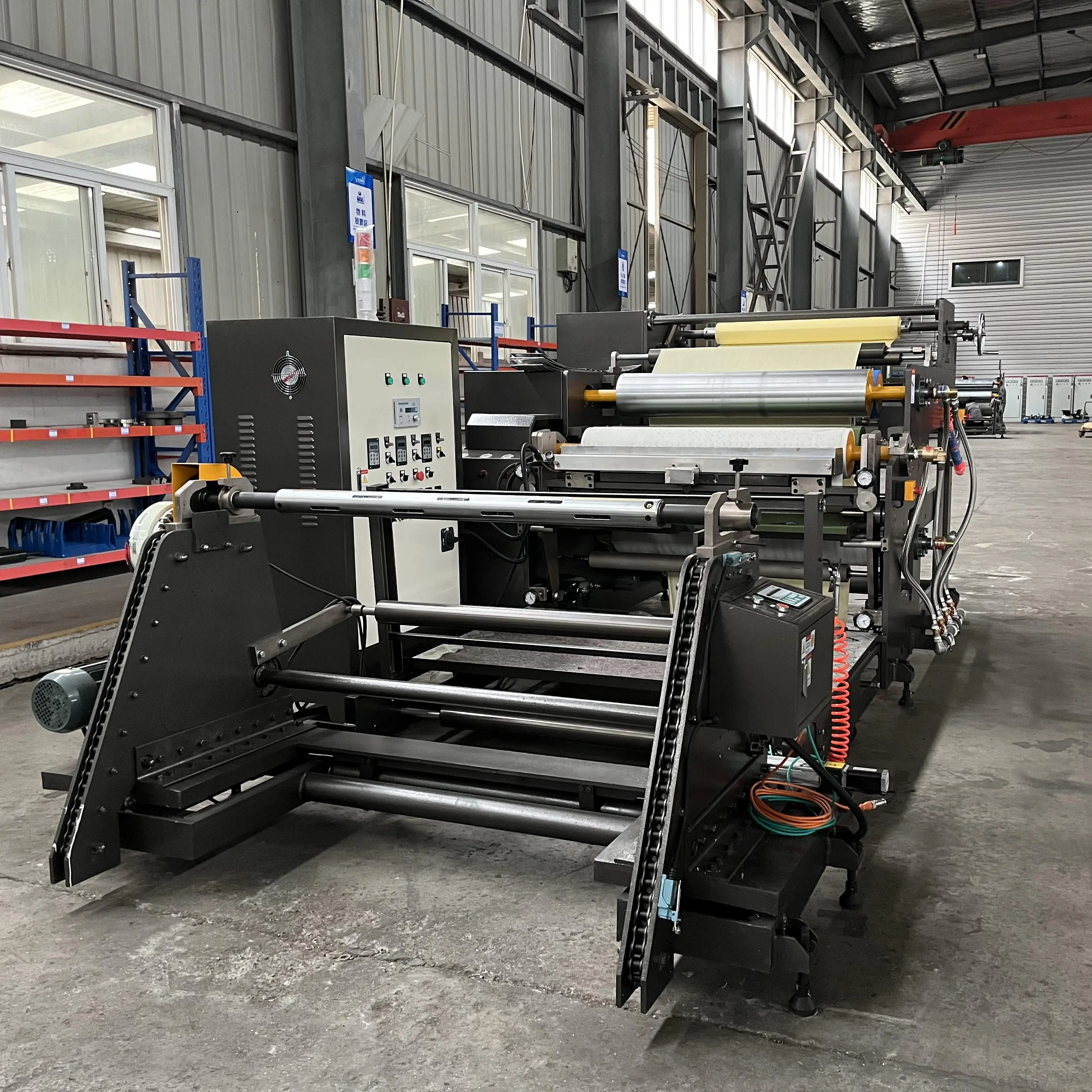

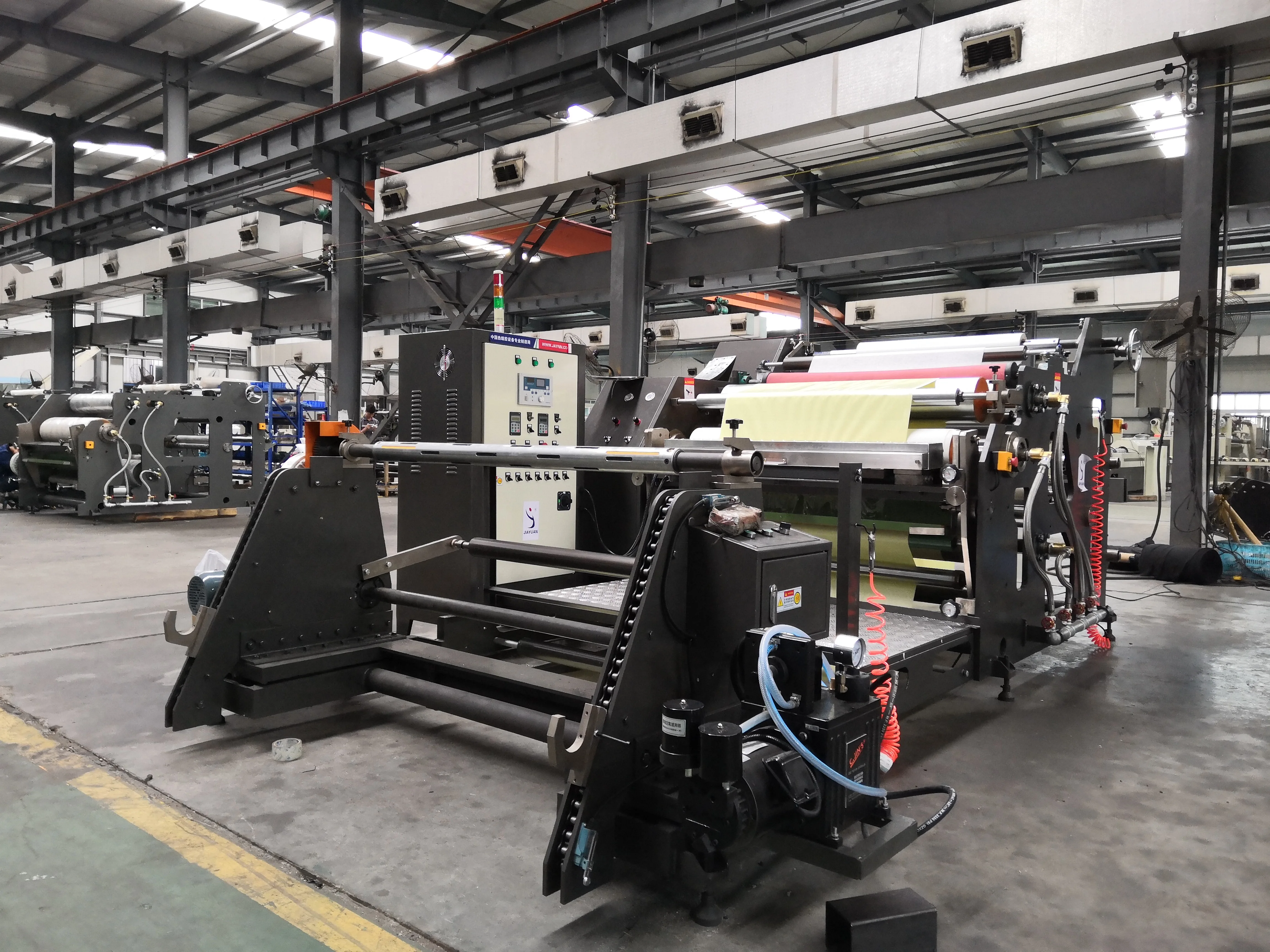

Medical Surgical Silk Zinc Oxide Plaster Non Woven Fabric Tape Making Coating Machine

Product Overview

Description

Medical Surgical Silk Zinc Oxide Plaster Non Woven Fabric Tape Making Coating Machine





Main characteristic

1. An Ac converter control is used for both speed and quantity of glue feeding for which both automatic synchronous tracking and manual control are available.
2. JYT-B hot melt coating machine adopts intelligent PID temperature control system, it can control the temperature exactly and the error is with in 1 centi degree
3. The glue melting oven is coated with the antisticking layer, efficacious prevent the hot melt adhesive against carbonization.





Model	JYT-B
Coating Width	200-2400mm
Coating Weight	About 4g/m2-20g/m2
Production Speed	50-100m/min
Unwind Diameter	1000mm
Rewind Diameter	1000mm

Techinical parameters





2.  Machine color: silver grey

3.  Total power: 380V  50HZ  38KW

4.  Weight: 5 Ton

5. Overall size: 5000mm*2300mm*1700mm

7. Coating mode: knife coating

8. Coating width: 600-2000mm

9. Coating weight:10-100g/sqm

10. Length:600-1200mm

11. Uniformity:≤ ±0.002mm

12. Max. working speed:50-150m/min

13. Roller width:700-2100mm

14. Max. Diameter of rewind:700mm

15. Max. Diameter of unwind:1000mm

16. Unwind device: 2 sets

17. Rewind device: 1 set

18. Glue melting speed: 130kg/h(EVA.3000CPS165°C)

19. Glue hose: 3m

20. Temperature: 230°C

21. Machine power: about 26kw

22. Electrical power:  ~380V±15%   50Hz

23. Both speed of main machine and quantity of glue feeding are automatic synchronous tracking and manual control





Product application :

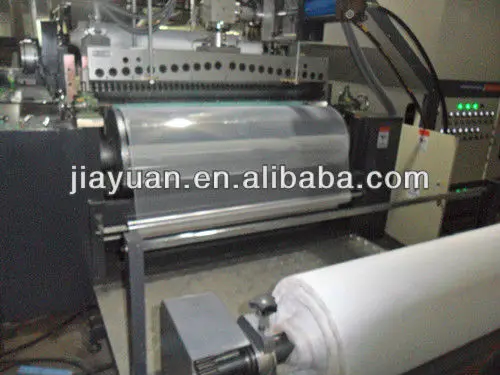

Coating Model:

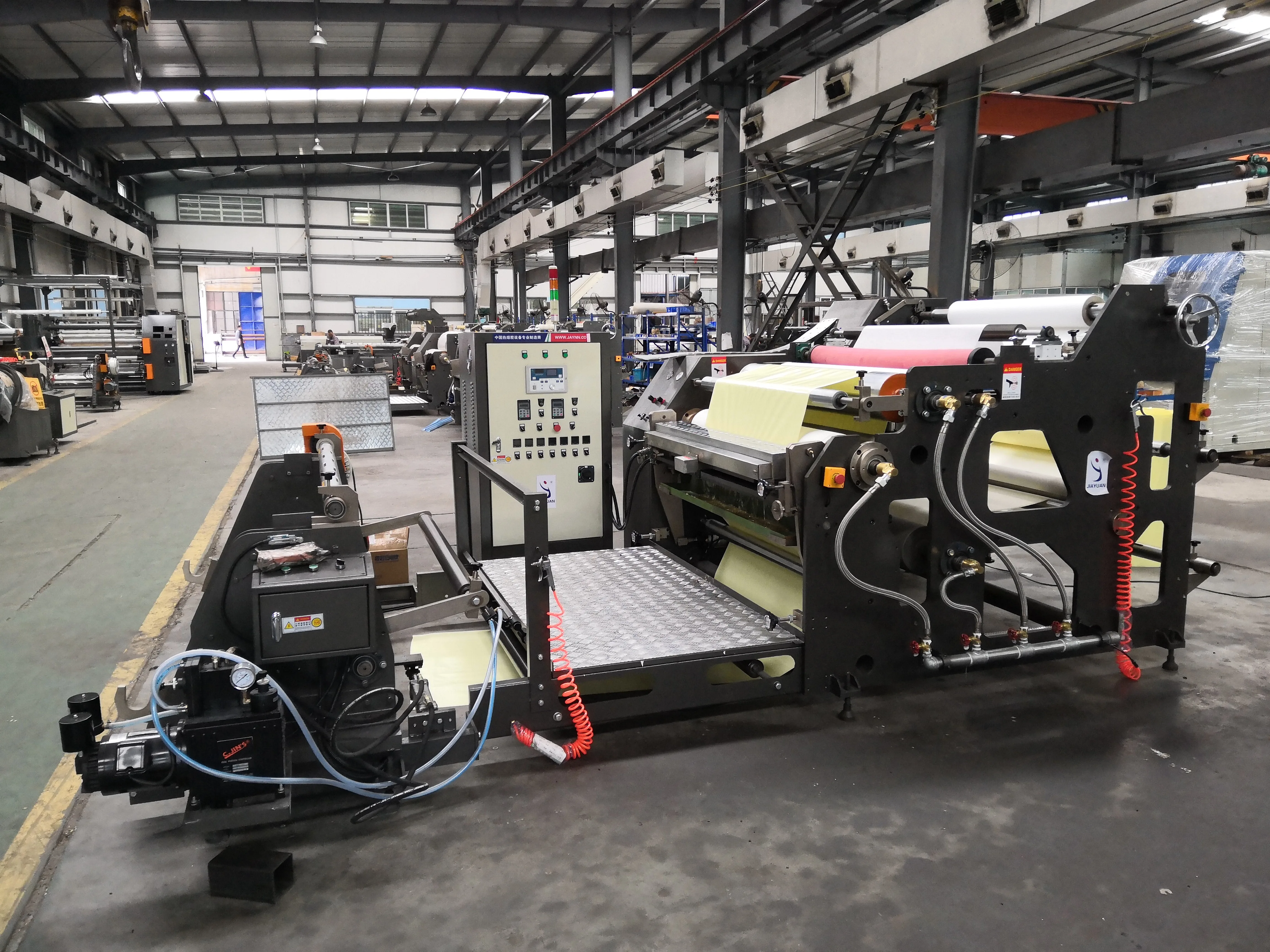

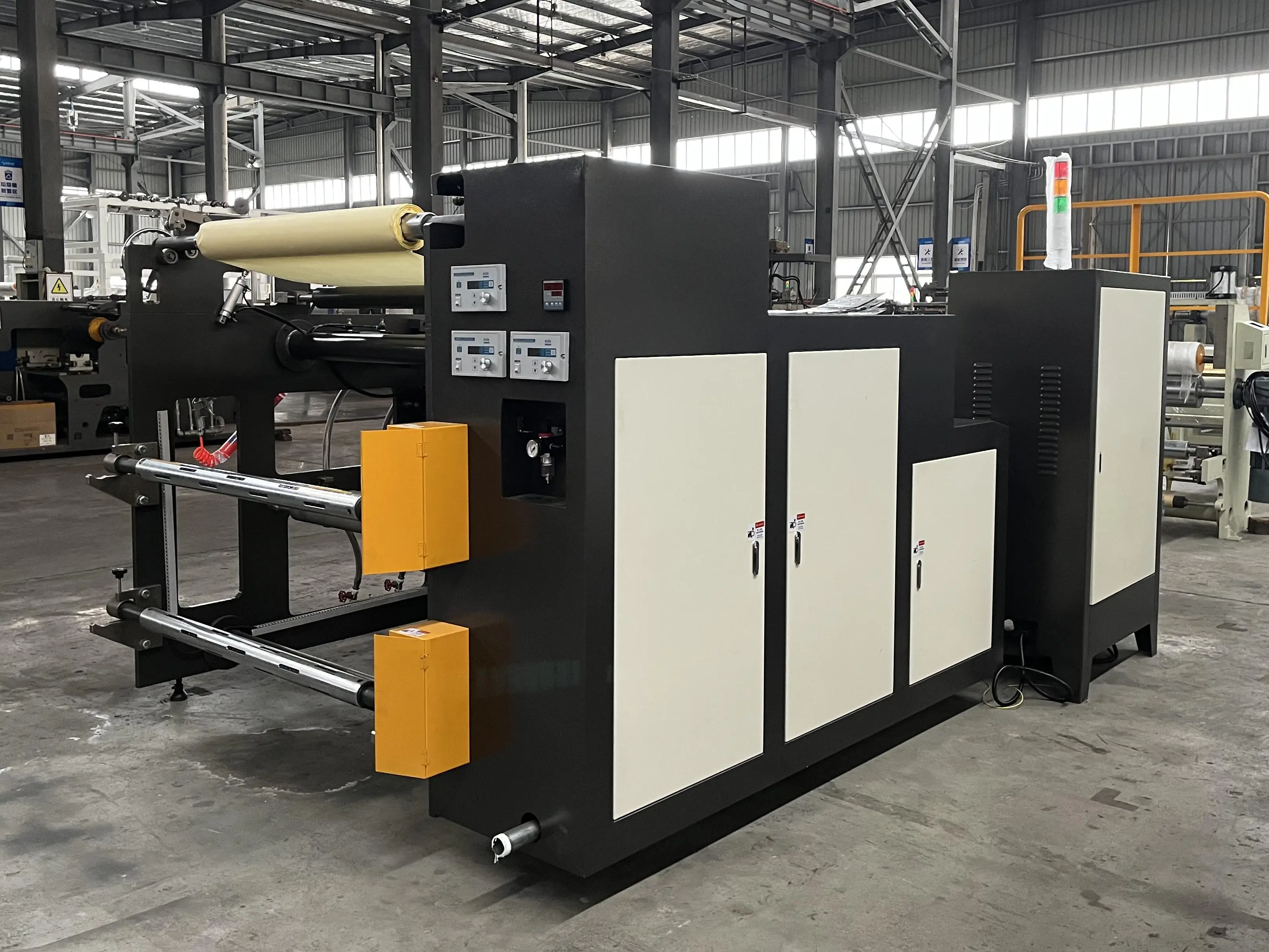

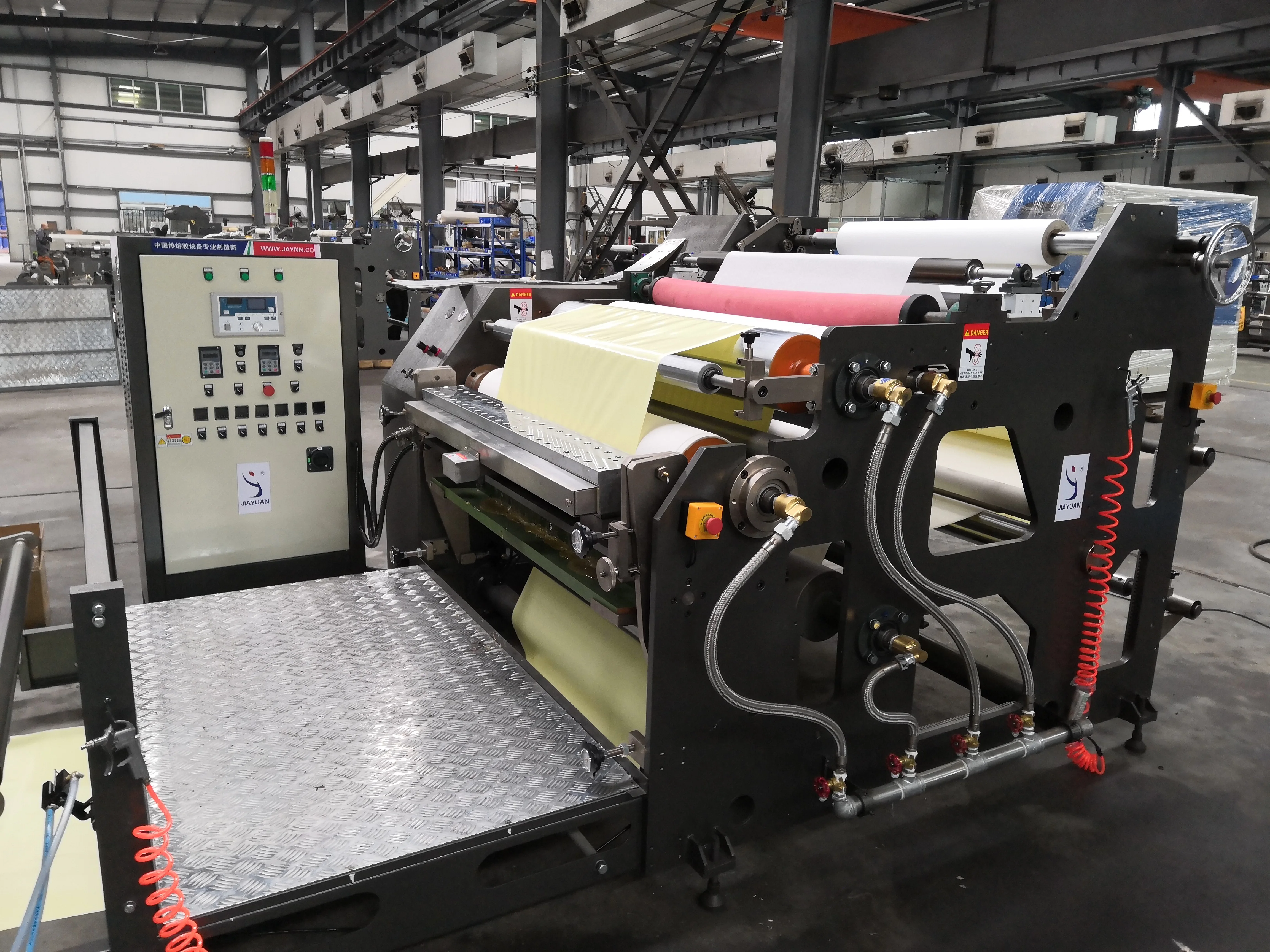

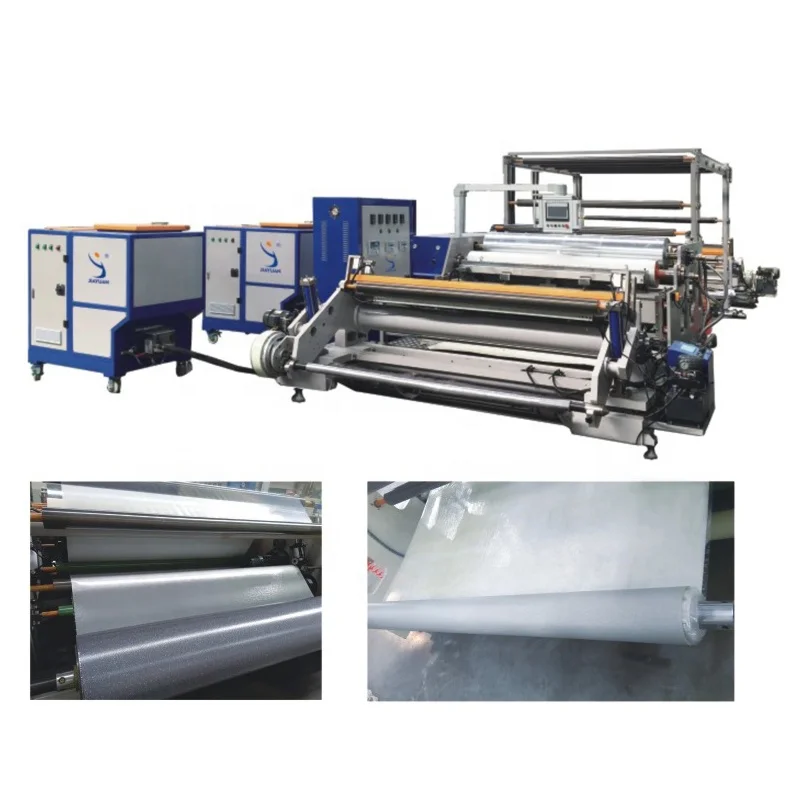

 Main machine details













Delivery Time: within 60 working days after we receive the deposit

Payment Term: 100%T/T, 30% T/T in advance as a deposit and the balance before we send the machine from our mill.

Installation: the seller will send for an engineer for installation if customer need.

(Noted: Machine can be shipped after Inspection only.)

Warranty Time:  1 year

Packing: wooden case



 1. Q: How about the after-sales service?

A: Our machines have one year guarantee, life-long maintenance.We have a strong team, special for after-sales service. We can arrange engineers to do service for you.

2. Q: Are you a factory or trading company?

A: We are a factory in this field nearly 10 years.

3. Q: Where is your factory located? How can I visit there?

A:Our factory is located in Ruian City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly or take train to Ruian Station.

4. Q:How does your factory do regarding quality control?

A:Quality is our invariable topic,it is the basement of company's development.From the beginning of opening company,we especially focus on quality job.Our hotmelt adhesive coating equipment have passed CE and SGS certification.

5.Q:What information should I let you know if I want to get quotation?

A:-the details of your products,such as substrate,adhesive material,coating width etc. -if it is possible,please provide us the pictures or the design drawings,our designer will analyze your samples and give you exact details.

Should you have some other details not sure? such as videos,specification, components, working process, payment terms etc, please don't hesitate to contact Miss Betty:
