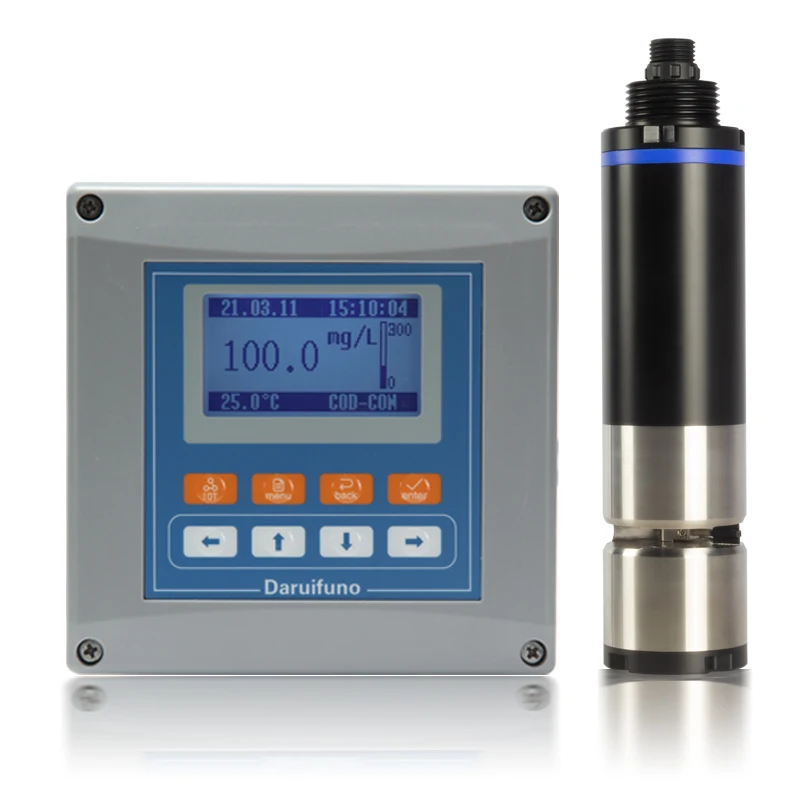

Заводская поставка, онлайн цифровой датчик, датчик трески, ТОЦ в воде
- Category: Carbon Analyzers >>>
- Supplier: Suzhou Delfino Environmental Technology Co. Ltd.
Share on (1600495397997):
Product Overview
Description
Features Of COD Sensor

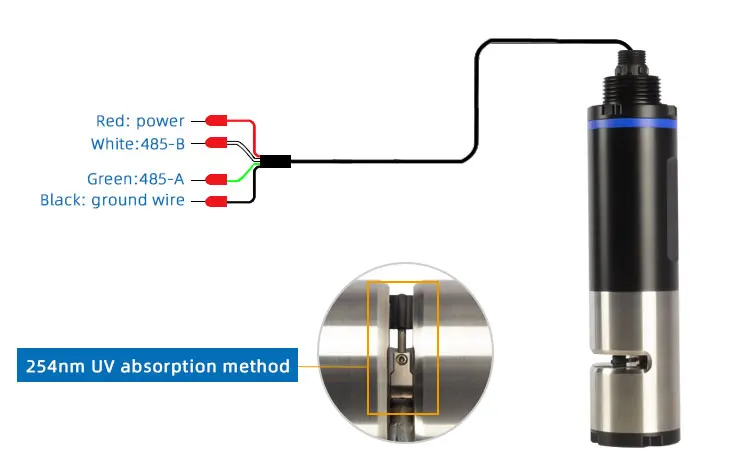

● Use UV254 nano-ultraviolet absorption measurement method,require no consumable；
● Use two light sources, 254nm and 365nm UV reference light；
● Automatically eliminate the interference of suspended solids and compensate for the interference of turbidity;
● Can measure parameters such as COD, TOC, turbidity and temperature；
● Drop-in installation, no need to digest the tested sample, fast analysis speed, real-time response, no need to wait；
● RS485 digital interface, standard Modbus communication protocol, support access to standard industrial control system；
● Haveexcellent repeatability and stability, and is not easily affected by ambient light；

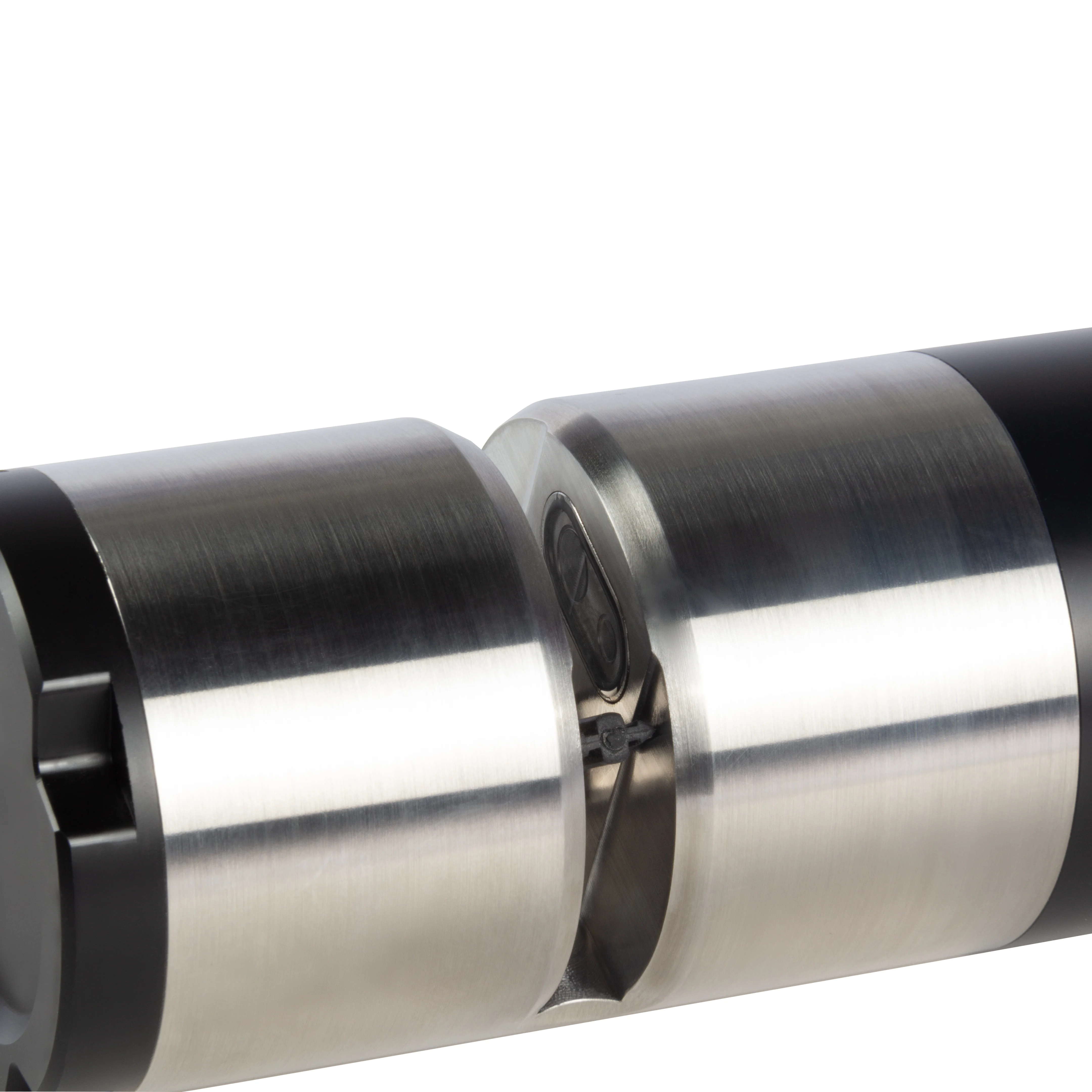

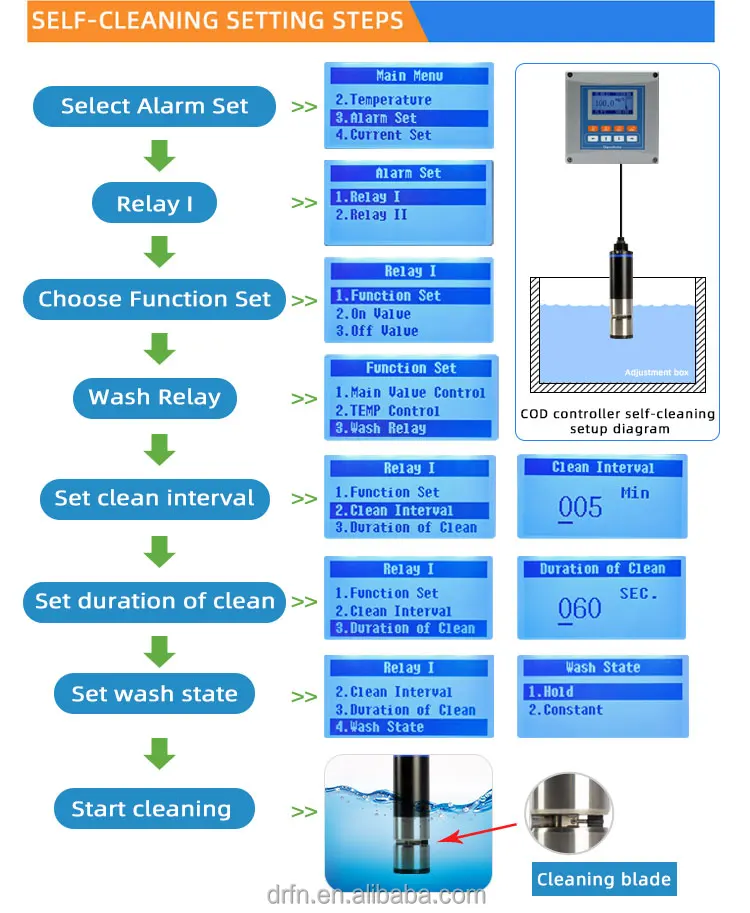

● Integrated self-cleaning brush, small size and convenient to install, continuouslymonitor water quality online to prevent biological attachment andreduce the frequency of maintenance.
Specification of COD sensor
Model | COD351 |
Measuring Principle | UV254 ultraviolet absorption method |
Measuring Range(COD) | 0.75~350mg/L |
Resolution(COD) | 0.01mg/L |
Accuracy(COD) | ±5% |
Measuring Range(TOC) | 0.3 ~180mg/L |
Accuracy(TOC) | ±5% |
Resolution(TOC) | 0.01mg/L |
Measuring Range(TU) | 0~300 NTU |
Accuracy(TU) | ±5% |
Resolution(TU) | 0.01NTU |
Operating Temperature | +0~ 50℃ |
Calibration | one or 2 points calibration |
Protection Grade | IP68 |
Working Pressure | 3Bar |
Cleaning Method | automatic |
Power | DC 12~24V, current<50mA |
Output | RS485, Modbus RTU protocol |

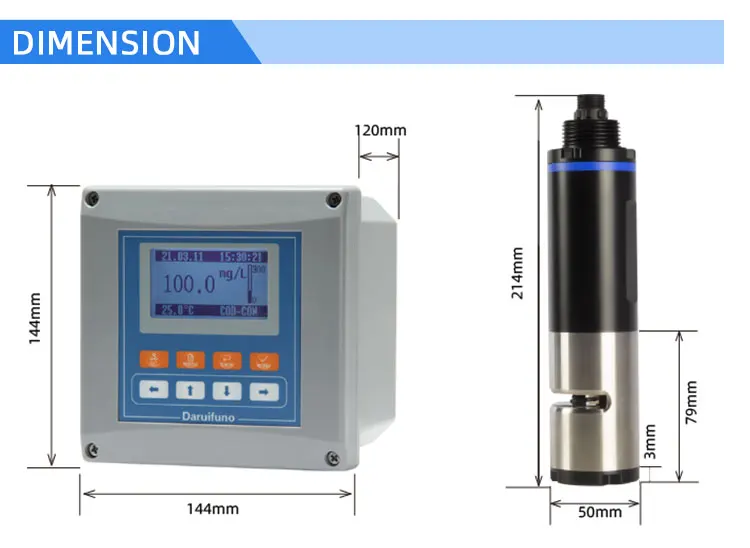

Dimension | Diameter 50mm, length 214mm |
Cable Length | 10m(custom) |
Shell Material | POM and 316L |
FAQ

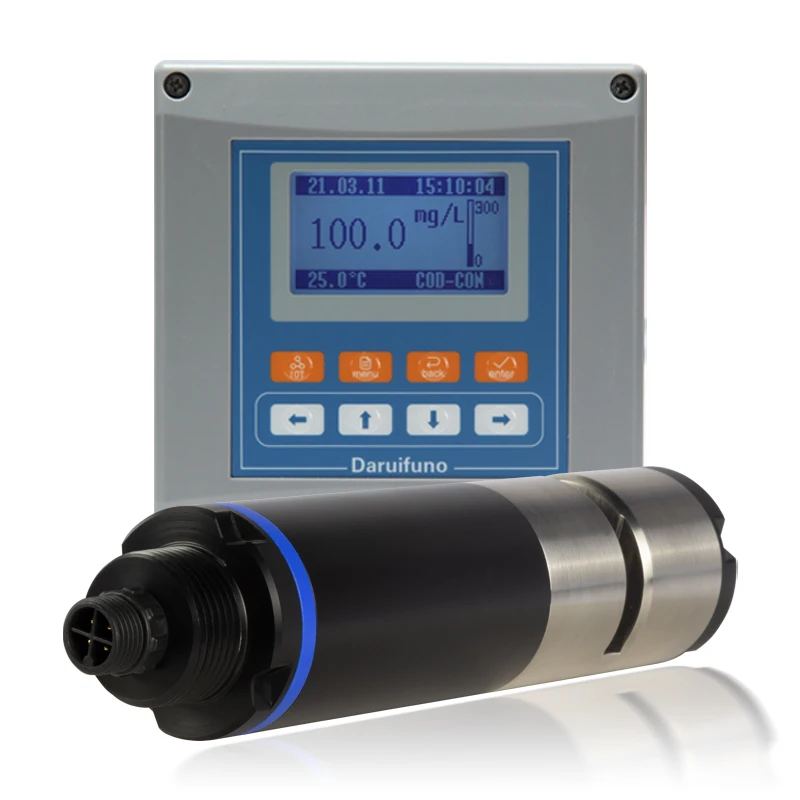

1. Which sensors can be connected to your COD controller?
A: The COD meter can be compatible with DRFN digital COD sensors.
2. What is the measuring principle of your COD sensor?
A: The connected sensor uploads the detected data in a special encrypted communication method to ensure that the DUC controller can collect high-precision data more stably
3. What are the applications of COD analyzers?
A: surface water/ process water/ sewage treatment plant/ industrial wastewater/ drinking water/ river
