Yizumi YA D120L/80H ПЭТ сота ротора осушитель машина промышленный пластиковый осушитель для пчелиных сот
- Category: >>>
- Supplier: Yizumi Precision Molding Technology Co. Ltd
Share on (1600495402252):
Product Overview
Description
Product Description
The YA-D series, All-in-One'' compact dryer combines the drying, dehumidifying and two-stage conveying functions in a single unit. It is suitable for drying hygroscopic engineering plastics, such as PA, PC, PBT, PET, etc. It can reach dew point of -40°C under ideal condition. This series of products employ honeycomb rotor and fully stainless steel down-blowing euro hopper dryer. The whole series adopt a LCD touch screen interface and provide a dew-point monitor and an automatic loader as optional.
Feature
◎ YA-D series all-in-one dehumidifying dryer are equipped with honeycomb rotor for dehumidifying.They have two kinds of
design:Full-integral and semi-integral depending on the size.
◎ Suitable for drying hygroscopic engineering plastics such as PA,PC,PBT,PET,etc.
◎ Integration of dehumidifying, drying and two-stage conveying functions in a single unit. Three-stage
conveying is also available as an option.
◎ Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying
efficiency and reduces energy consumption, while maintaining a steady drying effect.
◎ Closed-loop conveying system eliminates the possibility of moisture re-absorption during material conveying.
◎ The dehumidifying section of TCD series features two condensers to ensure a low return air temperature
and low dew-point.
◎ Equipped with pneumatic shut-off valve to ensure no material remains in the material line after each loading cycle.

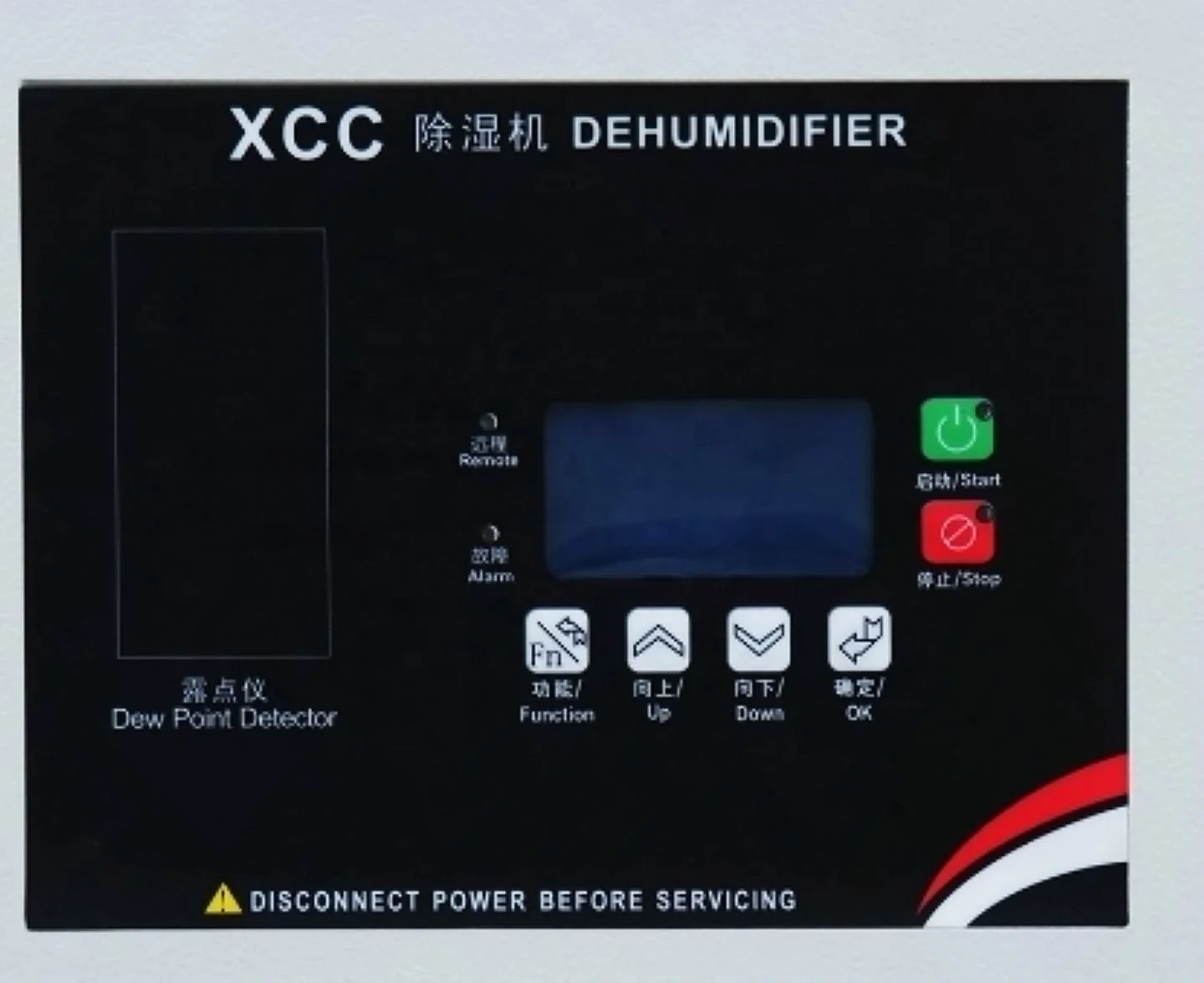

◎ Material processing is controlled via microprocessor as standard with touch screen PLC Control as
an option for centralised and automatic operation.
◎ Dew-point monitor can be fitted to monitor and display dry air dew-point.oducing PET plastic containers and bottles in all shapes.
design:Full-integral and semi-integral depending on the size.
◎ Suitable for drying hygroscopic engineering plastics such as PA,PC,PBT,PET,etc.
◎ Integration of dehumidifying, drying and two-stage conveying functions in a single unit. Three-stage
conveying is also available as an option.
◎ Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying
efficiency and reduces energy consumption, while maintaining a steady drying effect.
◎ Closed-loop conveying system eliminates the possibility of moisture re-absorption during material conveying.
◎ The dehumidifying section of TCD series features two condensers to ensure a low return air temperature
and low dew-point.
◎ Equipped with pneumatic shut-off valve to ensure no material remains in the material line after each loading cycle.
◎ Material processing is controlled via microprocessor as standard with touch screen PLC Control as
an option for centralised and automatic operation.
◎ Dew-point monitor can be fitted to monitor and display dry air dew-point.oducing PET plastic containers and bottles in all shapes.

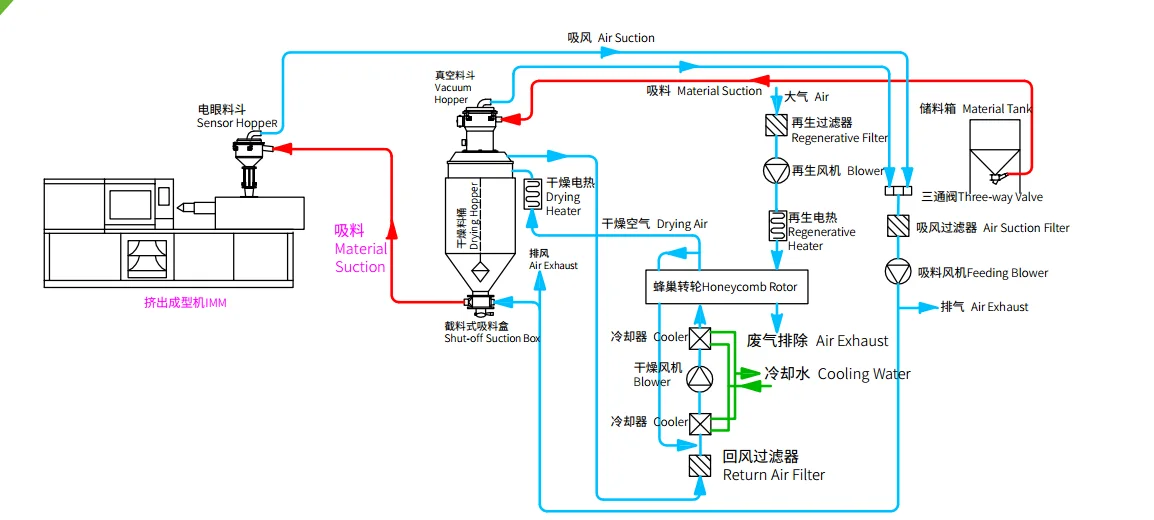

WORKING PRINCIPLES
Specification
YA-120L/80H | ||
DESCRIPTION | ||
Drying System | ||
Process Heater Power (KW) | 6 | |
Process Blower Power (KW) | 0.75 | |
Drying Hopper Capacity (L) | 120 | |
Dehumidifying System | ||
Regen Heater Power (KW) | 3.5 | |
Regen Blower Power (KW) | 0.25 | |
Dry Air Capacity (m /hr) 3 | 80 | |
Conveying System | ||
Conveying Blower Power(KW) | 0.75 | |
Dia.of Conveying Hose (Inch) | 1.5 | |
Vacuum Hopper (L) | 7.5 | |
Sensor Hopper (L) | 7.5 | |
Dimensions | ||
H (mm) | 1670 | |
W (mm) | 1040 | |
D (mm) | 875 | |
Net Weight (Kg) | 320 | |
NOTE: The listed machine price is for standard machine only, any extra requirement (e.g. CE/UL/KCS safety standard and so on) will be subject to extra charge.
