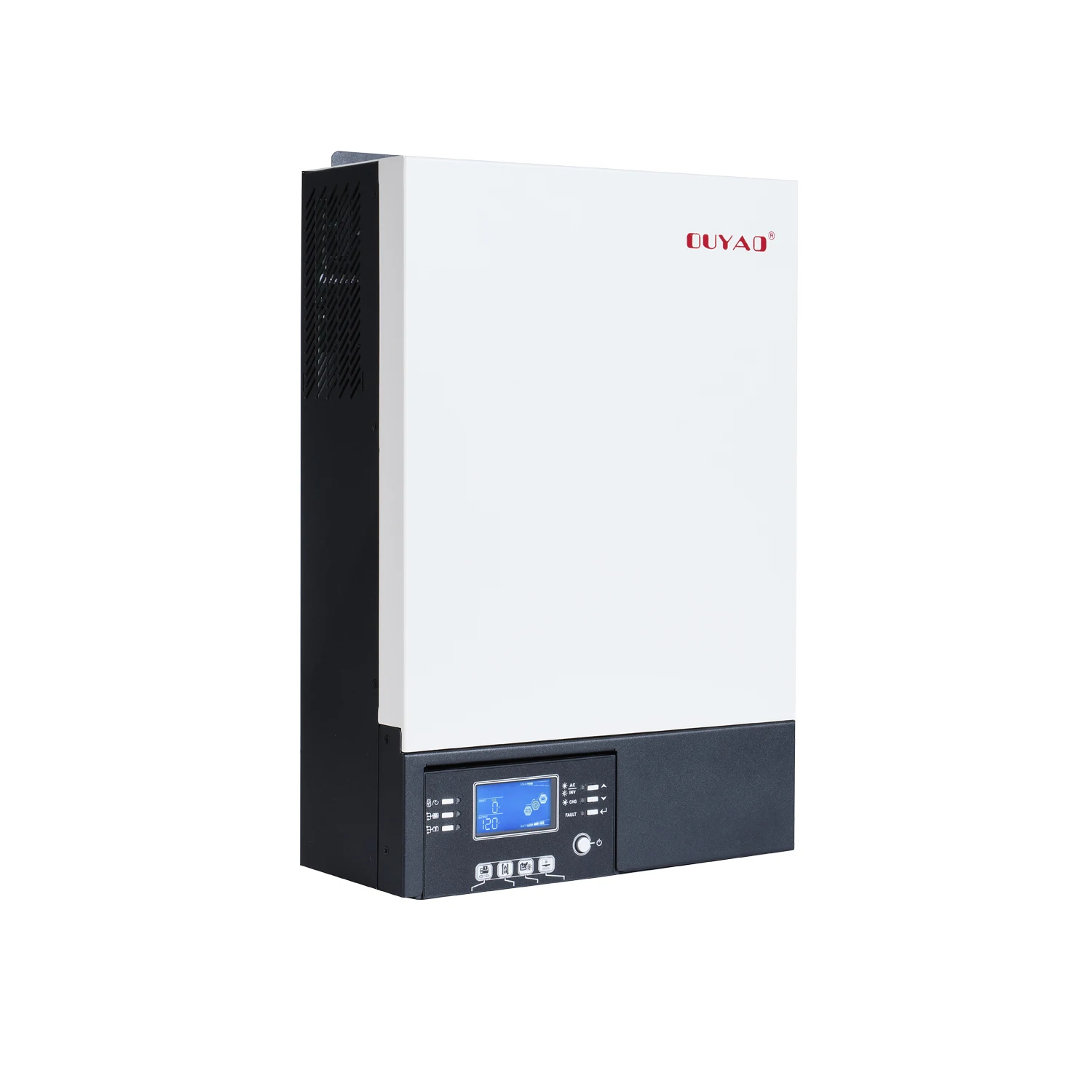

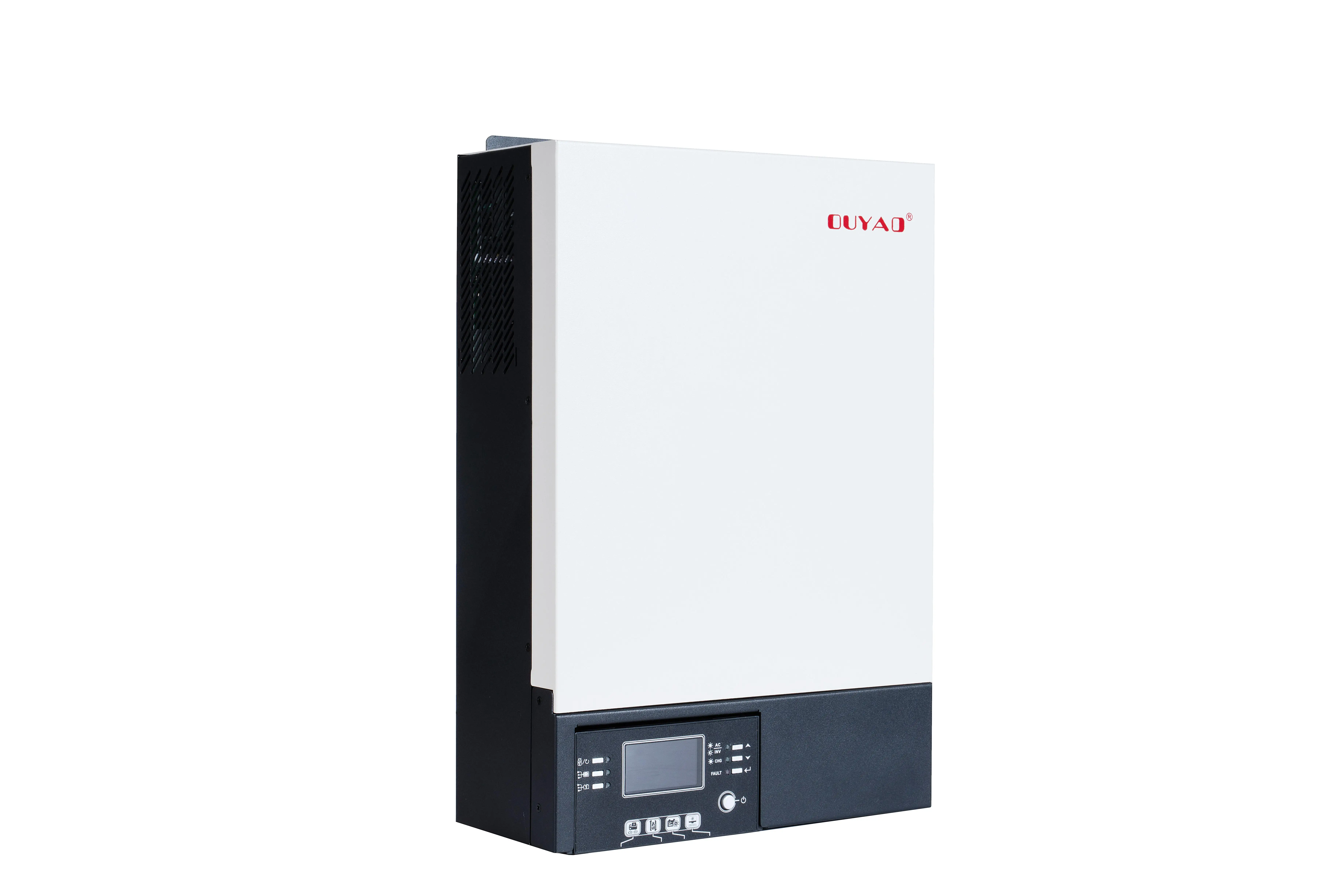

Factory price inverter 5KVA solar system off grid complete hybrid 5000w solar power Inverter
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (1600495404203):

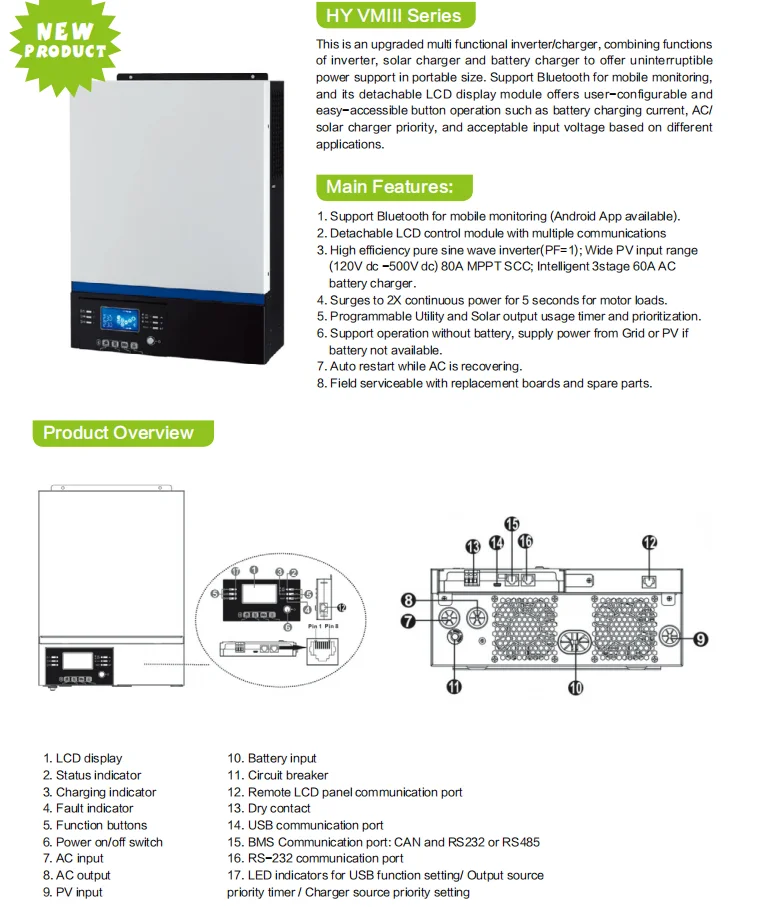

Product Overview
Description
Product Description
Model | HY3222VMIII | HY3522VMIII | HY5032VMII | HY5532VMIII | ||||
RATED POWER | 3200VA/3200W | 3500VA/3500W | 5000VA/5000W | 5500VA/5500W | ||||
INPUT | ||||||||
Voltage | 230VAC | |||||||
Selectable Voltage Range | 170-280VAC(For Personal Computers) ；90-280VAC(For Home Appl lances) | |||||||
Frequency Range | 50Hz/60Hz(Autos on sing) | |||||||
OUTPUT | ||||||||
AC Voltage Regulation(Batt Mode) | 230VAC±5% | |||||||
Surge Power | 6000VA | 7000VA | 10000VA | 11000VA | ||||
Effciency(Peak) | 90%~93% | |||||||
Transfer Time | 10ms(For Personal Computers)；20ms(For Home Appliances) | |||||||
Waveform | Pure sinewave | |||||||
BATTERY | ||||||||
Battery Voltage | 24VDC | 24VDC | 48VDC | 48VDC | ||||
Floating Charge Voltage | 27VDC | 27VDC | 54VDC | 54VDC | ||||
Overcharge Prote dion | 33VDC | 33VDC | 63VDC | 63VDC | ||||
SOLAR CHARGER&AC CHARGER | ||||||||
Solar charger type | MPPT | |||||||
Max.PV Array Open Circuit Voltage | 500VDC | 500VDC | 500VDC | 500VDC | ||||
MPP Range@operatig Voltage | 120-450VDC | 120-450VDC | 120-450VDC | 120-450VDC | ||||
Max.PV Array Power | 4000W | 5000W | 5000W | 6000W | ||||
Max.Solar Charge Current | 80A | 100A | 80A | 100A | ||||
Max.AC Charge Current | 60A | 60A | 60A | 60A | ||||
Max Charge Current | 80A | 80A | 80A | 80A | ||||
PHYSICAL | ||||||||
Dimension， Dx WxH(mm) | 115x300x400 | |||||||
Net Weight(kgs) | 9 | 9 | 10 | 10 | ||||
Communication Interface | USB/RS 232/RS 485/Bluetooth/Dry-contac l | |||||||
ENVIRONMENT | ||||||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||||
Operating Temperature | -10℃to 50℃ | |||||||
Storage Temperature | -15° C to 60° C | |||||||
Title goes here.

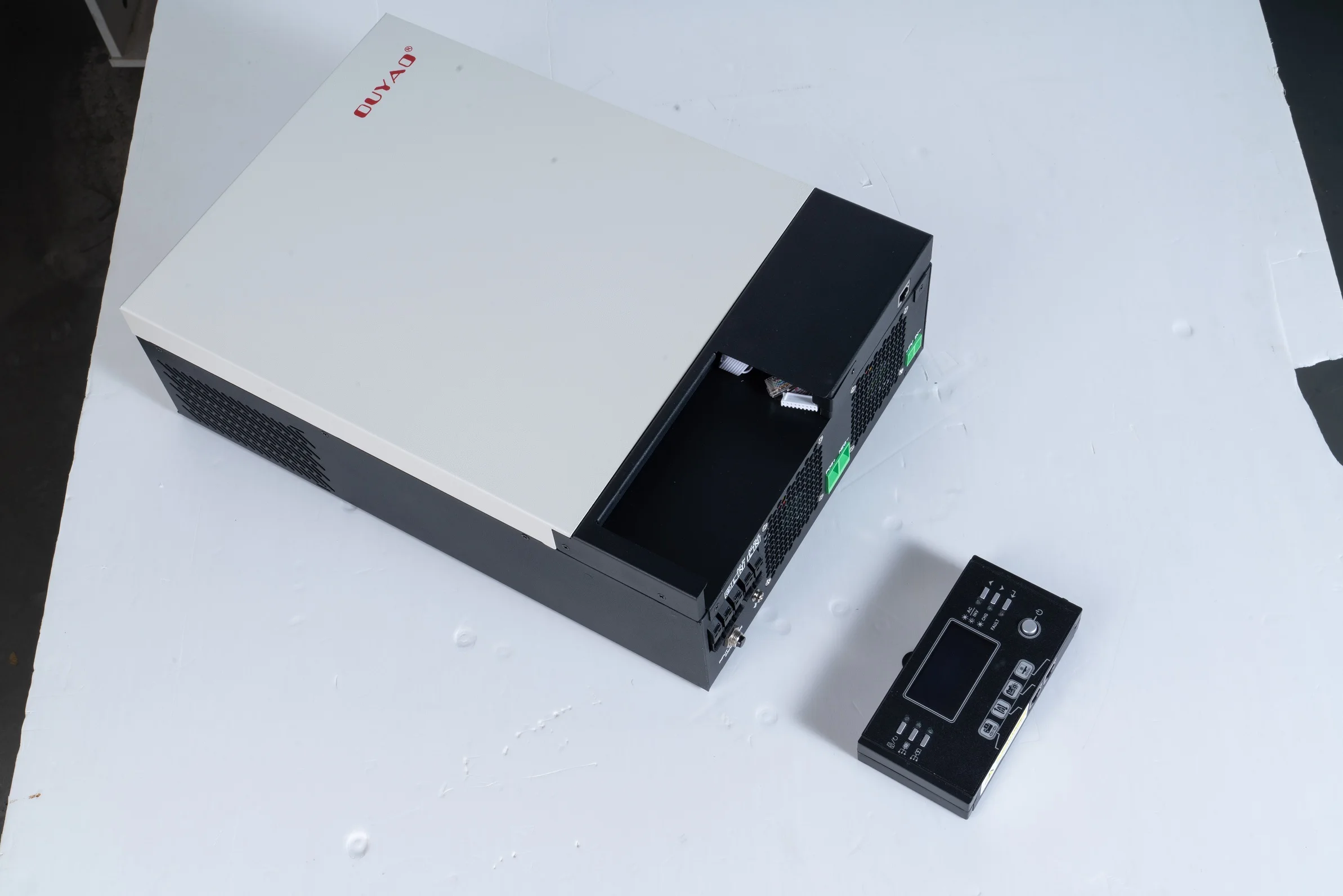

This is an upgraded multi functional inverter/charger, combining functions
of inverter, solar charger and battery charger to offer uninterruptible
power support in portable size. Support Bluetooth for mobile monitoring,

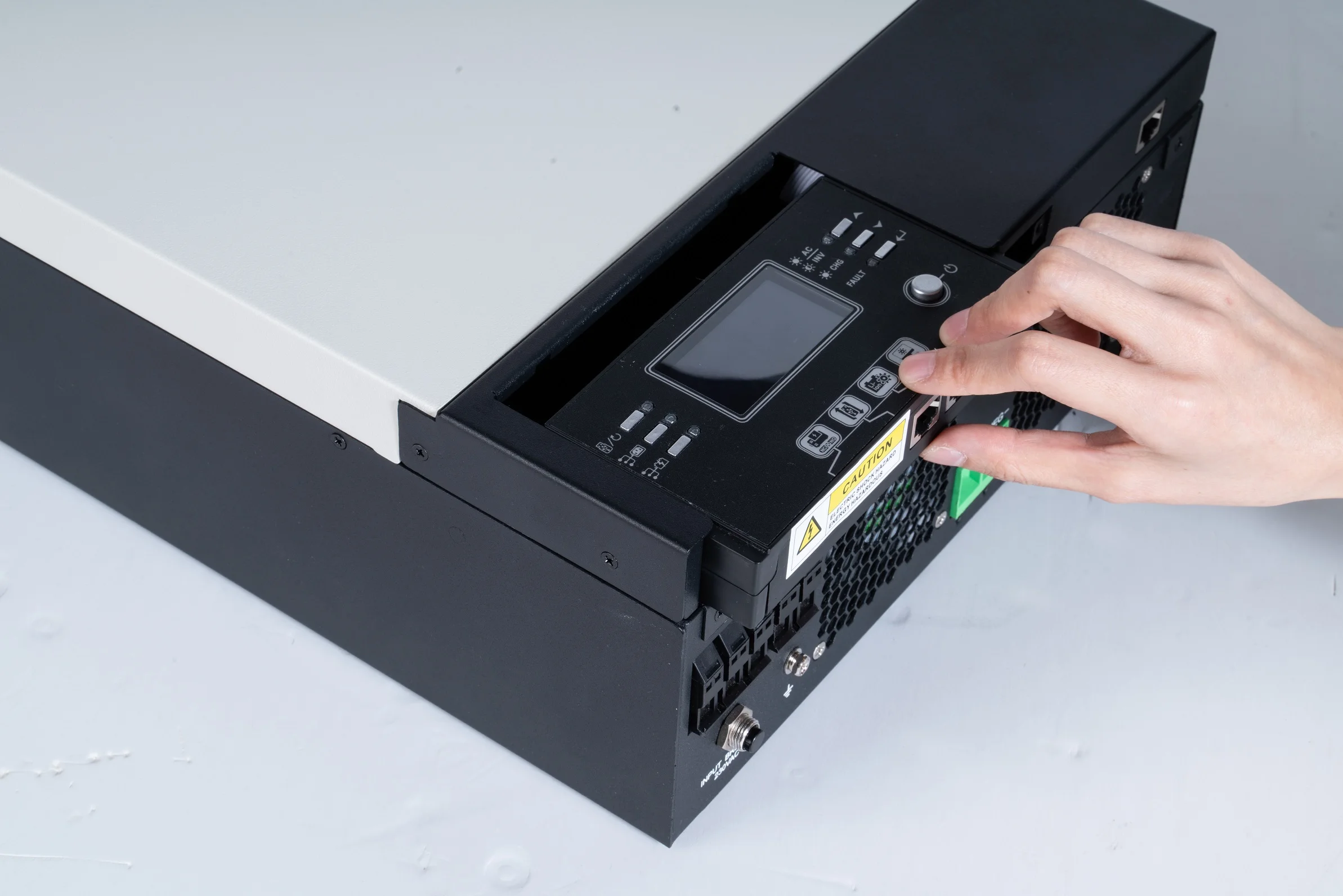

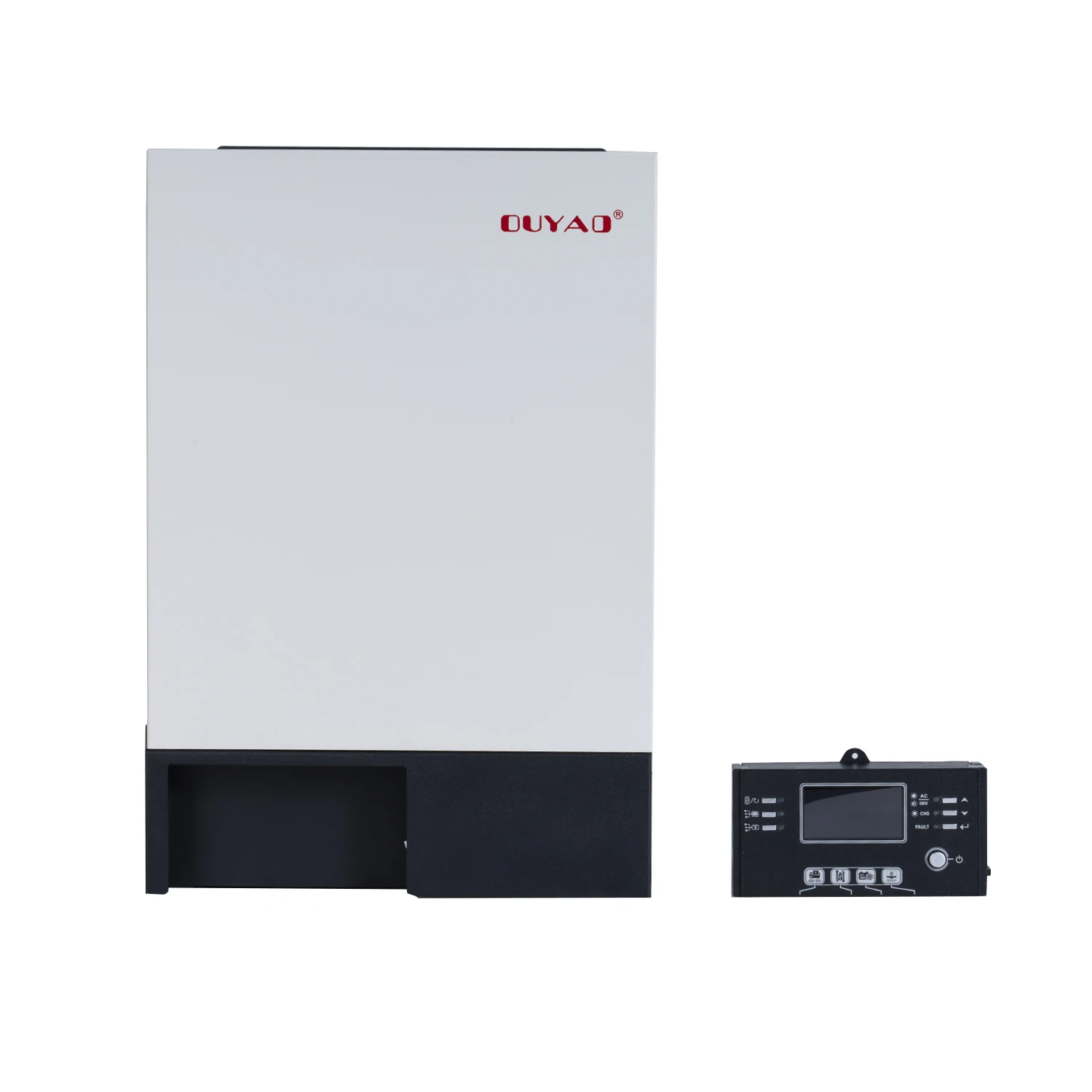

and its detachable LCD display module offers user-configurable and
easy-accessible button operation such as battery charging current, AC/
solar charger priority, and acceptable input voltage based on different
applications.
of inverter, solar charger and battery charger to offer uninterruptible
power support in portable size. Support Bluetooth for mobile monitoring,
and its detachable LCD display module offers user-configurable and
easy-accessible button operation such as battery charging current, AC/
solar charger priority, and acceptable input voltage based on different
applications.

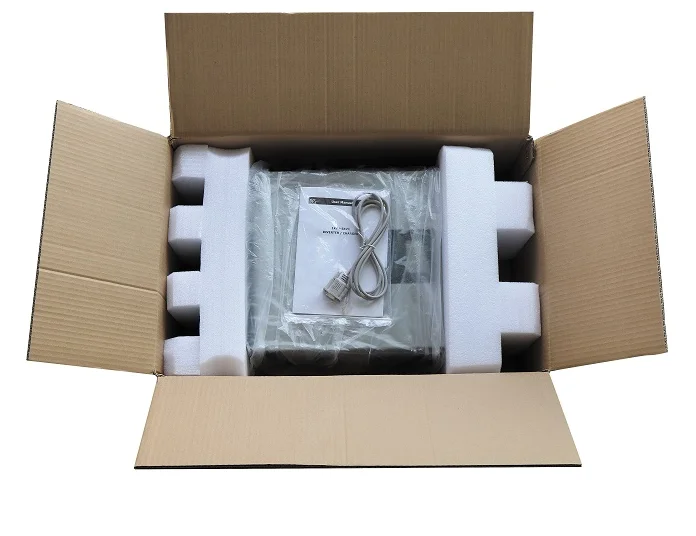

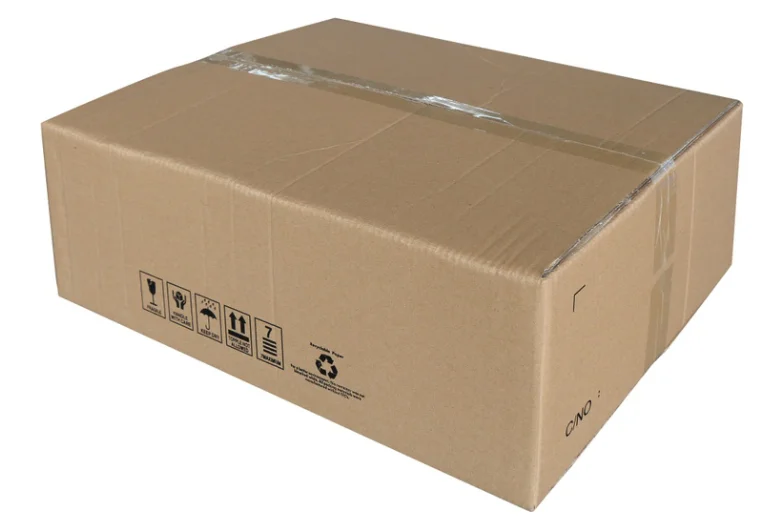

Packing&Shipping
Carton box sturdy packaging, cushioning packaging so that the product is not damaged and can be delivered safely to customers.

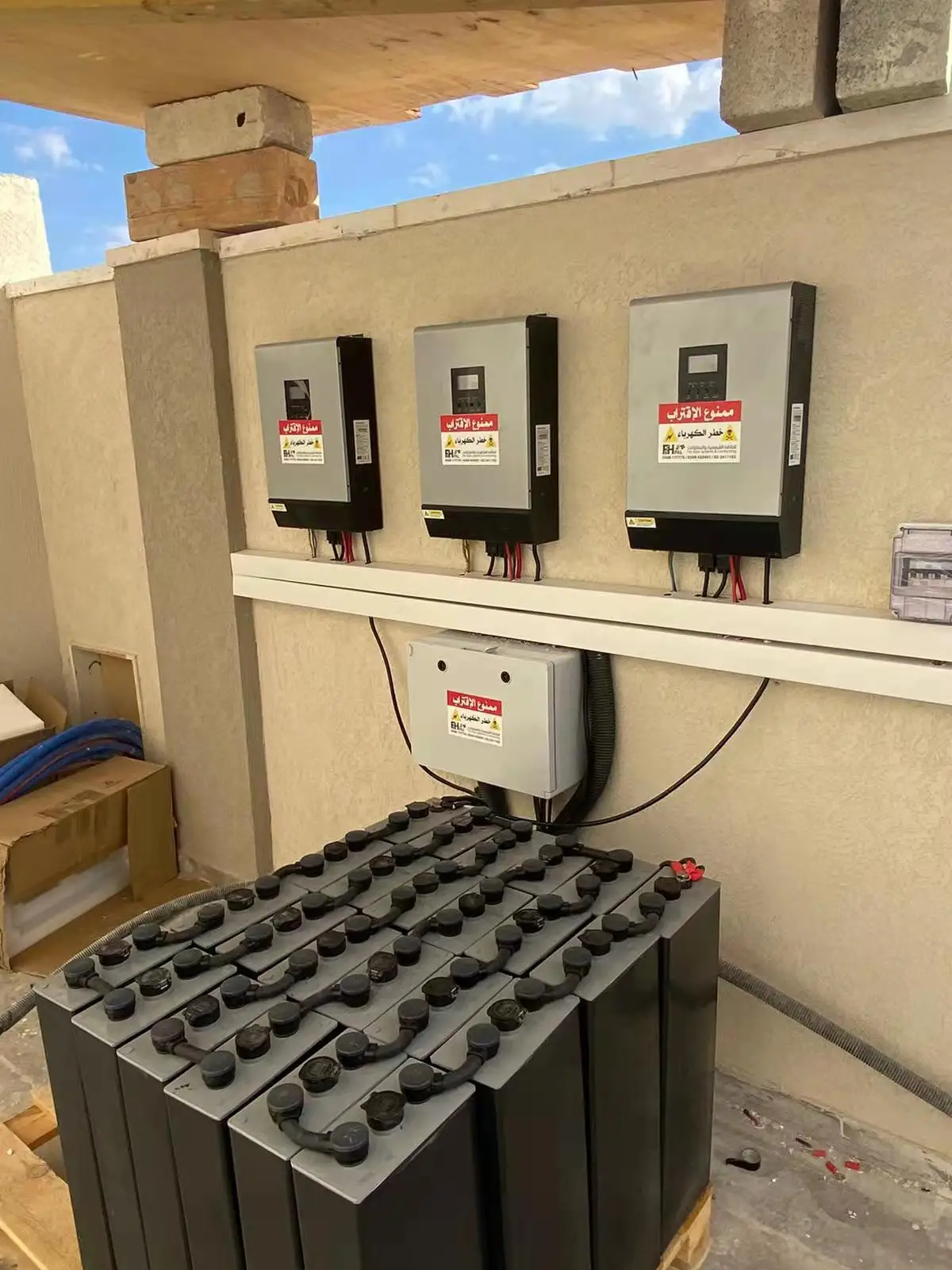

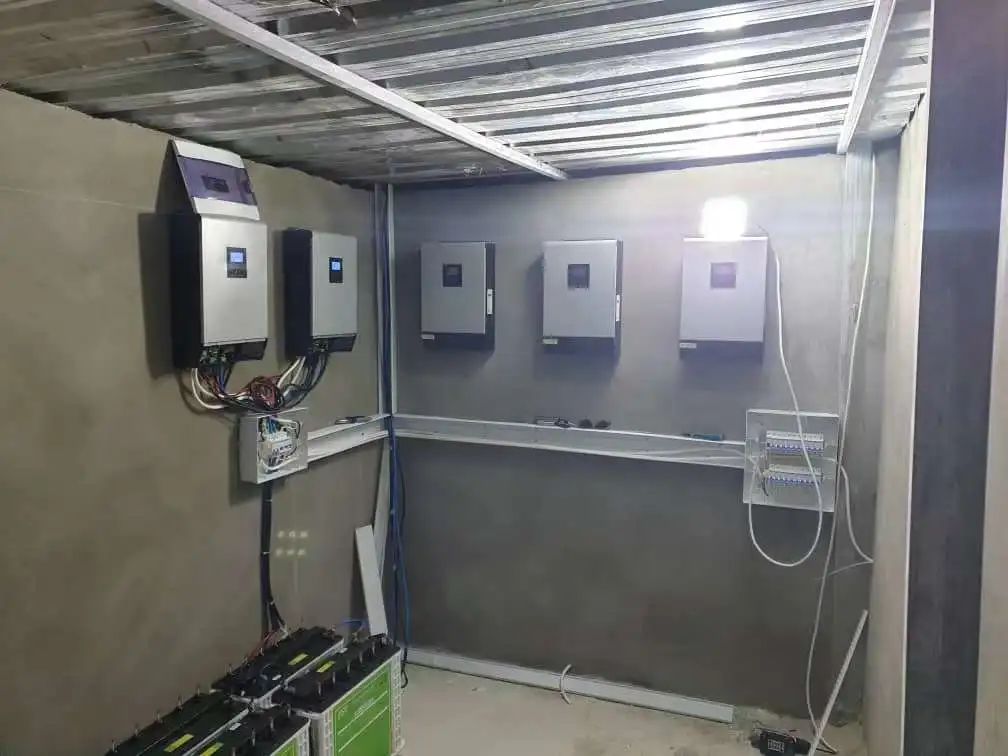

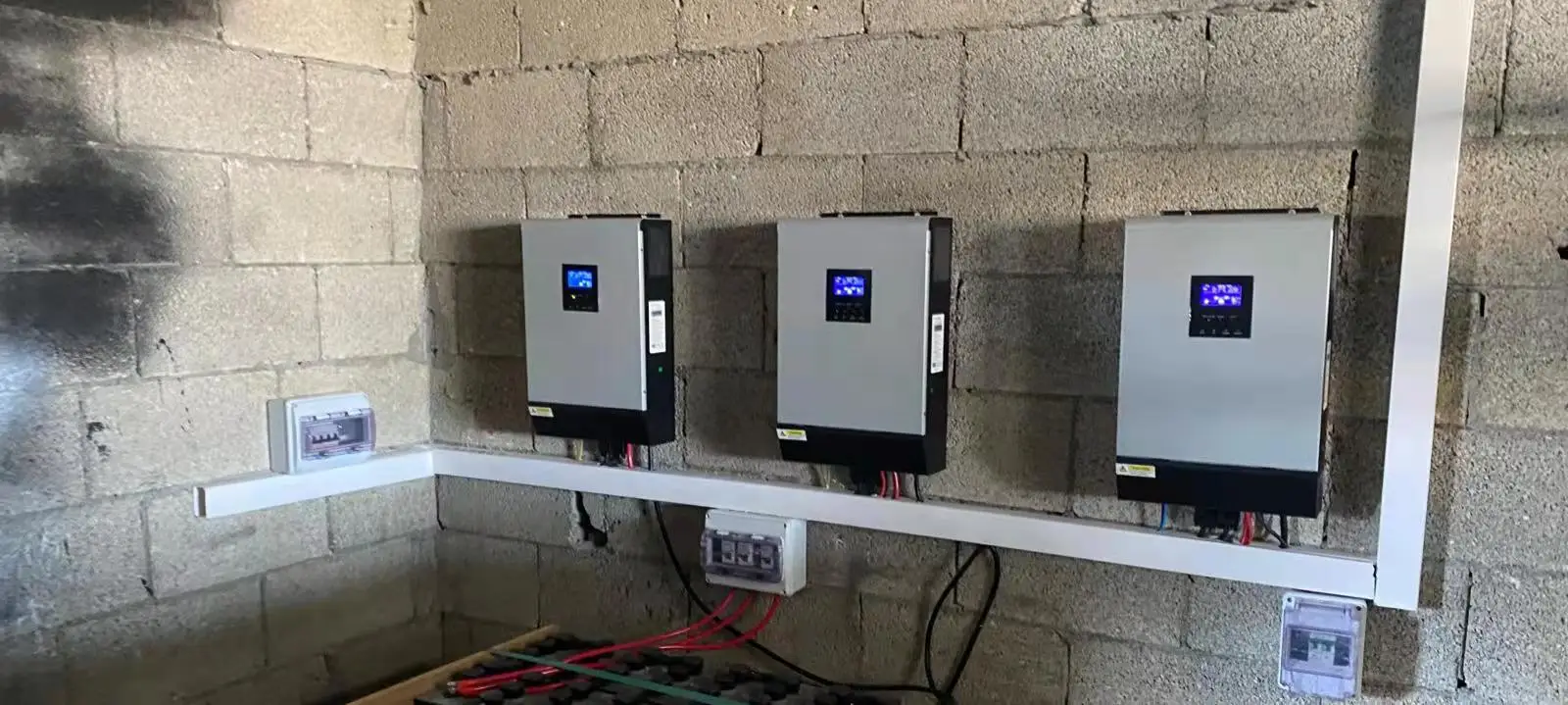

Customer Photos
Certifications
Main Honors:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
Company Profile
Foshan Ouyad Electronic Co. Ltd.
Our company is an accredited National High-TechEnterprises.Our company was founded in 2000, mainly engaged in wind, solar and other renewable energy products’ research & development, production and sales, now we’ve grow to a large-scale scientific and technological enterprises.Our mainly products are wind turbine generators, solar modules/panels, MPPT solar charge controllers, solar off grid inverters, on grid inverters, All-in-one solar LED streetlights and other wind and solar power systems products.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2007, sell to Africa(32.00%), Mid East(30.00%), Domestic Market(15.00%), Southeast Asia(15.00%), North America(2.00%), Western Europe(2.00%), Eastern Europe(2.00%), Northern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
We are based in Guangdong, China, start from 2007, sell to Africa(32.00%), Mid East(30.00%), Domestic Market(15.00%), Southeast Asia(15.00%), North America(2.00%), Western Europe(2.00%), Eastern Europe(2.00%), Northern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Inverter, Solar Panel, Wind turbine, Lithium Ion Battery, etc.
4. Why should you buy from us not from other suppliers?
Our advantages:
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems, solar inverter.
5. What services we can provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Cantonese
4. Why should you buy from us not from other suppliers?
Our advantages:
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems, solar inverter.
5. What services we can provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Cantonese
