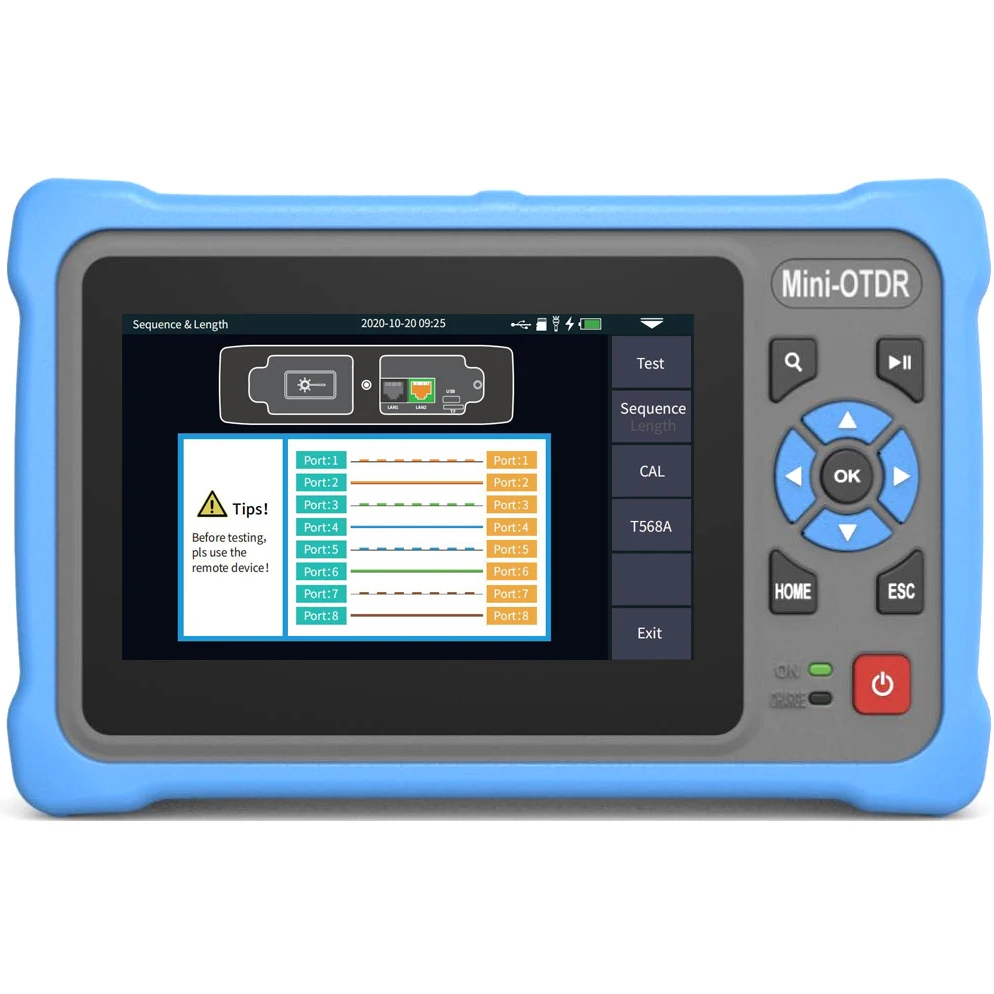

OTDR Reflectometer with Multi Functions OPM OLS VFL Auto Event Map RJ45 Cable Tester Expert Testing SC FC Connectors
- Category: >>>
- Supplier: Hefei Equilateral Communication Equipment Co. Ltd.
Share on (1600495542404):
Product Overview
Description
Products Description

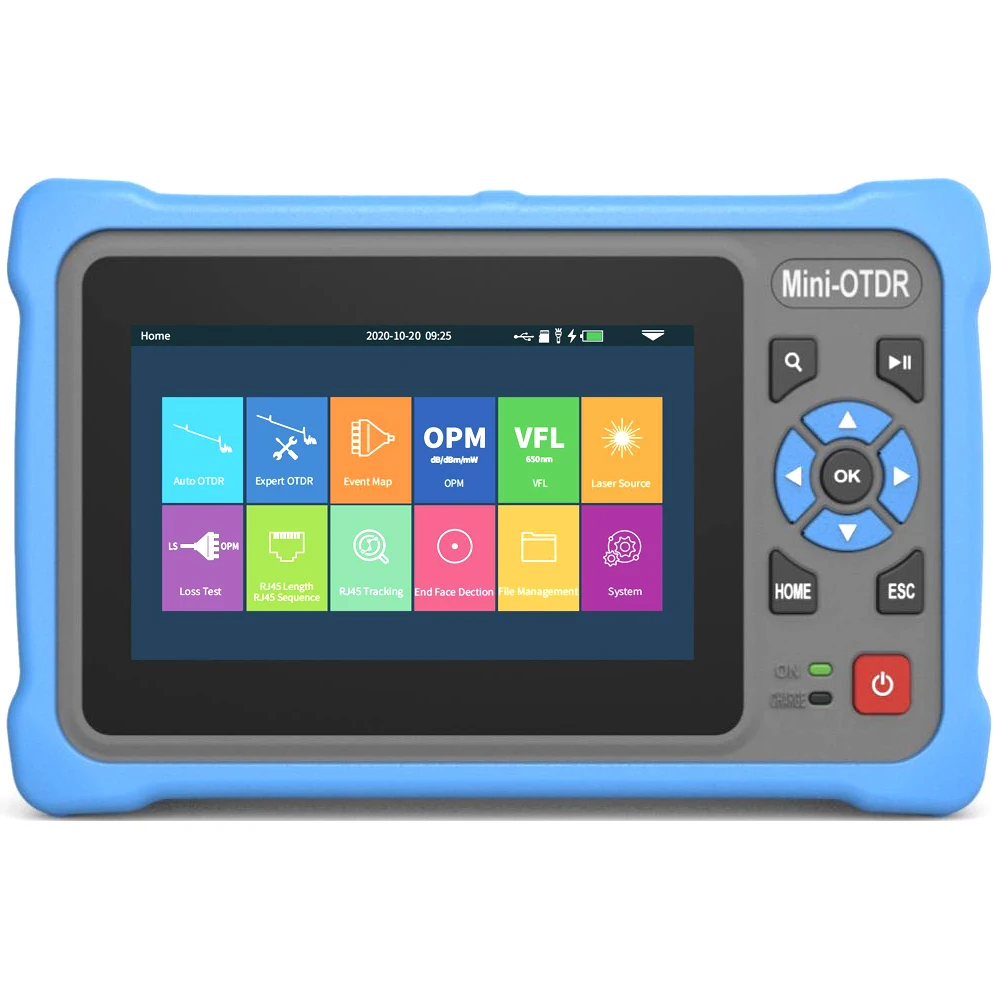

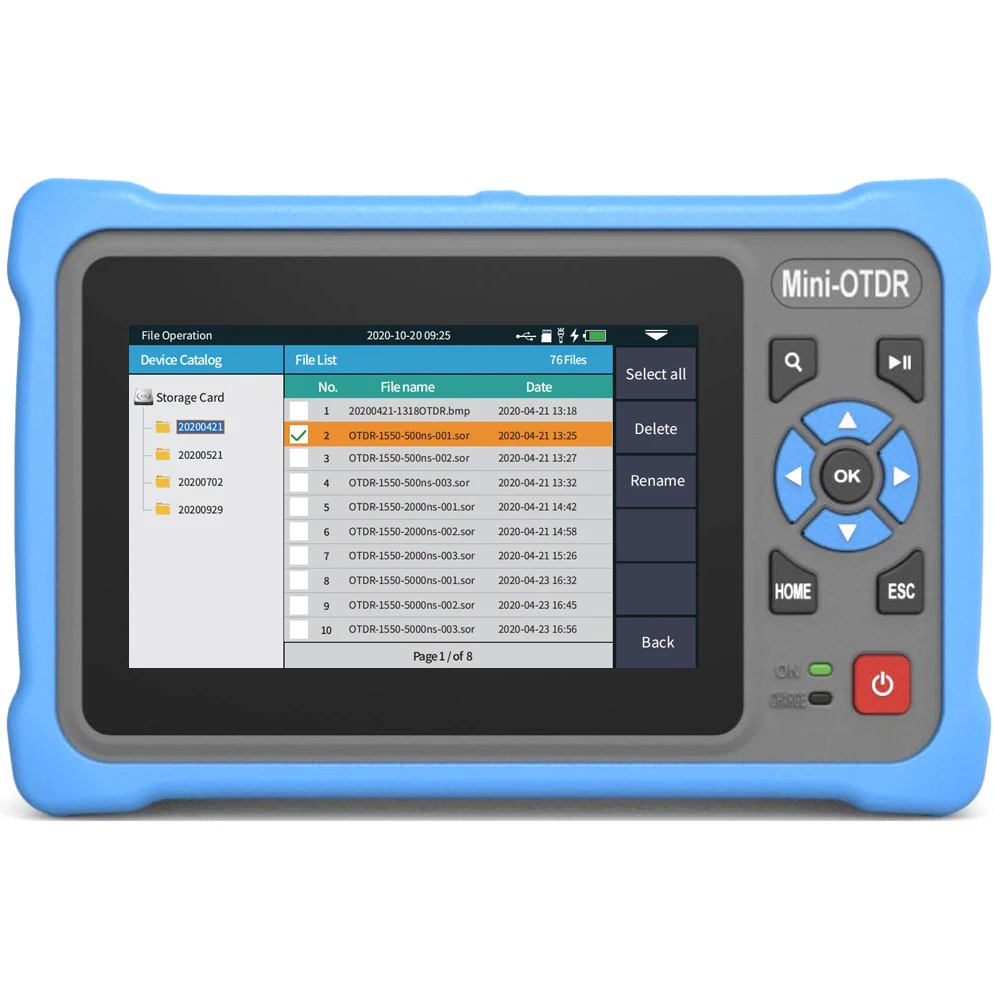

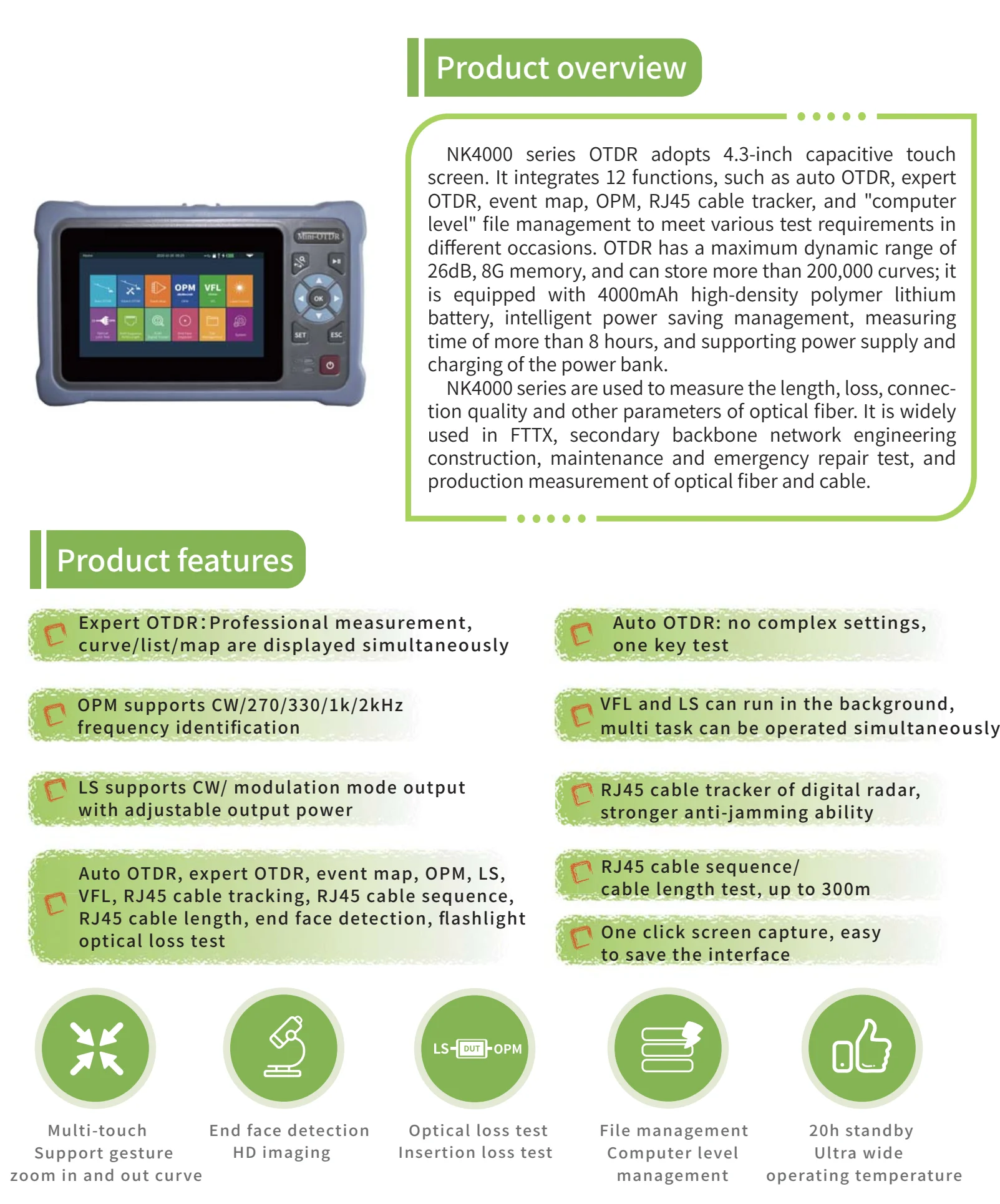

NK4000 series OTDR adopts 4.3-inch capacitive touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "computer level" file management to meet various test requirements in different occasions. OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves; it is equipped with 4000mAh high-density polymer lithium battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank.
Features

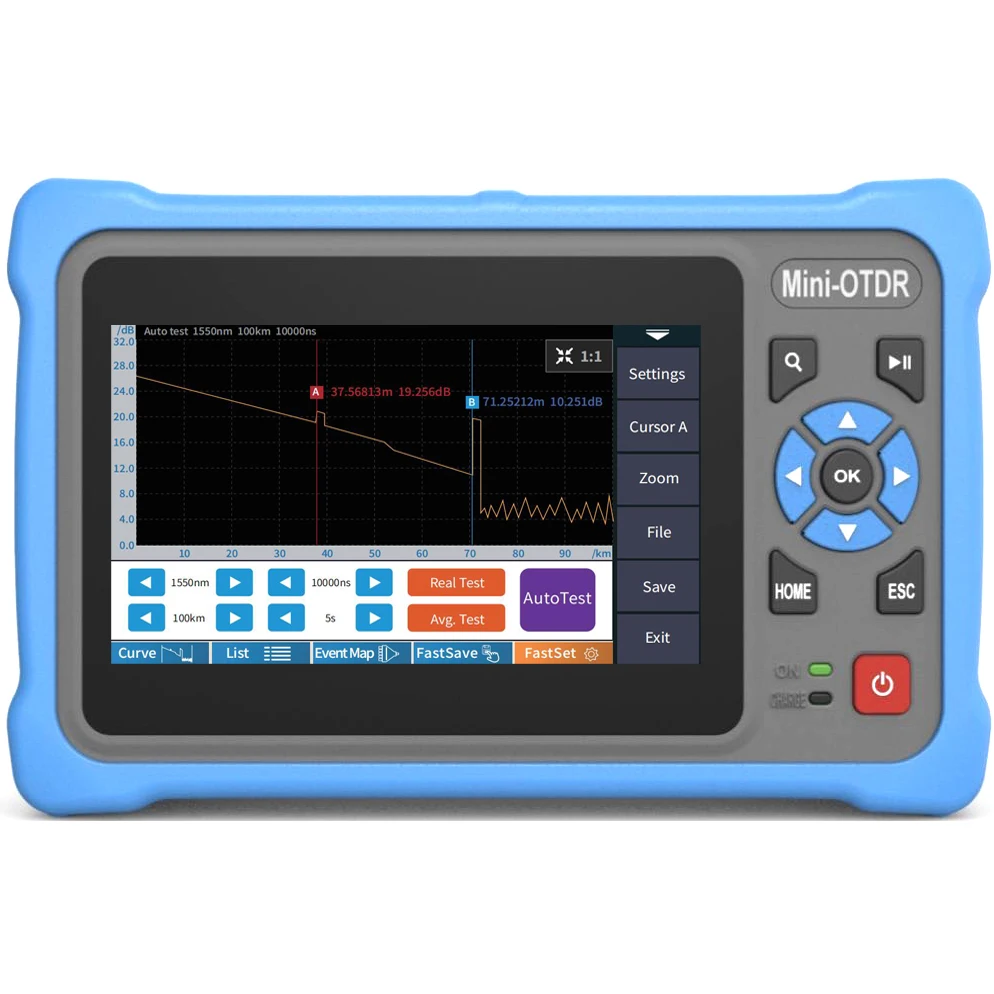

1) Auto OTDR
2) Expert OTDR
3) EVENT MAP
4) Optical Light Source
5) Optical Power Meter
6) Visual Fault Locator

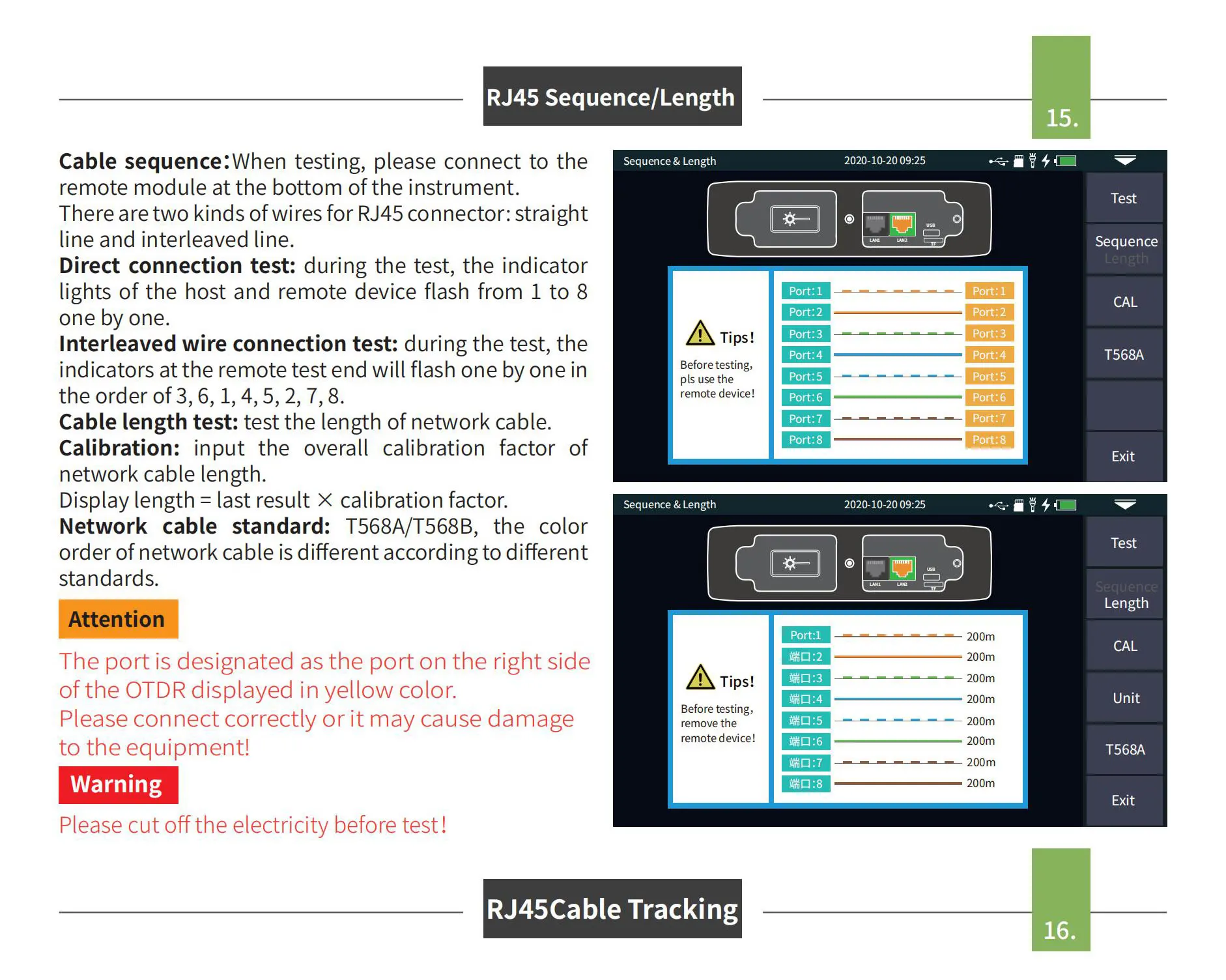

7) RJ45 Ethernet Cable Sequence
8) Ethernet Cable Distance

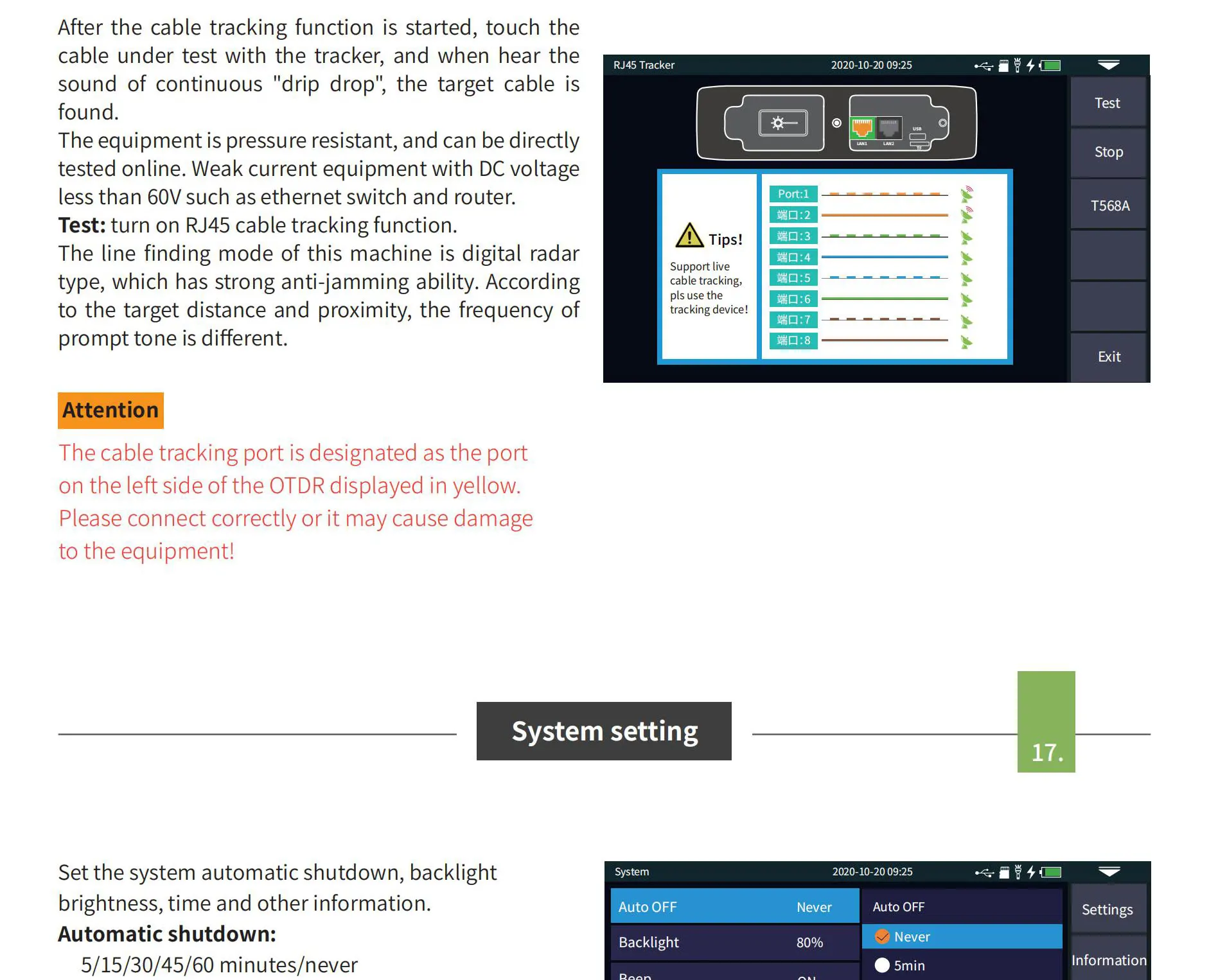

9) Ethernet Cable Tracker
10) LED Light
3) EVENT MAP
4) Optical Light Source
5) Optical Power Meter
6) Visual Fault Locator
7) RJ45 Ethernet Cable Sequence
8) Ethernet Cable Distance
9) Ethernet Cable Tracker
10) LED Light
11) End-face detection
12) Optical loss test
Product Paramenters
Model | NK4000D | |||||
Wavelength | 1310nm/1550nm±20nm | |||||
Fiber Type | G.652 SM Fiber | |||||
Dynamic Range | 26dB/24dB | |||||
Event Blind Zone | 2.5m | |||||
ATT Blind Zone | 8m | |||||
Test Range | 500m~100km | |||||

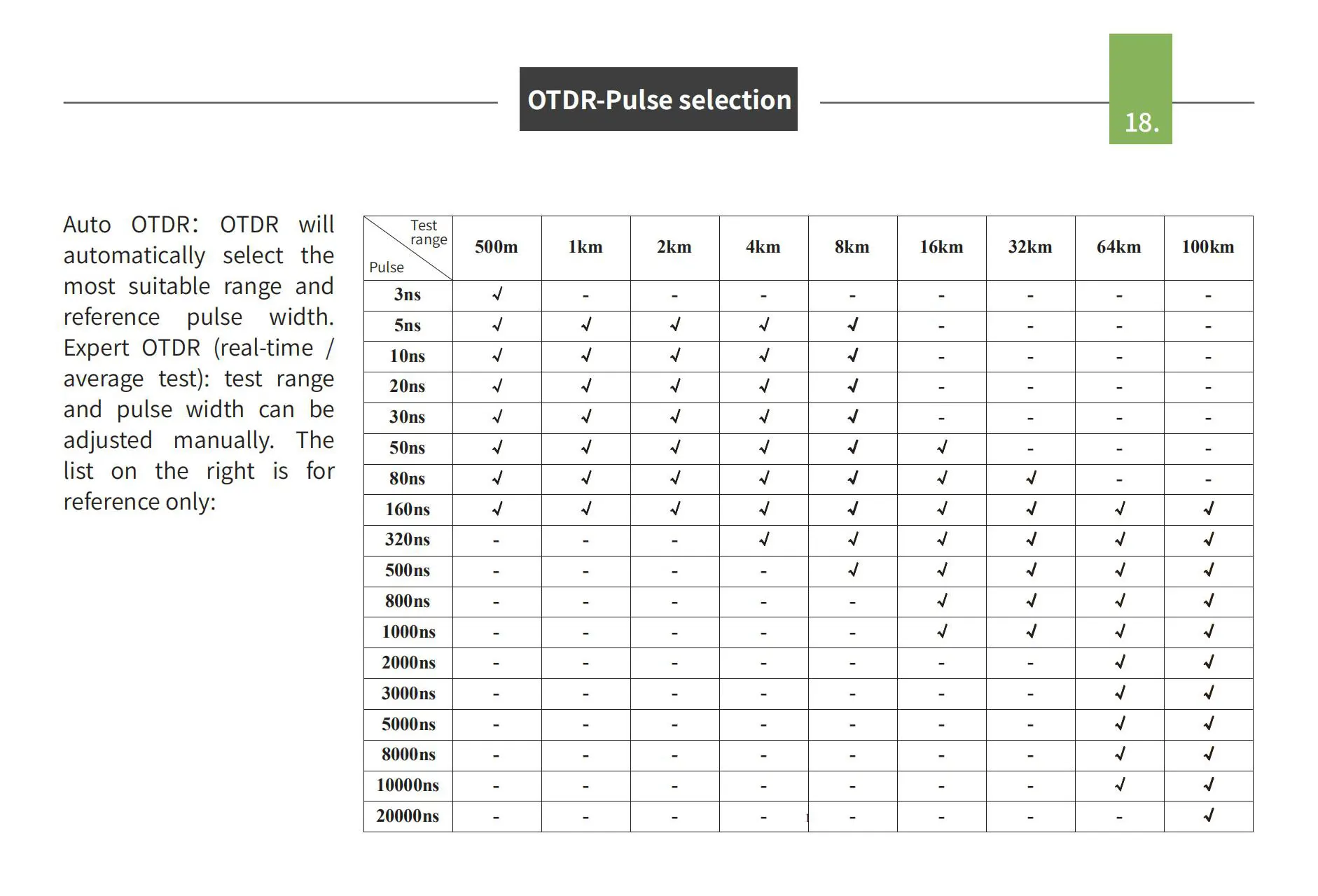

Pulse Width | 3ns~20us | |||||
Ranging Accuracy | ±（1m+Sampling Interval +0.005%+Test Distance） | |||||
Loss Accuracy | ±0.2dB/dB | |||||
Sampling Points | 16k~128k | |||||
Sampling Resolution | 0.05m~8m | |||||
Reflection Accuracy | ±3dB | |||||
Data Storage | Internal：≥600；External：TF Card | |||||
Laser Safety Level | Class Ⅱ level | |||||
File Format | SOR Standard File Format | |||||
Connector | FC/UPC（Interchangeable SC、ST） | |||||

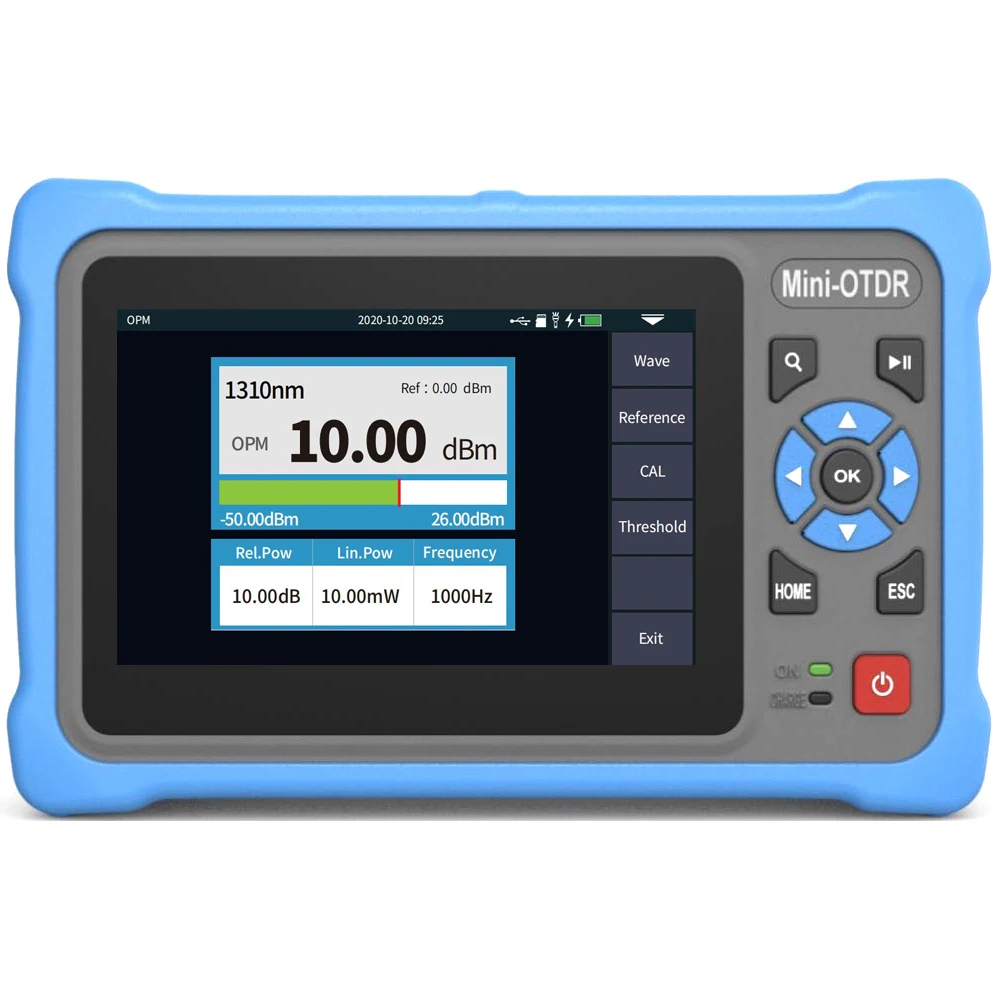

OPM | ||||||
Wave Range | 800nm~1700nm | |||||
Interface Type | Universal Joint FC/SC/ST | |||||
Test Range | -50dBm～+26dBm | |||||
Uncertainty | ±5% | |||||
Frequency Identification | CW/270/330/1k/2kHz | |||||
Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |||||
LS | ||||||
LD Type | FP-LD | |||||
Output Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm | ||||
Output Power | ≥-5dBm | |||||
Modulation Frequency | 270/330/1k/2kHz | |||||
Stability | CW，±0.5dB/15min（Test after15mins of preheating） | |||||
Connector | FC/UPC（Interchangeable SC、ST） | |||||
VFL | ||||||
Work Wavelength | 650nm±20nm | |||||
Output Power | ≥10mW | |||||
Mode | CW/1Hz/2Hz | |||||
Connector | FC/SC/ST | |||||
RJ45 Cable Length Measurement | ||||||
Test Range | 300m | |||||
Other Parameters | ||||||
Dispaly | 4.3 inch Color LCD | |||||
Data Interface | Micro USB | |||||
External Storage | TF Card | |||||
Power Supply | Polymer Li-battery：3.7V，4000mAh Power Adapter：5VDC，2A | |||||
Battery Life | Standby＞20h；Measuring Time＞12h | |||||
Operating Temperature | -10℃～+50℃ | |||||
Storage Temperature | -40℃～+70℃ | |||||
Relative Humidity | 0～95％Non Condensing | |||||
Weight | ≤350g | |||||
Dimension | 173mm×82mm×37mm | |||||
