Embedded fanless Industrial computer bareone pc with 8 lan 12pin GPIO 4 POE
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen,Hanzsung,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Intel IoT Solutions
We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe
YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.
YANYUGONGKONG also provide the service of custom design to meet your special requirement.
Chassis / PVC membrane etc can custom.
oem network appliance/ Nano computer etc.
Product Description

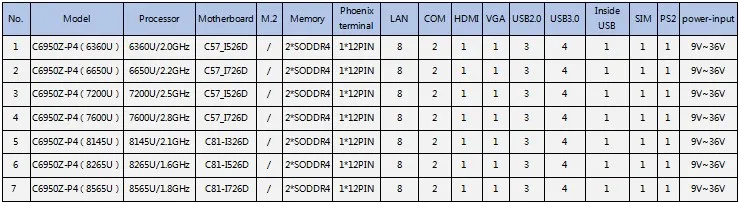

Model | C6950Z-P4(6360U) V1.0 | |
Chassis
| Material/structure | All aluminum alloy without fan |
colour | Bright black | |
Dimensions (length, width, height) | L235*W192*H68mm | |
installation | Desktop/embedded | |

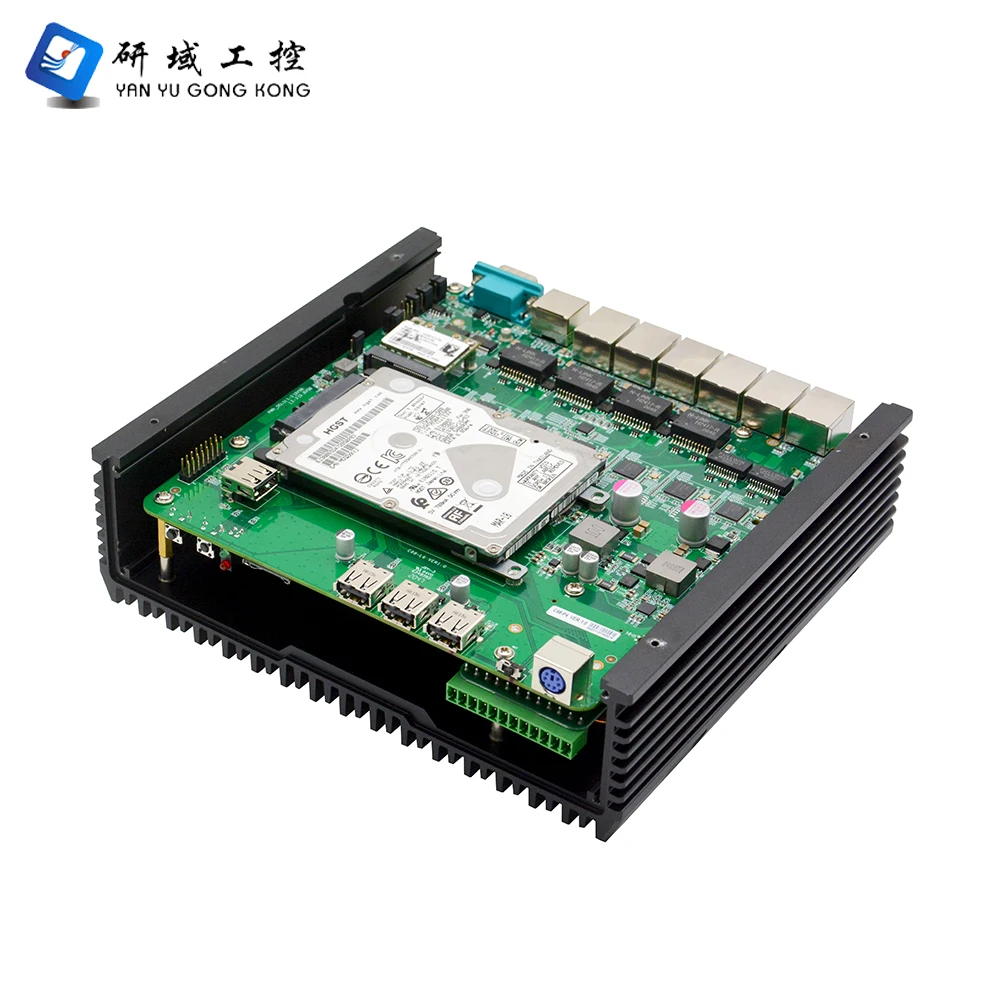

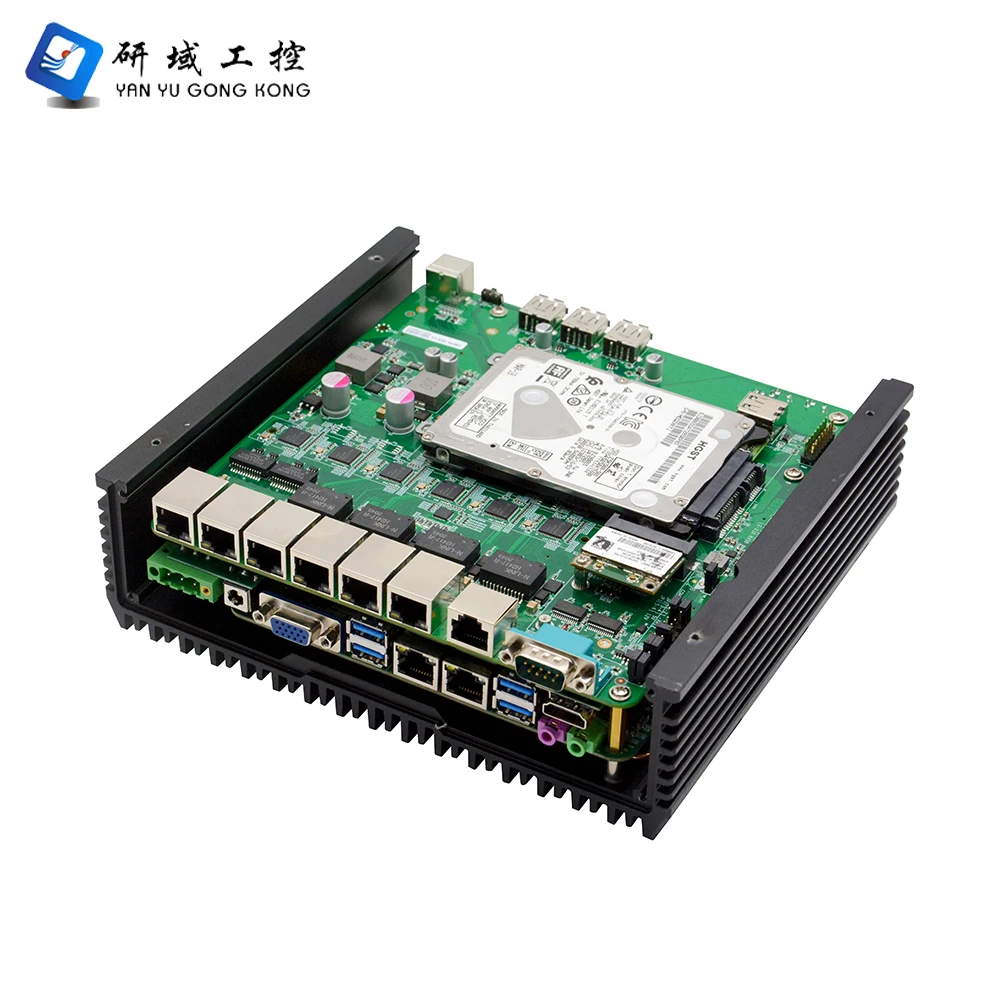

Motherboard
| CPU | Integrated Intel® I5-6360U 2.0GHz dual-core four-thread processor, TDP15W |
System chip | Based on Intel®Skylake-U SOC platform | |
display | Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4, supports 4K | |
RAM | 2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB | |
Front panel interface
| POWER | 1* power switch, 1* reset switch |
AC LOSS | 1*AC LOSS (Toggle switch when power on) | |
USB | 3* USB2.0 interface, 1* built-in USB dongle | |
Phoenix terminal | 1*12pin, support four in and four out GPIO, switch, 5V | |
PS2 | 1*PS2 interface | |
led | 1* power indicator light, 1* hard disk indicator light | |
SIM | 1* SIM card slot, 3G/4G module application | |

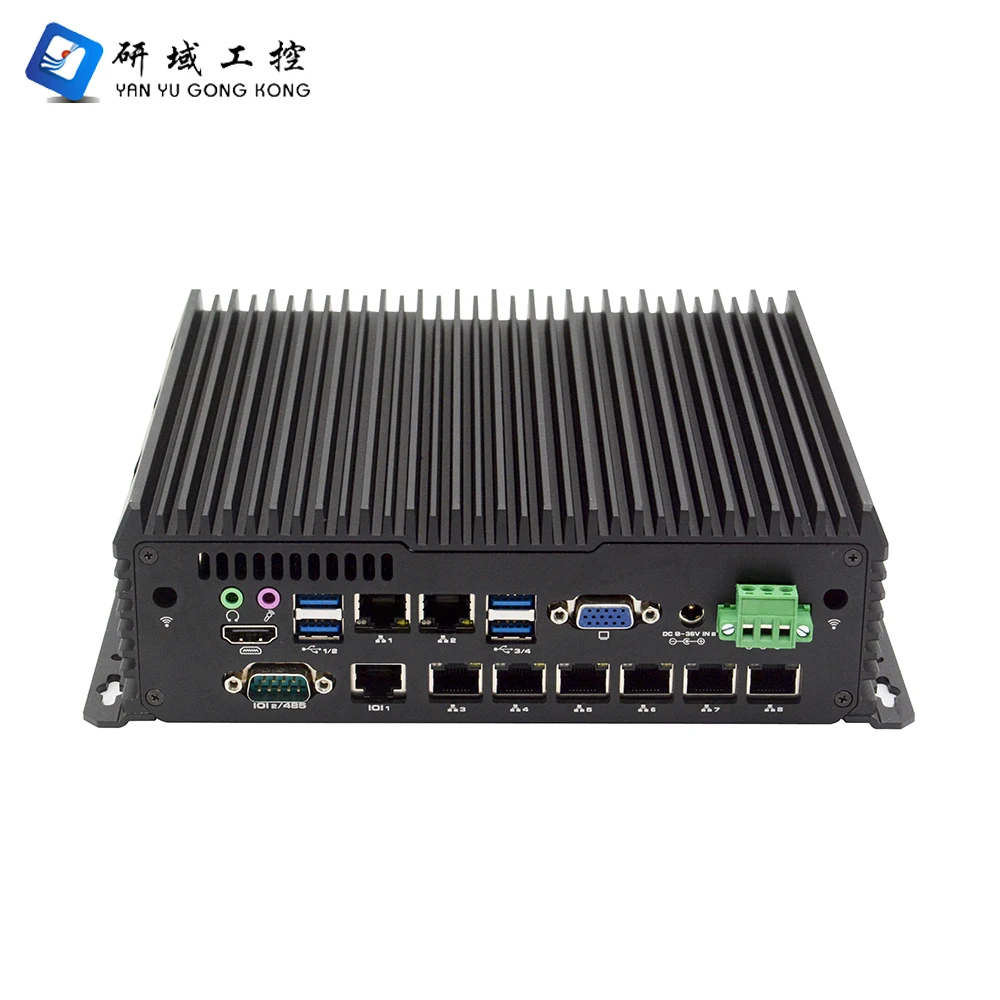

Rear panel interface
| Display interface | 1*VGA interface, 1*HD OUTPUT1.4 interface |
LAN | 8* Intel® WGI211AT gigabit network card, support Wake on LAN, PXE function, LAN3~6 support POE function | |
USB | 4* USB3.0 interface | |
COM | 1* DB9 RS232 serial interface, support RS232/485 switch, support the 9th pin charged function, 1*RJ45 CONSOLE standard serial port, support RS232/485 switch | |
Audio | 1* Line out interface, 1* MIC interface | |
power supply | 1* DC power adapter interface, 1* 3pin power interface, support 9~36V power input | |
storage
| SATA | 1*2.5 inch hard drive expansion |
Solid state drive | 1* MSATA SSD solid state drive expansion, transmission speed up to 6Gbps | |
Expand
| Mini PCIE | 1* Mini PCIE slot, support WIFI/4G module, Note: WIFI and LAN8 are two options, the default is LAN8 |
M.2 | N/A | |
software support
| Microsoft Windows | Windows 10, 64bit (without key) |
Linux | Ubuntu | |
Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) | |
Power requirement
| Power type | External power adapter or open power supply |
Voltage input | 9V~36V wide voltage | |
Power output | 36W~180W | |
surroundings | Operating temperature | -10℃~60℃ |
storage temperature | -20℃~70℃ | |
Relative humidity | 5%-95% relative humidity, non-condensing | |
Work vibration | 0.5g rms/5-500HZ/random/operating | |
