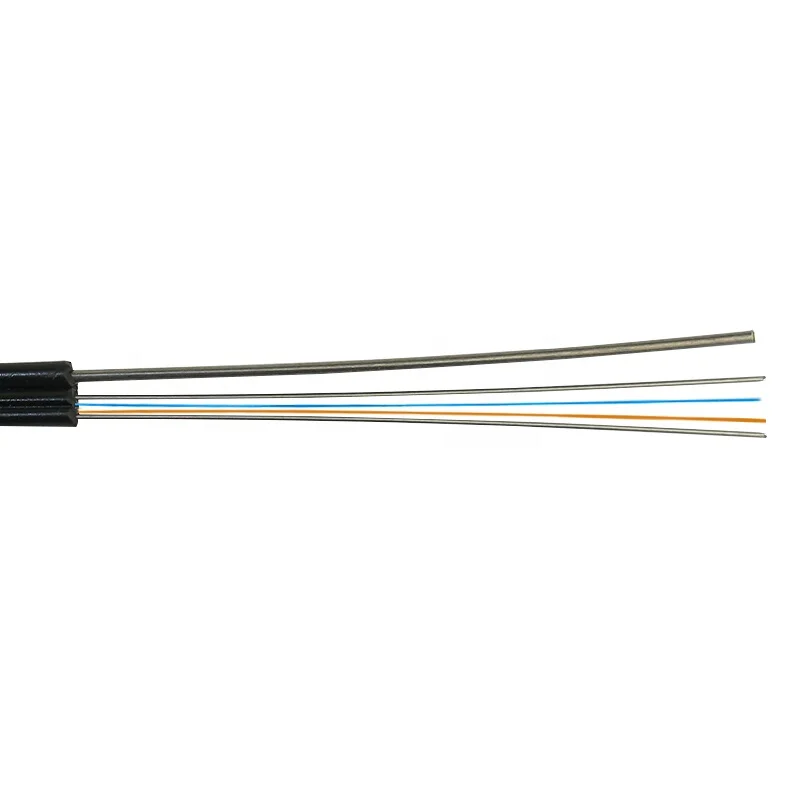

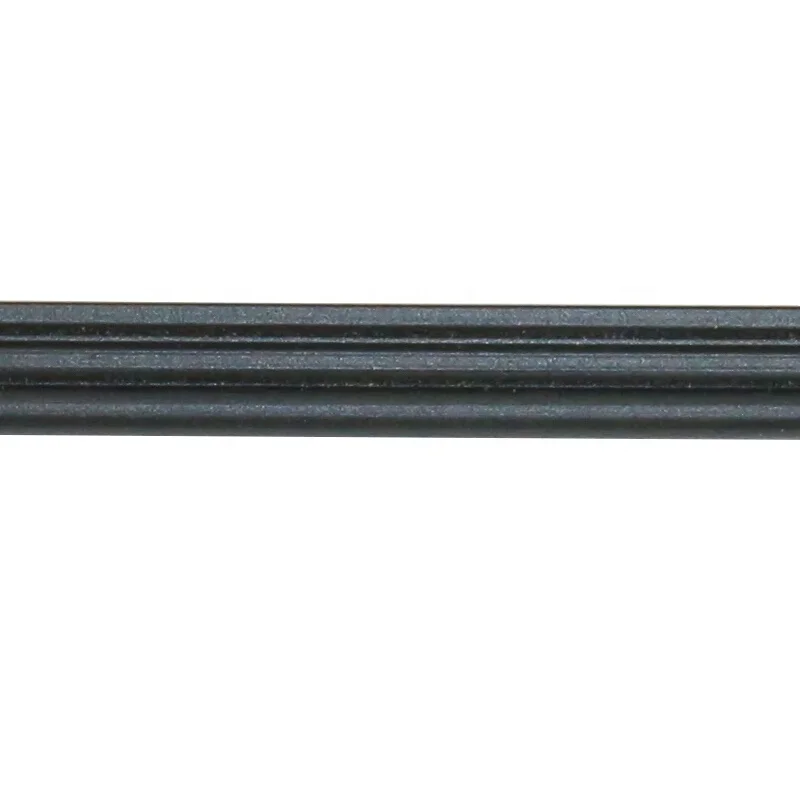

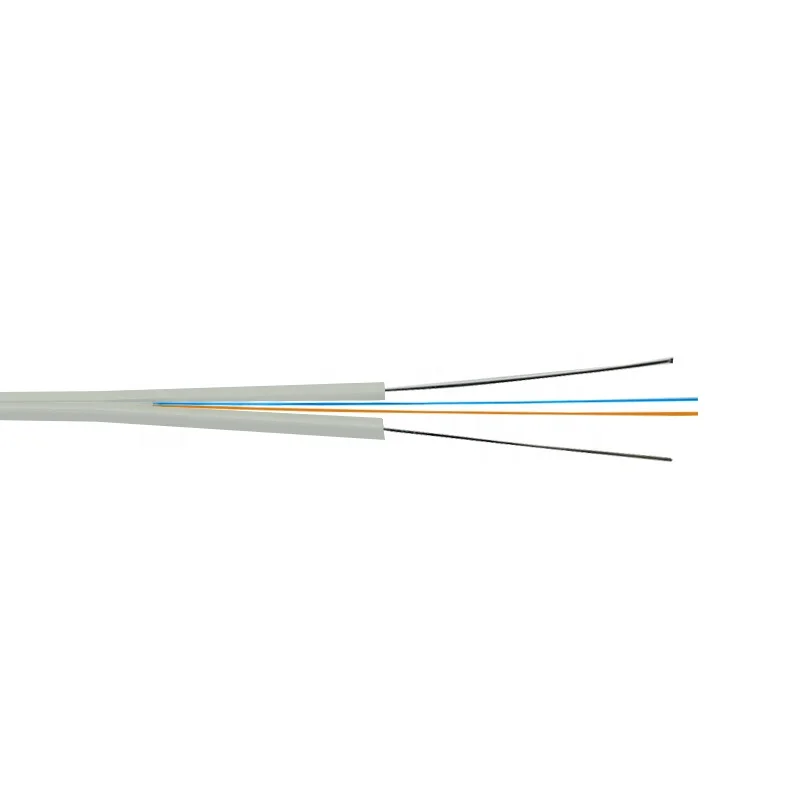

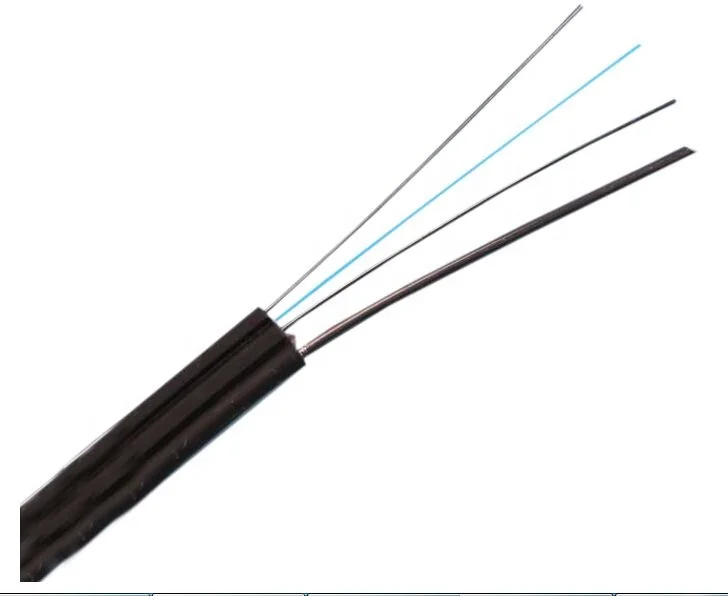

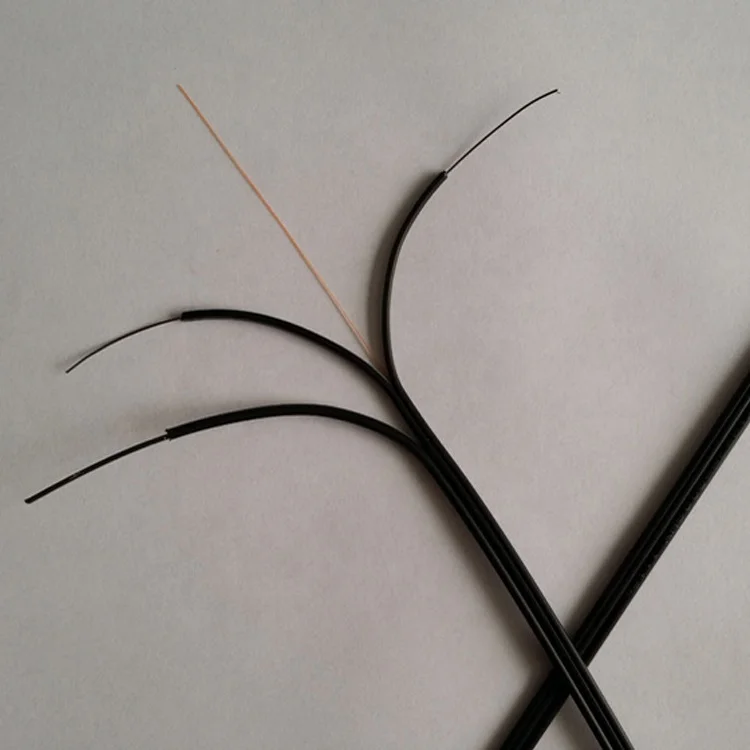

Factory FTTH drop wire flat G657A fiber optic cable
DescriptionThe optical fiber unit is positioned in the centre. A dropping wire and Two parallel Fiber steel massenger are placed at the two sides. A
steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Characteristics
1 · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
3· Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
4· Simple structure, light weight and high practicability;
5· Novel flute design, easily strip and splice, simplify the installation and maintenance;
6· Low smoke, zero halogen and flame retardant sheath.
G.652 | G.655 | 50/125μm | 62.5/125μm | |||
Attenuation (+20°C) | @850nm | ≤3.5 dB/km | ≤3.5 dB/km | |||
@1300nm | ≤1.5 dB/km | ≤1.5 dB/km | ||||
@1310nm | ≤0.45 dB/km | ≤0.50 dB/km | ||||
@1550nm | ≤0.30 dB/km | ≤0.50dB/km | ||||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
No. | Items | Unit | Specification | ||
G.657A1 | |||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 | |
1550nm | μm | 10.1±0.5 | |||
2 | Cladding Diameter | μm | 124.8±0.7 | ||
3 | Cladding Non-Circularity | % | ≤0.7 | ||
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ||
5 | Coating Diameter | μm | 245±5 | ||
6 | Coating Non-Circularity | % | ≤6.0 | ||
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ||
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | ||
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 | |
1550nm | dB/km | ≤0.21 | |||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 | |
1turn×10mm radius@1625nm | dB | ≤1.5 | |||
Details Images
Recommend Products

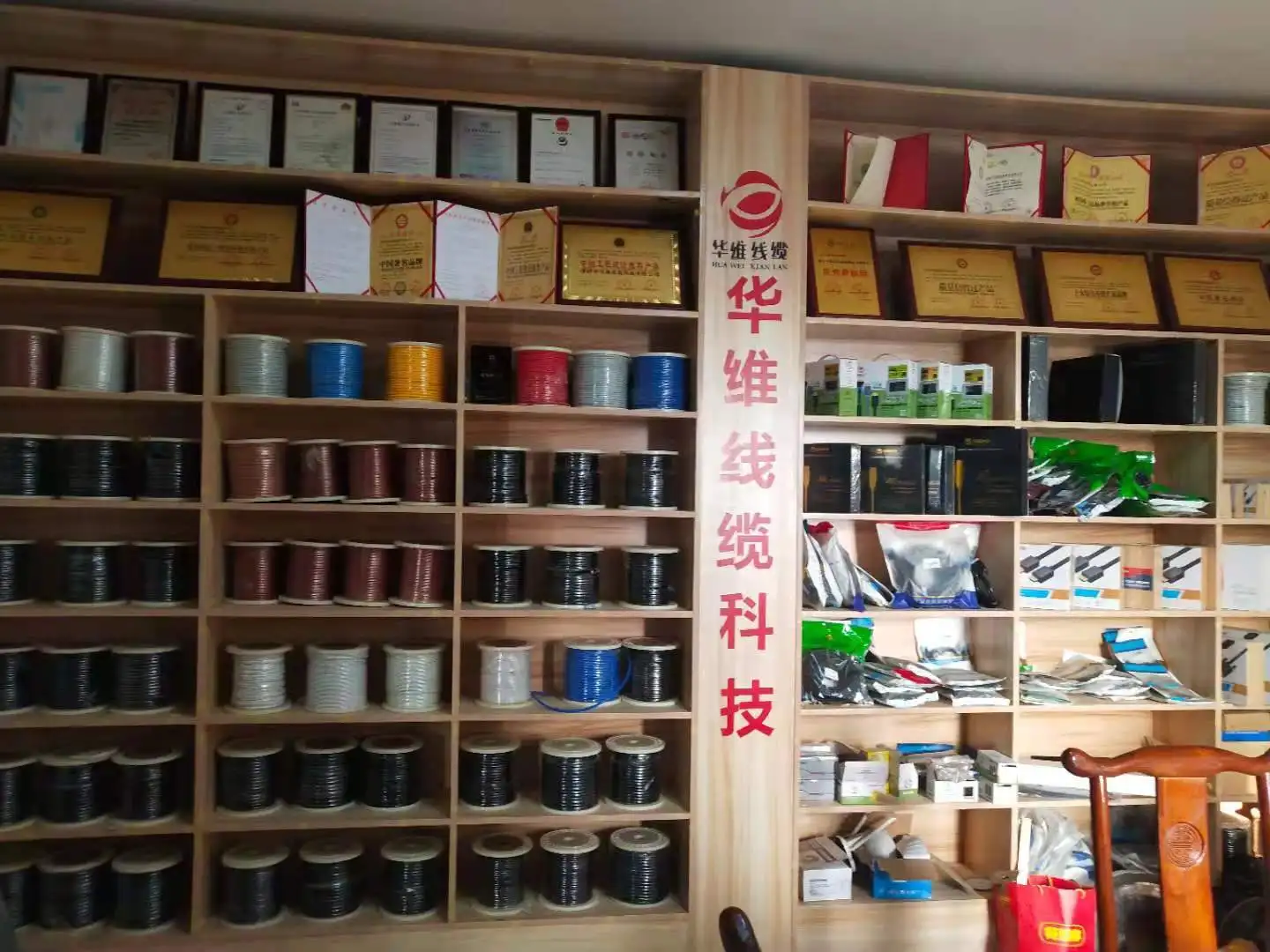

Company Profile
HuaweiCable technology co., ltd. is a company specializing in various types of wire and cable manufacturers. Company in strict accordance with national standards of production since the establishment and achieved a high reputation and share in the Market. Huawei Cable Technology Company's leading products: Plastic insulated cables, Plastic insulated control cables, Plastic insulated wire XLPE power cable, Low smoke no halogen cable, aluminum alloy cable, mineral cable includes flame retardant series, at the same time provides Custom Service for various special type cable according to customers' demand. The Huawei Cable Technology has a skilled professional team, modern production equipments and sophisticated detection instruments. To ensure the remarkable quality of products, HuaweiCable Technology established a perfect quality management system in accordance with the ISO9001 and manufactured in a omnibearing quality control. The HuaweiCable Technology Company's products have been sold well all over the country since it came to market and have won the National Compulsory CCC certification .Meanwhile our quality management is cetificated by ISO9001-2008 quality management system and successively achieve the honour such as China famous products, Quality trustworthy product, Consumer trust products and so on.HuaweiCable Technology provide qualified substantial products which is the first choice for customers. We promise that customer is the guardian of our products and express sincerely welcome to people from all walks of life coming to visit and guide.

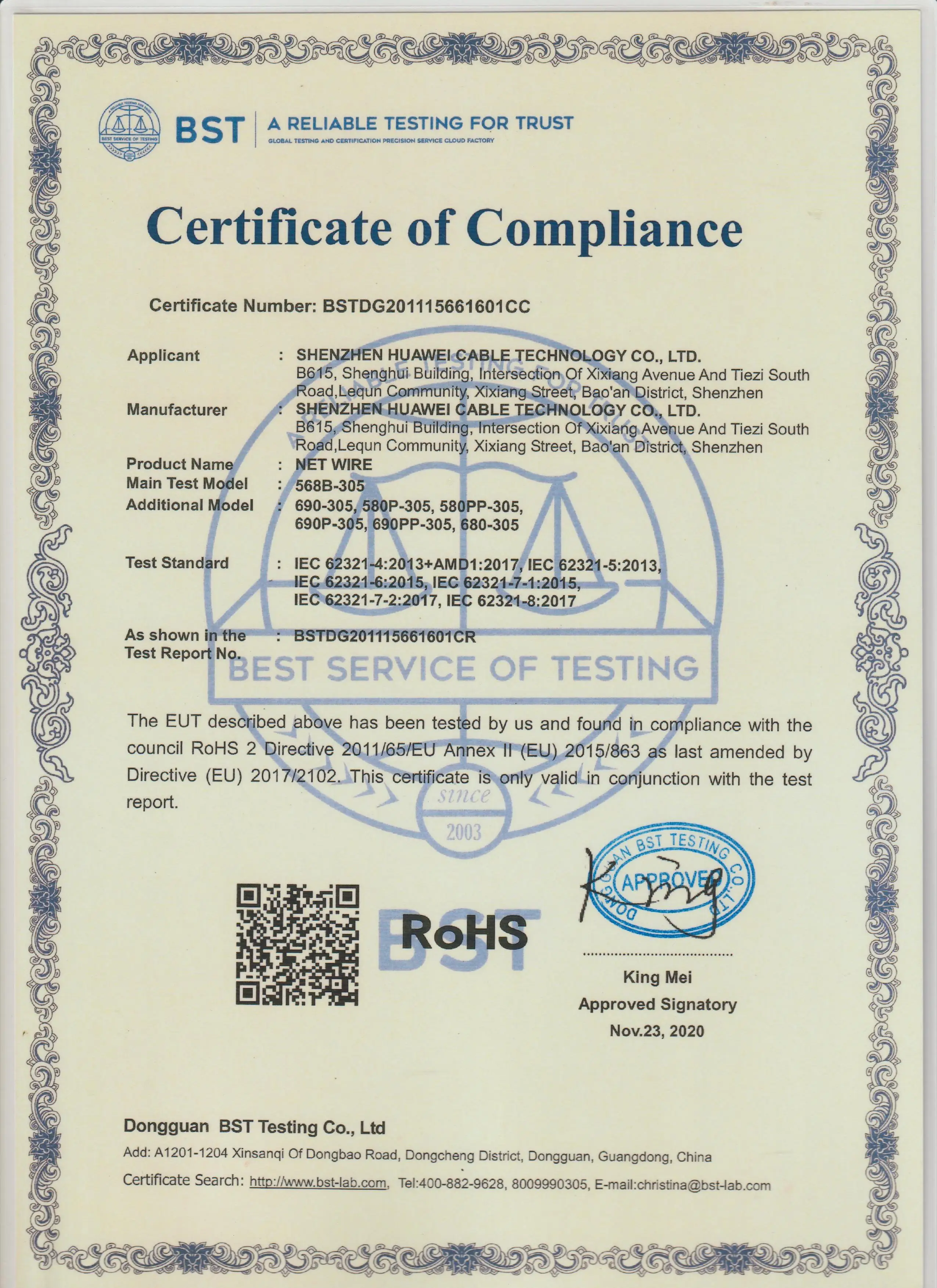

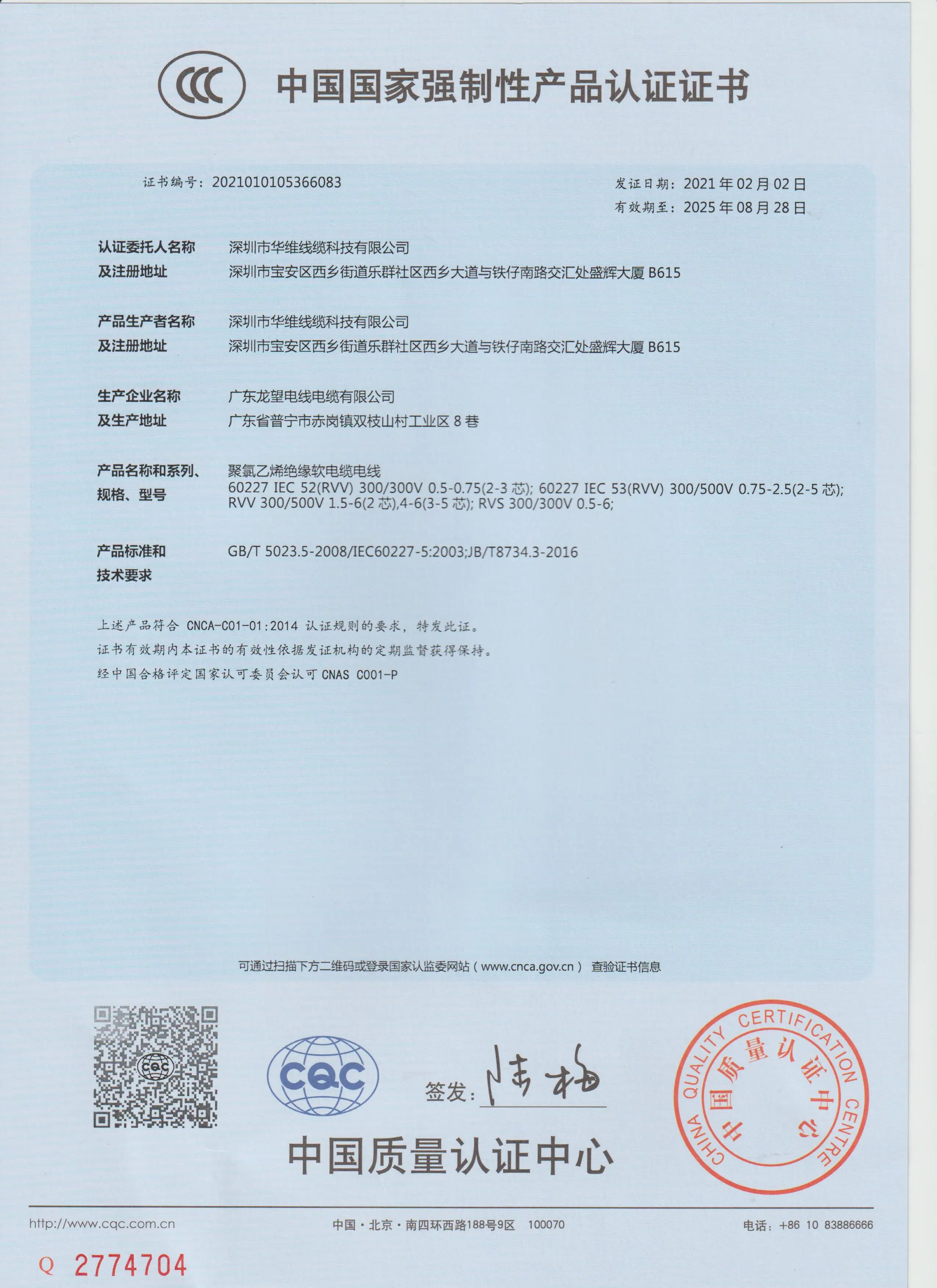

Certifications
