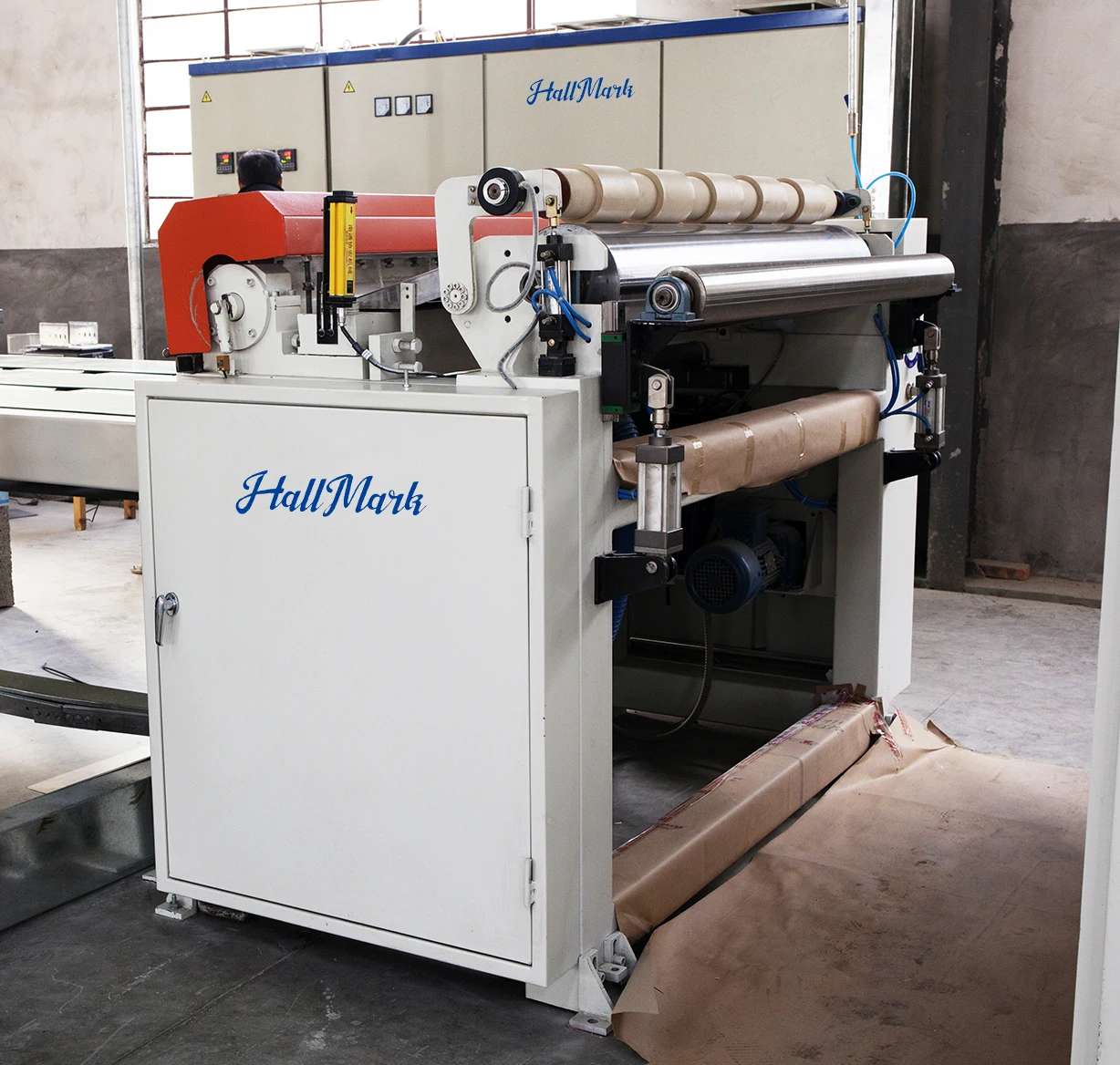

low price decorative paper impregnation machine for balance paper /wear paper/kraft paper with thermal oil or gas
- Category: >>>
- Supplier: Changzhou Sum Industry Limited
Share on (1600495808103):
Product Overview
Description
Product Overview

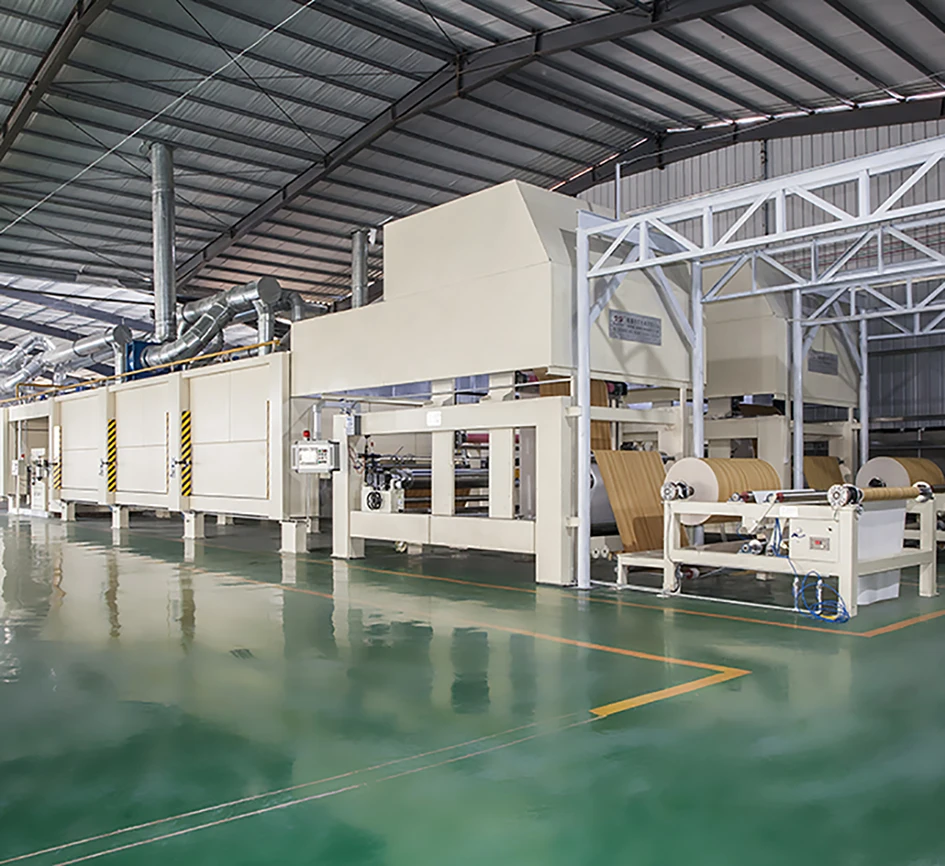

Paper impregnation line

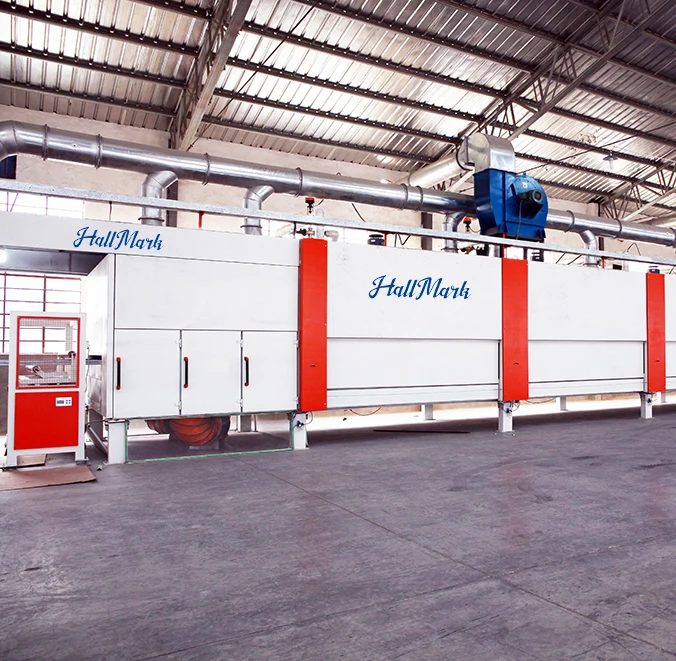

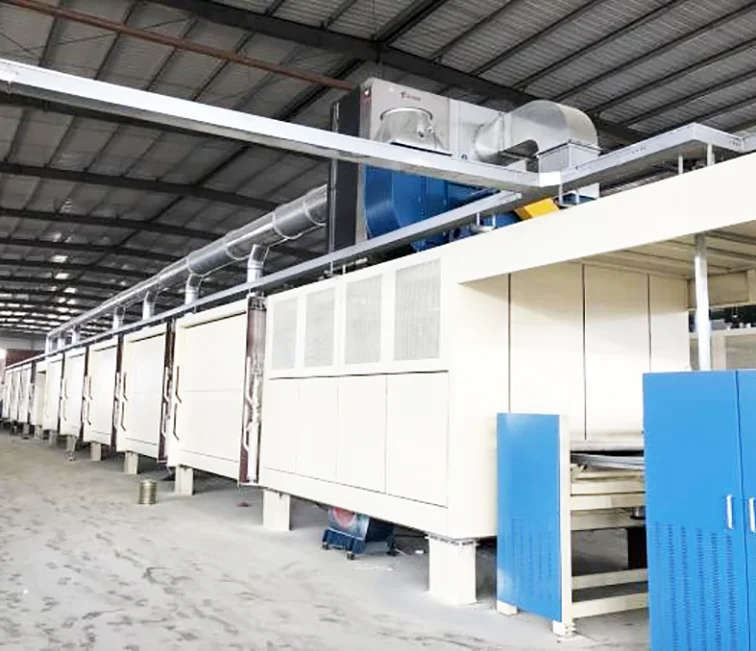

Paper impregnation line is equipment with unwinder, automatic paper splice device to achieve constant production and increased productive efficiency. Pre-wetting with adjustable penetration path, precise metering adjustment by electrical motor to ensure a well-balanced resin covering. High efficient drying carried out by dedicated nozzles and frequency controlled radial fan. The temperature of each dryer can be individual controlled. Advanced aligning system guarantees precise cutting, accurate and wrinkle-free stacking. The sophisticated paper-stack replacing device provides abundant time and convenient operation for replacing paper-stack.
FEATURES AT A GLANCE

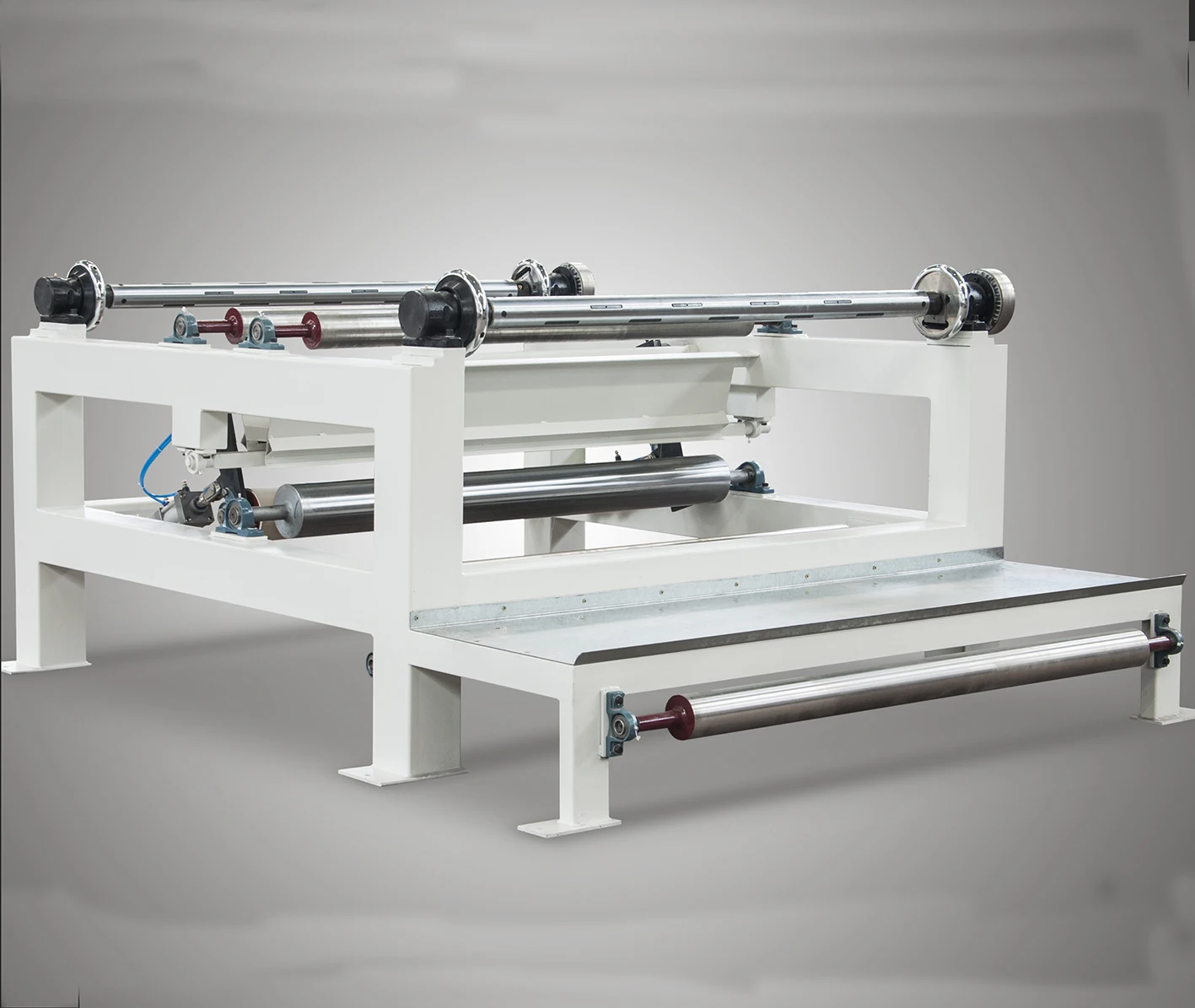

Unwinder

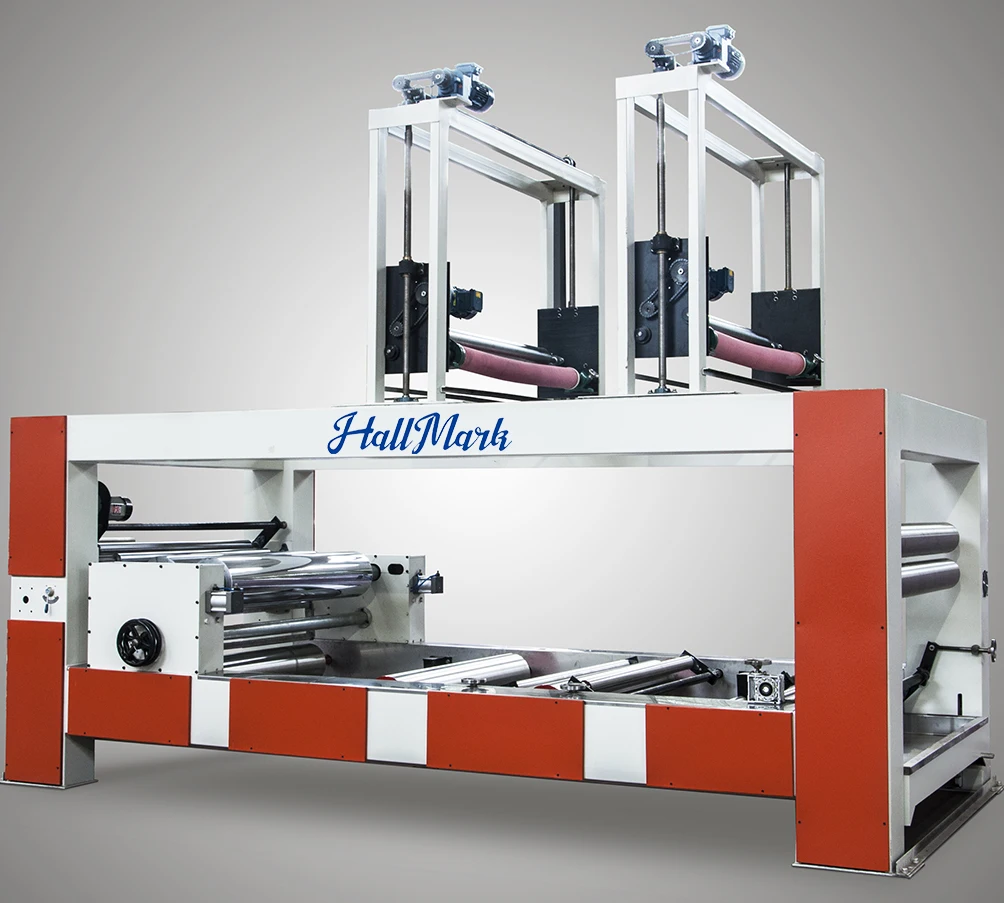

First impregnation machine
Second paper coating machine
Knife cutter
PRODUCT SPECIFICATIONS
No. | Item | Parameter |
1 | Based paper | Kraft paper |
2 | Resin | PF,UF |
3 | Working width | ≤1500mm |
4 | Mechanical speed | 60m/min |
5 | Working speed | 10-50m/min |
6 | Heating medium | Thermal oil |
7 | Oven temperature | ≤180℃ |
8 | Temperature control accuracy | ±1℃ |
9 | Glue pick-up | 80%～200% |
10 | Glue pick-up accuracy | ≤±2% |
11 | Volatile content | 6.5%～8% |
12 | Volatile content accuracy | ≤0.5% |
13 | Paper cutting accuracy | ±1mm |
14 | Installed capacity | 72kw |
15 | Oven length | 3.75m×6=22.5m |
16 | Total length of equipment | 52.3m |
PRODUCT CONFIGURATION
No. | Name | Manufacturer | State |
1 | PLC | Siemens | Germany |
2 | Transducer | Siemens | Germany |
3 | Touch screen | Siemens | Germany |
4 | Pneumatic Components | Air TAC | Taiwan |
5 | Bearing | NSK | Japan |
6 | Reducer | Nord | Germany |
7 | Thermostat | Honeywell | USA |
8 | Proximity switch | Omron | Japan |
9 | Photoelectric switch | Omron | Japan |
10 | low-voltage apparatus （Air switch,intermediate relay,caution light, and etc. ） | Schneider | China |
