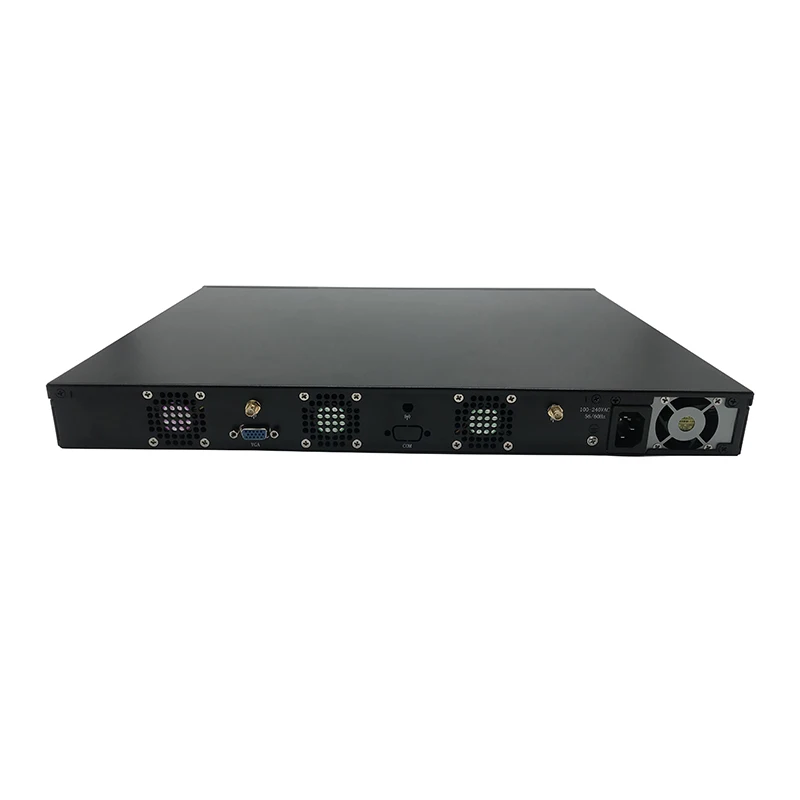

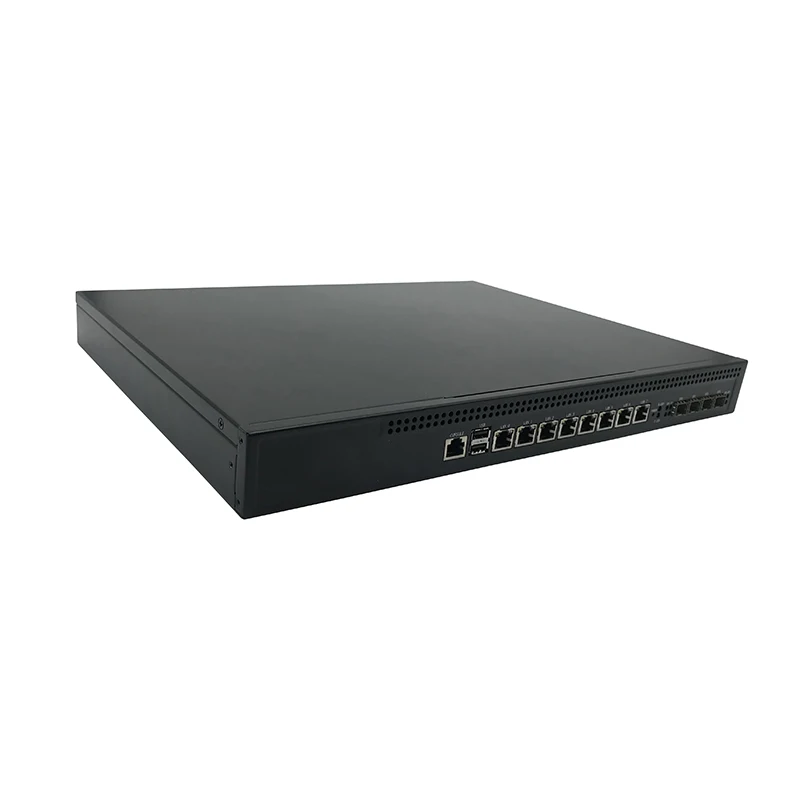

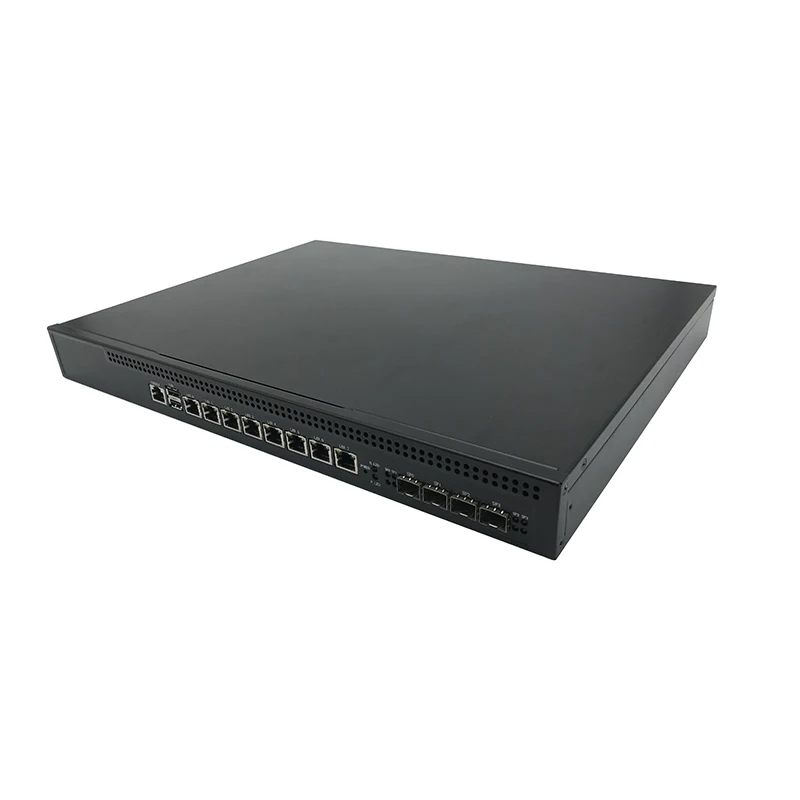

1U Rackmount Network Appliance with Skylake/Kaby Lake/Coffee Lake 6th/7th/8th Gen Core i3/i5/i7 processors, 8 x RJ45 LAN

Model No.

FW-1781-4O

Form Factor

1U 19” Rackmount

Platform

Processor Options

Intel 6^th/7^th/8^th Gen Core i7/i5/i3, Pentium, Celeron(H170 chipset)

CPU Socket

1x LGA1151

Chipset

Intel H170

Security Acceleration

AES-NI

BIOS

AMI SPI Flash BIOS

System Memory

Technology

DDR4 2400/2133 MHz

Max. Capacity

32GB

Socket

2x 260pin SODIMM

Networking

Ethernet Ports

8x GbE RJ45 Intel i211
1 x NIC slot(4 x GbE SFP or 4 x 10Gbe SFP+)

Bypass

2 x pairs

I/O Interface

Reset Button

-

LED

Power/Storage

Power Button

1x Power button

Console

1x RJ45

USB

2x USB 3.0

LCD Module

-

Display

1x HDMI

Power Input

AC power inlet on PSU

Storage

HDD/SSD Support

2x 2.5'' bays

Onboard Storage

1 x m-SATA

1 x 2.5'' notebook SATA port

1 x CF card slot

Expansion

PCIe

1x PCIe X8

Mini-PCIe

1 x Mini PCIe(For WiFi and 4G), 1 x SIM(For 4G)

Miscellaneous

Watchdog

Yes

Internal RTC with Li Battery

Yes

TPM

-

Cooling

Processor

CPU fan

System

2 x cooling fans

Environmental Parameters

Temperature

0℃~45℃/ -20℃~70℃

Humidity

5 ~ 90% non condensing /
5 ~ 95%, non condensing

System Dimensions

(WxHxD)

428x44x321mm

Weight

4.5 kg

Package Dimensions

(WxHxD)

510x130x440mm

Weight

5.2 kg

Power

Type/Watts

220W single ATX PSU

300W redundant ATX PSU(Optional)

Input

90~264V@47~63Hz

Approvals and Compliance

CE, FCC Class B
