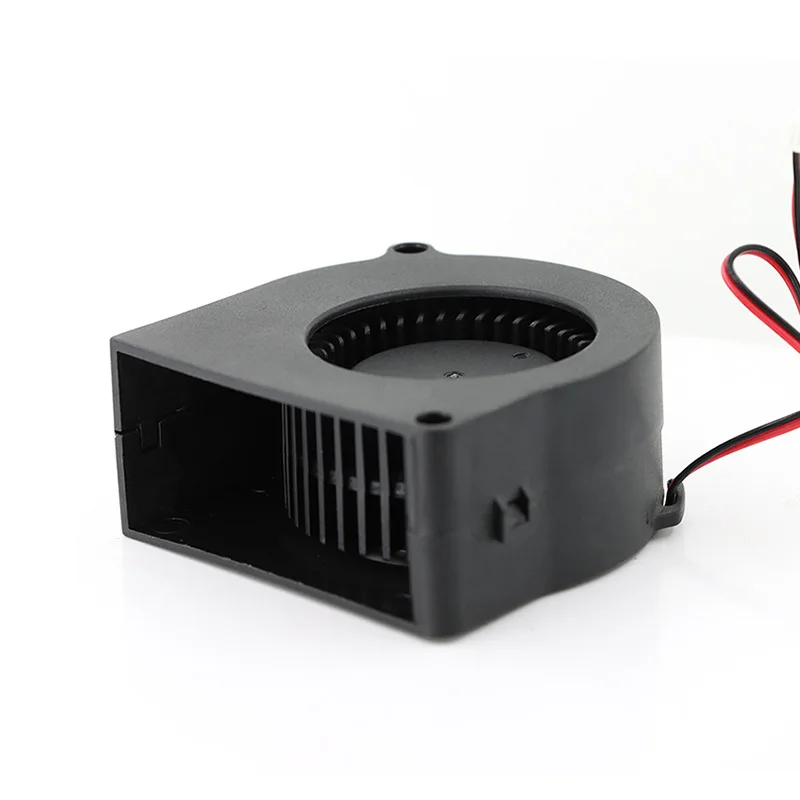

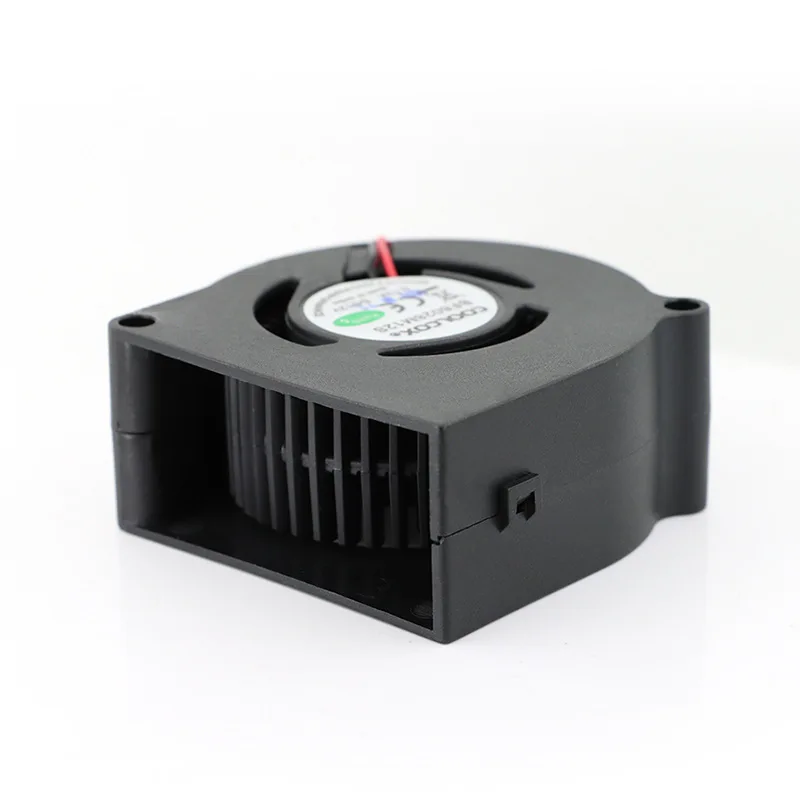

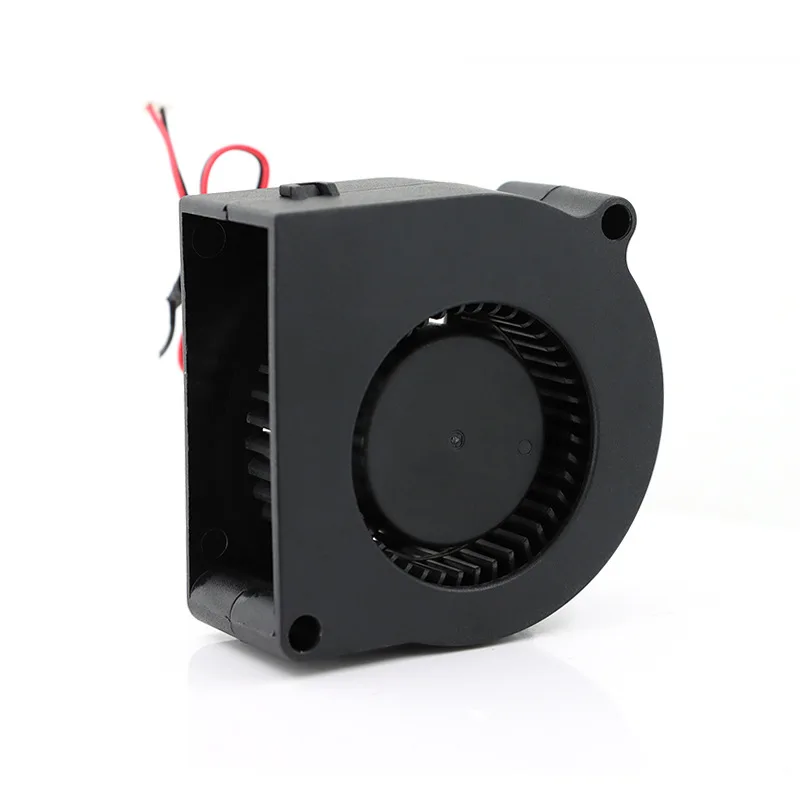

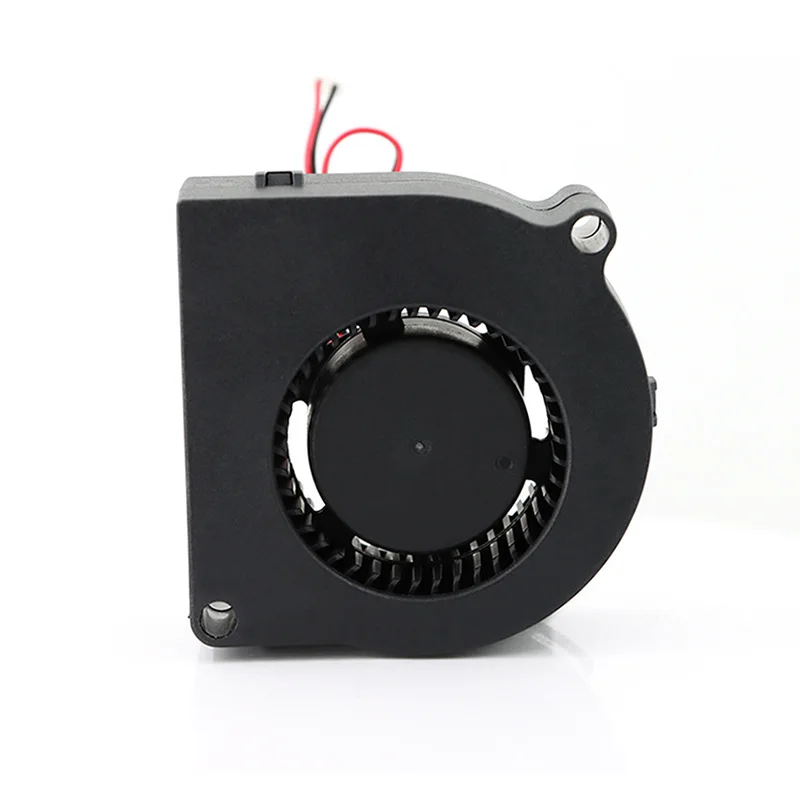

CoolCox 6028 small blower fan,60x60x28mm,suitable for projector,oven
- Category: >>>
- Supplier: Dongguan Coolcox Electronic Technology Co. Ltd.
Share on (1600496288709):
Product Overview
Description
Product Description

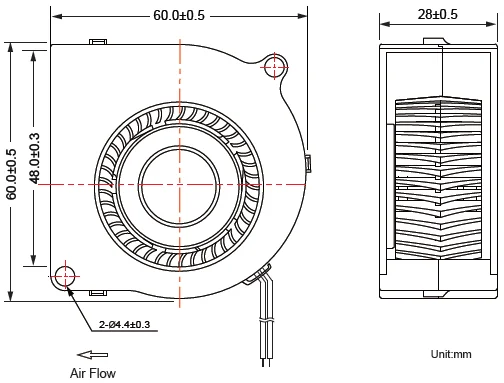

Dimensions:

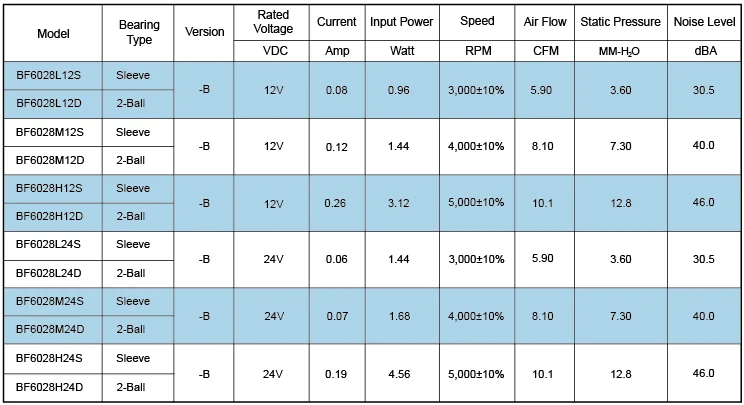

Parameters:

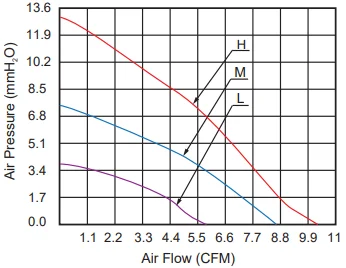

Parts Specs: | P&Q Curve | |
Bearing type:Sleeve,2-Ball Material:
5V,12V,24V are available |  |
Electrical Specifications:
| Insulation Resistance | 10MΩ/between unshackled wire and frame at 500VDC/min |
| Dielectric Strength | 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min |
| Rotating Direction | Anti-Clockwise |
| Polarity Protect | Circuit is protected when VCC&GND are exchanged |
| No. of pole | 4Poles |
Environmental Specifications
| Operating Temp Range | Temperature:-10℃~+70℃ Humidity:35%~85%RH |
| Store Temperature | Temperature:-40℃~+70℃ Humidity:35%~85%RH |
| Thermal Shock | Standard:MIL-STD 202F Method 107D,Condition D |
| Insulation Shock | UL:Class A |
Workshop
Testing Equipments
Certification:
Packaging & Shipping
| FCL Shipment | LCL Shipment | |
 |  |
Air shipment:
FAQ
Lifetime:
| Bearing type | Lifetime |
| Sleeve | 30,000 hours |
| Hydraulic | 40,000 hours |
| 2-Ball | 60,000 hours |
