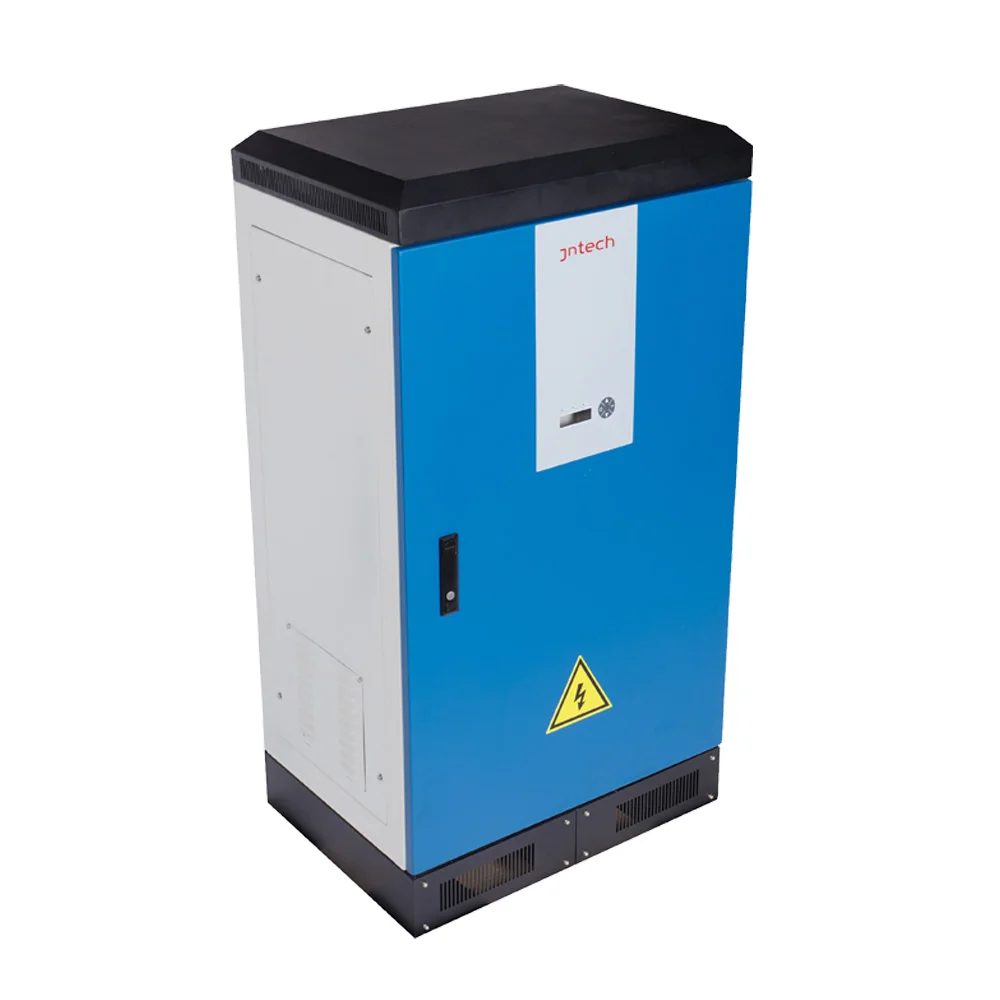

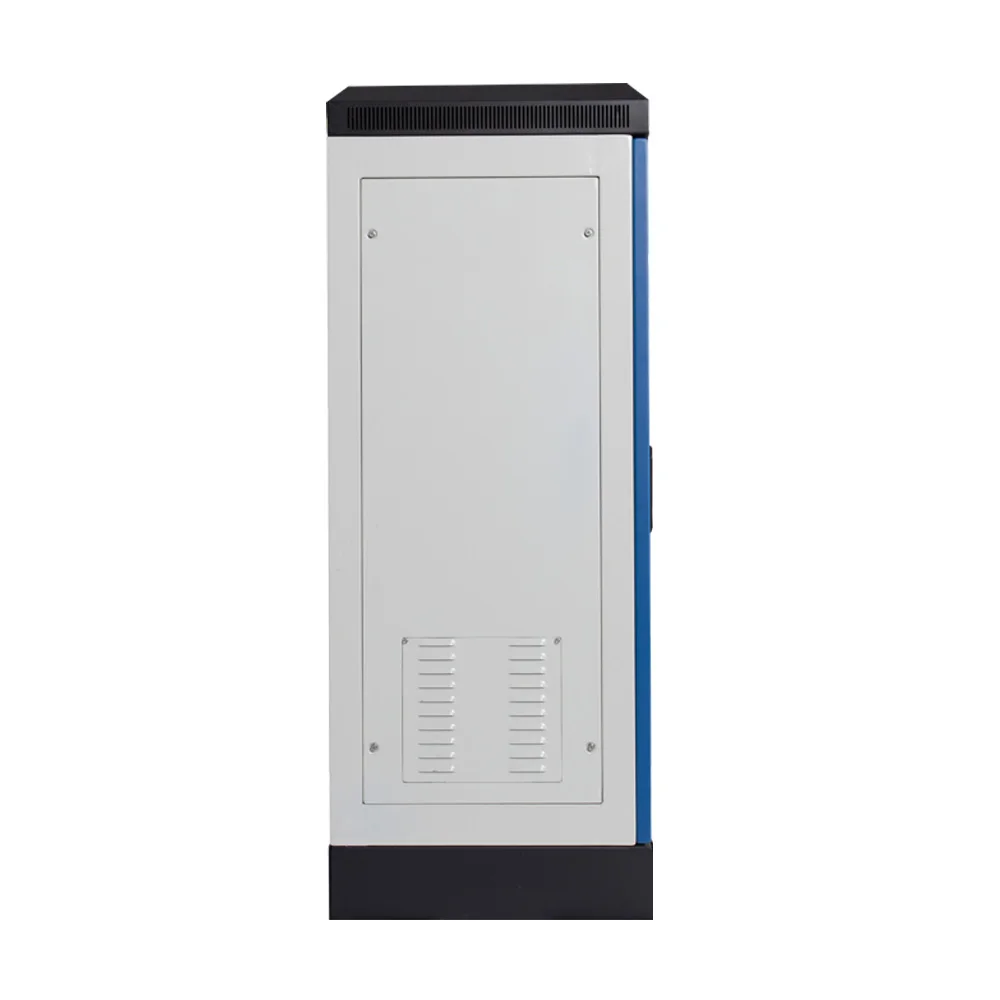

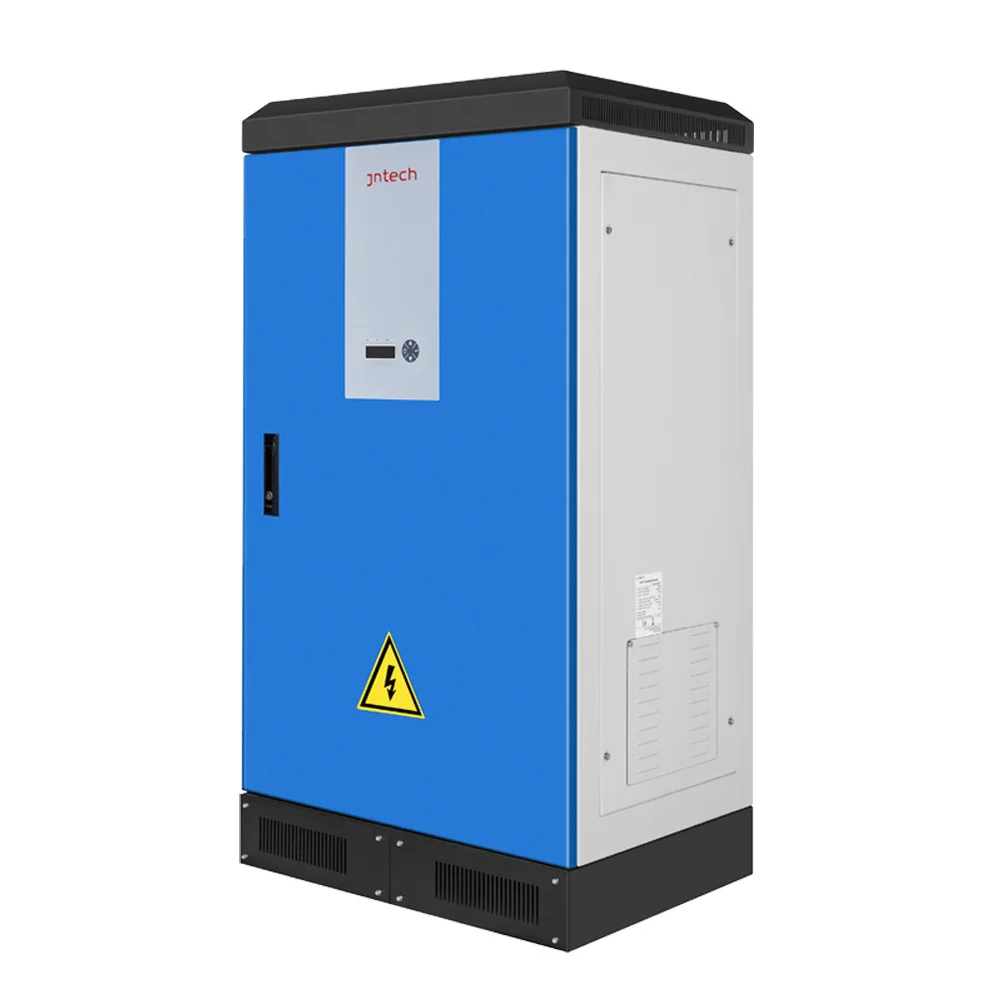

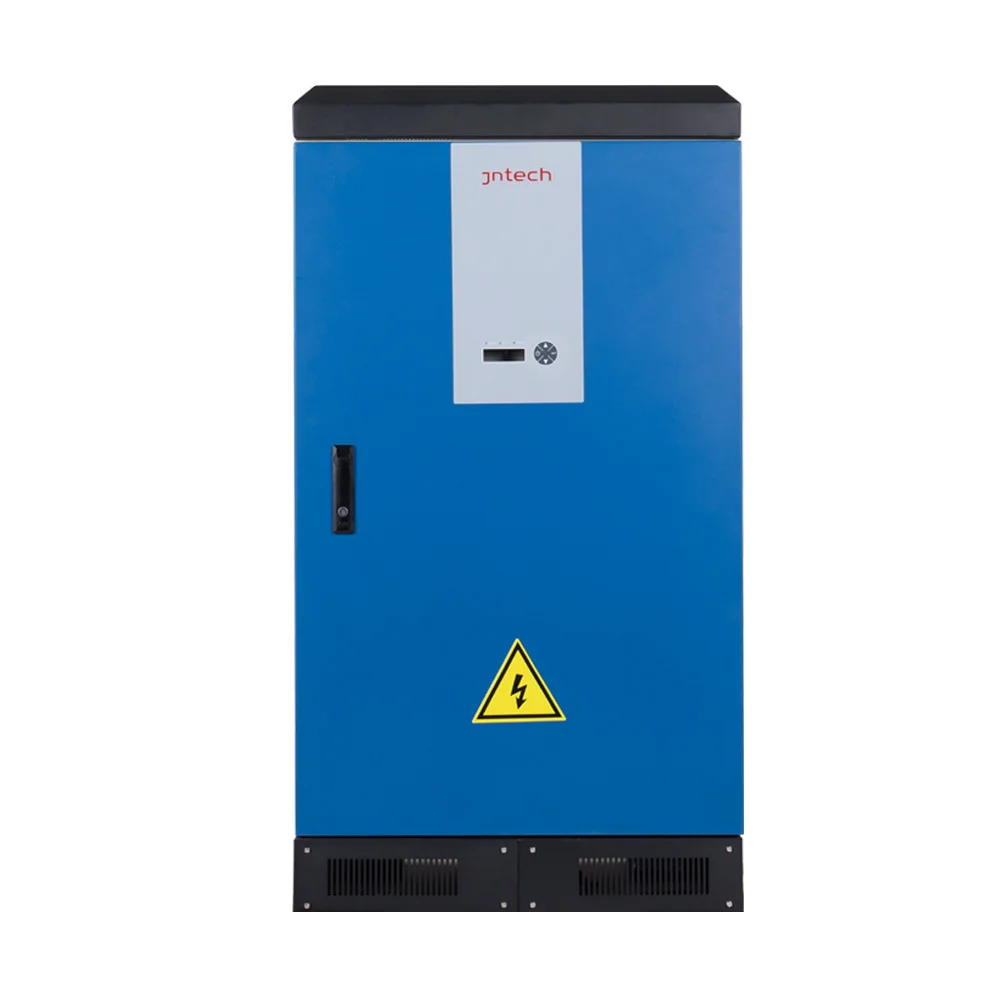

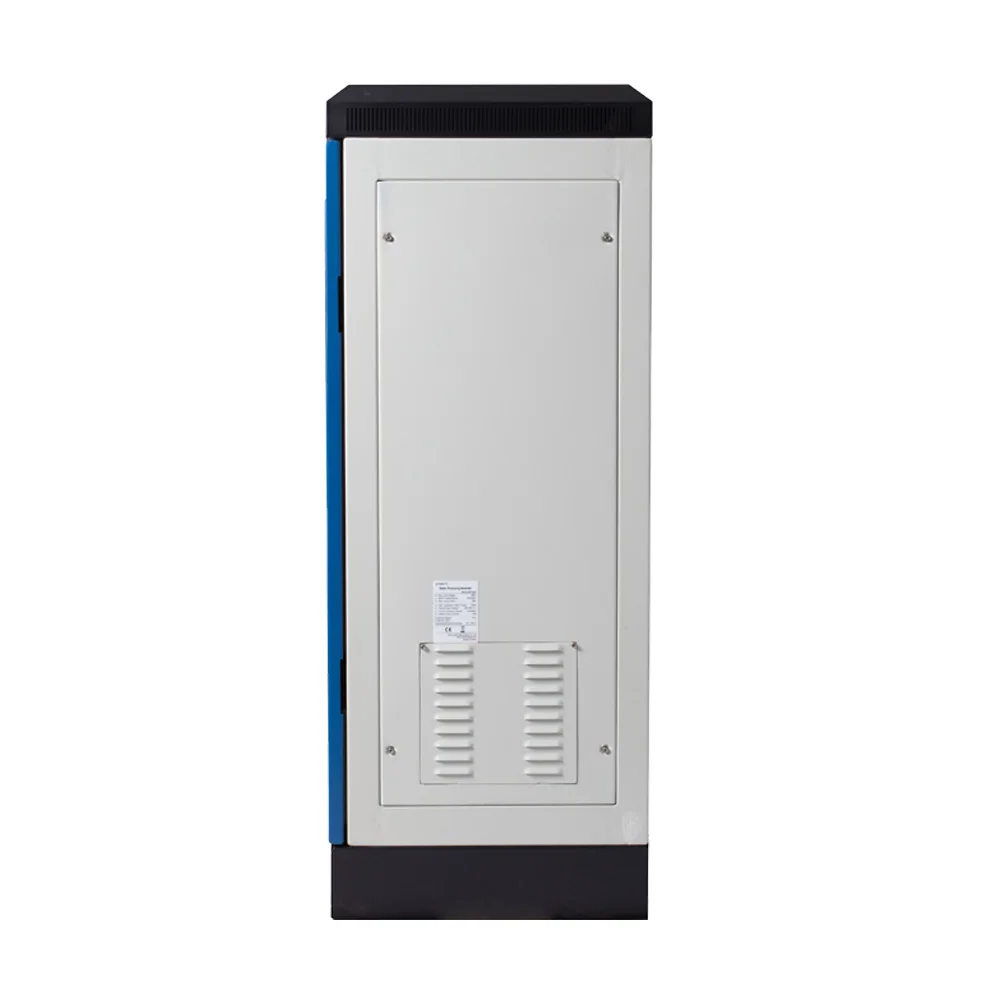

55kw 75kw 90kw 132kw High Quality Ac Drive 380v To 440v 3 Phase Inverter For Solar AC Pump 50/60hz For Water Treatment
- Category: >>>
- Supplier: Jntech Renewable Energy Co. Ltd.
Share on (1600496319201):
Product Overview
Description
Product Description
55kw 75kw 90kw 132kw High Quality Ac Drive 380v To 440v 3 Phase Inverter For Solar AC Pump 50/60hz For Water Treatment
Features of Solar pump Inverter
1.Automatic start and shut off according to solar intensity. No need manual operation once started.
2.Soft start controlling in rush current, to avoid motor burning.
3.IP65 design for outdoor application. Against raining, dust.
4.No need derate the power capacity for pump matching. The matching power with pump is 1:1.
Protection:
Dry protection to protect motor overflow protection short circuit protection reverse polarity protection under-voltage, weak
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
2.Soft start controlling in rush current, to avoid motor burning.
3.IP65 design for outdoor application. Against raining, dust.
4.No need derate the power capacity for pump matching. The matching power with pump is 1:1.
Protection:
Dry protection to protect motor overflow protection short circuit protection reverse polarity protection under-voltage, weak
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
Model | JNP75KH-V5 | JNP110KH-V5 | JNP132KH-V5 | ||||||
Max, PV Input | 880V | ||||||||
MPPT Voltage | 460-850Vdc | ||||||||
Max. MPPT Efficiency | 99% | ||||||||
Output | 75kw | 110kw | 132kw | ||||||
Output Voltage | 380-460Vac, 3 phase, 50/60Hz | ||||||||
Output Current | 142A | 209A | 251A | ||||||
Protection | IP21 | ||||||||
Operating Temperature | -25 ~ +60 ℃， above 60 ℃ need derate operating | ||||||||
Cooling Way | Forced cooling | Natural Cooling | |||||||
Display | LED/LCD | LCD | |||||||
Communication | RS485/GPRS | RS485/GPRS | |||||||
Size | 460*715*260mm | 265*330*150mm | |||||||
Weight | 35kg | 6.5kg | |||||||
Projects
Related Accessory
GPRS Remote Monitoring and Control
Using local data card, Download APP for Android cell phone, then you can see all the working parameters in smart phone, current power capacity, voltage, current, output frequency and so on, we also can control on and off remotely. once there is fault, it will show the error code , it is easy for maintenance.
PV Cable
Item:PV1-F 1×4mm2Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
AC Cable
Model: JHS Waterproof
No. of cores: 4 cores
Rated power-frequency voltage: 300/500V
No. of cores*sectionalarea:3*4mm+1*2.5mm
Insulation thickness(mm) 1.0+1.0
Insulation thickness(mm) 1.0+1.0
Sheath thickness(mm) 2.0
admissible operating temperature of the conductor:-20~+65℃
Packing & Delivery
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
By sea | Delivery from Shanghai or Ningbo seaport | ||||
By air | Departure from Shanghai Pudong Airport | ||||
By express | By TNT/DHL | ||||
Jntech Service
Technical and Requirement Communication Before Sales
Engineers Training in Customer's Office or Jntech Factory
Chinese Engineer or Local Agent Engineer Technical Support At Site
Company Introduction
JNTECH set up in 2006 China, focus on manufacture of solar pump inverter, solar off-grid inverter relative solar products. All our products have passed CE and TUV certifications. Jntech solar pump system and off grid system are used in more than 60 countries in the world, especially in UNDP, UNHCR, UNICEF,OCHA, ICRC, NGO projects in Asia, Middle East, and African countires.
SMT
PCB
JNTECH Certifications
China only acquire German TUV certification of solar pump inverter business
ISO9001, IS014001, OHSAS18001,TUV,CE,AAA credit management system,Third level qualification of power project construction, National high-tech enterprisesJNTECH in the world
Q1. Can I have a sample order for Solar inverter?
A: Yes, welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q5: Choose the power of the solar pumping inverter?
A: Our solar water pump inverter and water pump match the same power 1:1！
Q6: Number and size of solar panels required?
A: Pump or inverter power multiple 1.2~1.45. We have a complete system configuration scheme
Q7: What voltage range can you support?
A: PV Input ：460~850V，Max888V;
A.C. input：Three-phase 330~460vac;
A.C. Output :Three-phase 330~460vac;
Q8:Ifthere is no sun at night, can I switch solar panel input to mains power?
A:Yes,We have solutions for AC/DC switching cabinets.
Q9:What products and services do you have?
A: We provide solar power systems, solar panels, solar mounts, battery energy storage, solar charge controllers, inverters, solar
water pumps, as well as indoor and outdoor lighting, solar lights, solar air conditioners.
Our solar pumping inverters range from 0.37kW to 132kW.
Q10:.Do you accept OEM business?
A:We accept OEM and ODM ,For details, please contact us for sales.
A: Yes, welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q5: Choose the power of the solar pumping inverter?
A: Our solar water pump inverter and water pump match the same power 1:1！
Q6: Number and size of solar panels required?
A: Pump or inverter power multiple 1.2~1.45. We have a complete system configuration scheme
Q7: What voltage range can you support?
A: PV Input ：460~850V，Max888V;
A.C. input：Three-phase 330~460vac;
A.C. Output :Three-phase 330~460vac;
Q8:Ifthere is no sun at night, can I switch solar panel input to mains power?
A:Yes,We have solutions for AC/DC switching cabinets.
Q9:What products and services do you have?
A: We provide solar power systems, solar panels, solar mounts, battery energy storage, solar charge controllers, inverters, solar
water pumps, as well as indoor and outdoor lighting, solar lights, solar air conditioners.
Our solar pumping inverters range from 0.37kW to 132kW.
Q10:.Do you accept OEM business?
A:We accept OEM and ODM ,For details, please contact us for sales.
