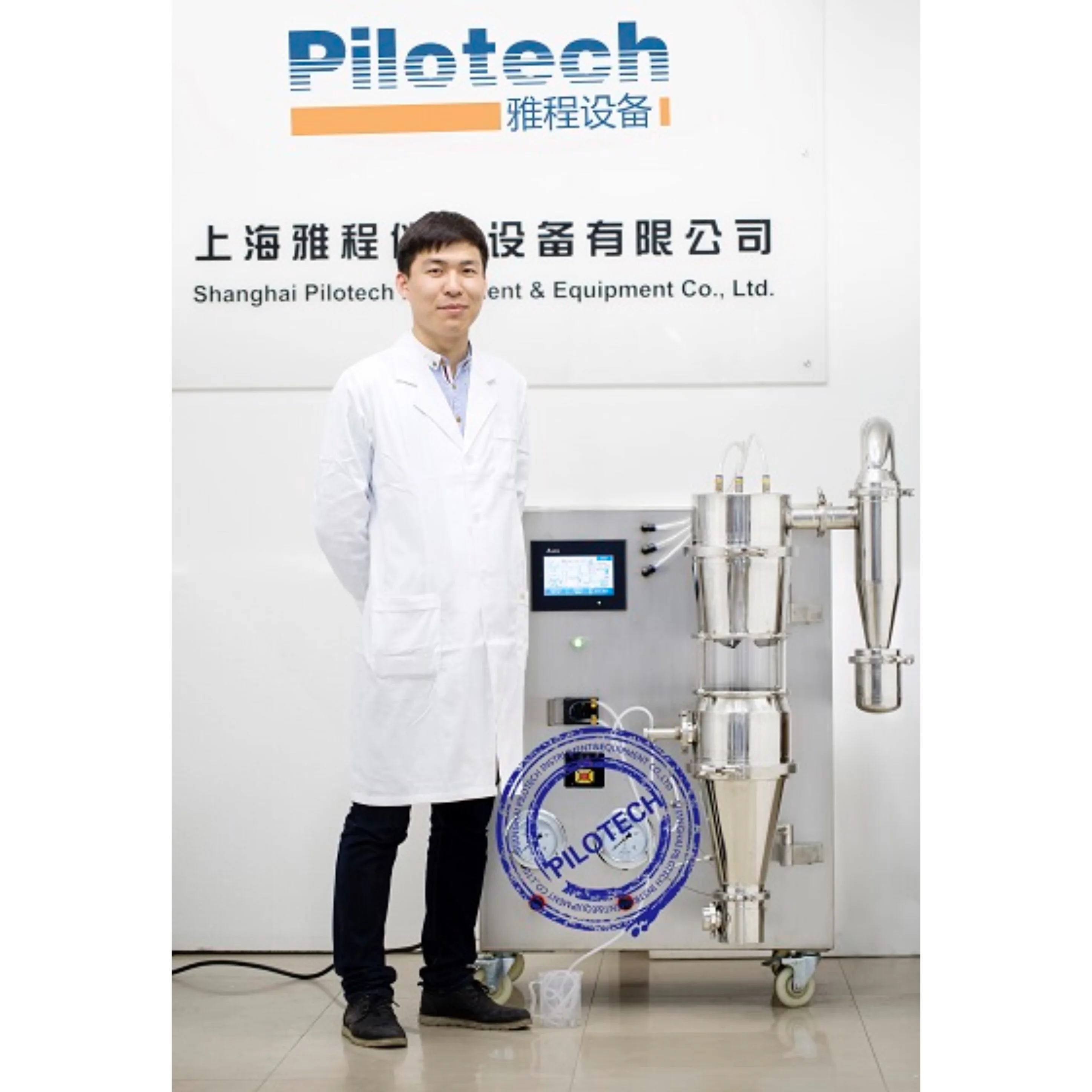

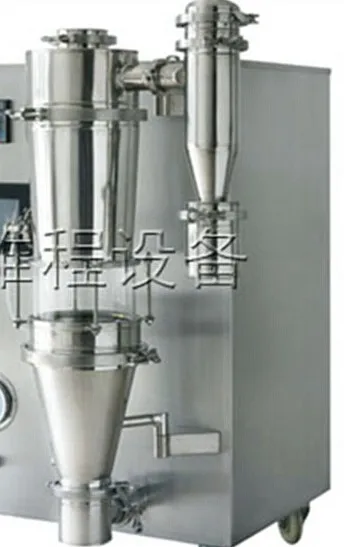

Atomizer milk prix lab scale spray dryer with the fluidized bed drying function
- Category: >>>
- Supplier: Shanghai Pilotech Instrument & Equipment Co. Ltd
Share on (1600496320173):
Product Overview
Description
Low temperature lab stevia algae ceramic flavor spray dryer trade
Product Description

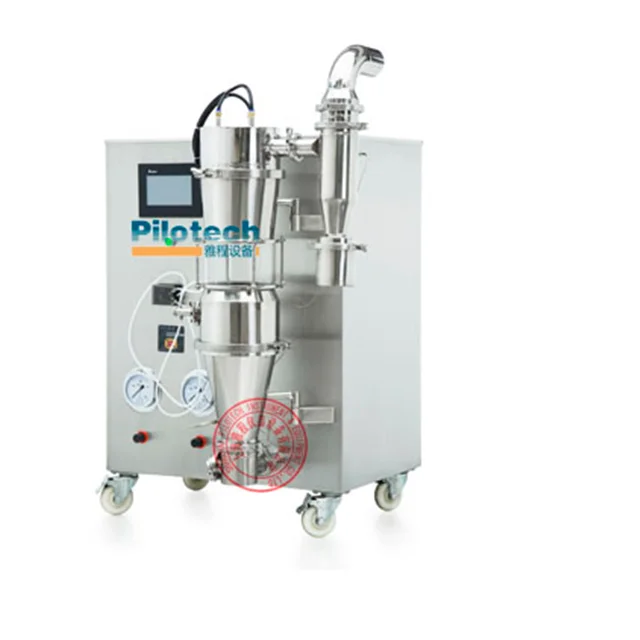

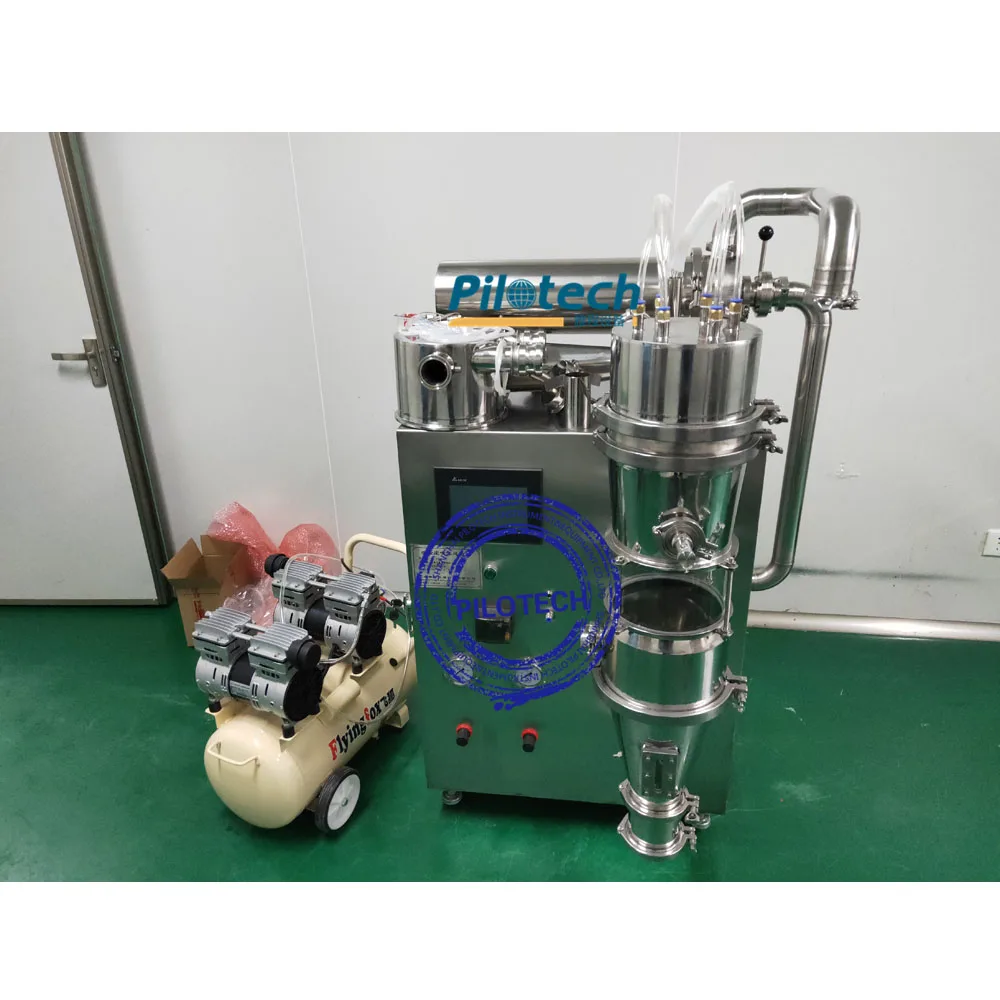

Why you need YC-1800 mini low temperature spray dryer?
YC-1800 mini low temperature spray dryer is a kind of drying machine developed by our company based on years of experience in spray drying technology. It applies to TCM products (juice products) with low melting point and high sugar content. With YC-1800 spray dryer, the material will not stick to inner wall, coke or absorb moisture. The minimum inlet air temperature for Pilotech YC-1800 low temperature spray dryer is 105 °C, and it is suitable for the spray drying of heat-sensitive materials such as enzyme preparations and sugary materials such as the traditional Chinese herb extracts. After the drying process, the materials will not stick to the wall. Pilotech YC-1800 spray dryer has the drying chamber

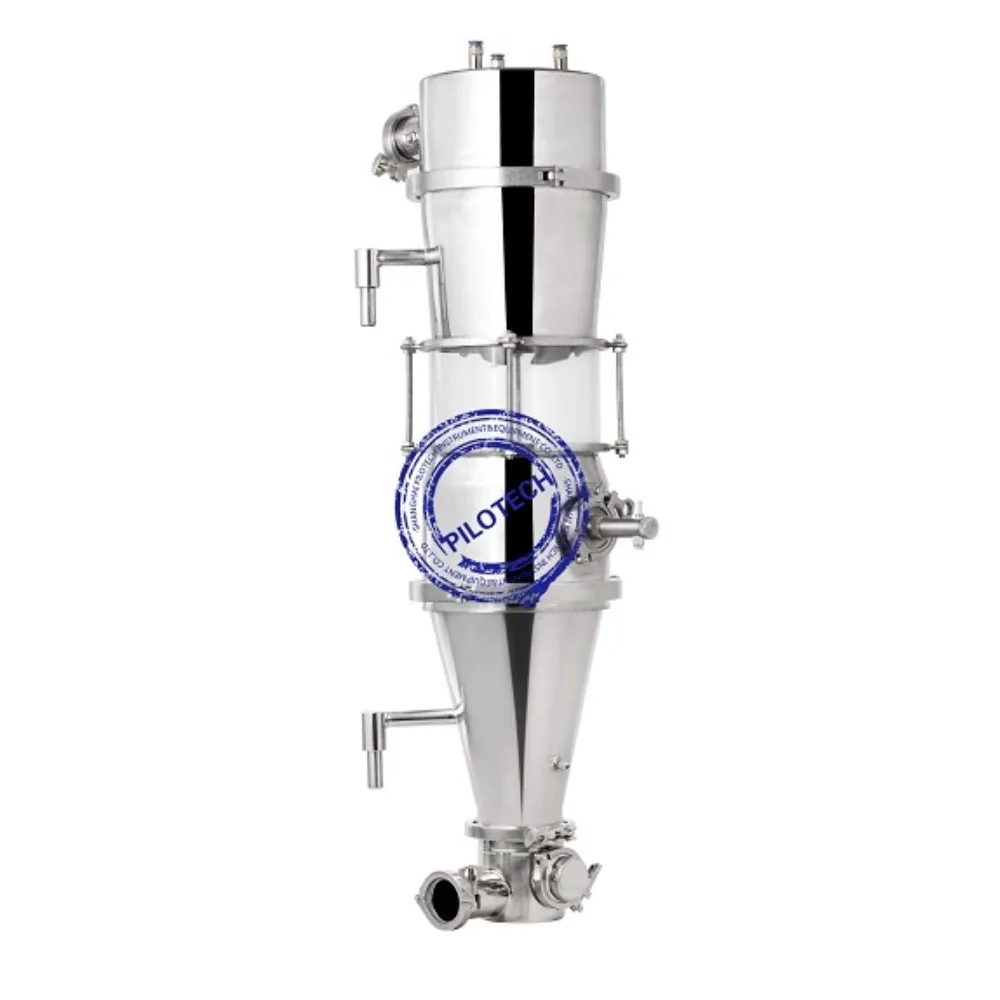

which is the mixture of the high temperature resistant glass and the SUS304 stainless steel, so it is both durable and easy to observe the experimental process. The YC-1800 spray dryer can also be equipped with fluidized bed drying function for multiple uses.
which is the mixture of the high temperature resistant glass and the SUS304 stainless steel, so it is both durable and easy to observe the experimental process. The YC-1800 spray dryer can also be equipped with fluidized bed drying function for multiple uses.
Parameters And Details
Product Details
YC-1800 mini low temperature spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. Both use a clear touch screen display , the operator can control the following functions:
Inlet Temperature
Airflow Volume
Air compressor flow
Pump Speed
De-blocker Frequency
Product Details
Perfect combination of low temperature and high temperature With maximum inlet air temperature reaching 200°C, it can meet high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese herb, extracts of natural substances and other materials with sugar content. No material will adhere to the wall during drying and materials are featured with excellent fluidity after drying.
Product Details

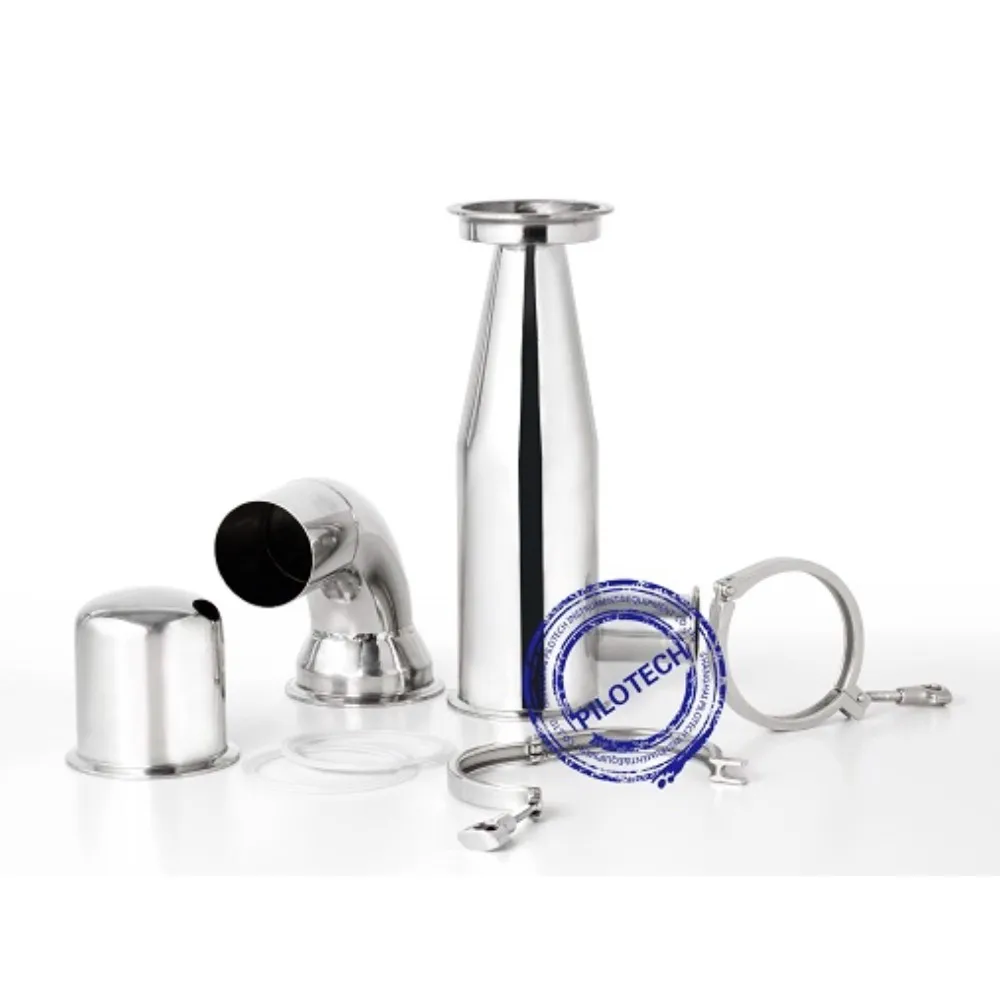

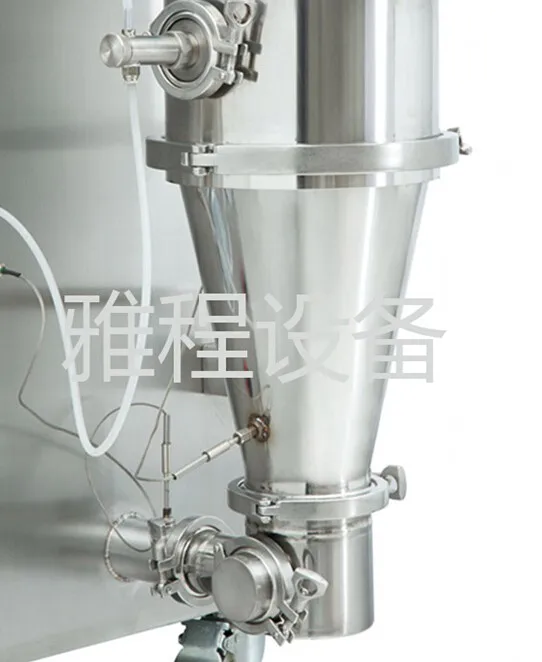

The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet. An outer tube directs compressed air to the nozzle. All units are supplied with 0.7mm jets, other sizes are available as accessories.The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.
Product Details
The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-1800 mini spray dryer can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system.
Setting Information | ||
Power | 4000W | |
rated voltage | 220V | |
Frequency | 50/60 Hz | |
Capacity | 1500ml/h | |
Heating power | 3500W | |
Temperature precision | ±1⁰C | |
Possible particle size range | 1-25um | |
Mean Residence time | 1.0-1.5 sec | |
Model | YC-1800 |
Max. Inlet temperature | 105-200℃ |
Operation mode | Automatic/Manual |
collection bottle material | SUS-304 Stainless steel |
Airflow | 0-330 mᶟ/h |
Nozzle jet | 0.5/0.8/1.0/1.5/2.0mm optional |
Minimum sample volume | 30-50ml |
Max. Sample feed | 2000ml/hr |
Sound | <60db |

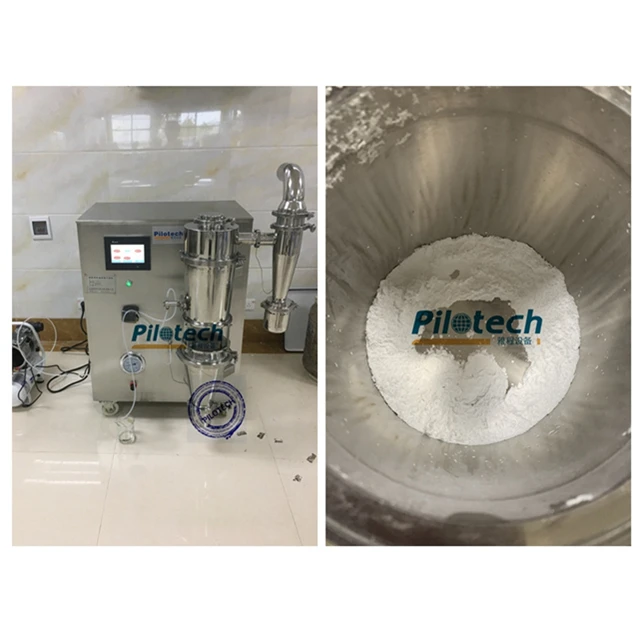

Powder After Drying
Company Information
To be The Leader for Spray Dryer in the World -Pilotech
Shanghai Pilotech started to produce laboratory spray dryer since 2005. We have over 50 patents and over 15 software copyrights. Our company is also the only manufacturer in the world that can produce a wide range of spray dryers, including benchtop spray dryer, vacuum spray dryer, spray-freezing dryer, all-in-one machine for spray drying and fluidized granulator, organic solvent spray dryer and nano spray dryer. Our laboratory spray dryer has many advantages, such as stable performance, easy operation and durable service. For this reason, the product is very popular among researchers. It has occupied more than 70% of the market in China. It is now used by more than 3,500 users in the world, and exported to more than 60 countries and regions, including USA, UK, Germany, Italy, Russia, South Korea, Singapore, Japan, Malaysia, Canada, Australia, South Africa, Taiwan and Hong Kong.
Package&Delivery
The package is standard export Tri-ply wood. We will use pe film for packing or pack it according to customers special request.The tri-plywood packing are very firm, suitable for sea, air and land transport ,express(UPS, Fedxex, DHL).
Our Customer
FIC in July.2021

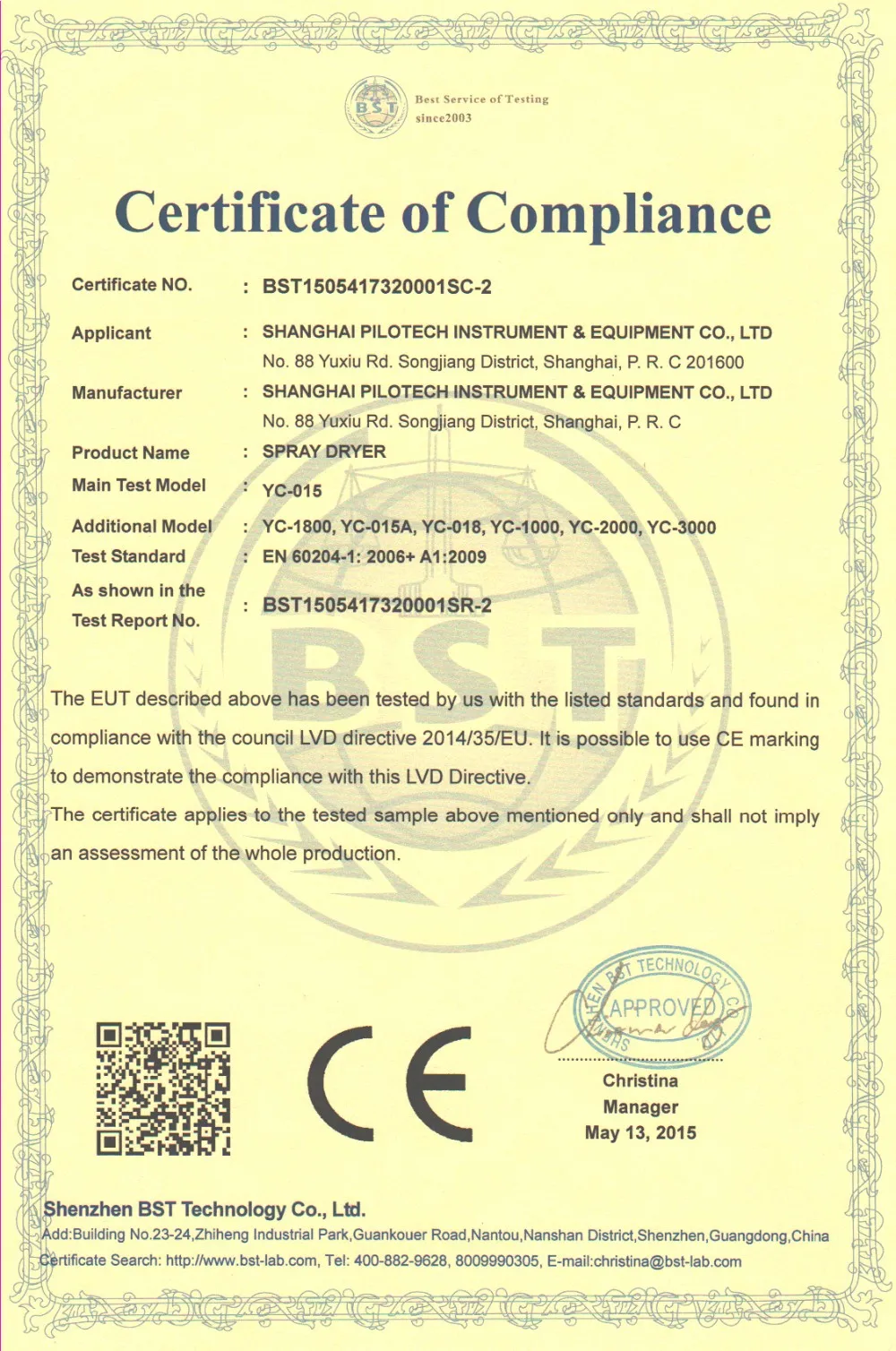

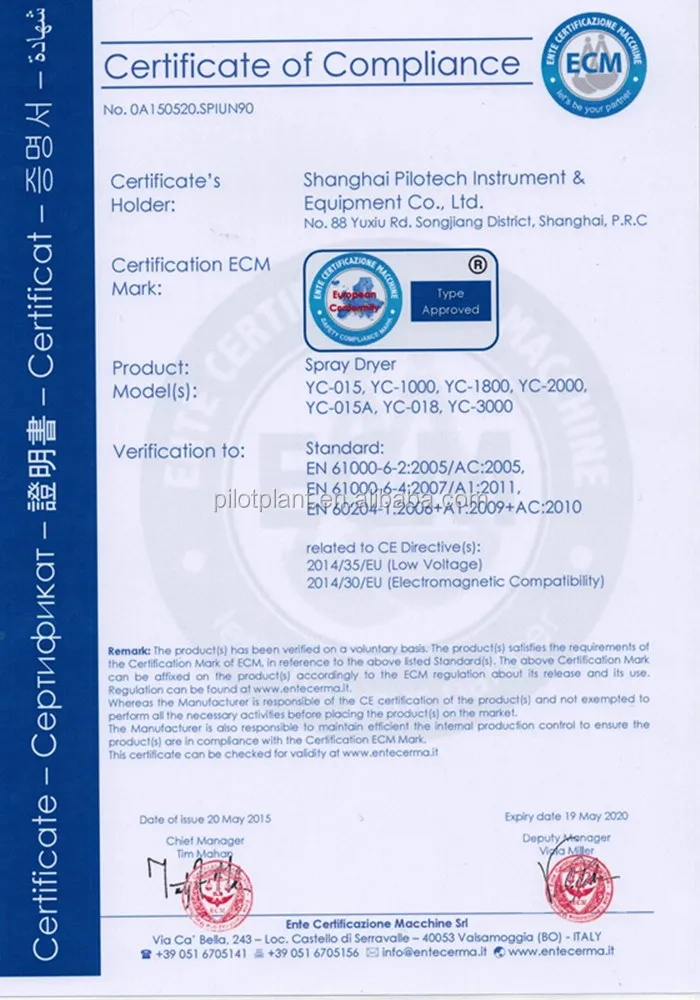

Certificate Showing
WHY CHOOSE US
Pilotech Spray Dryer Endorsed by Papers in Google Scholar.
* On Google scholar, you can search for many papers on researchers using our lab spray dryer.
* Many scientific researchers in different industry, different subjects are also using our spray dryer.
* The materials in the papers are of different types, it has also water solution and organic solvent.
* Materials in the papers varies from inorganic substance, organic substance, nanomaterial, heat-sensitive materials, and so on.
* Papers that contains usage of our spray dryer in different countries, in different languages can also be searched.
* Many scientific researchers in different industry, different subjects are also using our spray dryer.
* The materials in the papers are of different types, it has also water solution and organic solvent.
* Materials in the papers varies from inorganic substance, organic substance, nanomaterial, heat-sensitive materials, and so on.
* Papers that contains usage of our spray dryer in different countries, in different languages can also be searched.
Relative Products
FAQ
Q1. Which kind of products do you have?
A: Our main products are: mini spray dryer, mini UHT sterilizer, lab multi-functional extracting tank, laboratory Inert Loop spray dryer, laboratory low-temperature spray dryer (vacuum spray dryer), laboratory spray freeze dryer, laboratory spray granulator(spray drying & spray granulating all-in-one) as well as small and pilot composite production line for drinks, milk, yogurt and powder.
Q2.Do all the products have operating interface and operating manual in English?
A:Yes, all our equipment provide operation interface in English, and if necessary, we can also provide the user's native language, and all products are available in English operating instructions.
Q3. Do you have E-catalogue?
A: Yes, you can send your inquiry to our email, we will send it to you ASAP.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. How is the stability and durability of the company's products?
A: The company has been established for 15 years, and 90 percent of products have been adopted in Chinese colleges a universities. The first produced products have still used by customers currently, and the products are very durable. In China, before the purchase of equipment, many teachers in the university will carefully listen to the views of colleagues on usage. Pilotech Equipment has good performance and stability and achieved a good reputation, and the purchases of numerous new customers are recommended by old customers.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8:How can I track the whole shipping process?
A: We will send you a BL tracking number.you can track the whole shipping process on the website.
