IBOOLO brand DE 3100 rechargeable LED illumination 10x dermatoscope china for skin examination
- Category: >>>
- Supplier: Shenzhen Ailianxing Photoelectric Co. Ltd.
Share on (1600496357366):
Product Overview
Description
Products Description
Like a scalpel, the dermatoscope is an awesome instrument in trained hands. It's also a great tool for self-diagnostics with the help of dermatologist.
• Outstanding ergonomics and modern shape
• Bright LED illumination lights with 3 levels' brightness control
• Cross polarized, non polarized and amber light illumination
• 10 x Magnification
• Real 30mm wide field of view (Aperture)
• Easy detachable protect glass for the lesions that shouldn't be touched
• Magnetic Smartphone connection kit; available for all phone
• Easy to handle and focus
• Lithium ion battery & USB-C charge
• Automatic shut down
• High quality but affordable
• Outstanding ergonomics and modern shape
• Bright LED illumination lights with 3 levels' brightness control
• Cross polarized, non polarized and amber light illumination
• 10 x Magnification
• Real 30mm wide field of view (Aperture)
• Easy detachable protect glass for the lesions that shouldn't be touched
• Magnetic Smartphone connection kit; available for all phone
• Easy to handle and focus
• Lithium ion battery & USB-C charge
• Automatic shut down
• High quality but affordable
Product Features
Clear Version
Maximizing sharpness was one of the biggest priorities when building this device, the first class optics ensure excellent edge to edge magnification free from spherical and chromatic aberration.
LED Illuminations
To effectively evaluate skin, excellent light and magnification are needed. The visual portion of diagnosis is based on distribution and morphology.
3 levels of brightness control, cross polarized and non polarized light gives a lot choice to test under different situations.
Cross Polarization
A probability of misdiagnosis in detection of nodular melanoma or featureless melanoma may result from using a non-polarized light dermatoscope. If you have a non-polarized light dermatoscope, it is necessary to apply immersion fluid to get polarized image.
The DE-3100 has switchable non cross polarization and cross polarization mode, you can switch the mode with a simple button click. In polarization mode, the polarization filter becomes activated and absorbs the surface light reflection (no immersion fluid required). It allows you to examine the colors, shapes and texture features of the skin lesion more clearly, more precise and more detailed.
With Cross Polarized
Without Cross Polarized
Compatibility

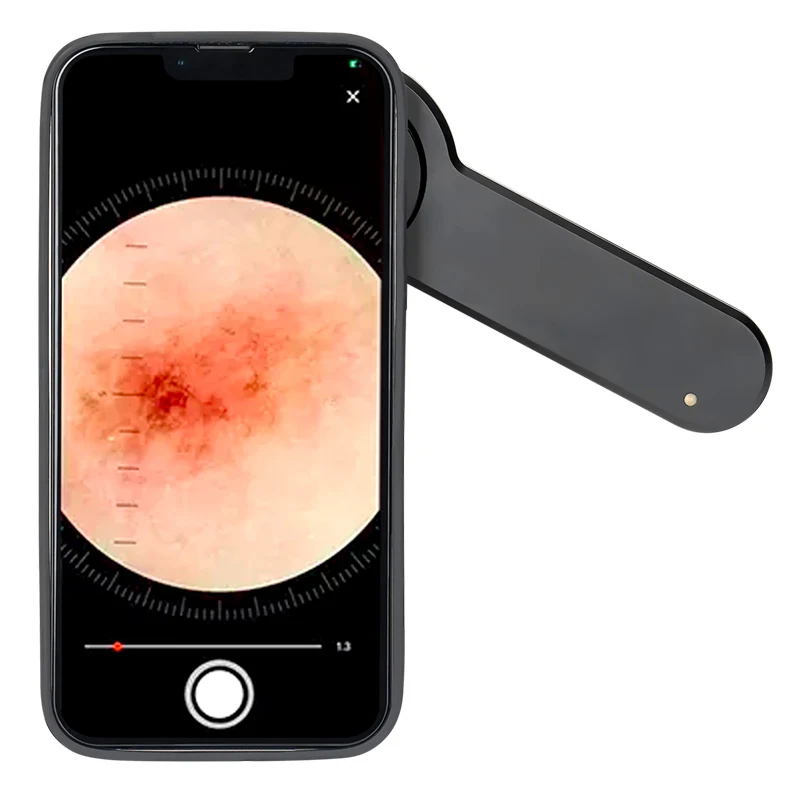

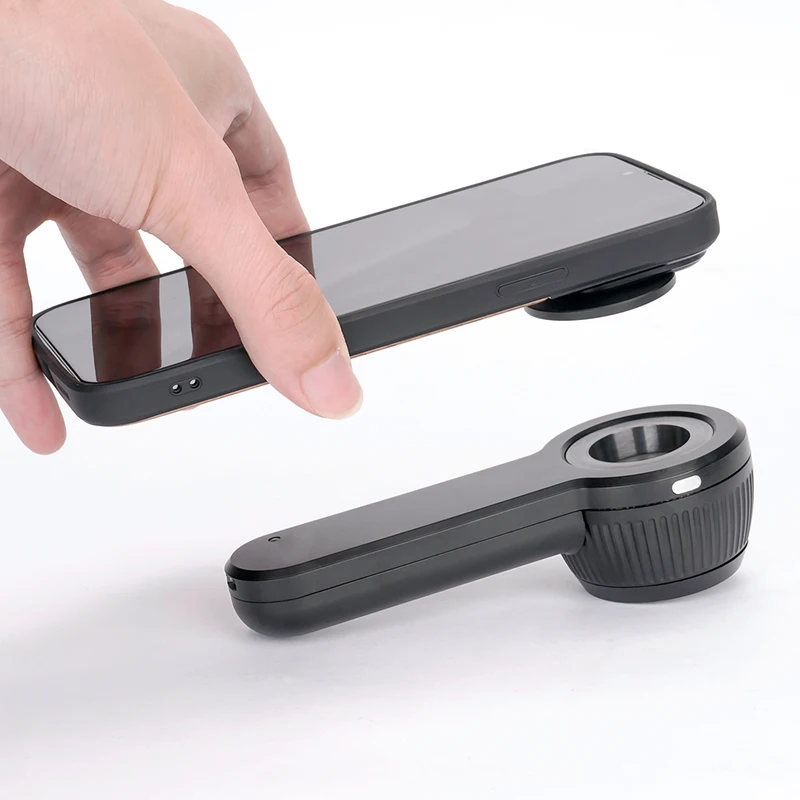

Dermoscope is only one piece of the entire clinical picture. Lesions should always be immediately scrutinized, the magnet attachment gives the ability to attach on smartphone and take pictures in 5 seconds.
Best part? It compatible with all phone in the market, with a universal lens clip or a phone cover to easy on and off.
Best part? It compatible with all phone in the market, with a universal lens clip or a phone cover to easy on and off.
The magnet attachment can be screwed on universal clip which will be included in the package, and can also be installed on our M17*1.0 phone case, please contact us if you want to get more information about phone case.
Universal Clip
Phone Case
Get An Phone Cover
No Cross-Contamination
The glass face plate can simply snapped on and off, so you can remove and clean it separately after use
Product Paramenters
Technical Specifications
Material | Optical & Aluminum |
Optical Design | All glass, 3 elements, 3 groups |
Lens Diameter | 30mm |
Magnification | 10X |
Distortion | 2% |
Resolution | 300 LP/MM (Axis) 250 LP/MM (Edges) |
Polarization | 90° Cross Polarized |
LED Type | SMD LED beads |
Battery Capacity | 1000mAh Lithium ion |
Charge | USB-C |

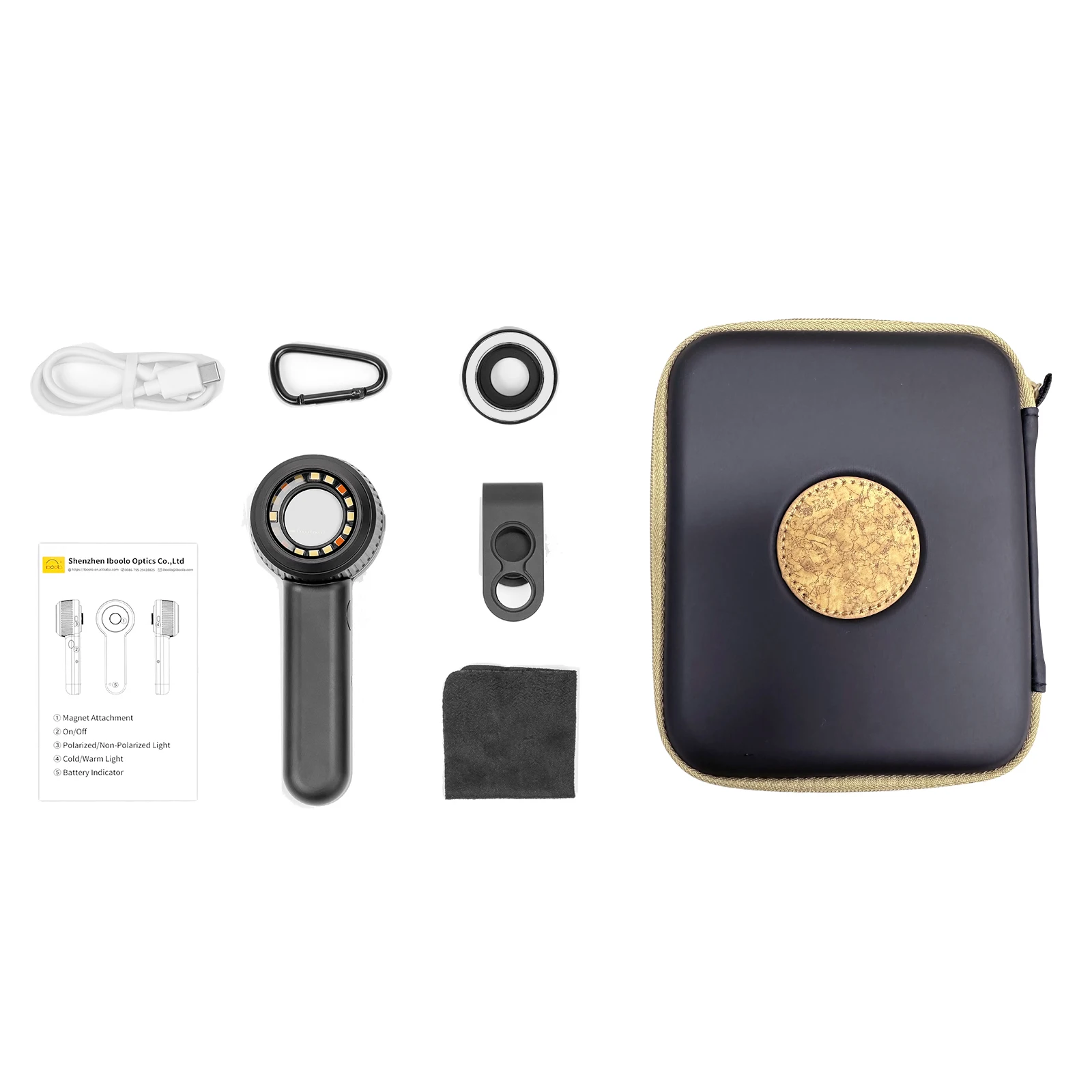

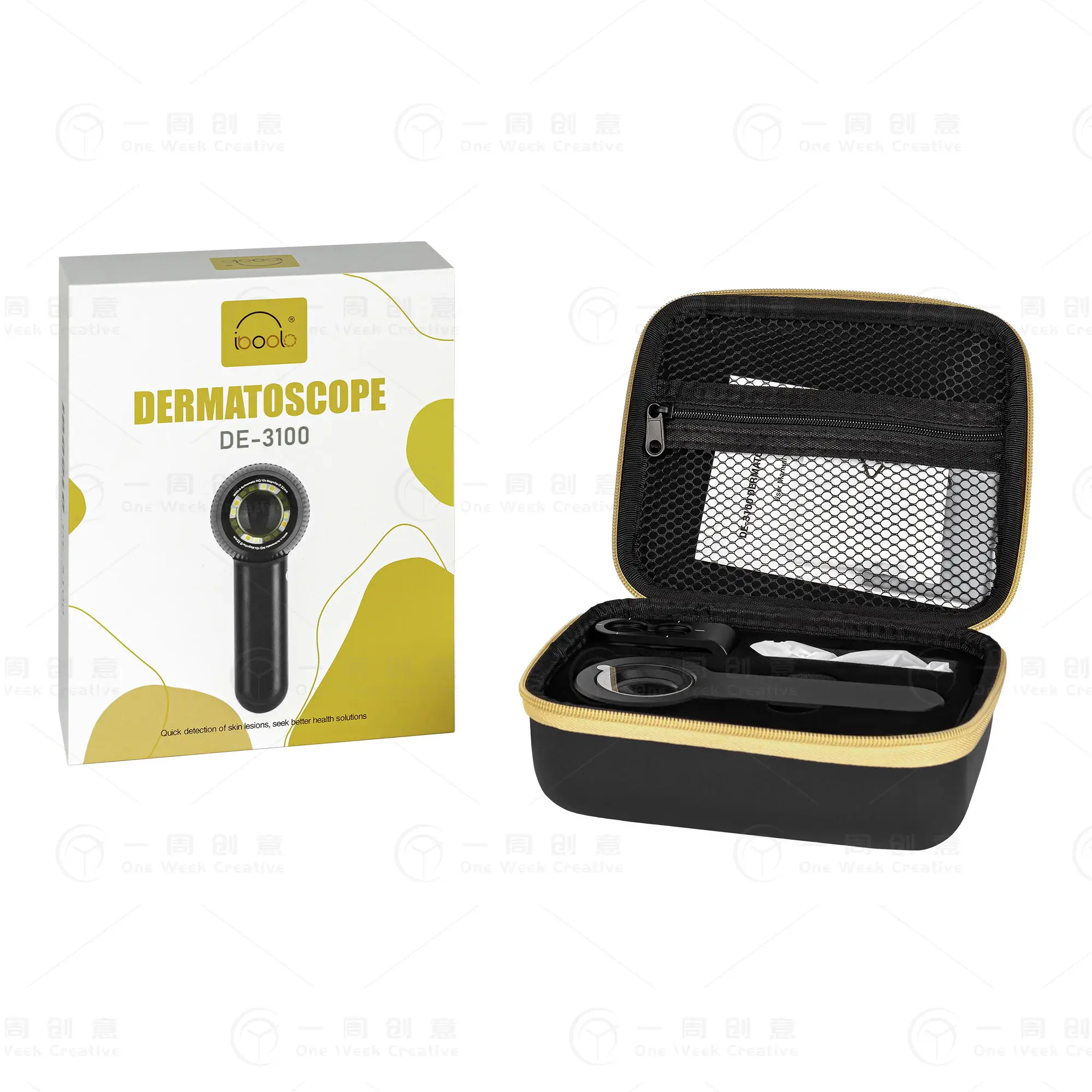

Package Include
• DE-3100 Dermatoscope*1
• Clean Cloth*1
• Magnet Attachment*1
• Pouch*1
• Universal Clip*1
• User Manual*1
Related Products
How to Read Skin
Skin has so many stories to tell, You just need be able to be able to read them.
Our compendium of dermatoscopy is designed to support you in this endeavour – by providing information about various differential structures and colors in the dermatoscope images and details on what they are assigned to, among other things.
How to Read Skin
Signs to look out for include a mole that's:
• Getting bigger
• Changing shape
• Changing colour
• Bleeding or becoming crusty
• Itchy or sore
• Getting bigger
• Changing shape
• Changing colour
• Bleeding or becoming crusty
• Itchy or sore
Why Choose Us
What We Do?
Founded in 2012, IBOOLO is one of the world’s leading supplier of smartphone lens. We started and focused on making premium phone lens for many years …but now we do more than that, we want to use our extensive experience and knowledge to make some high quality and affordable dermatoscope to meet the needs of more people and arouse people's attention to skin problems.
With the efforts of lots of optical engineers and dermatologists for over 4 years, we have finally made a series of well-crafted and top quality dermatoscope, and we are still keep research and development a superior product..
With the efforts of lots of optical engineers and dermatologists for over 4 years, we have finally made a series of well-crafted and top quality dermatoscope, and we are still keep research and development a superior product..
