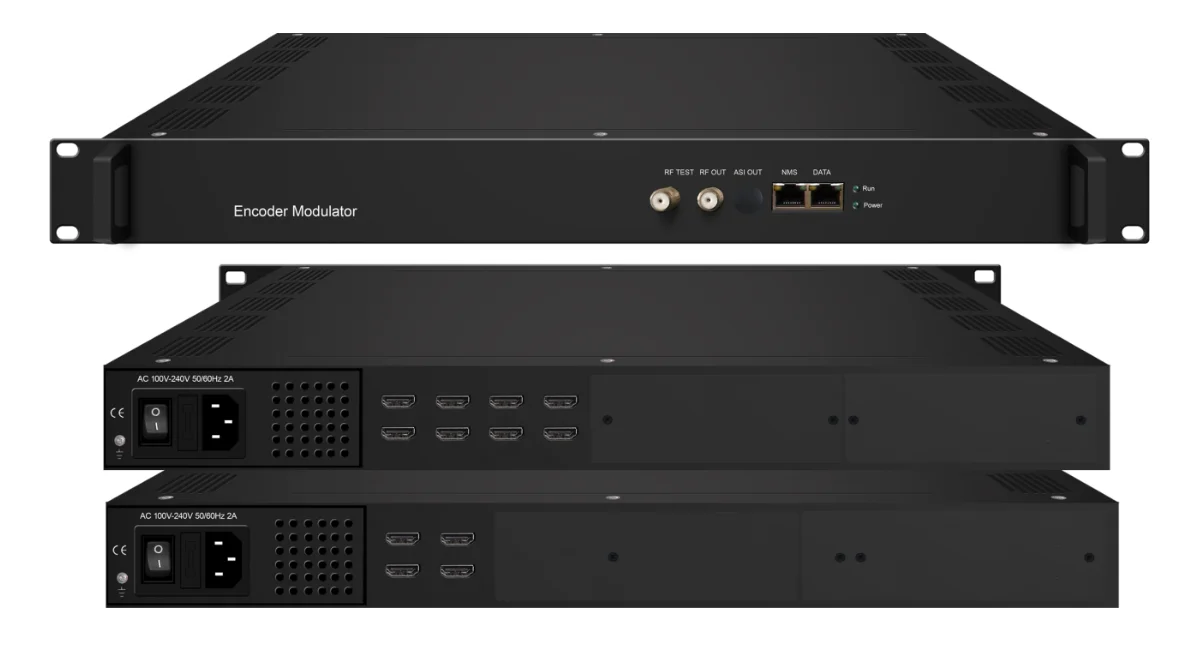

Encoder Modulator 4/8 HD inputs and DVB C/T RF out 2/4 MPTS out

Input

4/8 HD inputs;

64/128 IP inputs;

1 DVB-C/T/ISDB-Tb tuner input for re-mux (Optional for JX3528S with DVB-C RF out version)

Video

Encoding

MPEG-4 AVC/H.264

Resolution

In-put

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720×576_50i,720×480_60i,

Out-put

1920×1080_30P, 1920×1080_25P,

1280×720_30P, 1280×720_25P,

720×576_25P,720×480_30P,

Bit-rate

1Mbps~13Mbps each channel

Rate Control

CBR/VBR

Audio

Encoding

MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 Adjustable

MPEG-1 Layer 2 bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

LC-AAC bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

HE-AAC bit-rate

48/56/64/80/96/112/128 kbps

Multiplexing

Maximum PID

Remapping

180 input per channel

Function

PID remapping ( automatically or manually)

Generate PSI/ SI table automatically

Scrambling

(optional for JX3528S with DVB-C RF out version)

Maximum simulcrypt CA

4

Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation

DVB-C

RF out

2/4*RF DVB-C out (2/4 carriers combined output), F type interface

Standard

EN300 429/ITU-T J.83A/B

MER

≥40db

RF frequency

50~960MHz, 1KHz step

RF output level

-25~-1dBm (82~105 dbµV), 0.1dBm

Symbol Rate

5.0Msps~7.0Msps, 1ksps stepping

J.83A

J.83B

Constellation

16/32/64/128/256QAM

64/256 QAM

Bandwidth

8M

6M

DVB-T

RF out

2/4*RF COFDM DVB-T out (2/4 carriers combined output) ,F type interface

Standard

EN300744

FFT mode

2K,

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥42 dB

RF frequency

50~960MHz, 1KHz step

RF output level

-28~ -3 dBm (77~97 dbµV), 0.1db step

Stream output

2/4 IP MPTS output over UDP/RTP/RTSP, 1*1000M Base-T Ethernet interface

System function

Network management(WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension (W×L×H)

482mm×328mm×44mm

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz

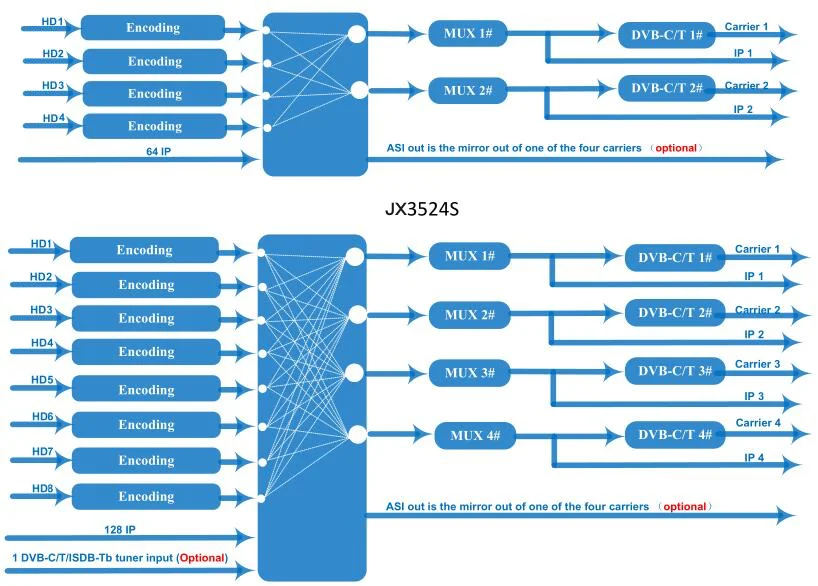

JX3524S

JX3528S (DVB-C Out)

JX3528S (DVB-T Out)

HD input

4

8

8

IP input

64

128

128

1 DVB-C/T/ISDB-Tb tuner input

N/A

Option as order

N/A

Scrambling function

N/A

Option as order

N/A

IP output

2 MPTS

4 MPTS

4 MPTS

DVB-C/T RF output channel

2

4

4
