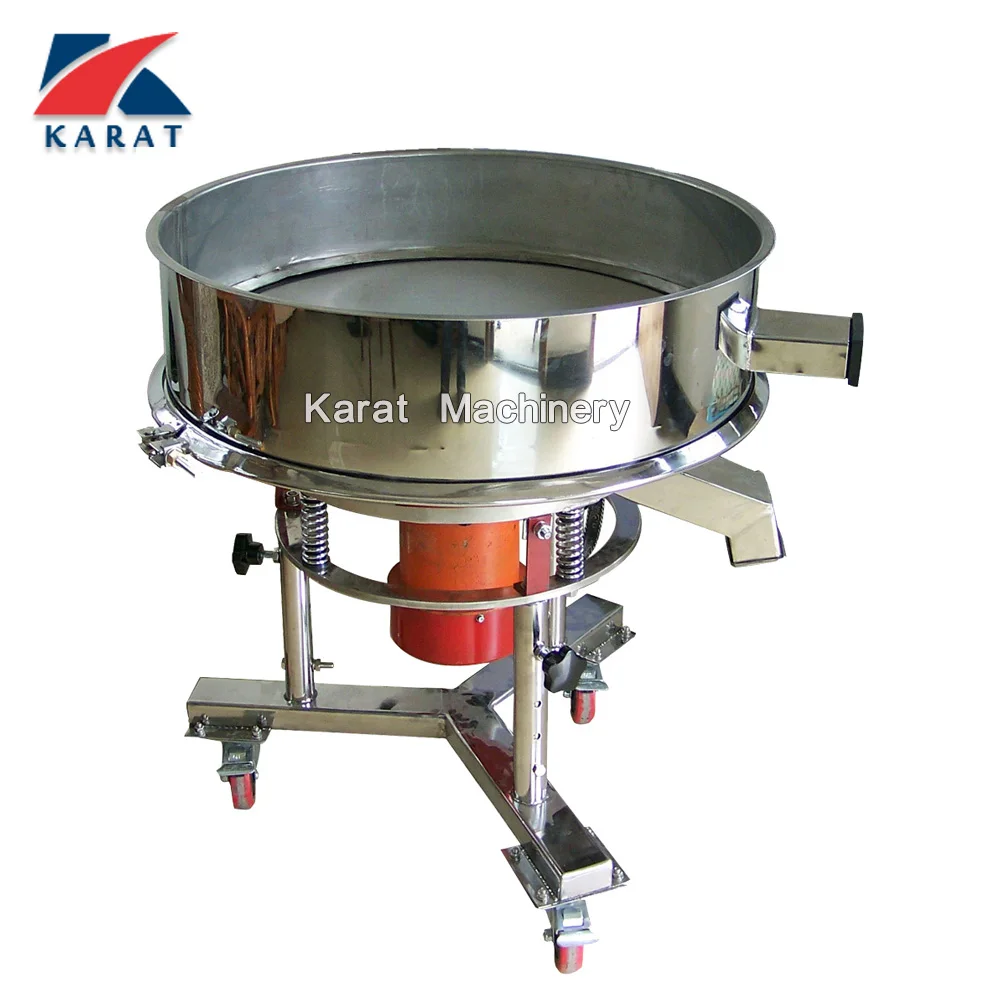

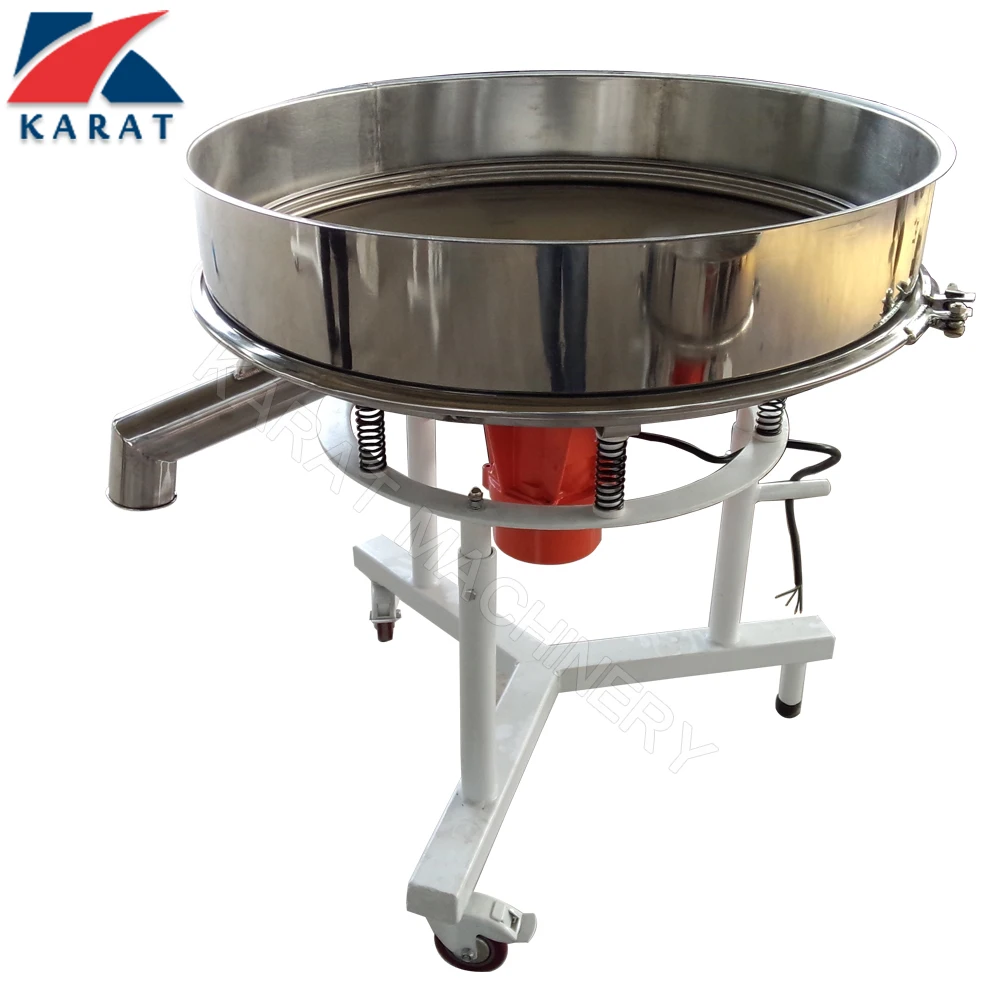

Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter
Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter
Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter
Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter
Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter
Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter
Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter

Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine vibro sifter

Share on (1600496589554):


Price:$1,000.00 - $3,500.00

Quantity:


Product Overview

Description



Products Description

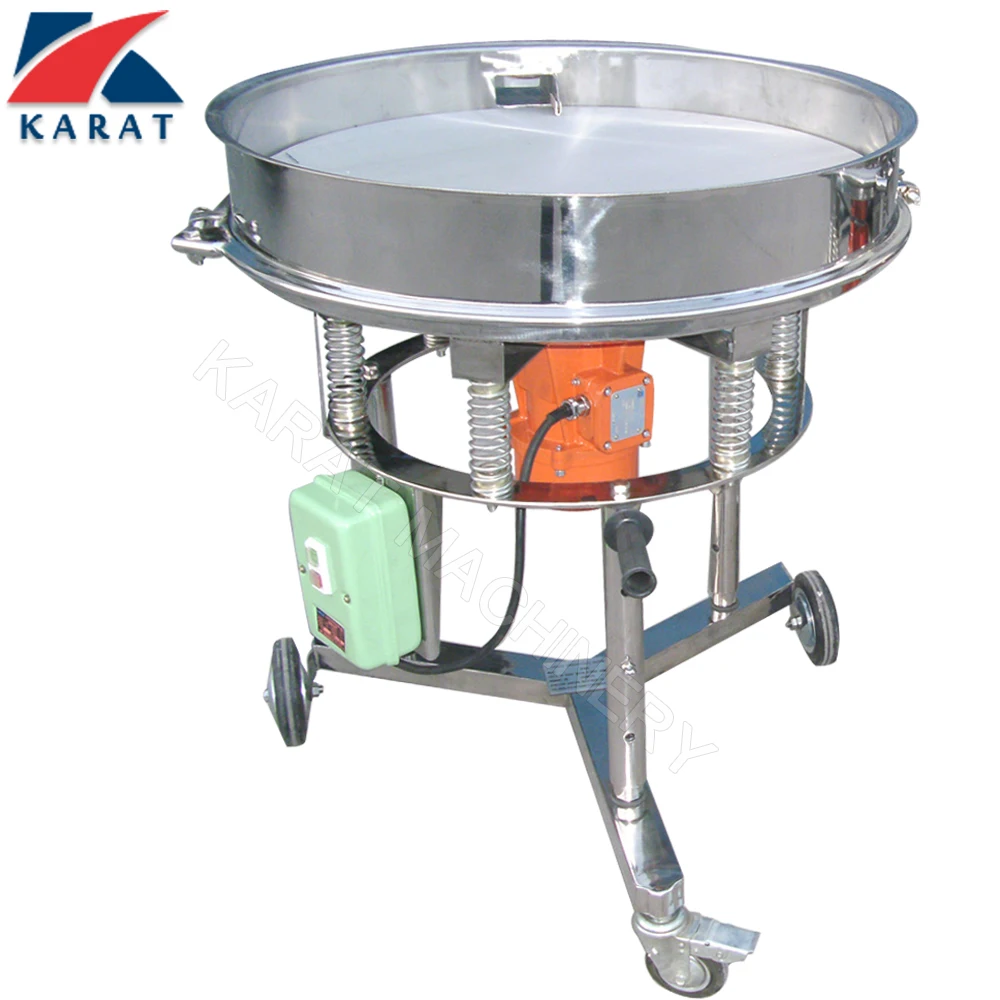

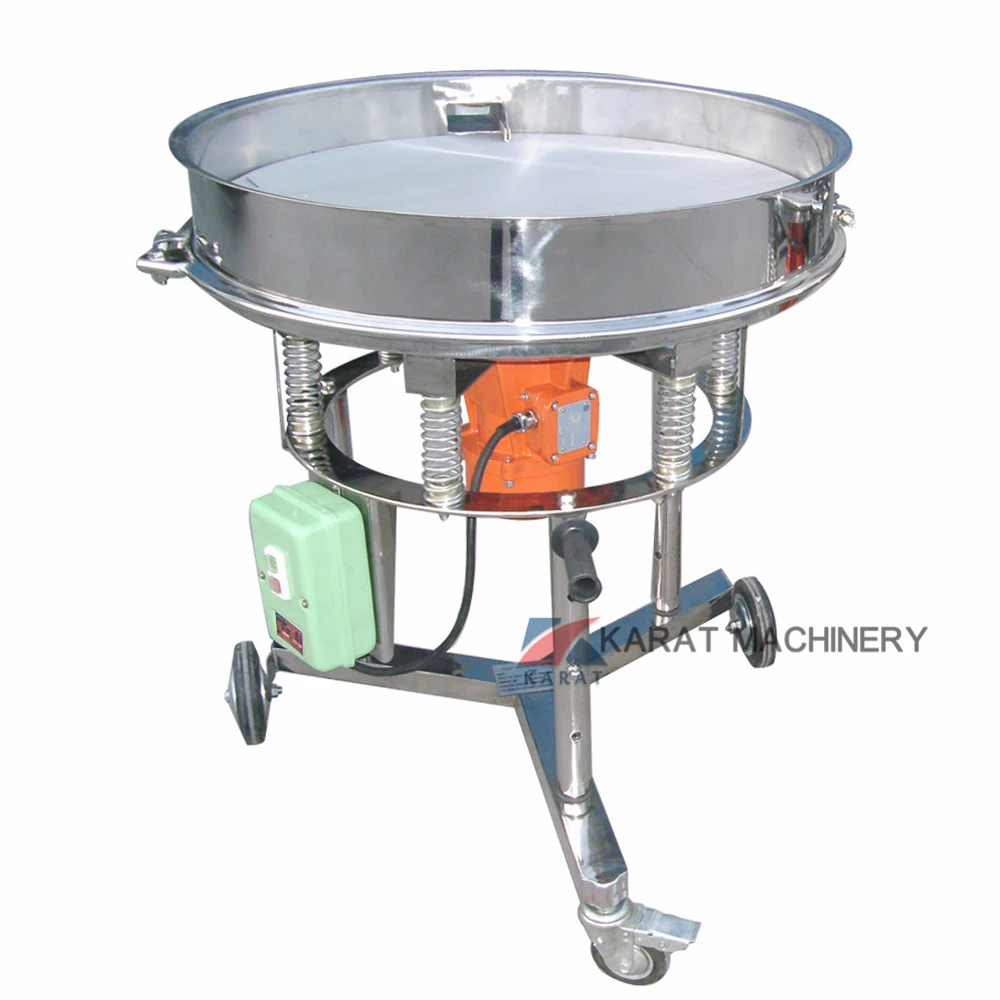

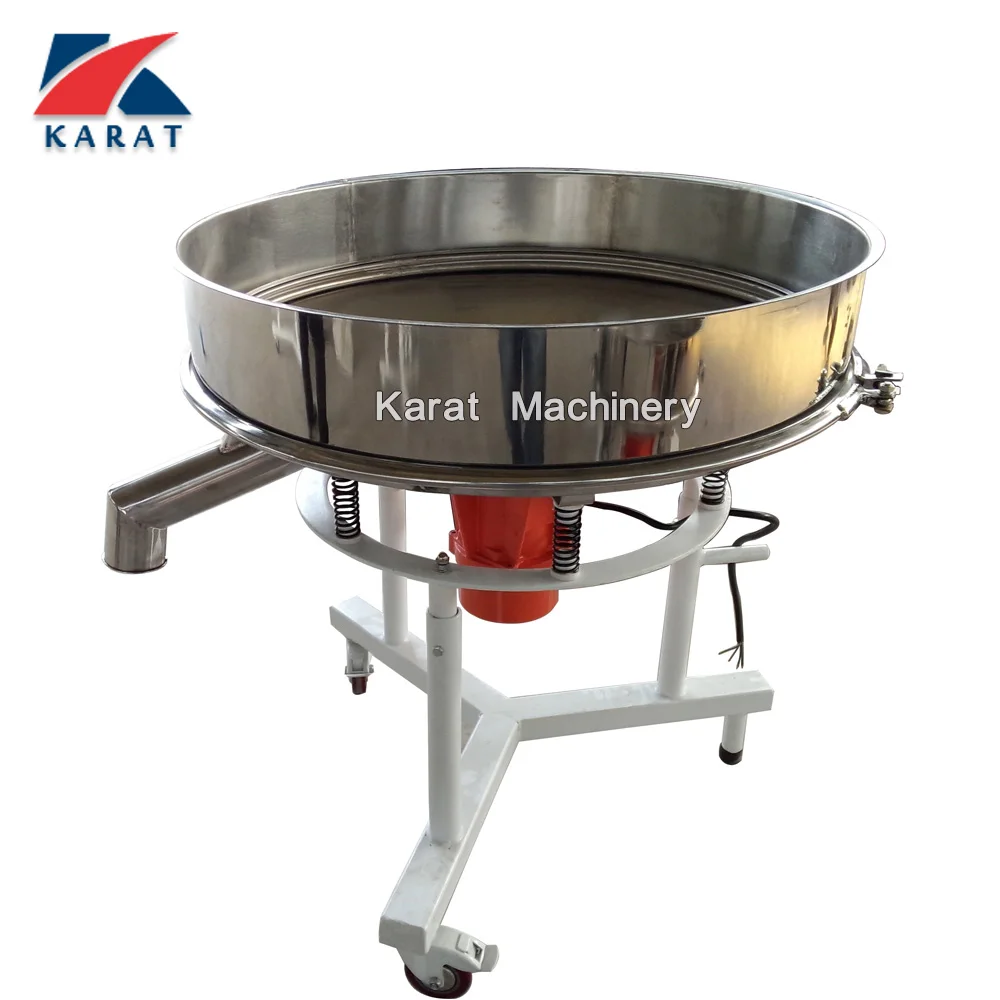

Coconut Water Milk Vibrating Screen Separator 180 Mesh Sieve Fruit Juice Filtering machine

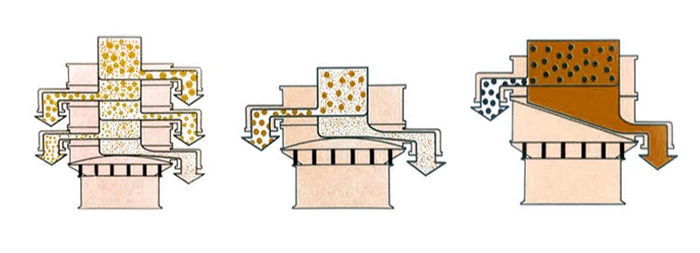

Powder Stainle Steel Rotary Round Separator Screener Coffee Screening Machine Vibratory Classifier Sifter Vibrating Screen Sieve is a new type and high precision fine powder sieving machine with characteristics of high efficiency & lower noise. Thefundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes therotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screensurface, achieving the purpose of classification, filtering and removal of impurities.




Material
Liquid
Model
φ1200mm
Screen mesh size
2mm
capacity
20t/h

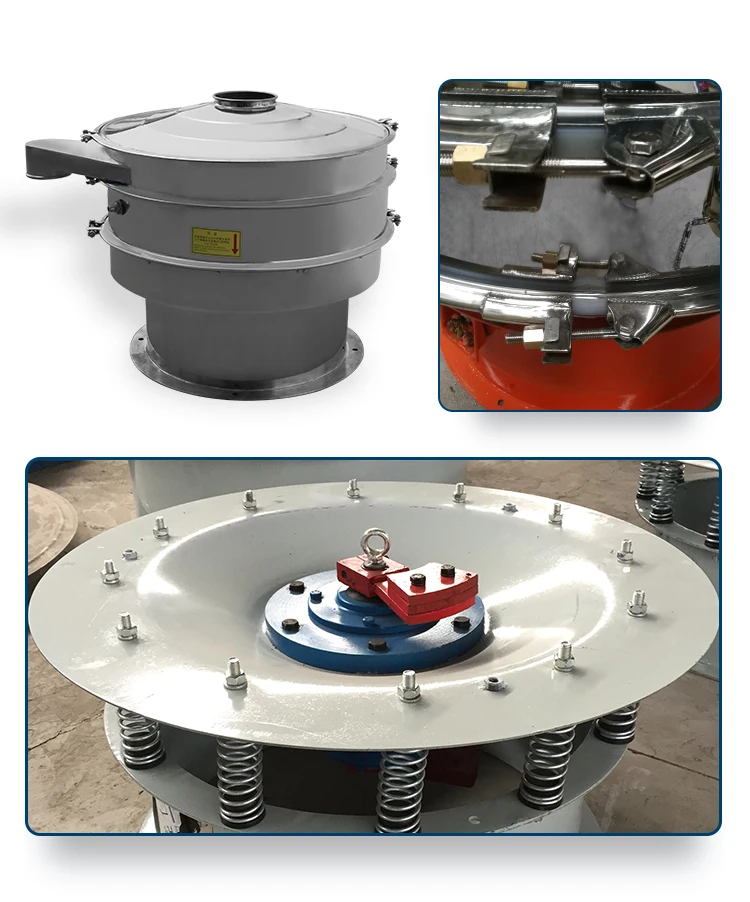

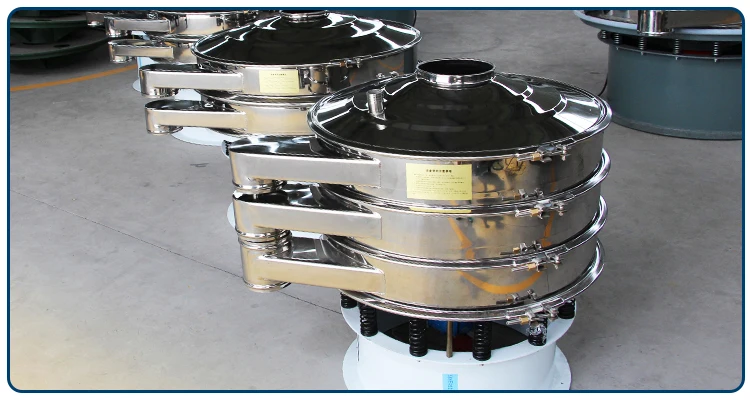

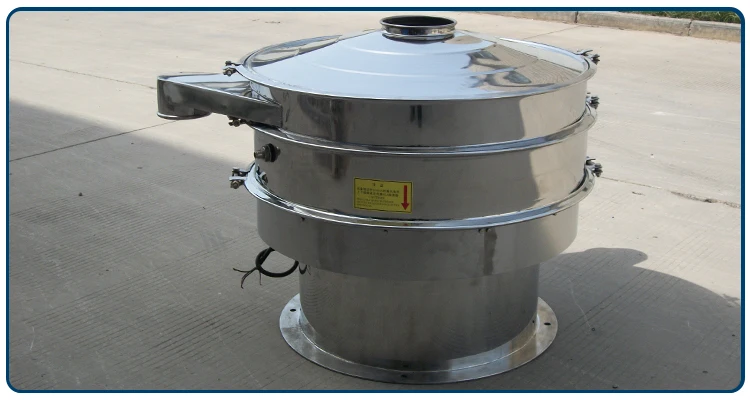

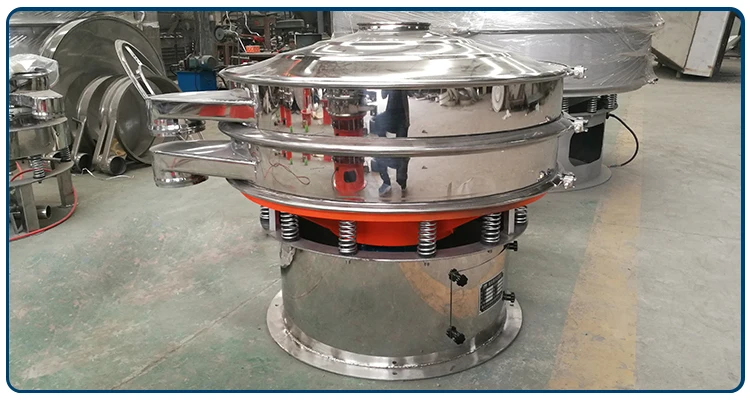

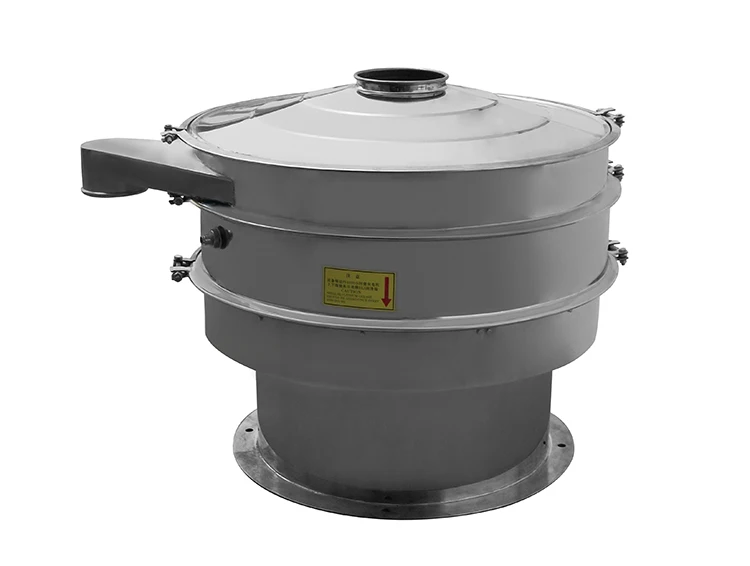

Details Images




Two kinds of cleaning methods


Cleaning method: shaking balls
Cleaning method: ultrasonic unit


Product Paramenters


The diameter of Rotary Round Screener Coffee Screening Machine Vibratory Sifter Vibrating Screen Sieve is 400-2600mm, and can beproduced to 6 layers.


Model
Power
(kw)
Diameter of screening surface (mm)
Layer
Mesh size
(mesh)
Frequency
(rpm)
XZS-400
0.18/0.25
350
1-3
2-500
1500
XZS-600
0.37/0.55
560
XZS-800
0.55/0.75
760
XZS-1000
0.75/1.1
930
XZS-1200
1/1.5
1130
XZS-1500
1.5/2.2
1430
XZS-1800
2.2/3
1760
 XZS-2000
3
1960


How To Choose Suitable Model?
1. If you have ever used the screen machine, kindly pls tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS.
2. If never use themachine until now, pls offer us the info about material as below:
2.1. Handling material? Bulk density?
2.2. Will you do a separation or dust-removal?
2.3. Production Capacity per hour(KG/H)?
2.4. How many Layers do you need? Mesh size of each layer?
2.5. Manufacturing material? (Stainless steel or Mild Steel)
2.6. Voltage(V), Frequency(Hz), Phase(P)?










Application photos




Powder Stainle Steel Rotary Round Separator Screener Coffee Screening Machine Vibratory Classifier Sifter Vibrating Screen Sieve are widly used in many industries as below:

1. Chemical industry: resin, paint, industrial drugs, cosmetics, paint, herbal powder and so on.
2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, etc.
3. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod
4. powder, manganesedioxide, electrolytic copper powder, Electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavycalcium carbonate, quartz sand, etc.
5. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon.
