Waterproof Male Female M8 Sensor Connector 5pin 3pin 4pin 6pin Cable Connector M8 M12 M16 M18 M20
- Category: Connectors & Terminals >>>
- Supplier: Dongguan,Dosin,Hardware,Electronics,Co.,Ltd.
Share on:
Product Overview
Description

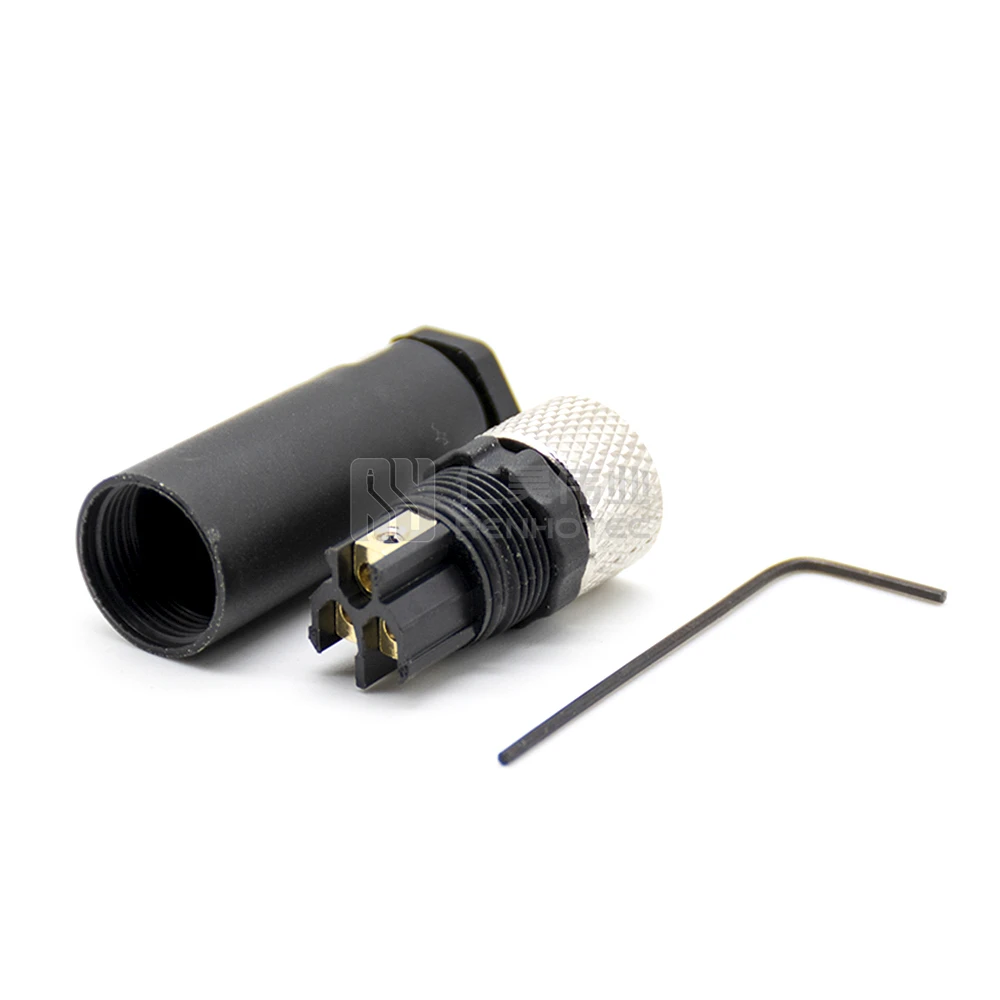

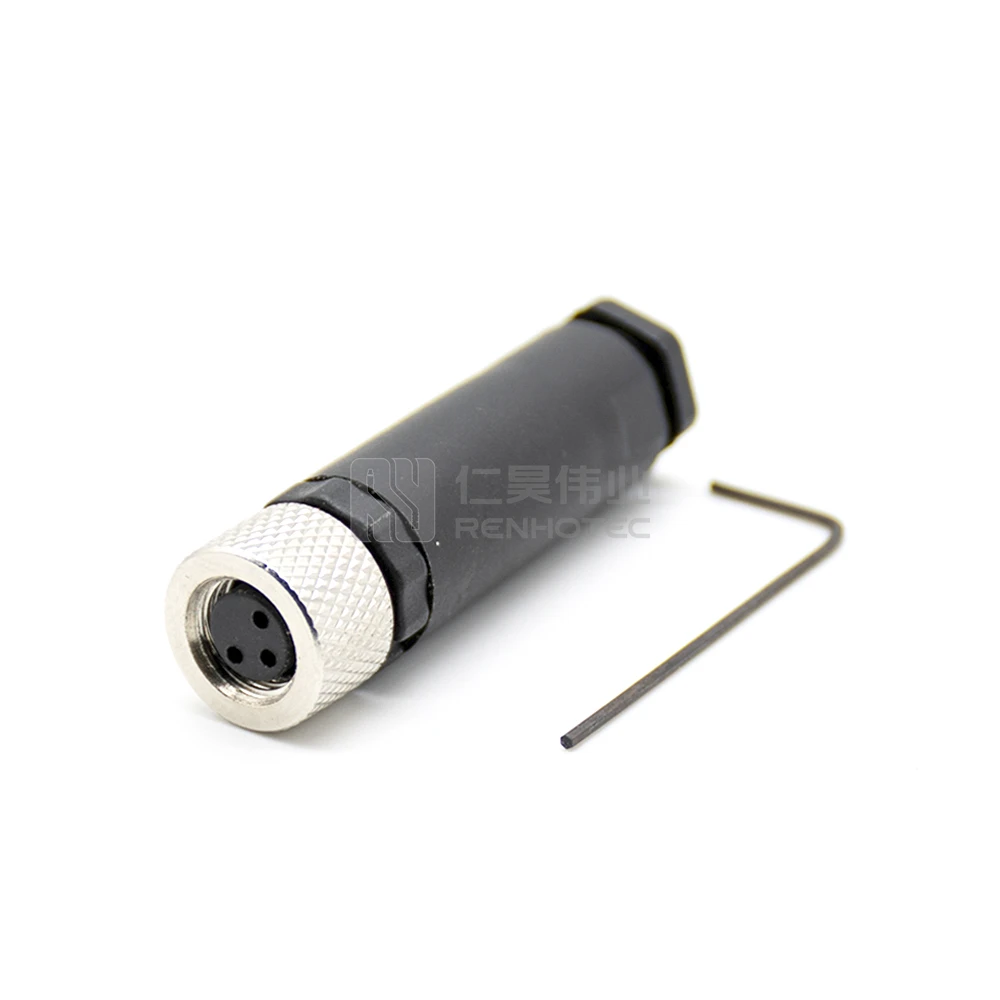

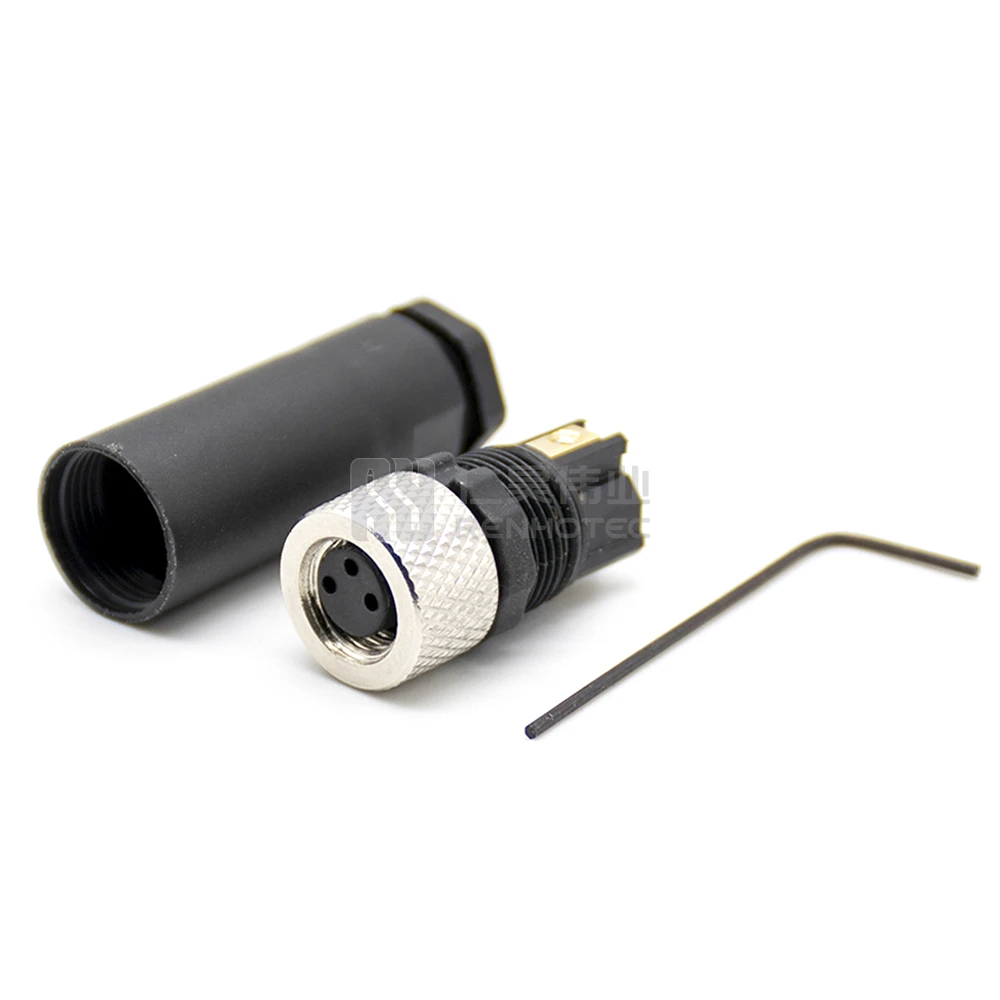

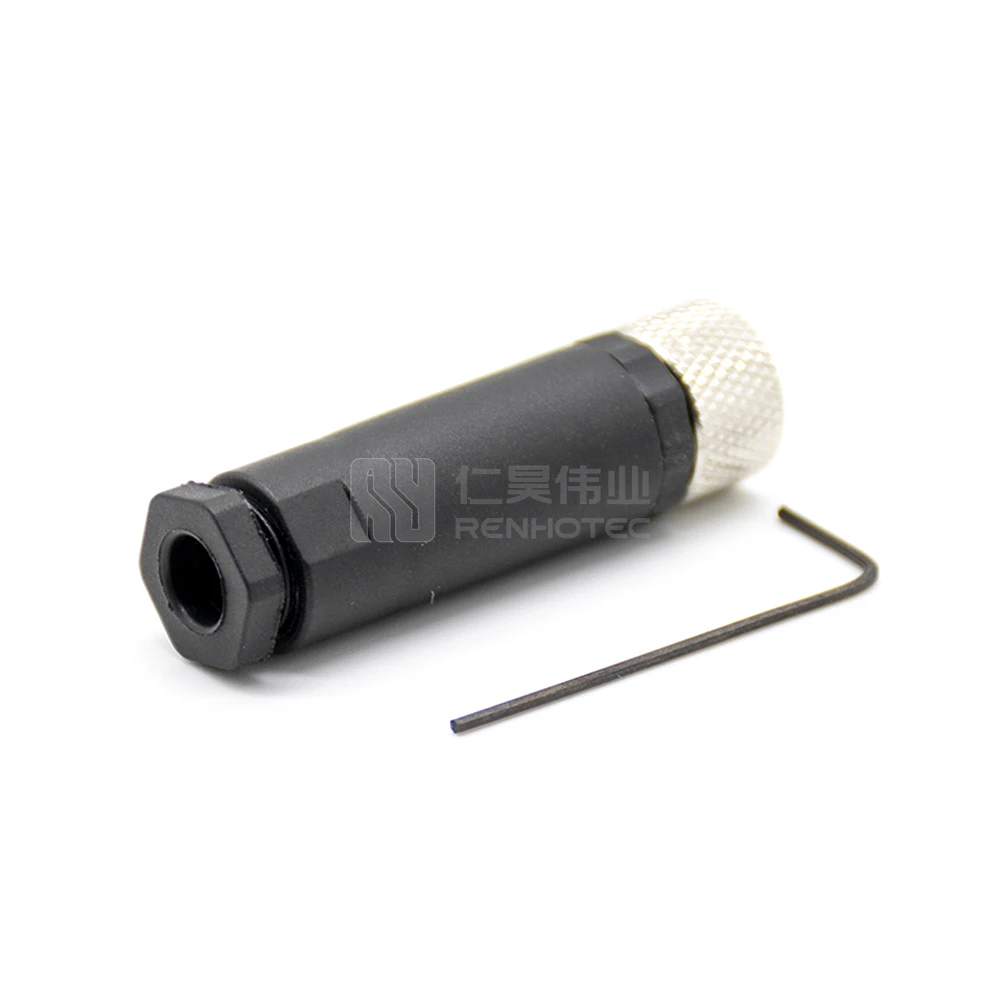

Waterproof Male Female M8 Sensor Connector 5pin 3pin 4pin 6pin Cable Connector M8 M12 M16 M18 M20
Product Description

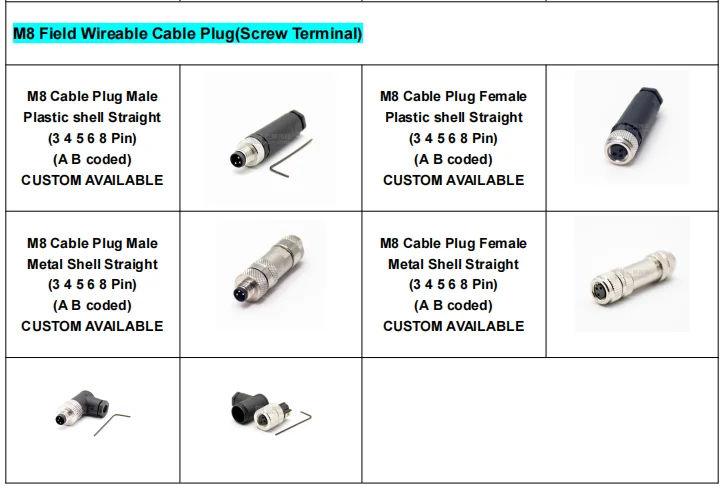

Full Series M8 Series Connectors
All types of M Series Connectors from OEM Manufacturer in China
Product Description
M8 Connectors series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Product Features
1. M8*1 thread locking mechanism, anti-vibration locking design;
2. Easy quick connect and disconnect coupling;
3. Pin configurations: 3,4,5,6,8 positions;
4. A, B coding available;
5. Shield and un-shield Version Available;
6. Meets IP67/IP68 waterproof requirements;
7. Temperature Range: -40°C ~ + 105°C.
| M8 Connectors | |
| Coding | A / B |
| Number of Positions | 3 / 4 / 5 / 6 / 8 |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Mounting Type | PCB Mount / Panel Mount / Cable |
| Termination Style | Solder Type / PCB Mount / Screw Joint |
| Mounting Feature | Front Mount / Back Mount / Cable |

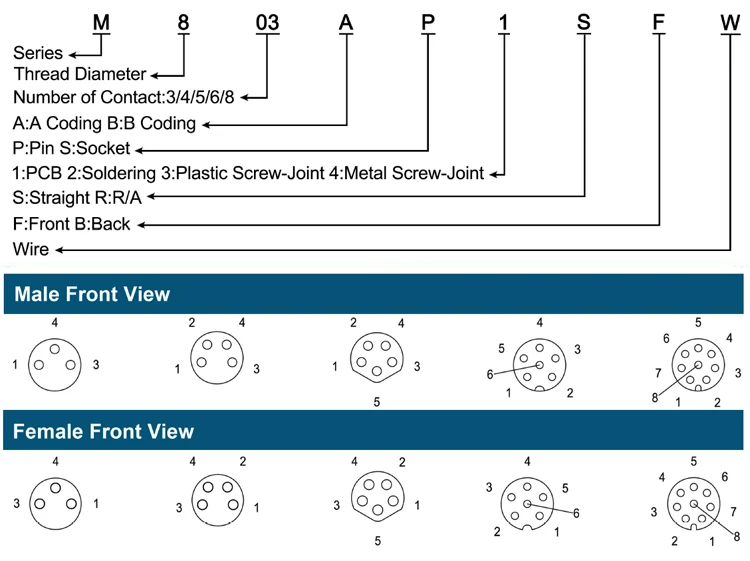

HOW to Order
