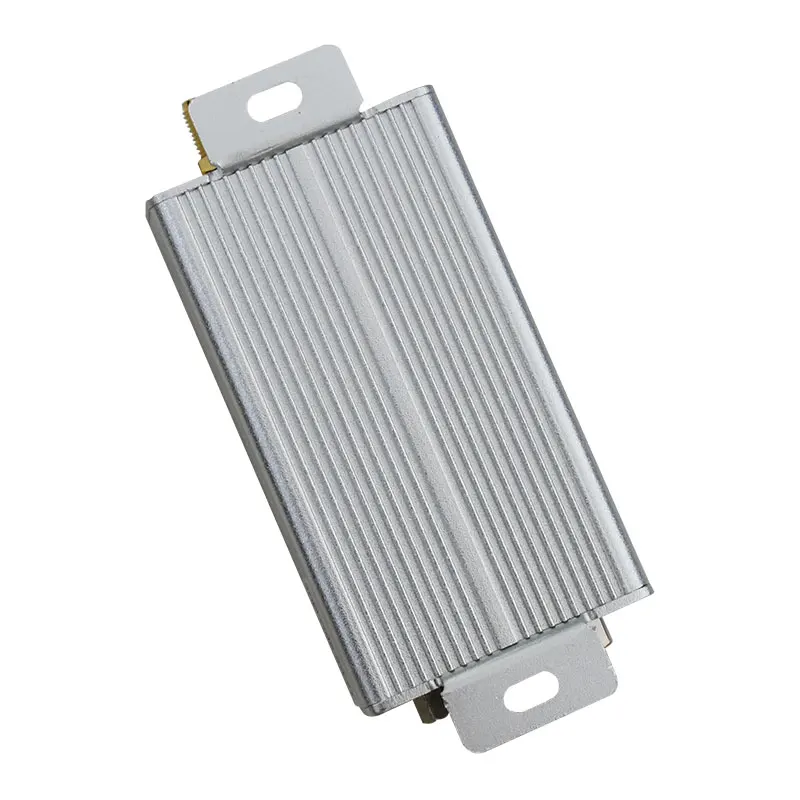

RS485 Lora Modbus Gateway for Lora Wireless Sensors
- Category: >>>
- Supplier: Shenzhen Thingsend Communication Tech Co. Ltd.
Share on (1600496734656):
Product Overview
Description
Product Description

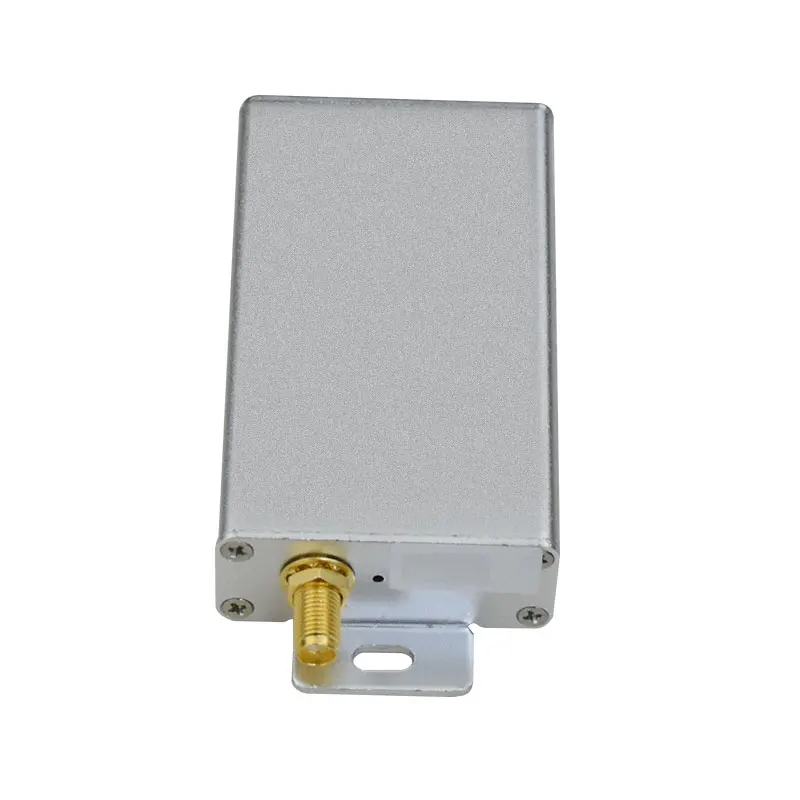

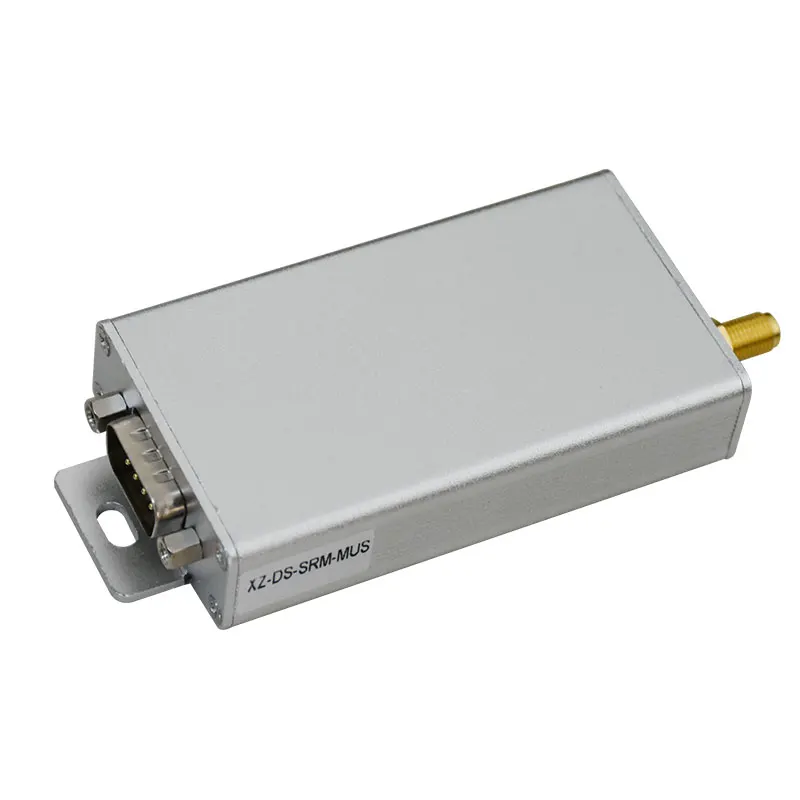

XZ-DS-MUS is a modbus gateway of the wireless sensor.

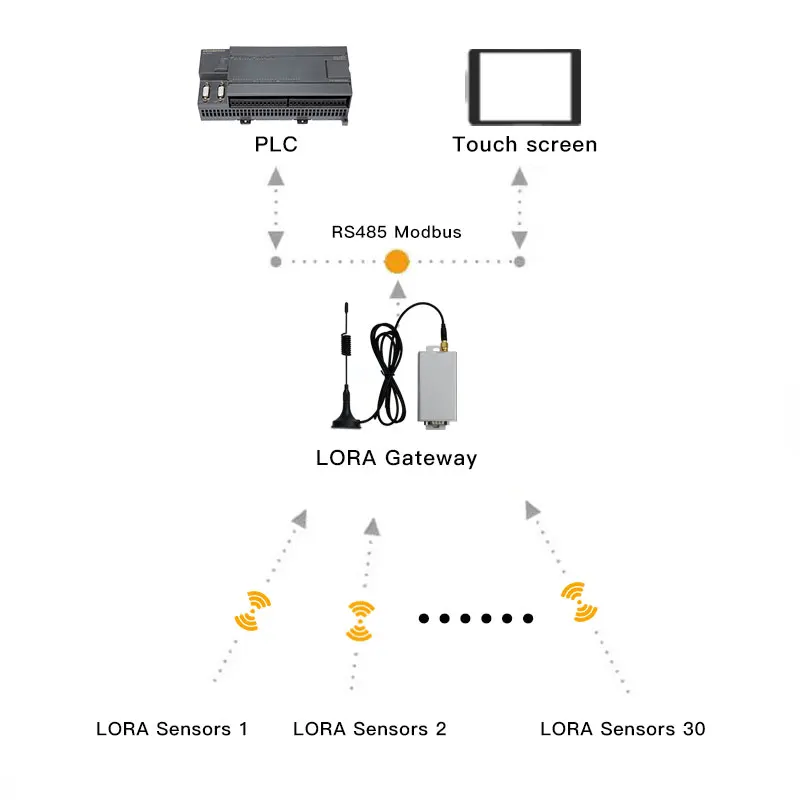

XZ-DS-MUS can receive lora sensor data and store it into the corresponding configured space then read out from the serial port through the MODBUS protocol.
Users can use XZ-Modbus-Tool-Lora tool software to configure, read and control the sensors.
XZ-DS-MUS can receive lora sensor data and store it into the corresponding configured space then read out from the serial port through the MODBUS protocol.
Users can use XZ-Modbus-Tool-Lora tool software to configure, read and control the sensors.
XZ-DS-MUS can directly read and control XZ-DS01-RCA(a remote controller) execution terminal.
XZ-DS-MUS can be bound to the relay output of the sensor terminal and XZ-DS01-RCA execution terminal. If the sensor terminal detects a parameter and alarms, XZ-DS-MUS can automatically control the relay of XZ-DS01-RCA execution terminal to be connected.
XZ-DS-MUS enters transparent transmission mode, and can perform transparent data transmission with RS485 port of XZ-DS01-RCA to expand applications such as sensors and PLC.
XZ-DS-MUS can be bound to the relay output of the sensor terminal and XZ-DS01-RCA execution terminal. If the sensor terminal detects a parameter and alarms, XZ-DS-MUS can automatically control the relay of XZ-DS01-RCA execution terminal to be connected.
XZ-DS-MUS enters transparent transmission mode, and can perform transparent data transmission with RS485 port of XZ-DS01-RCA to expand applications such as sensors and PLC.
Product Paramenters
Working frequency:470MHz default,433MHz/ /868MHz/915MHz customized | Working voltage:5~36V @ XZ-DS-MUS | ||||||
Transmitting power:<18dBm | Transmission distance:>2KM(Line of sight） | ||||||
Sensitivity:<-128dBm | Working temperature:-40℃～+80℃ | ||||||
Transmitting current:<120mA | Interface:9600bps，8N1， RS485 | ||||||
Receiving current:<40mA | |||||||

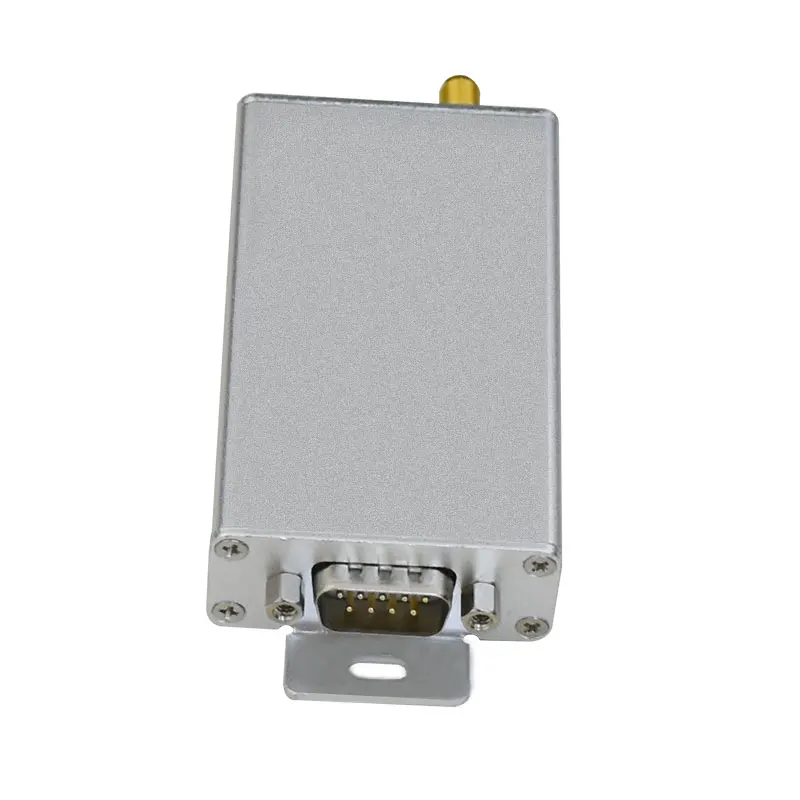

Pin Definitions
Pin Definitions | XZ-DS-MUS | Remark | |
DB9male connector | 1 | VCC (+5V) | 5～36Vcustomized |
2 | RS-232/RXD | ||
3 | RS-232/TXD | ||
4 | GND | power supply ground | |
5 | AGND | Signal ground | |
6 | RS-485/A | ||
7 | RS-485/B | ||
8 | |||
9 |
Recommend Products
Data Protocols
Please contact Sarah for detailed communication protocols. Email:sarah@thingsend.com
Company Profile
OUR ADVANTAGES
Packing
FAQ
Q1. Is Thingsend manufacturer or a trading company?
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
Q2. Can I customize the product?
A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported.
Q3. What's the delivery time?
A:For prototype, it will be sent within 5 working days after you have paid. For bulk orders, it depends on your order quantity.
Q4: What is the payment terms?
A: PayPal, Western Union and T/T are preferred.
