B25 224 or 825 224 replacement bearing for servo motor, 25x62x16, Ceramic Ball, P4 grade

Product Overview

Description

Reliable Replacement Bearings for Fanuc Servo Motor

The bearings have been widely used for Samsung or the Foxcoon repairing. The fretting resistant & long-life servomotor bearings are utilized where precise motion control is vitally important. Filled with high performance grease these bearings reduce fretting damage caused by microvibrations resulting in extended bearing life.
B25-224-2RS TN24 TP4 Servo Motor BearingsProduct Features

• Excellent oxidation and heat stability
• Excellent rust prevention
• Excellent low temperature characteristics
• Low noise
• Negligible effect on rubbers and plastics

Condition Description  • Corrosive Environment • High Accuracy • Vibration Industries  • Automotive • Domestic Appliances • Electric Motors • Material Handling

Benefits
• Superior grease properties extend high temperature service life 1.5 times
• Restricts fretting corrosion
• Low torque/minimal power loss even at low starting temperatures
• Quieter servomotor operation, less vibration
• Excellent bearing corrosion protection in humid conditions
Application:
Fanuc Servo Motor for Foxconn or Samsung

Item	C&H

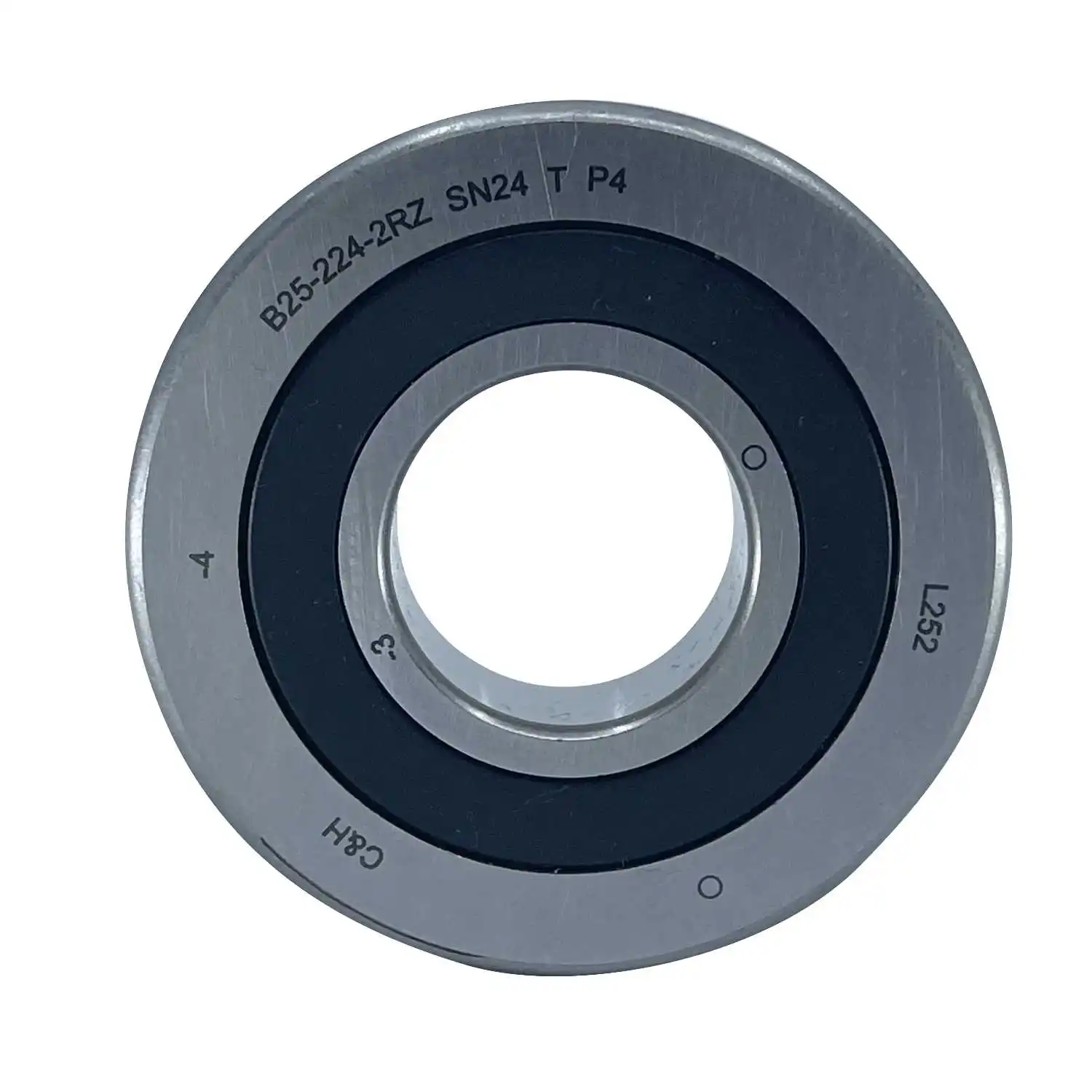

Bearing Code	B25-224-2RZ SN24 TP4
Brand	C&H
Rings Material	GCr15 ultra clean bearing steel ( equivalent to 52100 and 100Cr6)
Cage Material	Nylon (  BASF )
Balls Material	Ceramic balls (Si3N4, G5 grade)
Sealing Solutions	NBR seals ( Nitrile rubber imported from Japan )
Grease	High performance grease
Bore Diameter	25 mm
Outside Diameter	62 mm
Width	16 mm
Weight	0,275 kg
Basic dynamic load ratings	20600 N
Basic Static load ratings	11200 N
Limiting speed	16100 1/min
Tolerance	P4 ( ABEC-7 )
MOQ	100PCS
Delivery	7-15 days
Unit Price	US$43.99



Bearing Code	Bore  diameter d mm	Outside  diameter D mm	Width B mm	Basic dynamic  load ratings Cw kN	Basic static  load ratings Cow kN	Liming  speed grease	Weight kg	Interchange NSK	Interchange GMN

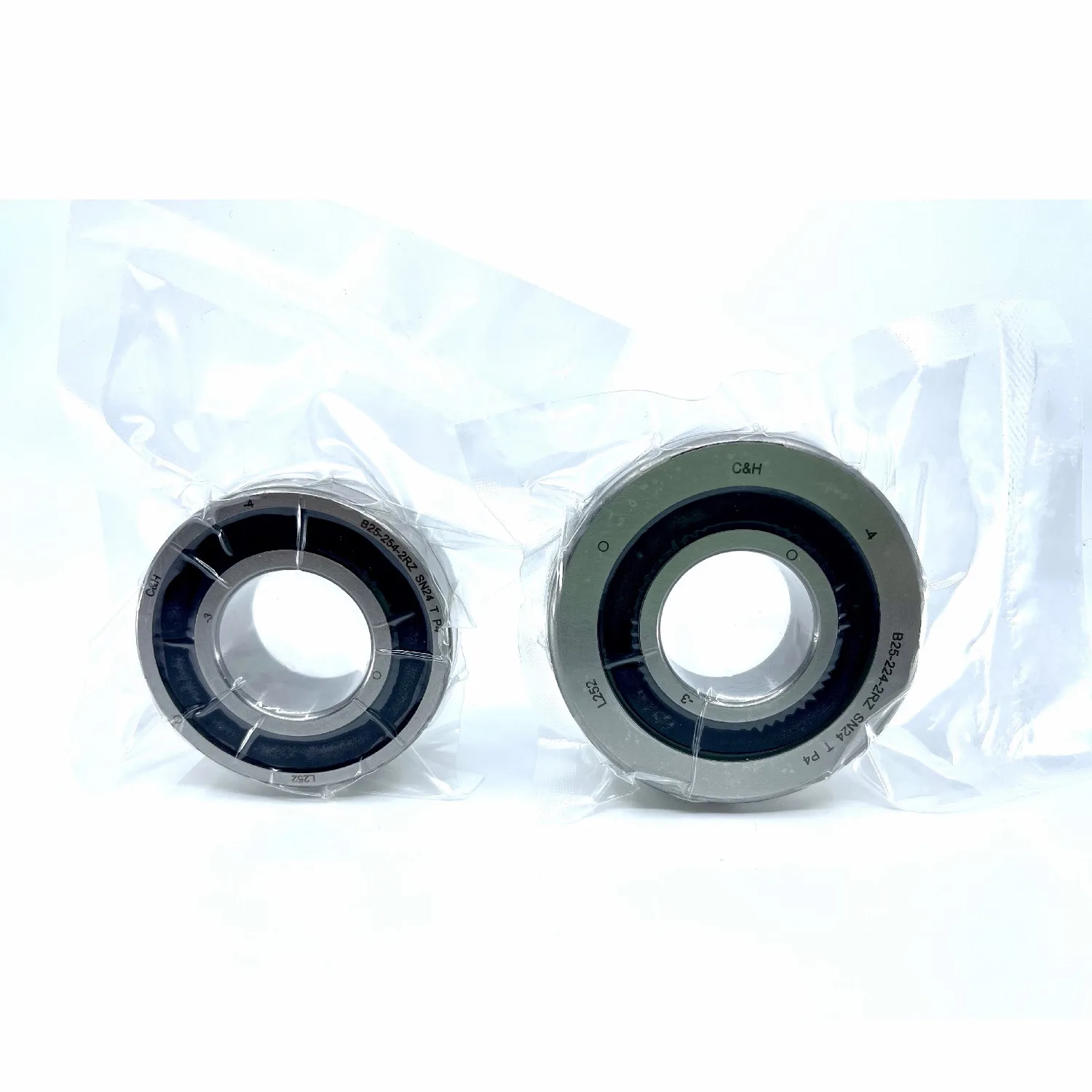

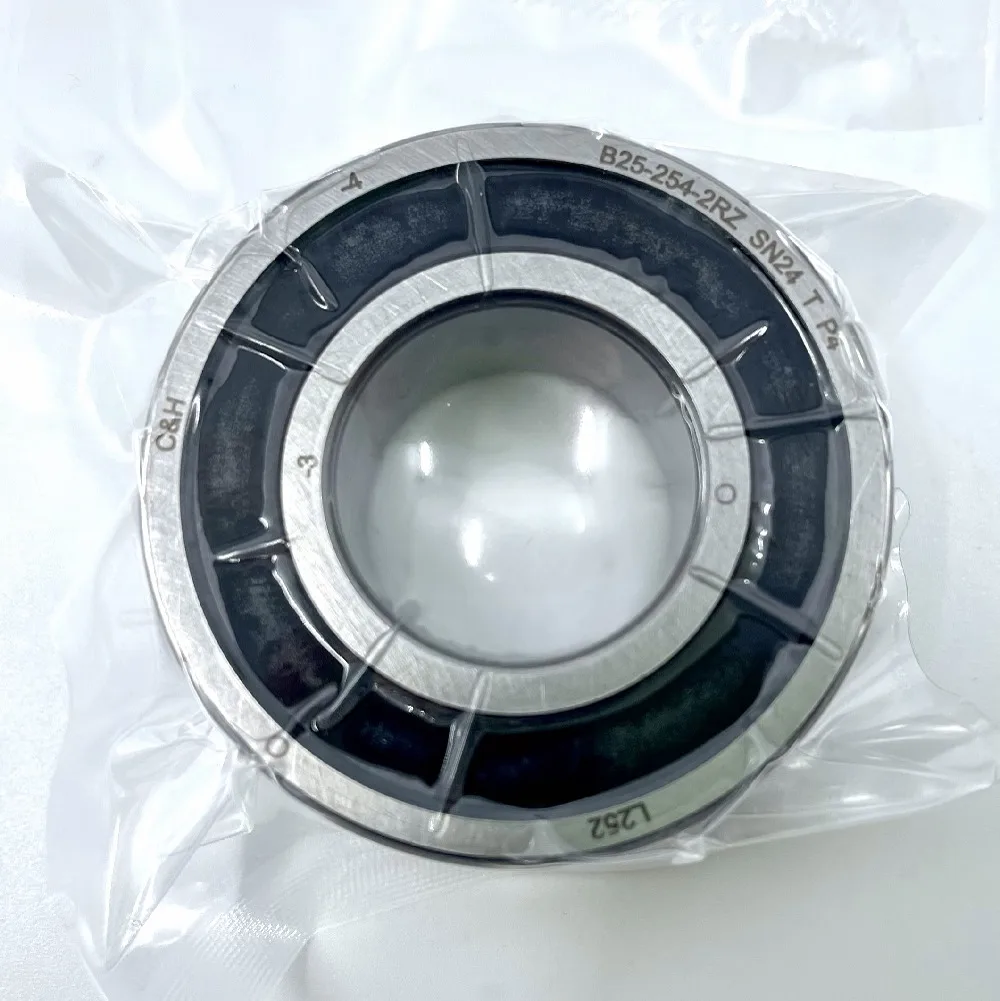

B25-254-2RZ SN24 TP4	25	52	20,6	14	7.85	18200	0.205	B25-254 VV
B25-224-2RS SN24 TP4	25	62	16	7.93	11.86	16100	0.275	B25-224 VV
40BNR10X	40	68	15	10.6	7.95	29000	0.204	40BNR10X
45BNR10X	12	45.72	15.88	11.7	9	27000	0.246	45BNR10X
HY KH 6008 2RZ C	15	59.94	19.05	25.4	34.93	29000	0.204	40BNR10XV1V	HY KH6008
HY KH 6009 2RZ C	22	75.39	25.4	31.75	44.45	27000	0.246	45BNR10XV1V	HY KH6009



QTY	1 PCS	10 PCS	50 PCS	100 PCS
Shipping Weight	1 kg	3 kg	14 kg	28 kg
China(RMB)	452	3161	15053	28672
Taiwan(USD)	97.29	510.96	2294.29	4375.67
Korea(USD)	97.29	510.96	2294.29	4375.67
Vietnam(USD)	97.29	510.96	2294.29	4375.67
Malaysia(USD)	97.29	510.96	2294.29	4375.67
India(USD)	103.01	528.42	2379.52	4468.84
Poland(USD)	94.28	521.91	2390.16	4531.38
Hungary(USD)	94.28	521.91	2390.16	4531.38
Czech(USD)	94.28	521.91	2390.16	4531.38
Slovakia(USD)	94.28	521.91	2390.16	4531.38
USA(USD)	88.41	512.39	2390.48	4545.67
Mexico(USD)	88.41	512.39	2390.48	4545.67





C&H is a hgih quality bearings suppliers. We have skillful and training team. Most of them have over 20 years experience.The quality control covers pre-sales aduit, process control, final product re-inspect and after-sales services. The strict and complete process ability and quality control can guarantee to supply top-class product and service.The skillful engineer team can supply great support in technical and help customers to develop all kinds of new products.

 our products will be delivered by a papaer box with a complete and perfect angle as well as surface.
