The HF series are digital force gauge with compact size, high accuracy, They are easy to operate and handy to carry out.
Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.
High precision and high resolution.
Five testing modes and three display methods for selection N (Newton), kg (Kilogram) and Ib (Pound) three measuring units for selection and conversion.

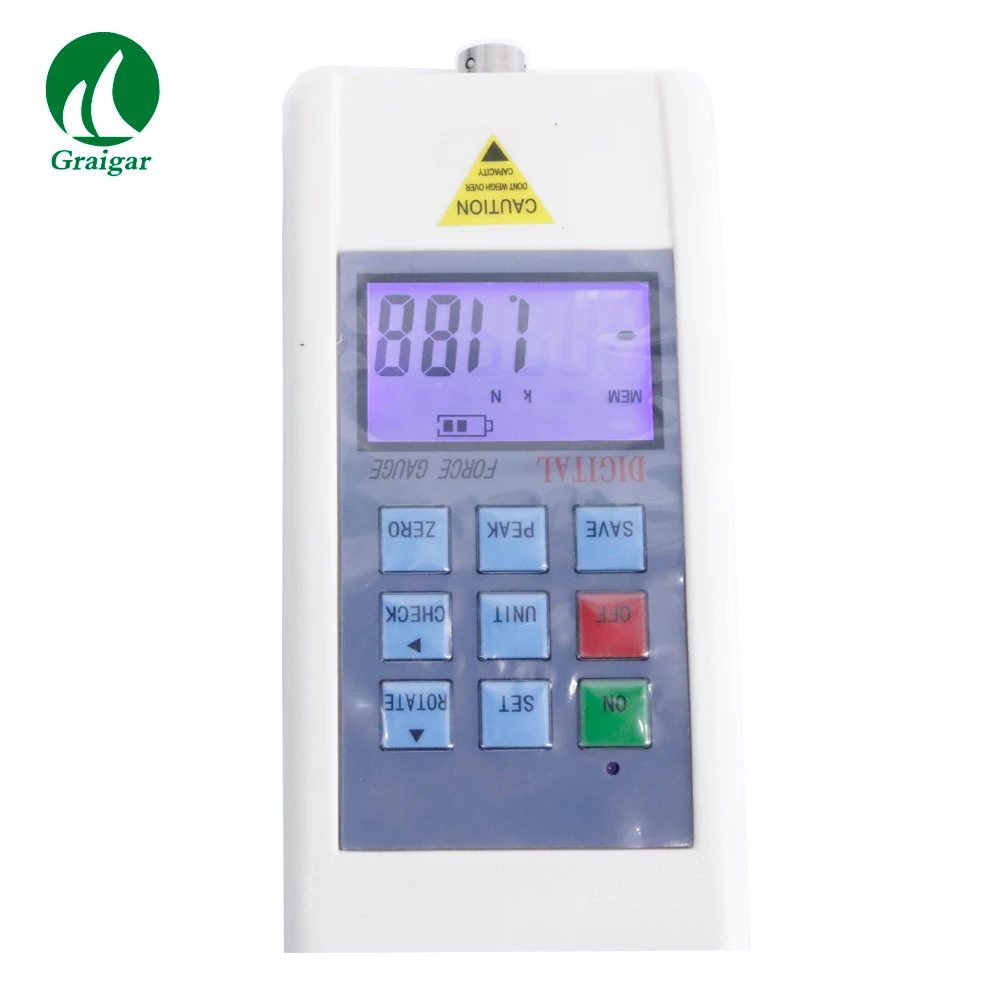

6 digits large screen display.
Setting function of gravity acceleration
Max. and min. and comparison value can be setted for statistic analysis.
Data storage function. 896 testing values can be stored.
Data output function. The data can be input into computer through data line for various analyses.
LCD overturn display
Automatic PEAK function
Automatic storage test value function
Negative phototropism function
Printer function:this function can print the stored data through computer by USB.
Synchronous test function
Solve overload instruction
Peak load value
load division value
N / (KN), kg / (Mg or t), lb (KIb)
RS232 nine-hole socket

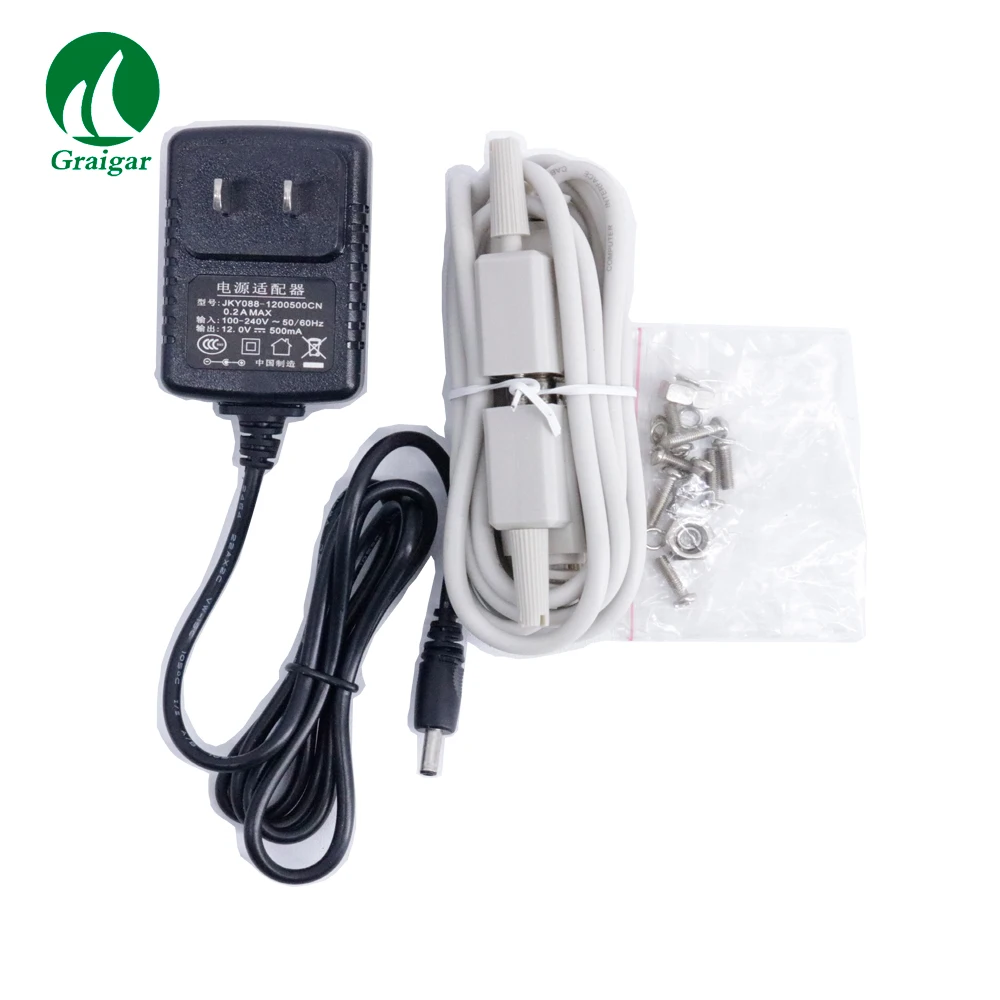

rechargeable batteries, charger(charging voltage 100V-240V)

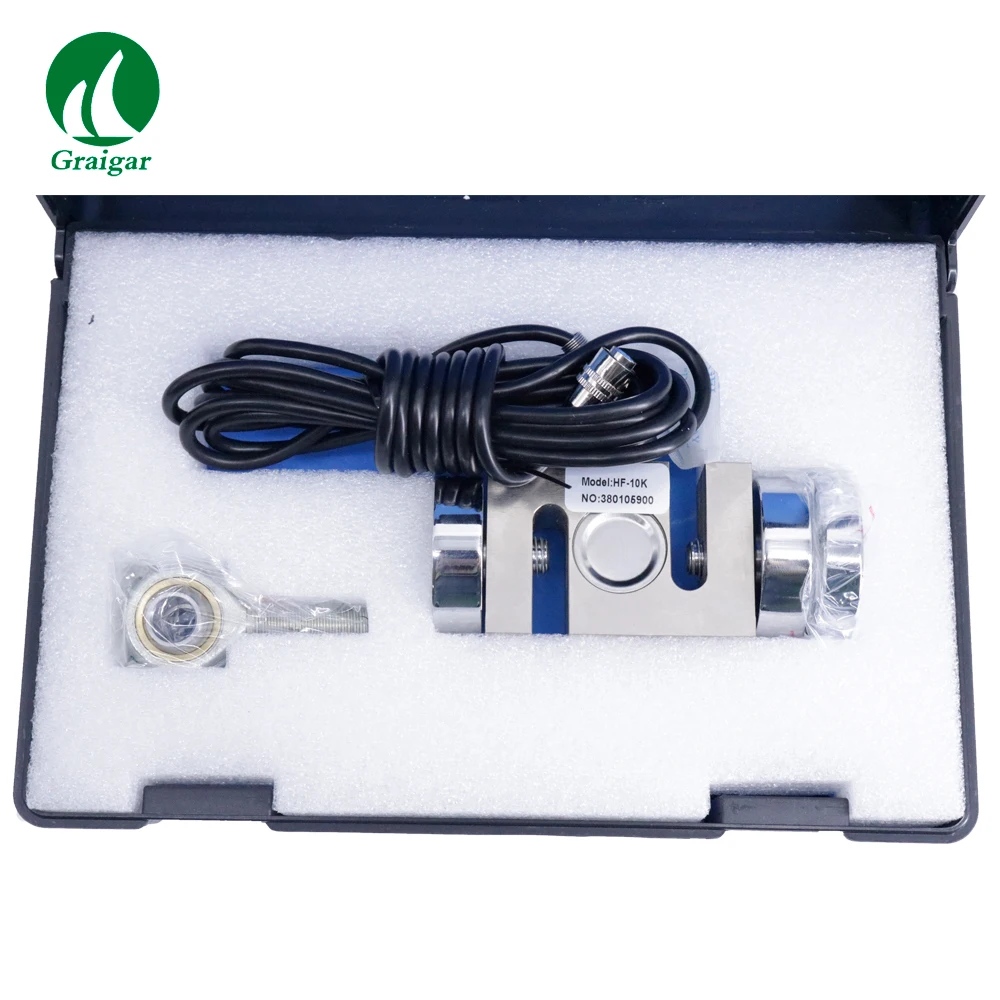

S-tye external sensor(standard), optioal Spoke type sensor
5° C~35° C
-10° C~60° C
No hypocenter and corrosive medium
280* 200 *170 mm
